Focuser TS-Optics Optics Newtonian Newtonian Crayford 3", dual speed

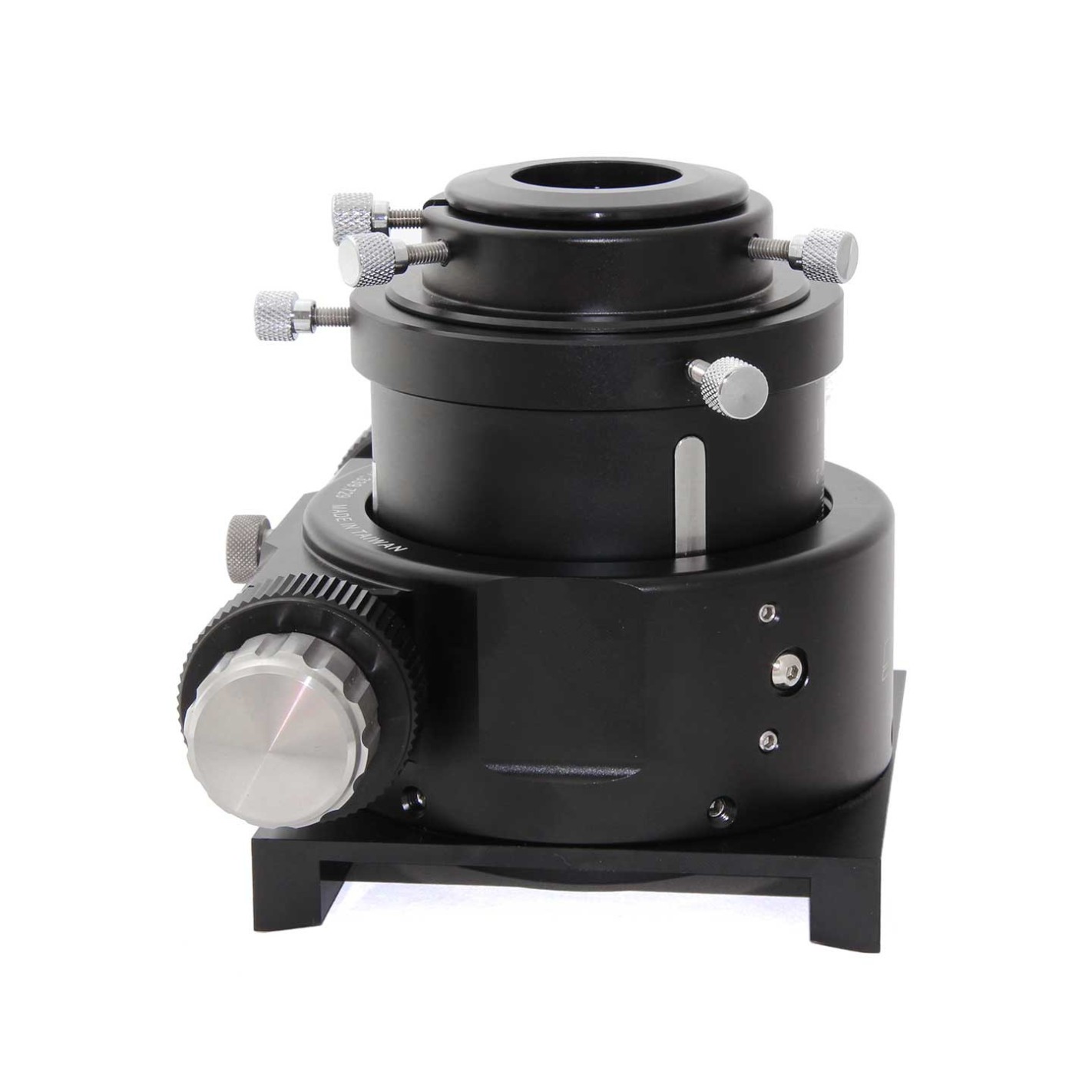

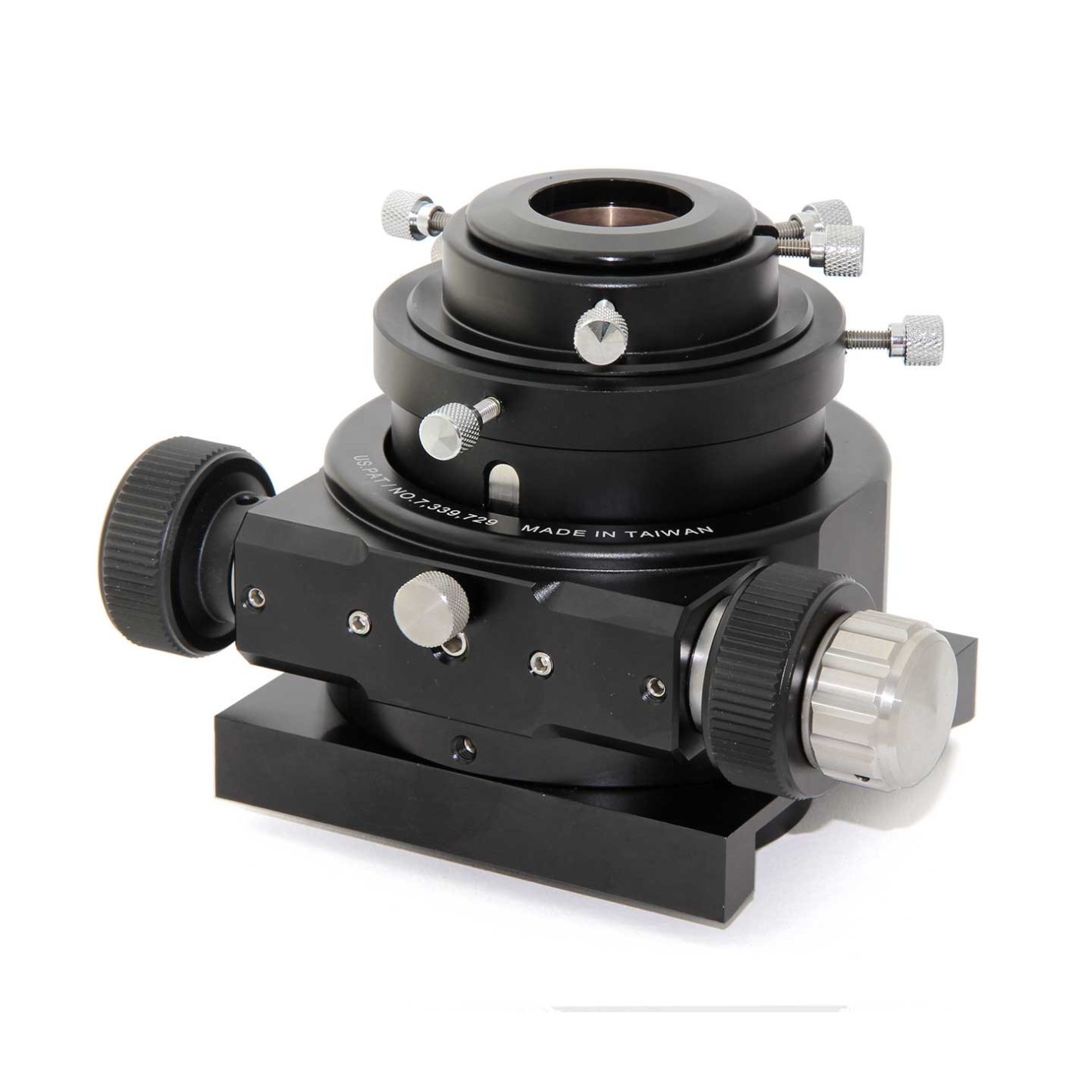

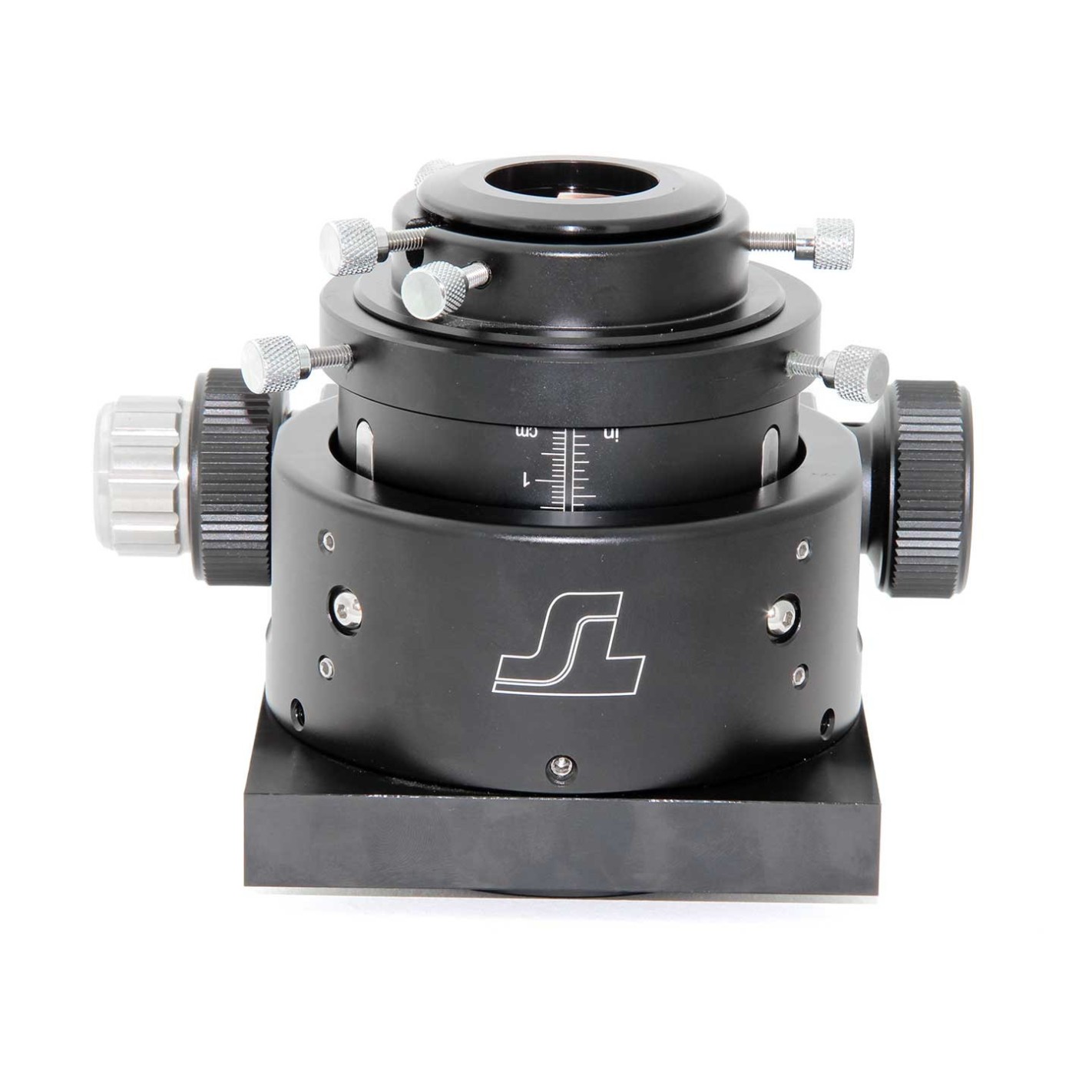

TS-Optics UNCN3 3" Crayford focuser for Newtonian telescopes

The focuser TS UNCN3 convinces with its high-quality workmanship:

The focuser is designed for high loads and best possible precision at the same time. Especially in astrophotography, high focuser precision is demanded.

• The steel ball bearings are oversized.
• As a counterpart to the ball bearings, a V2A stainless steel plate is used. Even at maximum load, the adjustment is smooth.
• The maximum load of the focuser is 6 kg, with total precision and smoothness.
• The 1:10 transmission is made of professional quality V2A sttel.
• The focuser offers compression rings for 3", 2" and 1.25" attachments.
• The drawtube accepts 3" accessoiries in its full length, no bottelneck blocks the passage.
• The draw tube is provided with an anti-reflective thread.
• In addition, there is an auxiliary M82 thread on the drawtube to permanently install M82 filters, for example.

Motorfocus

The USB_FOCUS_SET and USB_FOCUS_SET-H can be easily adapted to the UNCN3 focuser using the BR-UNCN3.

The USB_FOCUS allows motorized focusing and even full remote operation.

Short Crayford focuser with compression ring for 3" and 2" accessories - supports accessories up to 6 kg.

• Only 80 mm height up to 3" attachment and 95 mm up to 2" attachment.
• With flexible base - suitable for newtonians from 8" opening.
• Generous 40 mm drawtube adjustment range.
• Ideal for astrophotography with 3" correctors from ASA, TeleVue or TS Optics.
• Best stability through oversized ball bearings and a V2A stainless steel plate as counterpart.
• Integrated 1:10 dual speed transmission.
• Motorfocus optionally available.

Technical data:

• Weight: 1200 g
• Shortest length: 80 mm at 3" clamping and 95 mm at 2" clamping
• Drawtube adjustment range 40 mm
• Thread on the side end of the drawbar M82x1 female
• Connection to newtonian telescope tube: through base - suitable for newtonians from 220 mm tube diameter to a flat support surface.
• Connection on eyepiece and camera side: 3" compression ring, 2" compression ring and 1.25" compression ring
• Dual-speed focusing: yes
• Base: 114x114 mm with M6 female thread - 100 mm longitudinally to the tube and 99 mm transversely to the tube

In the box:

• Newtonian focuser TS UNCN3

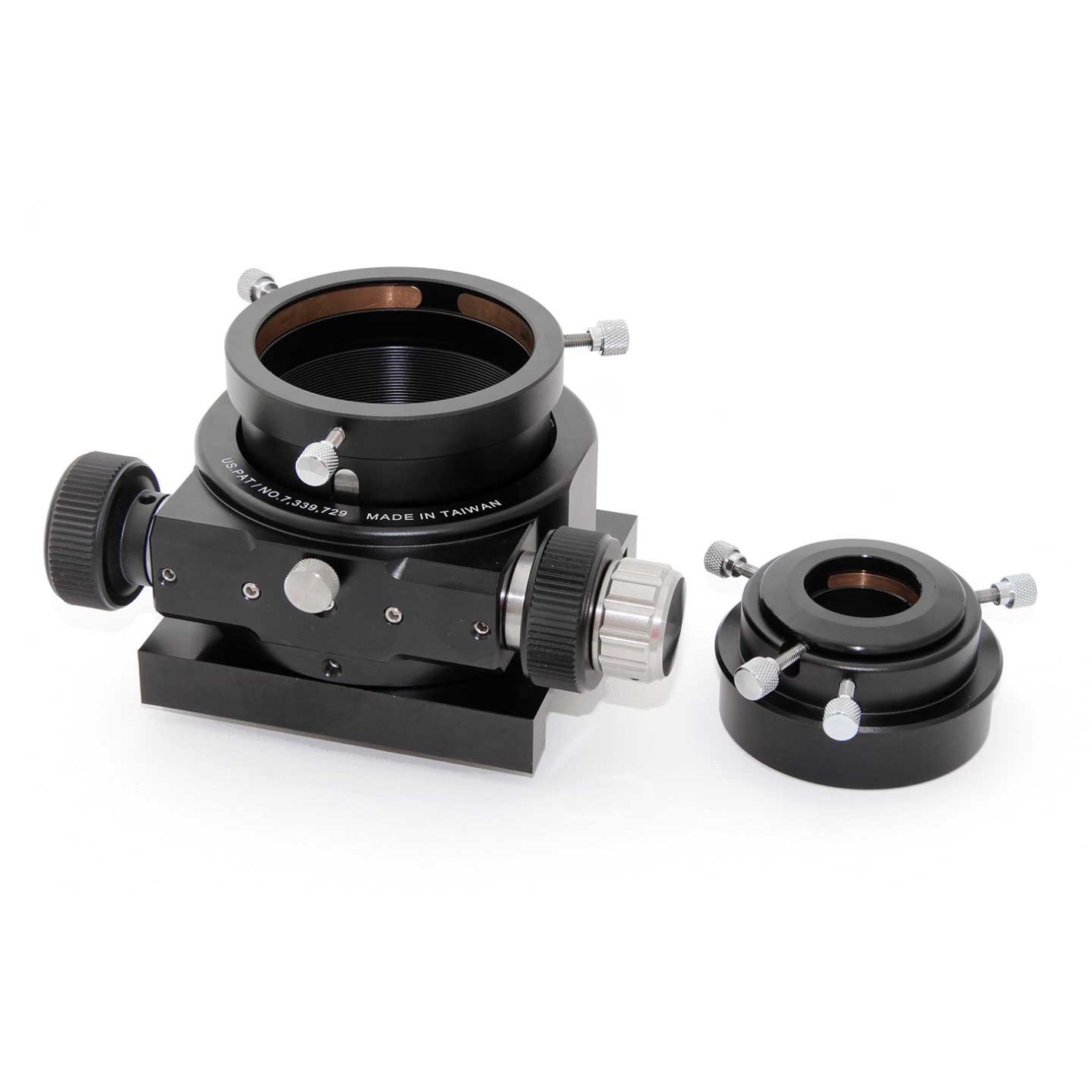

• Reduction from 3" to 2" and from 2" to 1.25".
• Base for Newtonian telescopes
