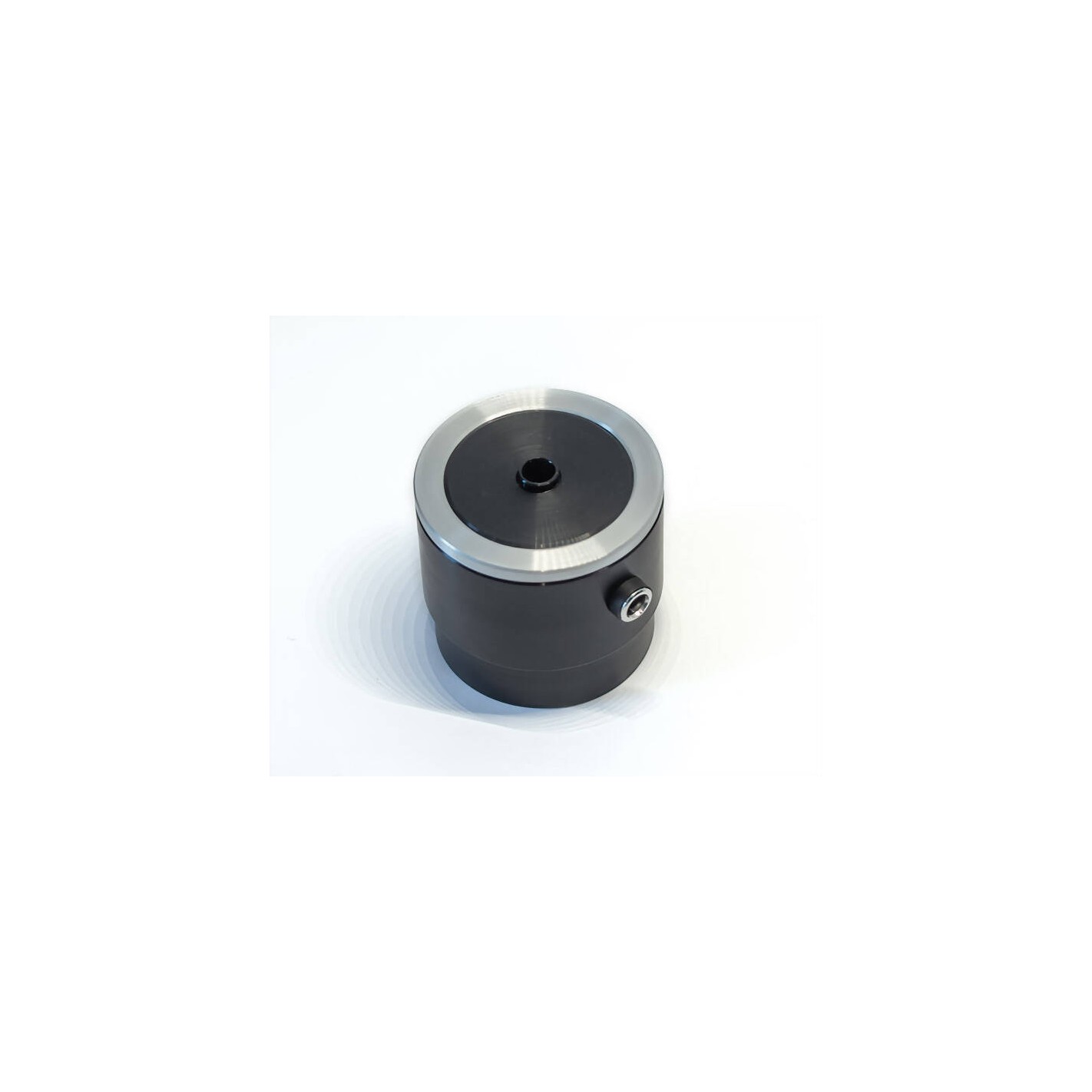

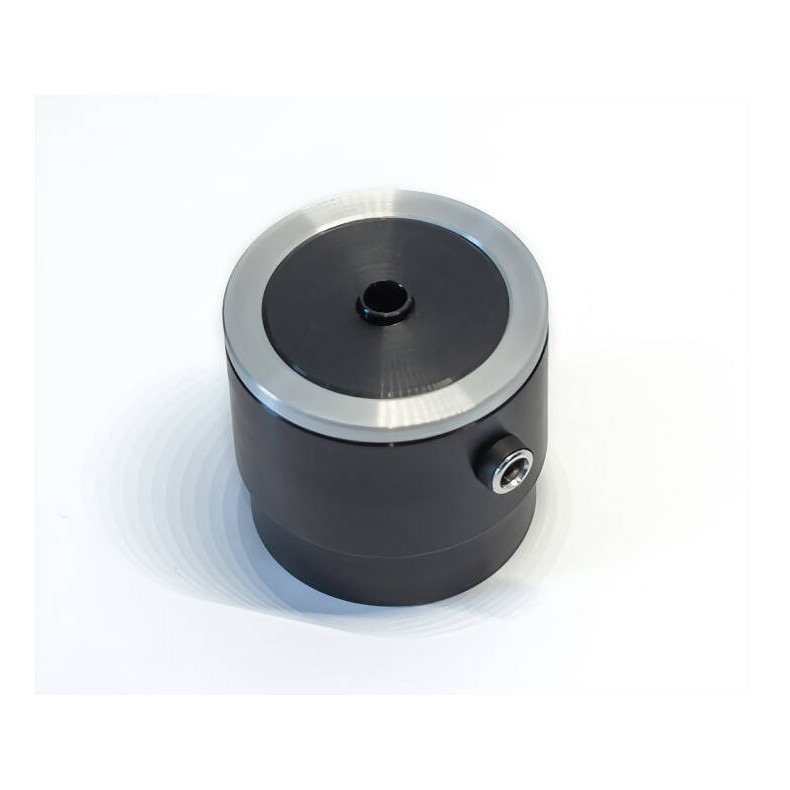

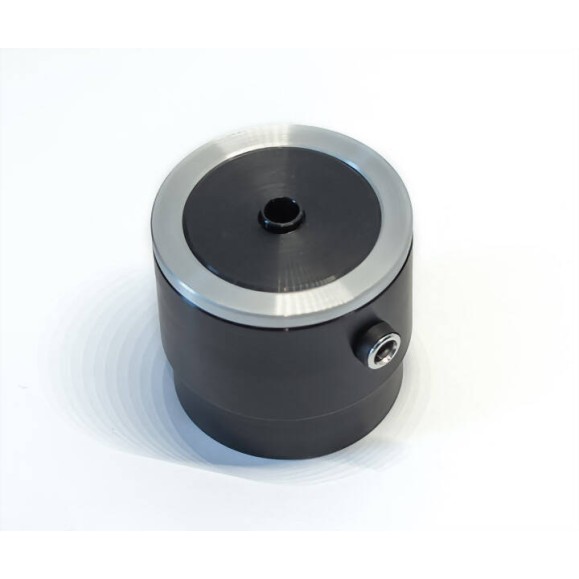

Colimador LED DeLuxe TS-Optics 2" para telescopios RC y refractores

DeLuxe LED Collimator TS-Optics 2" for RC and refractor telescopes

TSRCKOLLI 2" LED Collimator for nearly all telescope types

The collimator is compatible with almost all common optical systems and allows precise collimation during the day. In particular, we recommend the collimator for all Cassegrain telescopes such as Schmidt-Cassegrain, RC, Dall-Kirkham and similar telescope types. The collimator is very precise and the collimation result is largely independent of the inclination.

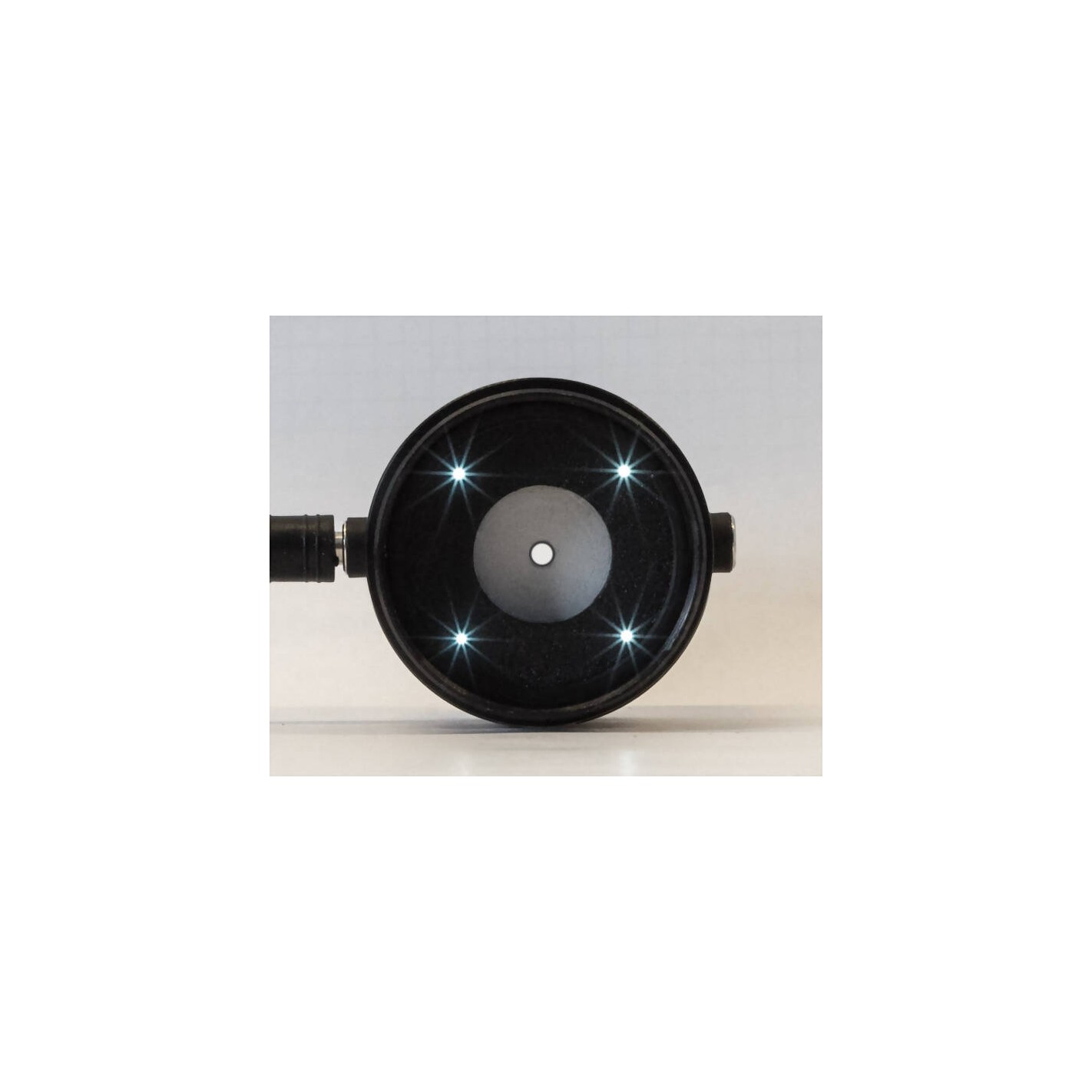

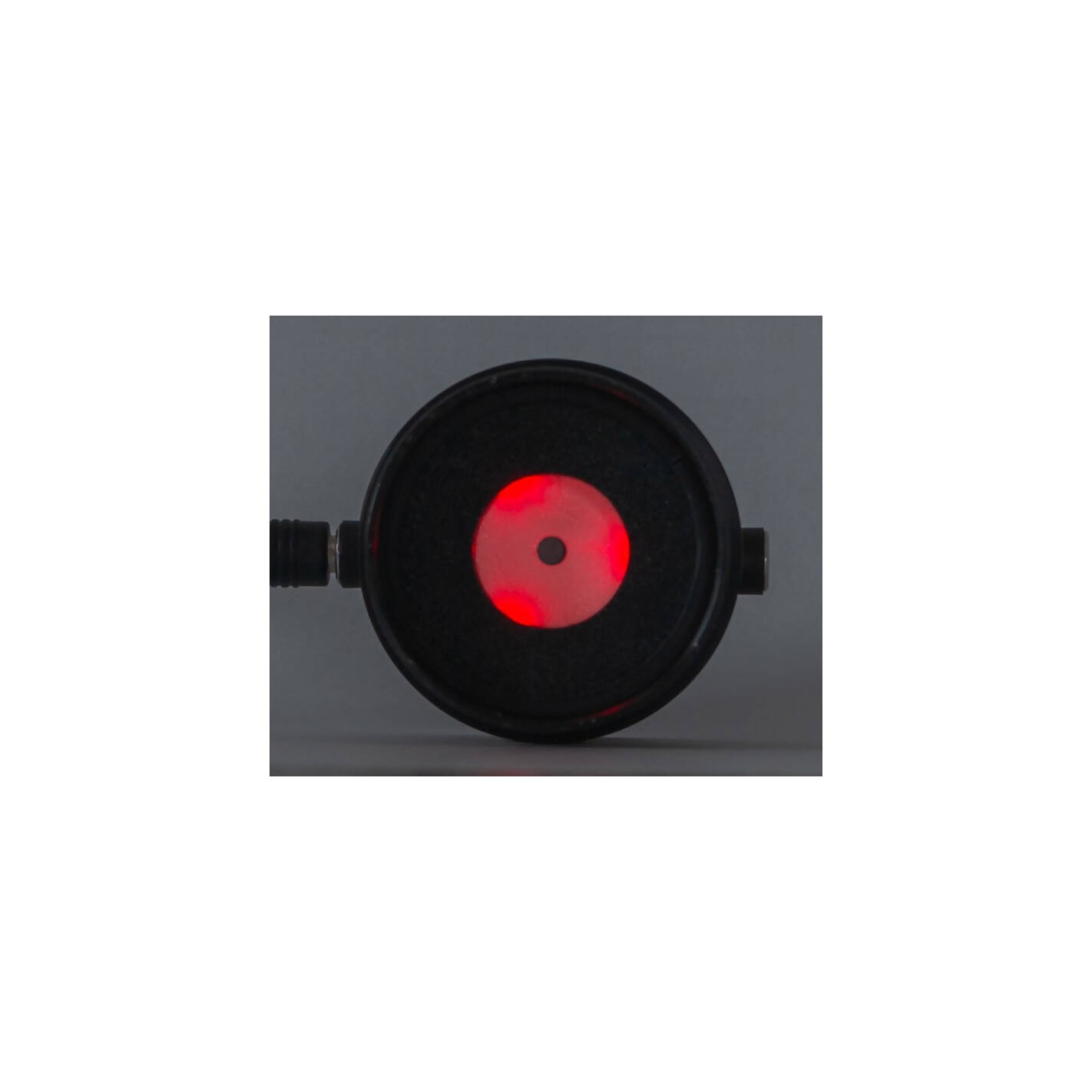

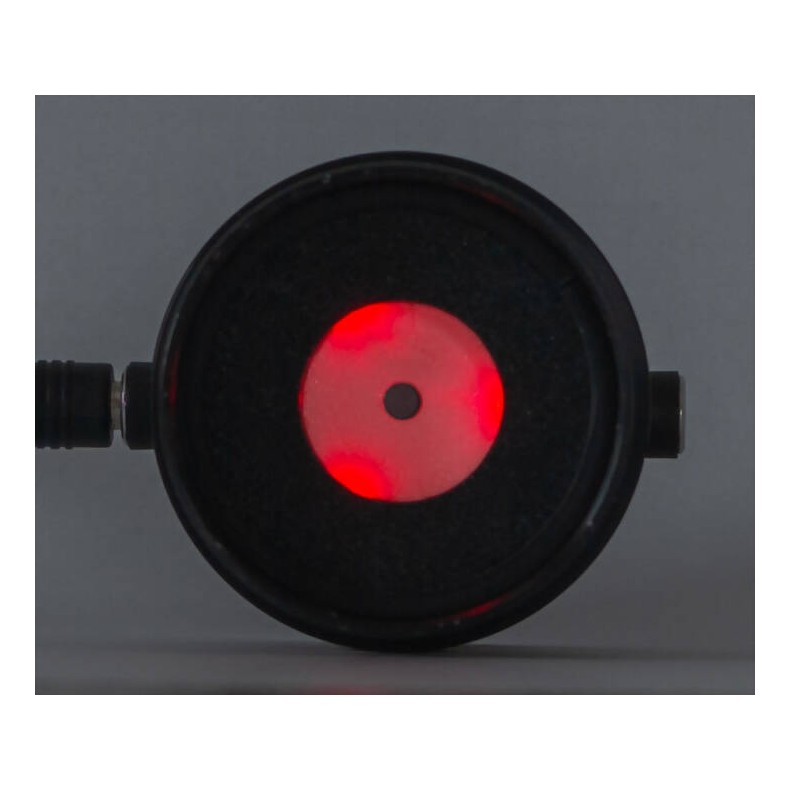

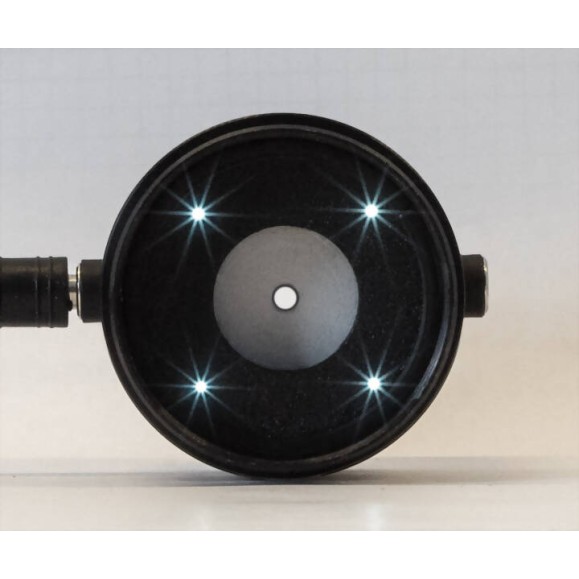

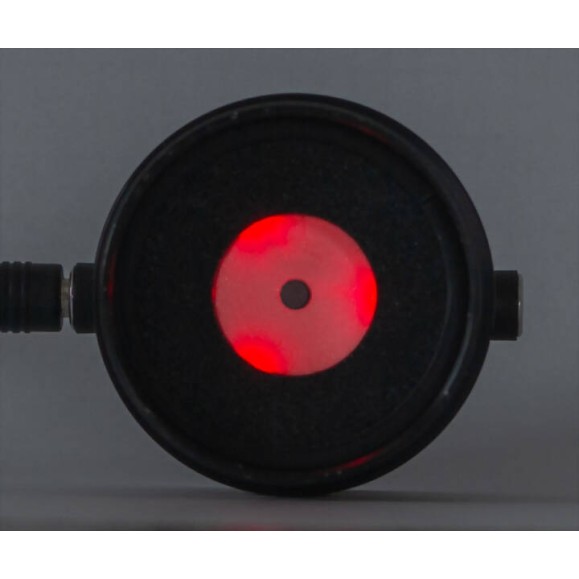

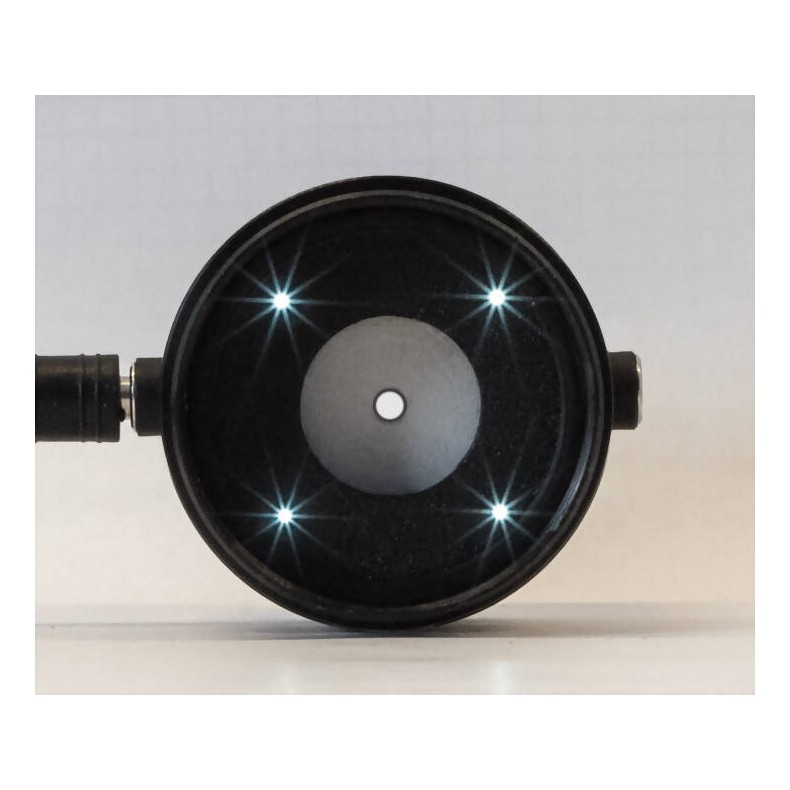

To achieve high quality collimation even in broad daylight, simply insert the collimator into your focuser and follow the corresponding operating instructions of your telescope if necessary. This collimator has two basic operating modes: a refractor mode with white LEDs and a reflector mode with red LEDs. Connect a suitable power supply (12 V) to one of the connectors to activate the required LEDs.

Note: A power supply is not included in the scope of delivery.

Collimation of Ritchey-Chrétien telescopes and similar systems

It is well known that collimating an RC is not a simple matter. With this collimator it is possible to achieve a very good collimation result during the day. This means that you will always have an optimally adjusted RC telescope at your disposal during the night. The collimation can be performed by anyone. However, it is important that the secondary mirror of your telescope has a center mark.

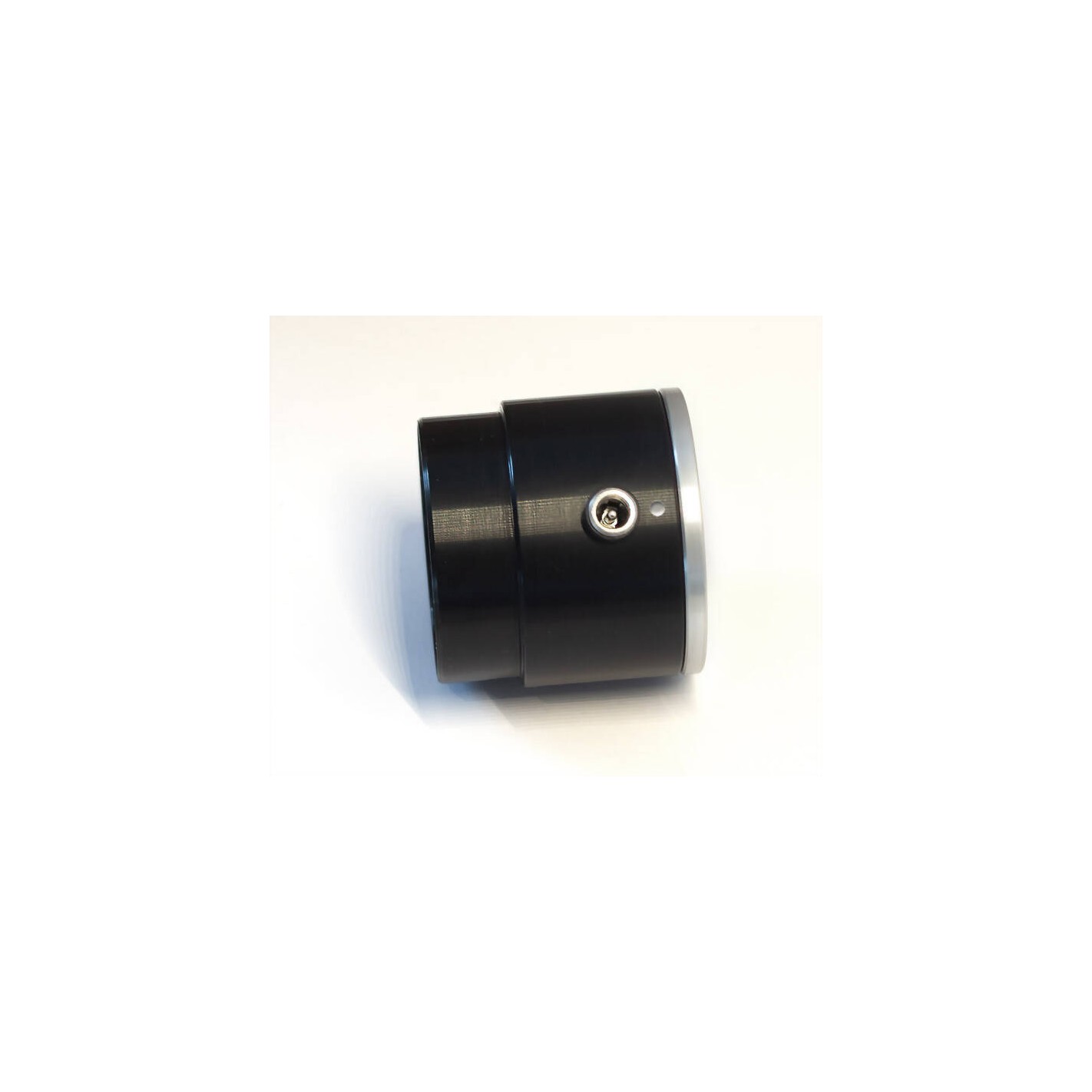

Collimator connections

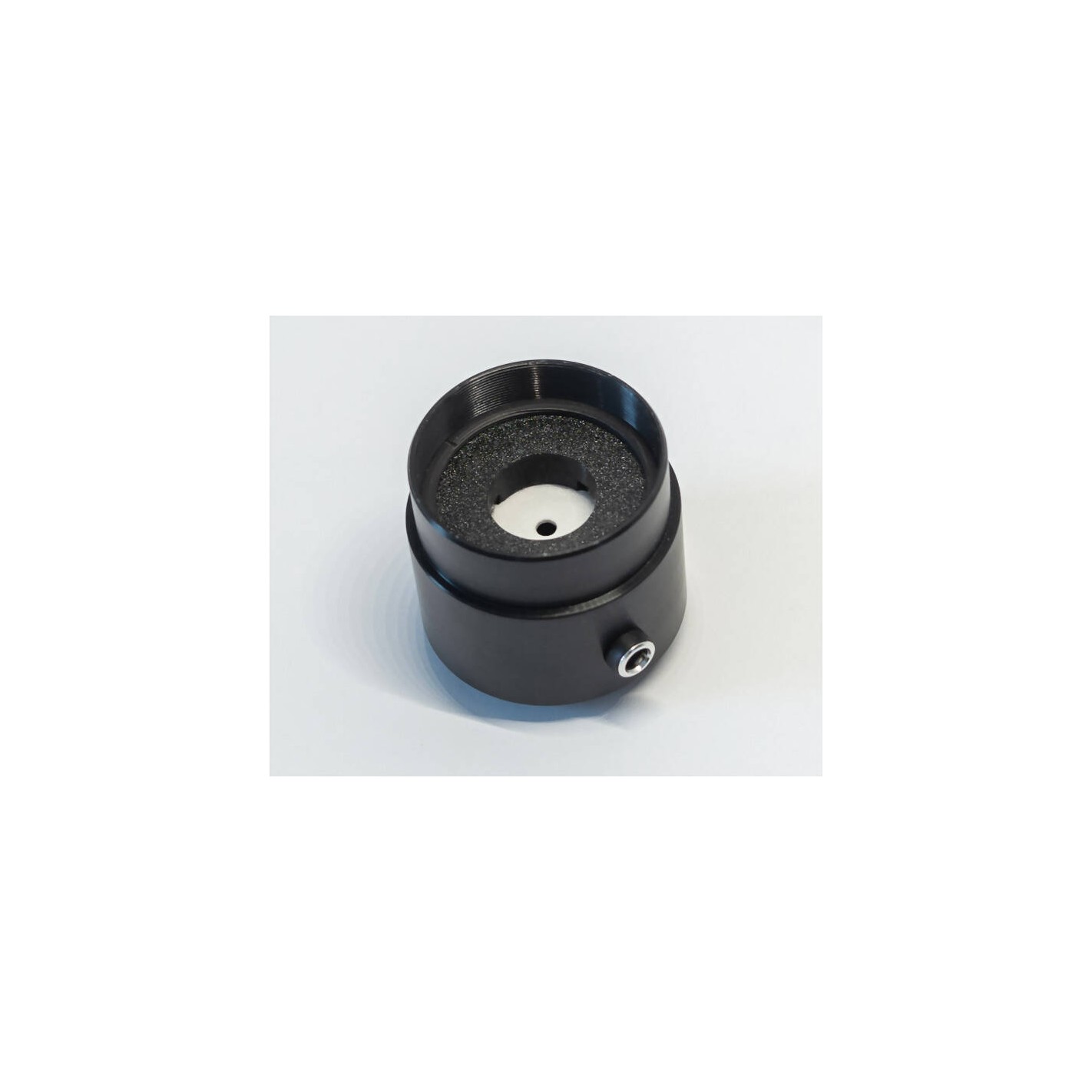

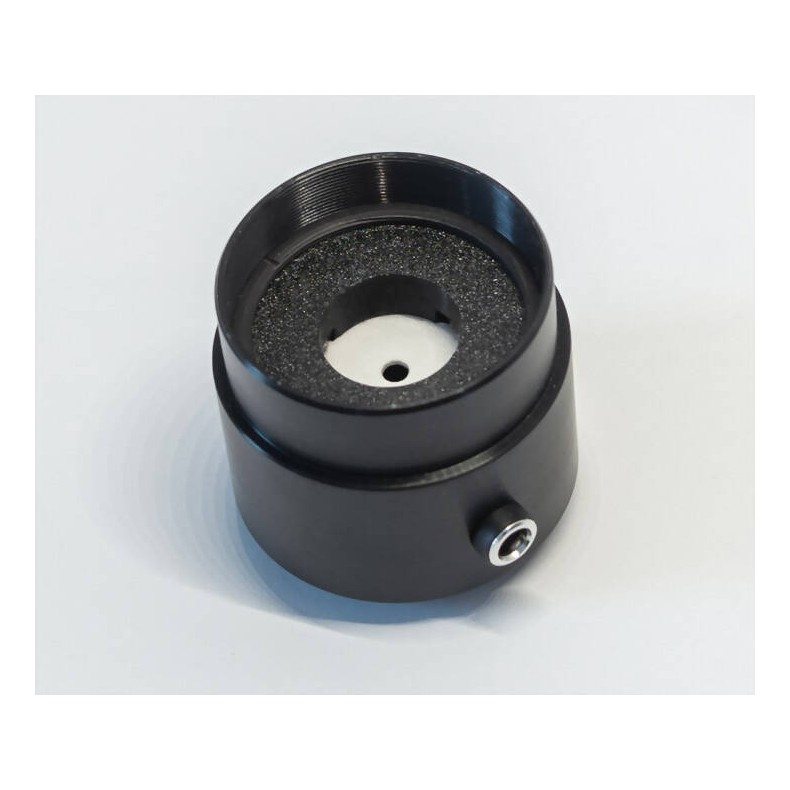

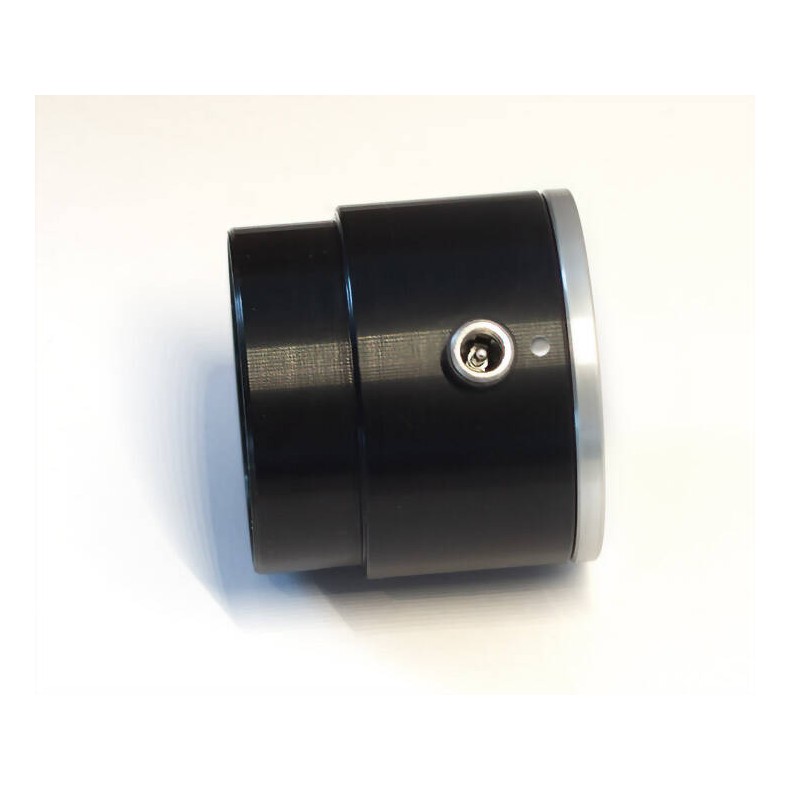

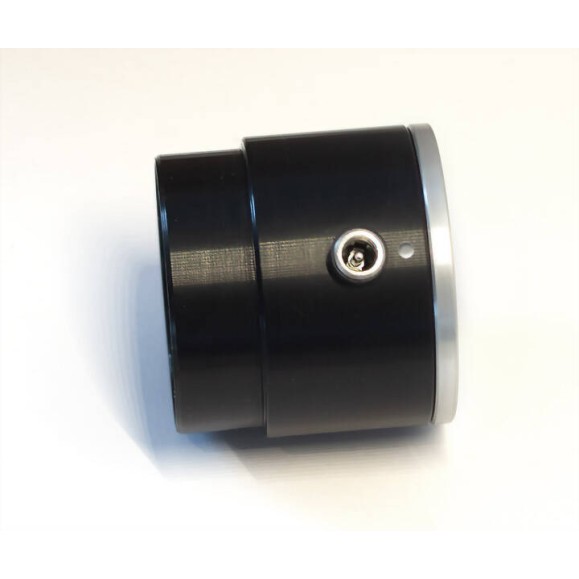

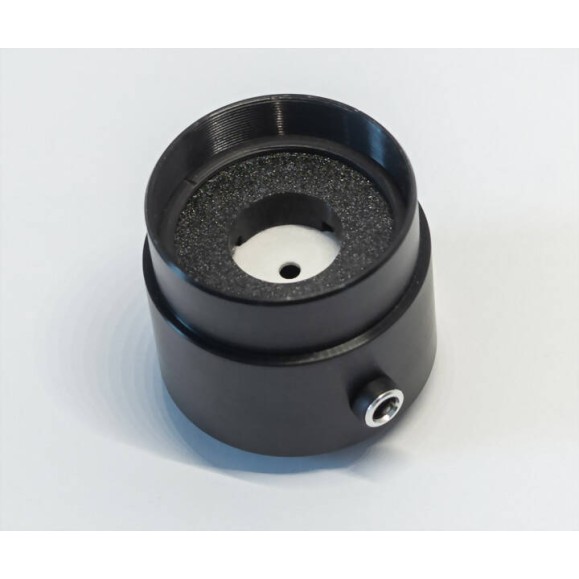

On the telescope side, the TSRCKOLLI-G2 has an M48 thread. This allows it to be screwed to the telescope without tilting it. On the scope side, there is a T2 thread covered with a silver protective ring. You can attach a suitable camera or smartphone to it using the appropriate adapters or mounts.

SPECIFICATIONS:

• Connection: Clip-on filter for Nikon Z full frame Z5, Z6 and Z7 cameras
• Filter cell thickness 1 mm
• Filter cell material Aluminum
• Transmission at 486 nm (H-beta) 95%
• Transmission at 496 nm ([O III]): 95% Transmission at 496 nm ( ): 95%
• Transmission at 501 nm ([O III]): 95% Transmission at 656 nm (H-beta)
• Transmission at 656 nm ([H-alfa]): 97% Transmission at 656 nm ( ): 97% Transmission at 656 nm ( ): 97
• 1st transmission range: 450 nm to 520 nm
• 2nd transmission range: 640 nm to 690 nm
• Substrate: Fine Optical Polishing Substrate Material
• Parfocal: with all other Astronomik filters except Astronomik XT filters
• Anti-reflective coating: Moisture insensitive, non-aging, scratch resistant

DeLuxe LED Collimator TS-Optics 2" for RC telescopes and refractors
