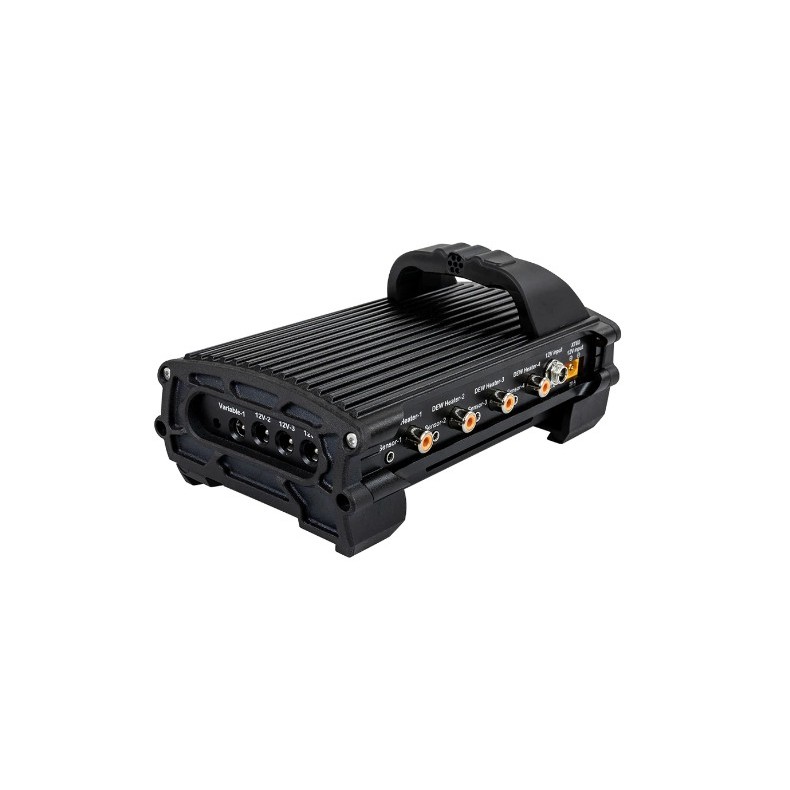

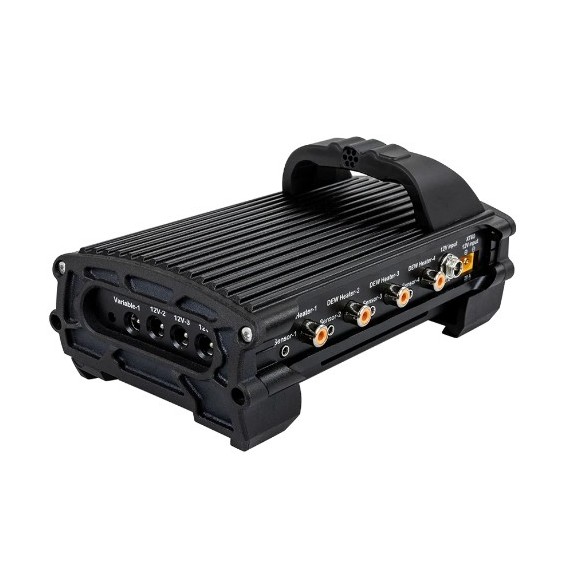

Smart Dewheater Controller 4x 94036

Work smarter, not harder, when it comes to combating dew. The Smart DewHeater 4x Controller extends battery life by optimizing power usage to work with up to four dew heaters. The controller collects and analyzes real-time information to heat the optics sufficiently to prevent dew while optimizing energy consumption.

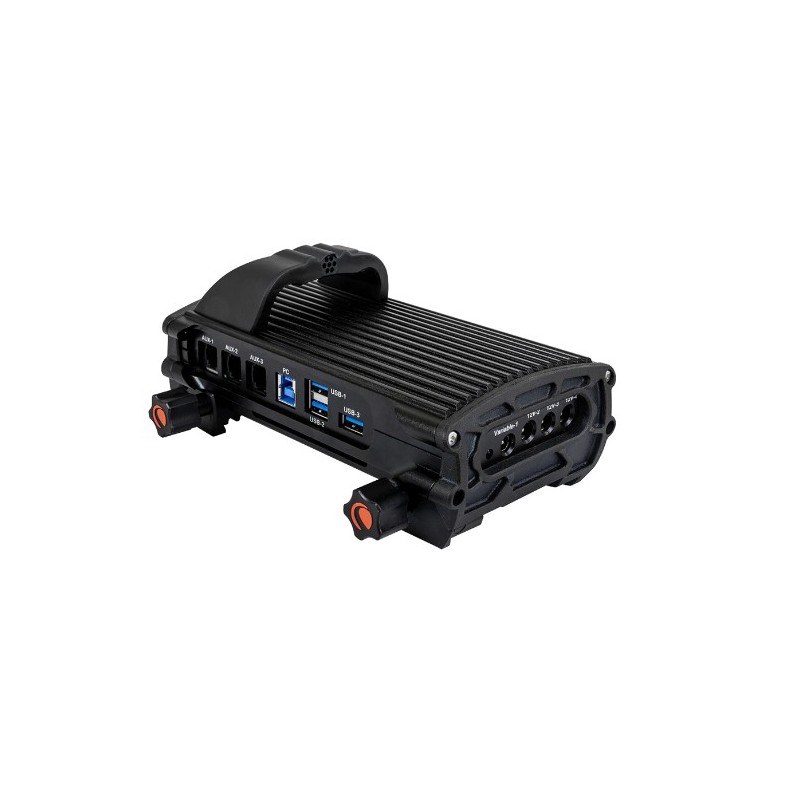

The DewHeater 4x Smart Controller comes with four ports to control up to four dew heaters at a time. You can use one port to heat your optical tube while the other heats a second optical tube, guide tube, eyepiece or other accessory. The controller also has an additional 12V DC output port so you can power another 12V DC device, such as your mount, focuser or camera. One of the ports has variable voltage, which can be adjusted from 3V to 12V. In addition, the controller has three powered USB ports.

The Smart DewHeater 4x Controller works perfectly with Celestron's anti-fogging heating rings, which have a built-in thermistor to provide temperature readings of the corrector lens. Other manufacturers' anti-dew heating tapes are also compatible; just add the thermistor from Celestron (sold separately).

Smart Controls

At the heart of the controller is a powerful microprocessor that collects sensor information, calculates the data and automatically adjusts your dew heaters. The controller monitors ambient temperature and humidity via its built-in ambient sensor and controls the temperature of the heaters via thermistors.

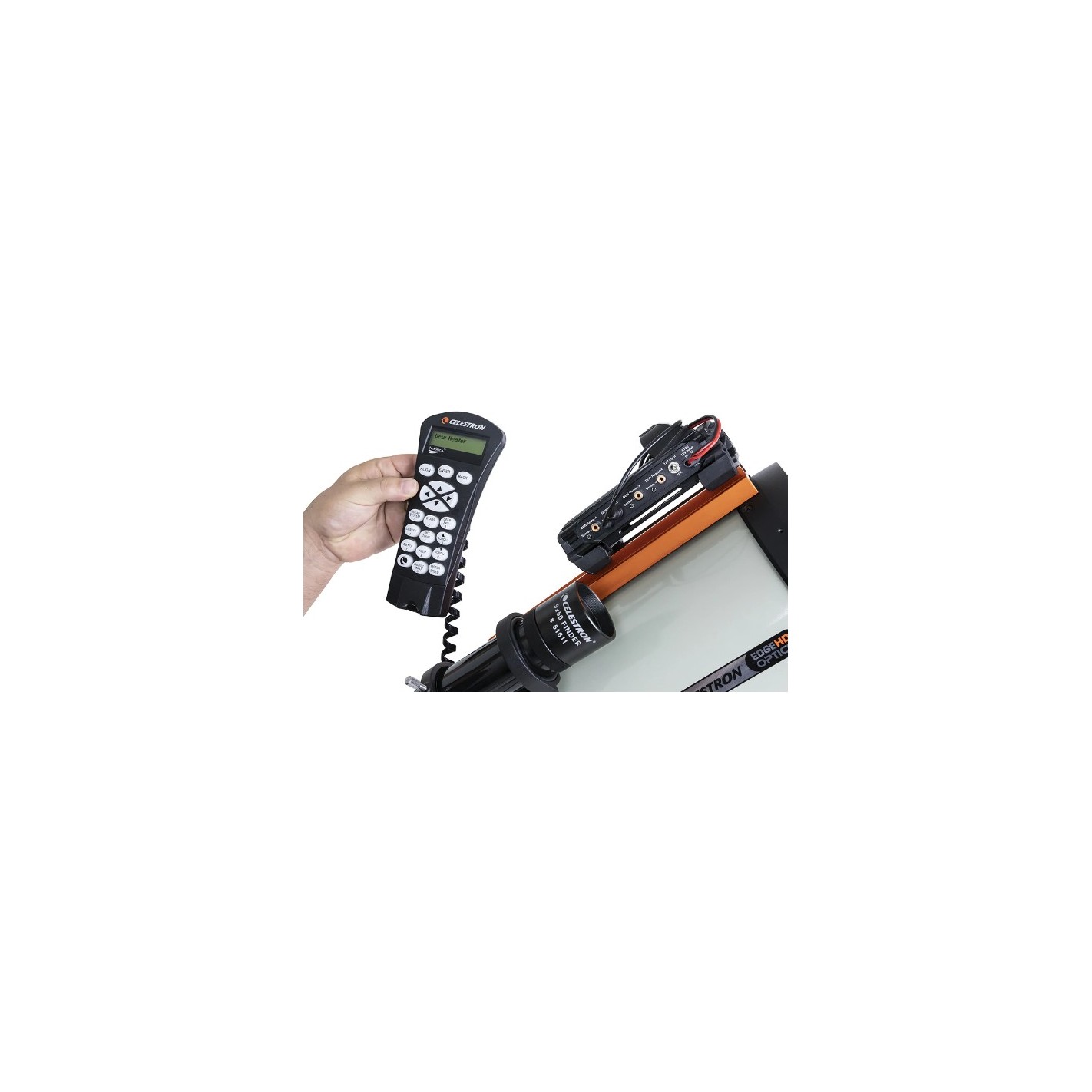

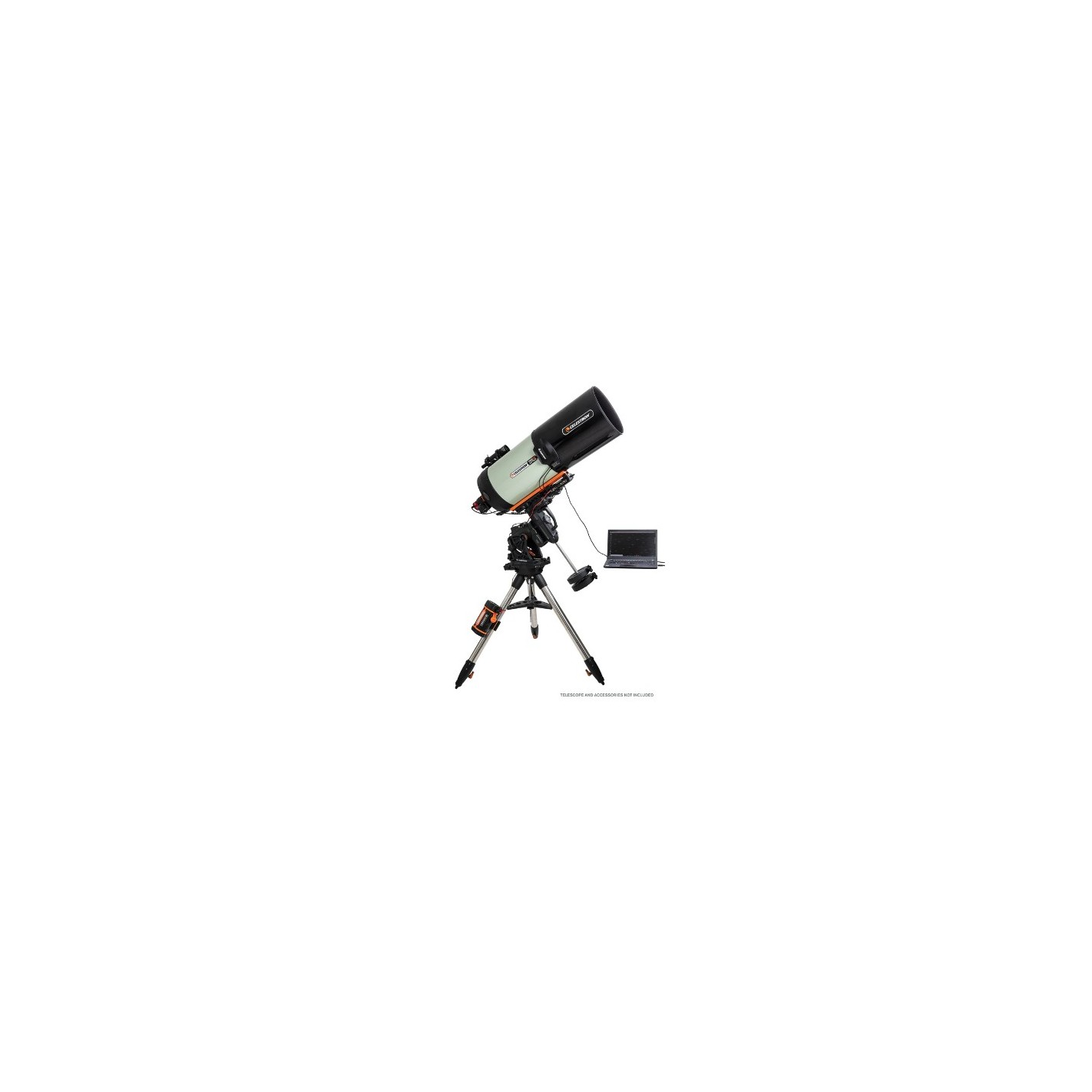

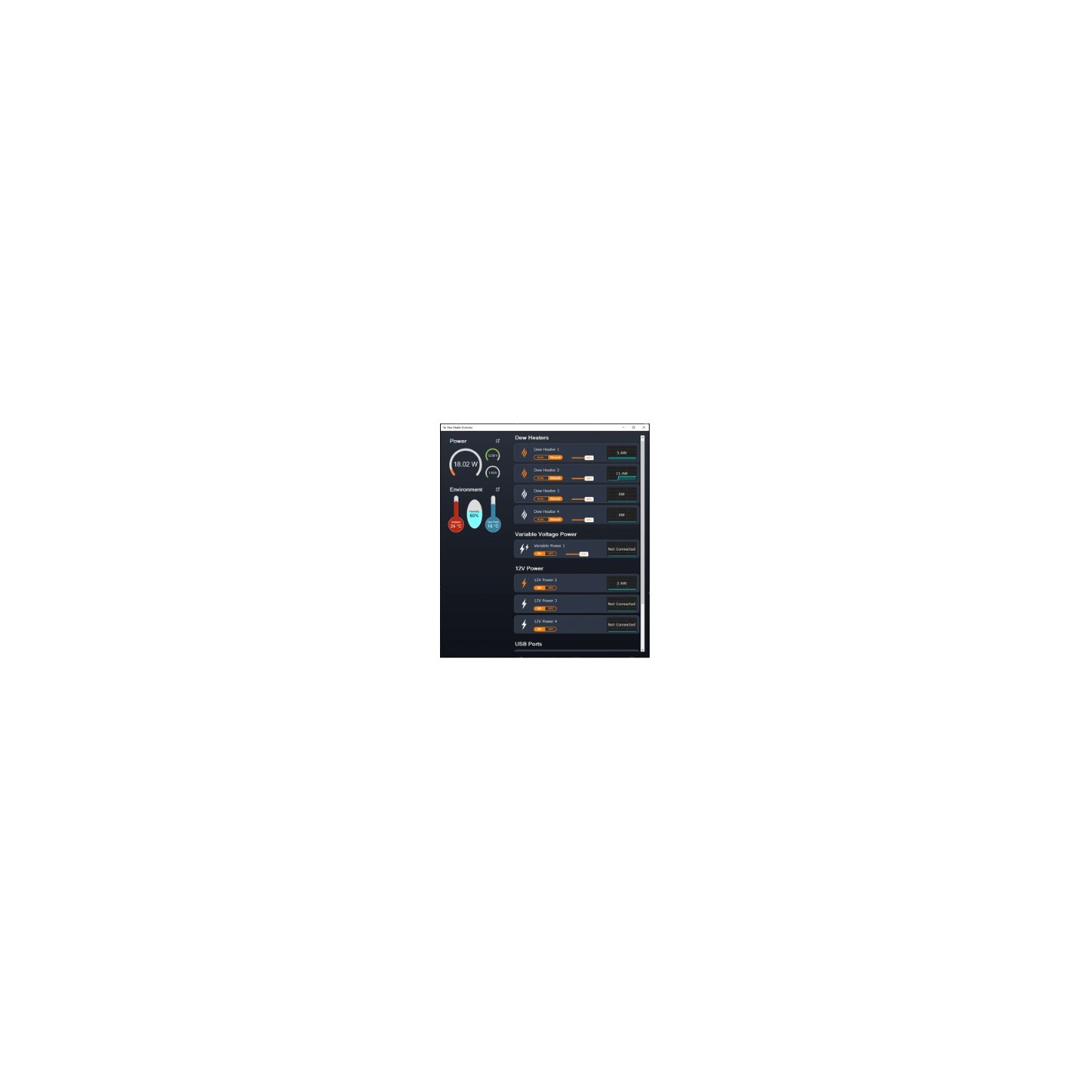

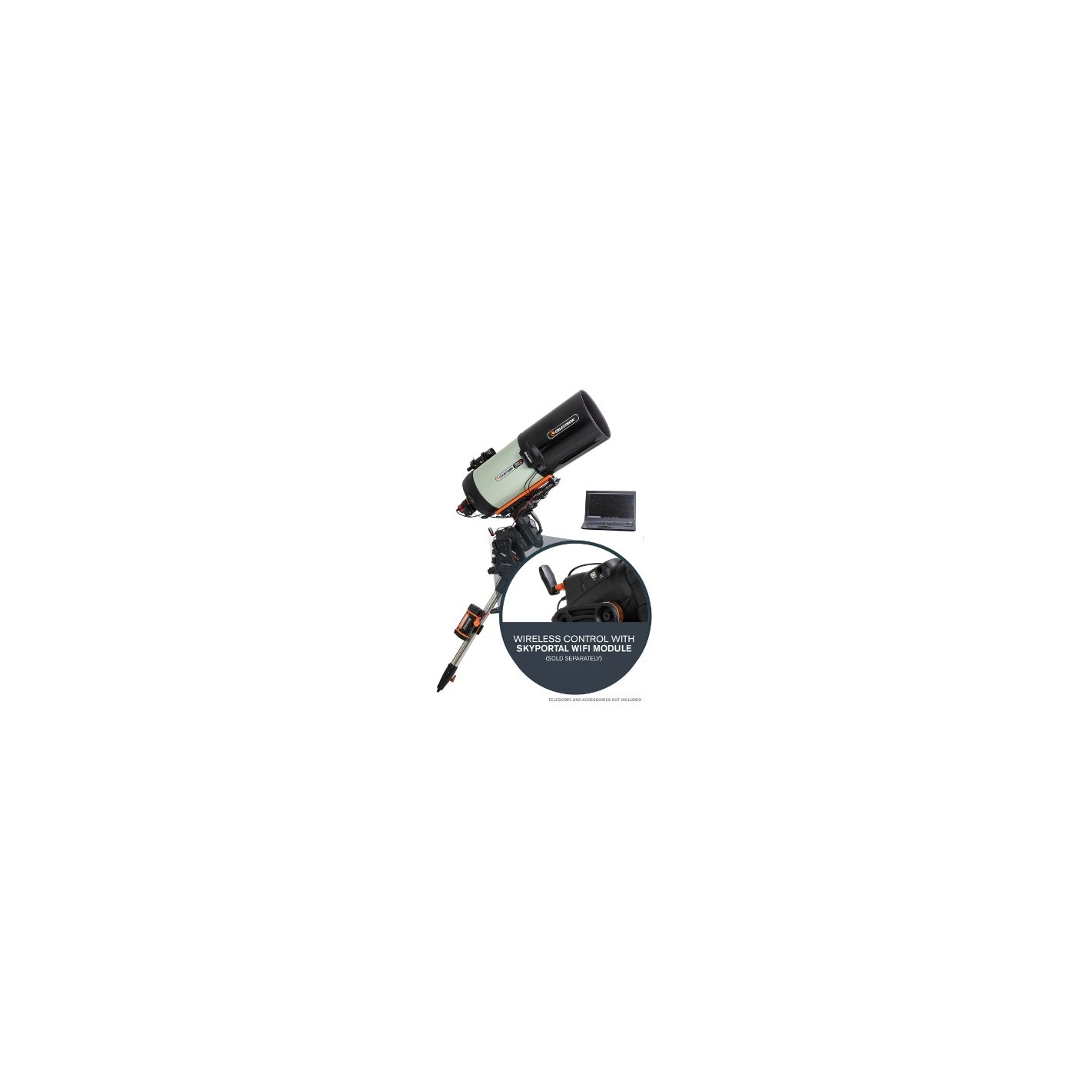

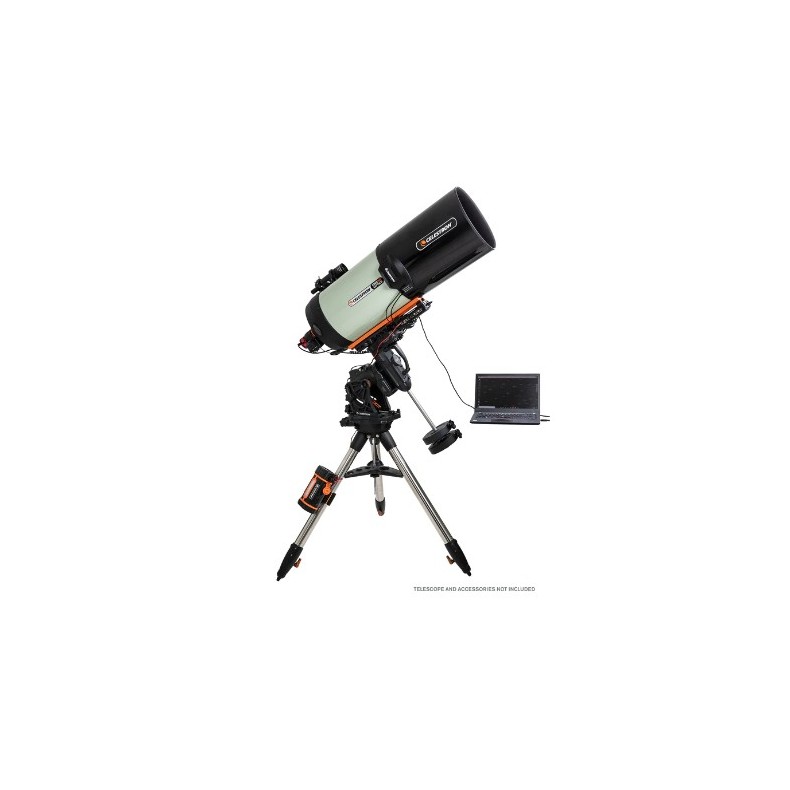

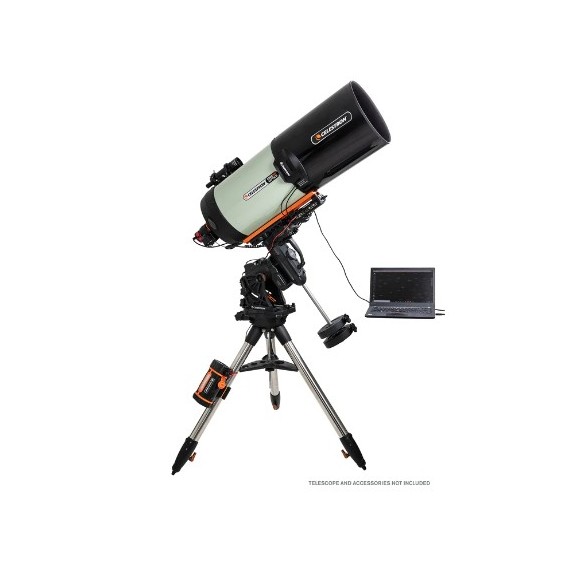

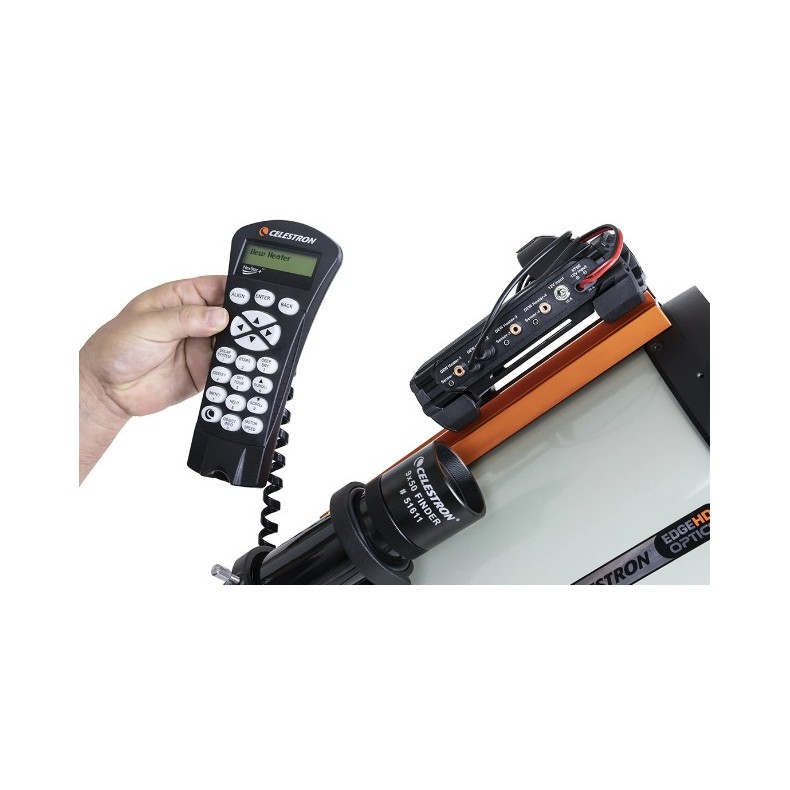

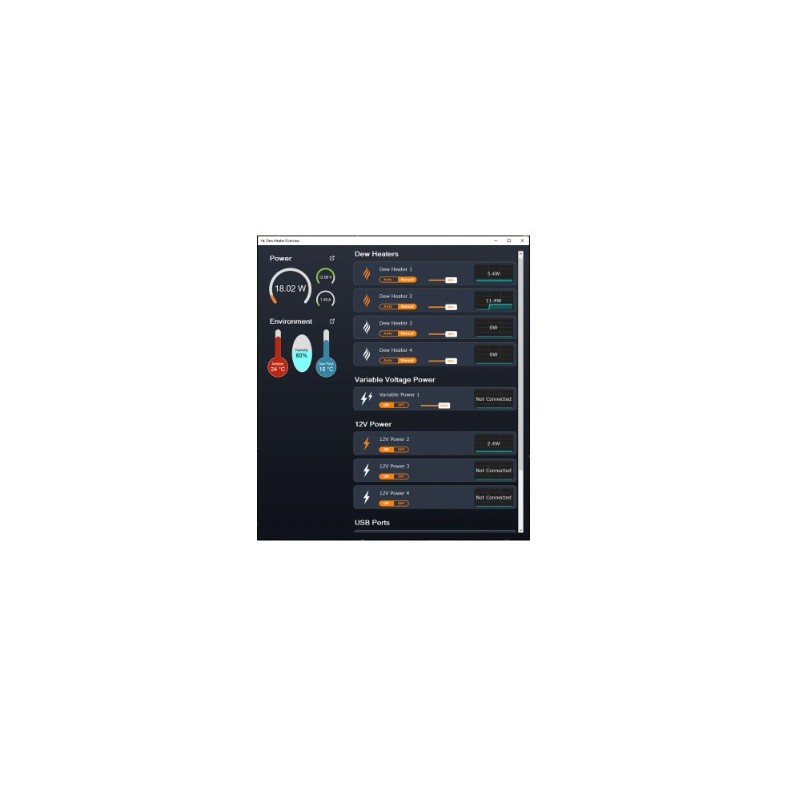

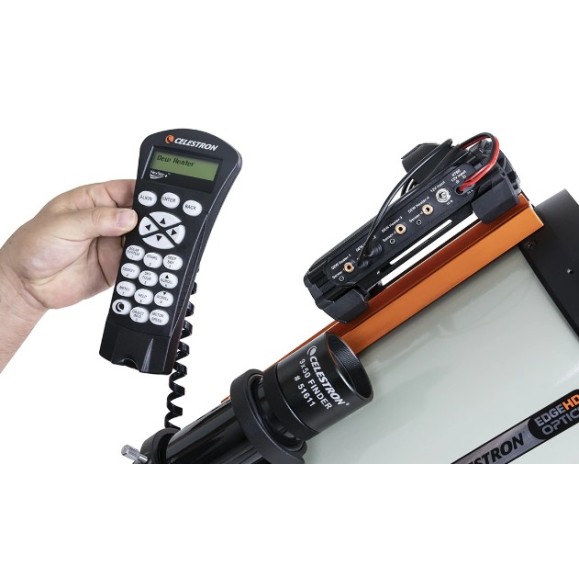

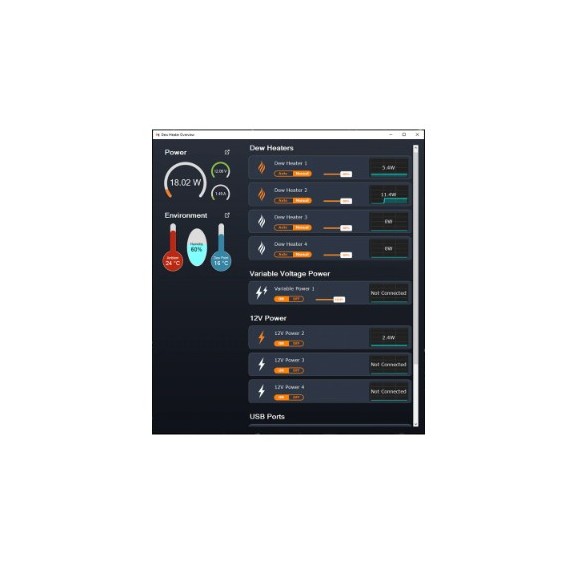

You can use the DewHeater 4x Smart Controller as a stand-alone accessory. Or, if you want to view data from the controller and make manual adjustments, you can connect it to your telescope's hand control Celestron or to your PC. The controller works with NexStar+ or StarSense hand controls with the latest firmware or with the Celestron CPWI telescope control software, included with each Celestron mount.

Power

The Smart DewHeater 4x Controller runs off a 12V DC battery (as with the PowerTank Lithium Pro or Lithium power supplies) and can handle a maximum power of 240W (20A peak current @ 12V DC). The controller also features a 12V DC output port. You can use this additional port to power another device, such as your mount. You can use the additional ports to power devices such as the mount, focus motor and camera(s). One of the power ports offers variable voltage, which is adjustable from 3V to 12V. This port is perfect for accessories that use less than 12V DC, such as a DSLR camera. This way, you can power your entire setup from a single source. Resettable electronic fuses prevent damage if the input or output current draw is too high.

NOTE: If you are running two spray heaters in heavy spray conditions and powering a 12V DC device, the controller may be operating near its power limit. In this case, a Lithium Pro PowerTank will not have enough capacity to run your installation all night; you will need a higher capacity battery or multiple batteries.

Unique industrial design

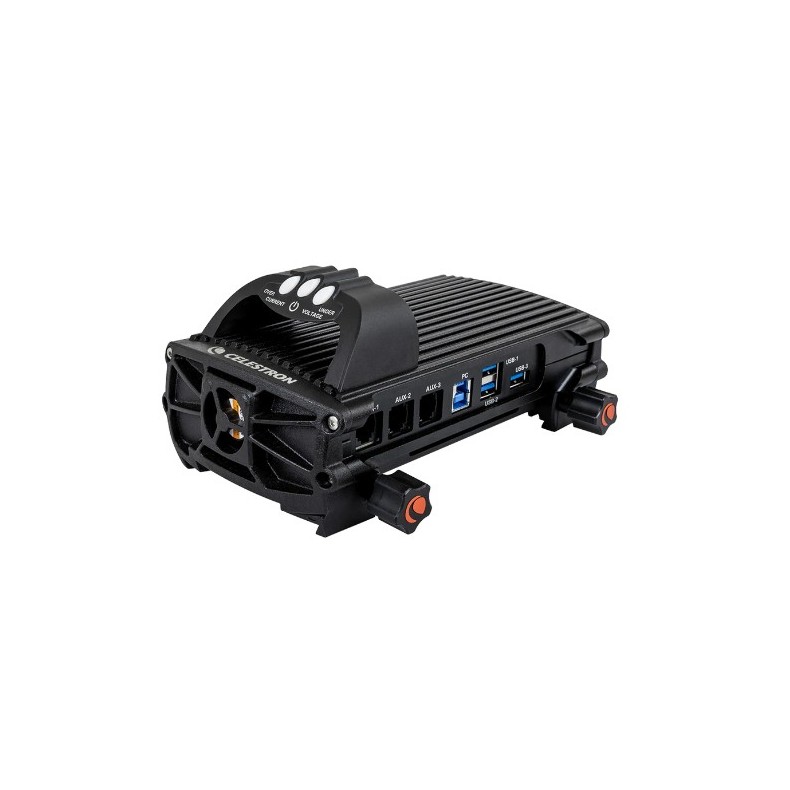

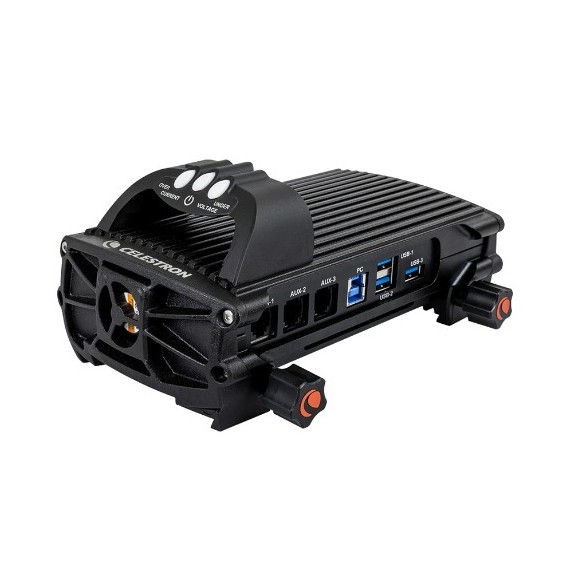

The DewHeater 2x Smart Controller features a heavy-duty metal housing. Inside, a cooling fan protects the controller's electronic components.

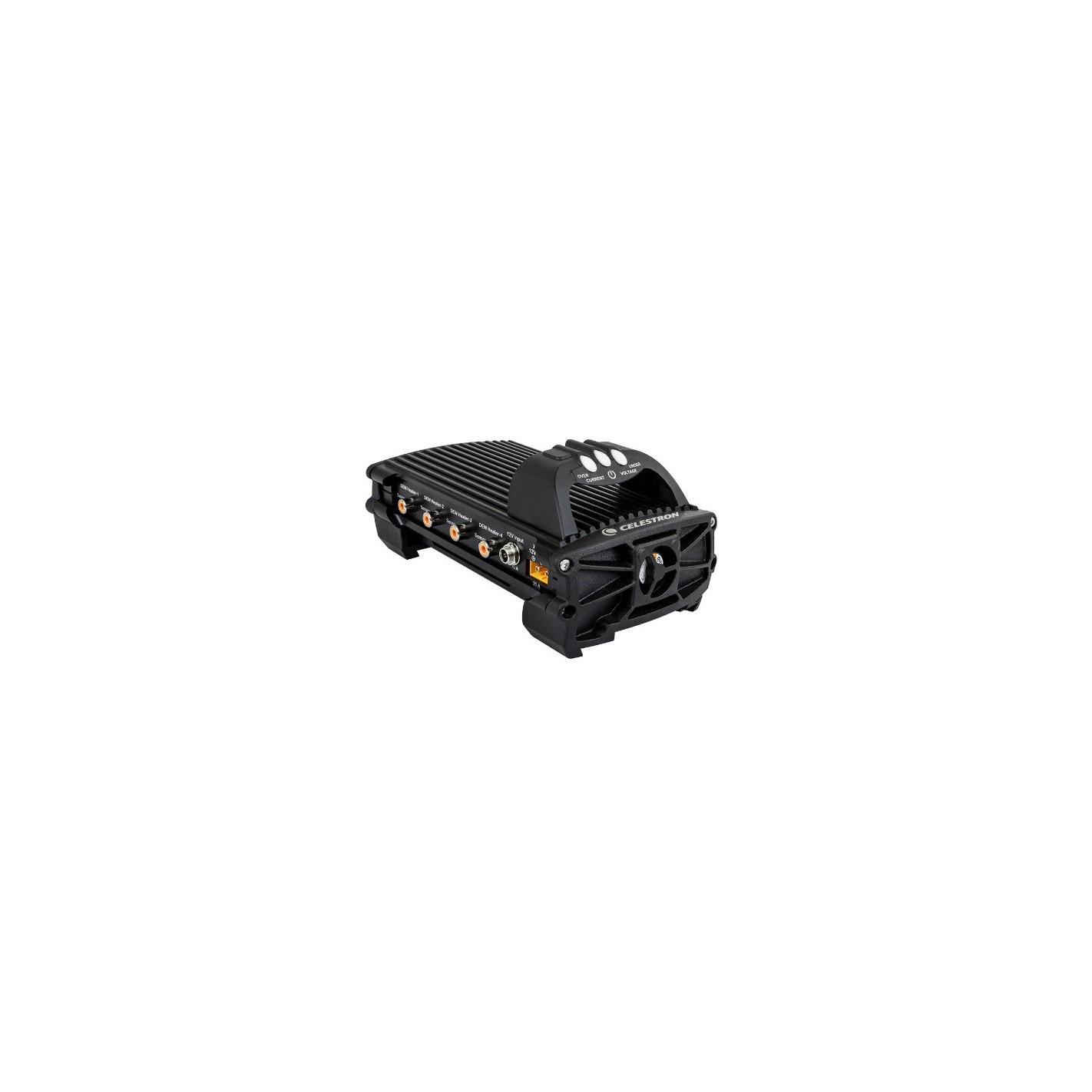

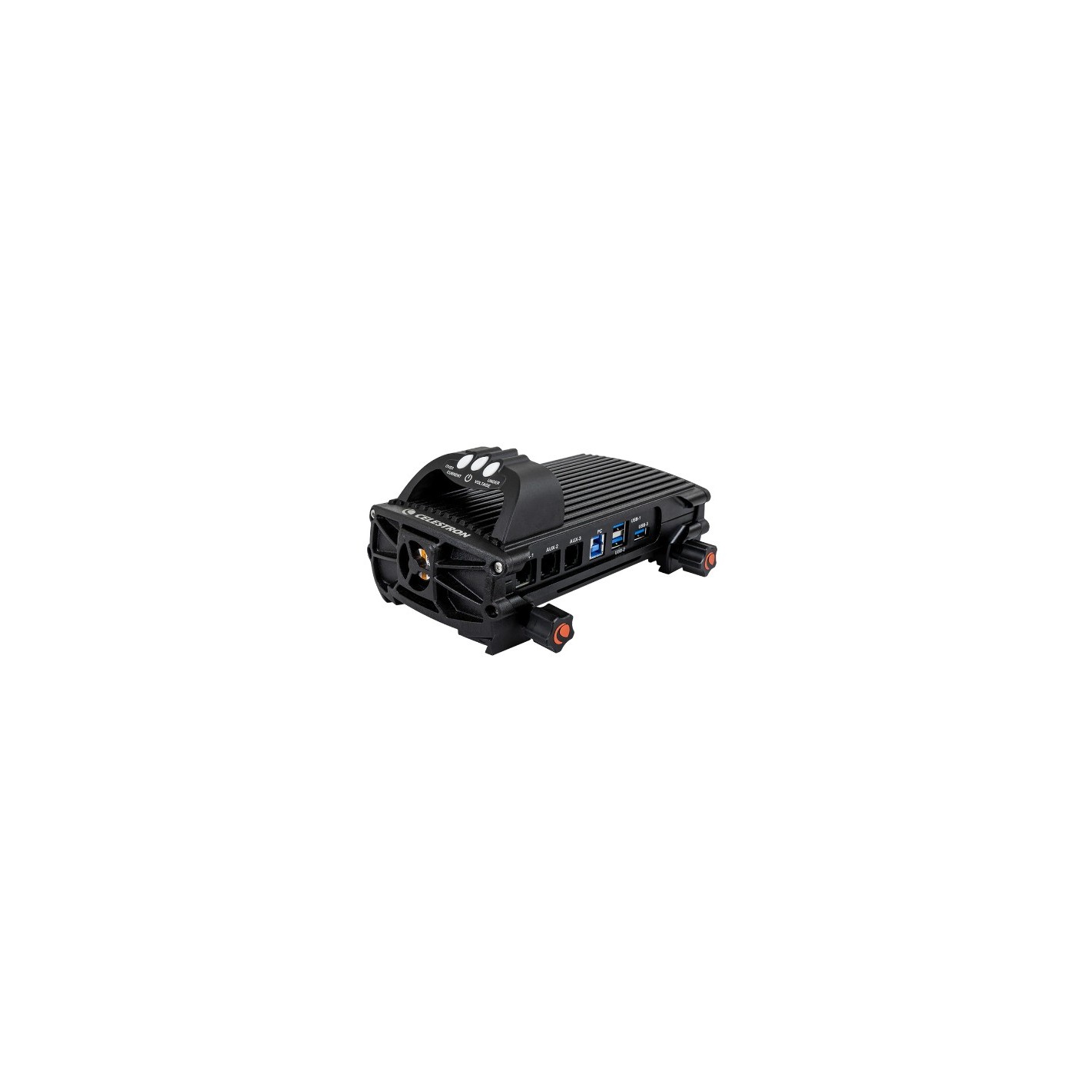

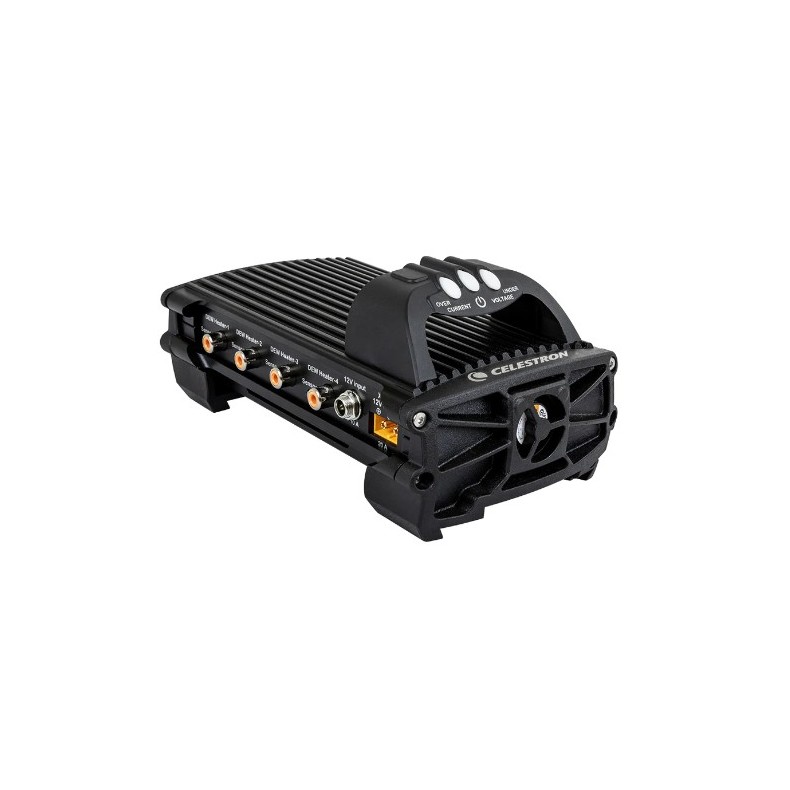

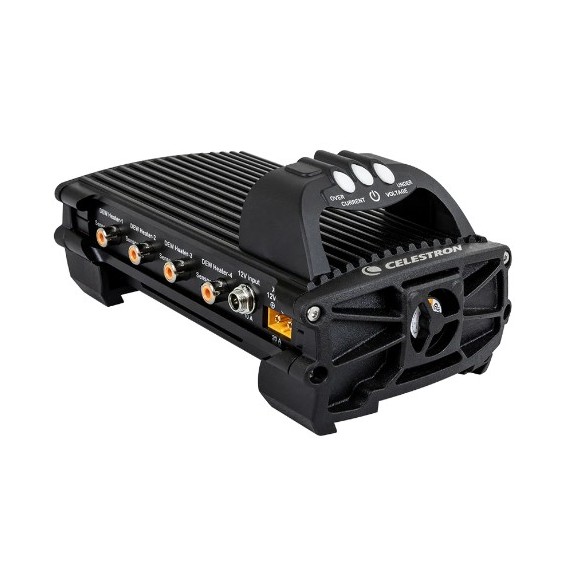

The Bridge - At the top of the controller, there is the bridge, which is home to the device status LEDs and environmental sensors. It also helps with cable management. We have placed the temperature and humidity sensors here, away from the control box and other components that could generate heat. Unlike competitive products, our sensors do not require additional cables to get accurate readings.

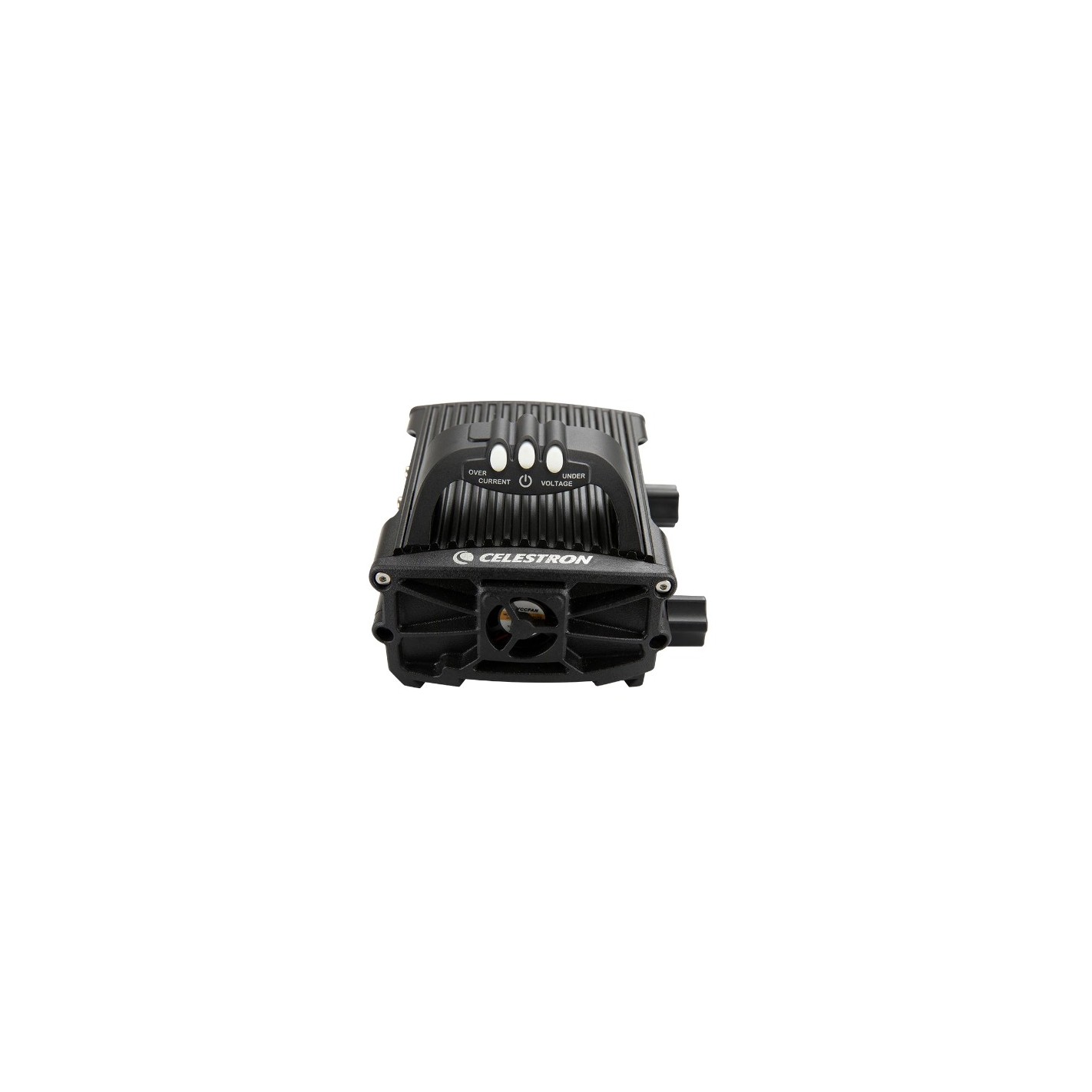

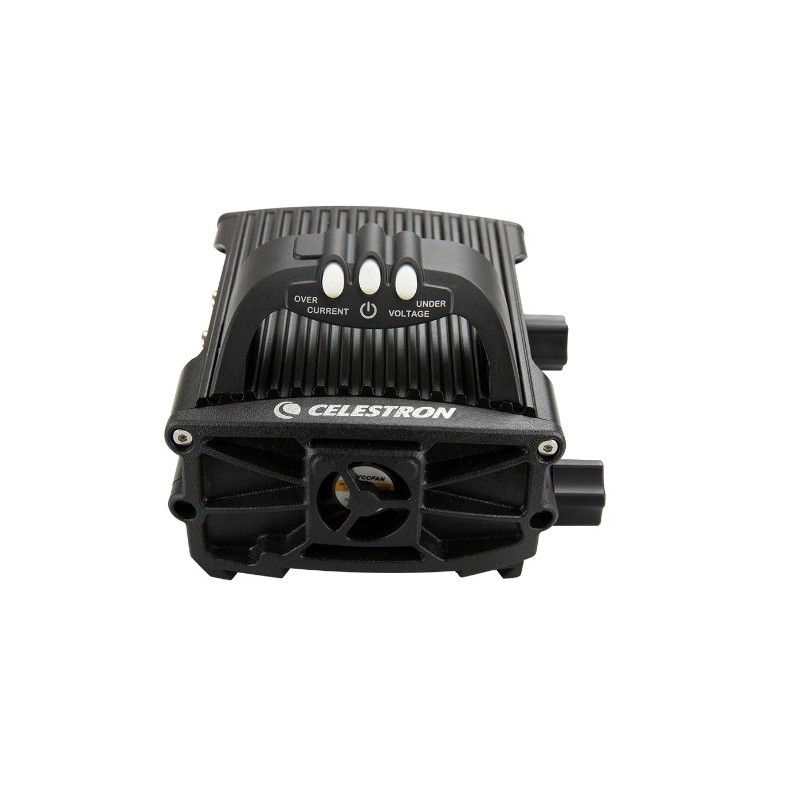

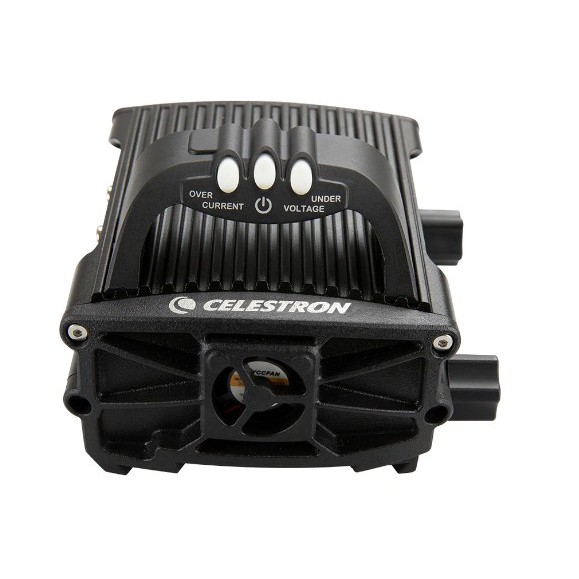

LED lights on the bridge indicate the current status of the device. The LEDs warn if the controller is drawing more current than its power supply can deliver or if the battery charge needs to be recharged. You can dim the lights if you are under dark skies.

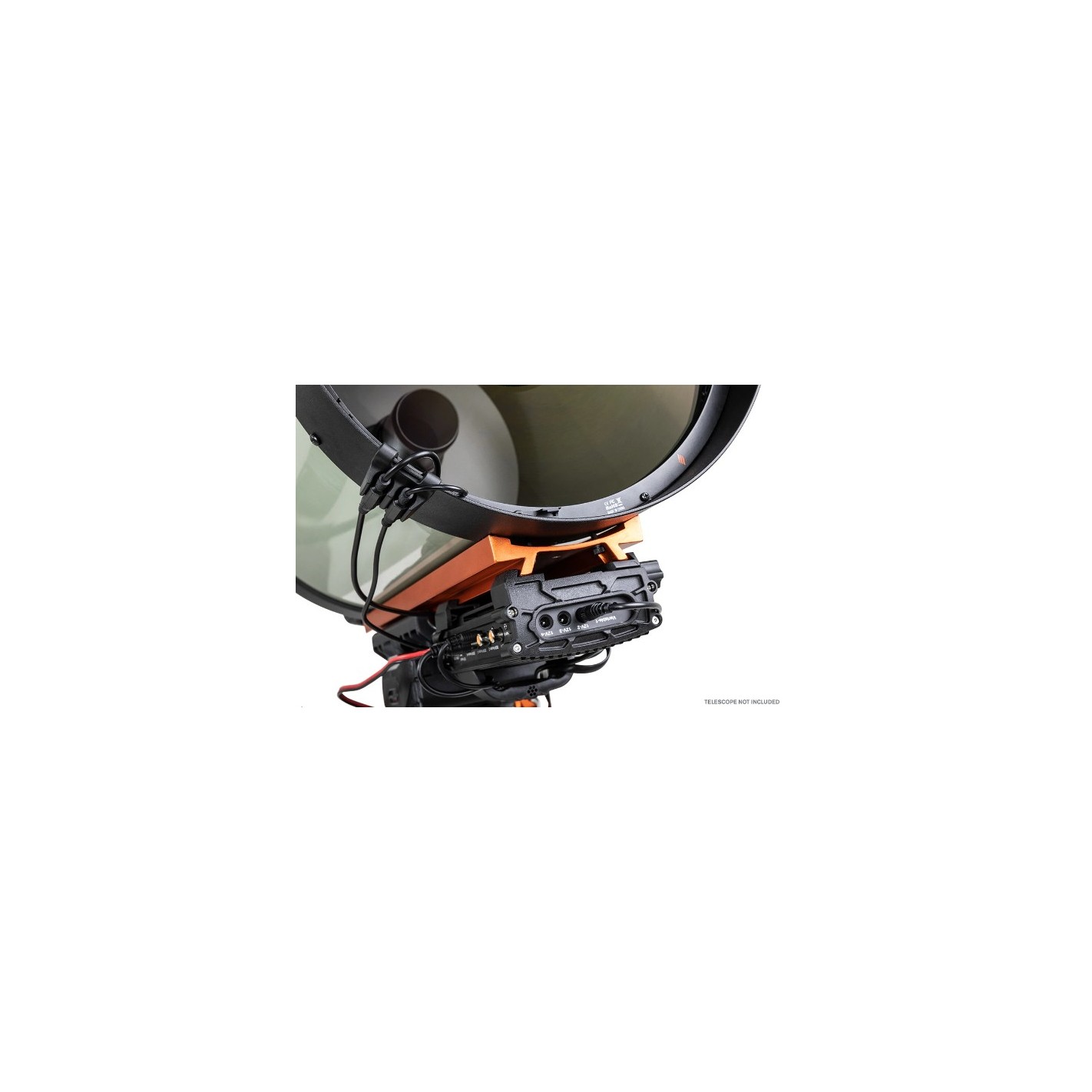

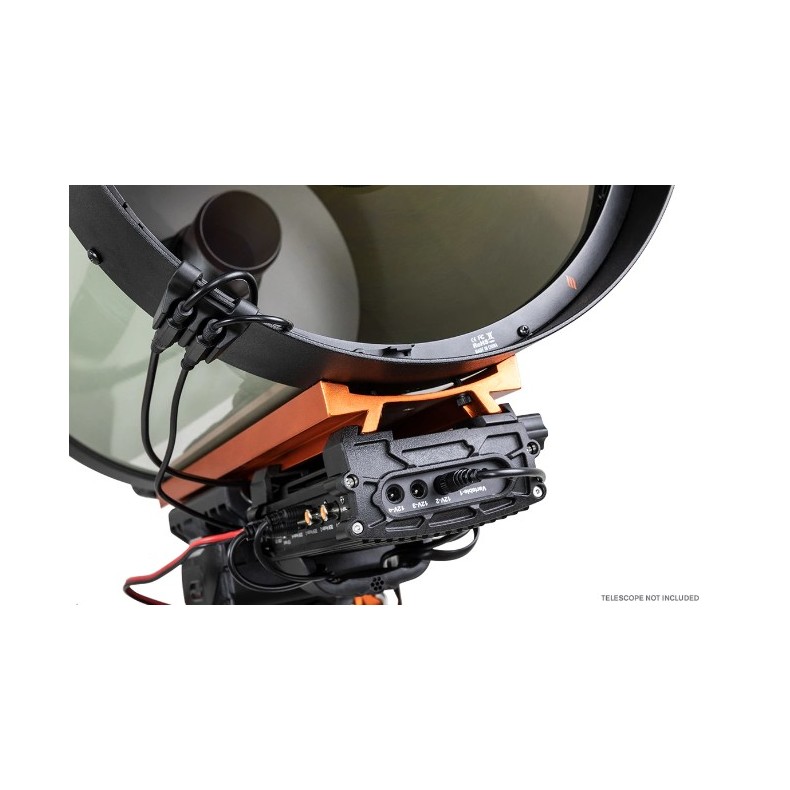

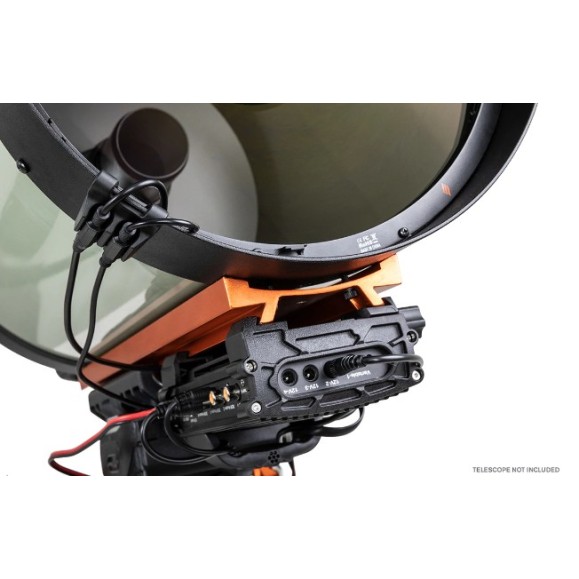

Mounting - The Smart DewHeater 2x Controller from Celestron mounts to your CGE or CG-5 dovetail with the integrated dovetail clamps. If you prefer to mount the controller on your tripod leg, use the included strap.

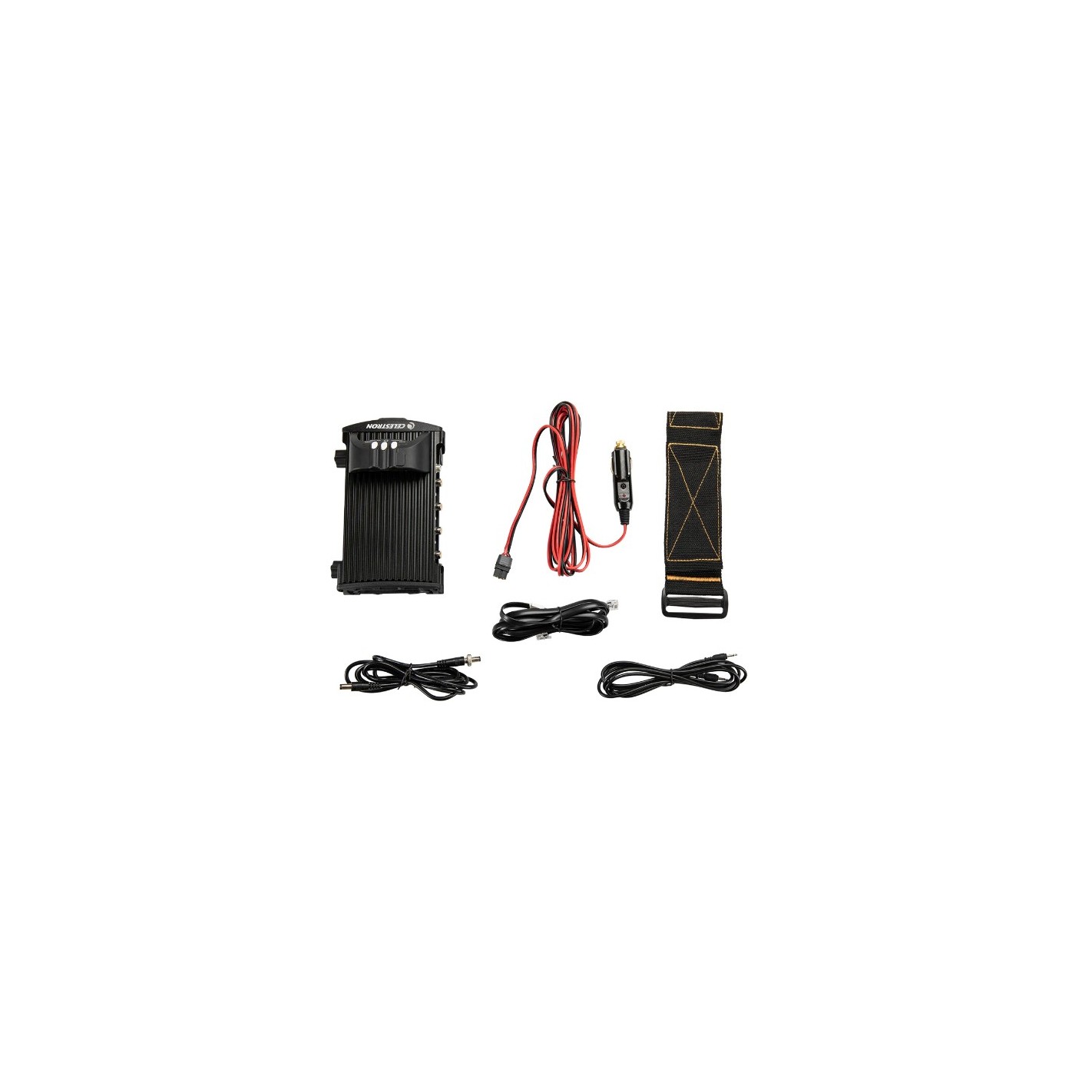

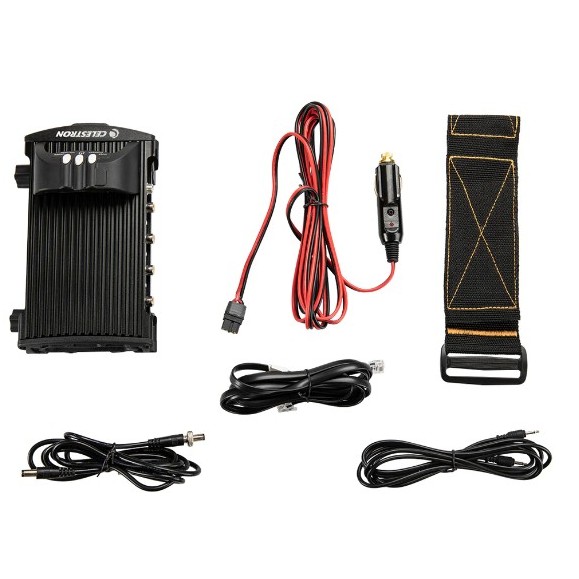

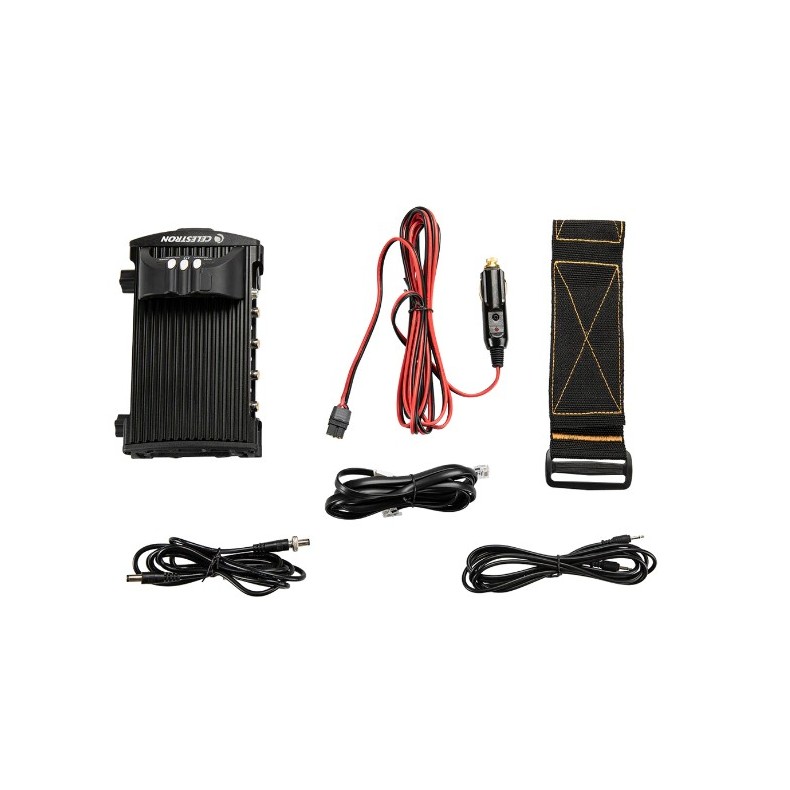

The Smart DewHeater 4x Controller comes complete with:

• Smart DewHeater and 4x Controller
• Tripod leg strap
• Controller power cable
• Power cable for an external 12V DC device
• AUX cable to connect to the mounts Celestron
• Extension cable for thermistor to connect to the spray heater ring Celestron

Improve your configuration

We strongly recommend pairing this controller with the anti-spray heater rings from Celestron. They mate perfectly with your Schmidt corrector lens and will enhance your observation or imaging all year round.

For the highest level of dew prevention, we also suggest adding a dew shield to your setup. Although not required, a dew shield will reduce the amount of power the controller needs to provide to the dew heaters to keep your optics clear.

TECHNICAL SPECIFICATIONS:

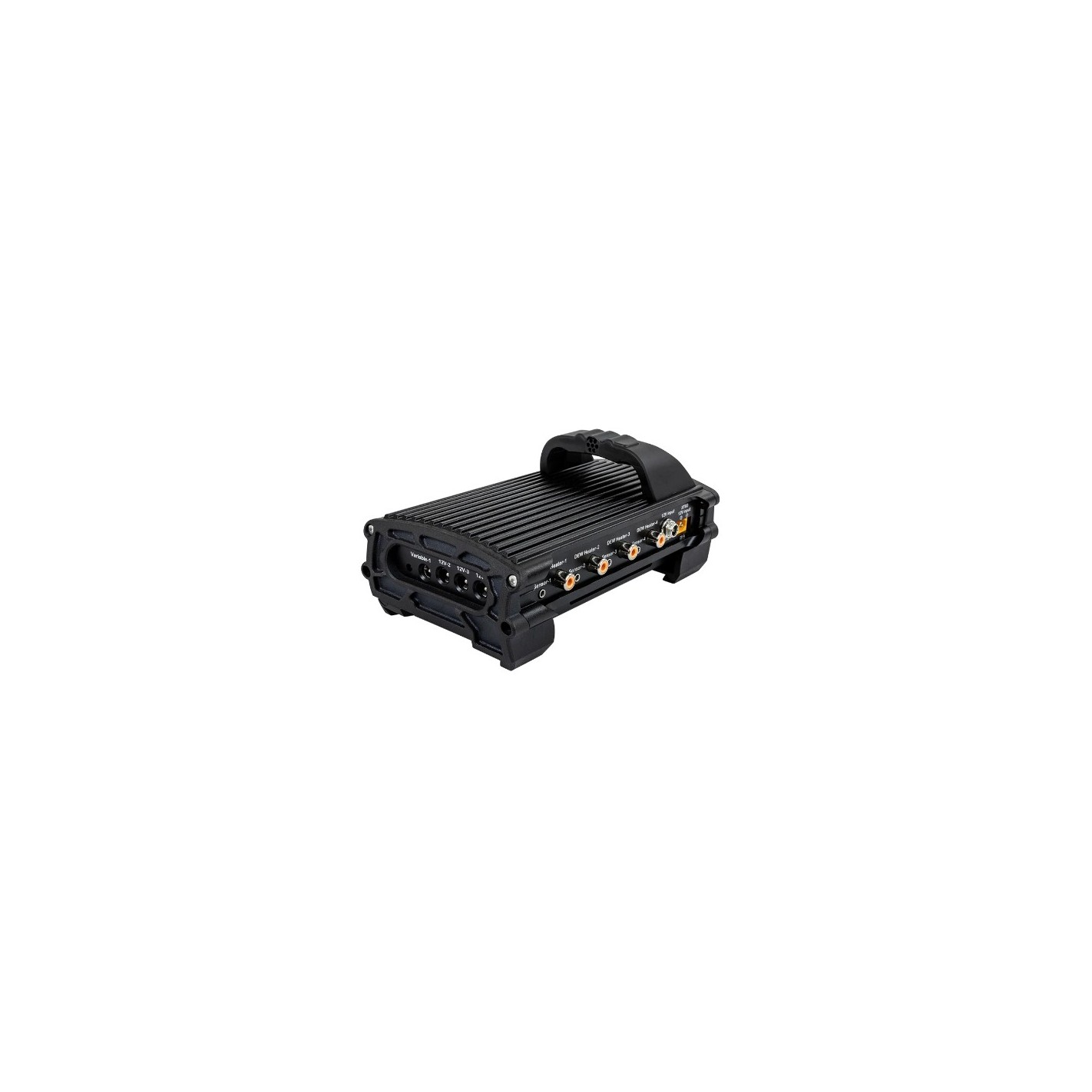

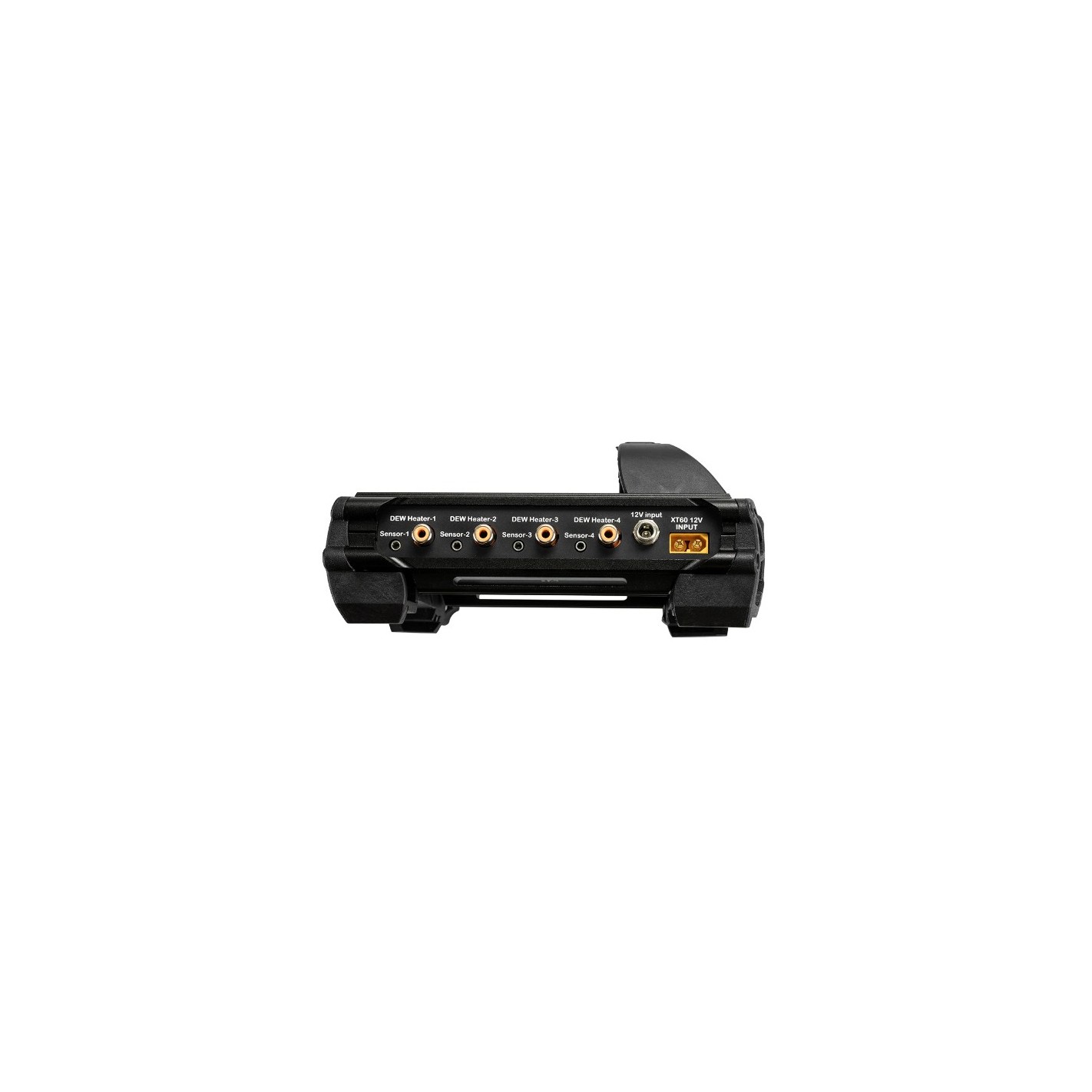

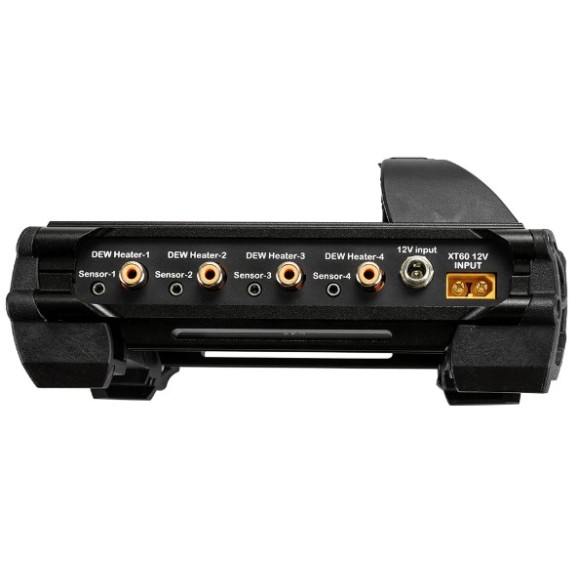

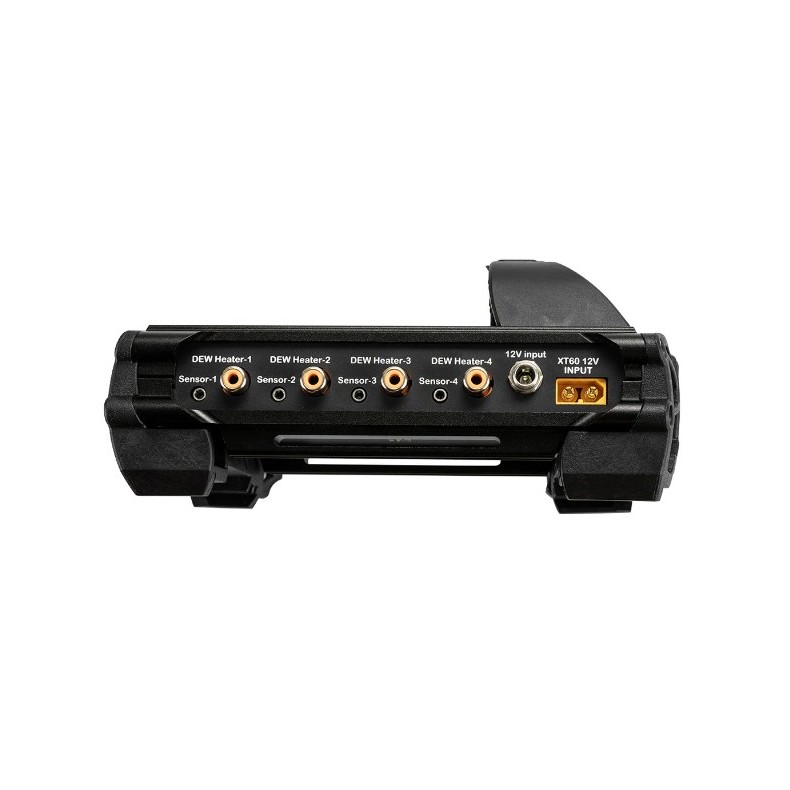

• Controller ports: 4 ports, RCA connector, compatible with Celestron 's anti-dew heated rings and other vendors' heating tapes
• Thermistor ports: 4 ports (one for each anti-spray heater port), 2.5 mm audio jack, compatible with Celestron spray heater rings and the optional thermistor from Celestron

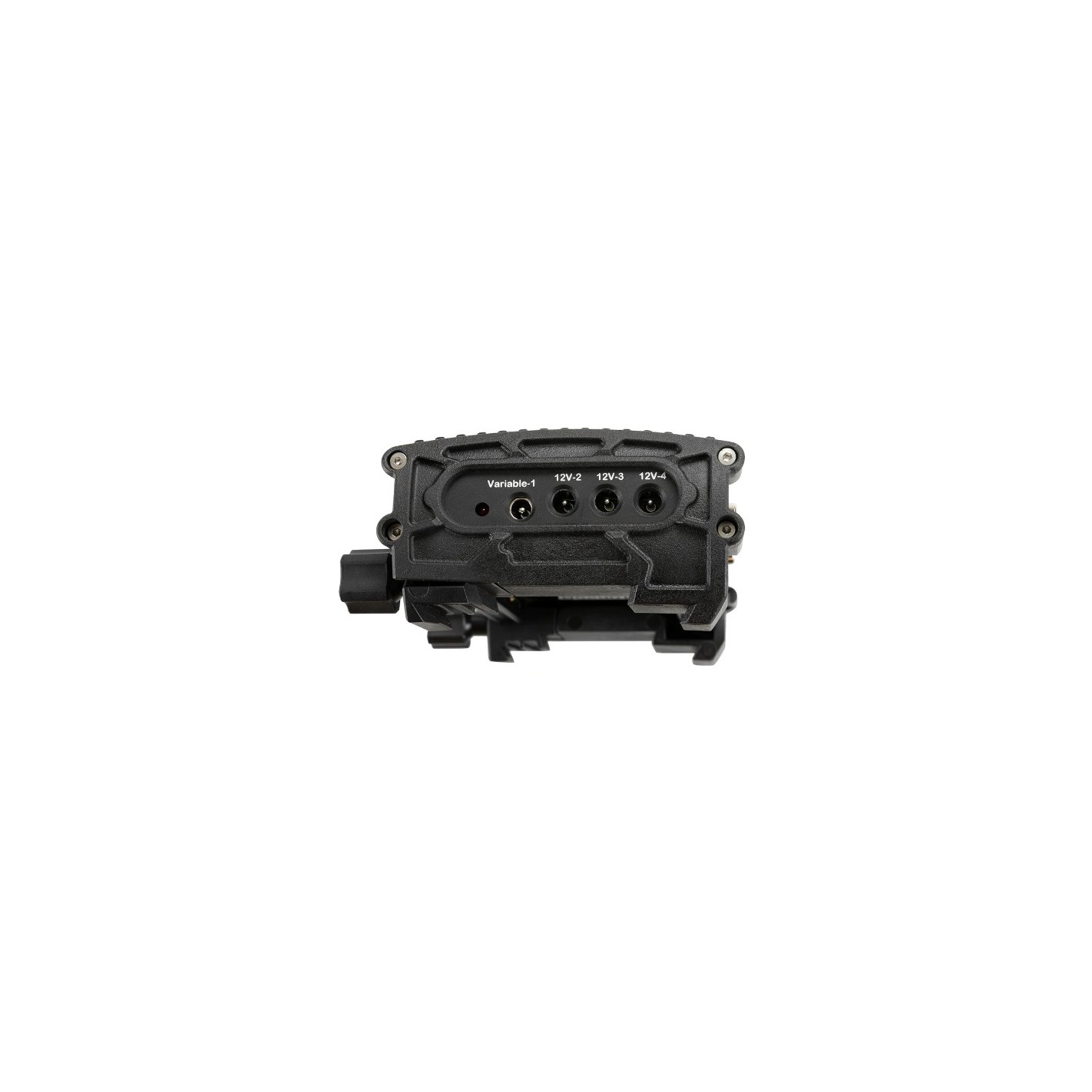

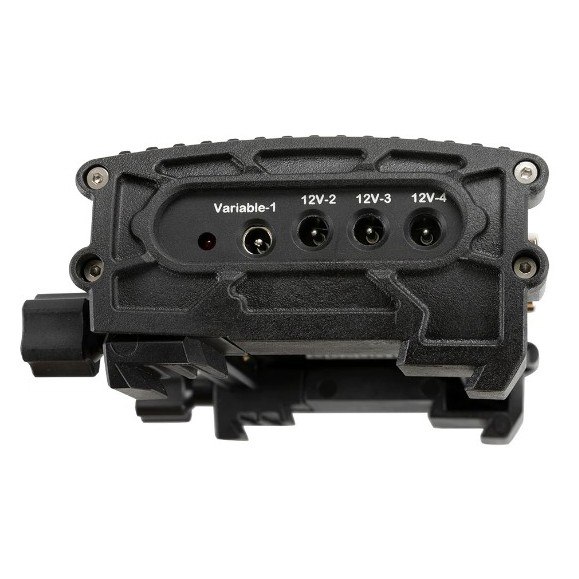

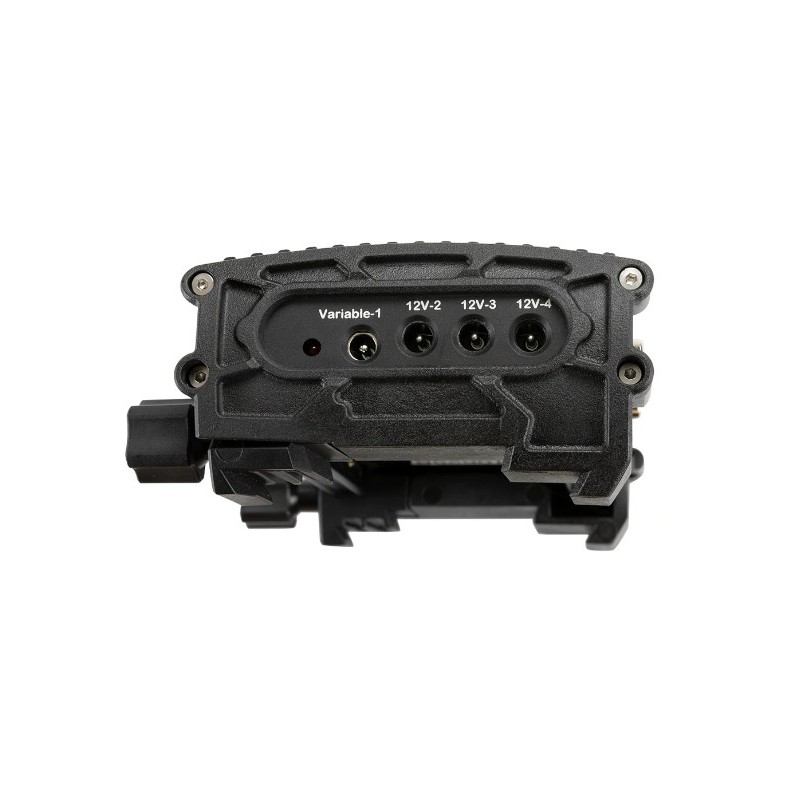

• 3 12V DC power output ports: 12V DC barrel connector (5.5mm/2.1mm), 7A max on each port.
• Variable DC power output port: 3V-12V variable output, barrel connector (5.5mm/2.1mm), 5A max.

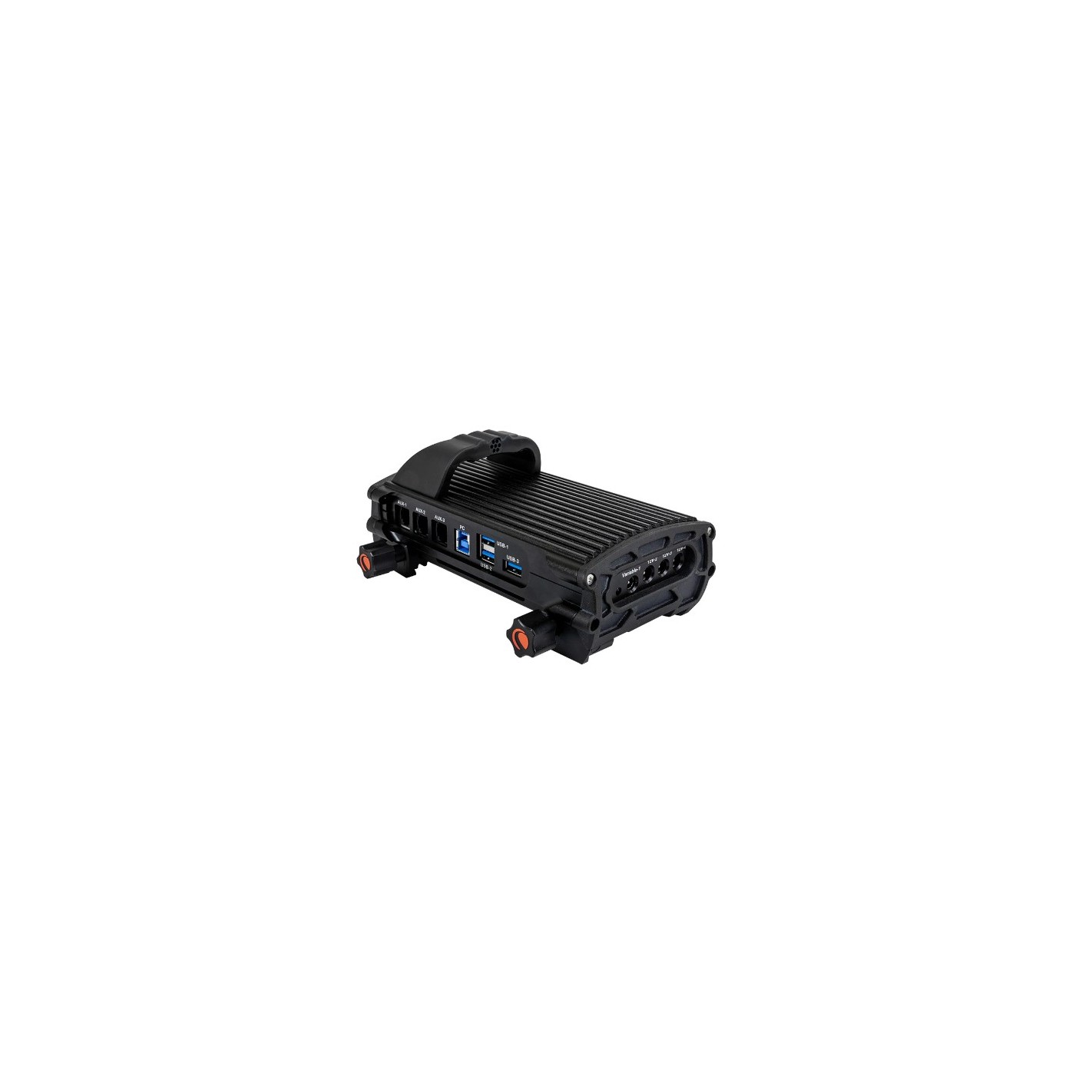

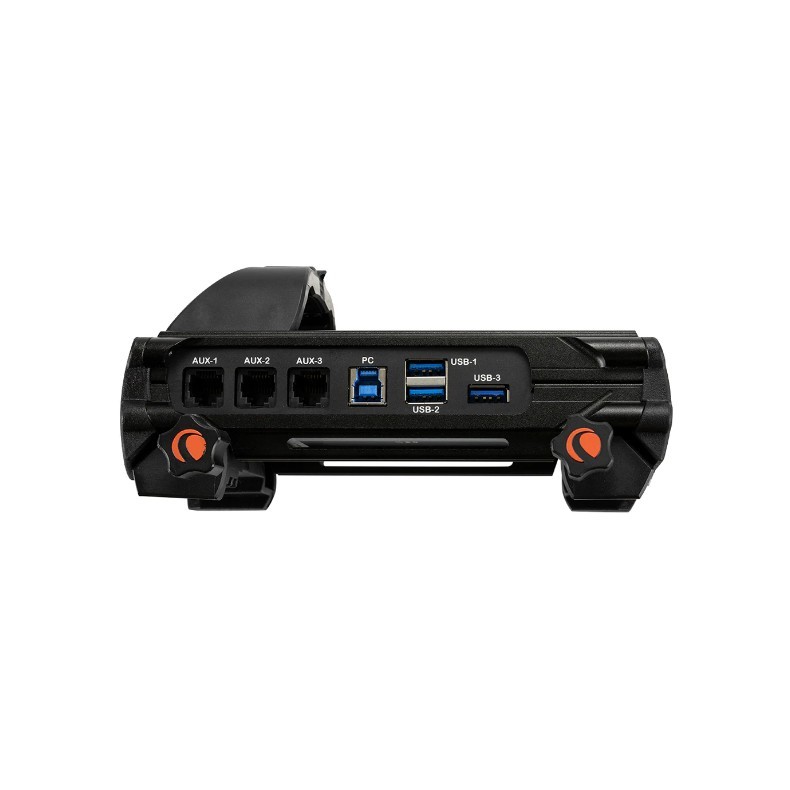

• USB port: 3x ports, USB 3.2 Type A ports, up to 2.5A output for each port

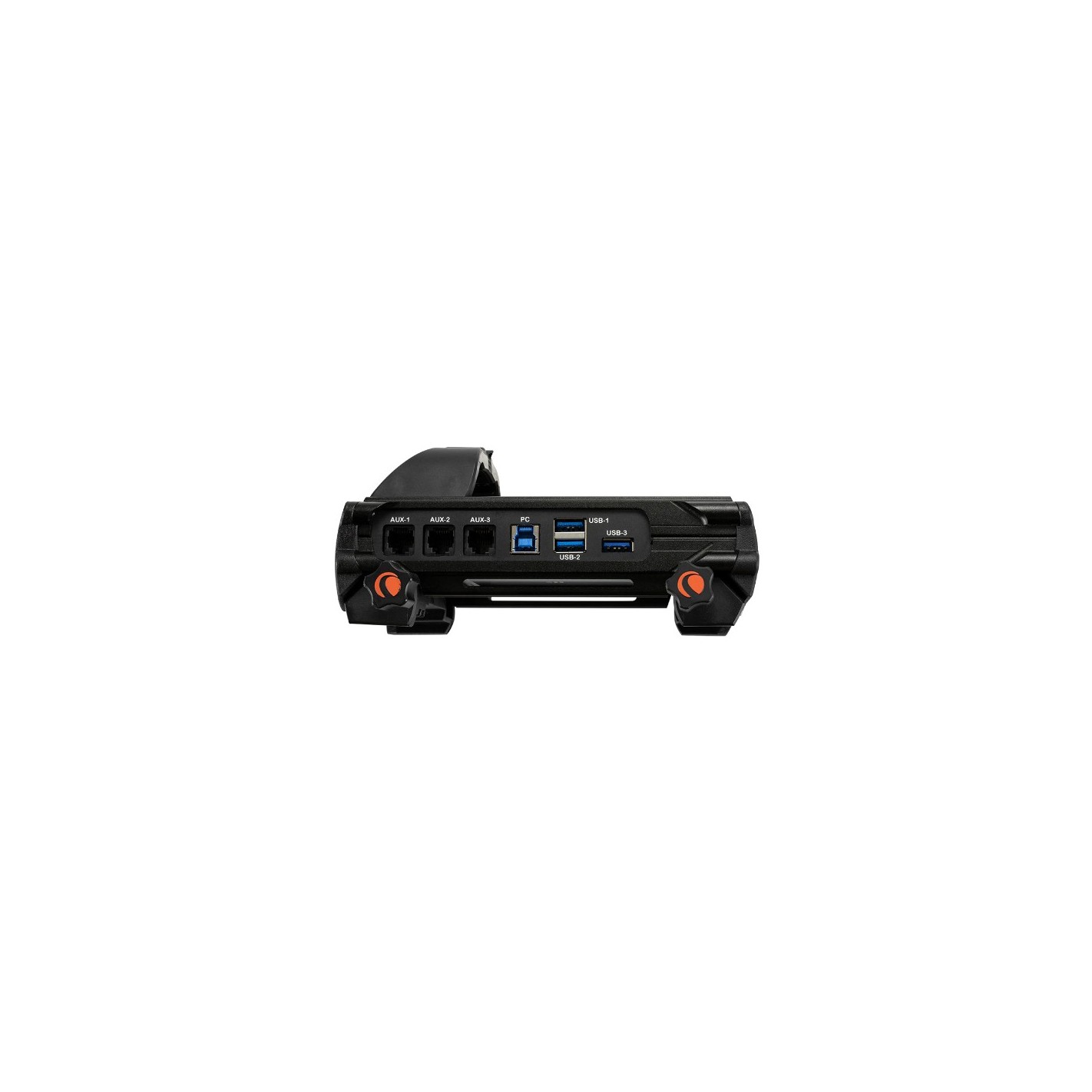

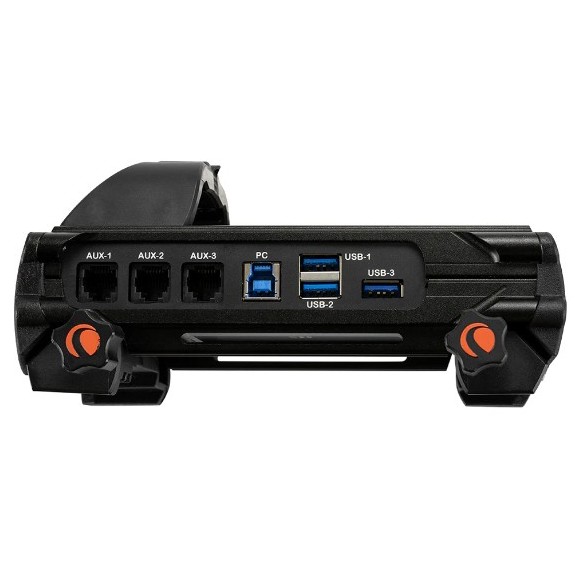

• AUX ports: 3x ports, allows connection to Celestron mounts for HC (control knob), also allows connection of optional accessories
• PC port: USB 2.0 Type B, allows connection to PC for control with CPWI
• 12V DC power input port: Threaded barrel connector, 5.5mm/2.1mm, maximum input 10A
• High current 12V DC power input port: XT60 socket, max. input 20A
• Power cable included: Cigarette lighter plug on one end, threaded barrel connector on the other (5.5mm/2.1mm), 10 feet long, 10A fuse protected
• Environmental sensor: Measures ambient temperature and humidity, integrated into enclosure "bridge" for thermal insulation
• Enclosure construction: Aluminum with built-in fan
• Clamp: Fits CG-5 and CGE dovetails (can also be clamped to tripod leg)
• Electronic protections: Fuse protection, reverse polarity protection, low voltage cutoff
• Weight: 635.02 g
• Dimensions: 177.8mm x 114.3mm x 82.55mm
