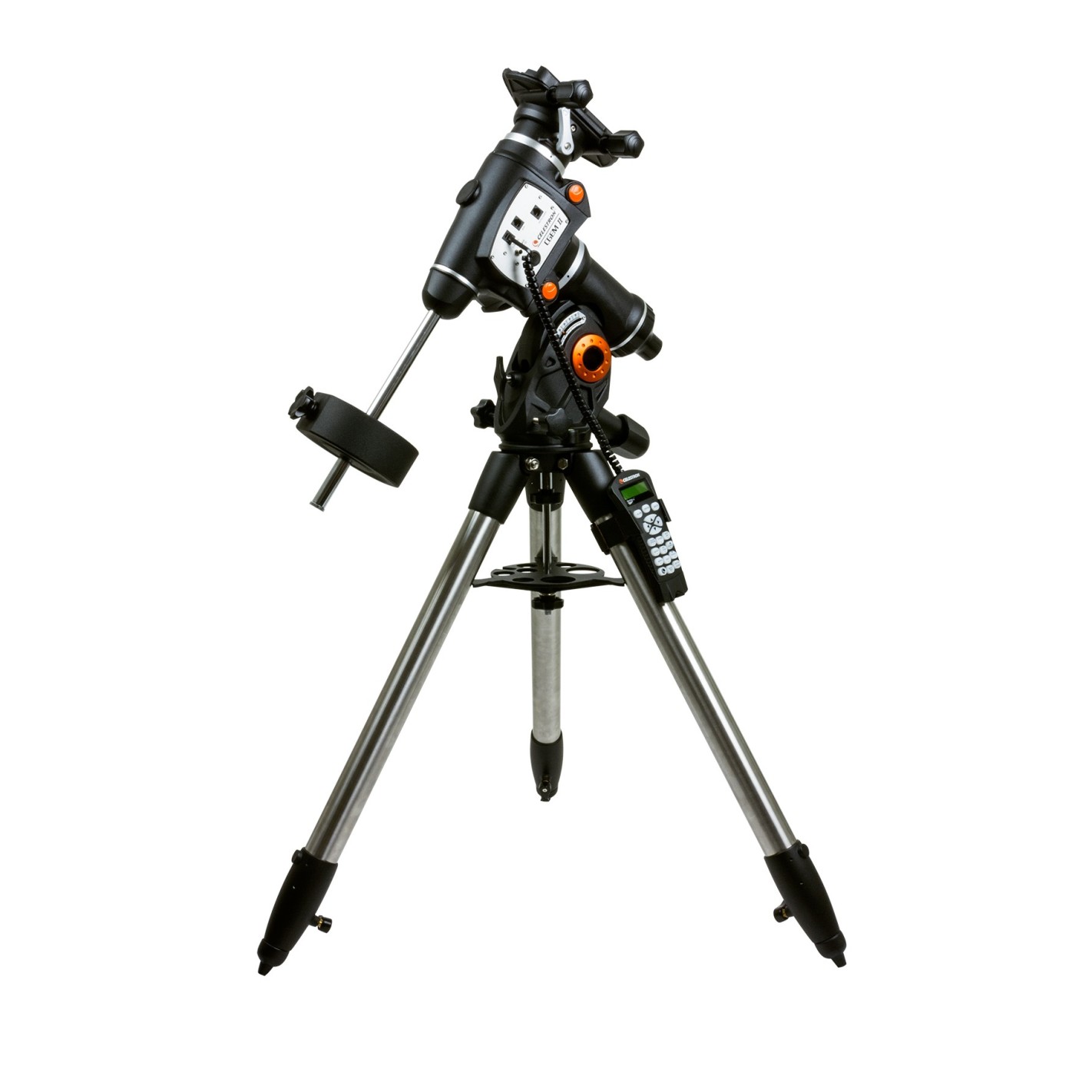

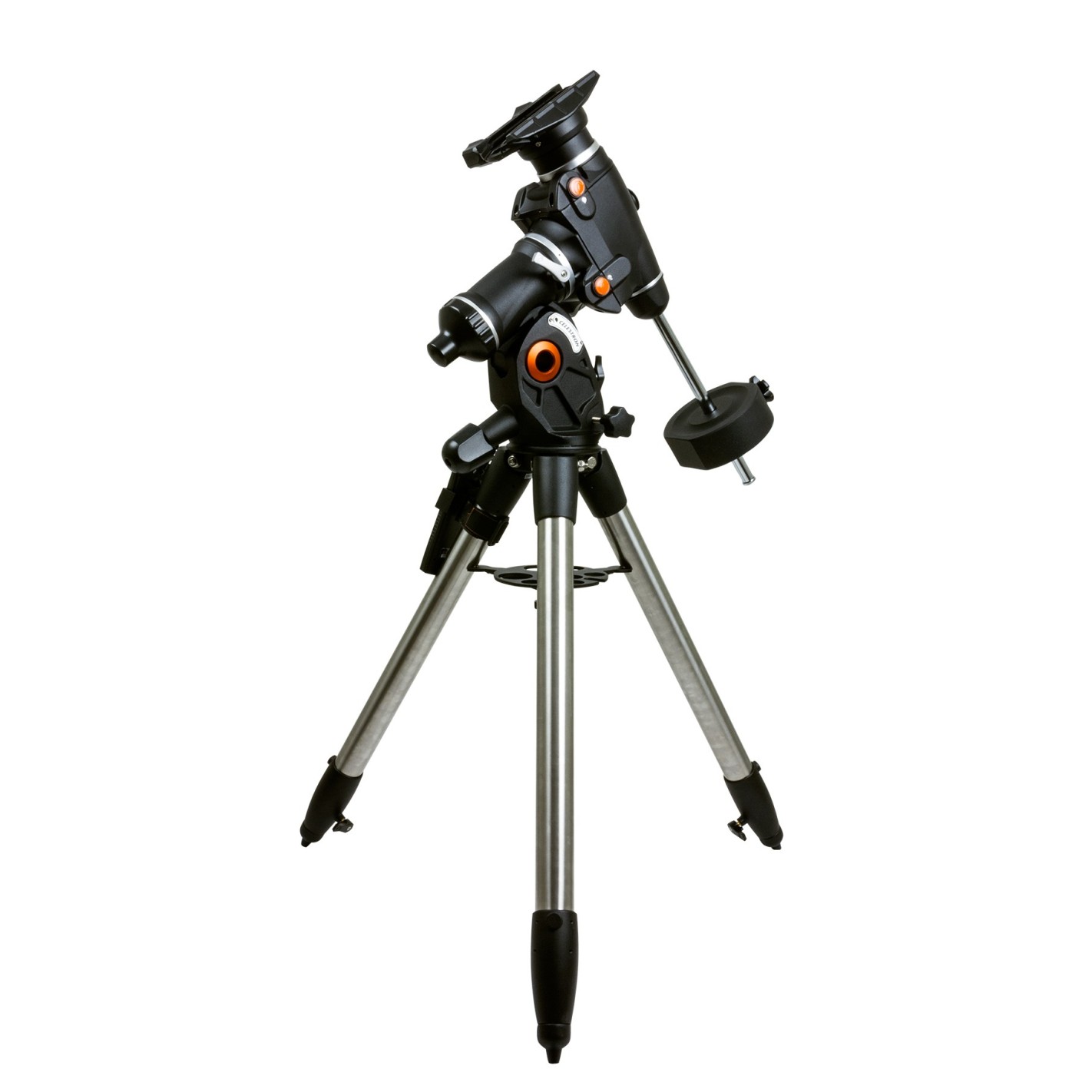

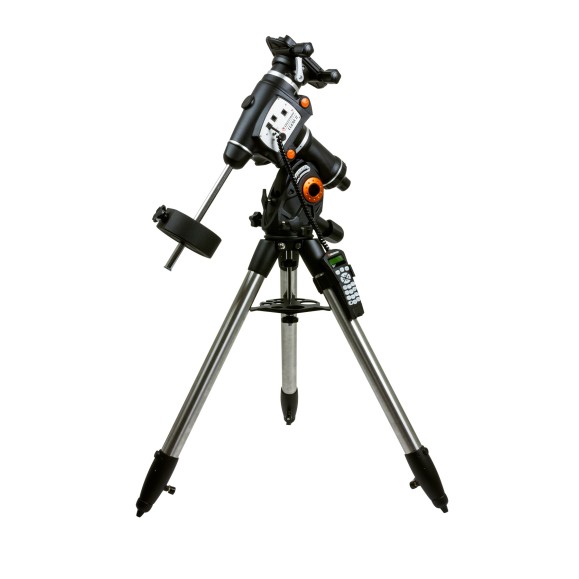

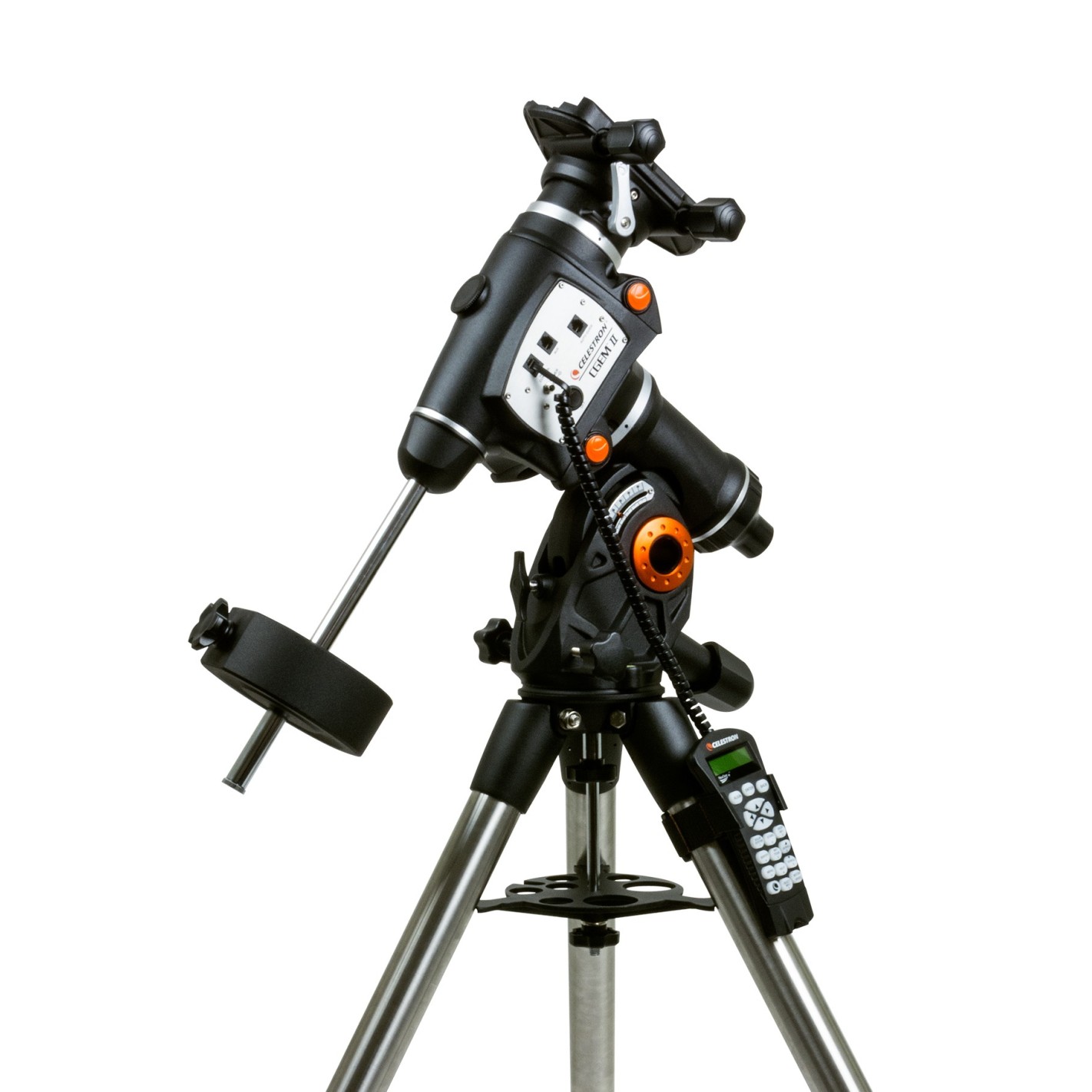

Equatorial mount Celestron CGEM II 91523

Equatorial mount Celestron CGEM II 91523.

This great piece of equipment is a new update to the legendary CGEM mount. The CGEM II has a contemporary, attractive and bold look and is capable of supporting the high-end SCT optical tubes from Celestron (up to 11") securely and vibration-free, which is ideal for both astrophotography and visual observation. It is capable of supporting 18 kg payload and rotates at 5° per second, allowing you to smoothly and instantly target any of the celestial objects available in its database.

ITS MAIN NEW FEATURES ARE:

ERGONOMIC DESIGN:

The CGEM II has been designed to be very ergonomic, with large Altitude and Azimuth adjustment knobs for quick and easy adjustment of polar alignment. Internal RA and DEC motor wiring provides a clean appearance and easy, trouble-free setup.

INNOVATION:

The CGEM II series incorporates the innovative All-Star polar alignment procedure from Celestron. All-Star allows you to accurately polar align the mount using any star, even if you cannot see the celestial pole. Another great feature of the CGEM II that we offer at Telescopiomania that is sure to delight all astrophotographers is the permanent Periodic Error Correction (PEC).

OPERATION:

For objects near the meridian (imaginary line passing from north to south), the CGEM II will seamlessly track beyond the meridian for uninterrupted imaging. The CGEM II mount has a robust database with over 40,000 objects, 100 user-defined programmable objects, and enhanced and updated information on over 200 objects.

The CGEM II mount from Celestron is the intermediate step between the Advanced VX Series and the CGX Series.

TECHNICAL SPECIFICATIONS:

• • • • • Mount Type: German equatorial
        • Tripod: steel tripod with 2" legs with graduated markings on the lower section to facilitate quick leveling

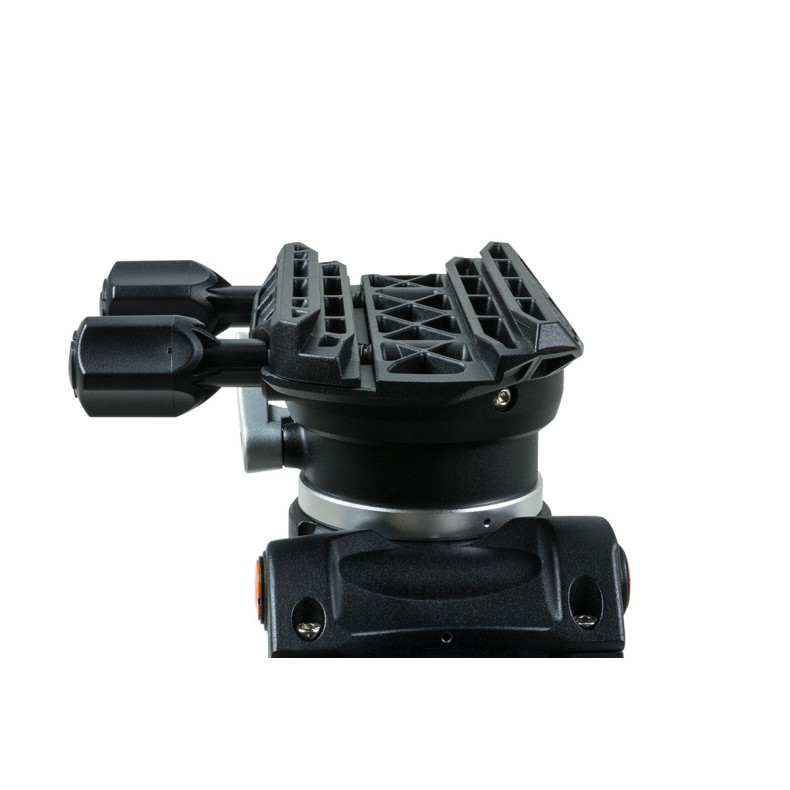

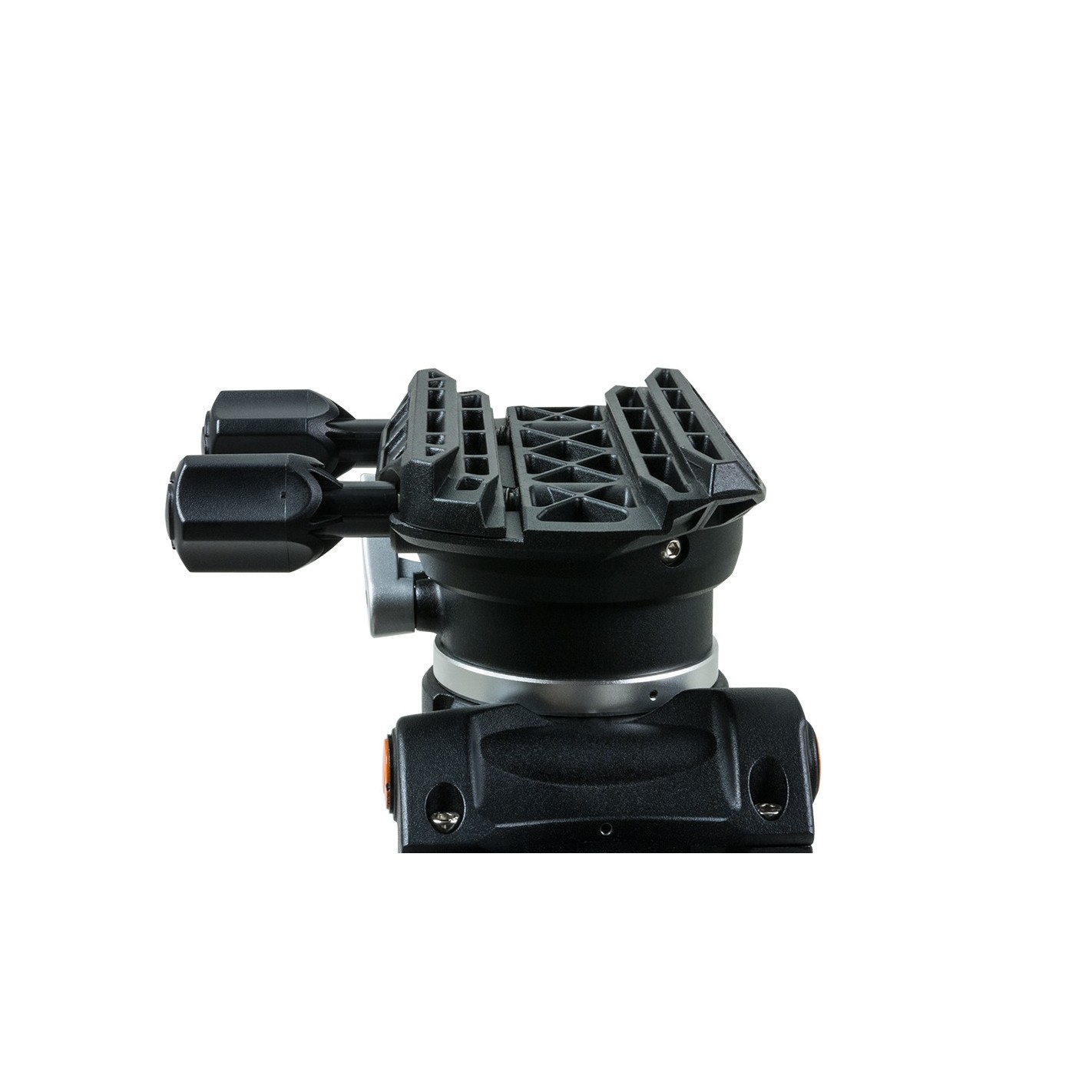

        • Double dovetail socket: connects directly to the dovetails Vixen/CG-5 and Losmandy/CGE
        • Payload capacity: 18 kg
        • Latitude range: 15° - 70°
        • Power requirements: 12 VDC, 3,2 amps
        • Ports: 1x control handle port, 1x auxiliary port, 1x auto guidance port, 1x USB 2.0 port (on control handle) for direct link to a PC via ASCOM software.
        • Drive motor: small diameter DC servomotors
        • Rotation speeds: 9 speeds
        • Tracking Speeds: Sidereal, Solar and Lunar
        • Tracking Modes: EQ North and EQ South
        • Alignment procedures: AutoAlign, 2-star alignment, Fast alignment, 1-star alignment, Last alignment, Solar system alignment

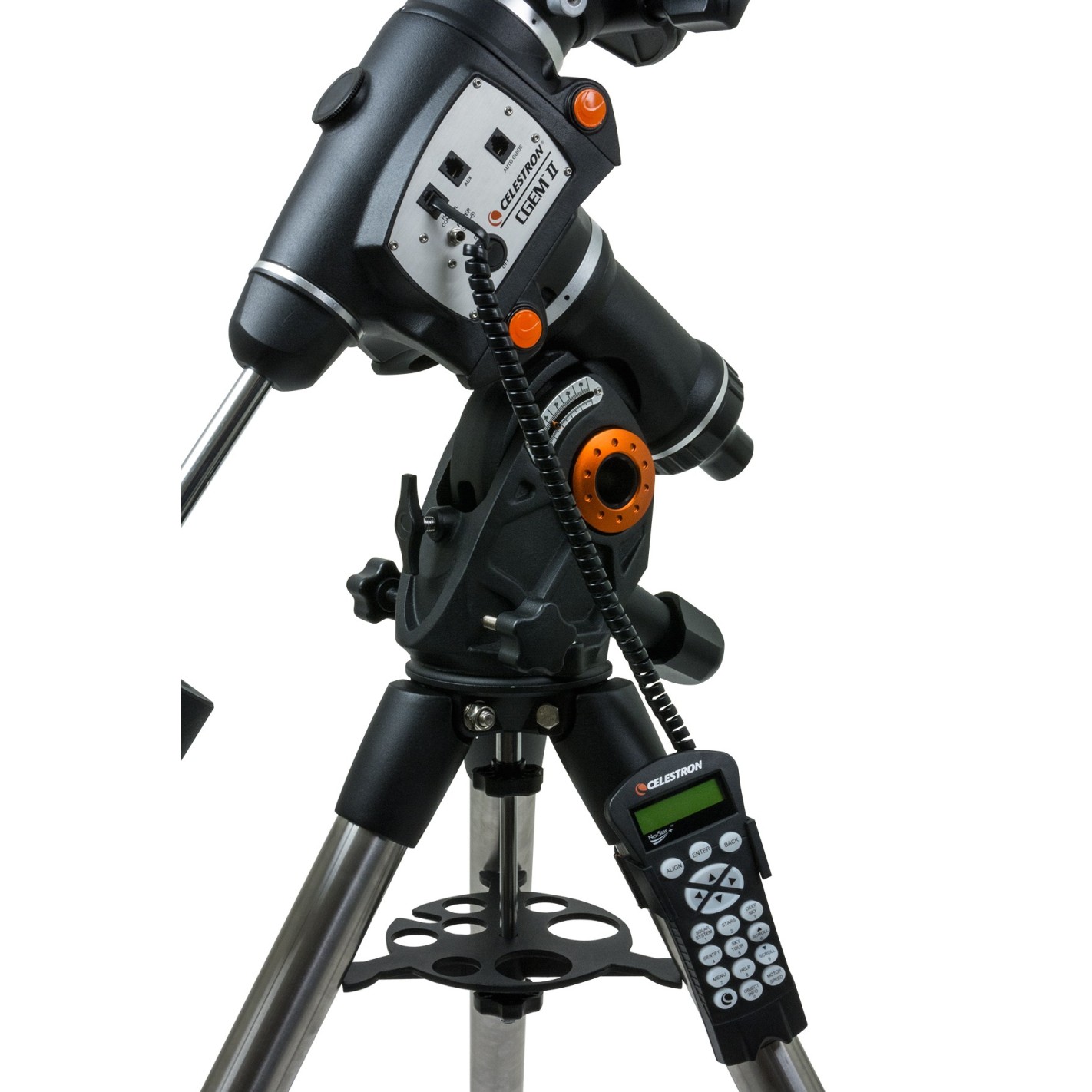

        • Dual-line computer control, 16-character liquid crystal display; 19 LED buttons with fiber-optic backlight, USB 2.0 port for PC connection
        • Database: + 40,000 objects, 100 user-defined objects. Enhanced information on more than 200 objects
        • Mount weight: 18 kg
        • Tripod weight: 9 kg
        • Counterweight weight: 8 kg
        • Total mount weight: 37 kg

Equatorial mount Celestron CGEM II 91523.
