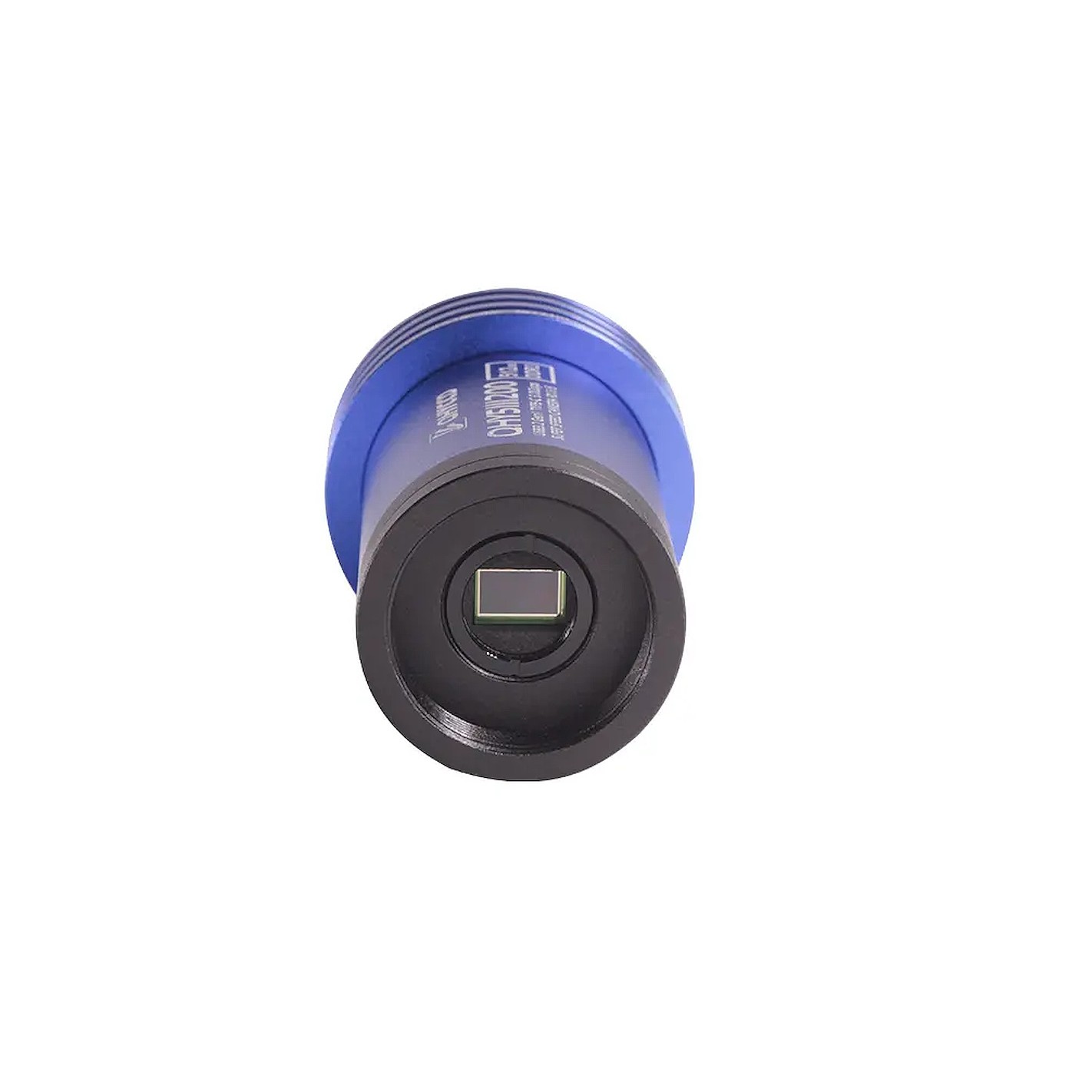

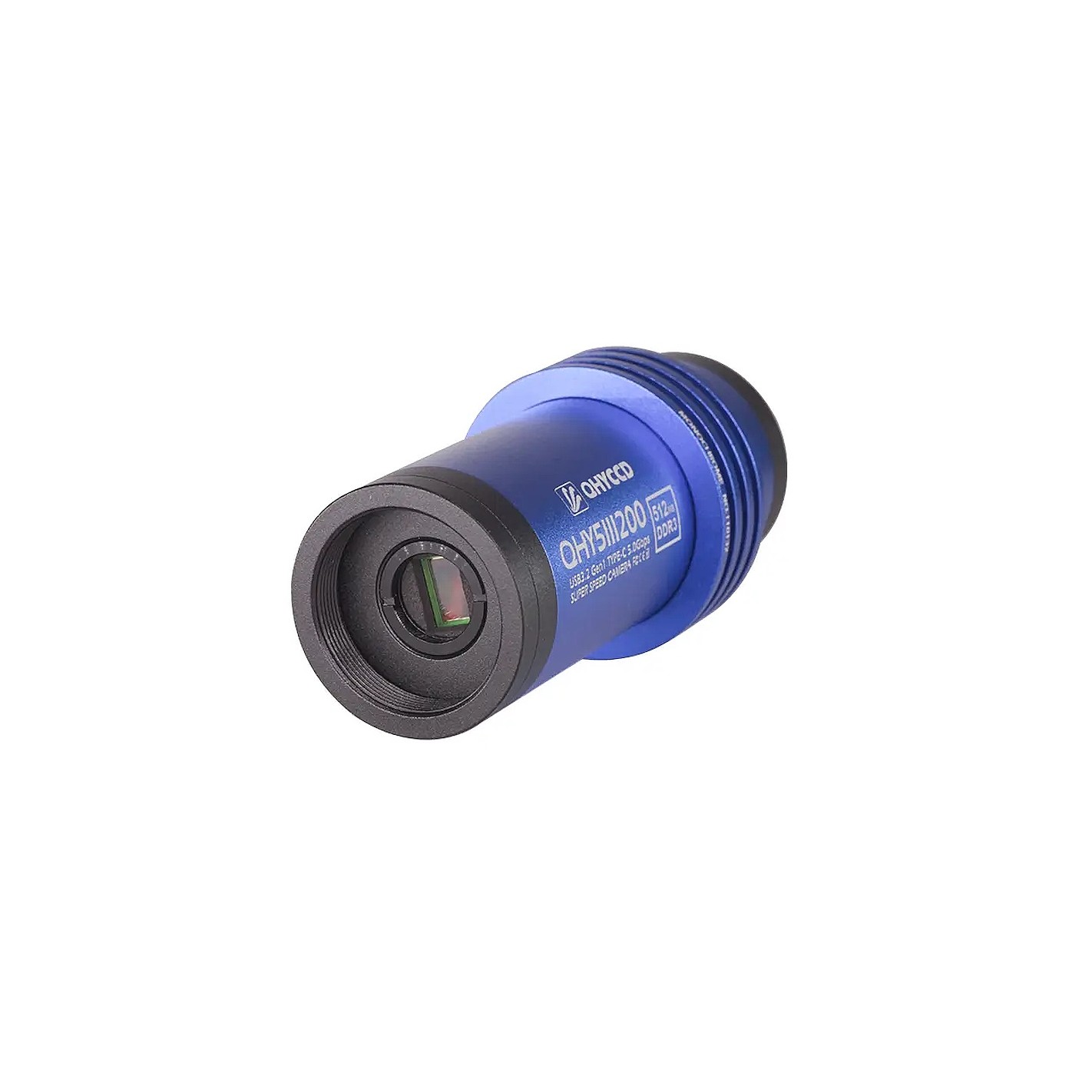

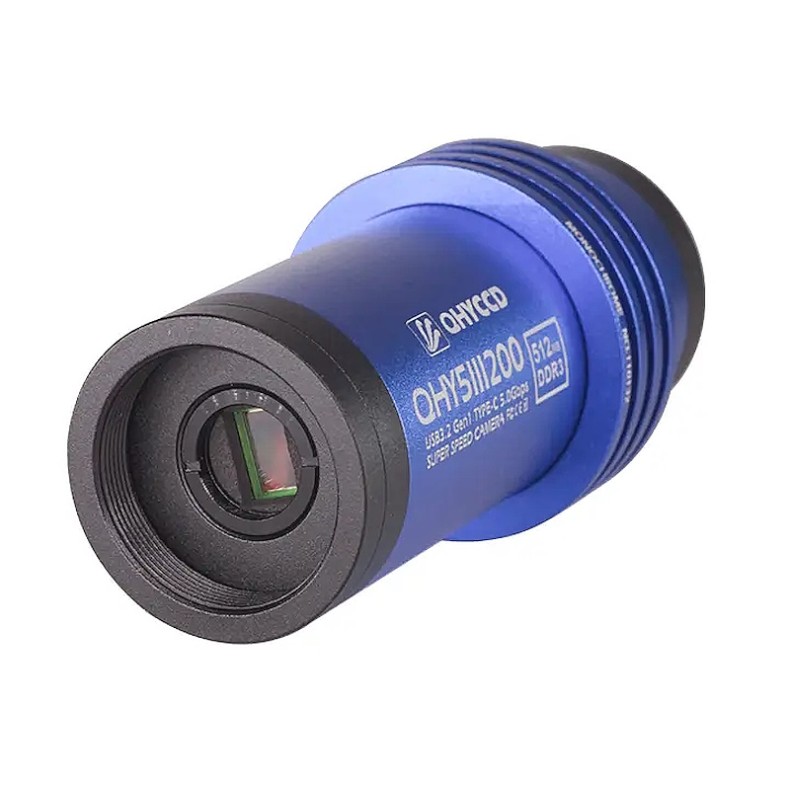

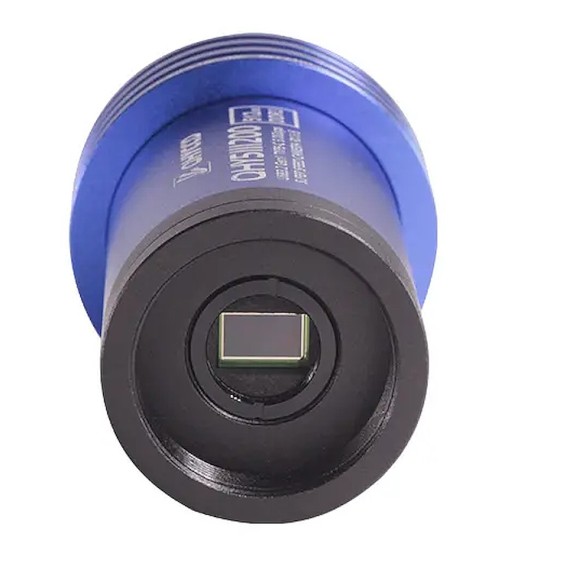

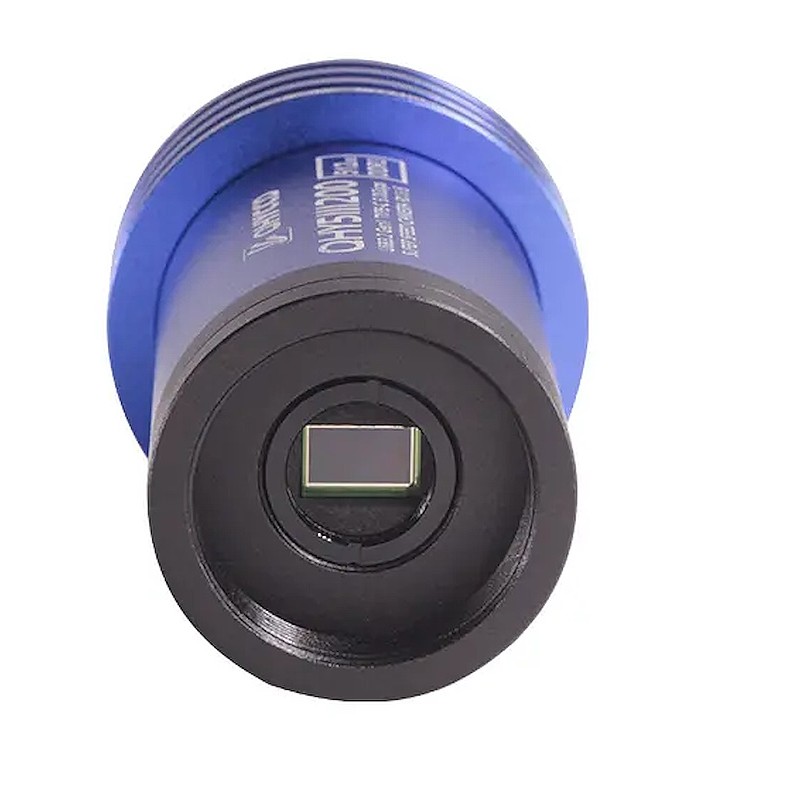

QHY5III200M is a new generation of QHY5III V2 series planetary guidance camera, which uses domestic CMOS, with excellent quality and high near-infrared sensitivity similar to QHY5III462C.
QHY5III200 is also the first mono CMOS planetary camera with near infrared enhancement features developed by QHY. It includes IR850nm filter.
Mars - By Tiziano Olivetti, with QHY5III200M
Saturn captured by Christopher Go with QHYY5III200M
Jupiter captured by Christopher Go with QHY5III200M（above) and QHY5III462C ( below ).
Methane band comparison between QHY5III200M and QHY5III462C.
Extended near-infrared sensitivity
Introduction to the V2 Series of QHY5III cameras
The planetary and guidance cameras of the new QHY5III series (Ver. 2) are equipped with a 512 MB DDR3 image buffer that can effectively reduce the transmission pressure of the computer. This is a great help for planetary photography, which often requires processing a large amount of data in a short period of time.
For example, today, some deep-sky astrophotography cameras on the market have only 256 MB. In comparison, the 512 MB DDR3 memory of the new 5III series cameras (Ver. 2) represents a significant improvement.
New front design with more compatibility
All cameras in the new QHY5III (Ver. 2) series share new features that make them more compatible.
The BFL of the V2 cameras is only 8mm, which means you can easily fit a V2 camera with your OAG. The basic top adapter includes 1.25-inch threads and you can still use your 1.25-inch filter.
The top adapter glass on these cameras can be easily changed. One of the advantages of interchangeable top glass is that you can use a filter even with lenses!
You can use a 1.25 inch CS adapter to attach CS lenses or add a CS to C adapter for C-mount lenses. Both adapters (1.25″ to CS and CS to C) are standard accessories for V2 cameras.
Also included is a 1.25″ filter wheel adapter for connecting mono cameras with the QHYCFw3-S filter wheel.
USB 3.2 Gen1 Type C Interface
All cameras in the new QHY5III (Ver.2) series include USB3.2 Gen1 Type-C. Compared to the USB3.0 Type-B interface used in the previous generation, Type-C has a longer life and is more flexible.
Tip: It is recommended to use the data cable supplied by the manufacturer. Many poor quality Type-C cables are currently on the market, the use of which may cause the camera to malfunction. If you use your own replacement cable, confirm in advance that it is a high quality cable.

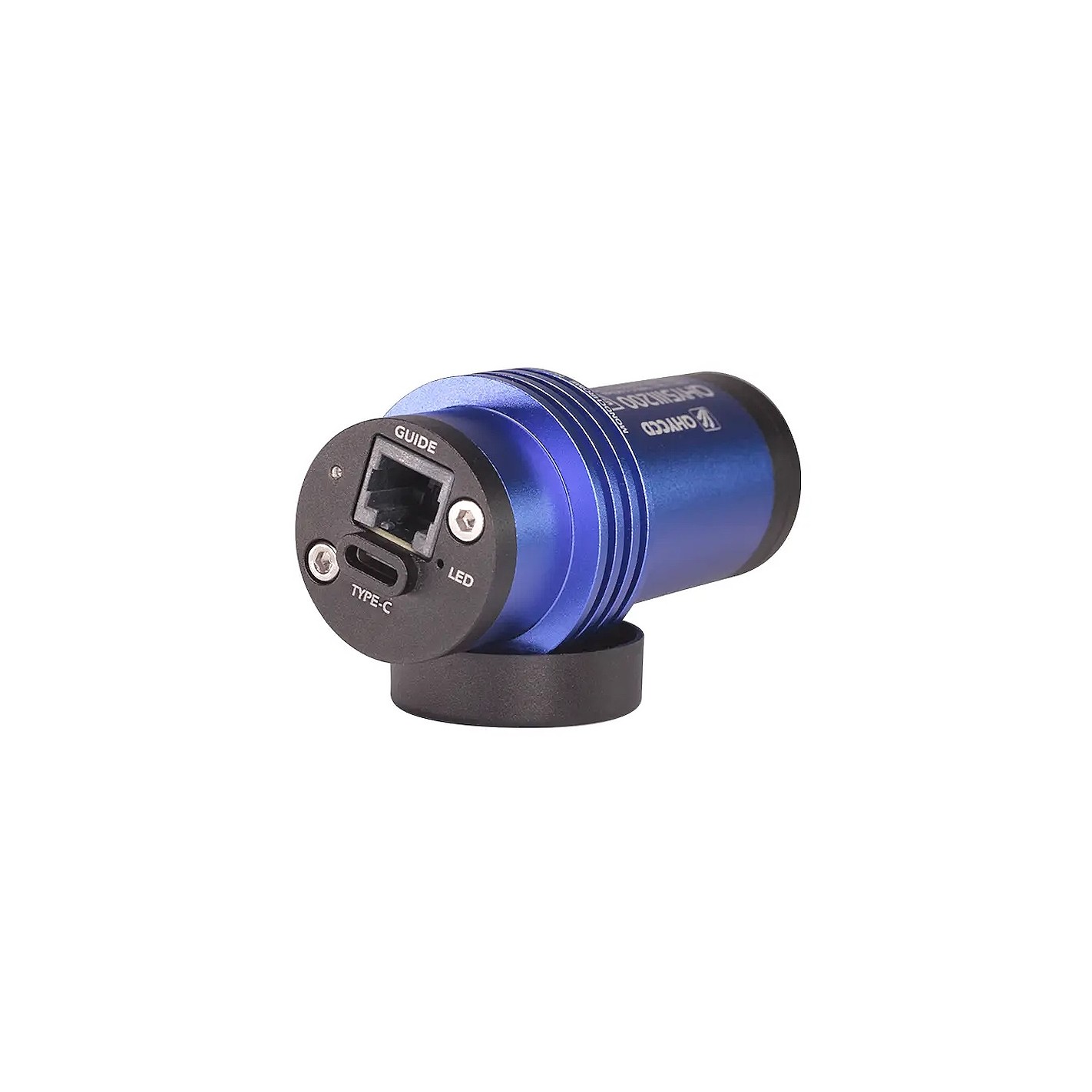

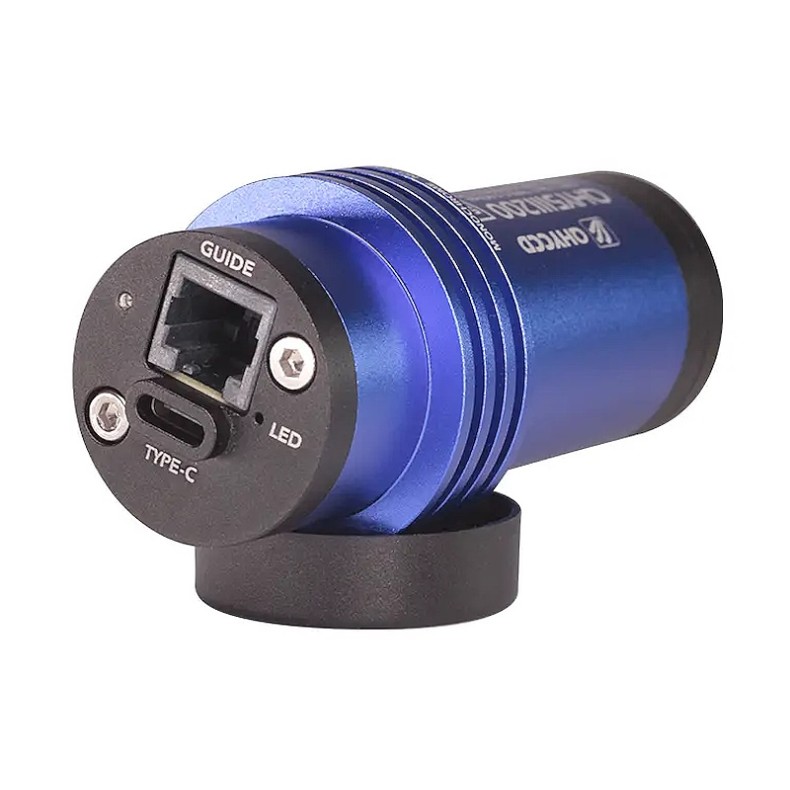

Universal guide interface
The custom interfaces of the previous generation of planetary guides and cameras have been replaced in this new QHY5III (Ver.2) series with a more universal ST-4 compatible guide interface. This makes it easier to find spare parts at an economical price.
LED indicator
All cameras include an LED indicator on the back of the camera. This is a multicolor indicator that will help to determine problems in case of abnormal camera operation. During normal operation the LED remains off to avoid light pollution during the session.
Technical features
| Model |
QHY5III200M |
| Sensor |
SC2210 |
| Pixel size |
4um*4um |
| Pixel area |
1920*1080 |
| Effective Pixels |
2 Mega Pixel |
| Fullwell |
8000e |
| Read noise |
0.75e - 3e |
| AD sampling depth |
12bit (16bit and 8bit output) |
| Integrated image buffer |
512MB DDR3 |
| Capture rate ROI | Full resolution 96.5FPS @8BIT 60FPS @16BIT 960 lines 187FPS @8BIT 116FPS @16BIT
480 lines 209FPS @8BIT 130FPS @16BIT
|
| Exposure times |
15us-900 s |
| Shutter |
Electronic |
| Computer Interface |
USB3.2 Gen1 Type-C |
| Guide Port |
st4 |
| Telescope connection |
1.25-inch， compatible with CS and C lenses by replacing the front connector (Standard version includes IR AR glass and IR850nm filter)
|
| Backfocus |
17 mm（with adapter）; 8±0.5 mm (without adapter) |
| Weight |
90g |
Curves
Mechanical dimensions
Accessories
