EXPLORE SCIENTIFIC Deep Sky Color Camera 26MP
EXP0510540
Stock at Supplier
1,321.45
1,362.77
-41.32
VAT excluded
Shipping 5/7d
USB 3.0 color camera with large SONY EXMOR IMX-571 APS-C CMOS sensor and active cooling. Probably one of the best camera sensors available today.
- Camera with large SONY EXMOR IMX-571 CMOS sensor and active cooling
- Probably one of the best camera sensors currently available for deep sky
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 5 December - Thursday, 12 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 5 December - Thursday, 12 December
✖
- Camera with large SONY EXMOR IMX-571 CMOS sensor and active cooling
- Probably one of the best camera sensors currently available for deep sky
- Extreme sensitivity due to backside illumination technology
- Very low read noise and low dark current
- Large image fields and easy object centering
- Sensor resolution: 26 MP (6224 x 4168 pixels); pixel size: 3.76 µm x 3.76 µm
- Sensor size: 23.48 x 15.67 mm (APS-C format)
- Built-in USB hub with 2 USB 2.0 ports
- Camera diameter: 80 mm length, 102mm; weight: 0.55 kg
- Delivery: camera, accessories, software, carrying case, manual

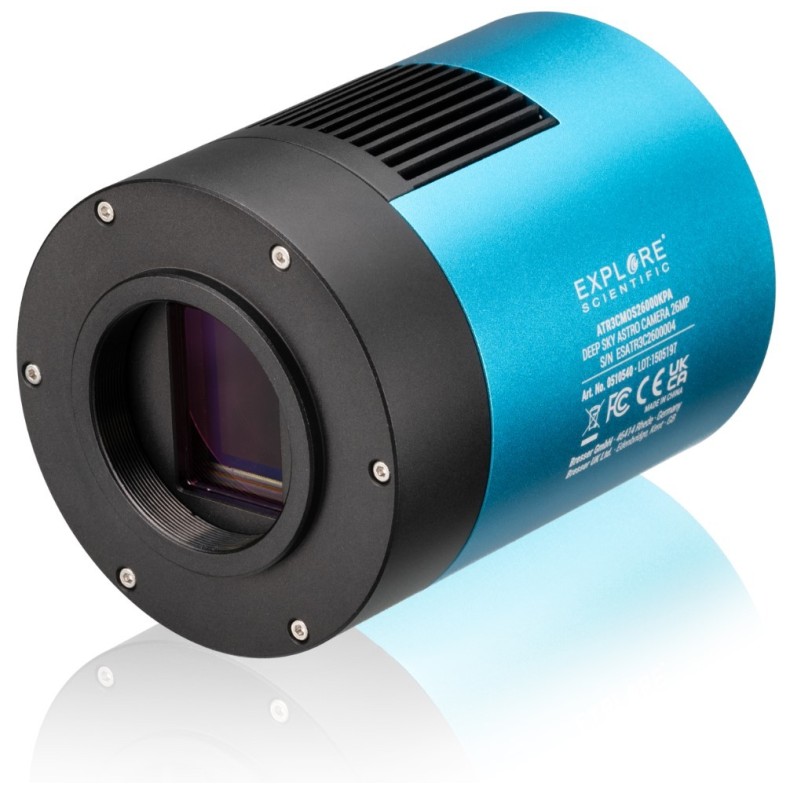

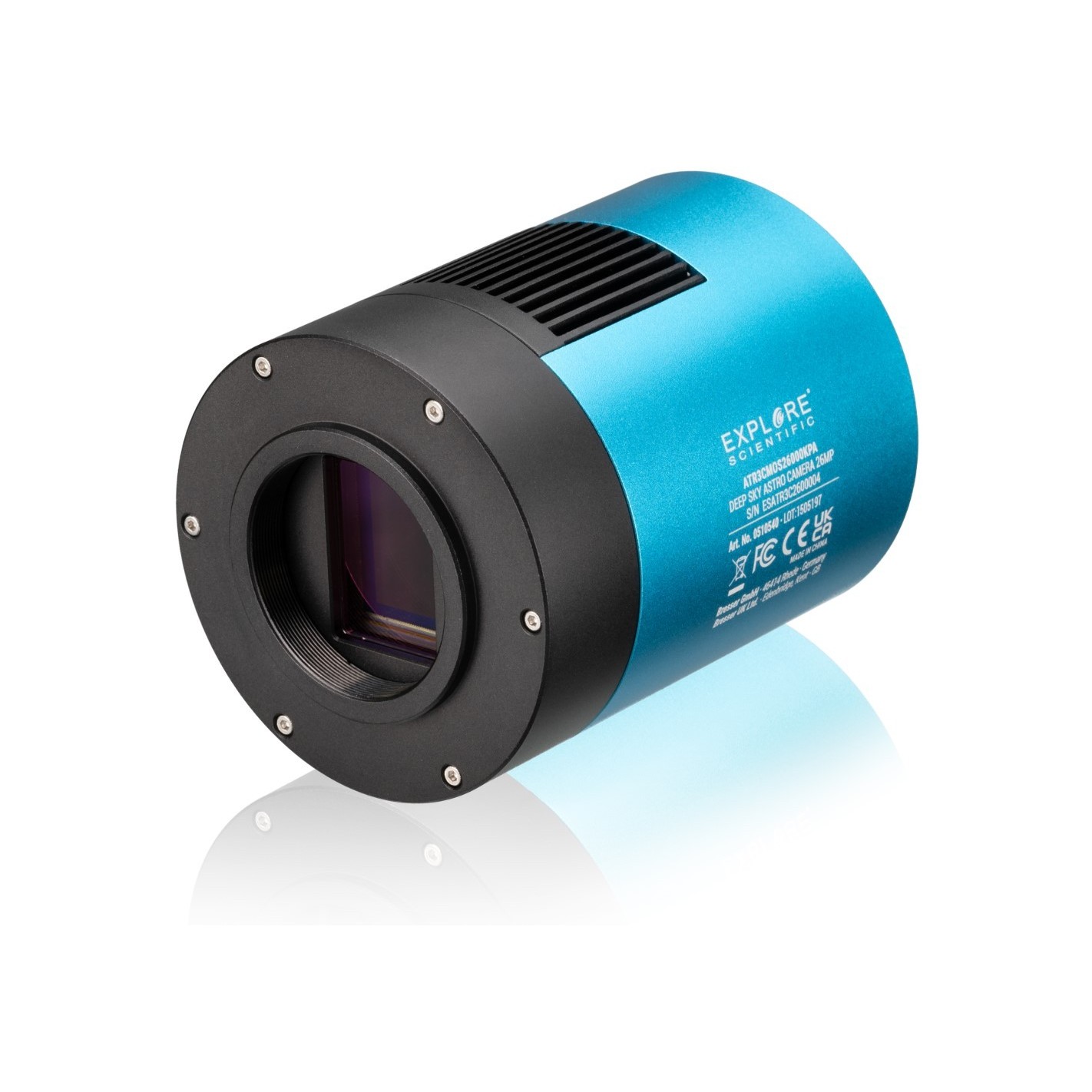

High-resolution deep-sky camera with large SONY EXMOR IMX-571 APS-C CMOS sensor and active cooling.
The extreme sensitivity of this camera is achieved thanks to SONY backlight technology. This camera is suitable for both advanced users and those looking to step up from DSLRs for more serious deep sky imaging.
Enter the world of astrophotography now.With the new EXPLORE SCIENTIFIC Deep Sky Astro Camera you get a complete modern equipment for direct capture of astro photos and videos. Finally, an easy-to-use camera for capturing galaxies, star clusters, the moon and even planets with high resolution and low sensor noise. Thanks to the fast USB 3.0 computer interface, all image data is transferred within seconds .Long waiting times for images are now a thing of the past.

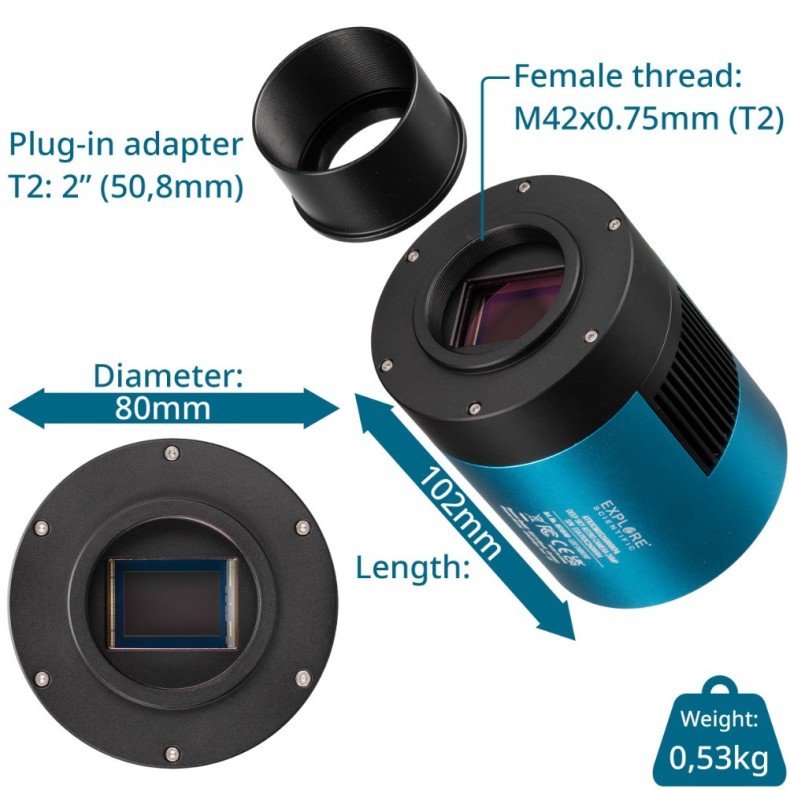

Simply connect the camera to your telescope using the T2 female thread (M42, 0.75 mm) or the 2" (50.8 mm) adapter and after installing the drivers and the included EXPLORE Capture recording and editing software, you are ready to take the first real astrophotographs with a highly specialized camera for your application .
The included EXPLORE Capture Prosoftware offers not only the basic functions necessary for image and video capture, but also many useful special functions for image post-processing and camera setup. Functions such as live image display, exposure settings, white balance, dark image subtraction, stacking, timelapse recording and many more functions can be individually configured. This sophisticated software makes it especially easy to get started in astrophotography. With the automatic configuration you can achieve absolutely flawless results without any prior knowledge. As far as security is concerned, you can deactivate the automatic settings and gradually explore the professional configuration and individual settings of the software.
The new EXPLORE SCIENTIFIC deep-sky camera features a high-sensitivity, very low-noise SONY CMOS APS-C EXMOR IMX-571 sensor that can be cooled down to 40 °C below ambient temperature by means of two-stage thermoelectric cooling. In contrast to normal DSLR cameras, all this ensures much lower noise and fewer hot pixels in your shots. The images are not only much sharper and brighter, but also contain more usable image information. Thanks to the camera's careful automatic setting of the desired temperature, it is easy to create dark frames that can be reused in similar shooting conditions, speeding up processing considerably. The large-format CMOS sensor with 28.3 mm diagonal also enables large image fields and simplifies the adjustment and centering of objects considerably
The secret of this camera's high light sensitivity is SONY's new back-illuminated EXMOR CMOS sensor. It increases the quantum efficiency by up to 80 % at 533 nm, which leads to extremely high sensitivity and consequently to particularly bright, high-contrast photos.

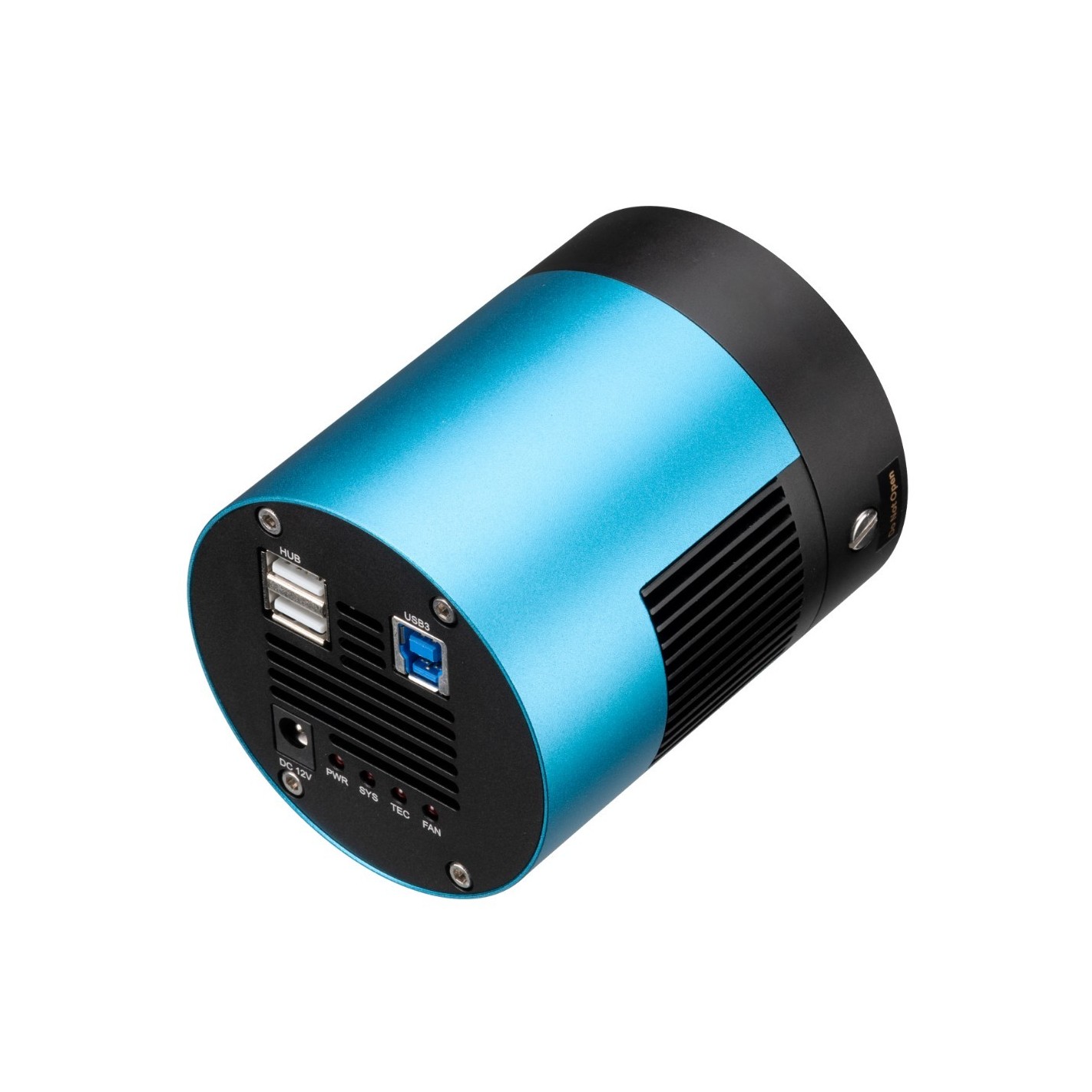

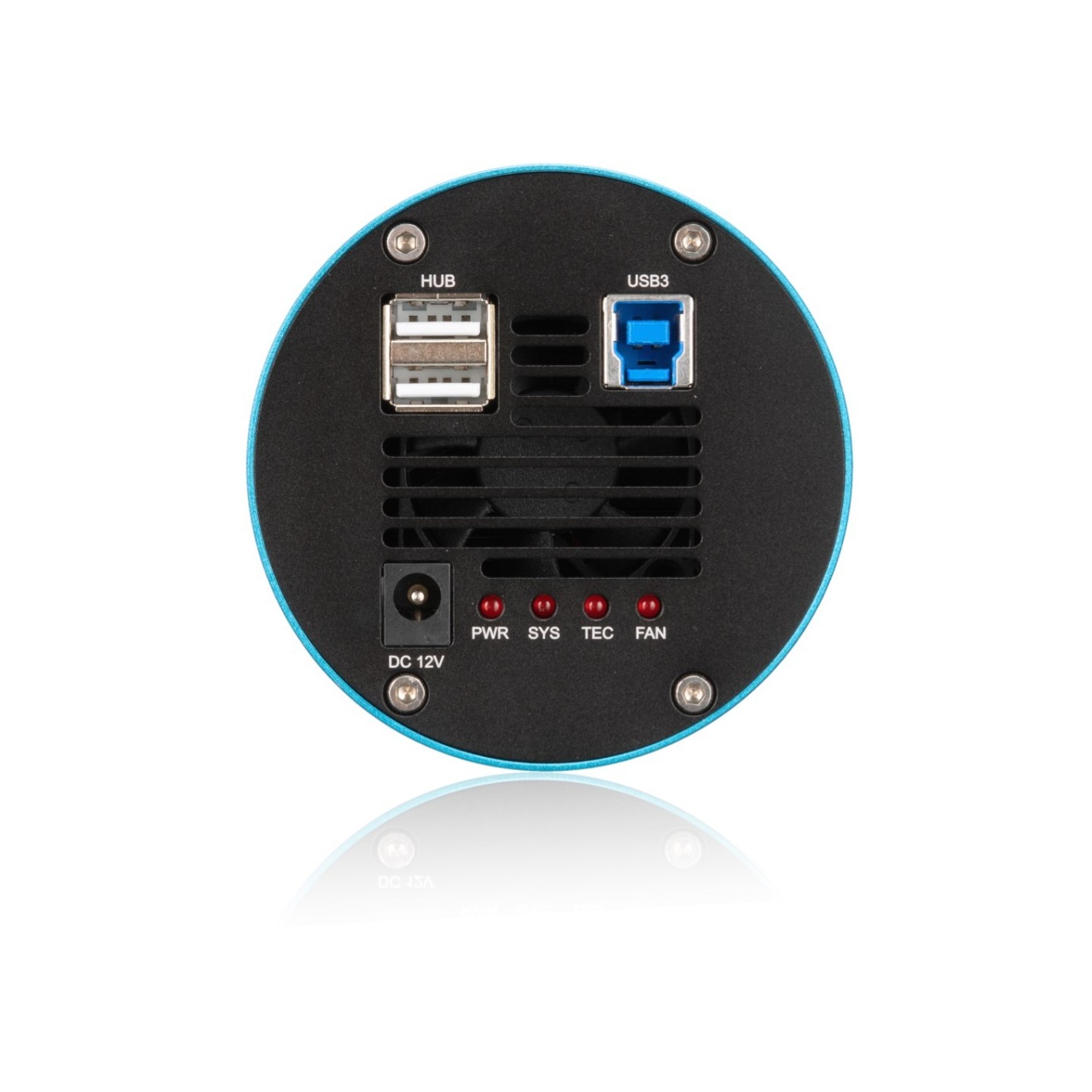

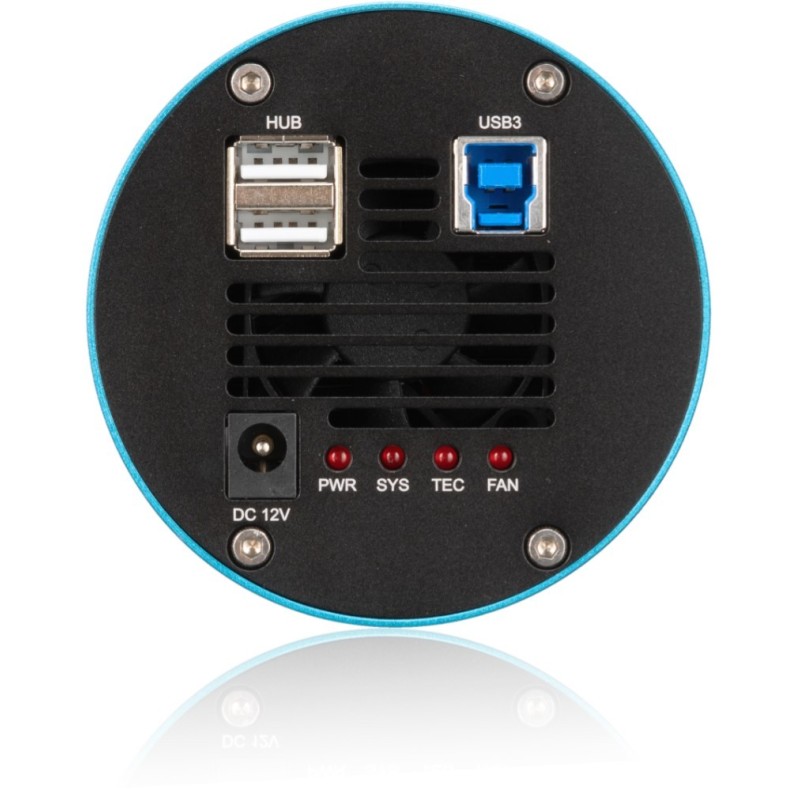

The camera has an integrated USB hub with 2 USB 2.0 ports on the rear. Connect your additional self-tracking camera or motorized focus, etc. via a short USB cable and reduce the risk of tangled and broken cables. Separate cable connections on your accessories and computer are no longer needed.

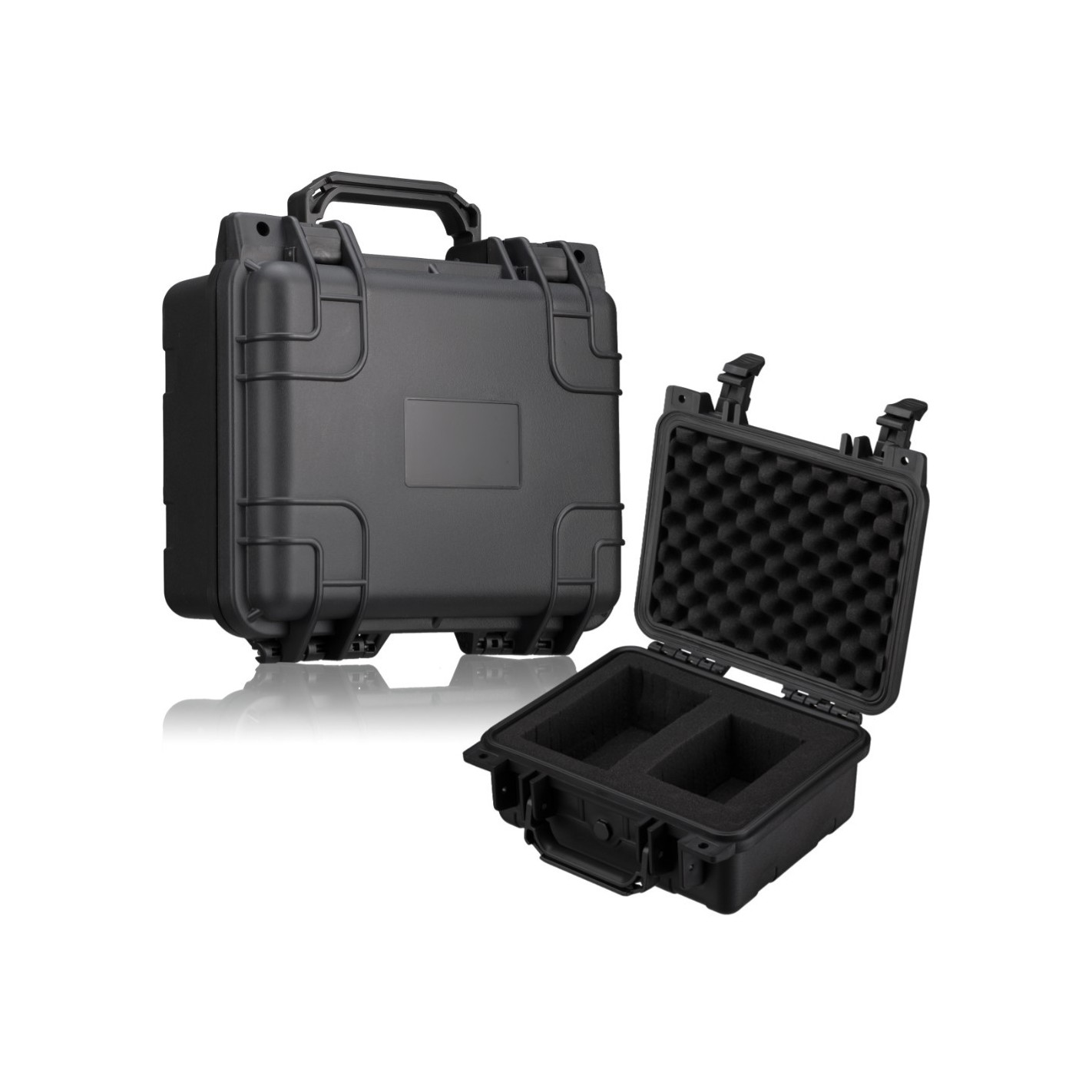

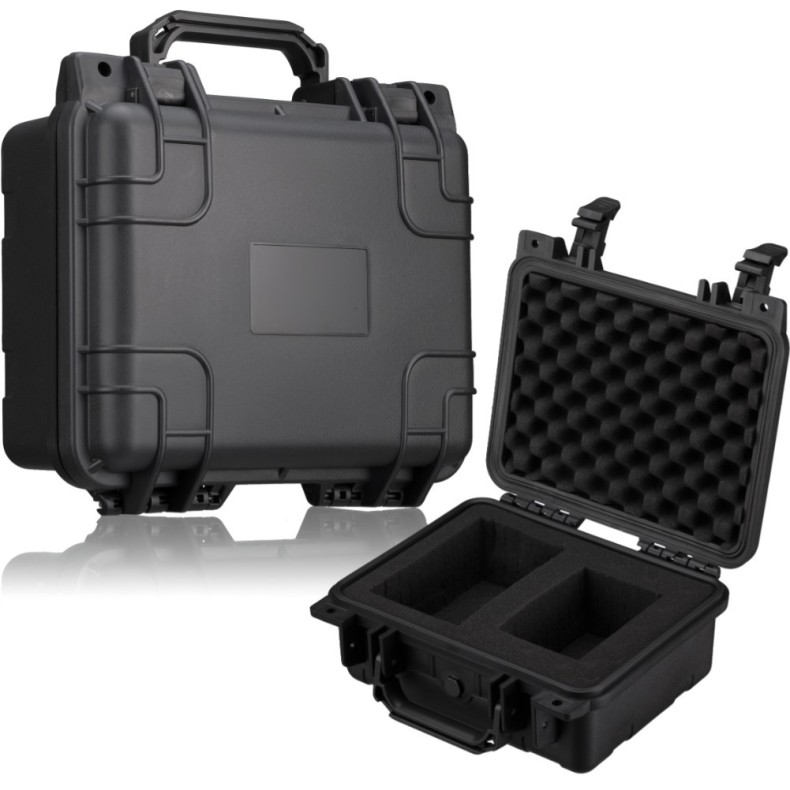

A hard case for the camera and accessories is also included .
IMPORTANT NOTE:
Do not be confused by the megapixel data and the opposite pricing structure. In the field of astronomy, the key criterion is not sensor resolution but maximum light sensitivity. The main goal is to capture as much light as possible in the shortest time.
Download the latest camera software and drivers from the "Manuals" download folder or here: https://www.touptek.com/download/showdownload.php?lang=en&id=2
Sample photos taken by Lóránd Fényes in Hungary:
https://fenyeslorand.hu/m31/
https://fenyeslorand.hu/ic349_merope_nebula/
https://fenyeslorand.hu/asztrofotok/
Field of view for different focal lengths in arcminutes and degrees:
- 400 mm - 201' x 135' (3.4 x 2.3 degrees)
- 500 mm - 161' x 108' (2.7 x 1.8 degrees)
- 600 mm - 134' x 90' (2.2 x 1.5 degrees)
- 700 mm - 115' x 77' (1.9 x 1.3 degrees)
- 800 mm - 100' x 67' (1.7 x 1.1 degrees)
- 900 mm - 89' x 60' (1.5 x 1.0 degrees)
- 1000 mm - 80' x 54' (1.3 x 0.9 degrees)
- 1250 mm - 64' x 43' (1.1 x 0.7 degrees)
- 1500 mm - 53' x 36' (0.9 x 0.6 degree)
- 1750 mm - 46' x 31' (0.8 x 0.5 degrees)
- 2000 mm - 40' x 27' (0.7 x 0.45 degrees)
FEATURES
- Camera type: ASTRO 26.0MP color camera ATR3CMOS16000KPA
- Data output: Single images and video
- Image sensor: SONY EXMOR IMX-571 CMOS color sensor
- Adjustable resolution: 6224x4168 / 3104x2084 / 2064x1386
- Binning (stacking) adjustable: 1x1 / 2x2 / 3x3
- Frame rate per second (FBS): 6.8 / 28 / 63
- Physical sensor size in pixels: 6224 x 4168diaginal: 28.3 mm
- Megapixels: 26 MP
- Sensor size: 23.48 x 15.67 mm (APS-C format)
- Pixel size: 3.76 µm x 3.76 µm
- Bit depth: 8 Bit / 16 Bit
- Back focus: 17.5 mm
- Shutter type: Rolling shutter
- Internal camera memory: 512MB DDR 3 RAM
- Thermoelectric cooling with fan: yes, up to 40°C below ambient temperature
- Adjustable exposure times: 150µs to 60min
- Operating temperature: -10 to +50°C (30-80% HRL)
- USB 3.0 cable length: 150cm
- DC power cable length: 200cm
- CNC machined aluminum housing

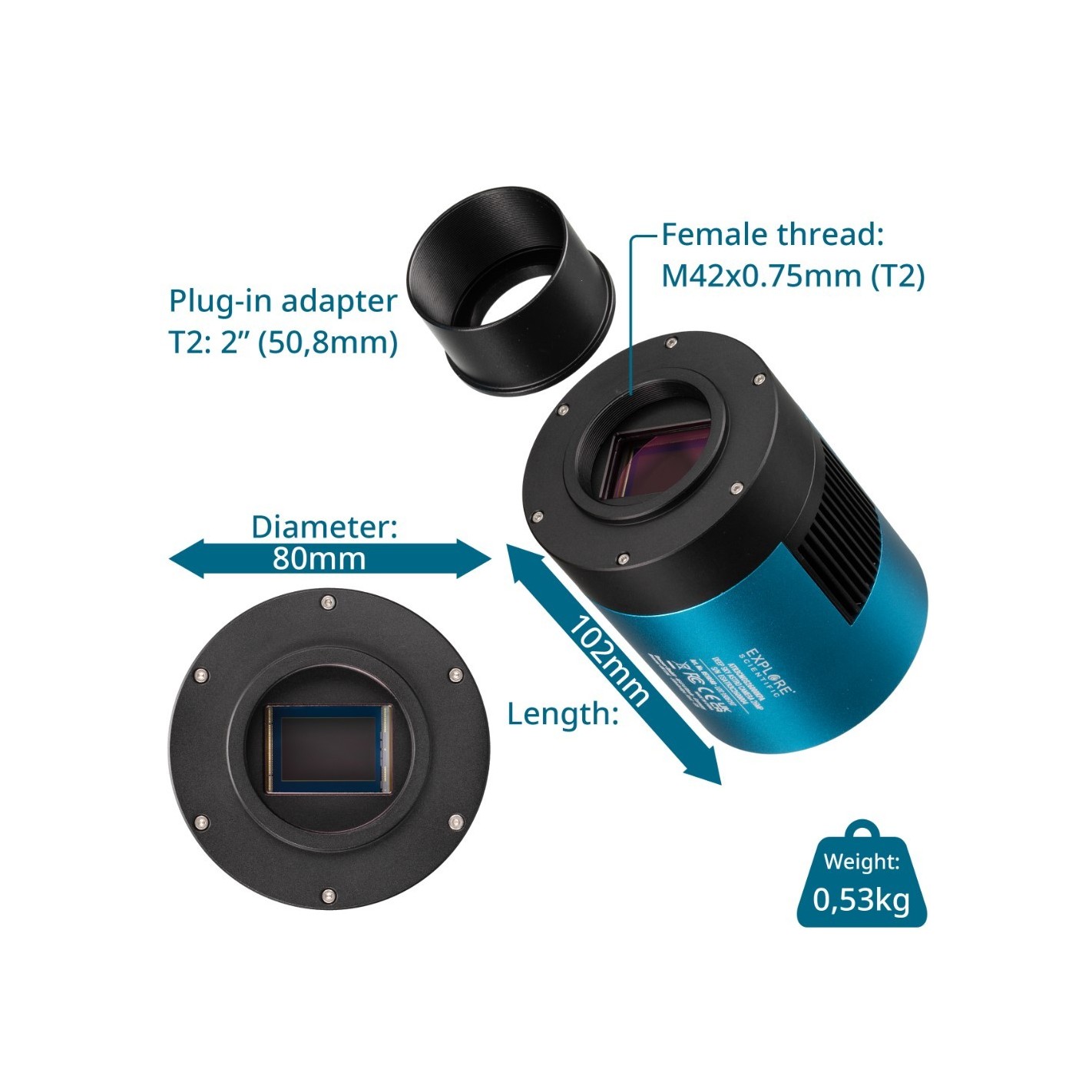

- Camera diameter: 80mm length, 102mm
- Camera weight: 0.53kg
- Camera connection diameter: 2.0 inches ( 50.8mm)
- Camera connection thread: T2 (M42x0.75mm)
- Filter thread: Yes, 2.0 inch in the receptacle
- Camera to PC connection: USB 3.0
- Built-in USB hub with 2 USB 2.0 ports
- Power supply: 12 Volt 3.0 Ampere power supply included
- Software: EXPLORE Capture included
- Camera driver and ASCOM driver included
- Operating system: WINDOWS 10 + 11
- PC Requirements: Intel Core2 CPU 2.8Ghz or higher / 2 GB Ram / USB 3.0

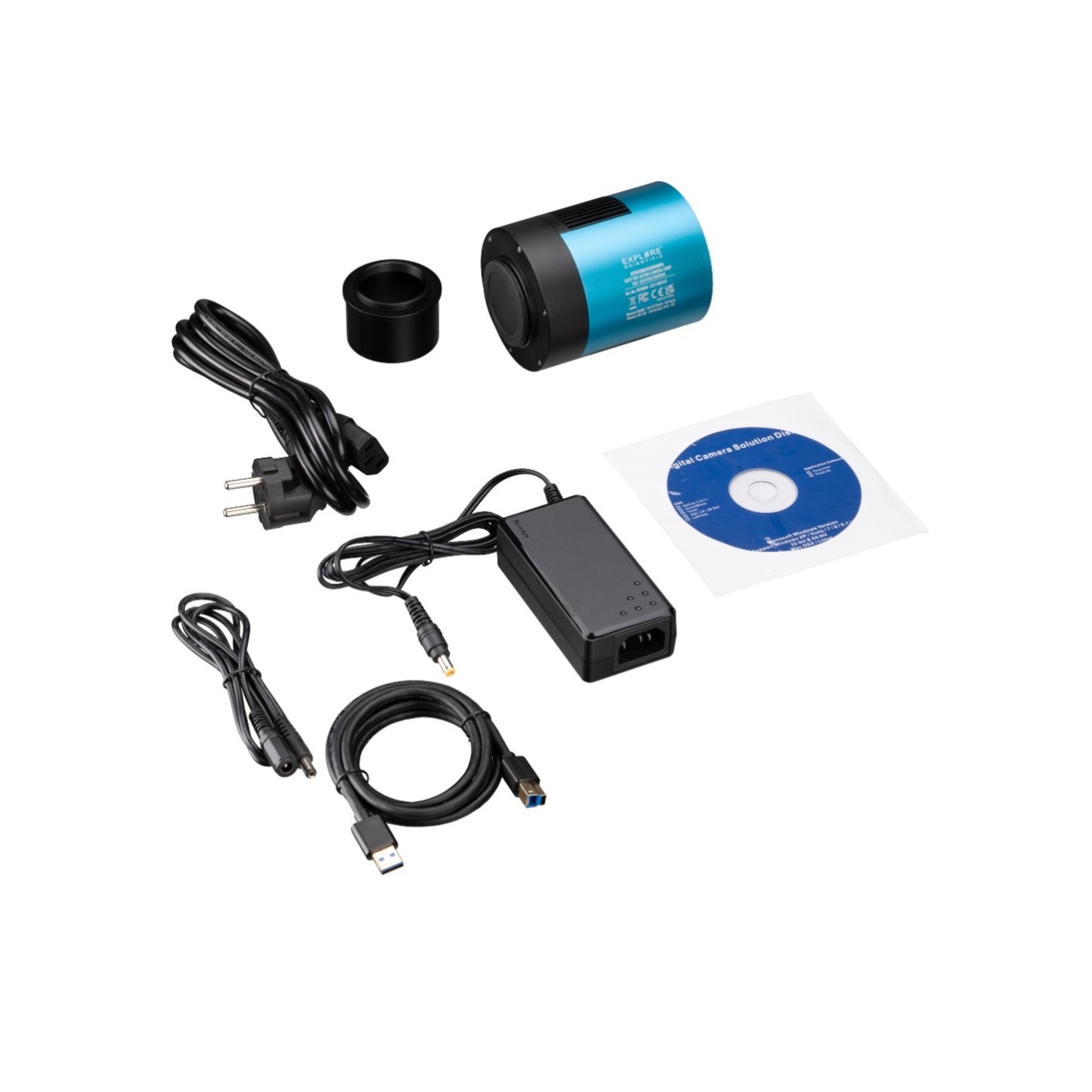

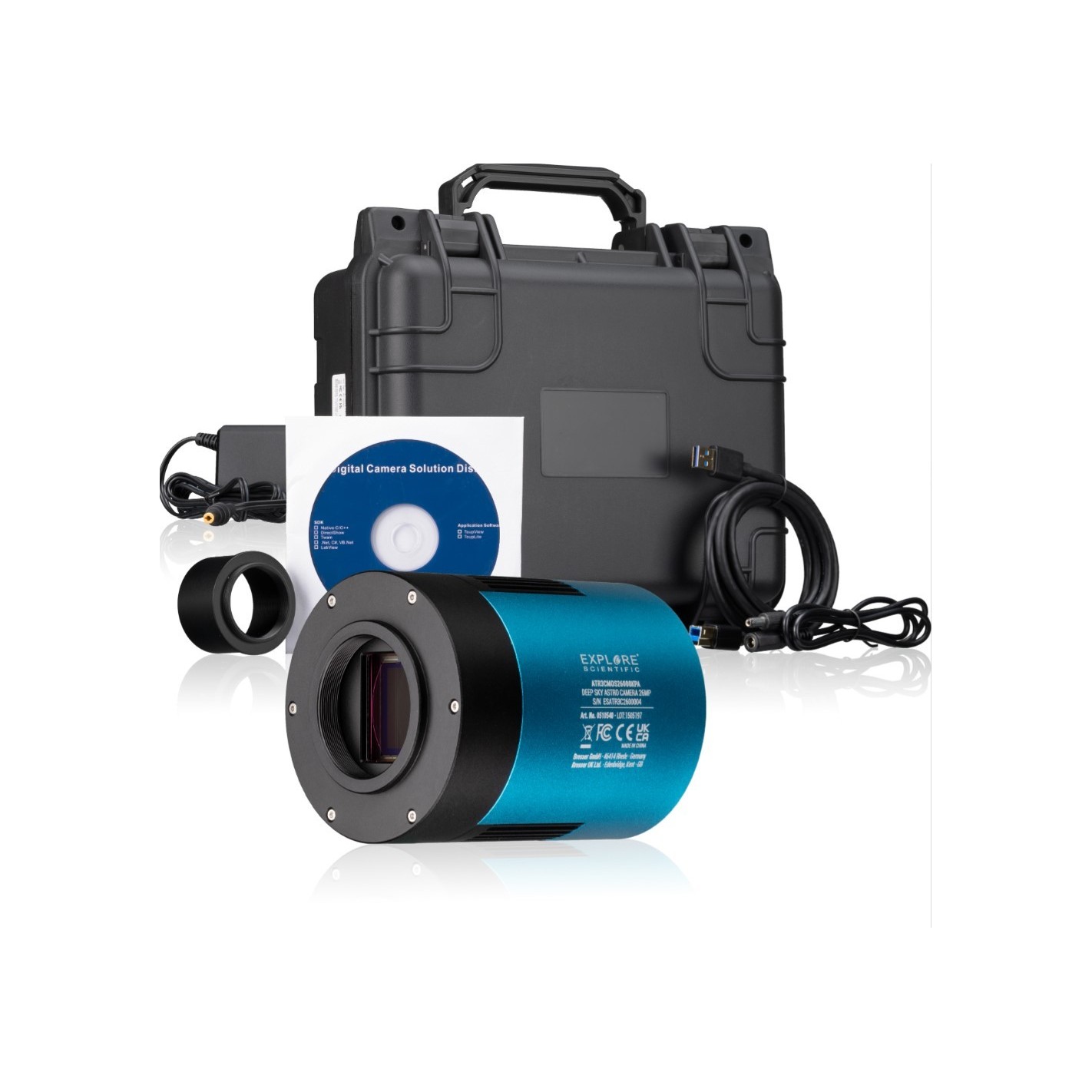

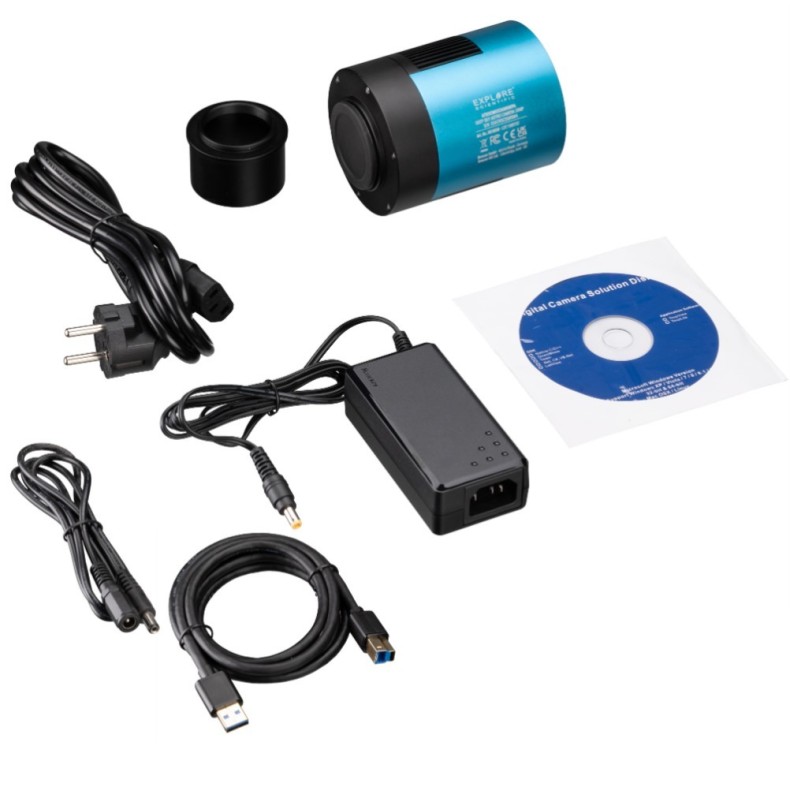

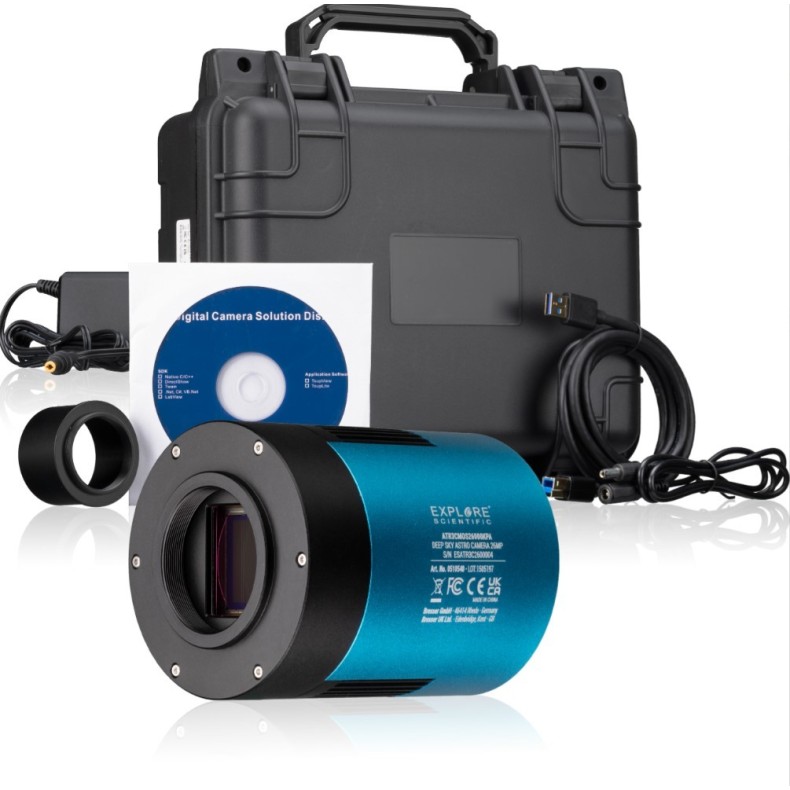

WHAT'S INCLUDED
- 26..0MP Deep Sky Astro Camera
- T2 to 2.0" (50.8mm) thread telescope adapter
- USB 3.0 connection cable 150cm connection cable
- Power supply 230V/12V 3.0A
- Dust cap
- Software CD
- Hard case
- Instruction manual
