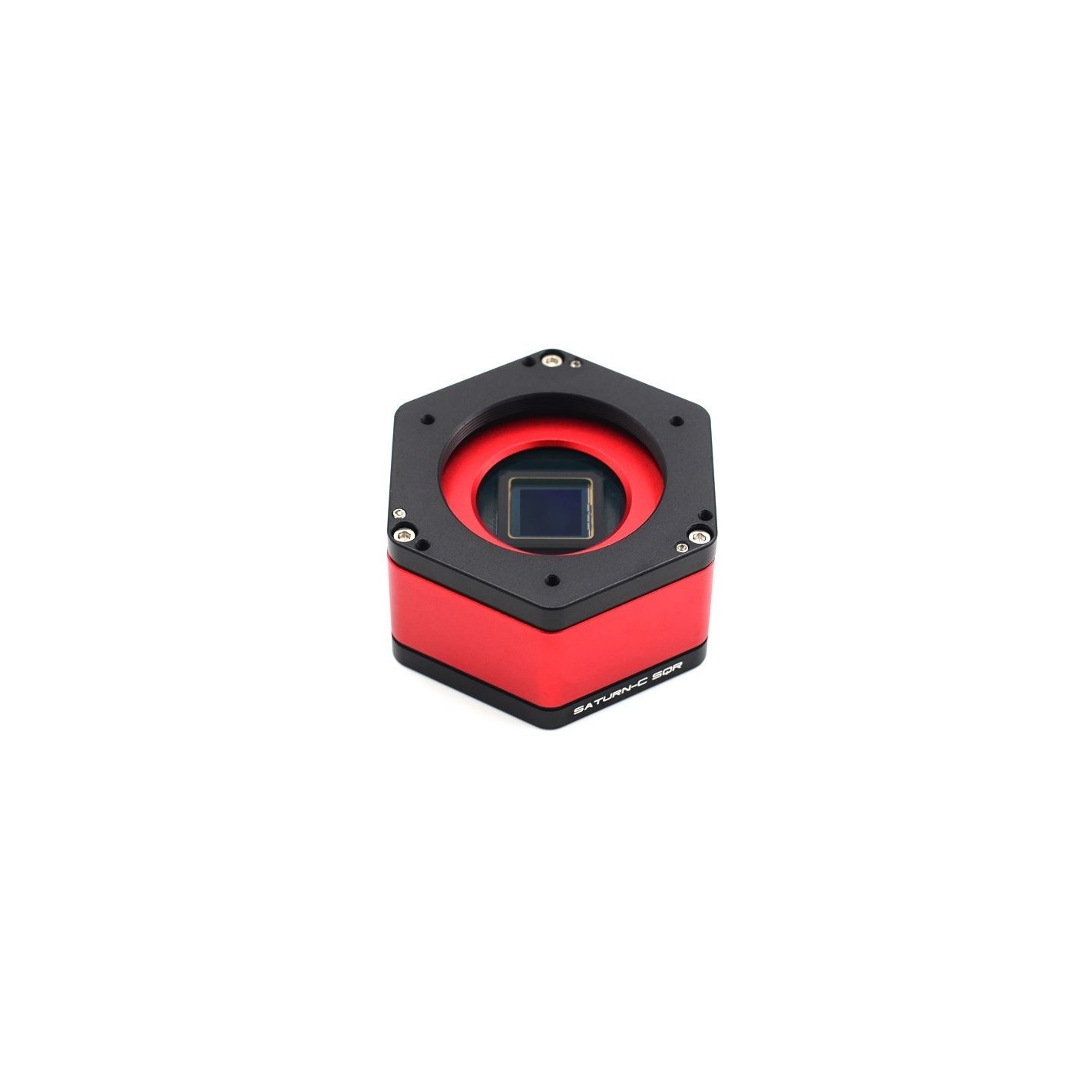

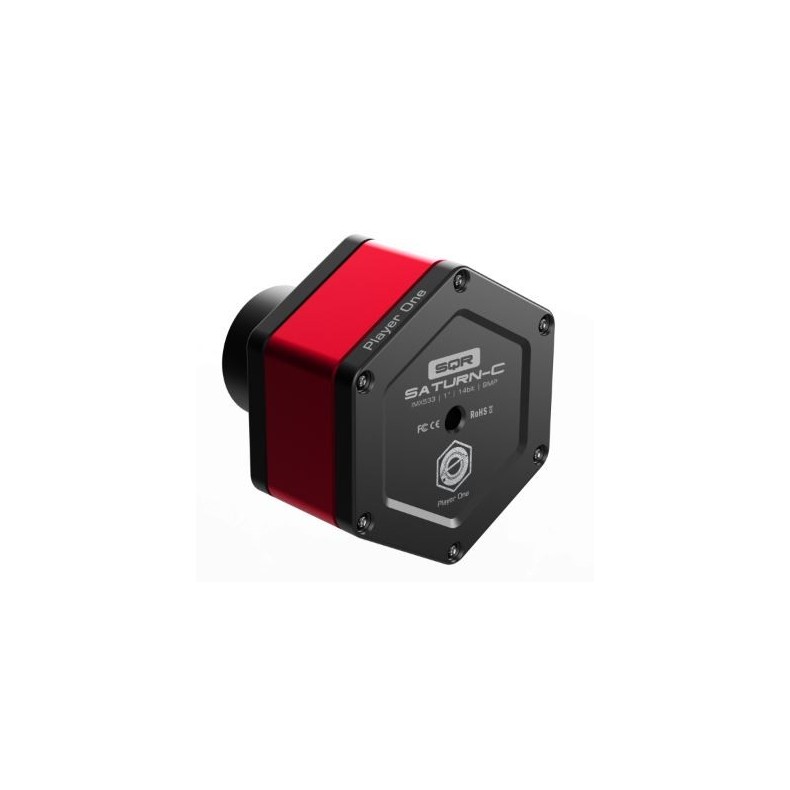

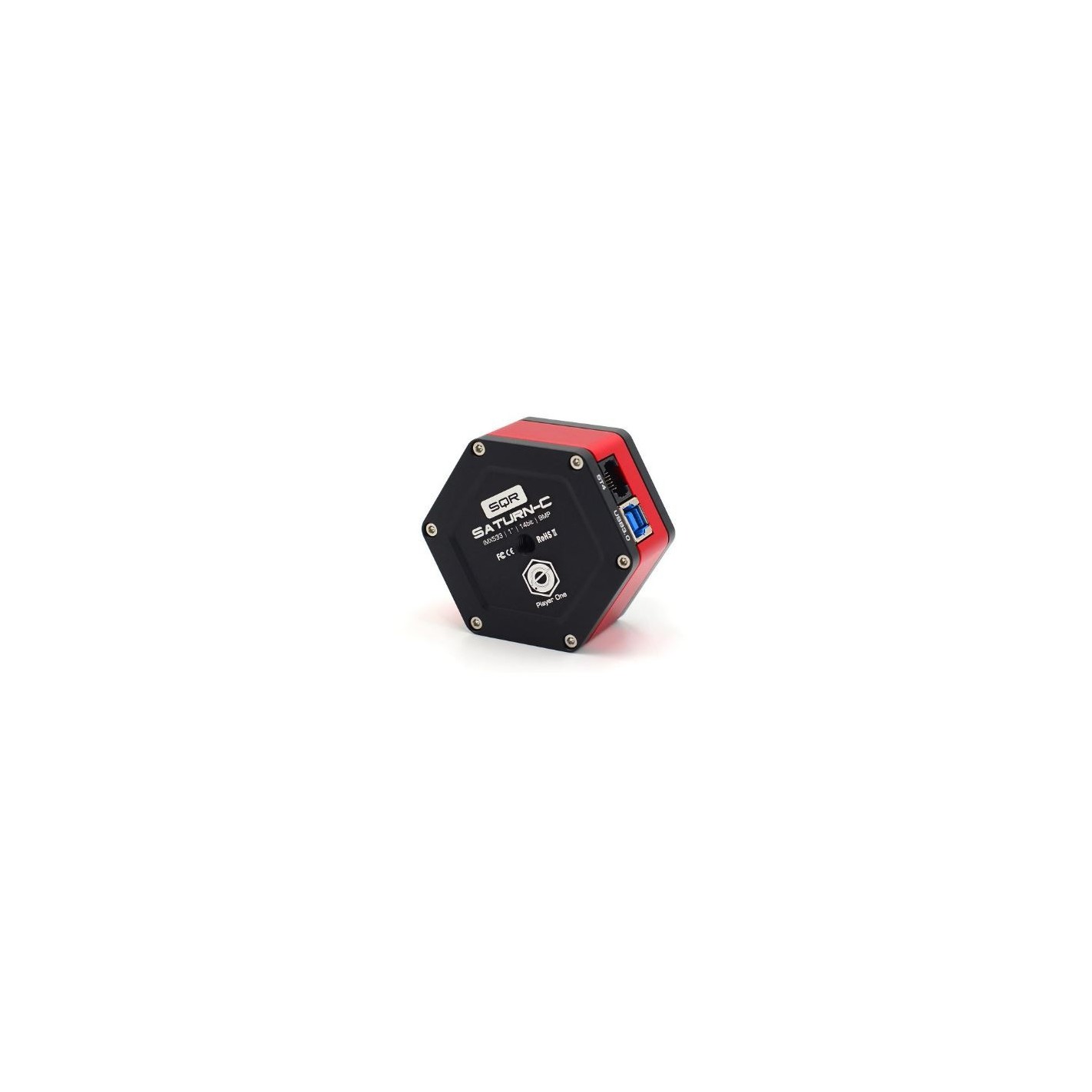

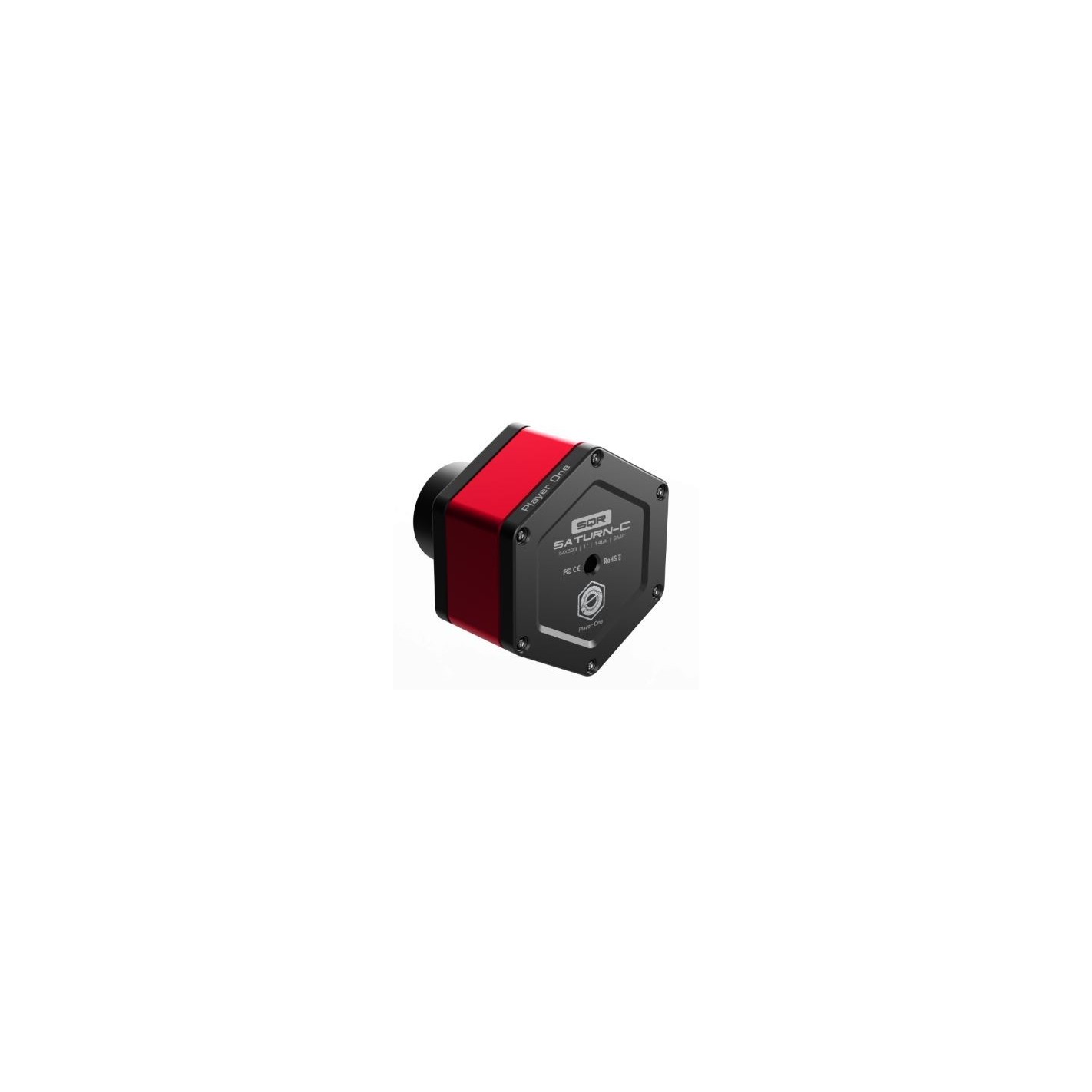

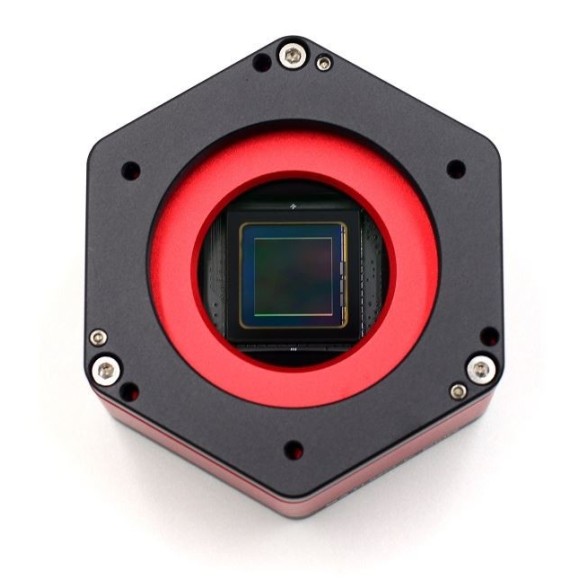

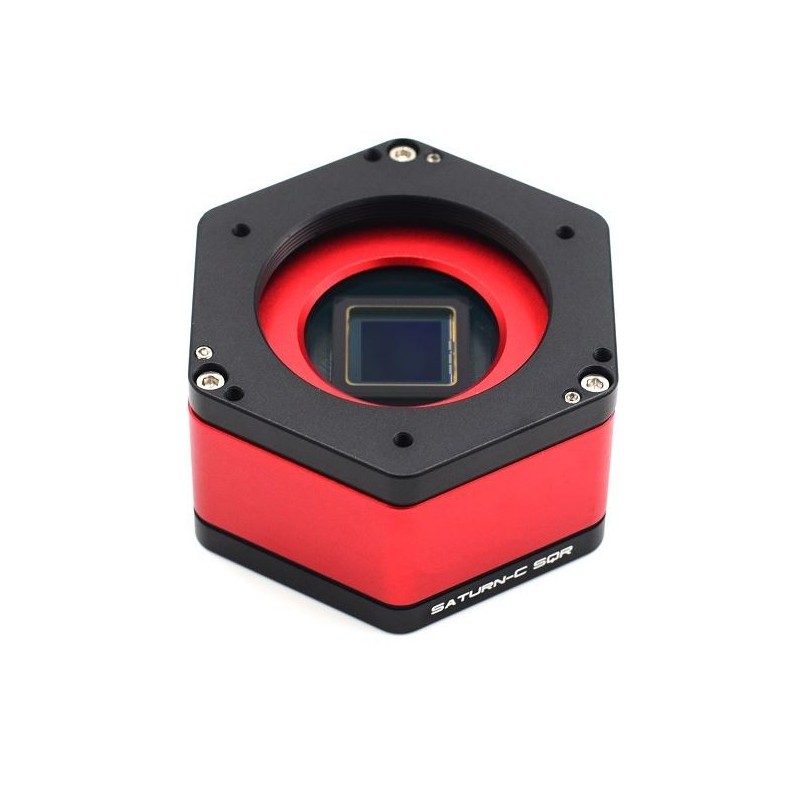

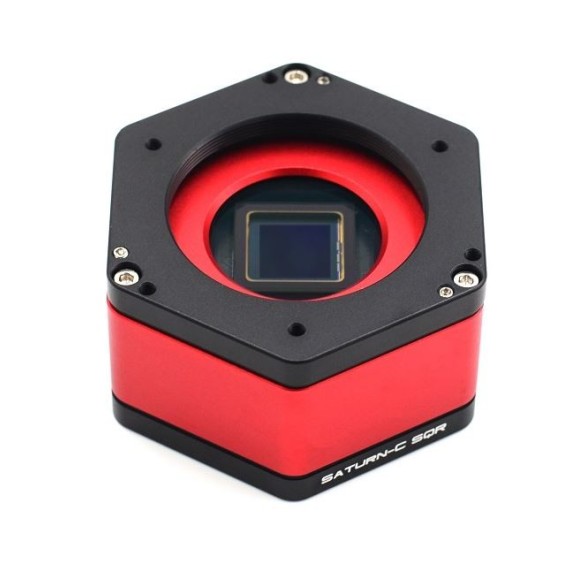

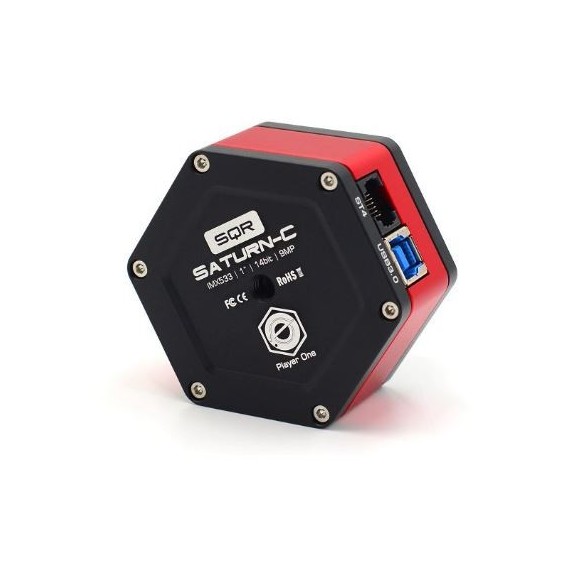

Player One Saturn-C SQR USB3.0 (IMX533) Camera Color
Product description

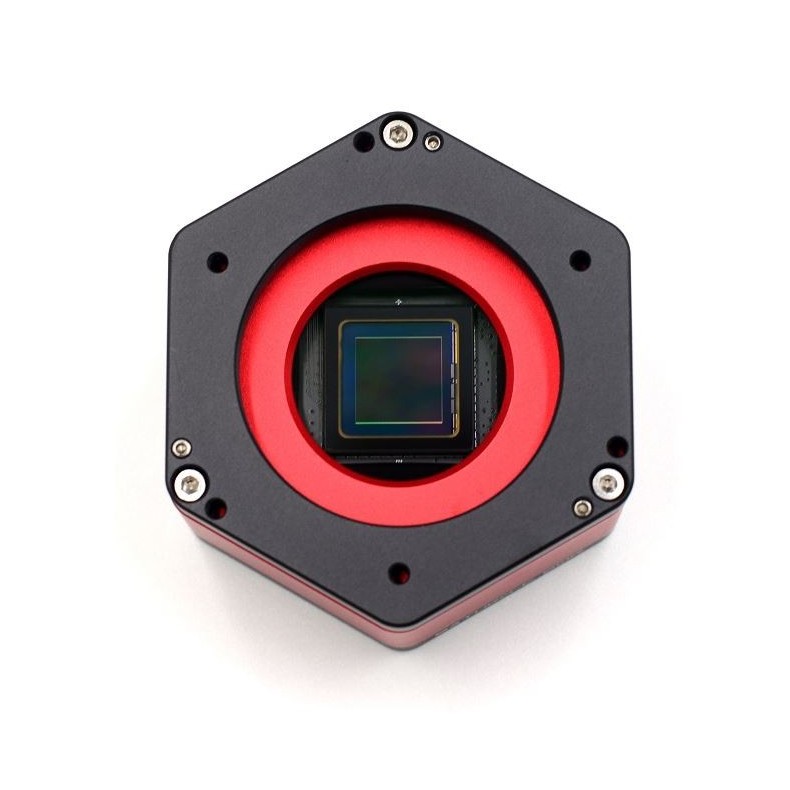

The Saturn-C SQR (IMX533) camera was developed by Player One Astronomy, sQR means that its sensor is square.Saturn-C SQR camera, which adoptscolor sensor ofsquare formatSony IMX533of 1 ".Thepixel size of 3.76umSupports a well depth of73KeWith a total of 9MP(resolution is 3008*3008)yThe diagonal is16 mm.
STARVIS Technology
Saturn-C SQR camera (IMX533) based onsony STARVIS technologyIs a back-illuminated pixel technology used in CMOS image sensors.
Format
The Saturn-C SQR camera has a 1″ format, this size is quite large for imaging.
Expand total well capacity
Based on our technology, we upgraded the full well of the Saturn-M SQR camera to73KeIs almost 1.5 times more than IMX533 Basic (50ke).
Frames per second high
Based on our technology, the Saturn-M SQR camera can run 43FPS in RAW8 mode, much faster than existing models on the market.
Dual sampling mode
The Saturn SQR series has a dual sampling mode.Nromal mode and LRN mode have different advantages in imaging.
1. Normal modeHas faster FPS, it is more suitable for planetary imaging.
2. ThemodeLRN (low reading noise)has lower read noise and higher dynamic range.is more suitable for lucky DSO images.
Reflections
The Saturn SQR camera is also very good for lunar and planetary imaging, its large 1″ format and 9MP total pixels, easier to capture the full disk of the Moon and Sun, or make the mosaic more efficient.
Mechanical drawing

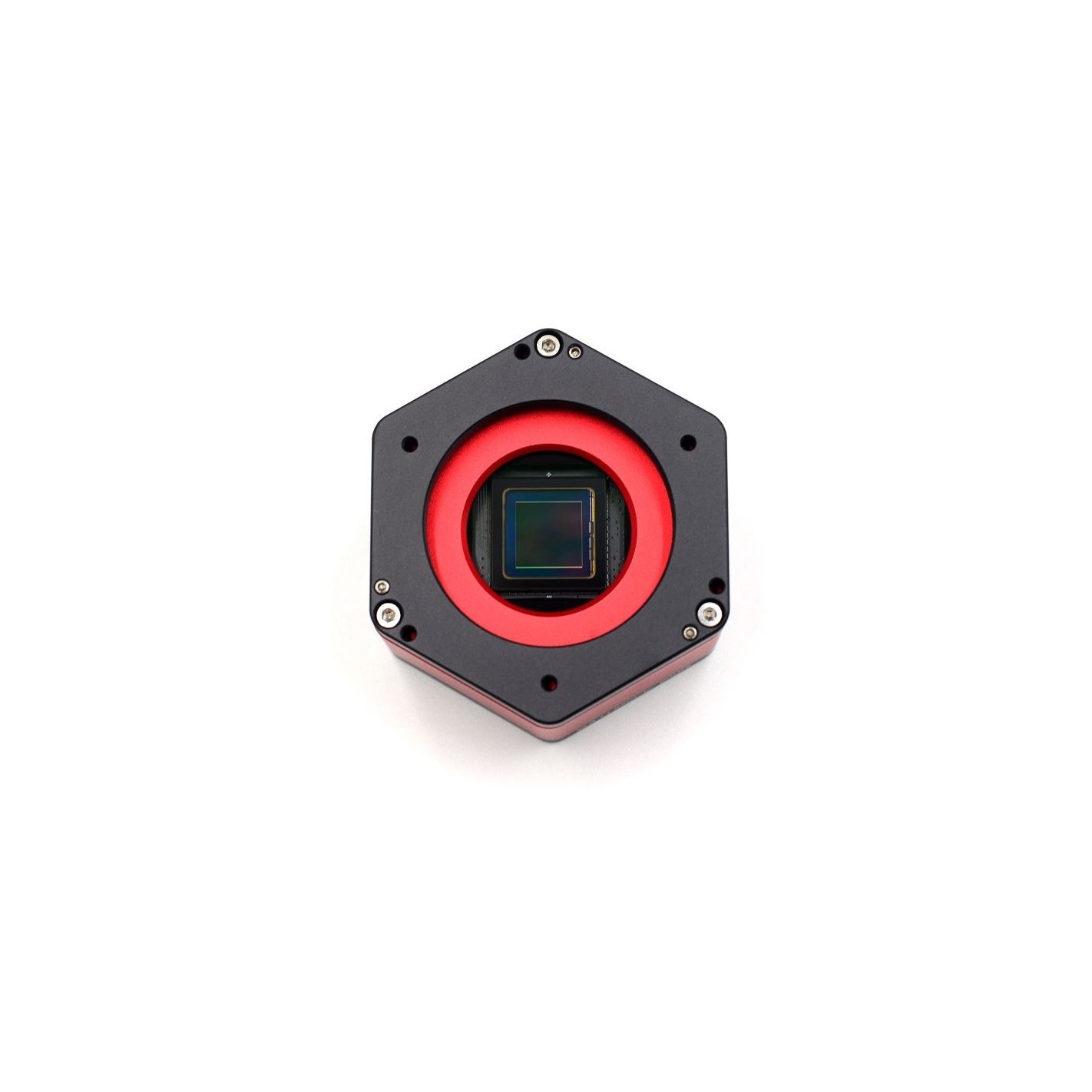

| Sensor |
New SONY IMX533 1" CMOS (color)
|
|---|
| Diagonal |
16 mm
|
|---|
| Total pixels |
9 megapixels
|
|---|
| Maximum resolution |
3008×3008
|
|---|
| Pixel size |
3.76 μm
|
|---|
| Chip size |
11.31 mm × 11.31 mm
|
|---|
| Frames per second |
43FPS (10 bits)
|
|---|
| Bayer Matrix |
RGB
|
|---|
| Shutter |
Shutter
|
|---|
| Exposure range |
32μs-2000s
|
|---|
| Reading noise |
4.46-1e
|
|---|
| Peak QE |
≈80%
|
|---|
| Completed |
73k mi
|
|---|
| ADC |
14 bits
|
|---|

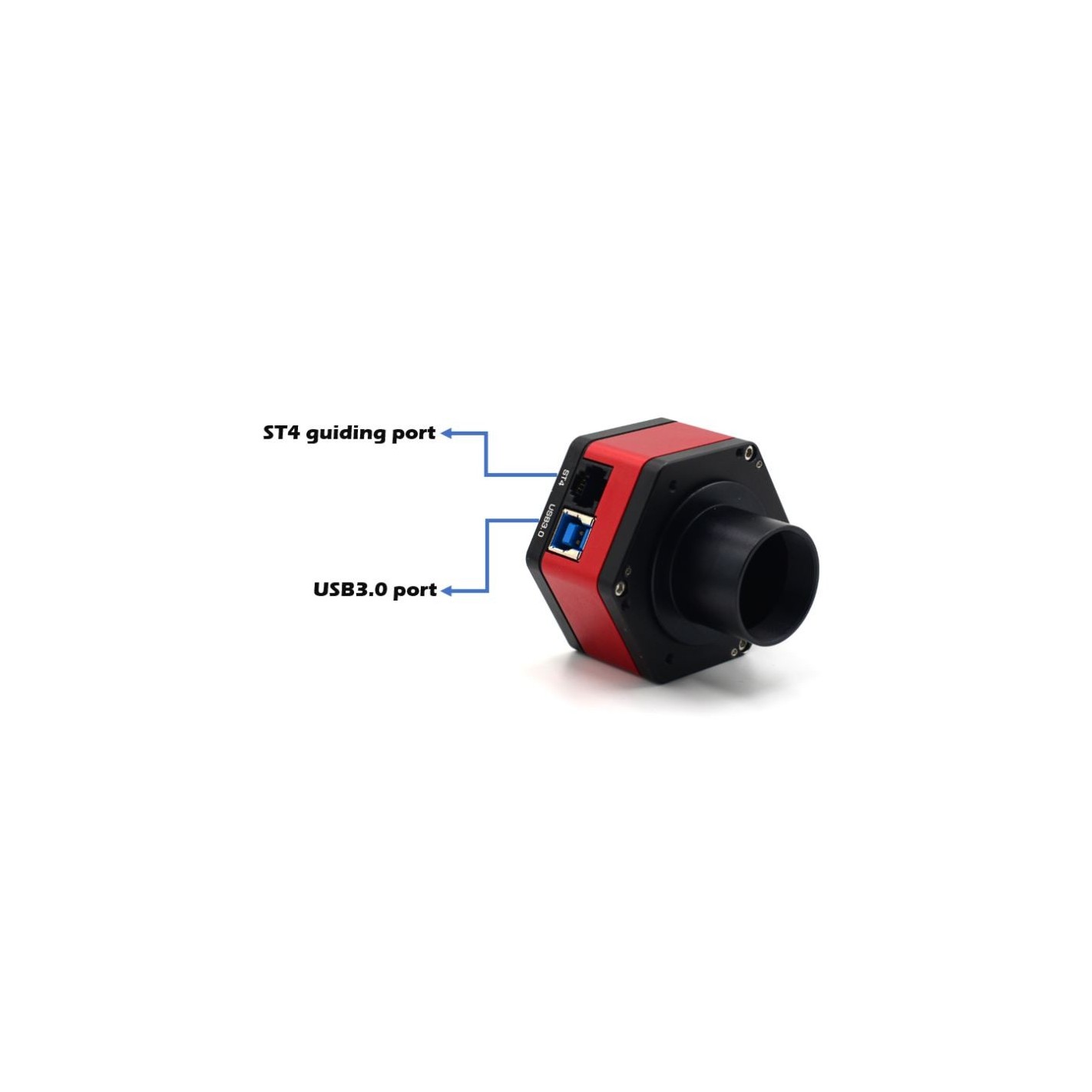

| Data port |
USB3.0/USB2.0
|
|---|
| Adapter |
1.25″ / M42X0.75
|
|---|
| Rear focal length |
12.5 mm
|
|---|
| Protective window |
D32*2MM High quality AR Plus (Anti-reflection) Multilayer coating
|
|---|
| Diameter |
66 mm
|
|---|
| Weight |
160g
|
|---|
| Resolution and FPS |
Under USB3.0 mode
Resolution 10bit ADC 14bit ADC
3008×3008 43FPS 19.5FPS
2560×1440 95FPS 40FPS
1920×1080 125FPS 53FPS
1280×720 185FPS 79FPS
800×600 220FPS 93FPS
640×480 272FPS 115FPS
More resolution options could be setup in capture softewares !
|
|---|
