New state-of-the-art design
The polygon like regular hexagon is very Player One, DSO cooled chambers we want to make them more beautiful and practical.After a lot of trying, we fixed the final style, which uses aoctagonScientific and technological to build the line of the main body and the 4 sides havea cambered surfaceThe round chamfers are complemented by round chamfers for rigidity and flexibility.The front piece is round to avoid diffraction in RASA.The positive red, which is like a summer fire, is combined with the discreet and steady black, and the superfine glazing process all over the surface makes the camera look luxurious and cool, and keep the Player One style.

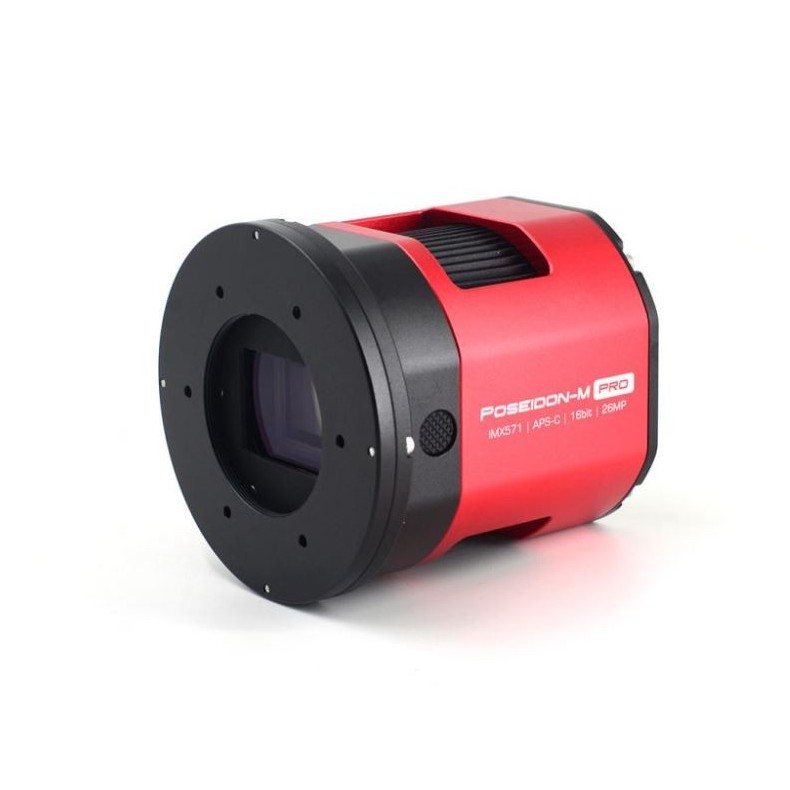

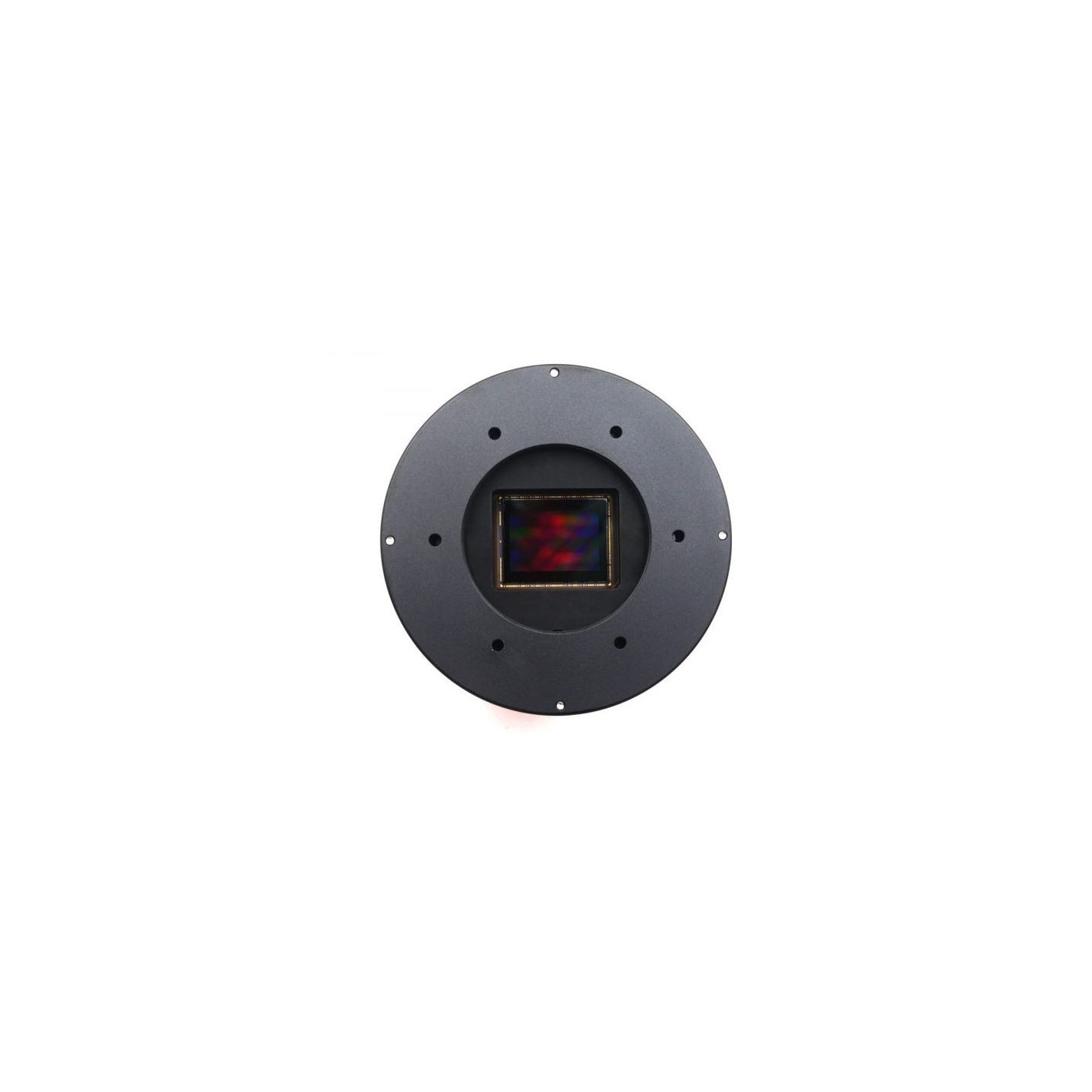

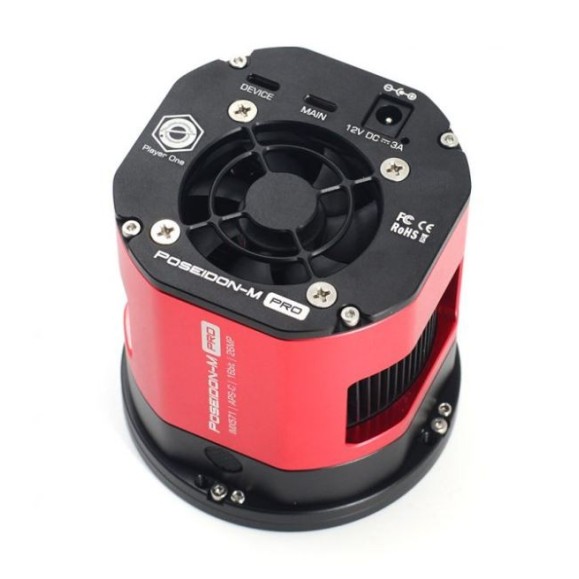

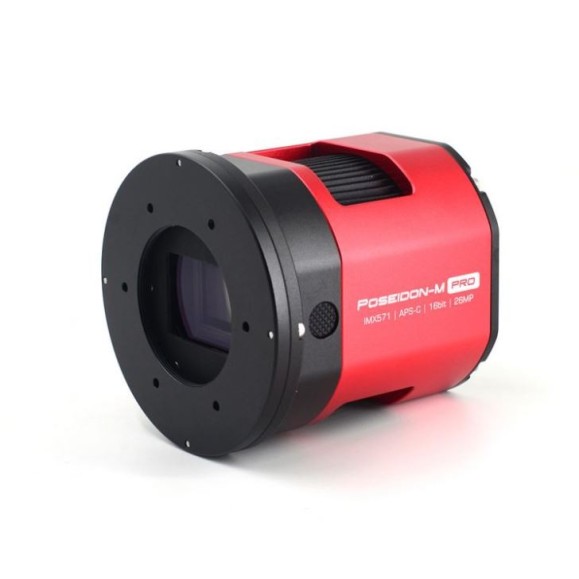

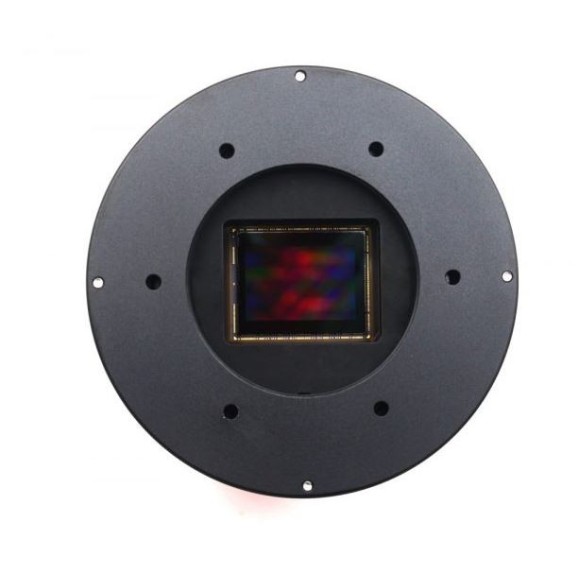

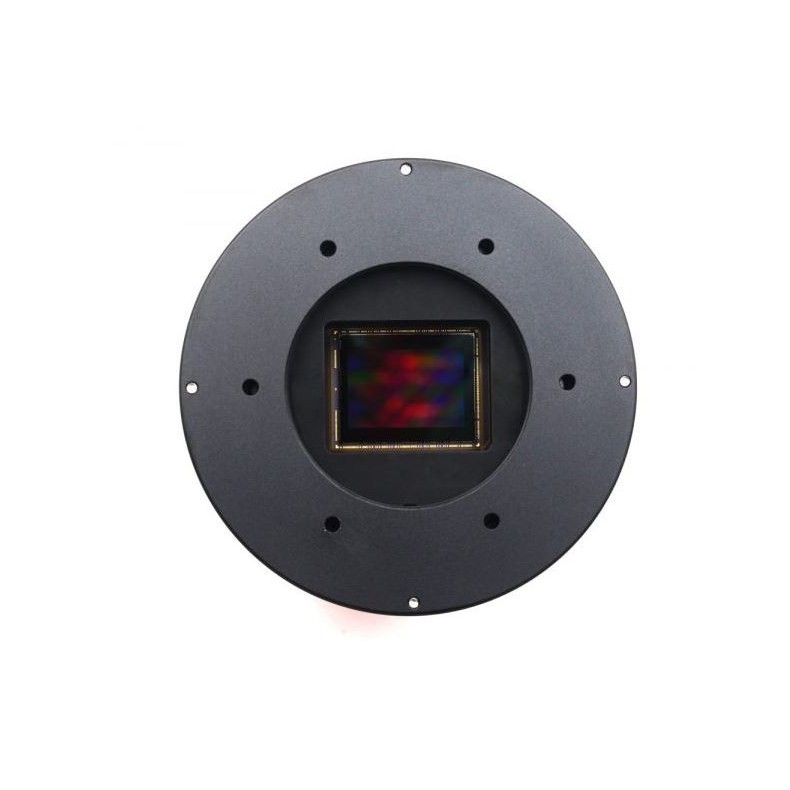

The Poseidon-M Pro (IMX571) refrigerated camera was developed by Player One Astronomy, is designed for advanced DSO imaging.adopts themonochrome format sensorSony IMX571APS-C .The3.76 um pixel sizeSupports a well depth of71.7 KeWith a total of 26MP(the resolution is 6252*4176)yThe diagonal isof 28.3 mm.
Rear 4-point sensor tilt plate for rear adjustment
When taking deep sky objects, the use of the sensor tilt plate can obtain a much smaller telescope field curvature.We adopt rear adjustment and 4-point tilt plate, it has many advantages in use.
The 4-point adjustment is easier to know which corner needs to be adjusted.The built-in high-density sponge shading pad can block light from the side slits without side leakage.

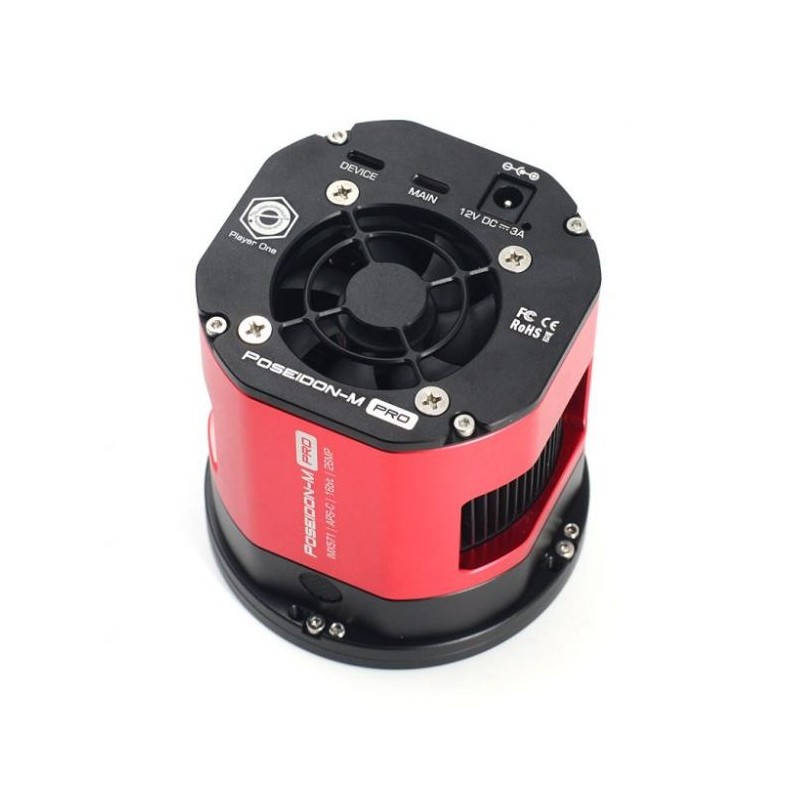

Deep cooling
The Player One series of refrigerated chambers uses a 2-stage TEC cooling unit, after improving the structure design to reject heat back into the chamber chamber, the chamberDelta-TCan reach more than40 ℃.
512 MB DDR3 cache
As an improvement, the DDR3 cache memory in cooled chambers was increased to 512 MB.It helps stabilize and secure data transmission, effectively prevents frame drop and greatly reduces read noise.
With the DDR3 cache memory, the camera no longer has high demands on computing needs, it will still perform excellently even when connected to a USB 2.0 port.
Mechanical drawing
BFL Solutions
| Sensor |
New SONY IMX571 APS-C CMOS (mono)
|
|---|
| Diagonal |
28.3 mm
|
|---|
| Total pixels |
26 megapixels
|
|---|
| Maximum resolution |
6252×4176
|
|---|
| Pixel size |
3.76 μm
|
|---|
| Chip size |
23.5 mm × 15.7 mm
|
|---|
| Frames per second |
10 FPS (10 bits)
|
|---|
| Shutter |
Shutter
|
|---|
| Exposure range |
32μs-2000s
|
|---|
| Reading noise |
3.9-1.0e
|
|---|
| Completed |
71.7ke
|
|---|
| Peak QE |
≈91%
|
|---|
| ADC |
16 bits
|
|---|
| Cooling system |
High-quality 2-stage TEC cooling component
|
|---|
| Chiller power consumption |
12V - 3A max.
|
|---|
| Delta T |
40 ℃ ± 2 ℃ (below ambient)
|
|---|
| Working temperature and humidity |
Working temperature: -10°C-60°C
Working relative humidity: 0%-80%
|
|---|
| Protective window |
D46*2MM High quality AR Plus (Anti-reflection) Multilayer coating
|
|---|

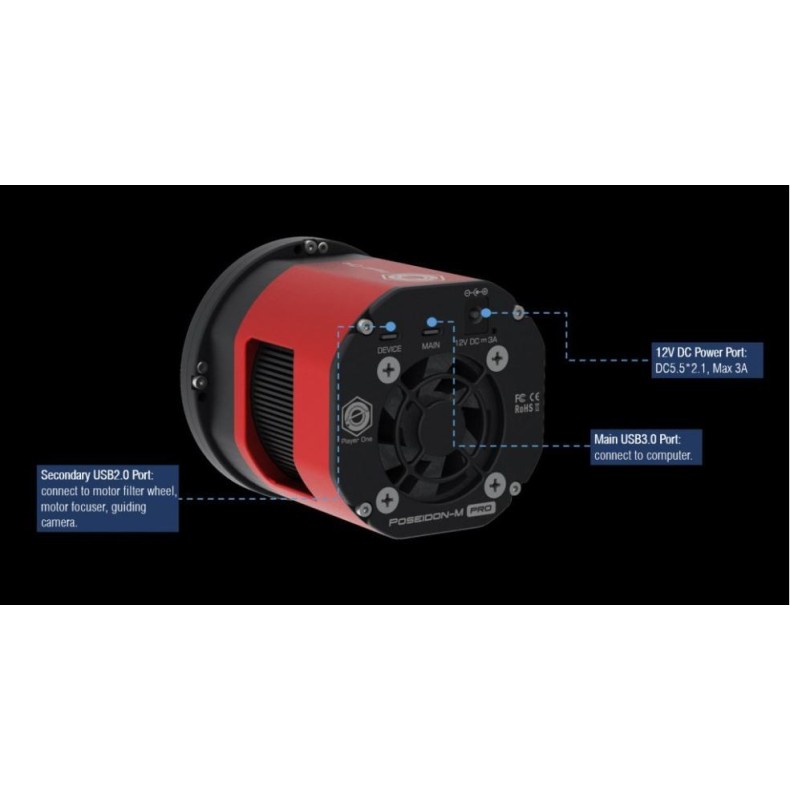

| Data port |

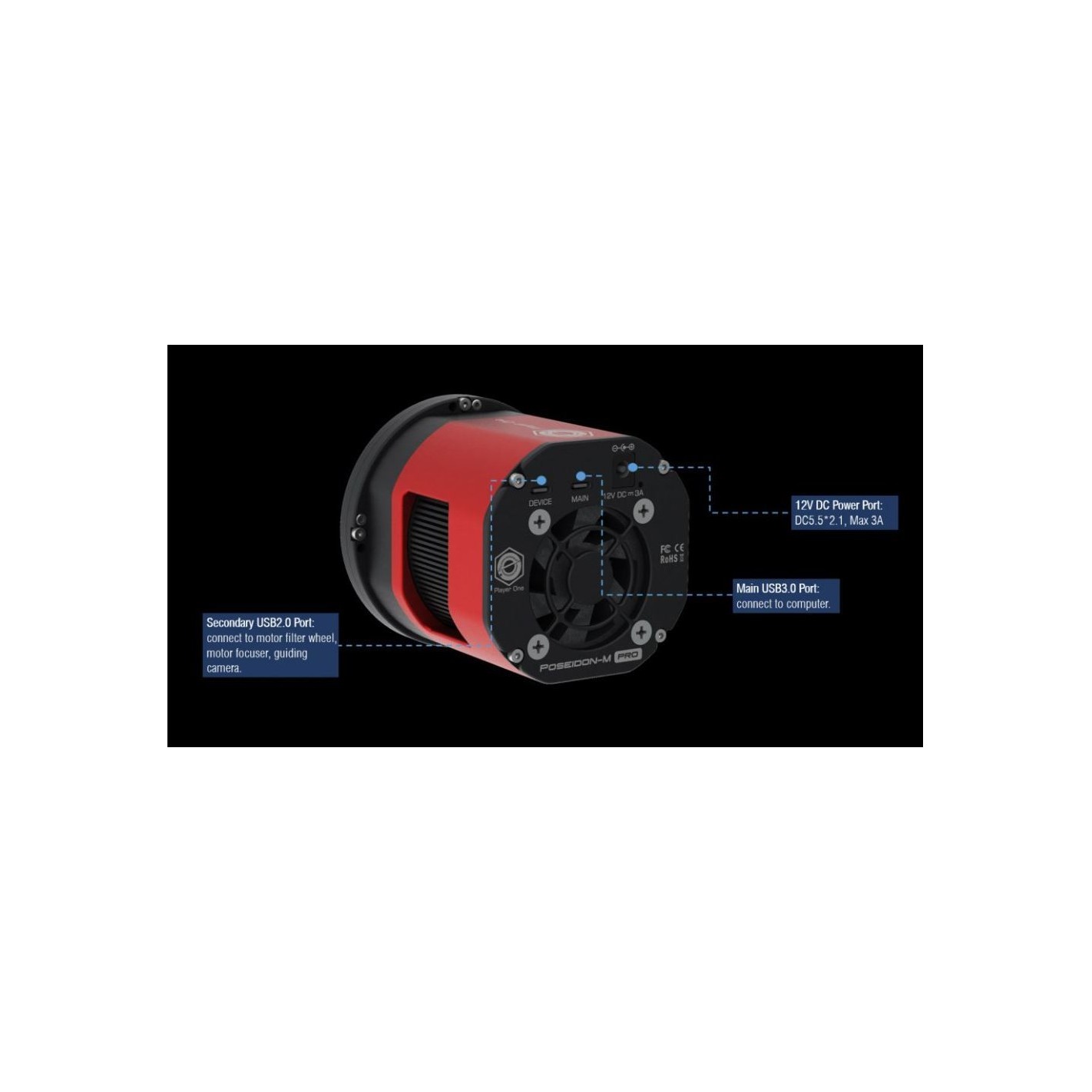

Type-C USB3.0/USB2.0
|
|---|
| Adapter |
M48X0.75, 2", 1.25", 1.25"
|
|---|
| Rear focal length |
17.5 mm, 12.5 mm (without sensor tilt plate)
|
|---|
| Diameter |
90 mm
|
|---|
| Weight |
650g
|
|---|
| Resolution and FPS |
Under USB3.0 mode
Resolution 10bit ADC 16bit ADC
6252×4176 15FPS 10FPS ¡
More resolution options can be configured in capture software!
|
|---|
| Poseidon-M purchase options |
Camera, Camera + Phoenix Wheel 7×36 + FHD-OAG MAX + Ceres-M free of charge
|
|---|
