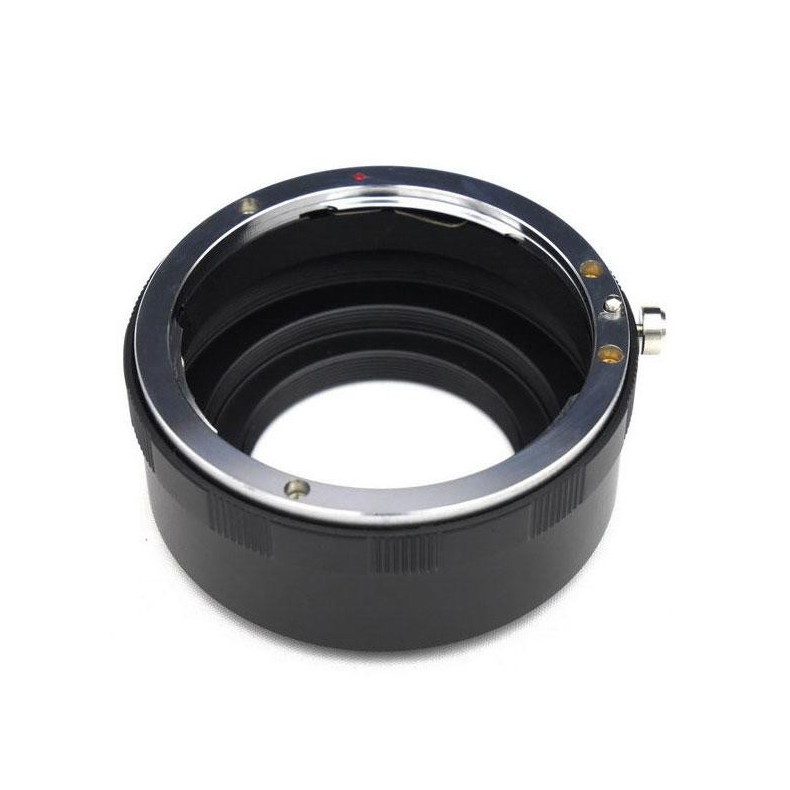

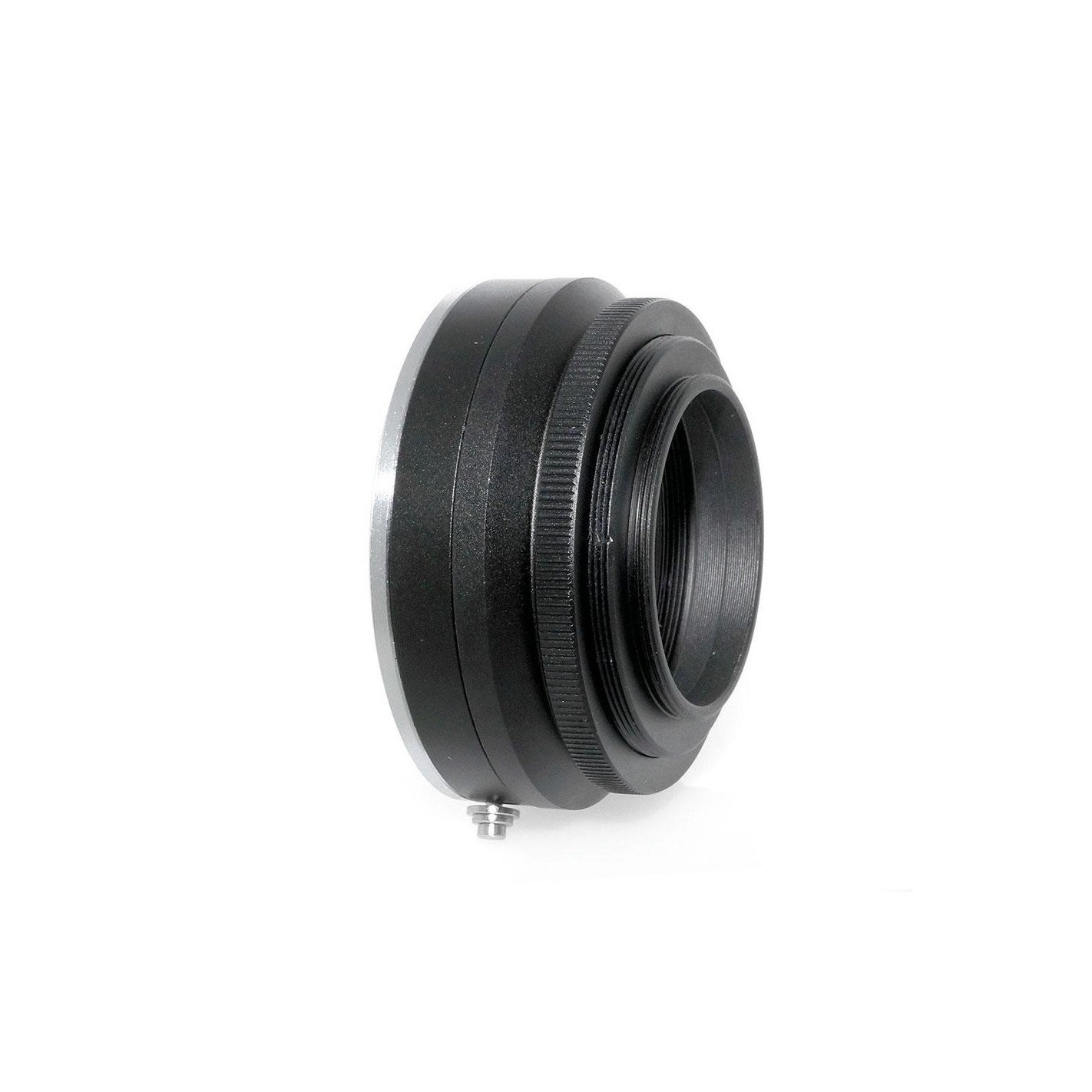

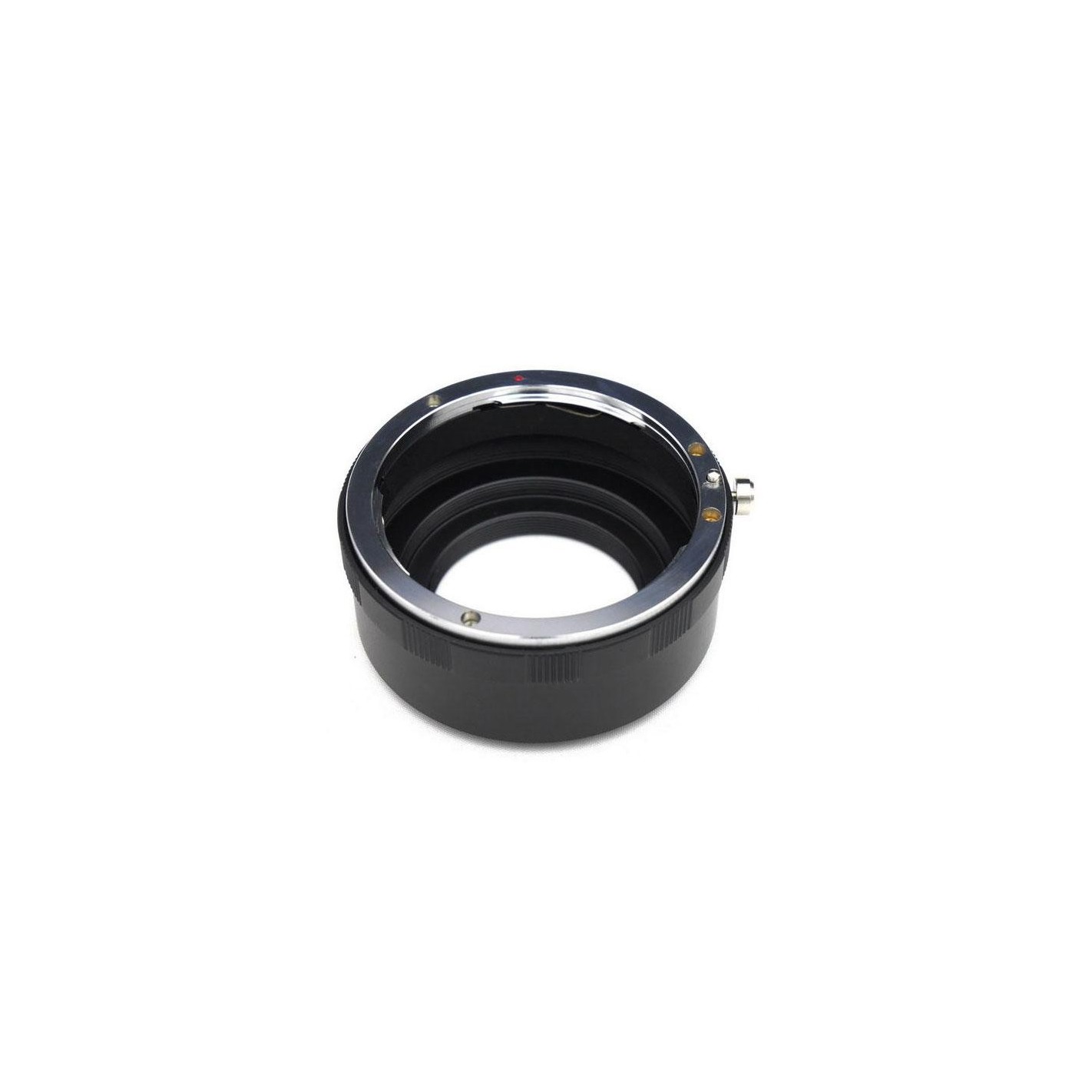

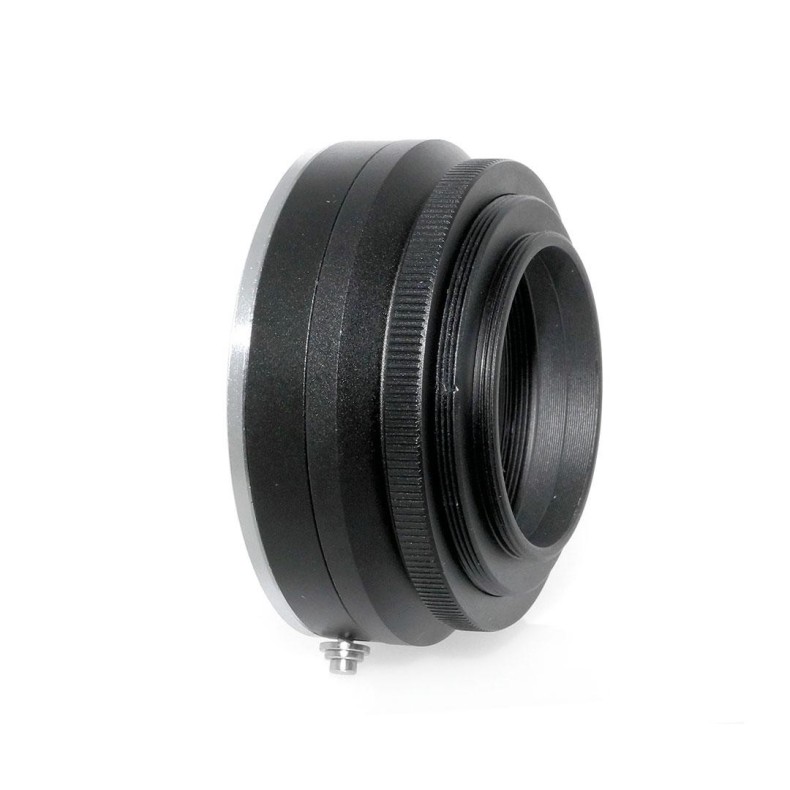

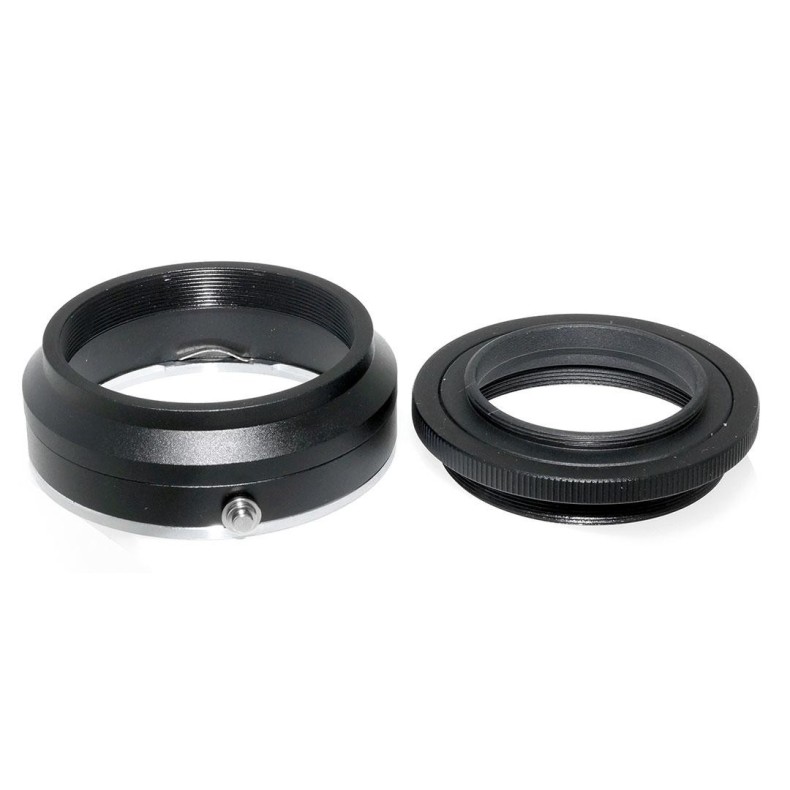

CCD Adapter TS-Optics for Canon EOS lenses to M48 - 10mm in length

CCD Adapter TS-Optics for Canon EOS lenses to M48 - 10mm long

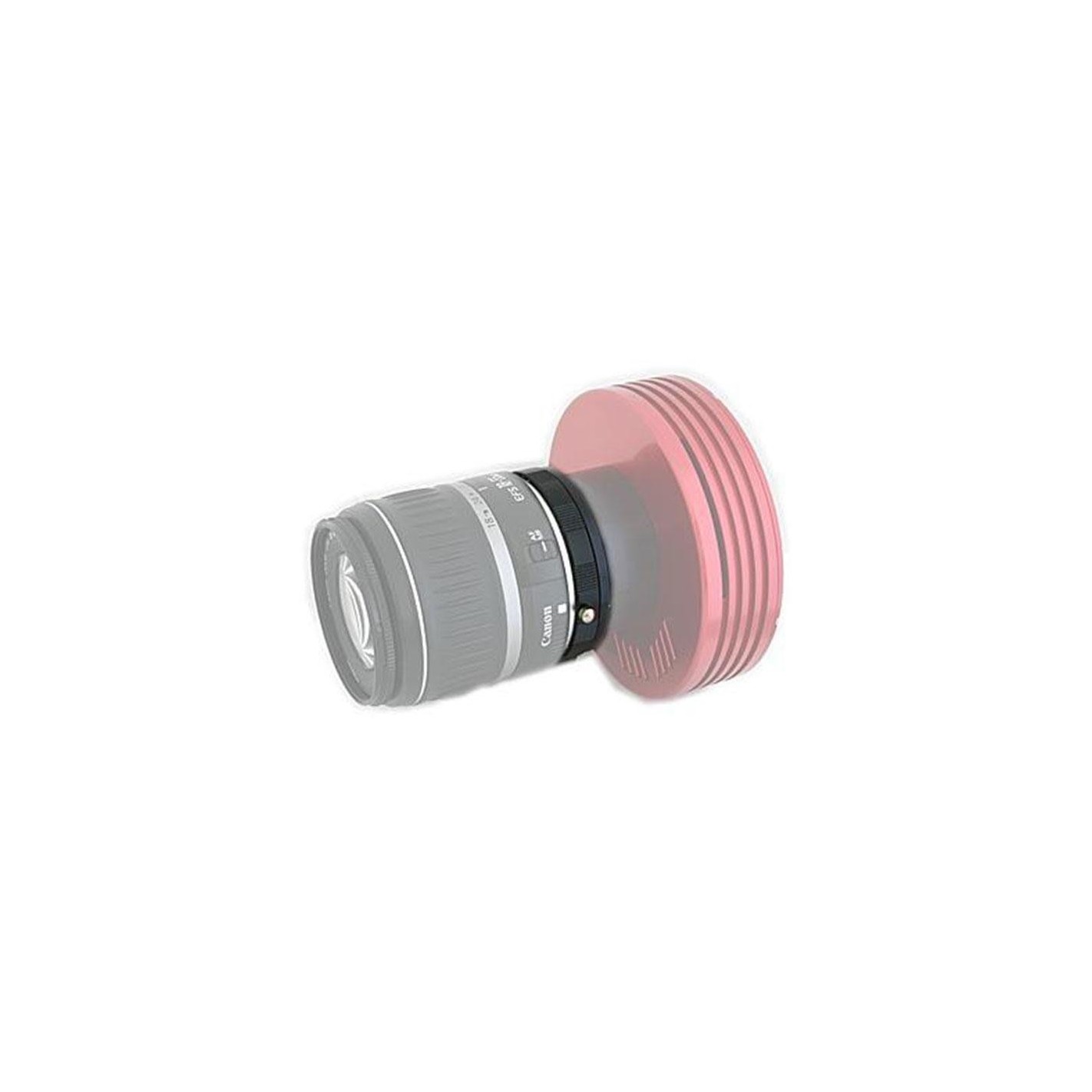

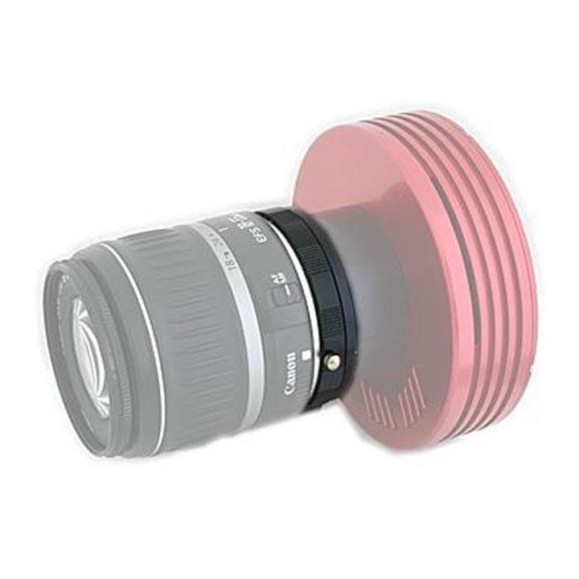

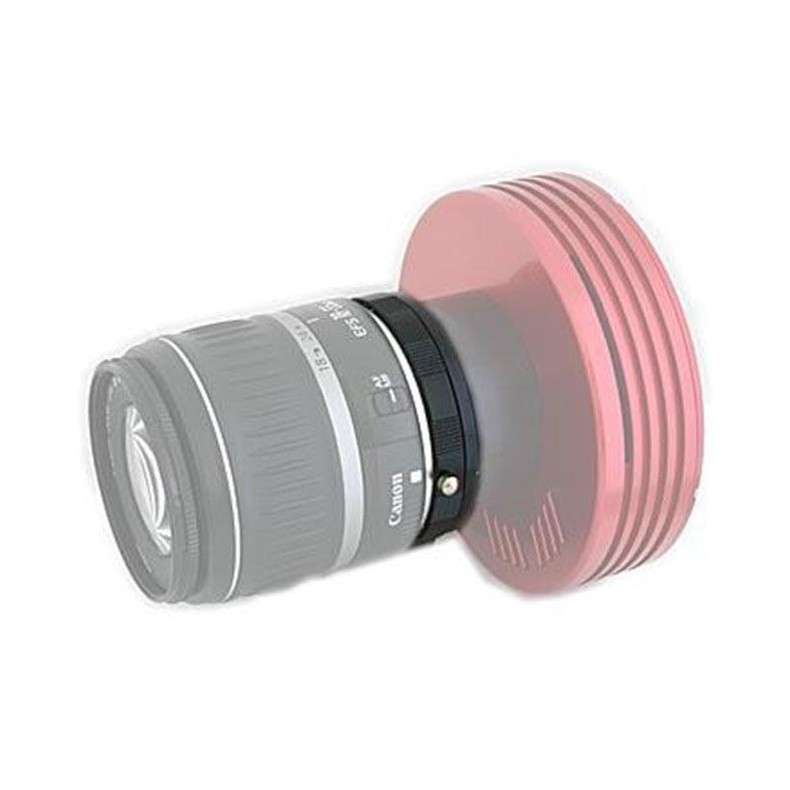

Use your high quality EOS camera lenses and, for example, take pictures of large areas of the sky. In this case, the CCD camera will replace the SLR.

This adapter is suitable for CCD cameras up to 32mm backfocus. For example, it will be useful for ASI cameras with a working distance of 17.5 mm or most ATIK CCD cameras. Cameras with a shorter backfocus can be easily adapted with M48 extension rings.

Technical specifications:

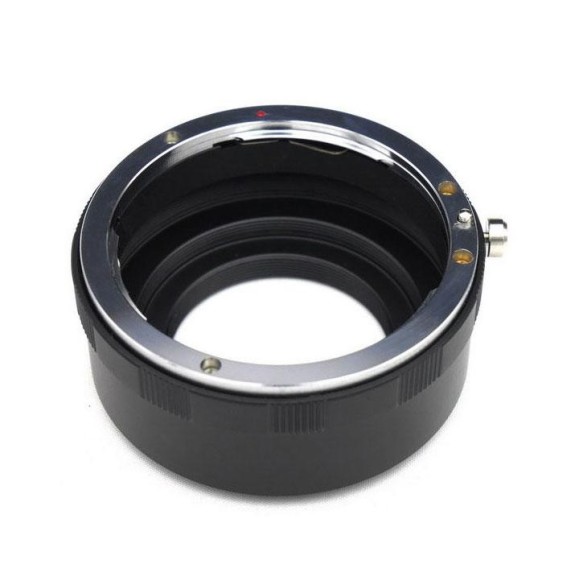

• Lens side connection: Canon EF lens mount (female)
• Connection on camera side: M48 (male)
• Suitable for cameras with a backfocus of up to 32mm

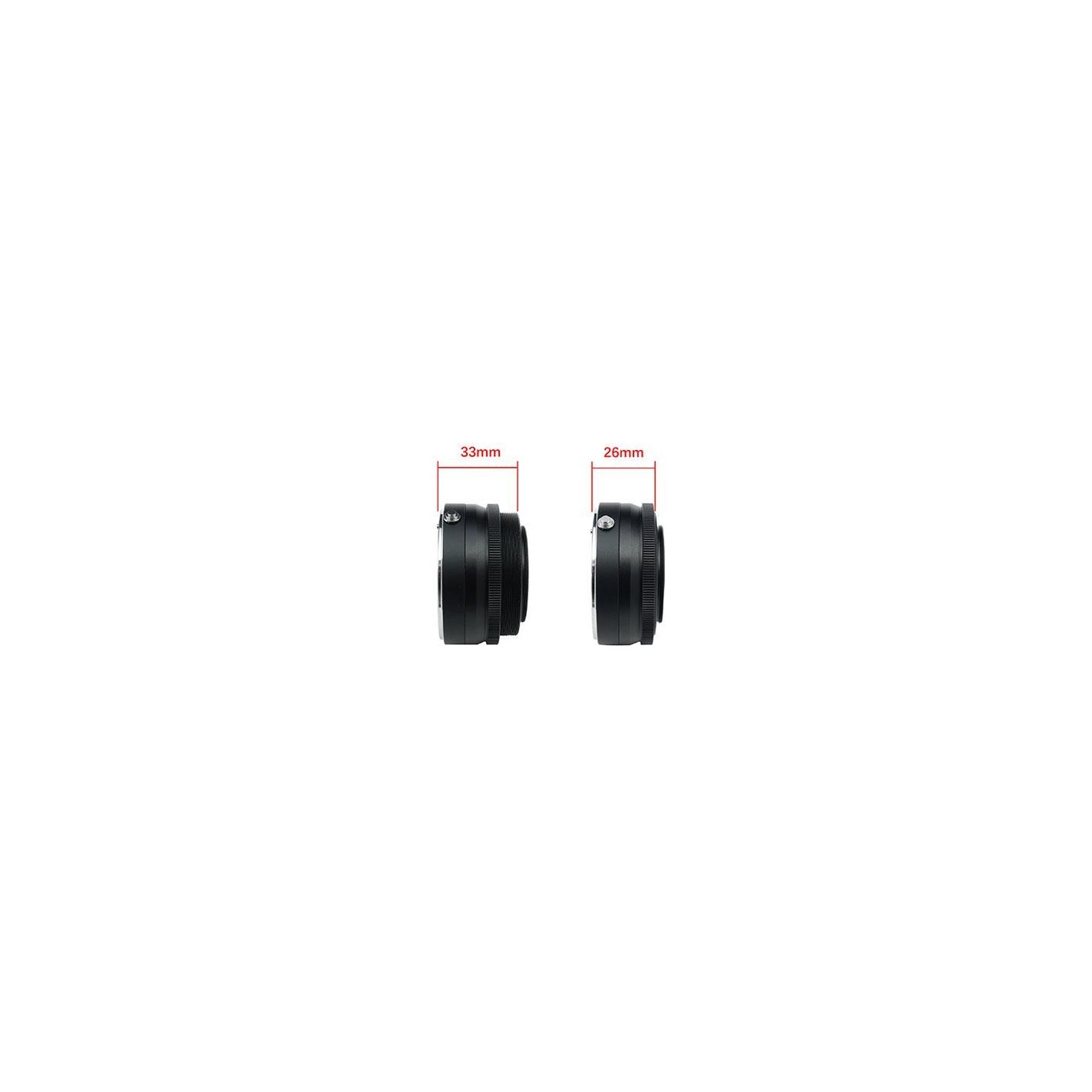

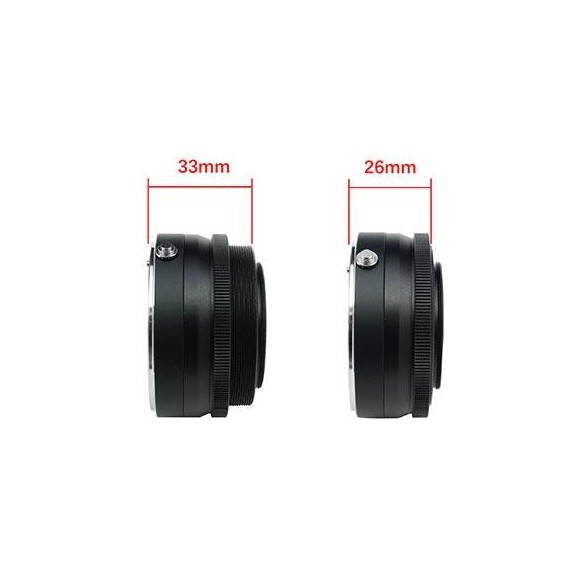

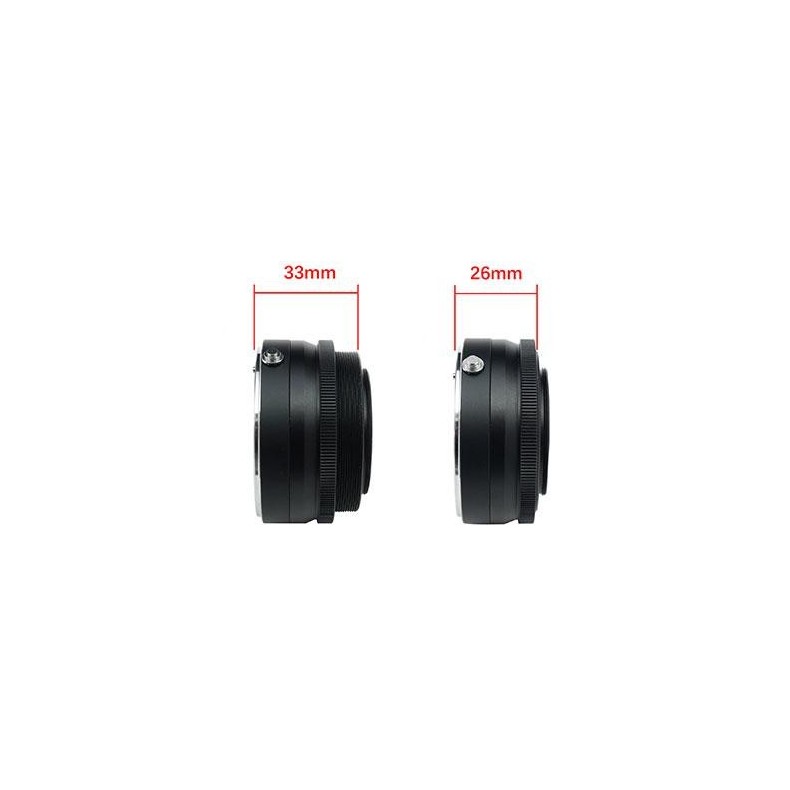

• The adapter can be adjusted to an accuracy of a fraction of a millimeter
• Not suitable for STM lenses, as they need an electrical power supply for focusing
• It is possible to connect cameras with M42 or M54 thread without losing distance using optional adapters

CCD adapter TS-Optics for Canon EOS lenses to M48 - 10mm in length
