Filter holder case ZWO for Canon EOS lenses
Product Description:

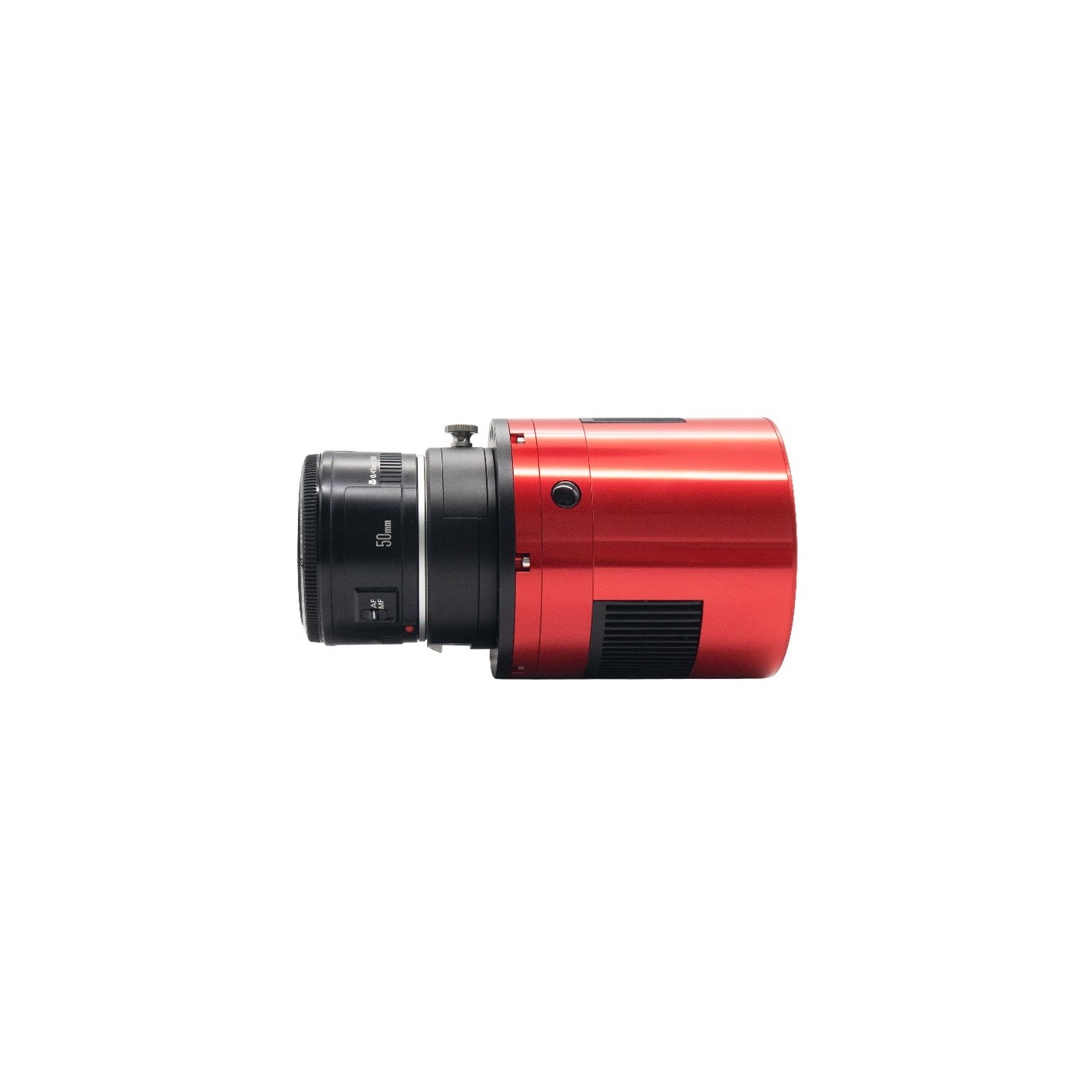

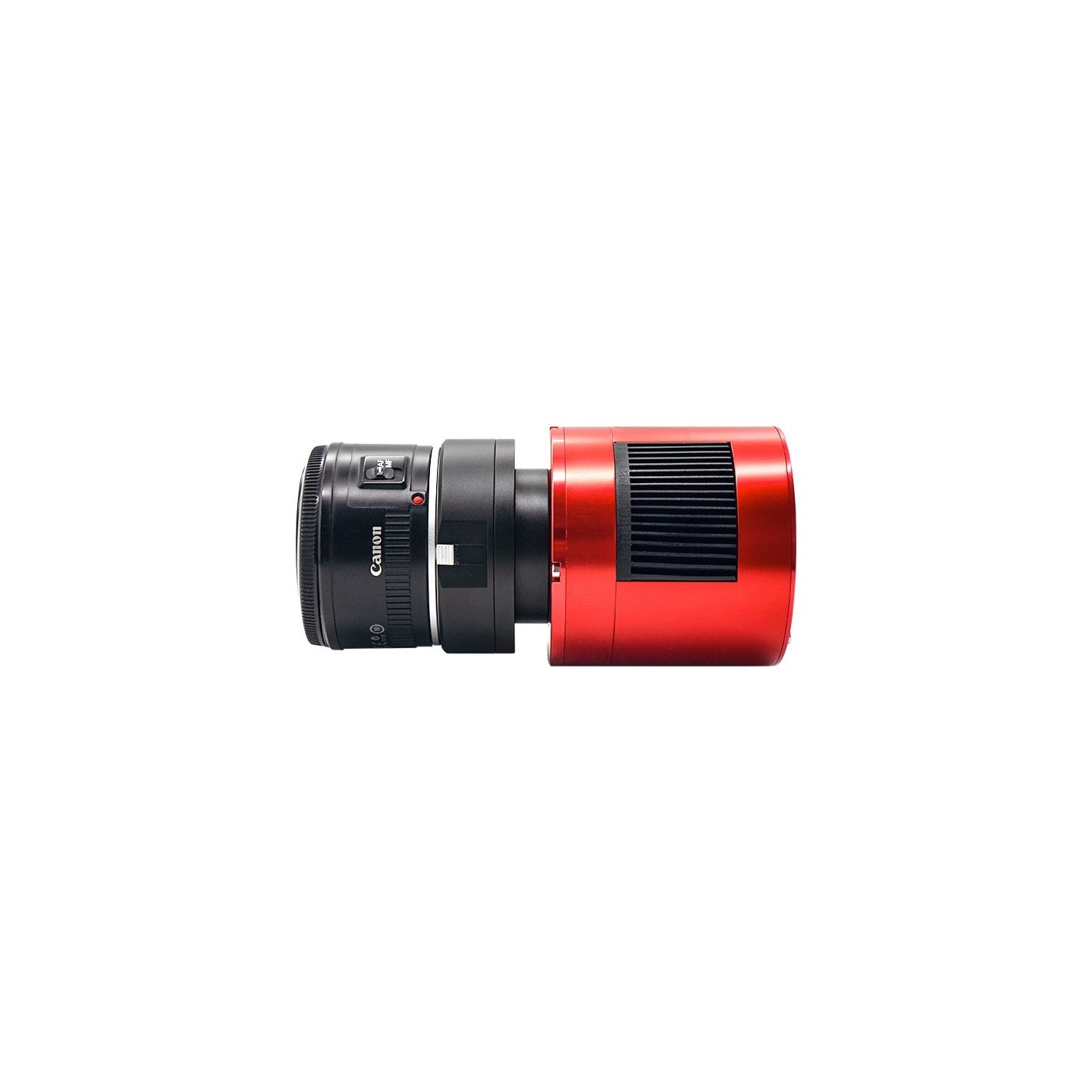

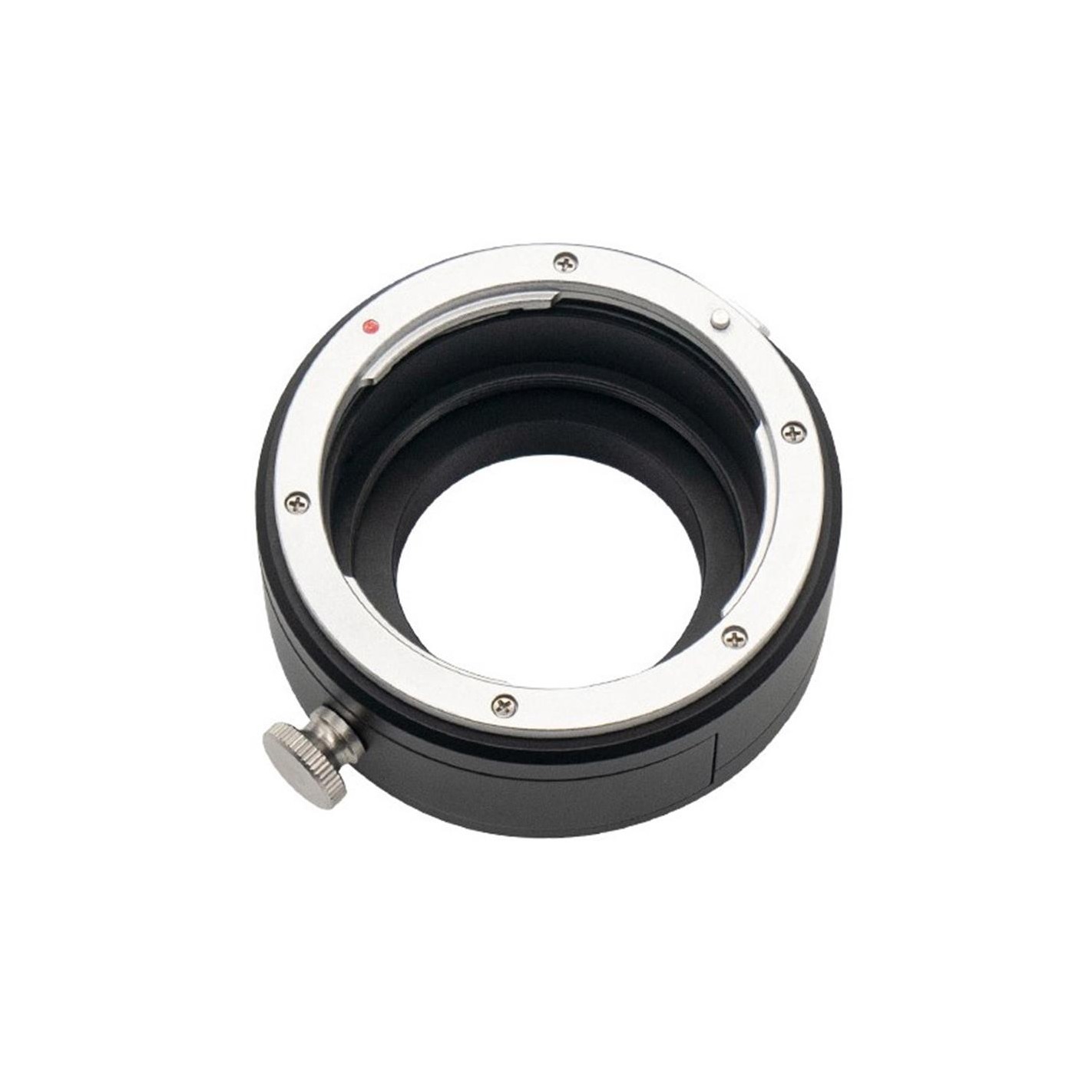

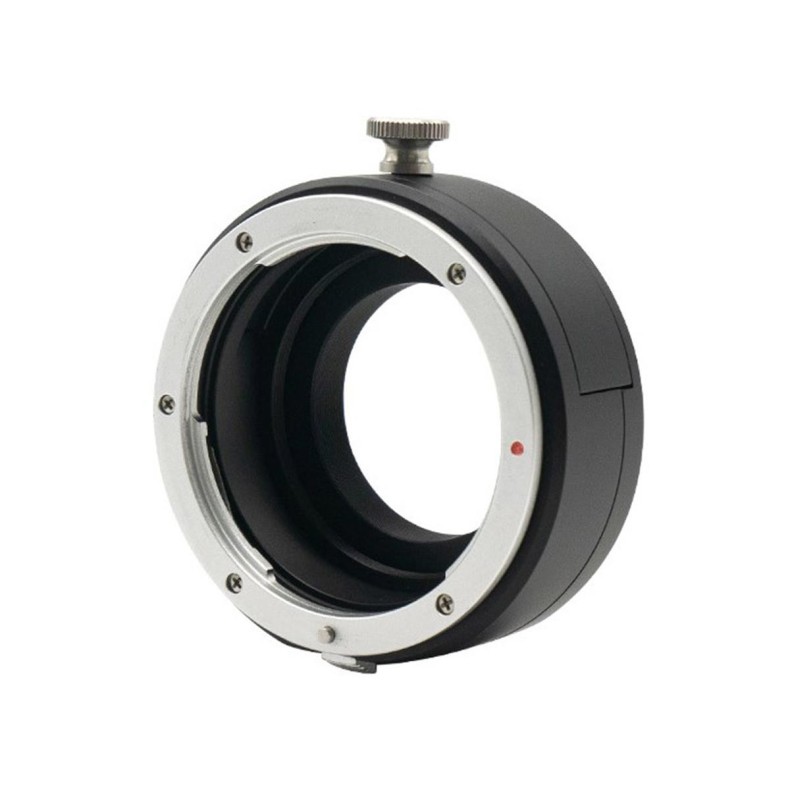

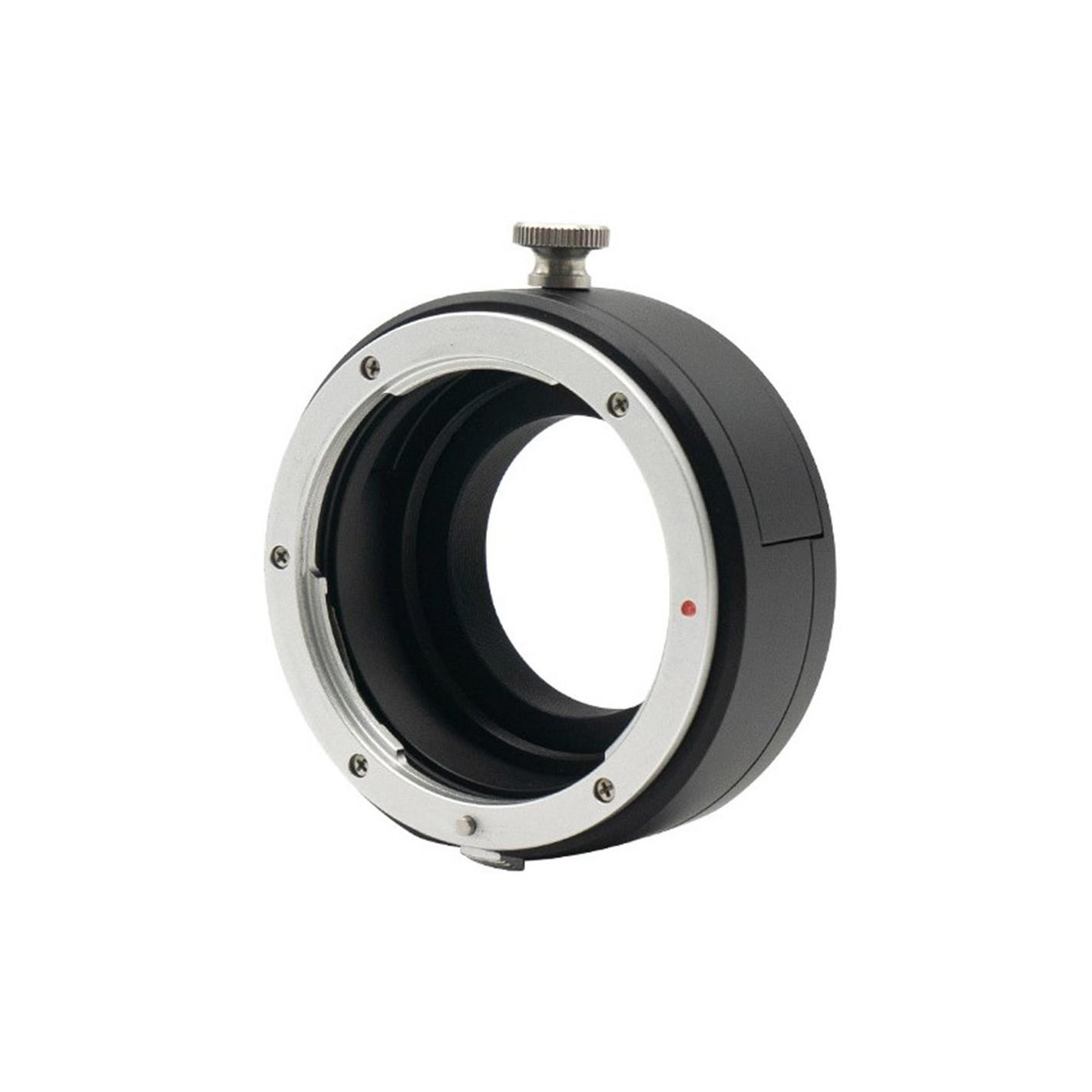

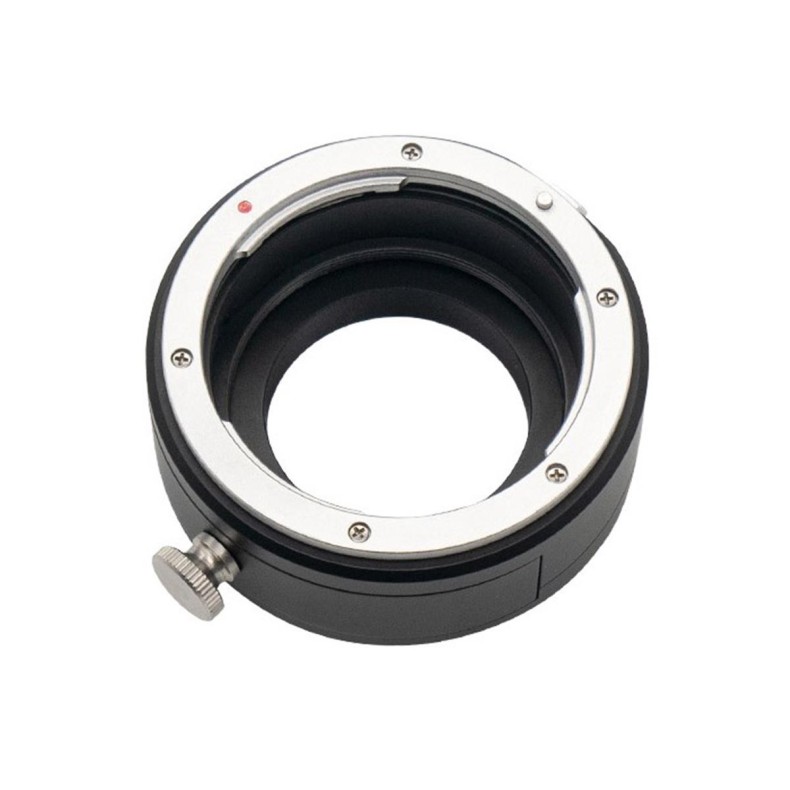

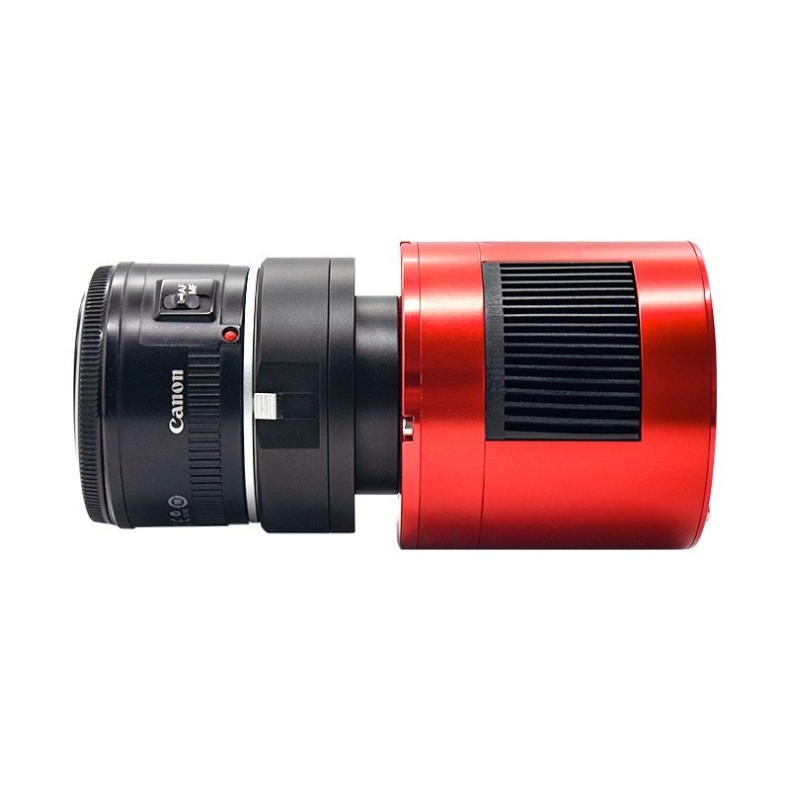

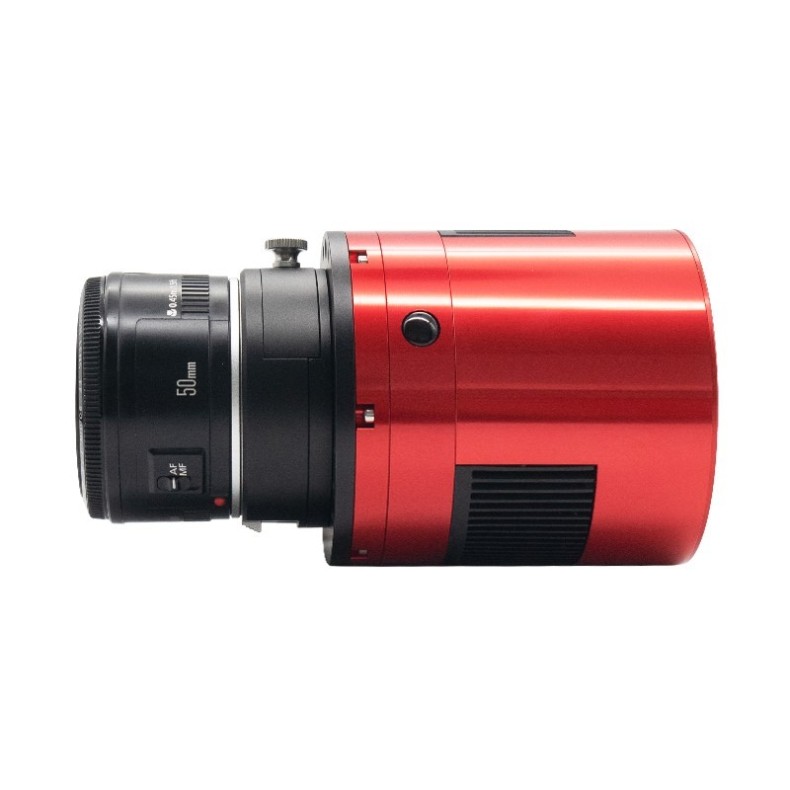

The new 26.5mm thick EOS lens filter box is independently designed by ZWO and is specifically made to match ZWO ASI cooled cameras and EOS lenses.

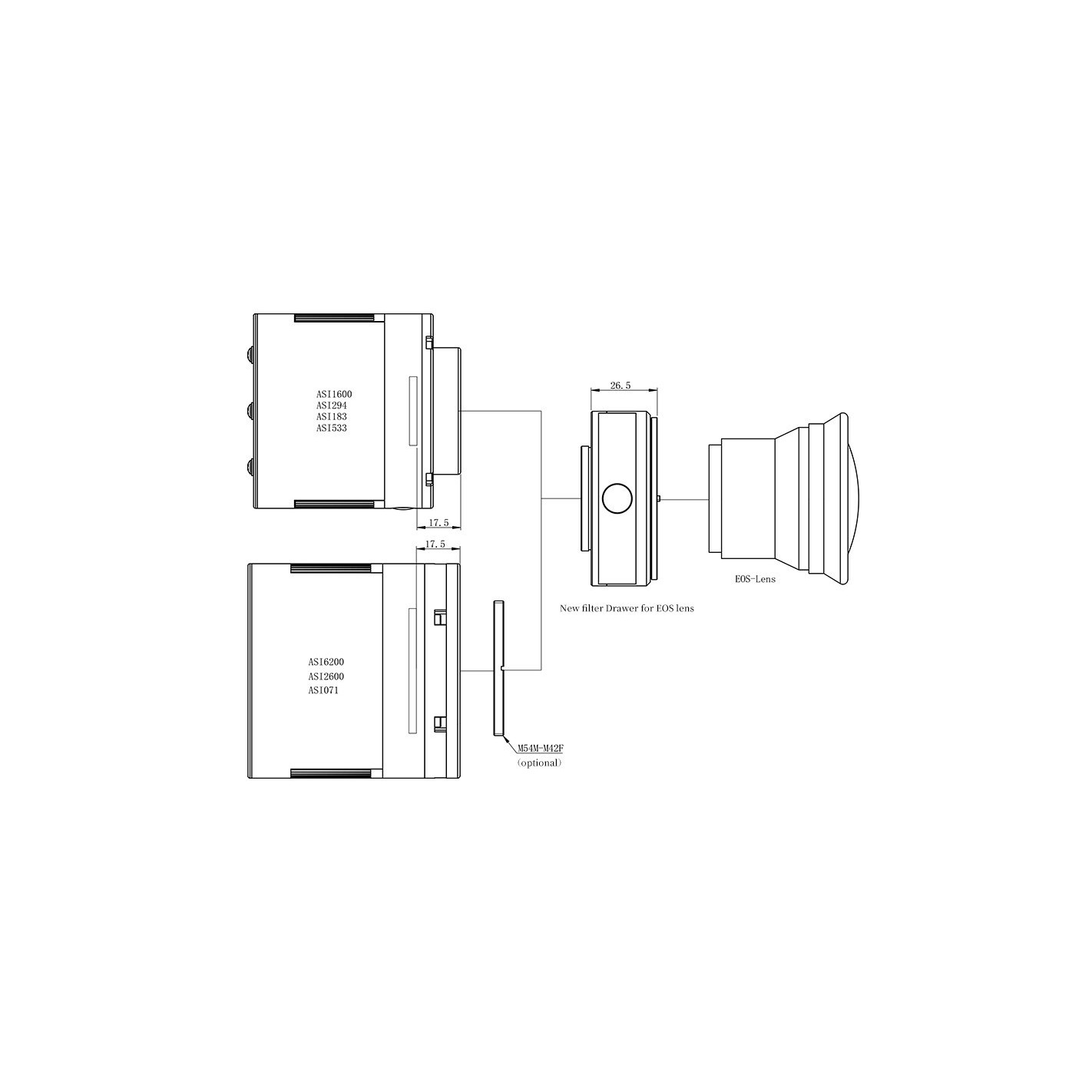

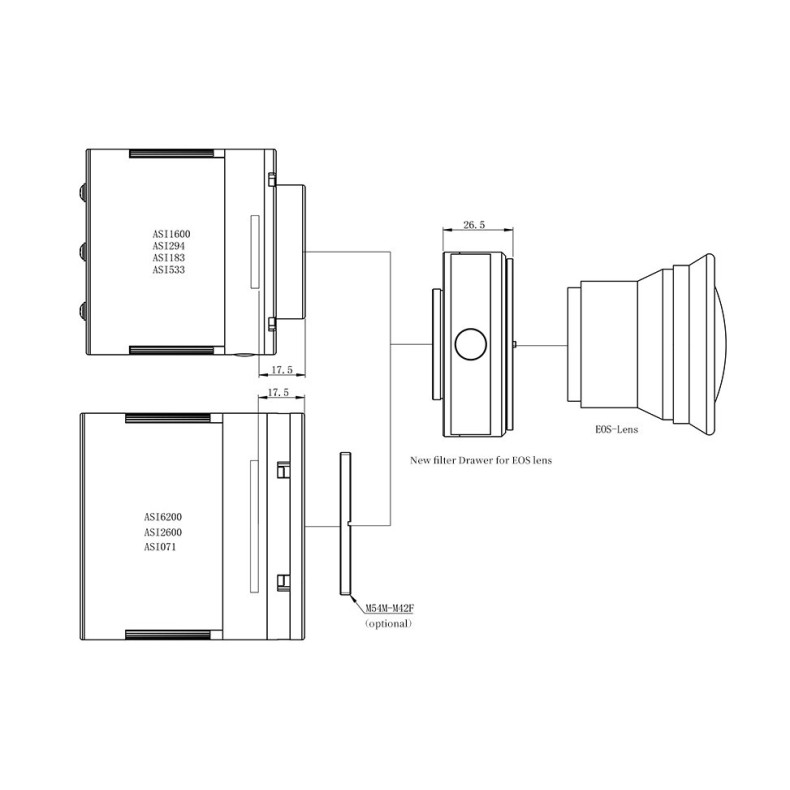

It is compatible with all cooled ZWO ASI cameras with a 17.5mm backfocus (except ASI GT series).
It is compatible with all ZWO 2" filters, including dual band filter, narrow band filter, IR cut filter, etc.

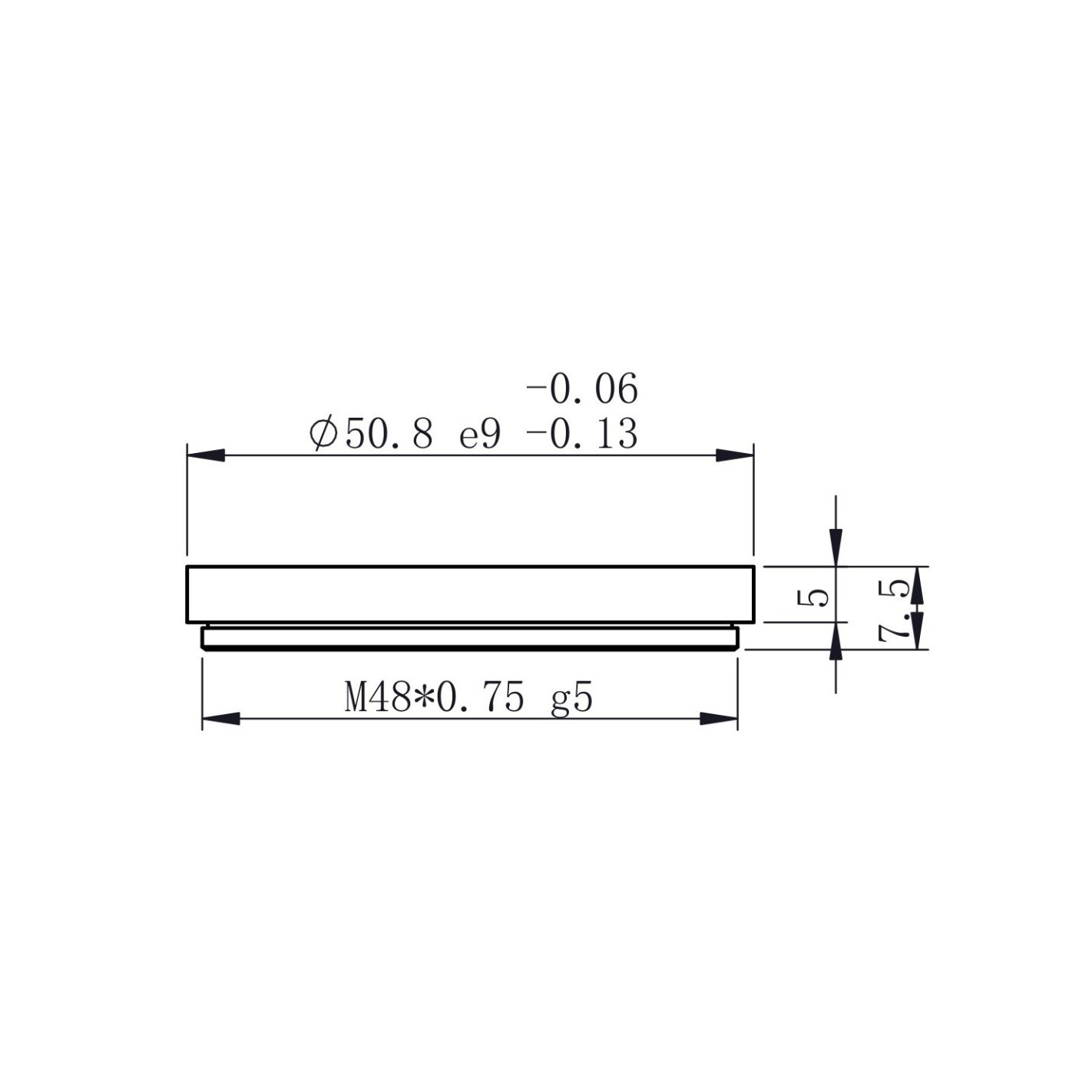

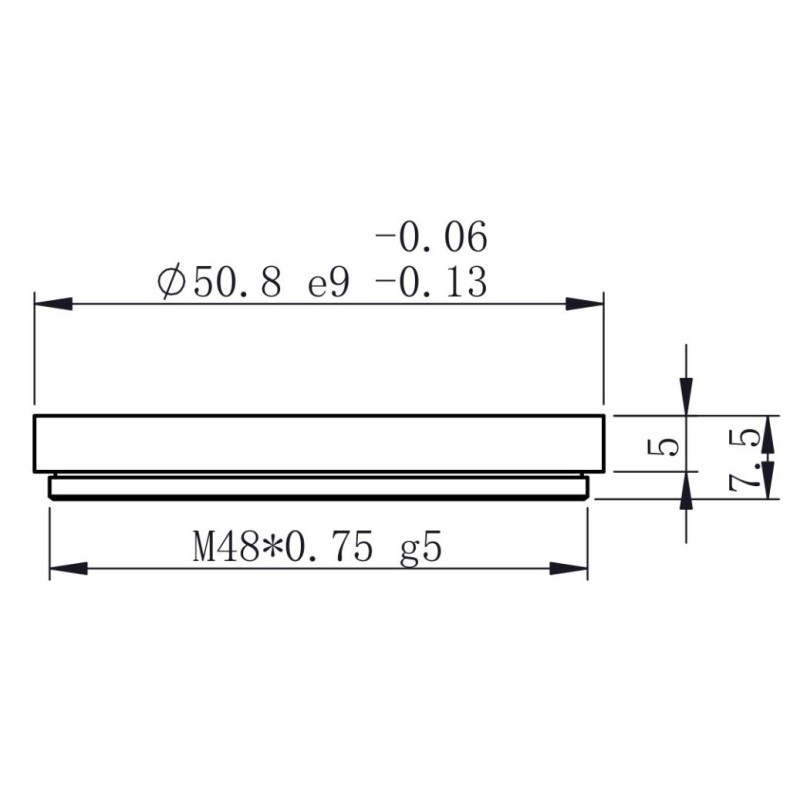

When using 2" filters from other manufacturers, the requirements shown in the attached picture (filter profile) must be met

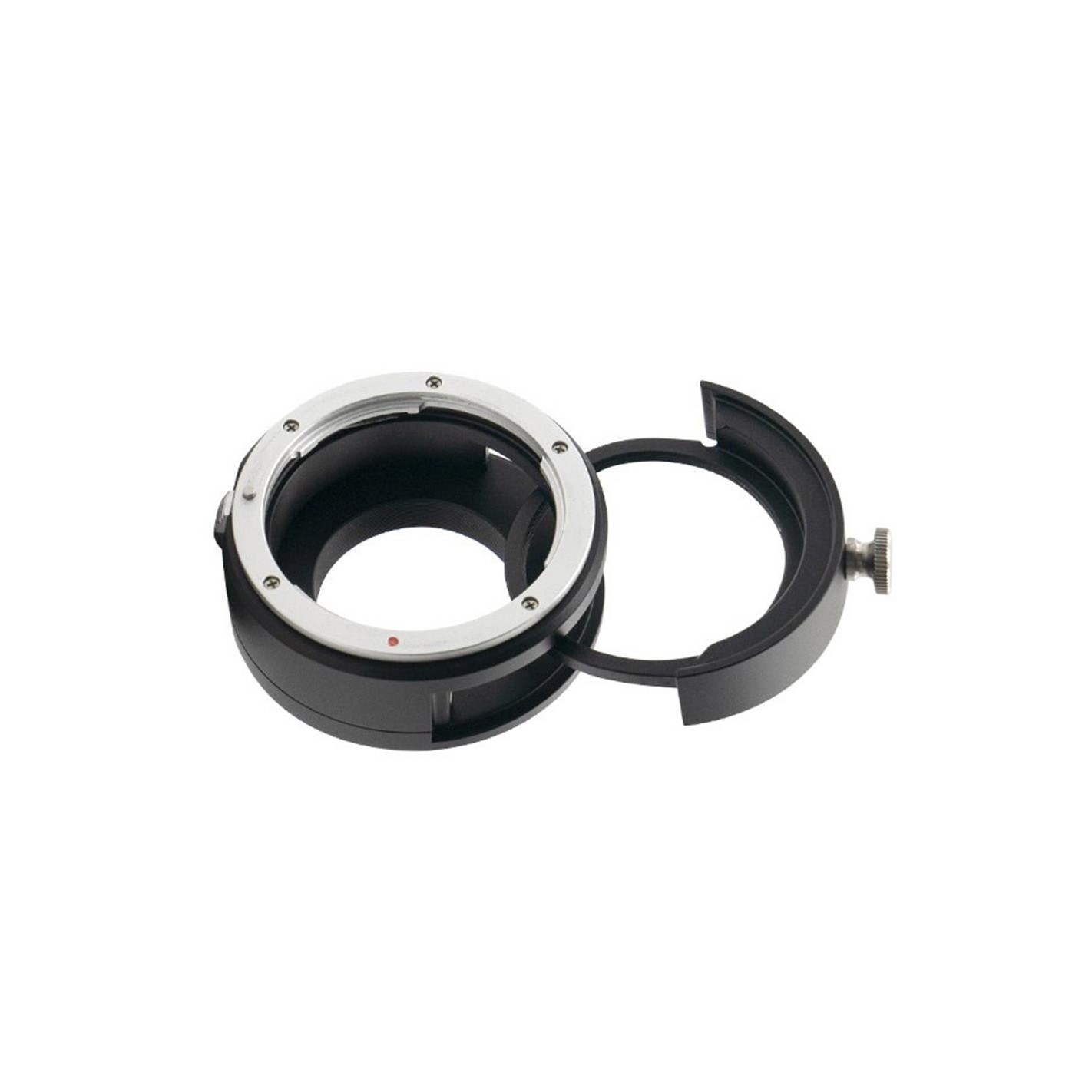

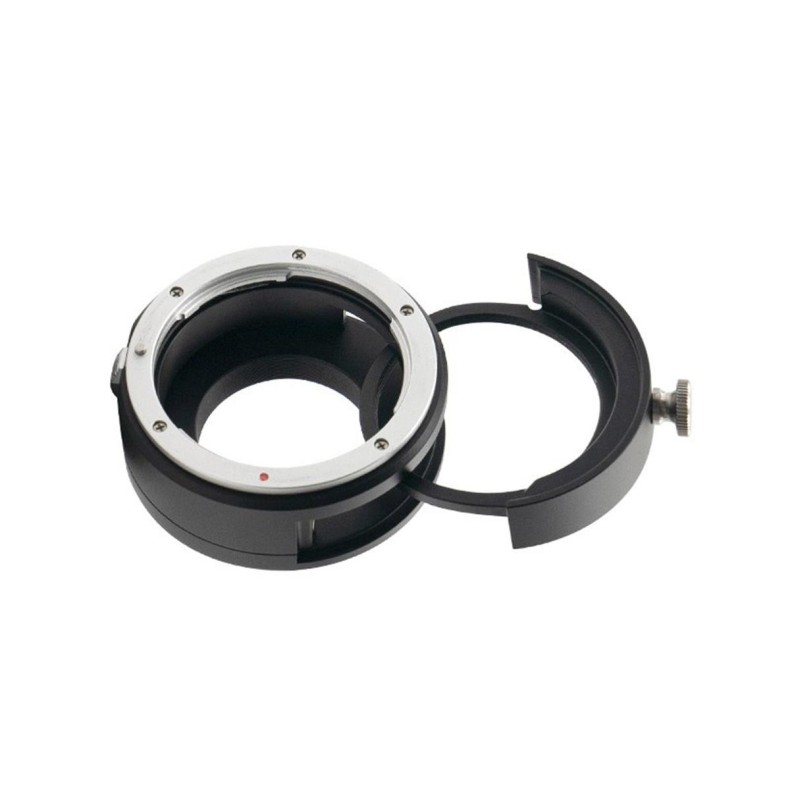

With the strong double magnetic adsorption capacity, it is more convenient and much easier to install or remove the filter.

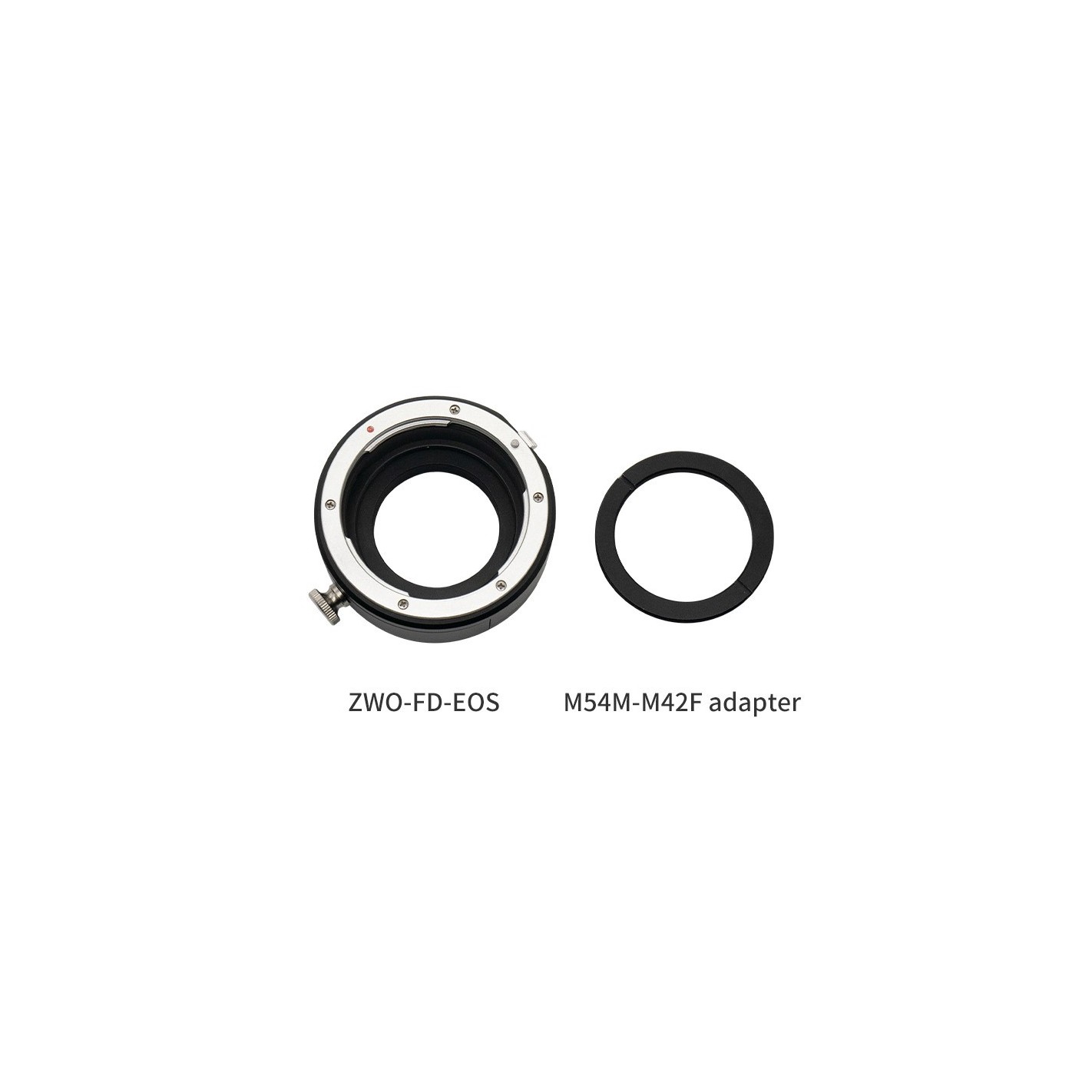

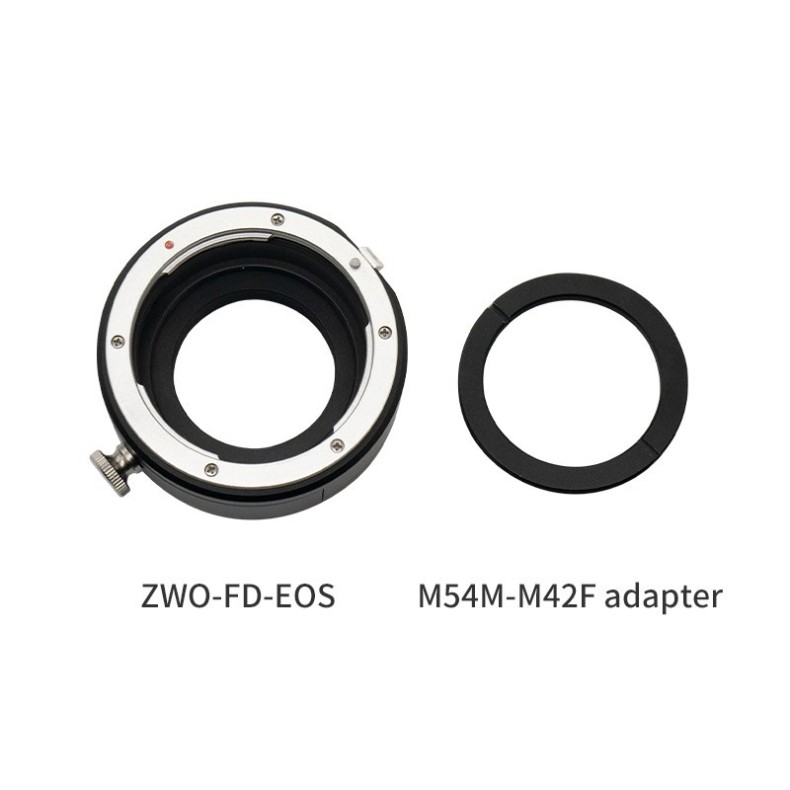

The thread is M42 * 0.75. You can also use the M54M-M42F adapter to connect the filter box to a full frame camera.

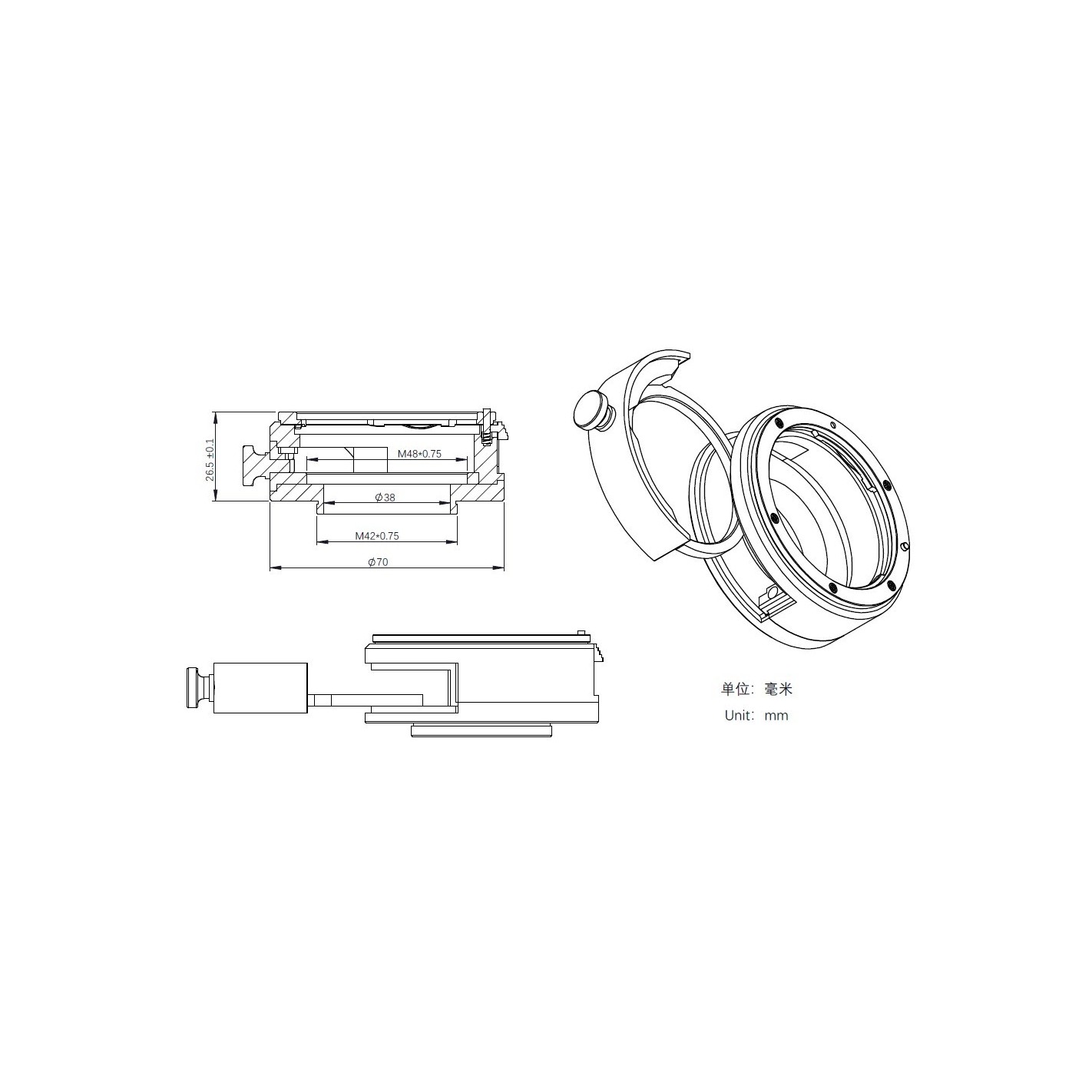

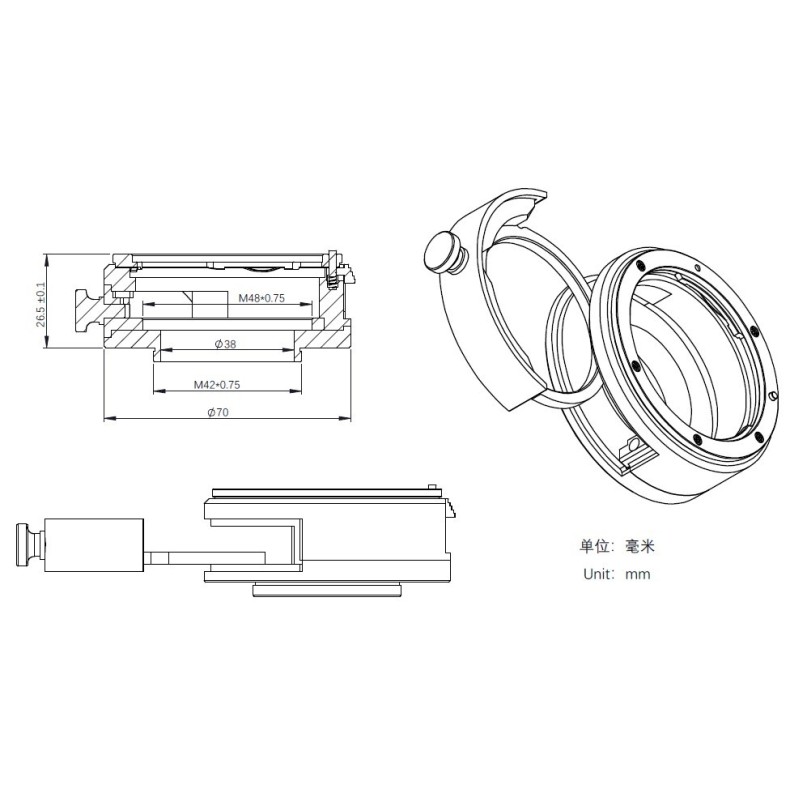

Mechanical specifications:
- 70 mm diameter * 26.5 mm (thickness)
- Male thread M42 * 0.75 (external) (camera side)
- M48 female thread * 0.75 (internal) (filter end)
- Suitable for 2" astronomical filters
