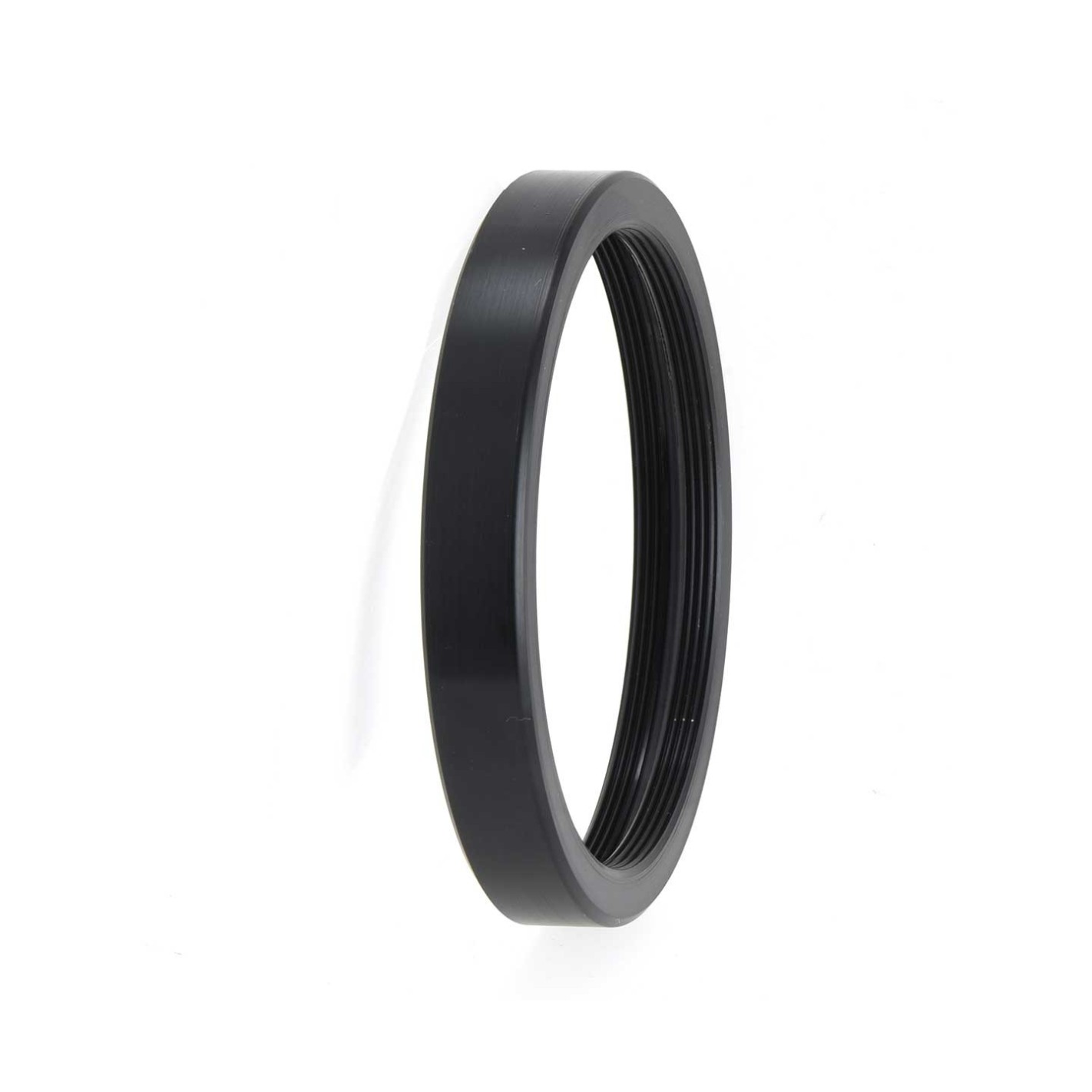

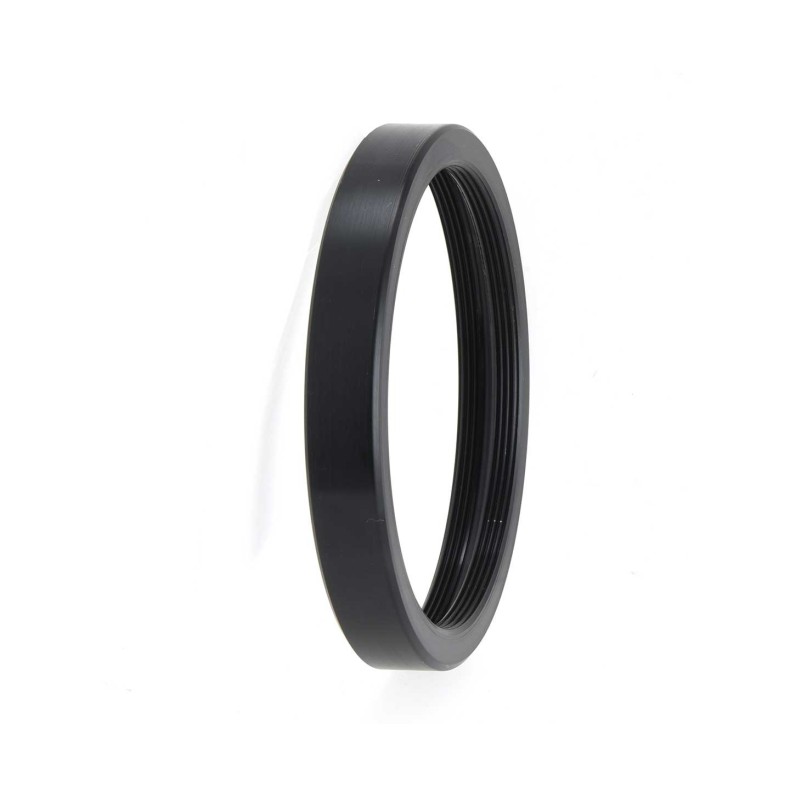

Adapter TS female thread M68 for focusers with male thread M74

Adapter TS adapter M68 female thread for focusers with M74 male thread

The adapter allows to connect correctors and adapters with M68x1 male thread on the telescope side. Through the multifunctional adapter RIREDM63-M68, the Riccardi reducer with M63 connector can also be attached and sunk into the draw tube.

The adapter fits all refractors with an M74x1 male thread on the focuser. It converts the M74 male thread into a M68x1 female thread ( Zeiss style).

The adapter allows you to connect M68x1 adapters and correctors to telescopes with M74x1 male thread, such as some Skywatcher ESPRIT

telescope side connection: M74x1 (female) thread

♦ Connection on camera side: M68x1 thread (female)

♦ Adapter length: 11 mm

♦ Ideal for coupling the TSFLAT2,5 corrector to Skywatcher ED apos ESPRIT 120mm and 150mm

♦ Allows to adapt also Riccardi M63 reducer to Skywatcher Esprit 120 and 150 apos

Technical specifications:

• Thread on telescope side: M74x1 female - length 6mm
• Thread on camera side: M68x1 female - length 5 mm
• Adapter length: 11 mm
• Adapter outer diameter 80 mm
