An eyepiece for every occasion, with very good field correction and large field of view.
The BRESSER Zoom Deluxe Eyepiece covers the wide focal length range from 8 to 24 mm. These are also the focal lengths most commonly used with most telescopes. Especially for instant observations, without having to fill an entire suitcase with eyepieces, this zoom eyepiece is a good choice. The Deluxe version offers, thanks to its especially advanced optical design with 9 elements in 6 groups, even better field correction and sharpness combined with a large apparent field of view from 40 to 62 degrees.
Always the ideal magnification at hand
A quick twist and you have the ideal magnification already set. Adjustment is continuous from 8 to 24 mm focal length. This eliminates the need to always change eyepieces.
A comfortable view

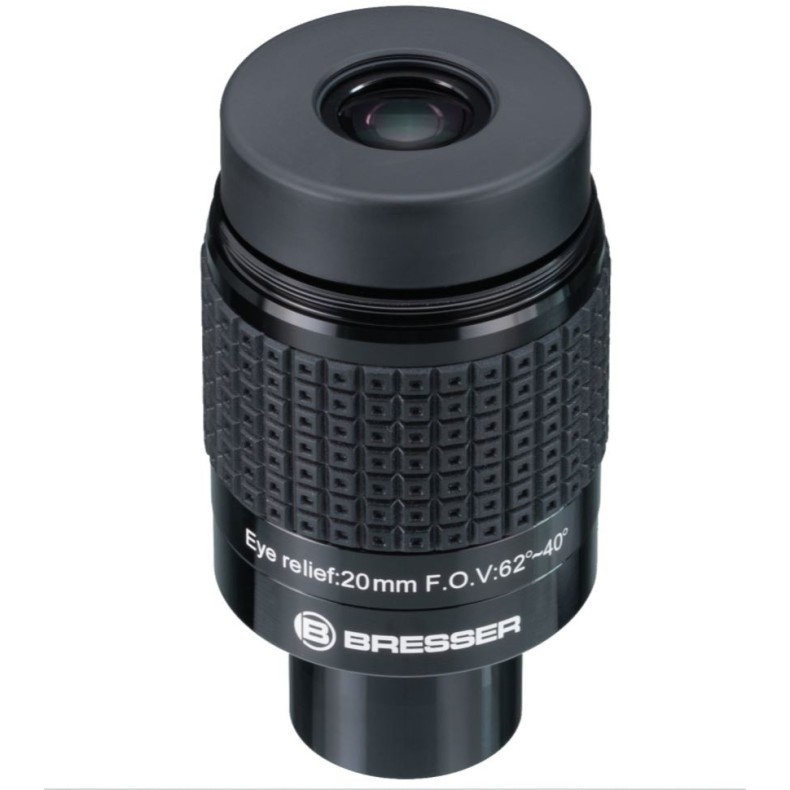

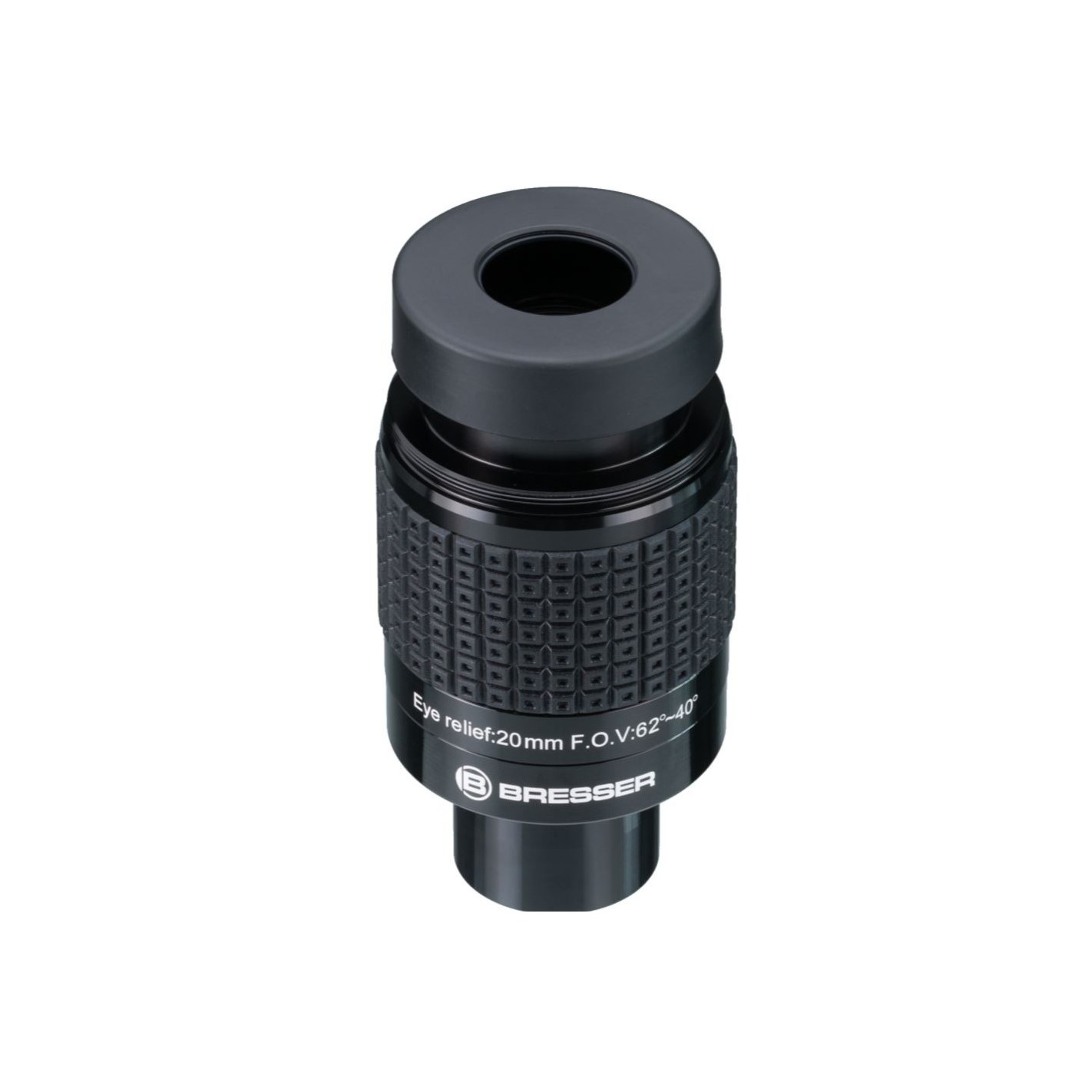

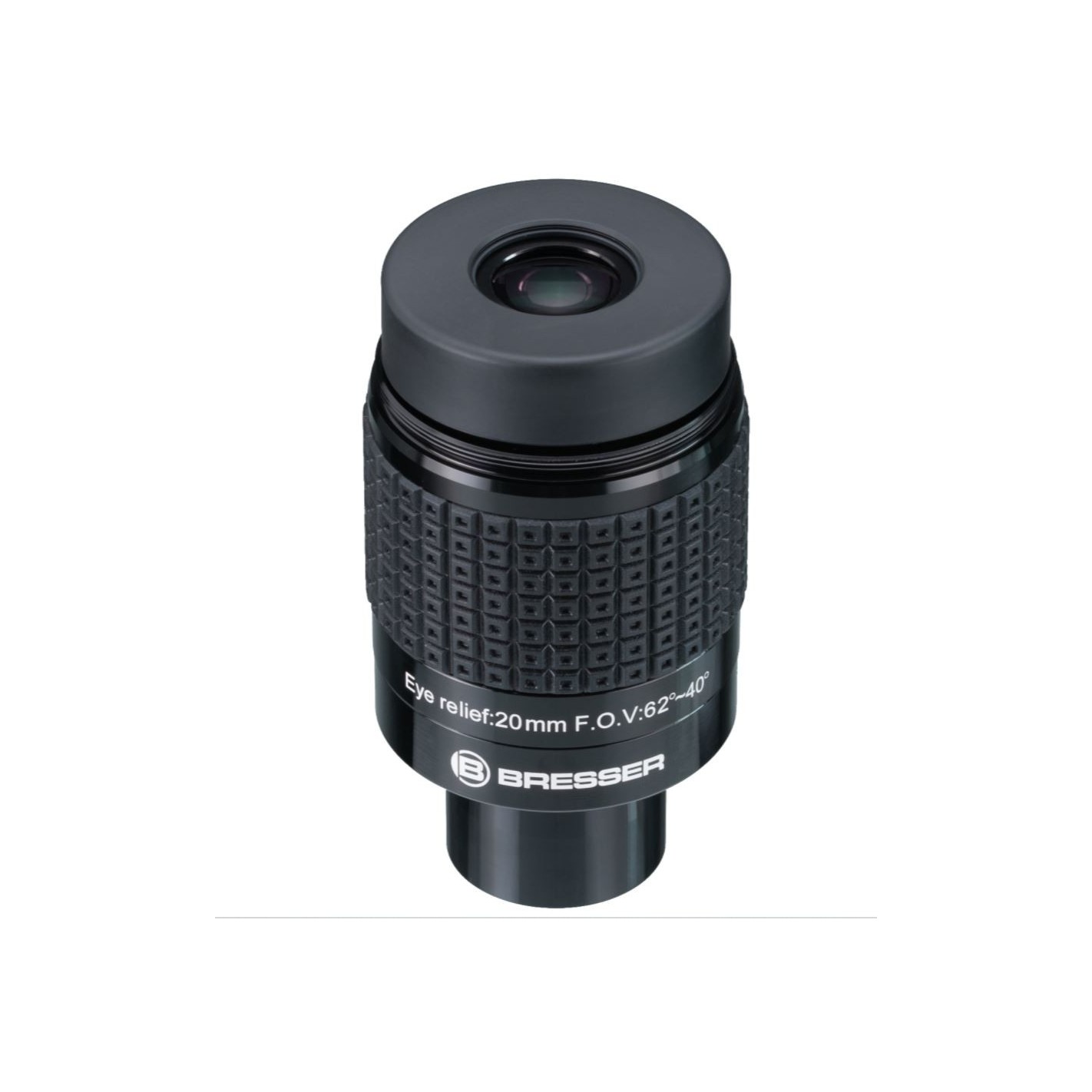

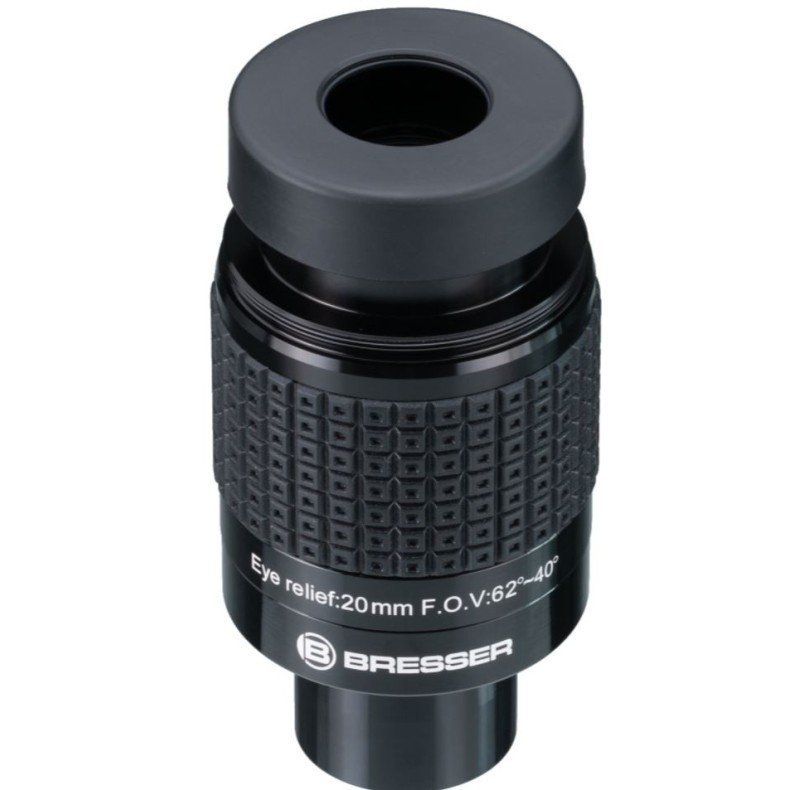

The BRESSER Zoom Deluxe eyepiece offers a large comfortable eye relief (LER) of 20 mm to the eyepiece lens. This means comfortable viewing even during prolonged observation, an important criterion especially for spectacle wearers. The rubber eyepiece can also be individually adjusted by a twisting movement.
Advanced optical design
To achieve the best possible image over the entire focal length range, a particularly advanced optical design with 9 lenses in 6 groups is used. Full multi-coating of all lens surfaces also ensures maximum light transmission. To effectively suppress unwanted reflections, all lenses are carefully blackened at the edges. Thus, the image produced offers the highest possible contrast and image brightness.
Compact and solid design

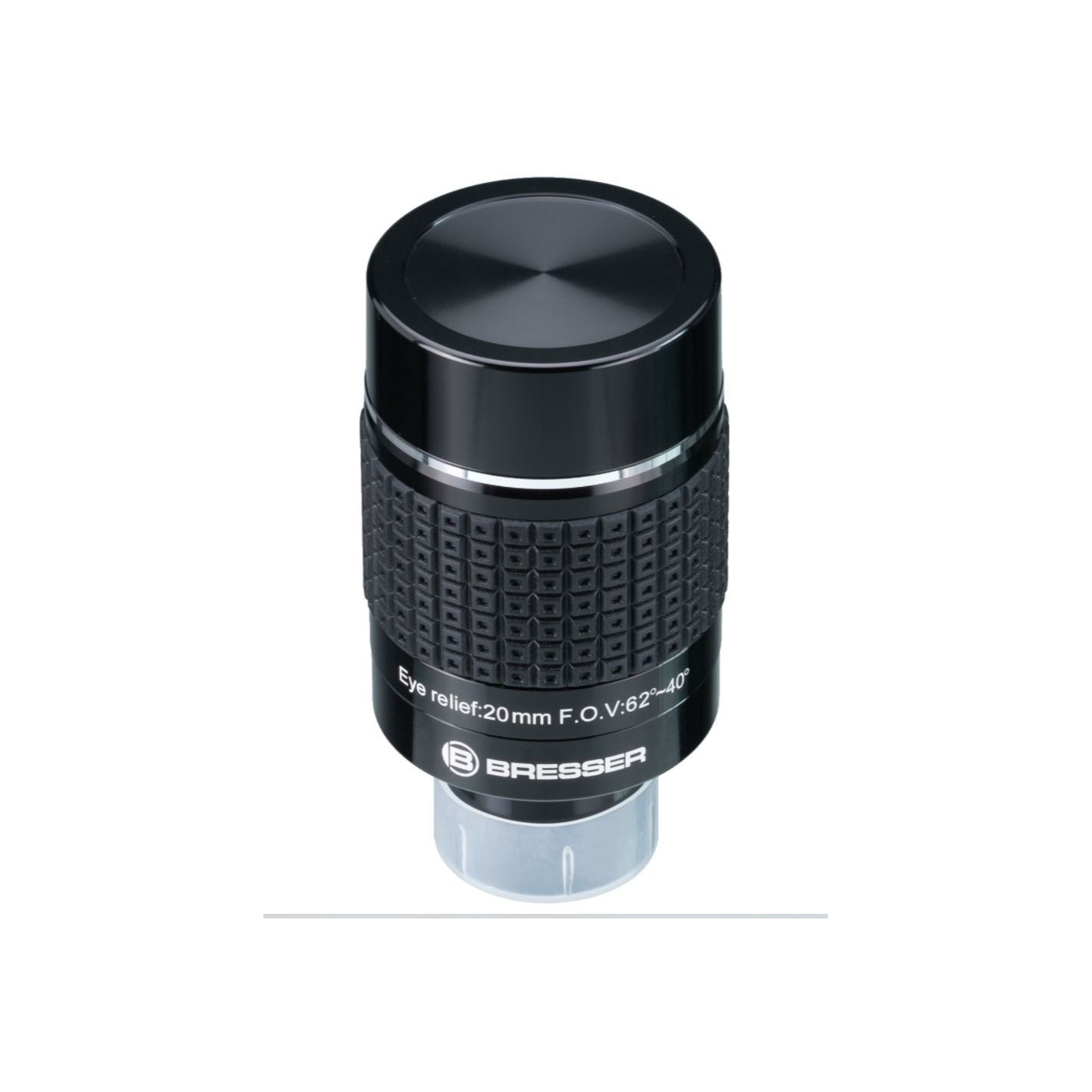

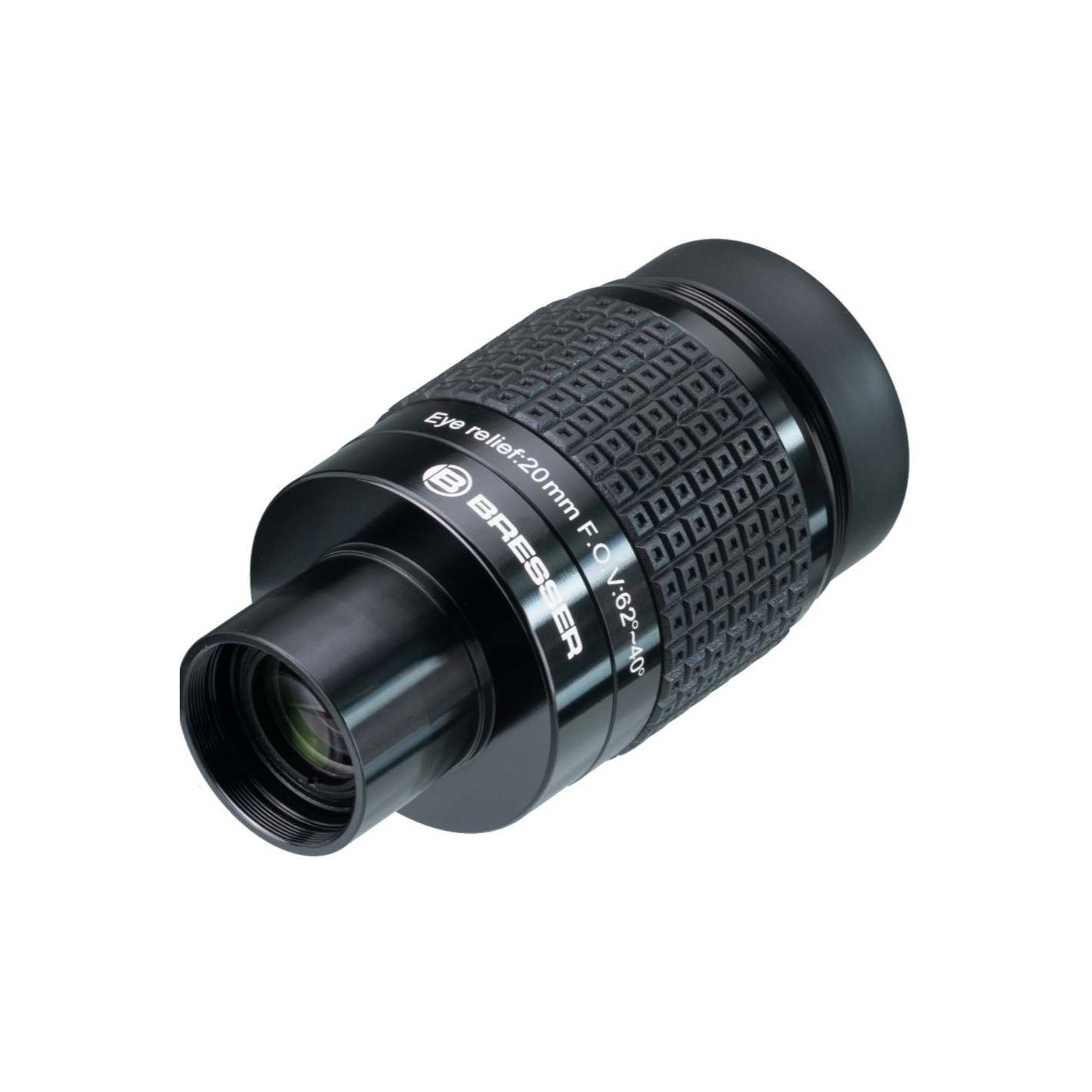

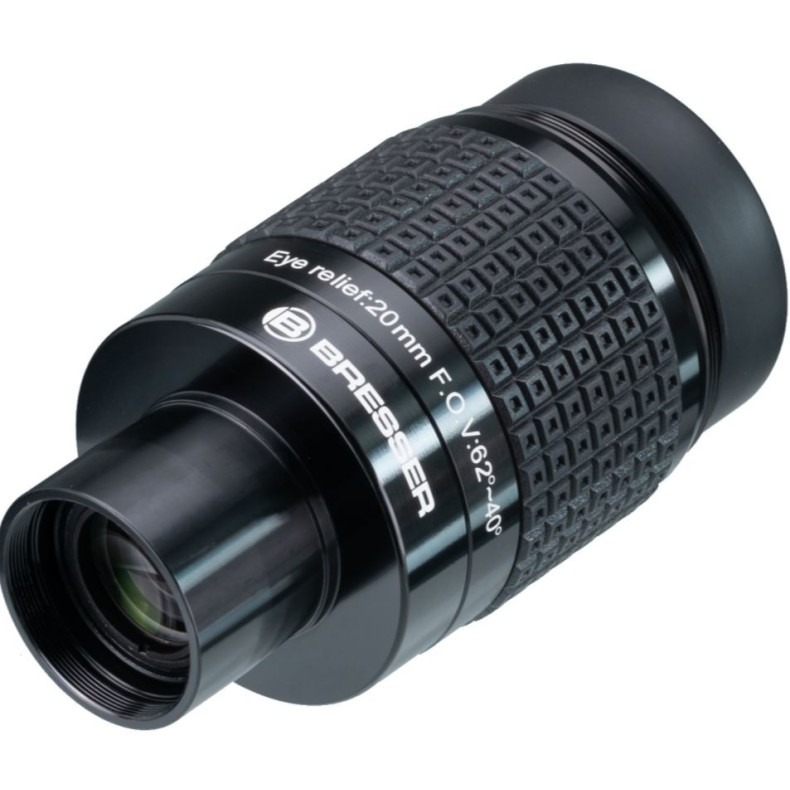

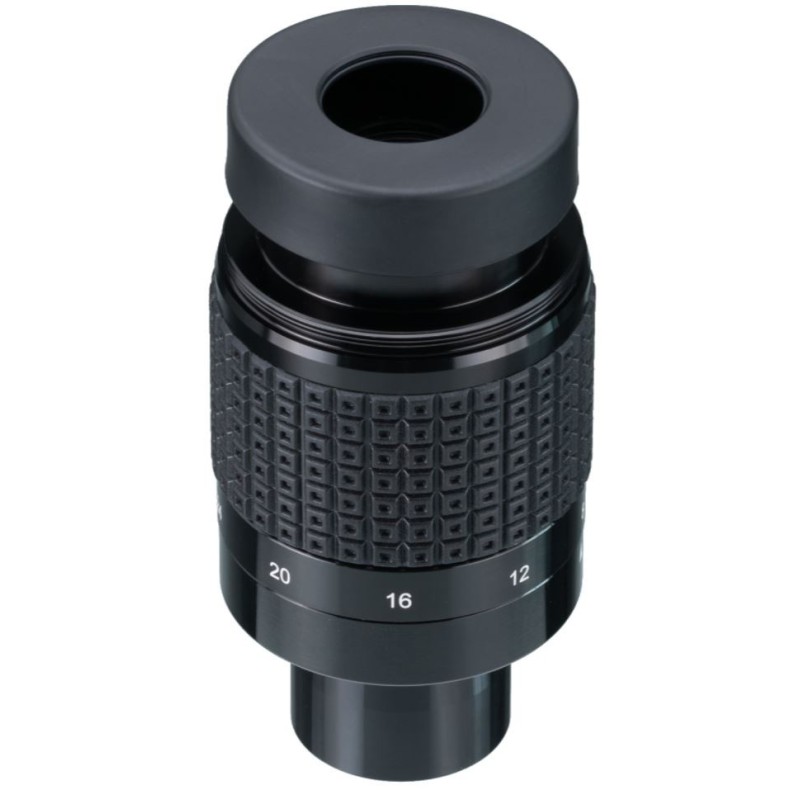

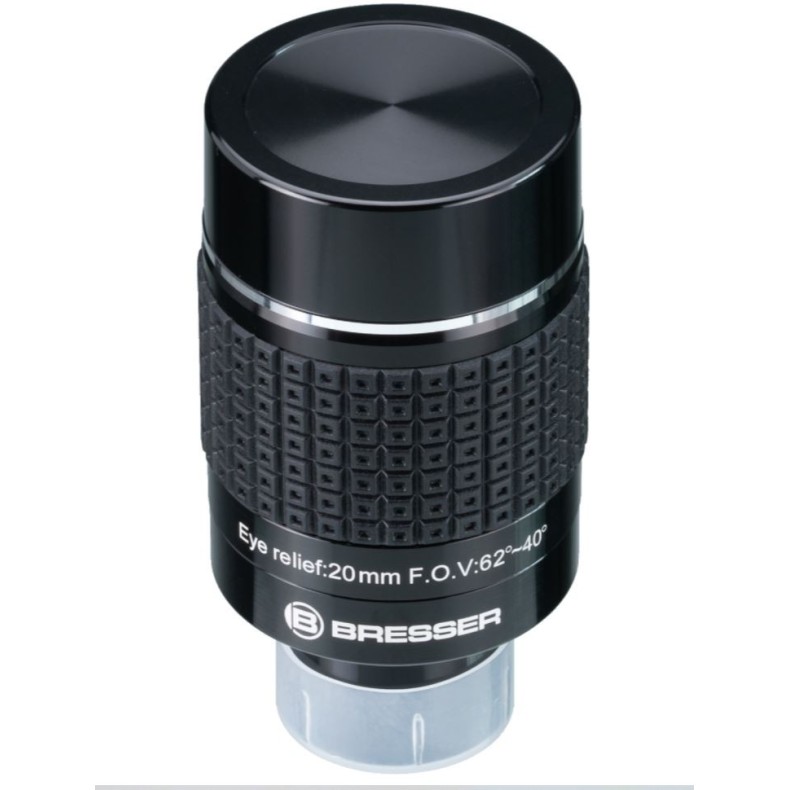

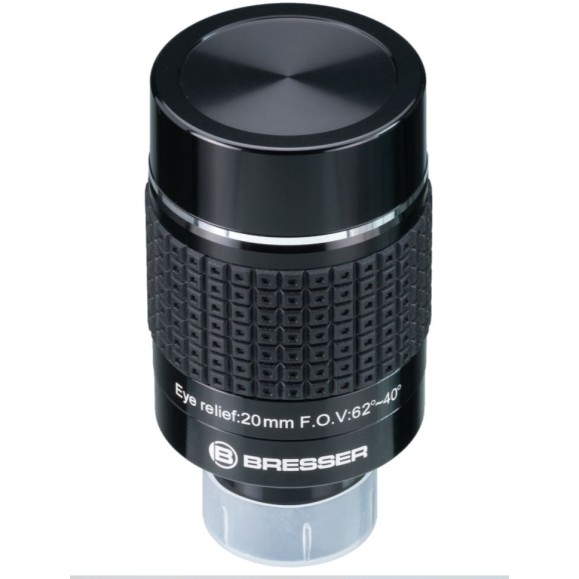

The BRESSER Zoom Eyepiece Deluxe is made entirely of black anodized aluminum. It has an extremely solid, high-quality material appearance and is very durable, even with intensive use. The precise zoom mechanism can be securely adjusted via the rubberized adjustment ring. A white laser engraving with the focal length and pointer arrow shows the current focal length setting even in low light.
Magnificationsachievable with the usual telescope focal lengths
350mm: 44 - 15x
400mm: 50 - 17x
500mm: 63 - 21x
650mm: 81 - 27x
750mm: 94 - 31x
900mm: 113 - 38x
1000mm: 125 - 42x
FEATURES
- Deluxe version with even better field correction and sharpness
- Large apparent field of view 40 to 62 degrees
- Zoom eyepiece with stepless 8 to 24 mm focal length adjustment
- One eyepiece covering a wide range of focal lengths
- Continuous adjustment of the ideal magnification
- Quick adjustment of magnifications without changing eyepieces
- Convenient 20 mm eye relief (LER = long eye relief)
- Adjustable rubber eyecup for ideal interpupillary distance adjustment
- Also very suitable for spectacle wearers
- Compact and solid design
- Manufactured entirely of black anodized aluminum
- Screw-on aluminum dust cap
- Very high quality material appearance
- Precise and robust zoom adjustment mechanism
- Rubberized grip surface for zoom adjustment
- Blank laser engraving with focal length and pointer arrow
- Focal length range 8-24 mm freely adjustable
- - Optical design: 9 lenses in 6 groups
- All lens surfaces have full multi-coating
- Eyepiece sleeve diameter: 1.25 inch / 31,7 mm
- Filter thread on sleeve: M28 x 0.6 mm (standard 1.25'' filter thread)
- Eyepiece weight: 315 g
- Eyepiece focal length 102 mm
- Diameter: 52 mm
- Color: black

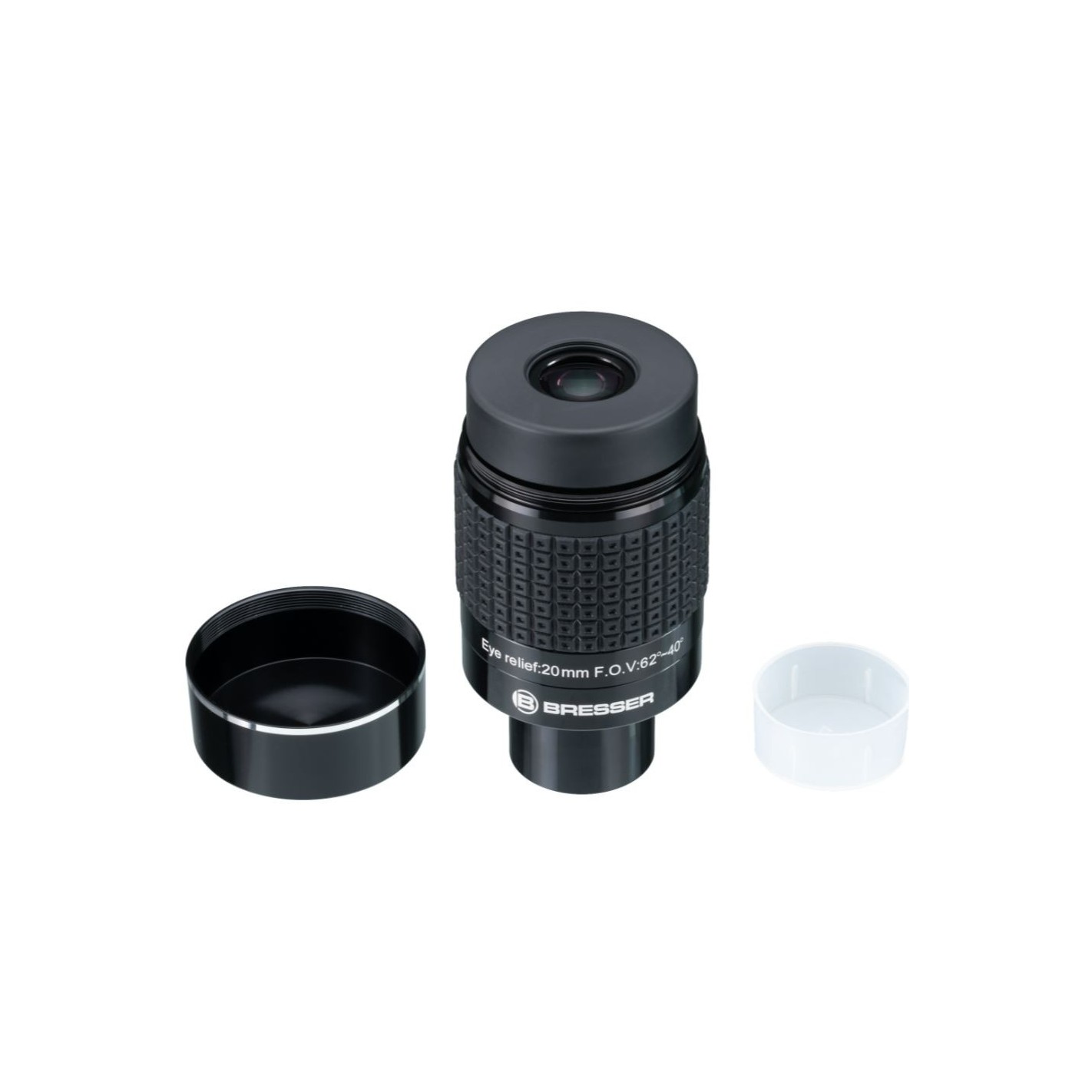

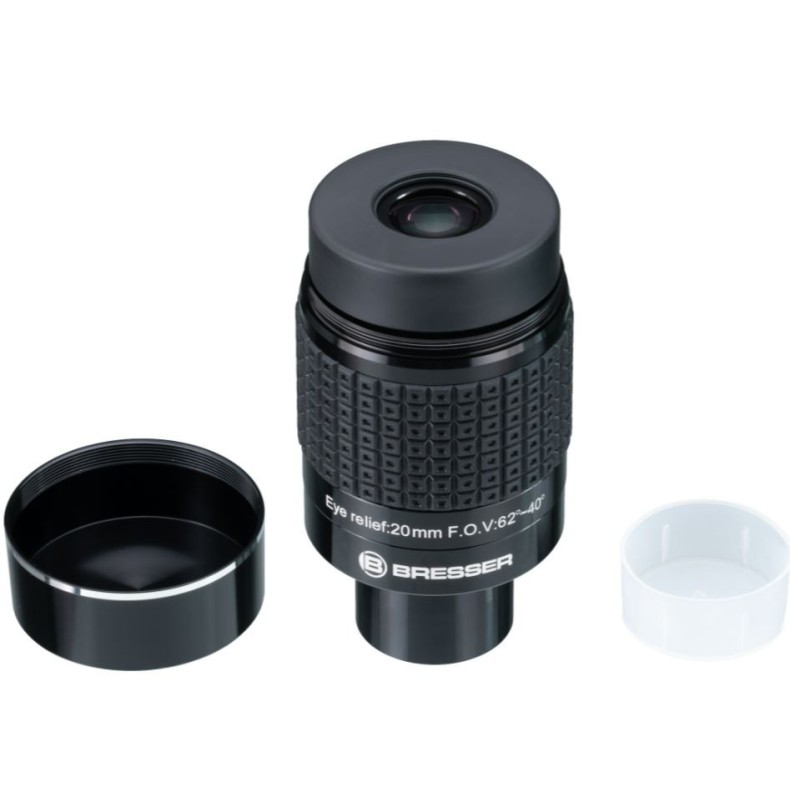

DELIVERY PACKAGE
- Deluxe zoom eyepiece
- Metal cap for eyepiece lens
- Plastic dust cap for the eyepiece case
