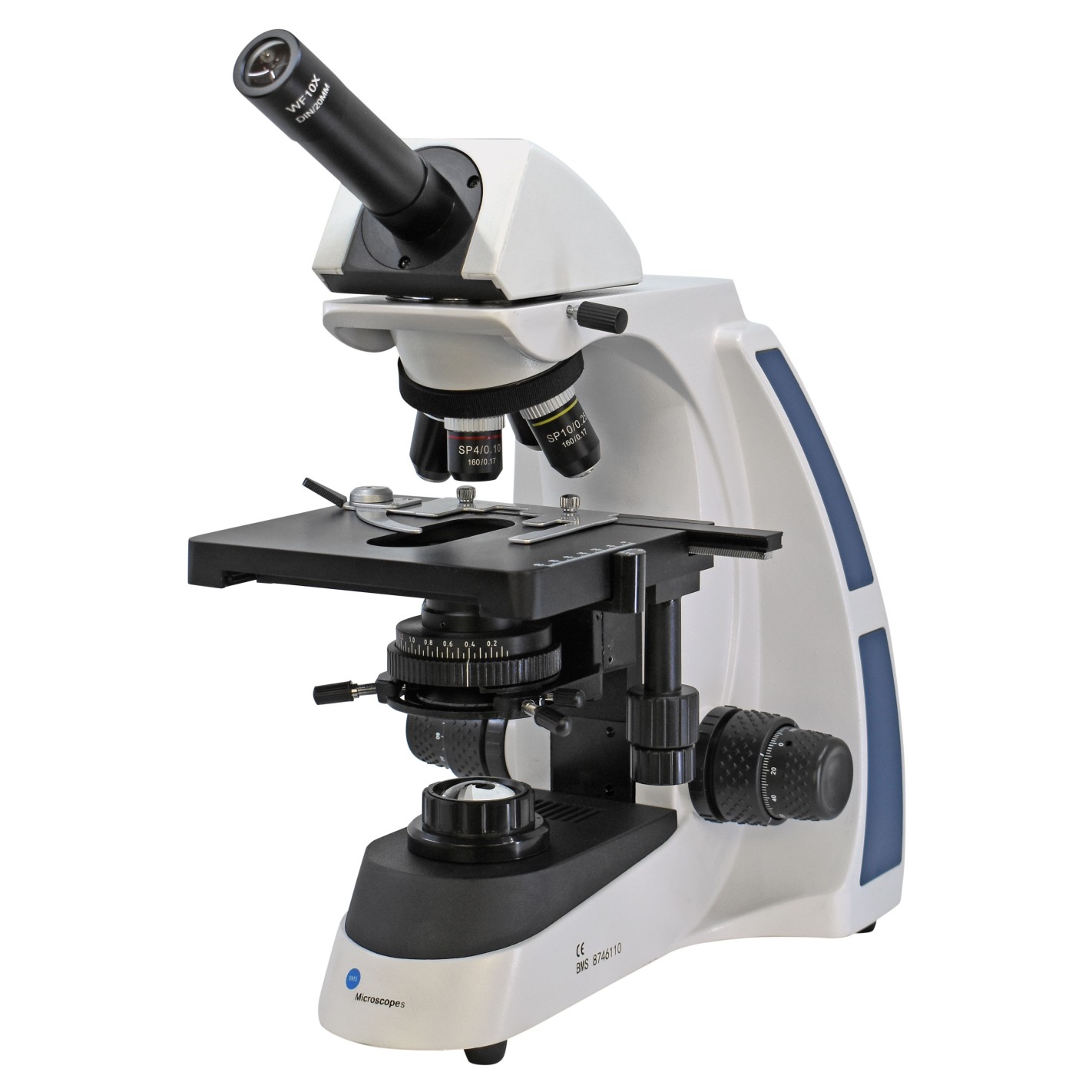

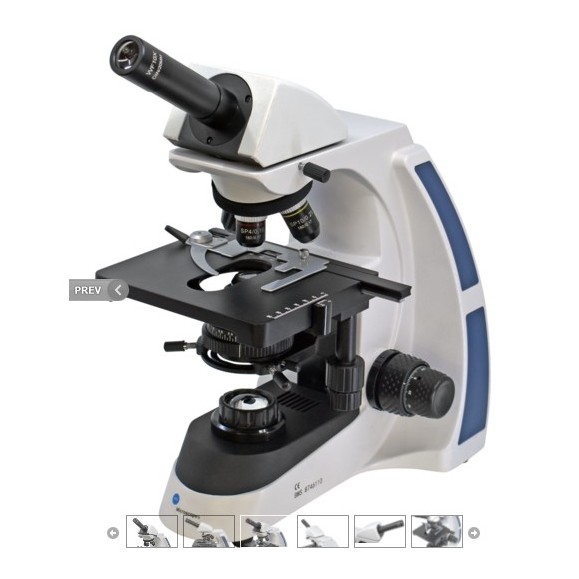

Monocular Biological Microscope BMS D2-211SP 1000X

Monocular Biological Microscope BMS D2-211SP 1000X

A new approach to the highest demands in microscopy. In a nutshell: flexible, efficient, stable and comfortable to use. For use in a variety of educational, laboratory and professional environments.
The BMS D2 will meet all demands made in the field in these sectors. In addition to the ergonomic design, robust components, high quality LED, developed according to the latest technology, the price of these microscopes is certainly attractive.

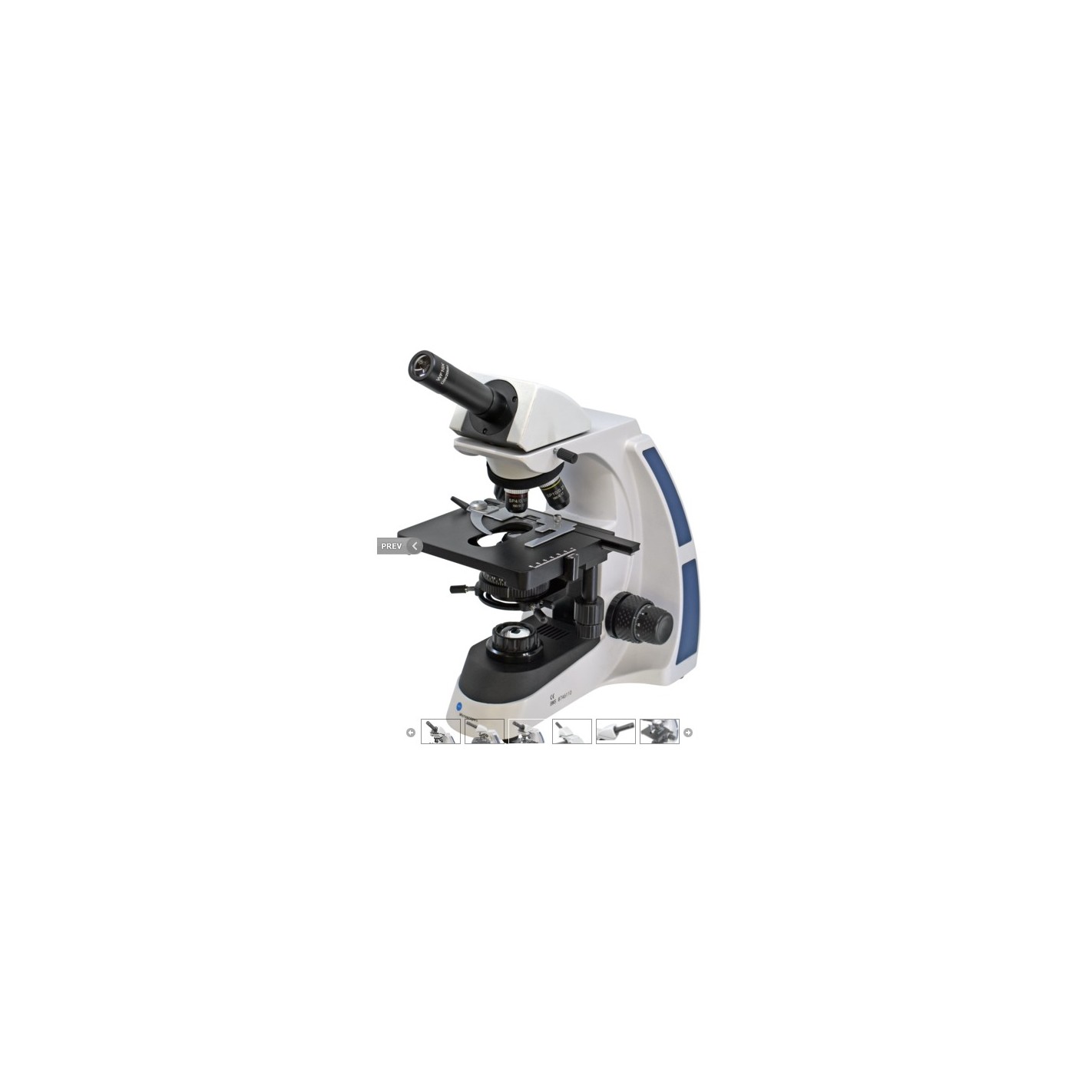

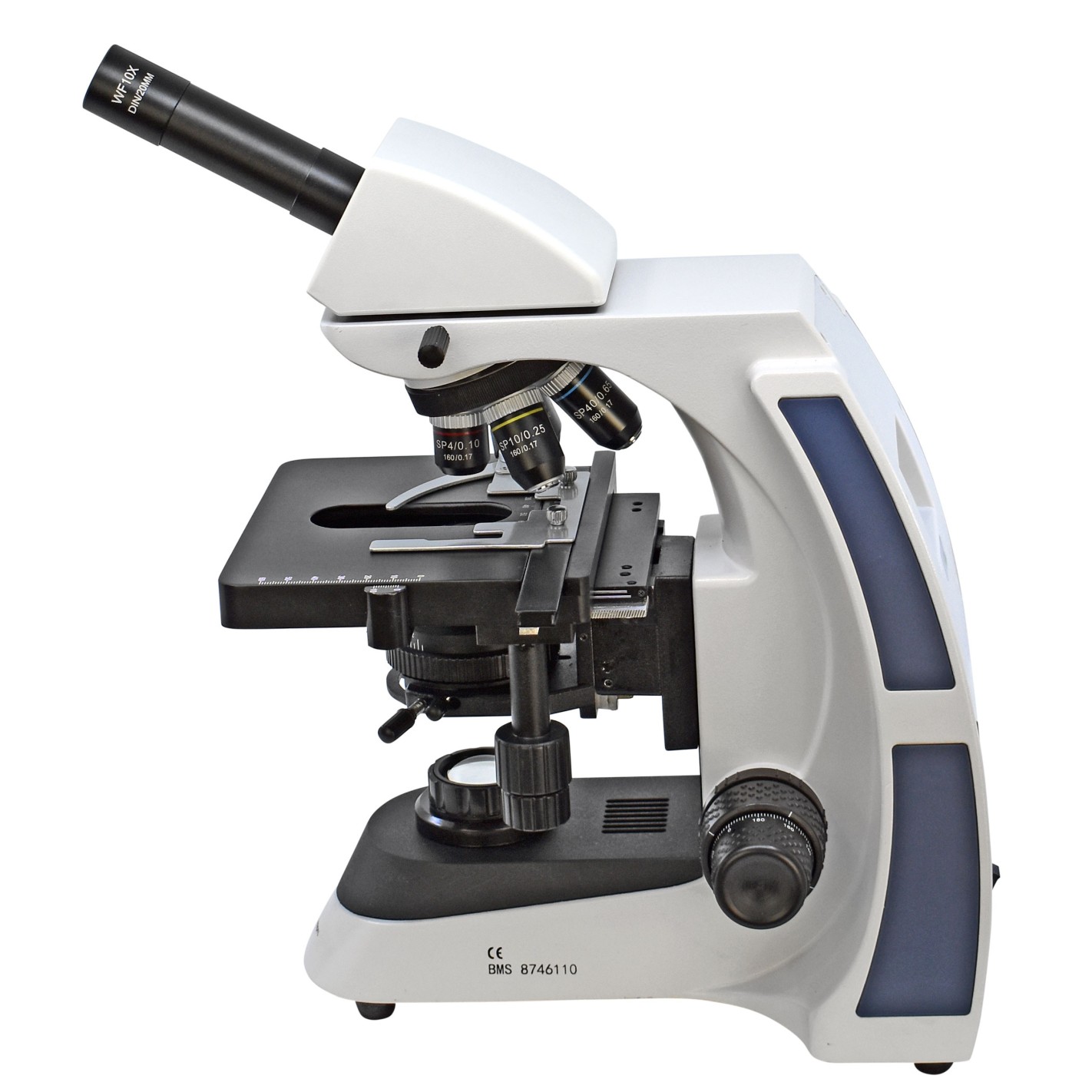

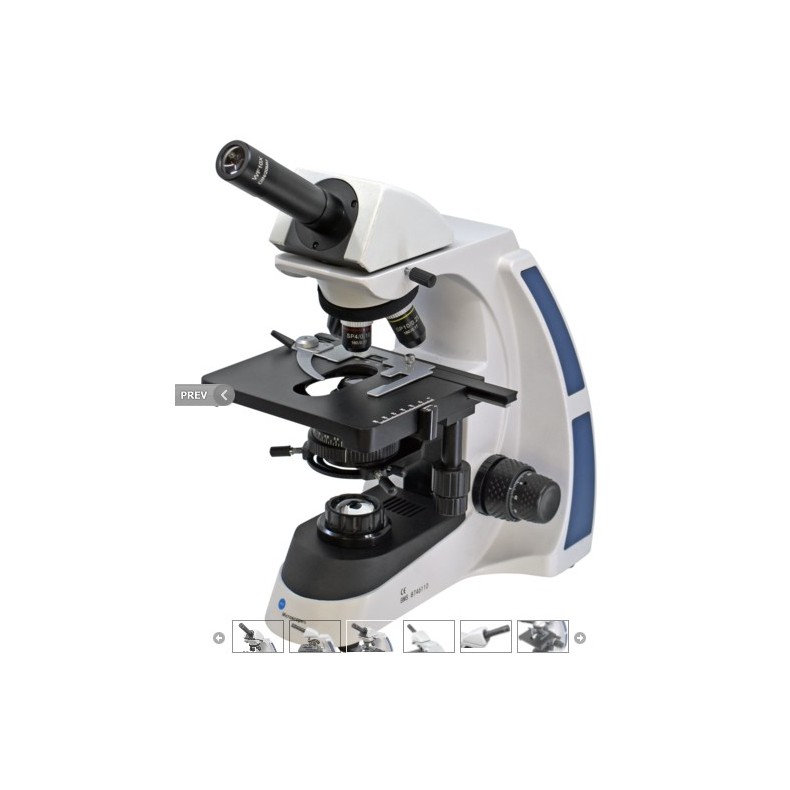

The microscope BMS D2 has high-resolution objectives and two wide-field (WF) eyepieces with flat optics.
The optics allow the user to view clear, colorful and high-contrast images. The stability of the microscope is ensured by the solid design of the stand and its base. The stand also has a wide window at the rear.
The microscope BMS D2 is equipped with a large stage and an integrated movable specimen holder. It has a large working surface of 140 x 155 mm. The integrated X-Y specimen holder is easy to use thanks to the ergonomically placed coaxial controls.
The Abbe condenser is easy to interchange with various accessories, such as darkfield or phase contrast condensers. The condenser can be adjusted in height using the rack and pinion system.
All optical surfaces (eyepiece and objectives) are coated with an anti-fungus coating.
The new generation of LED illumination provides comfort and eye relief. The LED spectrum is equal to daylight and can be regulated in intensity. The LED light source is comparable to a 30 W halogen light source.

Features BMS D2:

• 10x wide field eyepiece / 20 mm high, anti-fungus coated, superior optical parts to ensure a bright, clear, sharp, true color image. Flexible, collapsible eyepieces top it all off.
• Inverted quadruple revolver, with high resolution Semi Plan DIN objectives and rubber grip ring. You can easily check which objective is in use and change magnifications without other objectives getting in the way.

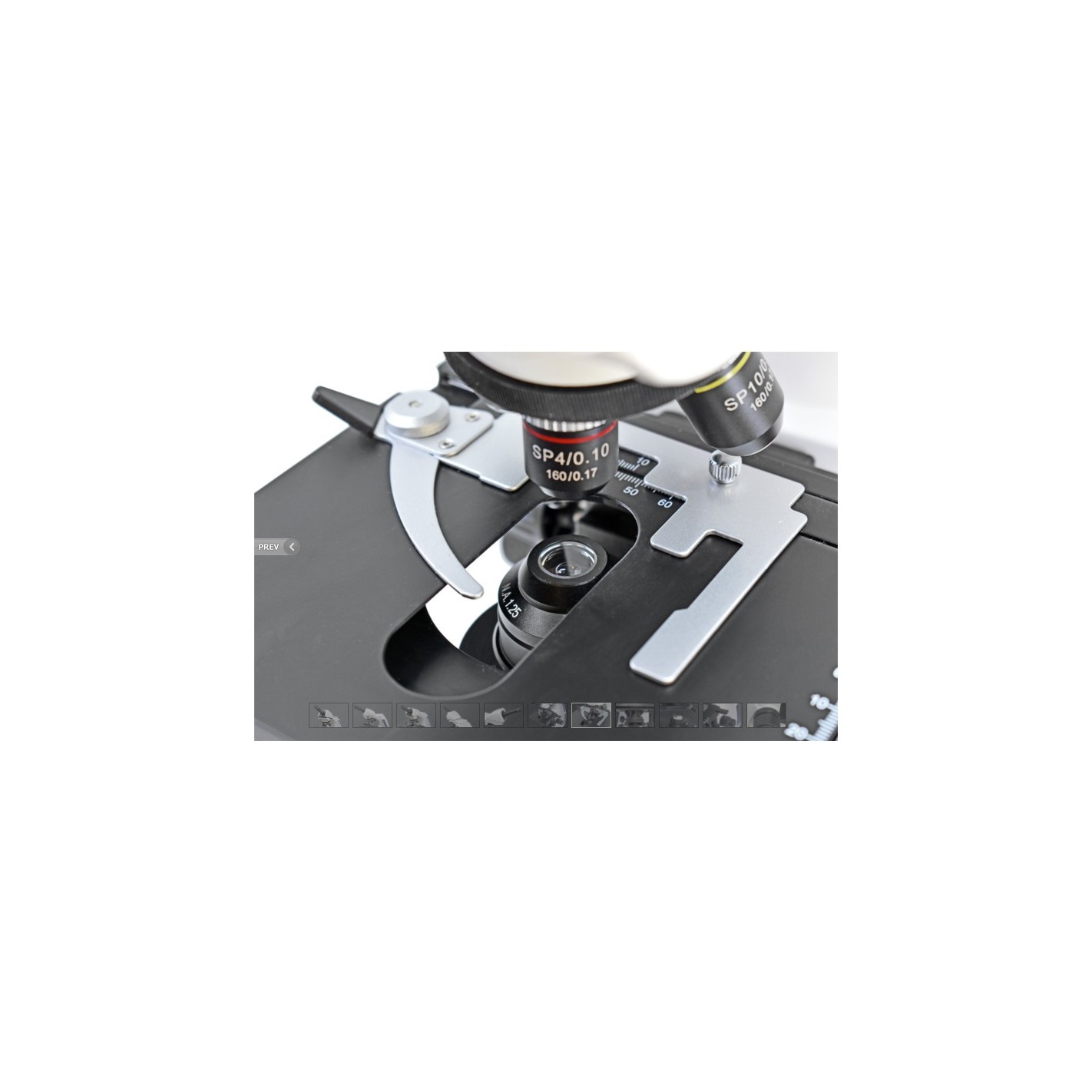

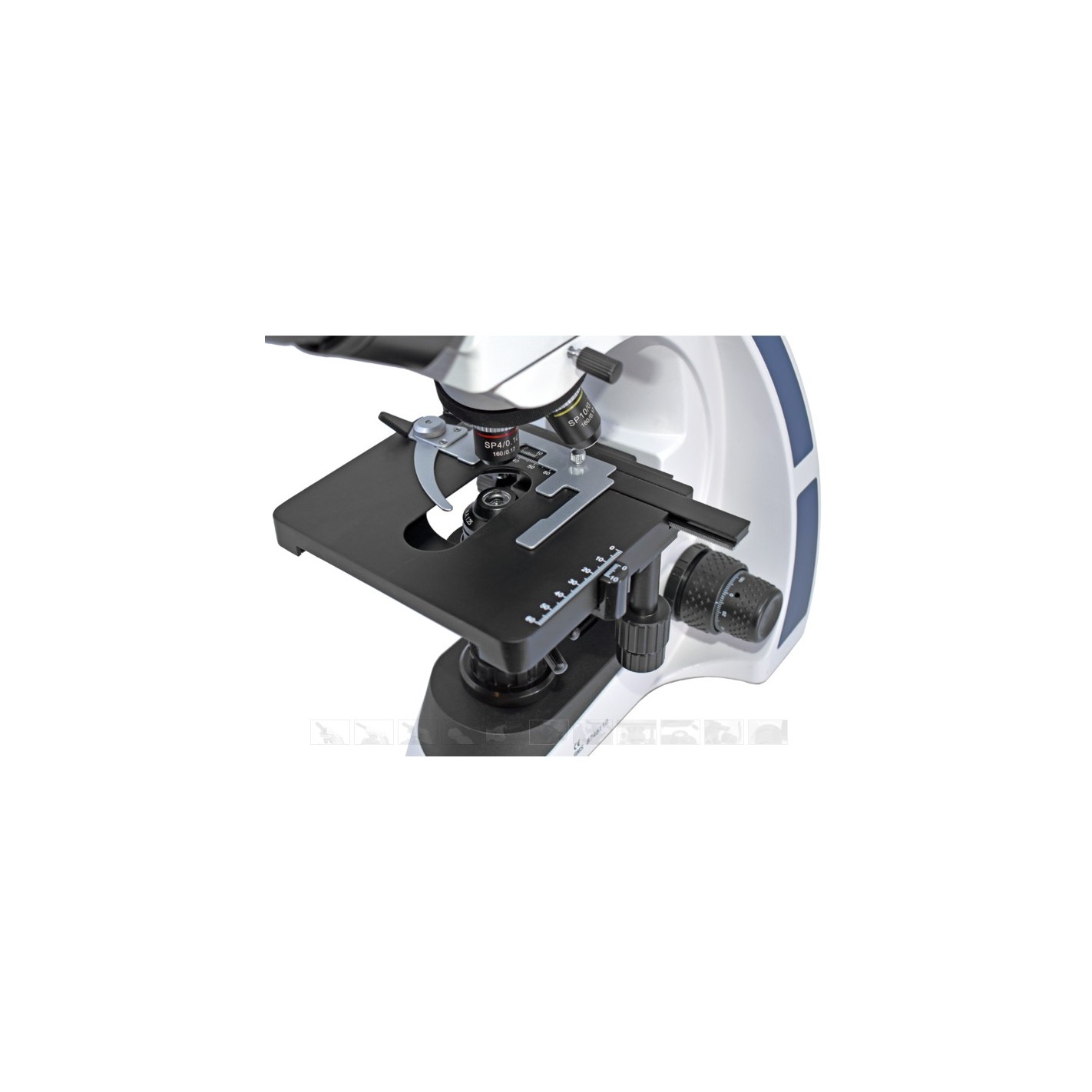

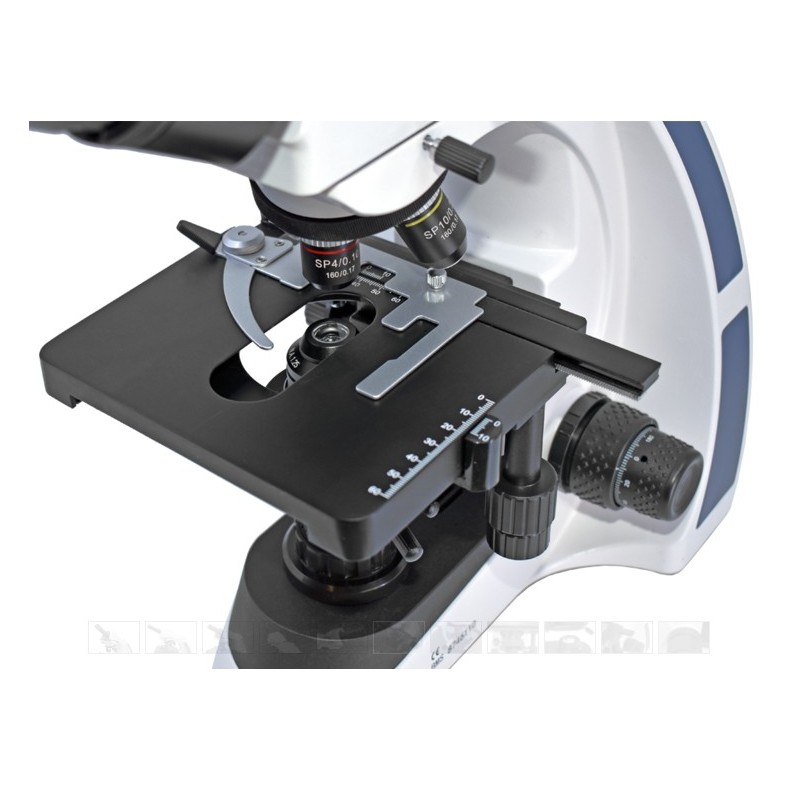

• A large stage with high-precision, low-position coaxial XY controlled mechanical stage and single-slide vernier specimen holder. Mechanical stage tuned for optimal slide positioning.

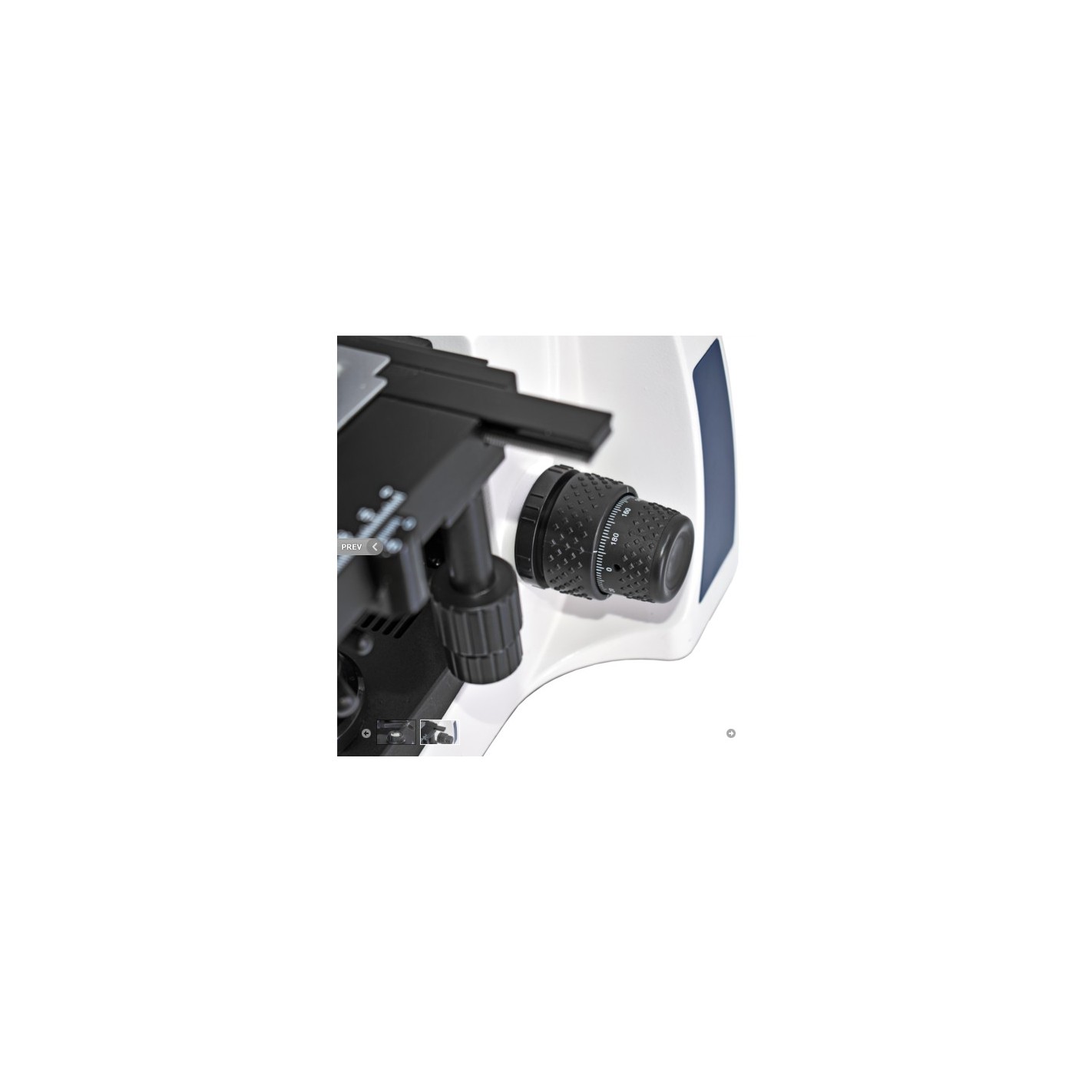

• Coaxial, bilateral, ergonomically positioned coaxial fine and coarse focusing mechanism. For precise and effortless focusing.

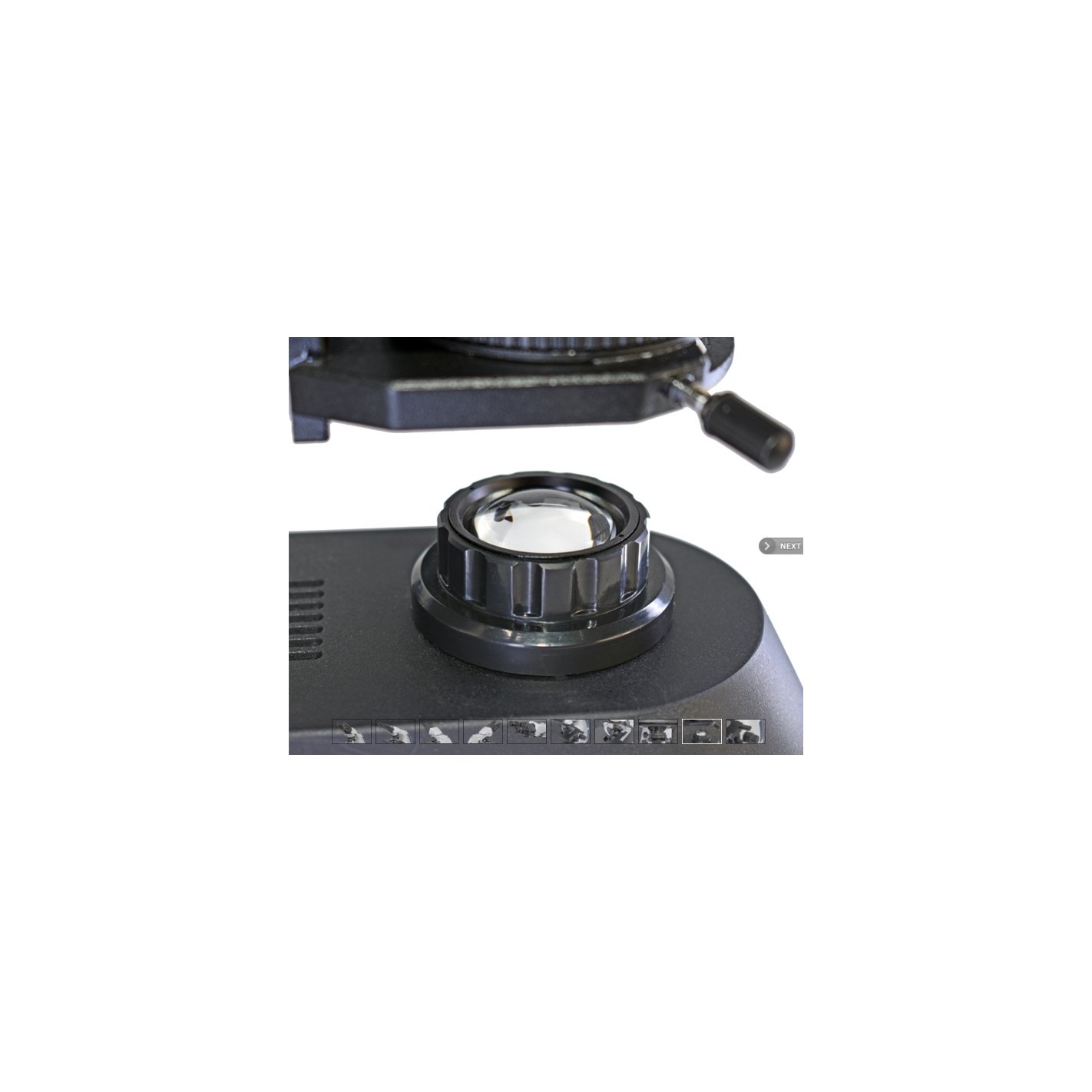

• New generation 3-watt LED, stable and flicker-free, low power consumption. With daytime running light output for optimum visual comfort. The headlight is equipped with an iris diaphragm.
• The microscope offers 3 standard types of electrical use in a microscope: 100 ~ 240 V connection via the included power cord, recharges automatically while connected to electric power. Rechargeable batteries available as accessory (item number 29554; AA rechargeable battery, pack of three), Standard non-rechargeable batteries, type AA, 1.5 V, 3 pcs.

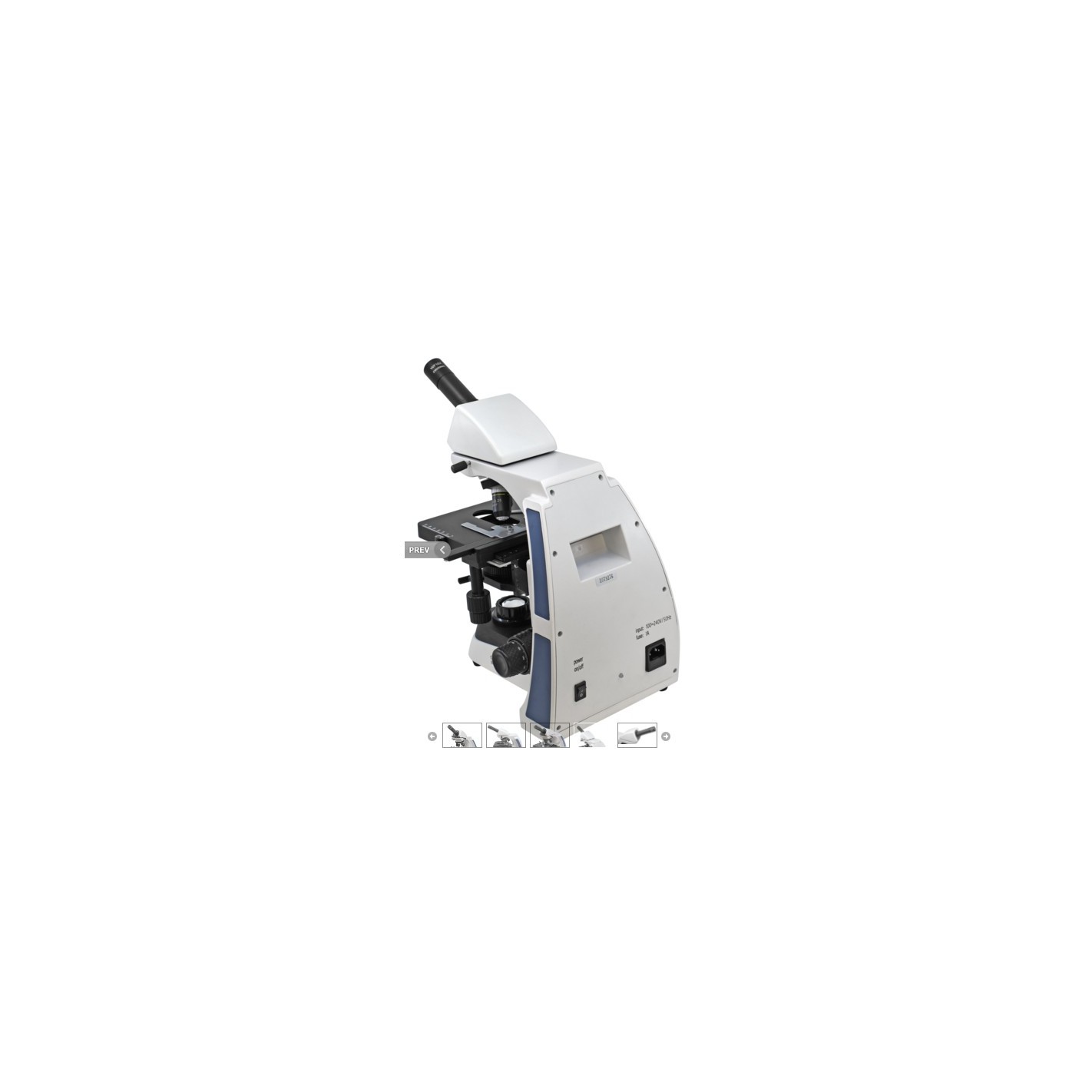

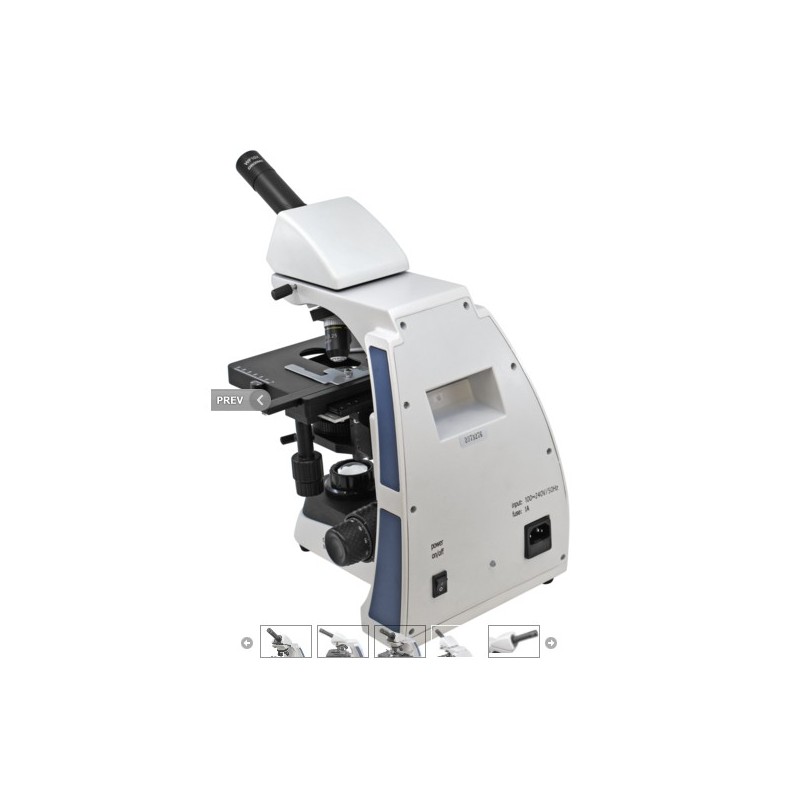

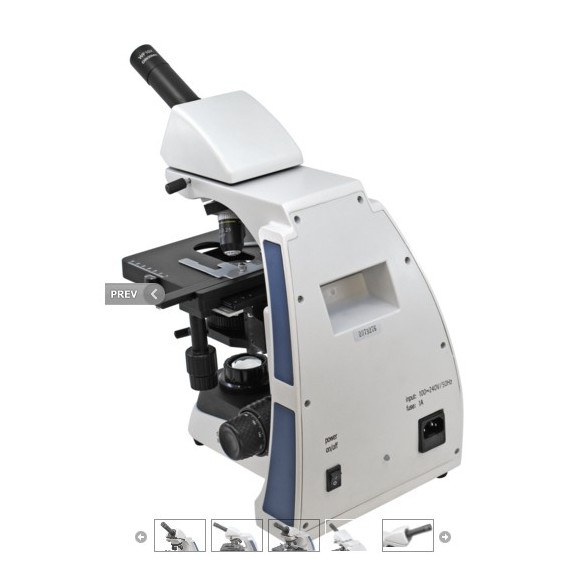

• The main power switch is located on the back and the light intensity control knob is located on the side. All for easy operational use.

Technical Specifications:

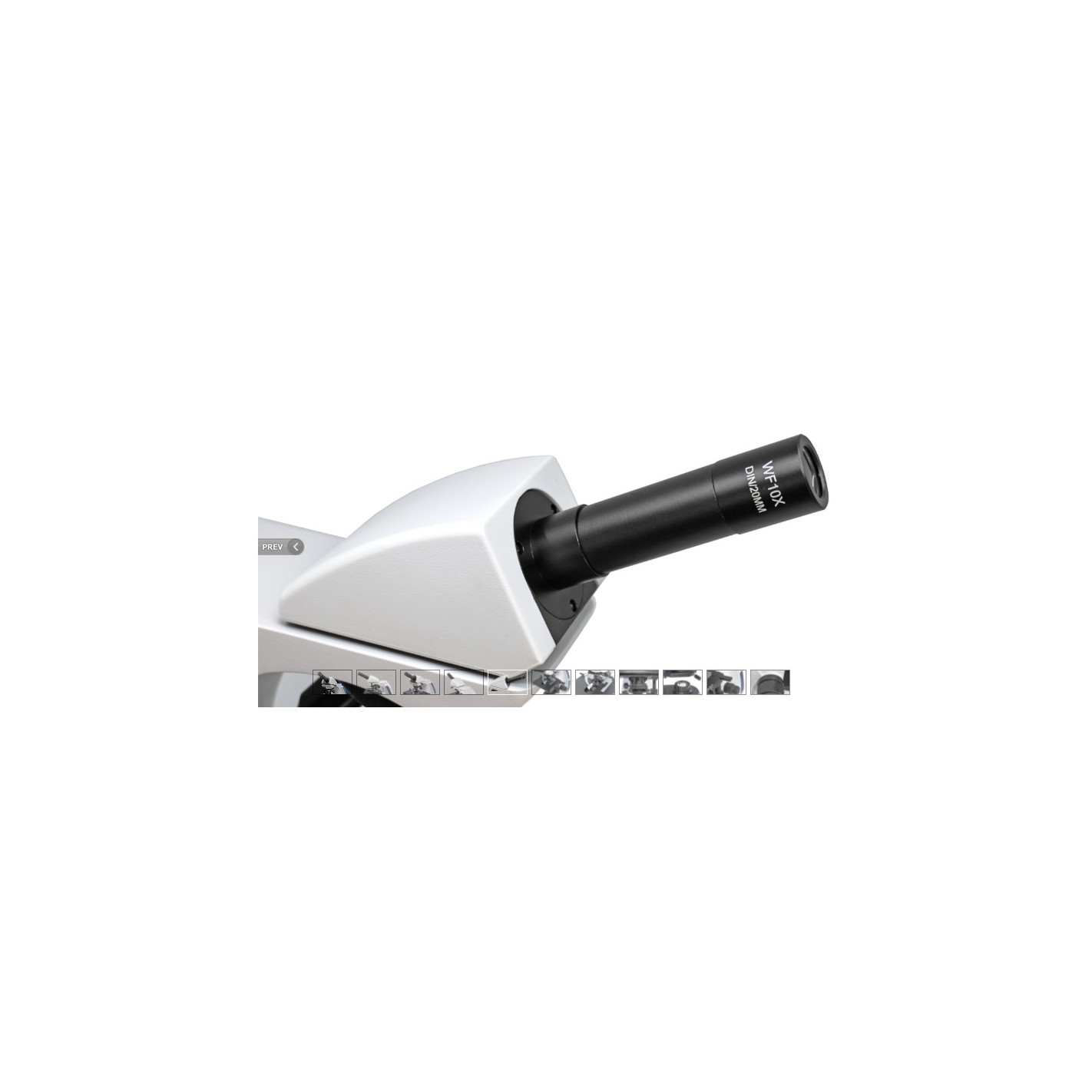

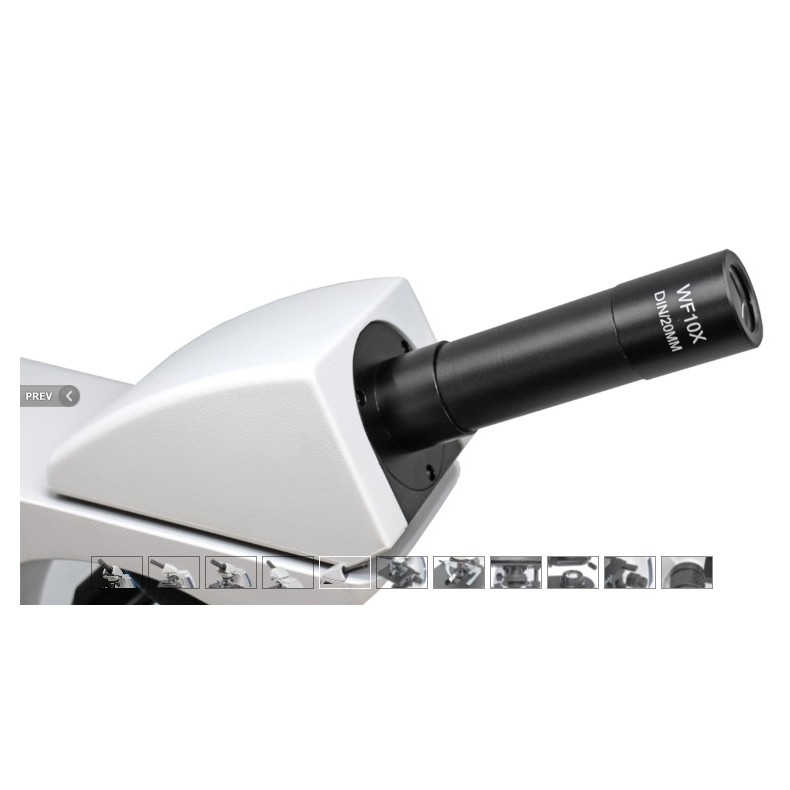

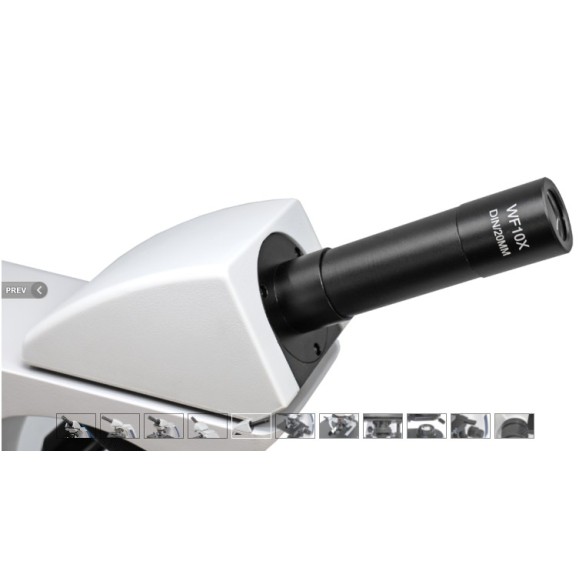

• Eyepiece: WFP 10x / 20 mm with folding eyepiece
• Tube: inclined 45 °, tube length 160 mm
• Head: monocular, rotatable 360°, with locking pin and milled edge screw
• Revolver: quadruple, ball-bearing type with rubber grip

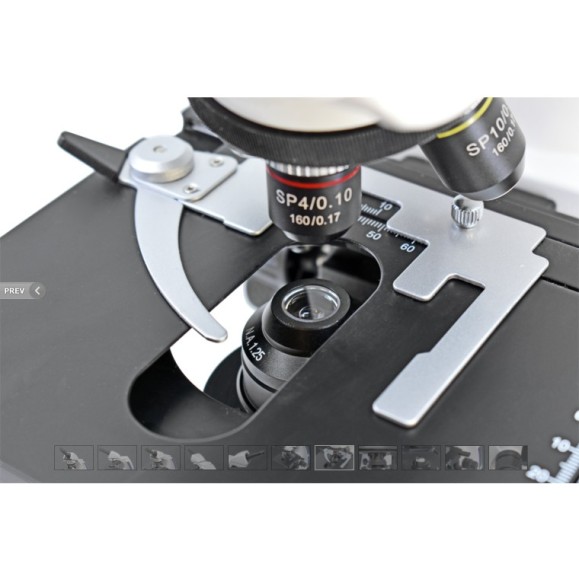

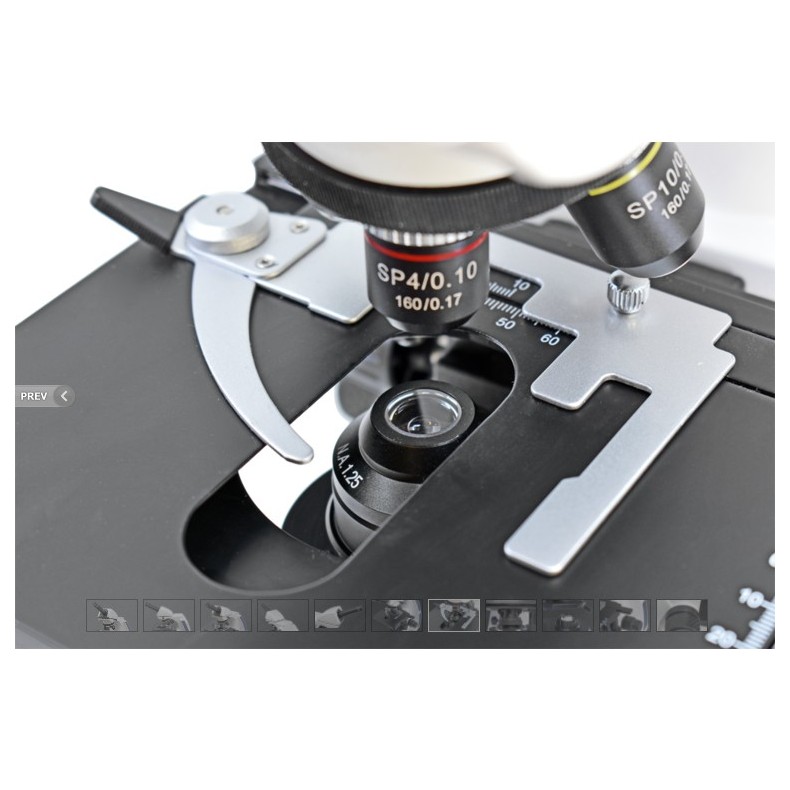

• Objectives: DIN sPlan High Resolution, 4x (N.A. 0.10), 10x (N.A. 0.25), 40x (N.A. 0.65), 100x (N.A. 1.25). The 40x and 100x objectives are spring-loaded (for protection against slippage).

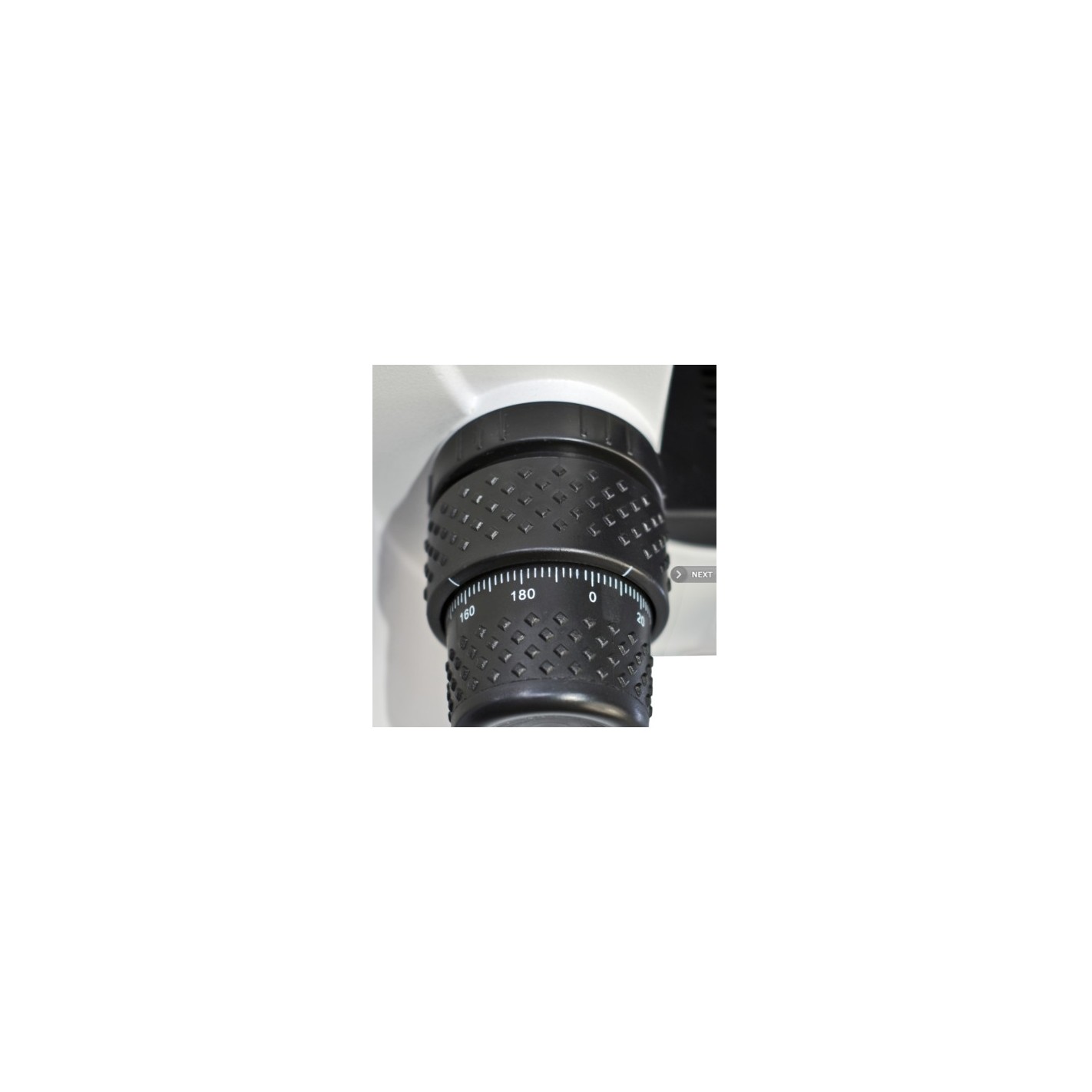

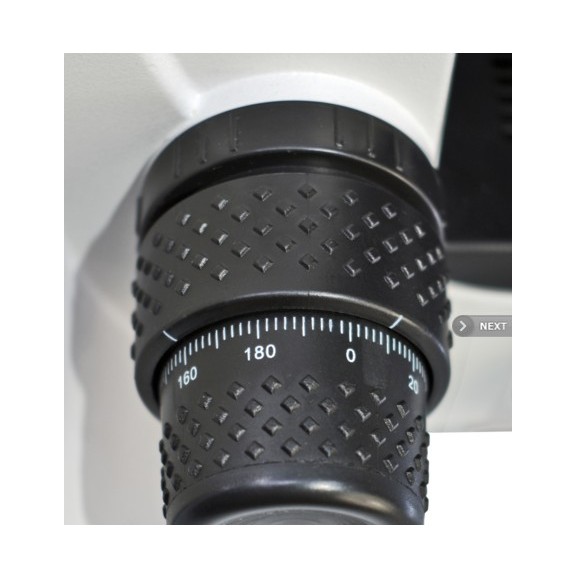

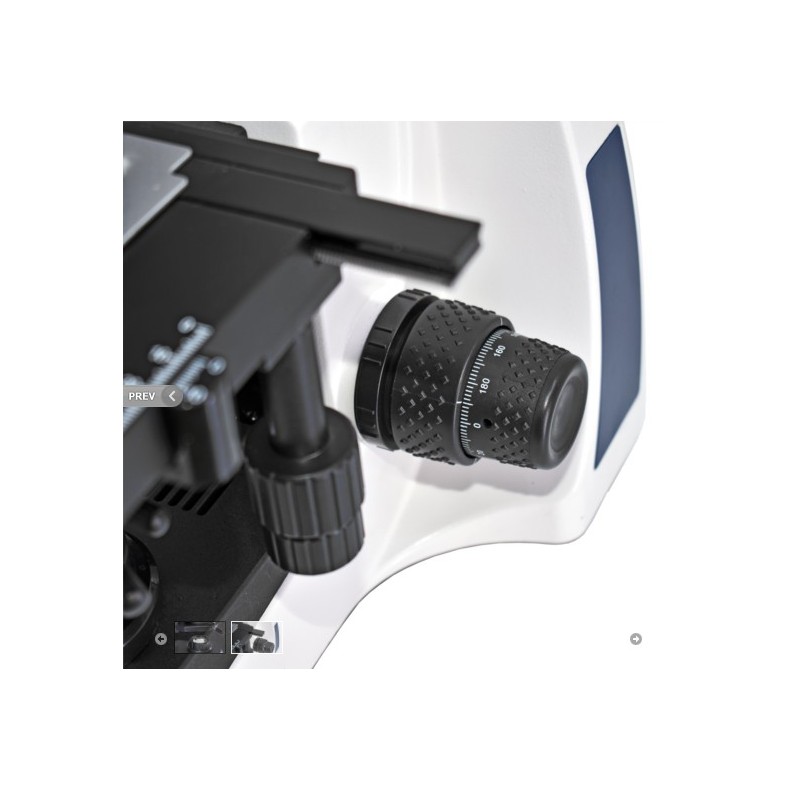

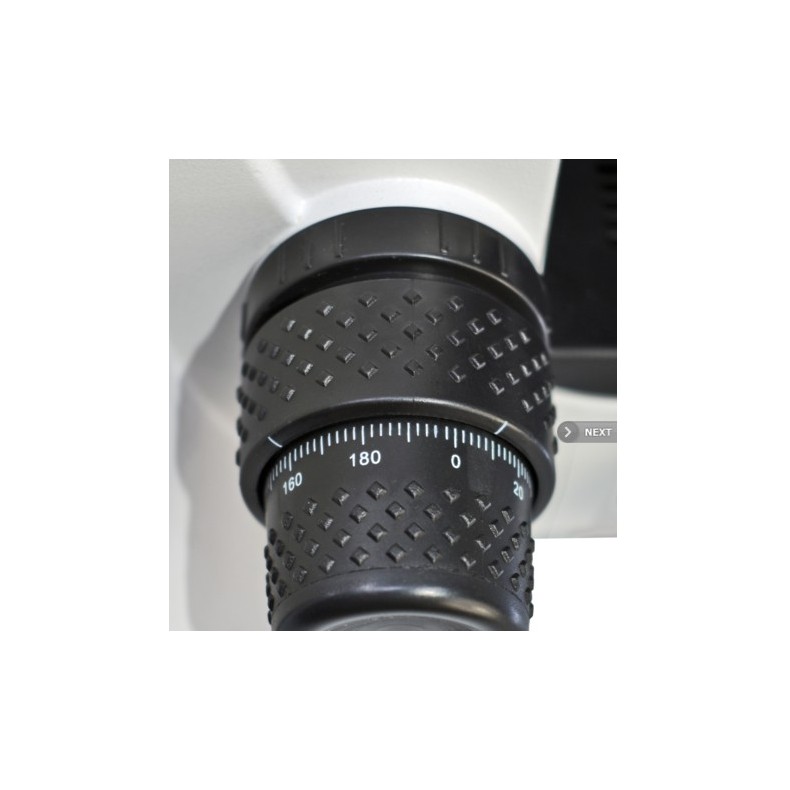

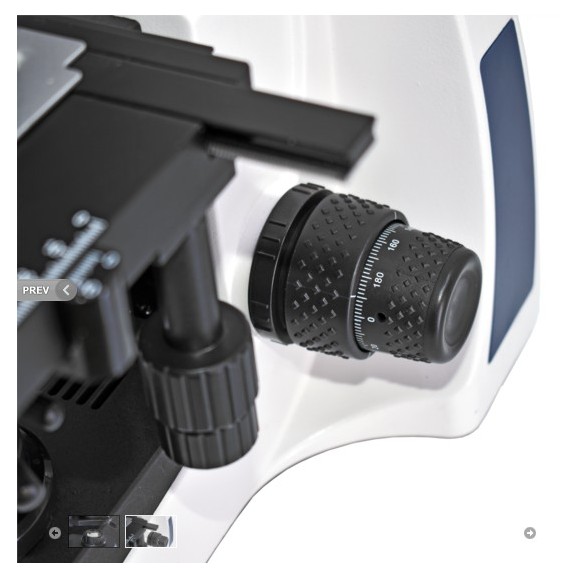

• Focusing: coaxial coarse and fine adjustment on both sides. The fine adjustment is supplied with a scale division. Each division equals 0.0015 mm (0.30 mm / rotation).

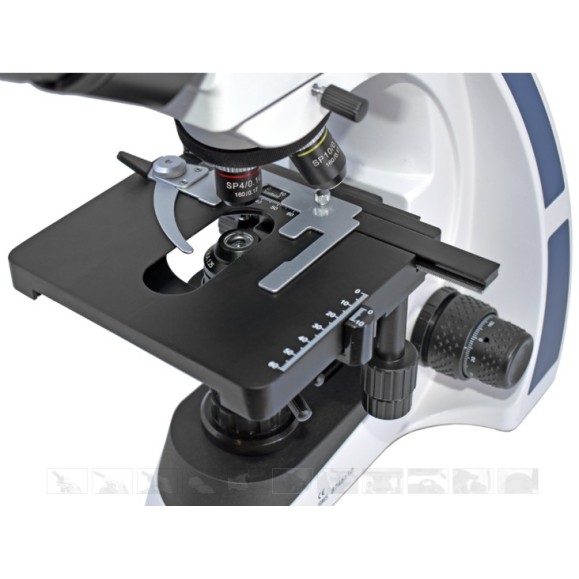

• Stage: 140 x 155 mm, suitable for one slide. Equipped with integrated movable specimen holder with ergonomically placed coaxial controls for precise X-Y movement. Scope 77 x 42 mm.

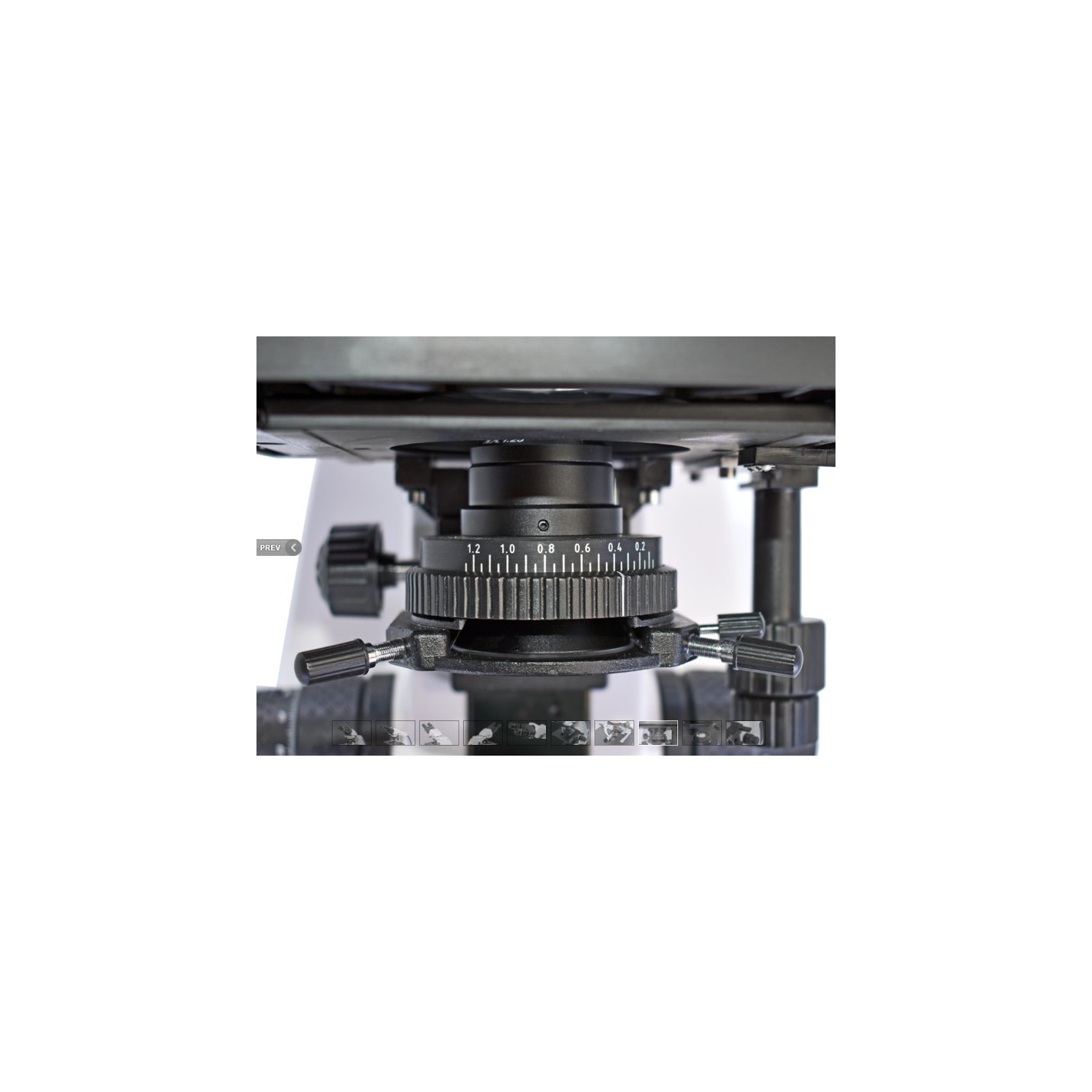

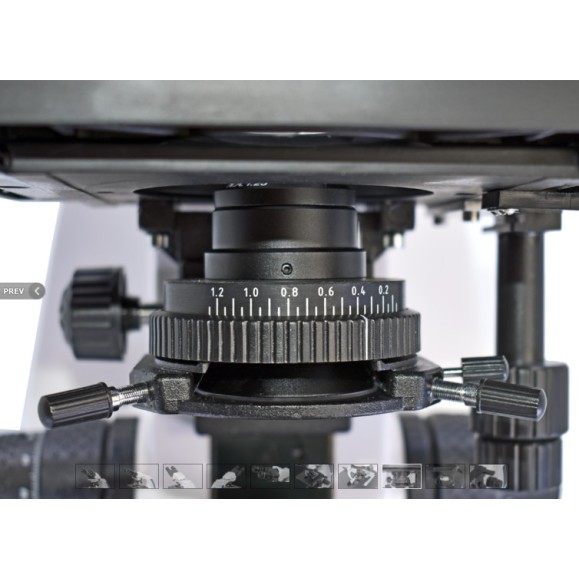

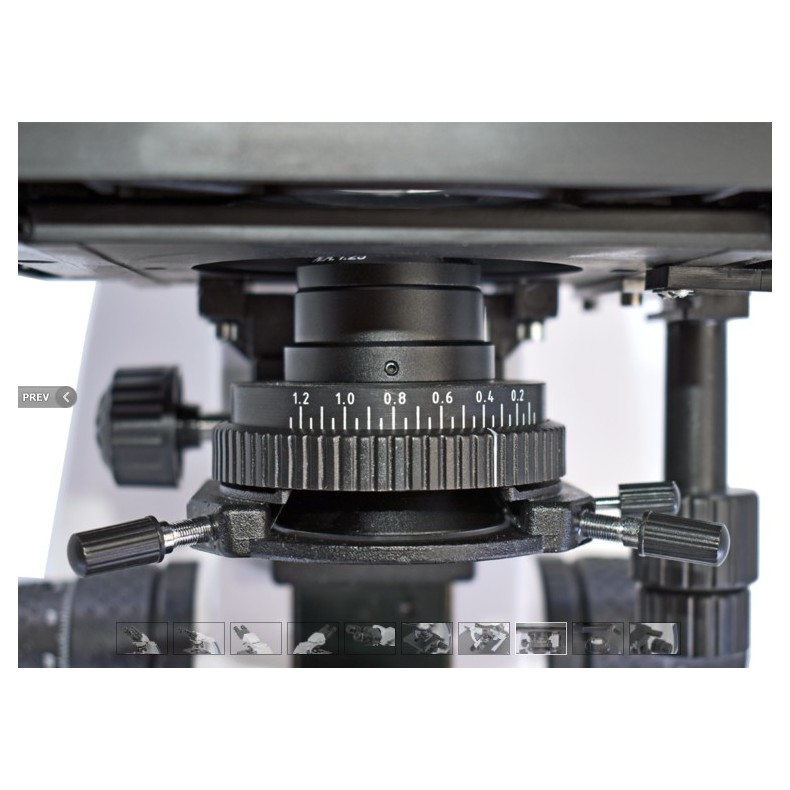

• Condenser: Abbe condenser (A.N. 1.25) in holder, with centering screws. Height adjustable by means of rack and pinion. With iris diaphragm (0 - 100% adjustable).

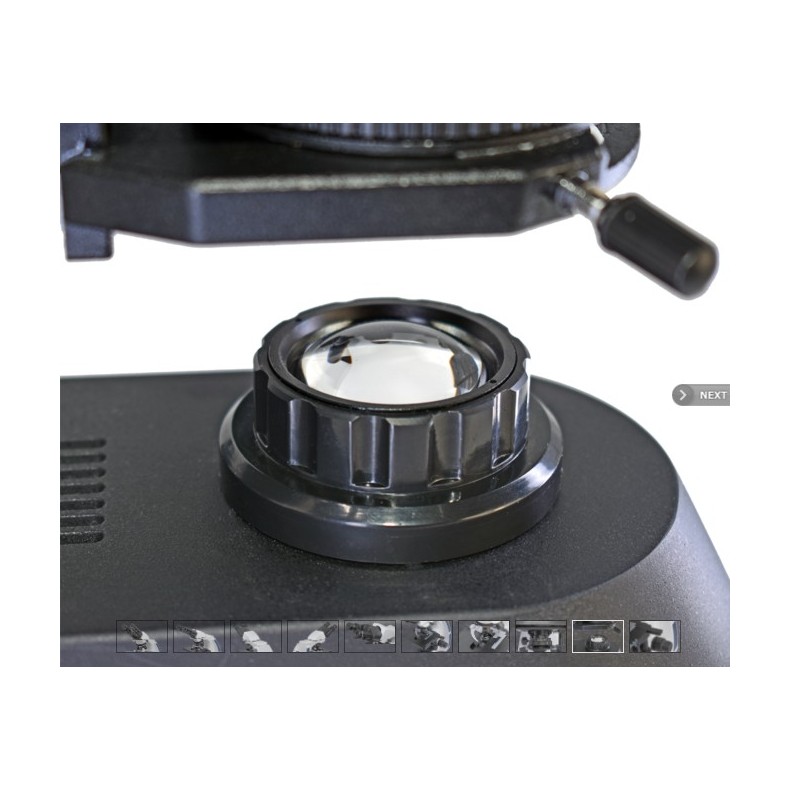

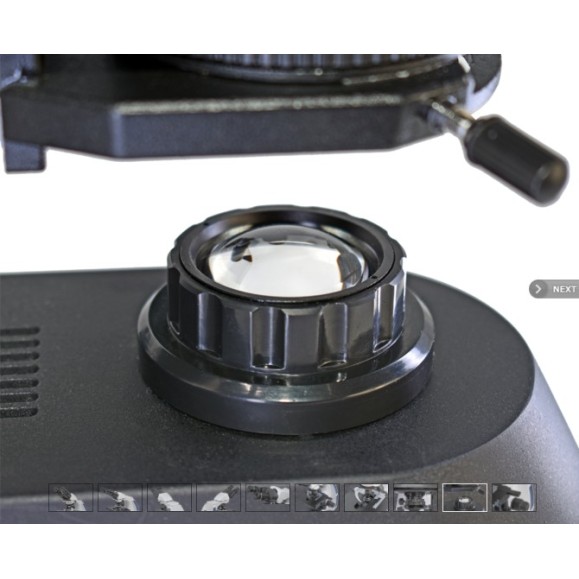

• Illumination: New generation LED (3 Watt) with Köhler iris diaphragm. The light intensity is continuously variable by means of a potentiometer. Intensity comparable to a 30 W halogen.
• LED lifetime: approx. 50,000 hours
• Magnification: 40x, 100x, 400x and 1000x. Optional to magnify to 2000x
• Voltage: 100 ~ 240 V / 50 Hz. The electrical circuit is protected by a fuse system (or optional batteries).
• Detachable power cord
• Includes dust cover and user's manual.
