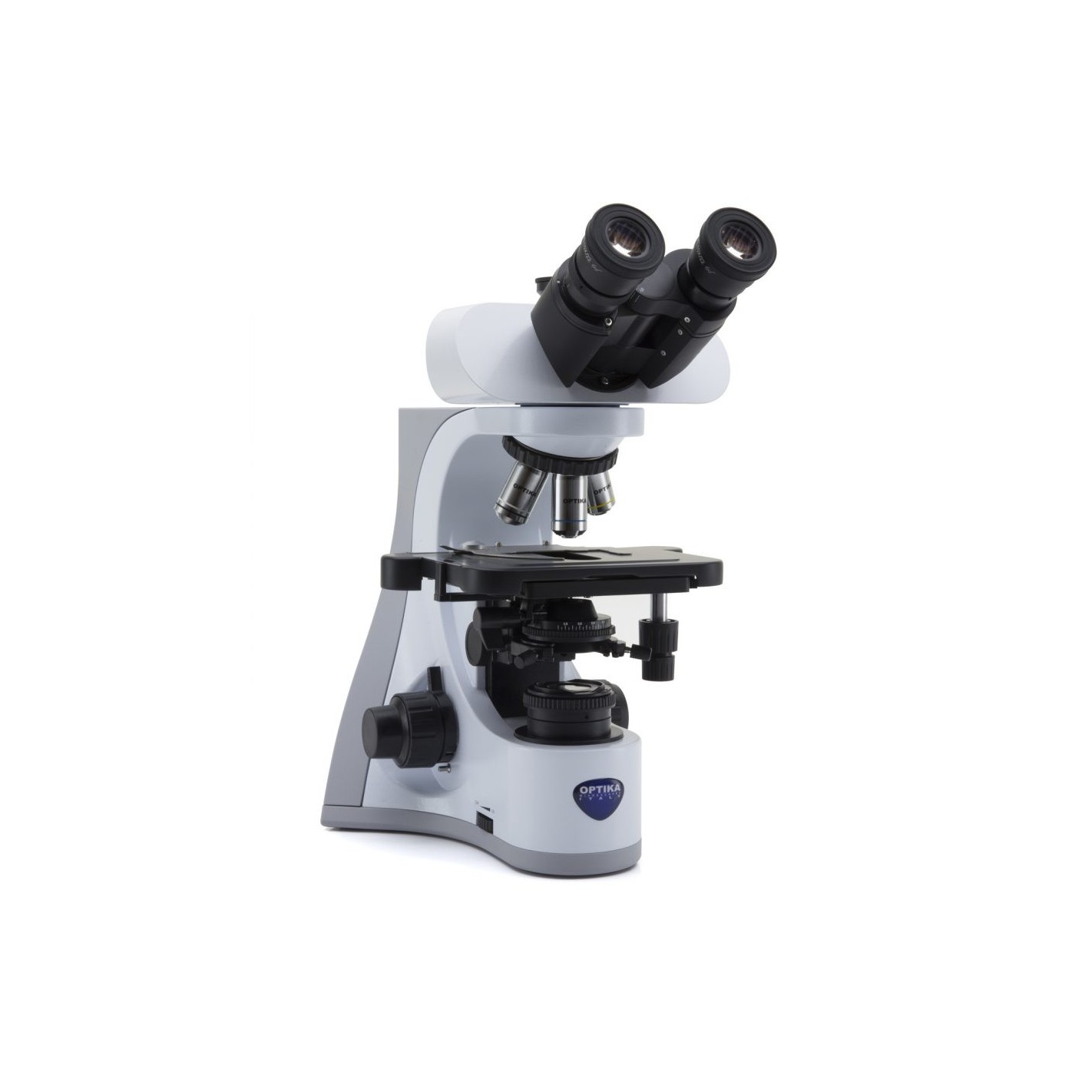

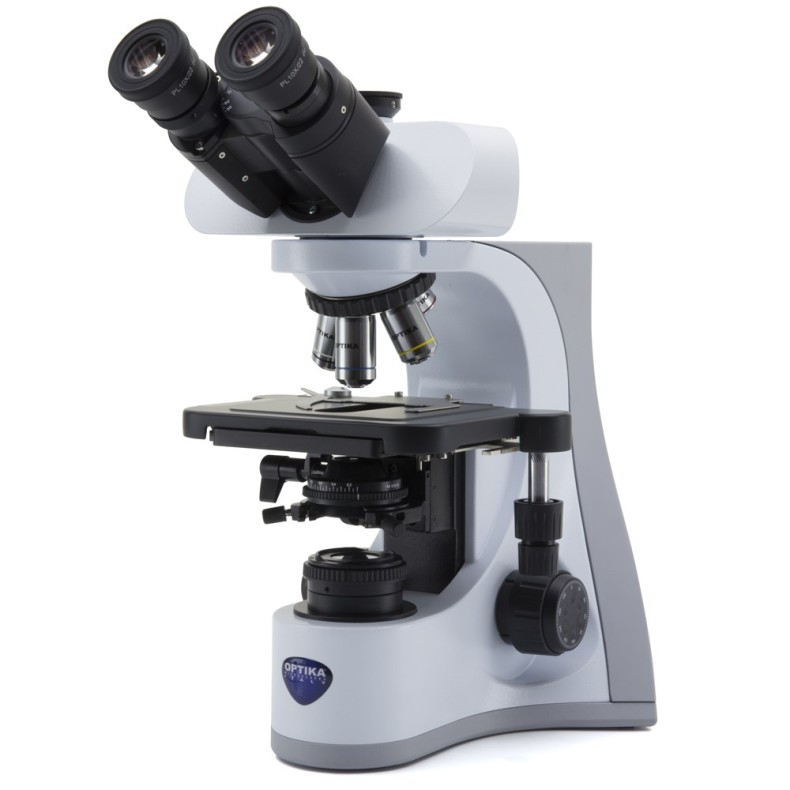

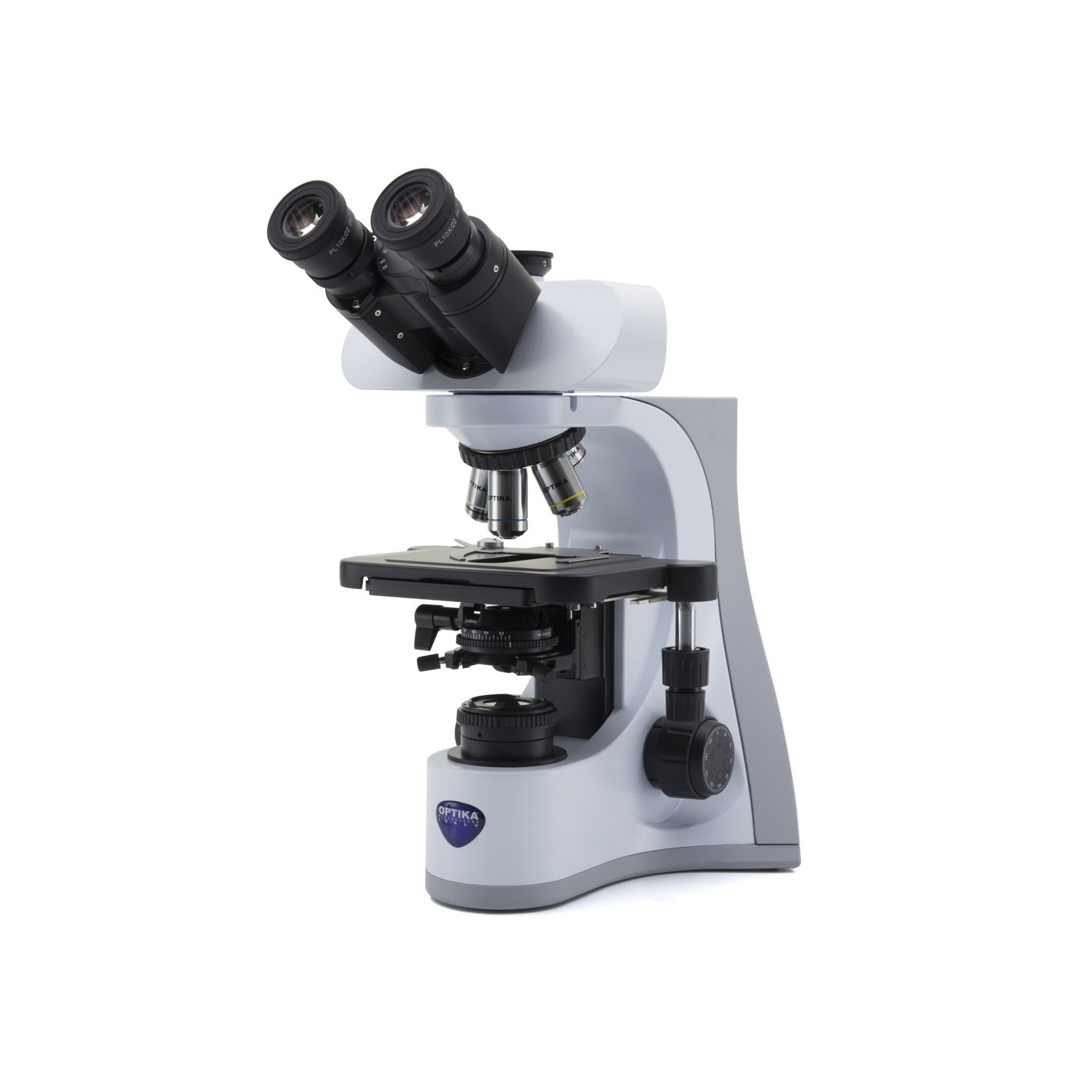

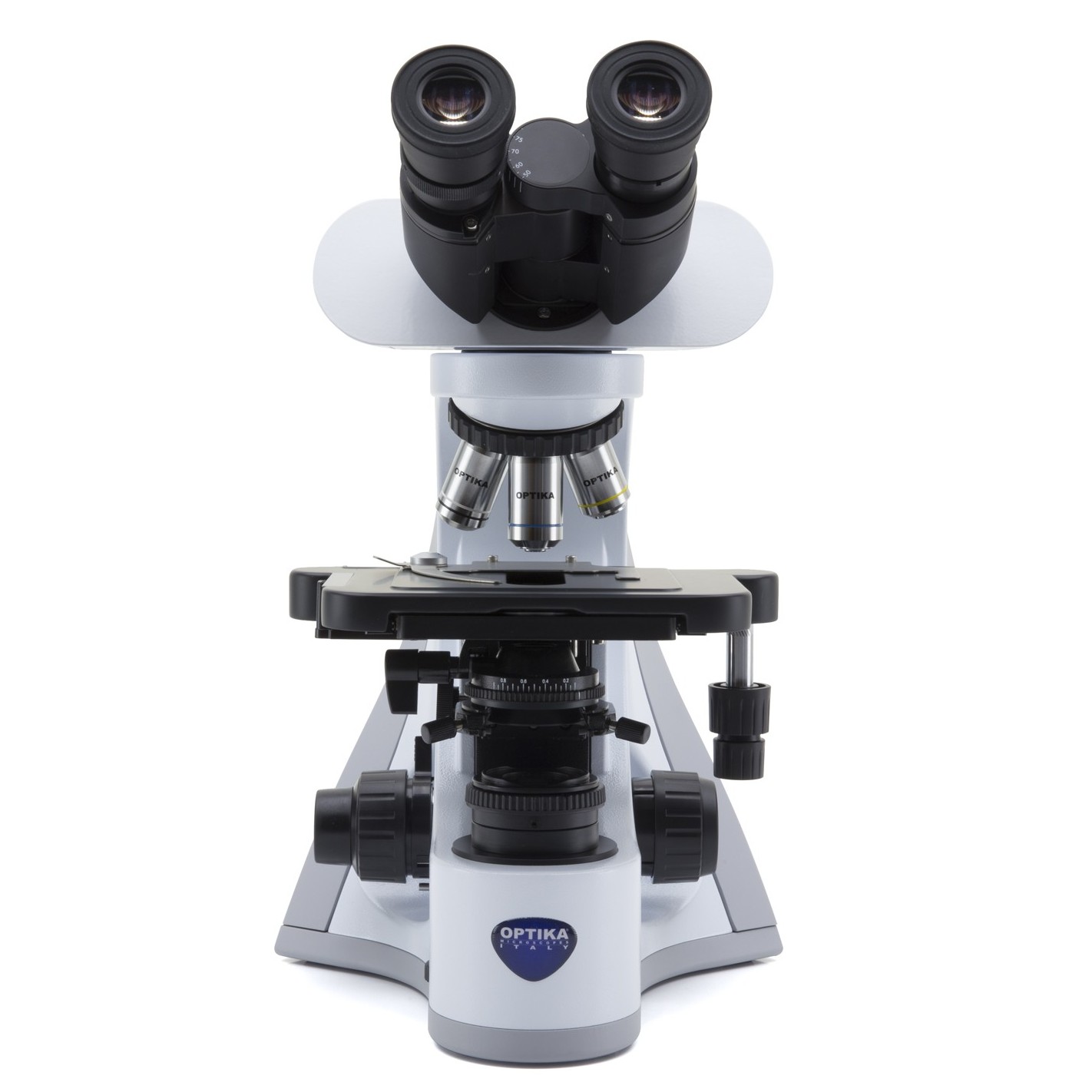

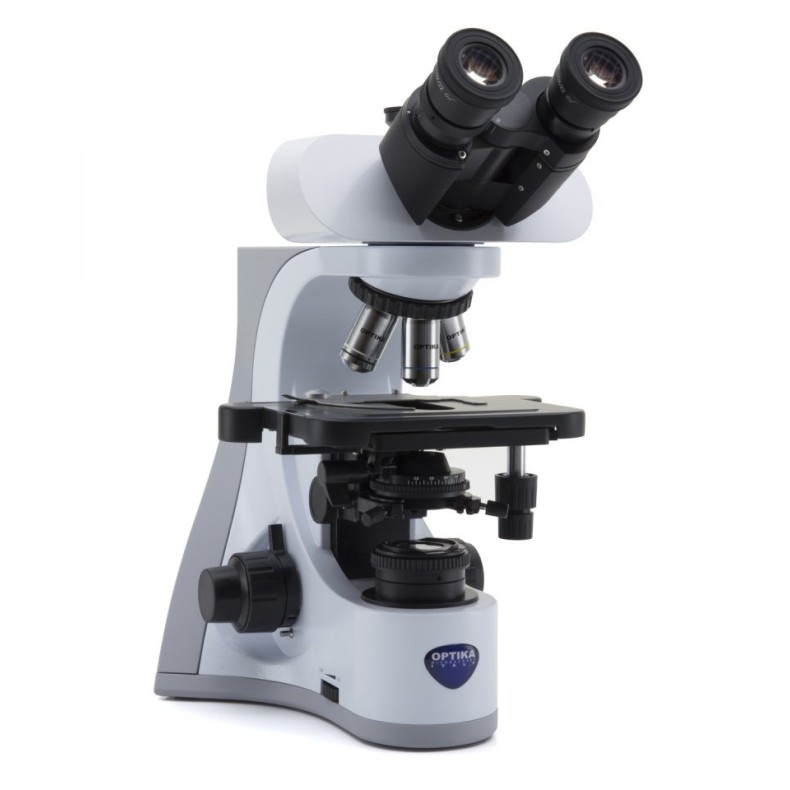

Biological Microscope OPTIKA B-510BF

Biological Microscope OPTIKA B-510BF

The OPTIKA B-510 series represents the ideal range of advanced, ultra-modern microscopes for routine observation offering efficient analysis in transmitted light applications. The entire design has been designed with the most relevant aspects for users in mind.

This series offers easy and intuitive handling, robustness, durability and above all a superb resolution offering sharp and well contrasted images thanks to the infinity corrected IOS W-PLAN objectives which prove to be the best quality/price option for high contrast and resolution offering the best performance necessary for any routine function and ensuring a flat field up to F.N. 22.

The Köhler illumination system optimizes the optical path of the microscope to produce a bright, wide and homogeneous light system, thus reducing image artifacts.

Technical Specifications:

• Observation Mode: Brightfield.
• Head: Trinocular (fixed 50/50), 30° inclined, 360° rotatable.
• Interpupillary distance: Adjustable between 50 and 75 mm.
• Diopter adjustment: On the left eyepiece tube.
• Eyepieces: WF10x/22 mm, with protective eyecups.
• Revolver: quintuple with rotation on wheel bearings.

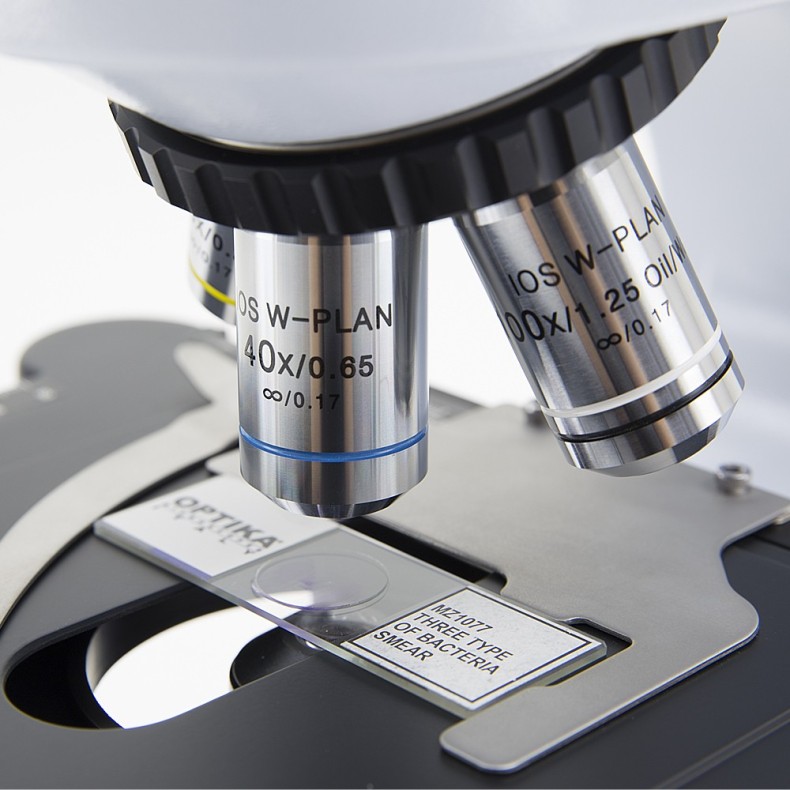

• Objectives:

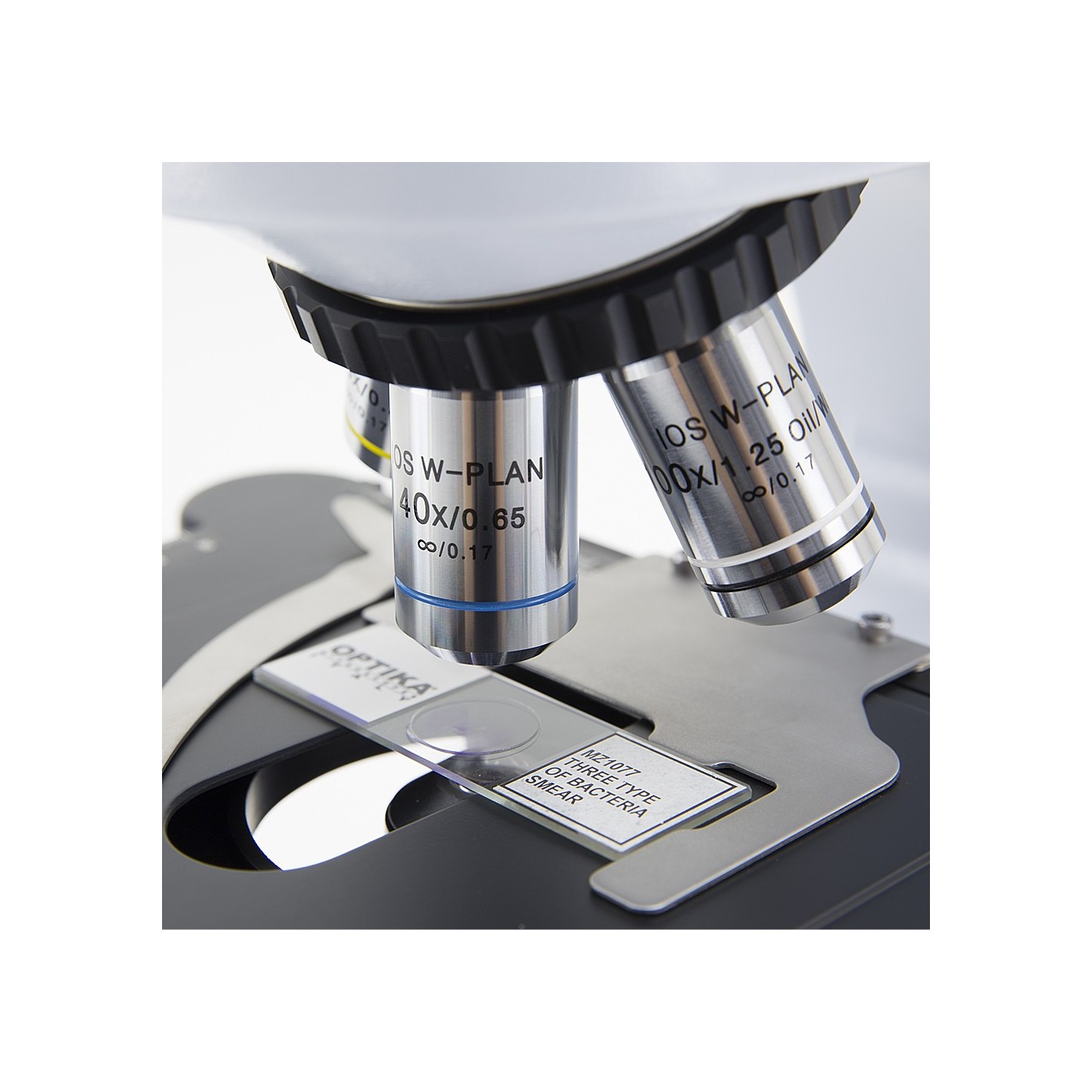

- IOS W-PLAN 4x/0.10
- IOS W-PLAN 10x/0.25
- IOS W-PLAN 40x/0.65
- IOS W-PLAN 100x/1.25 (Oil)

• All with anti-fungus treatment.

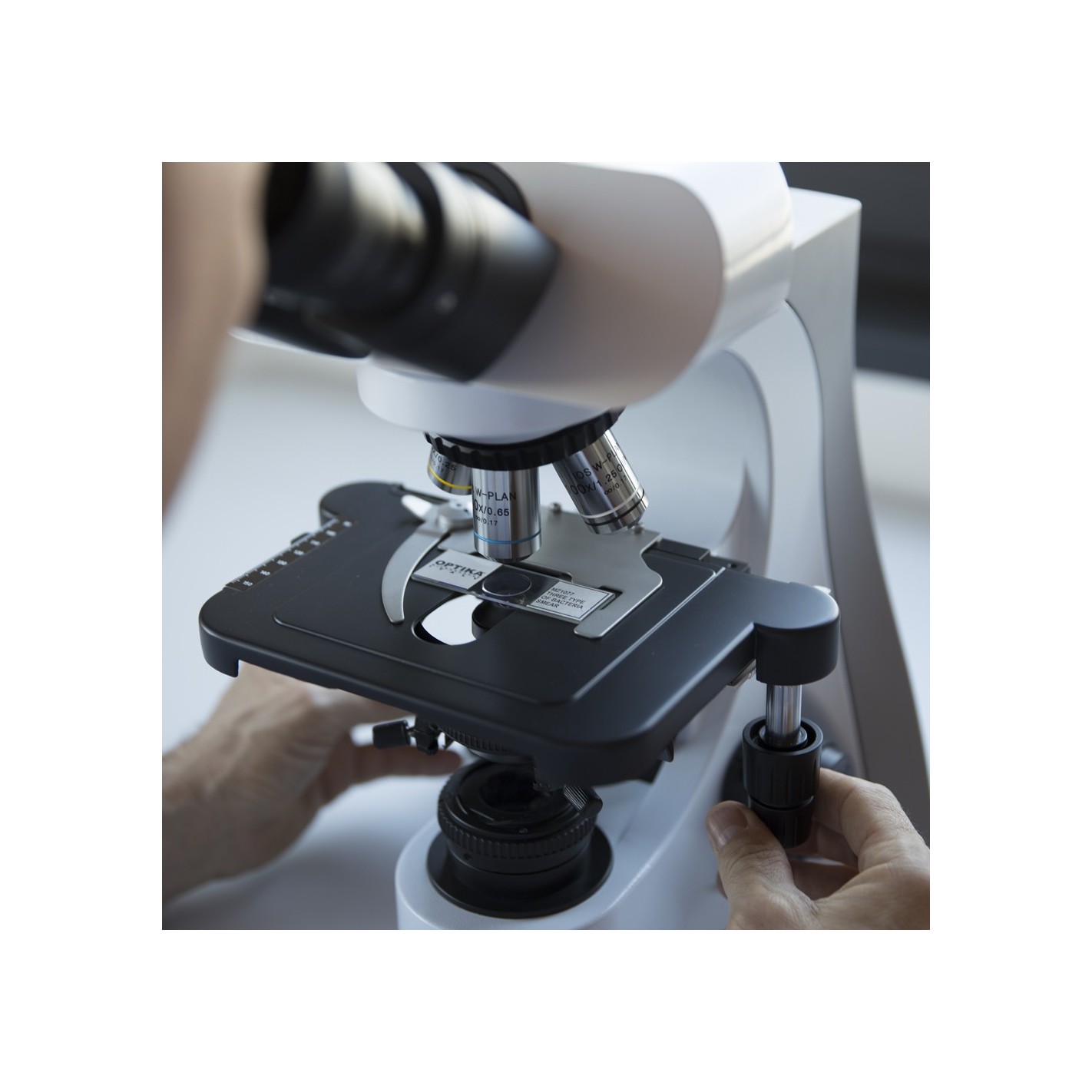

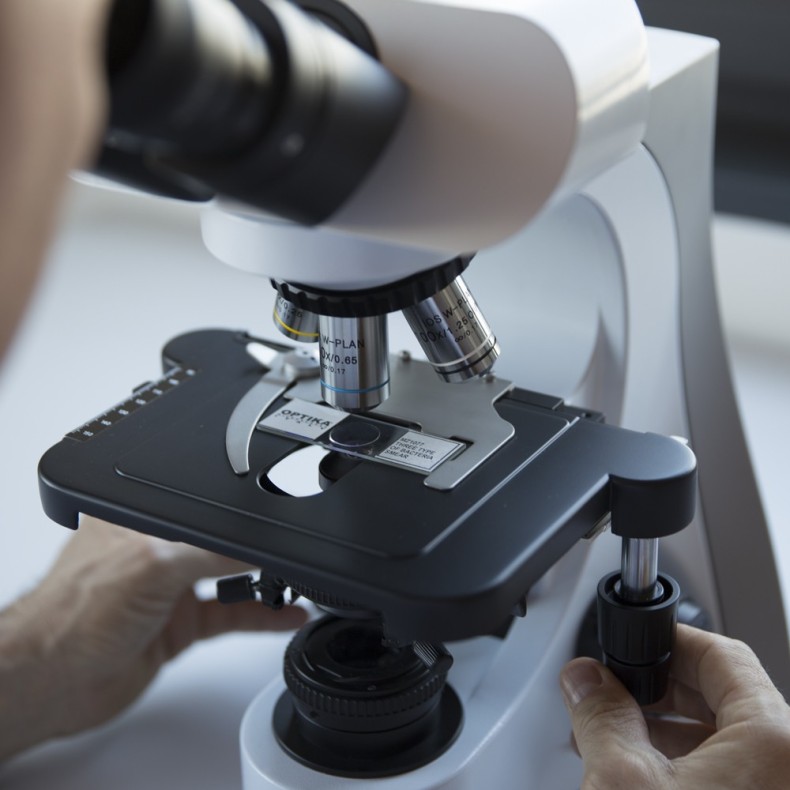

• Worktable: Dimensions of the stage 233x147 mm, double vernier translation mechanism and X,Y travel 78x54 mm with clamp. The X translation is designed by means of a tape. Vernier scale on X-Y axes of 0.1mm accuracy.
• Focuser: Coaxial macro and micrometric focusing knob (rotation, 0.002 mm). Safety lever to protect the preparations against breakage caused by contact with the objectives. Flat micrometer focusing knob located on the right side of the stand. Macrometer tension adjustment.

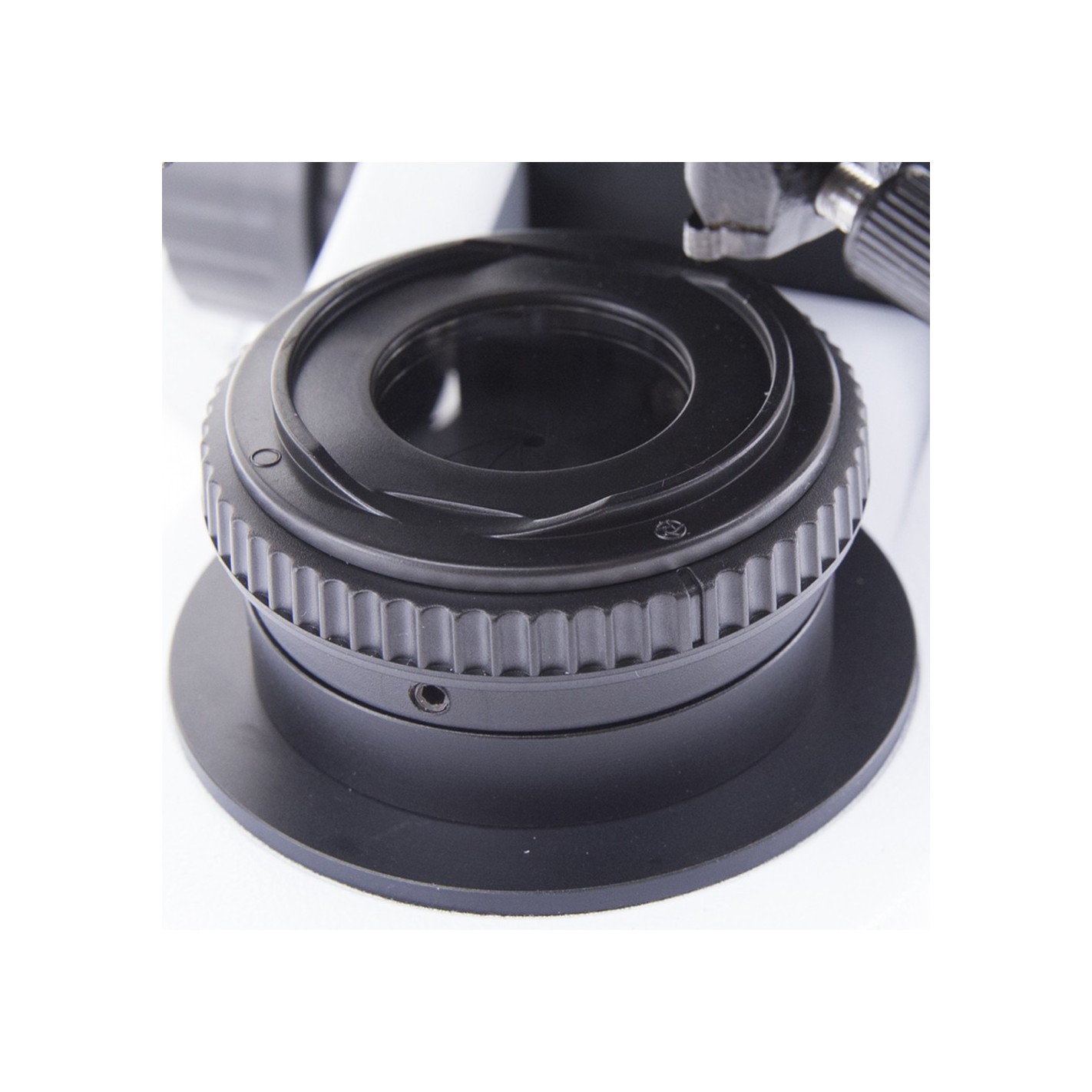

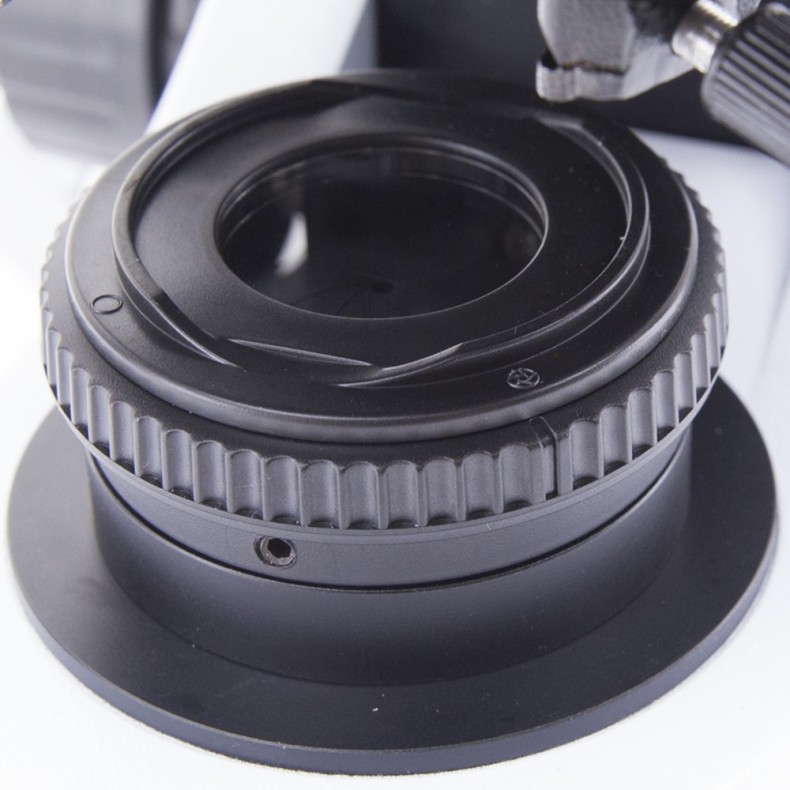

• Condenser: Folding condenser AN 0.2/0.9 allows to center it on the optical axis.
• Transmitted illumination system: Transmitted illumination: X-LED3 , white with intensity control knob located on the left side of the stand. LED power: 3.6 W, equivalent to a 50 W halogen lamp. Color temperature: 6,300 K. Average LED life: > 65,000 hours. Transformer: input voltage 110/240Vac, 50/60Hz; output: 6 Vdc 2.5 A. Maximum current required: 6 W. Köhler illumination with field diaphragm
• Dimensions: HEIGHT: 420 mm WIDTH: 270 mm LENGHT: 390 mm
• WEIGHT: 9.1 kg
