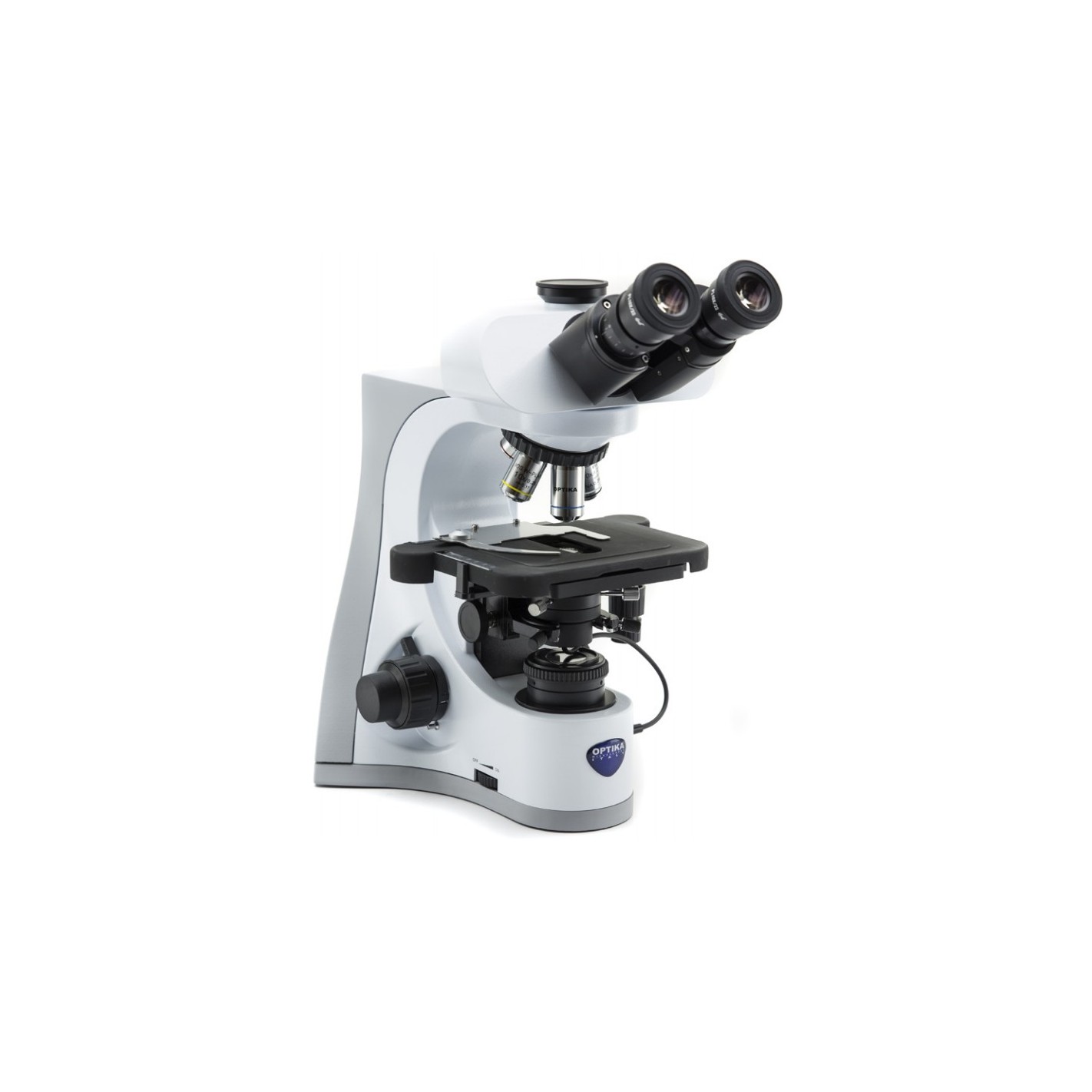

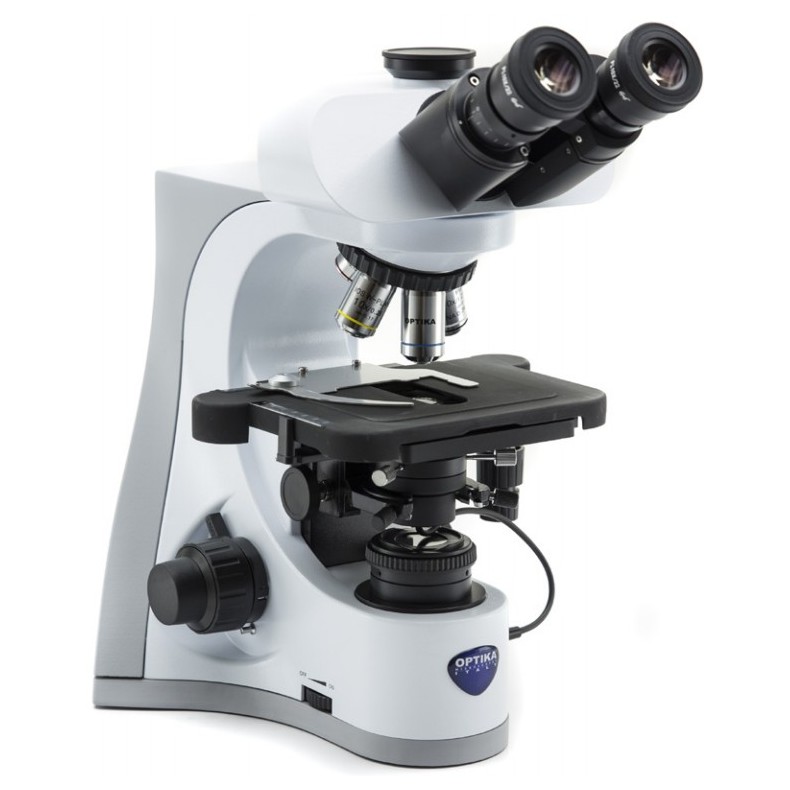

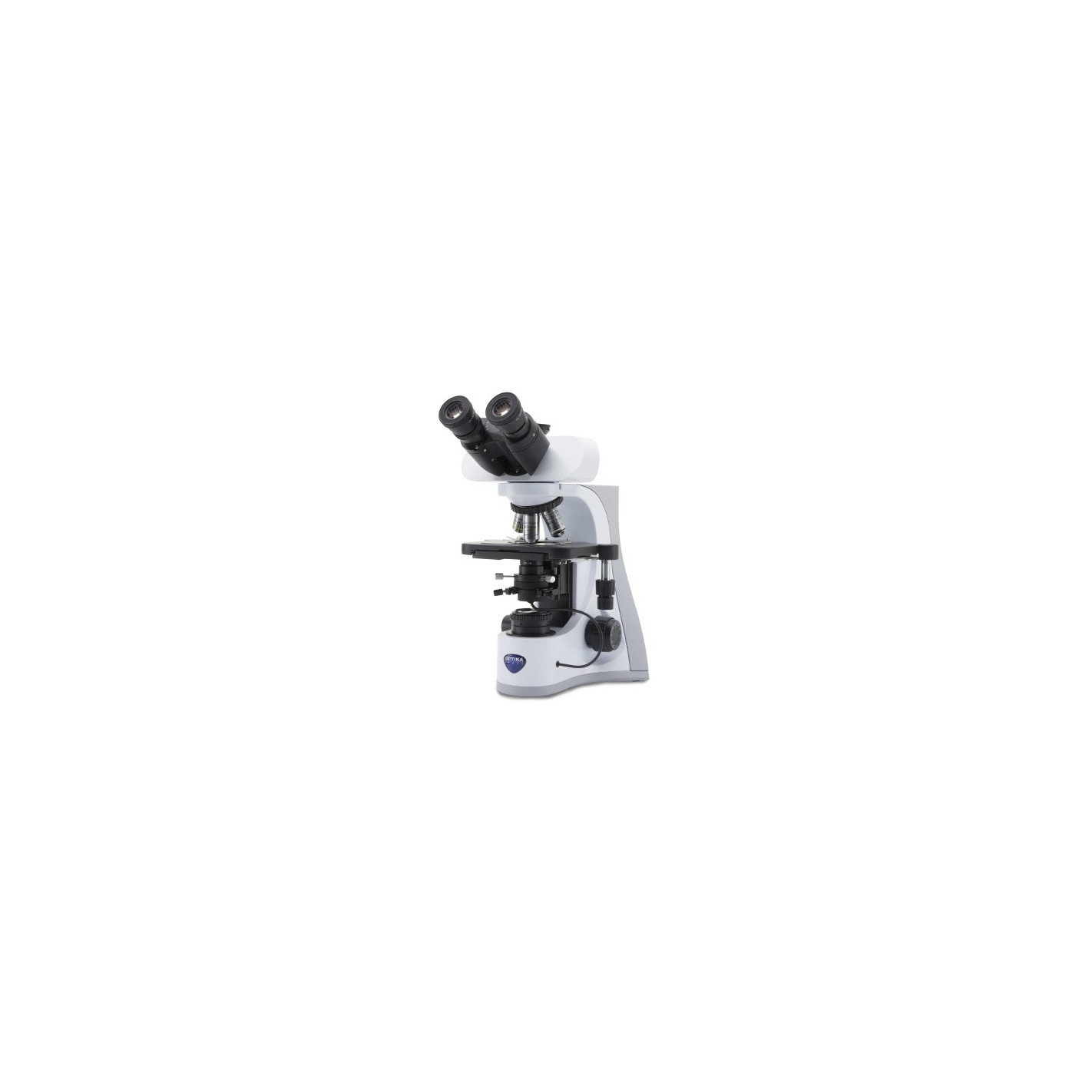

DARKFIELD MICROSCOPE OPTIKA B-510DK

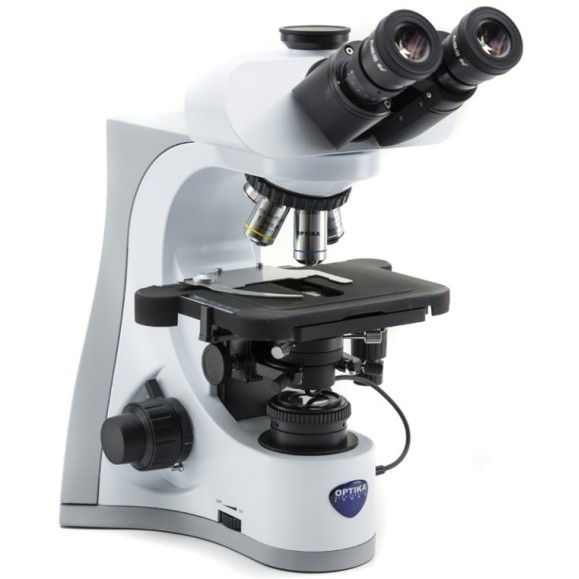

Optika B-510DK darkfield microscope.

The darkfield microscope OPTIKA B-510DK was developed for laboratory use and especially for the examination of life blood. By means of its adapter for DSLR or microscopy cameras it is possible to observe and/or record the obtained images.

Microscope head design:

• • • • • trinocular
        • microscope head is rotatable at360 ° and inclined at 30 °

Lenses:

Fully corrected, planochromatic objectives with magnifications of 4X, 10X, 40X and 100X. The 100X objective is an oil objective for use with immersion oil and with built-in iris diaphragm.

Darkfield:

The heart of this impressive darkfield microscope has a powerful built-in LED illumination (with color temperature: 6,300 K and LED life of approximately 50,000 hours), and fixing screws for calibration.

Technical specifications:

• • • • • Transmitted light source: X-LED3
        • Light intensity control using a knob on the left side of the frame
        • LED power: 3.6 W, comparable to a 50 W halogen bulb
        • Color temperature: 6,300 K
        • Average LED life: 50,000 h
        • Power supply: 110/240 Vac input, 50/60 Hz; 6 Vdc 2.5 A output
        • Max. power required: 6 W
        • Darkfield illuminator based on high-efficiency LEDs
        • Köhler illumination system with field diaphragm
        • Observation modes: brightfield, darkfield
        • Coaxial coarse and fine focusing mechanism (graduated, 0.002 mm) with top stop, to avoid contact between objective and specimen
        • Flat fine focus knob on the right side
        • Adjustable tension of coarse focus knob
        • Mechanical double-layer sliding mechanical stage
          • Size: 233x147 mm
          • X-Y movement range: 78x54 mm
          • Belt drive in X direction
          • Vernier scale on two axes, accuracy 0.1 mm
        • Quintuple revolver, rotation on ball bearings
        • Trinocular observation head with head inclined 30° and rotatable 360°
        • Diopter adjustment on left eyepiece (+ - 5 diopter adjustment)
        • Interpupillary adjustment: 50 - 75 mm
        • Fixed port for photos, 50/50 ratio.
        • Eyepieces Plan Extra Wide Field, PL 10x / 22, with field number 22
        • Lenses IOS infinity corrected optical system
          • IOS W-PLAN 4x / 0.10, W.D. 17.3 mm
          • IOS W-PLAN 10x / 0.25, W.D. 10 mm
          • IOS W-PLAN 40x / 0.65, W.D. 0.54 mm

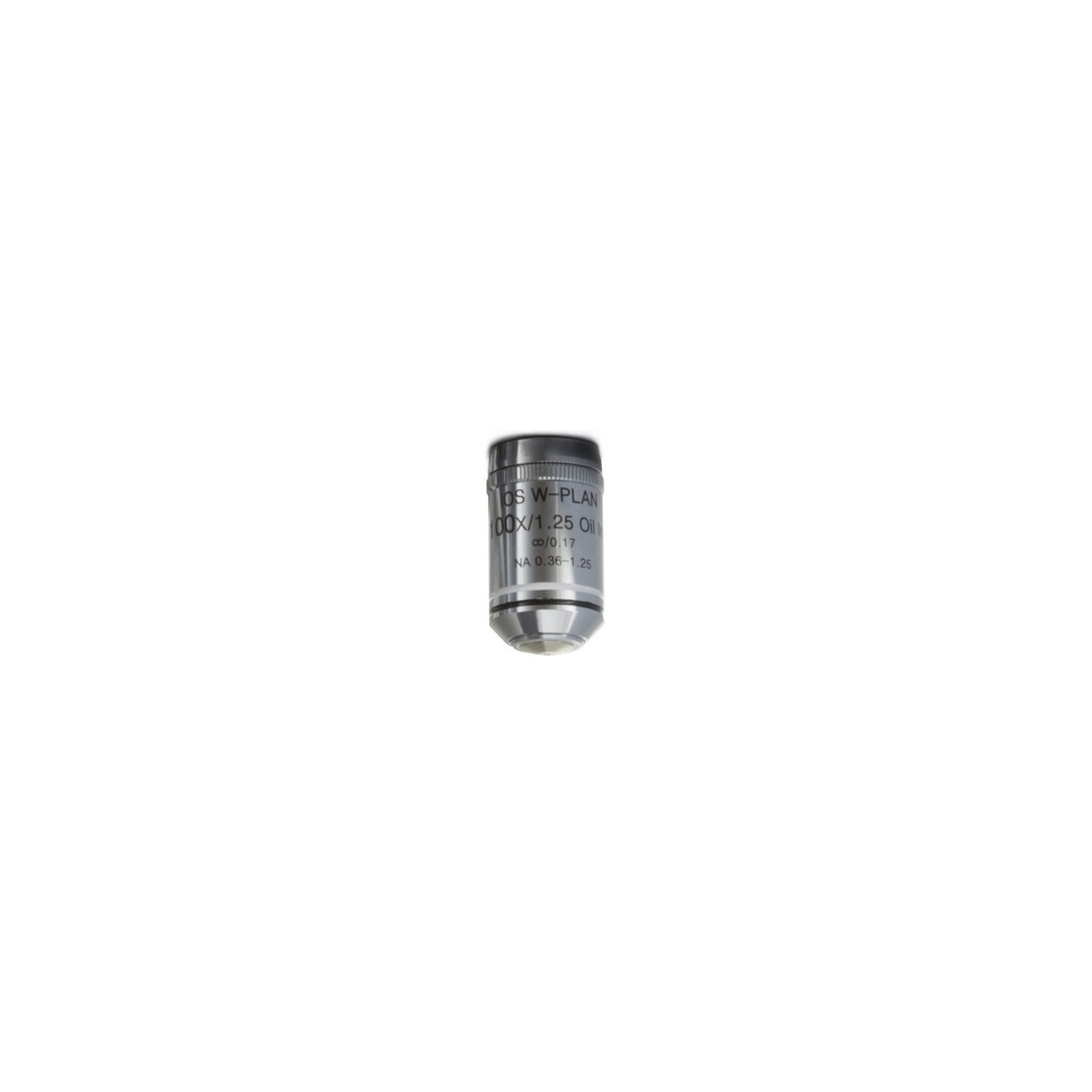

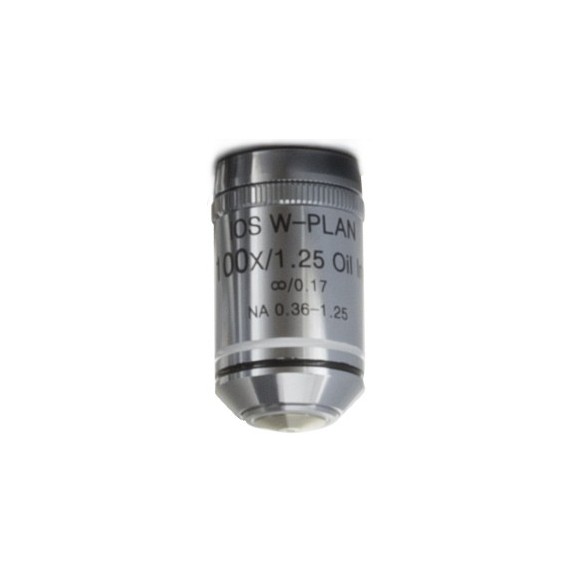

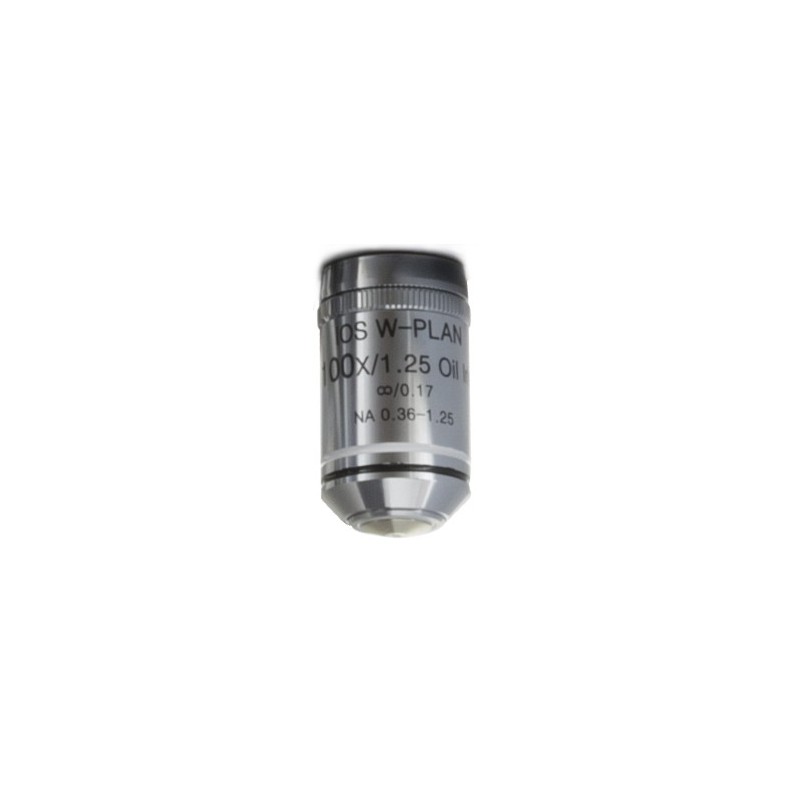

          • IOS W-PLAN 100x / 0.36 - 1.25, W.D. 0.18 mm, with iris (oil immersion)
          • All objectives are anti-fungus treated
        • Sliding Swing-out condenser, N.A 0.2 / 0.9, with centering system

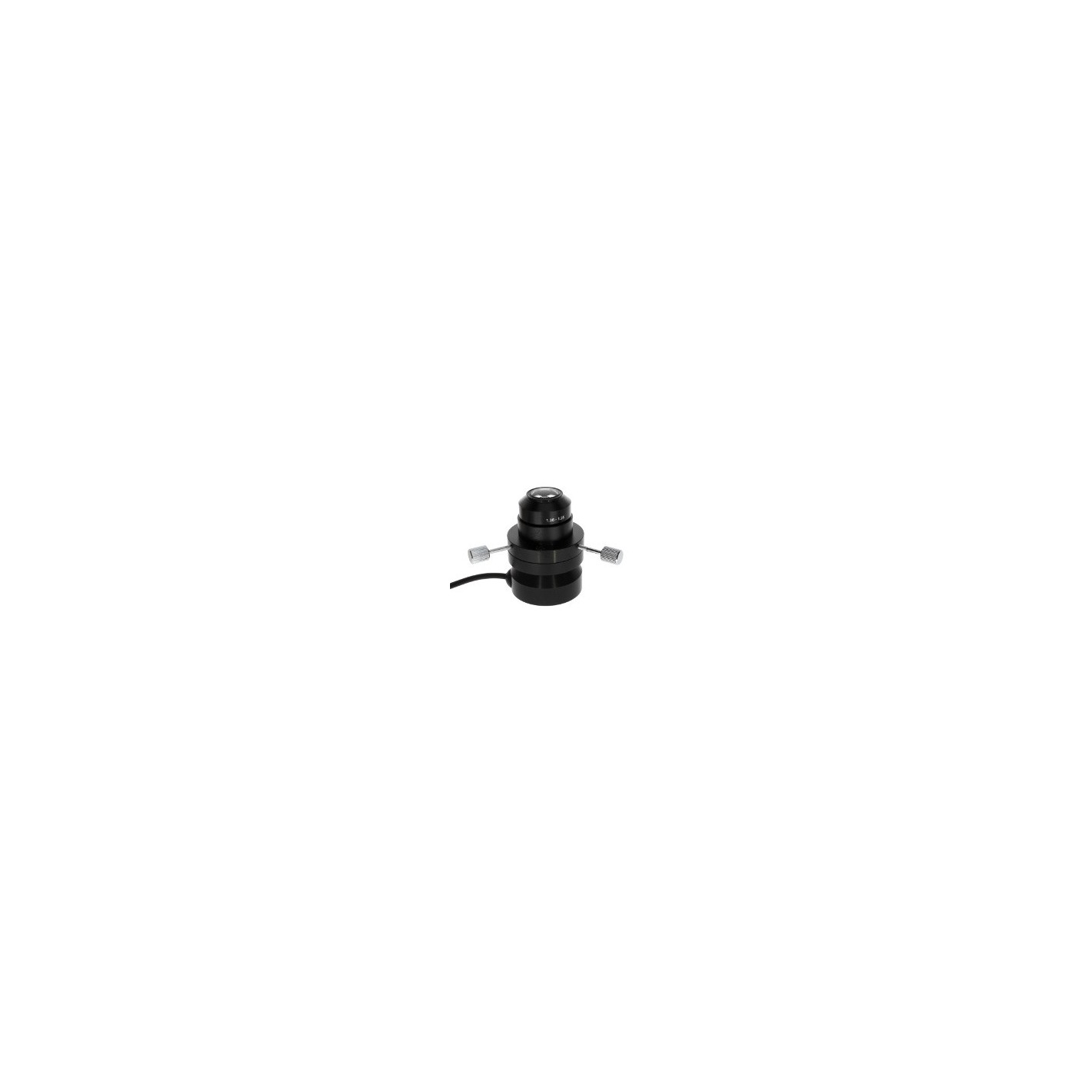

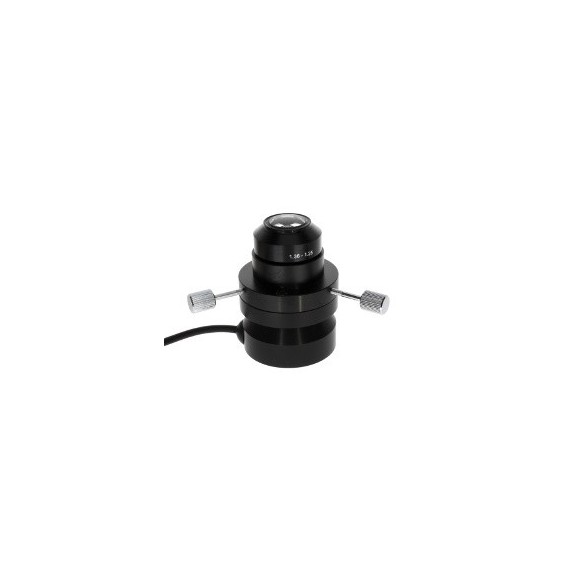

        • Dark-field condenser N.A. 1.36 with built-in X-LED
        • Dimensions
          • Height: 420 mm
          • Width: 255 mm
          • Depth: 400 mm
          • Weight: 5 kg
        • High stability and ergonomics
        • High quality finishes
        • Fully professional equipment
        • Includes case and instruction manual

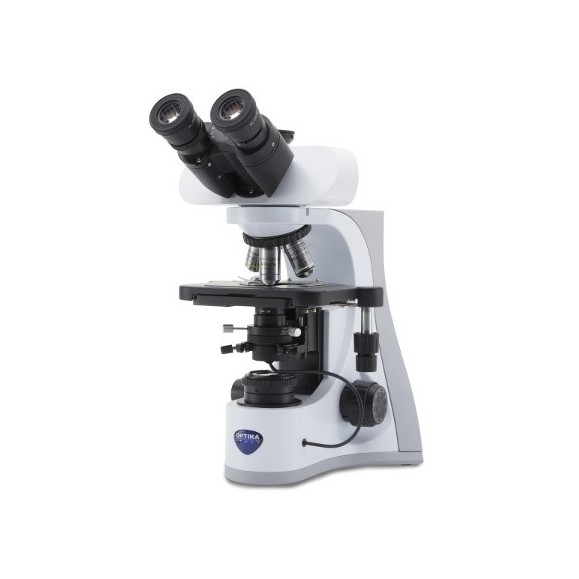

Optika B-510DK darkfield microscope.
