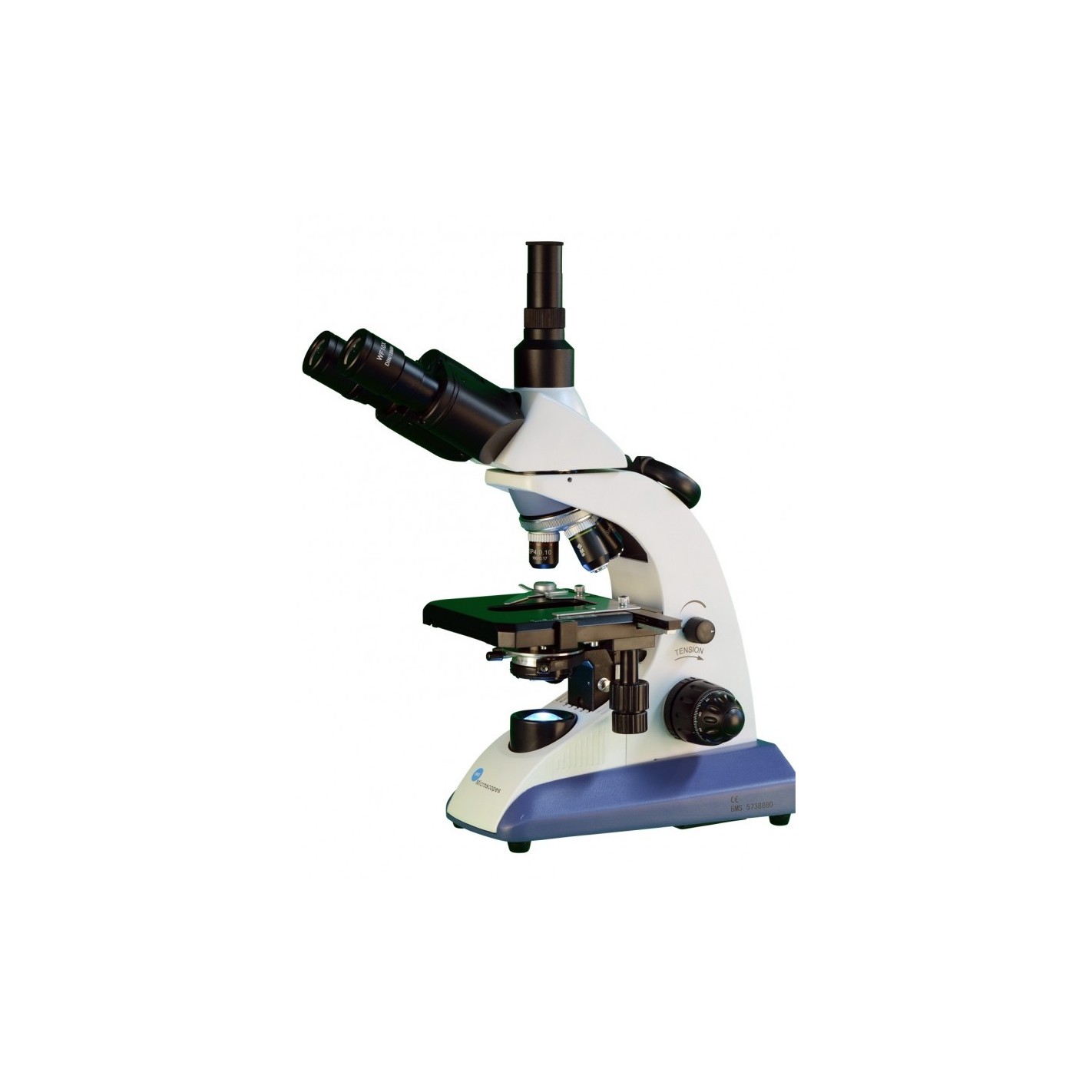

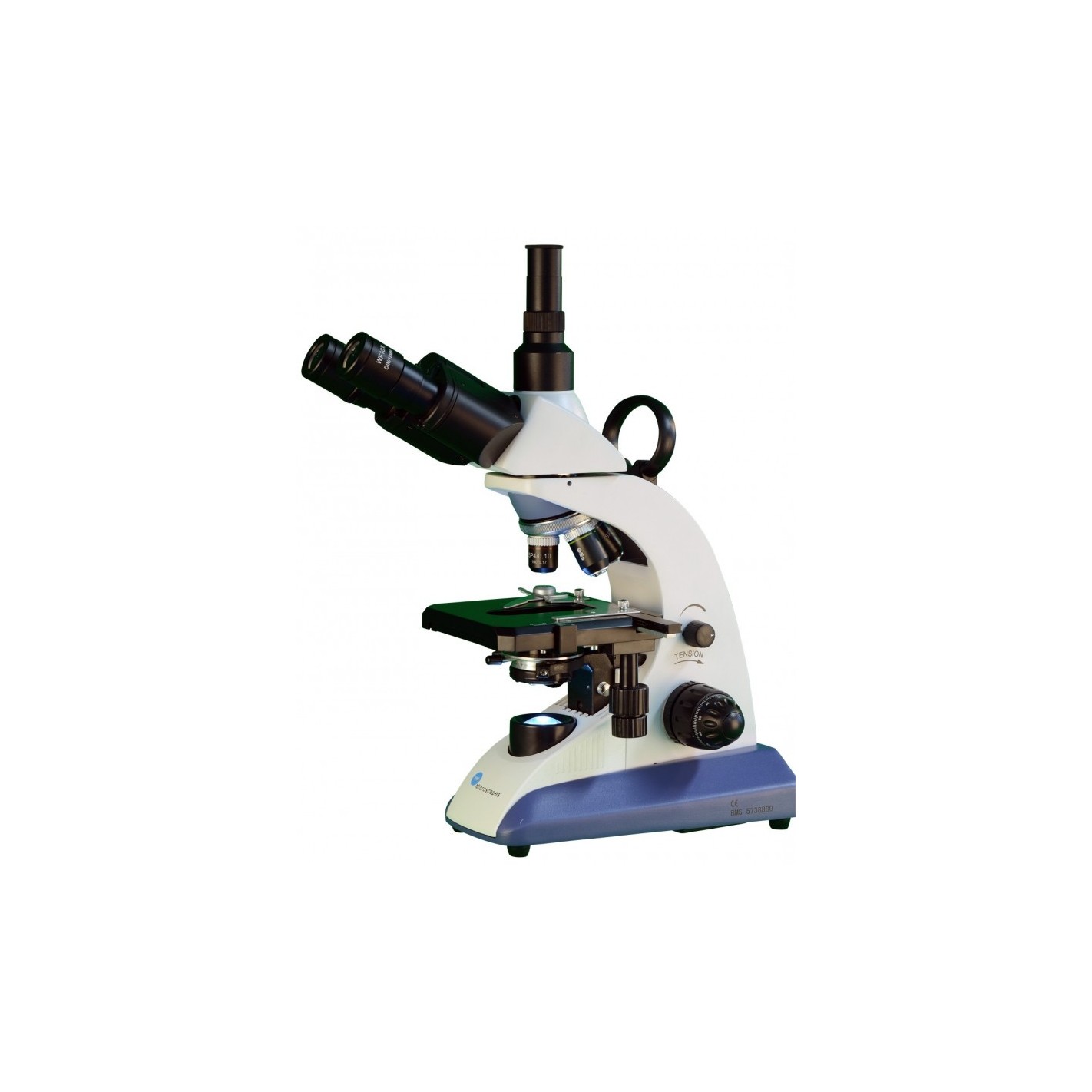

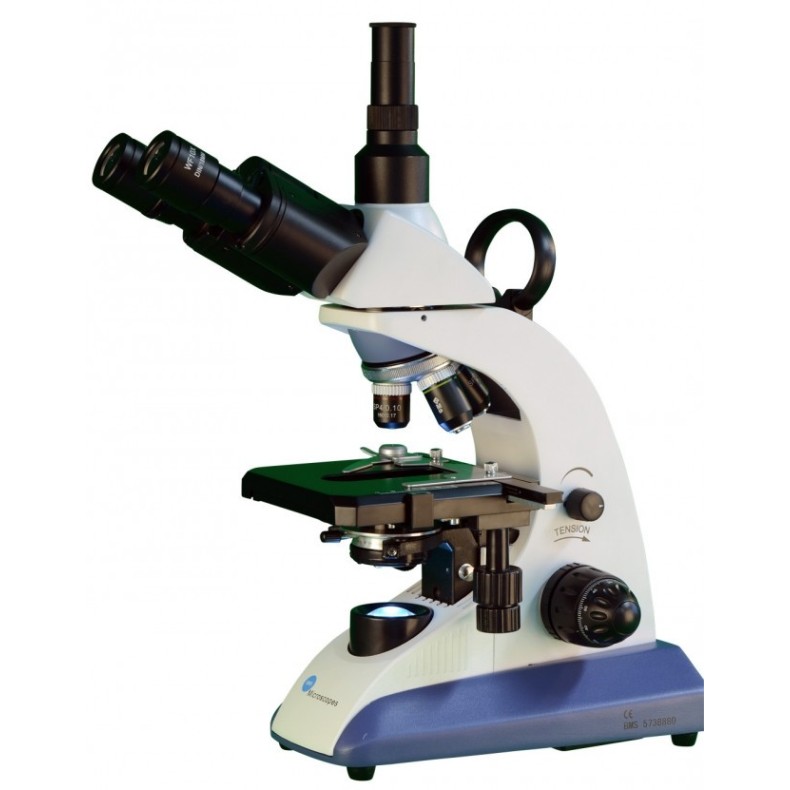

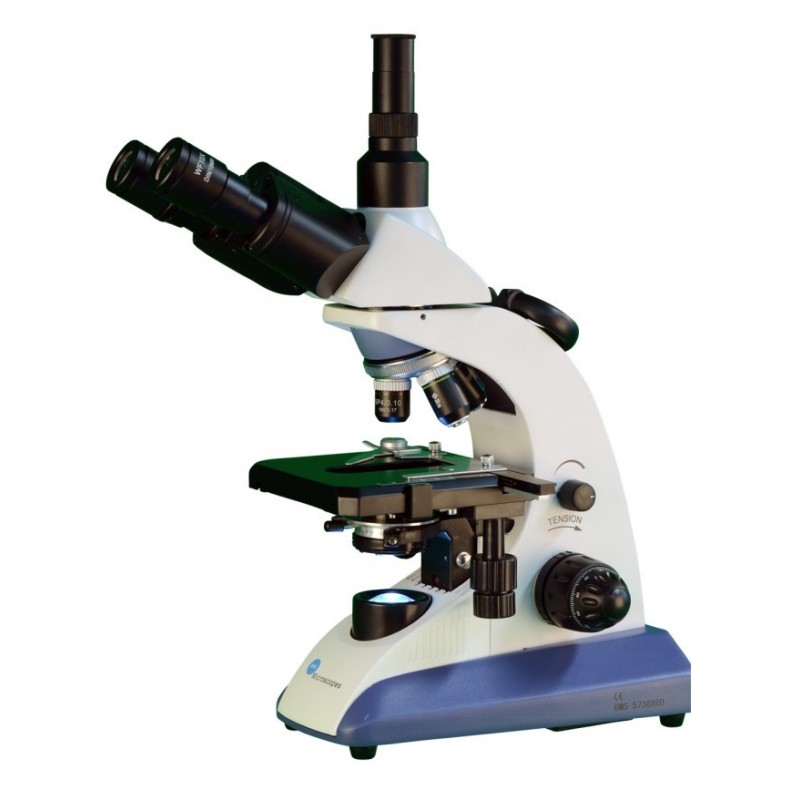

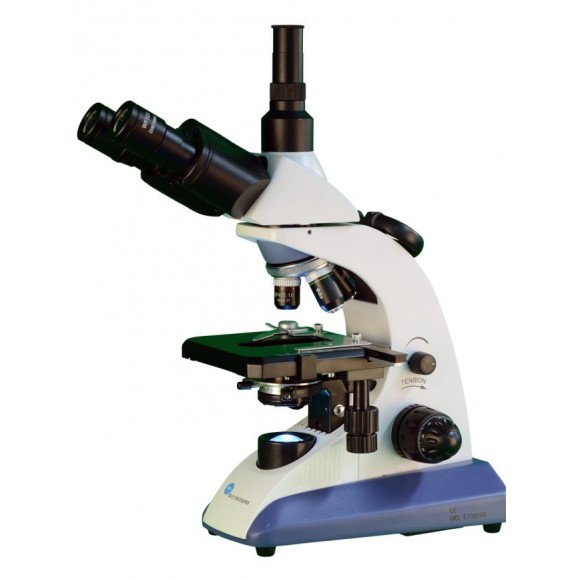

Biological Microscope BMS EDULED FLArQ 5738880 Triocular

The microscope BMS EduLed is a high quality, robust and well equipped instrument, ideal for teaching and entertainment.

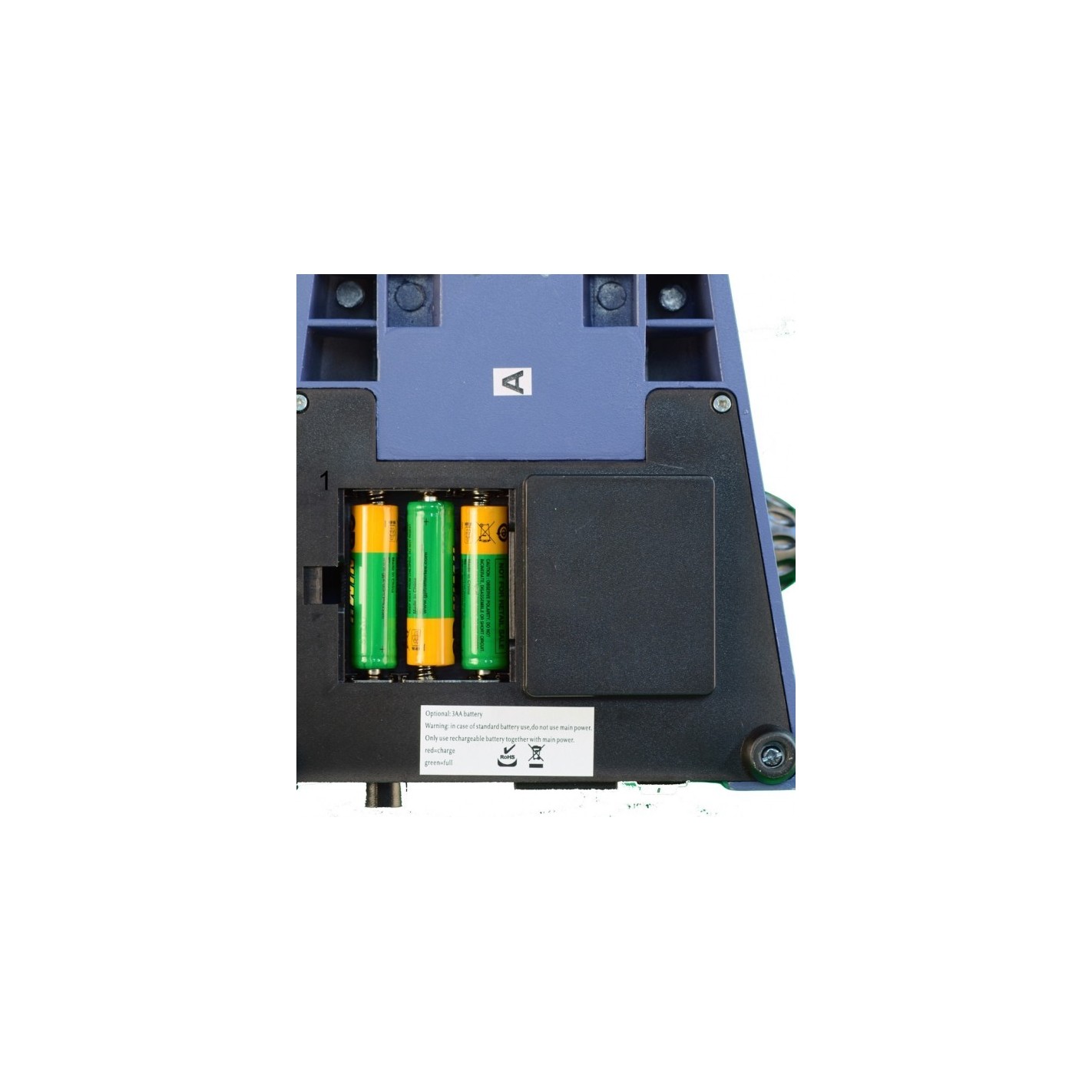

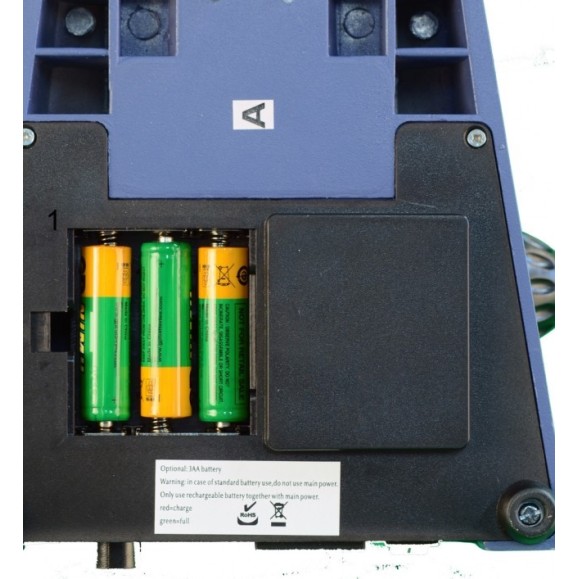

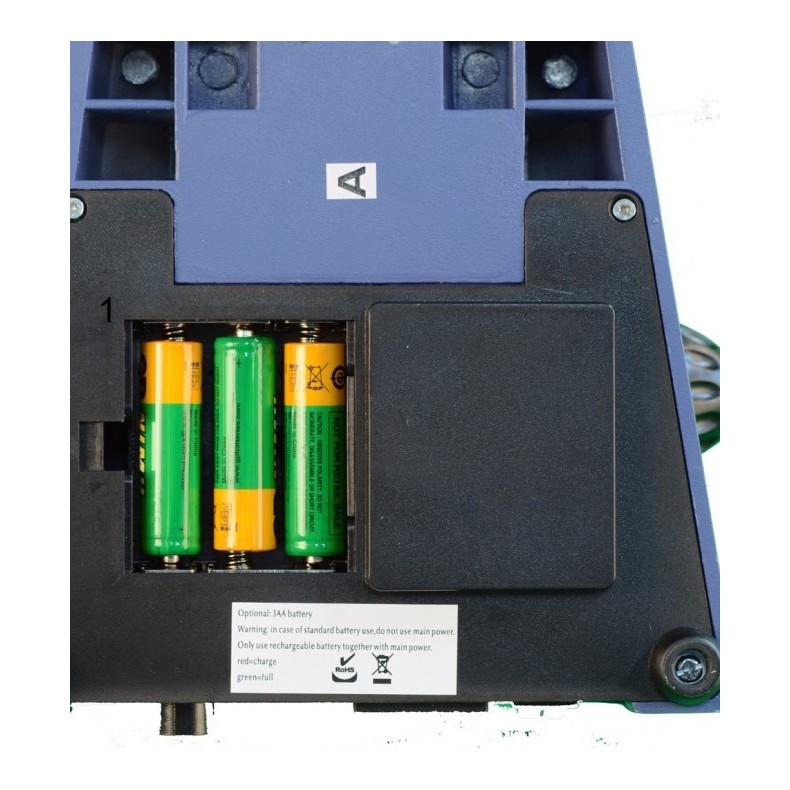

The stand and stand base offer great stability. The stand is equipped with a receptacle for storing the included power supply/battery charger. The rechargeable batteries, supplied with the instrument, allow the BMS EduLed microscope to be used without being plugged into a power outlet, making it aself-contained portable device.

The transmitted illumination system of the BMS EduLed FLArQ is characterized by a dimmable LED device and an Abbe condenser with iris diaphragm. In this way, it is possible to work with a wide range of objectives such as 4x, 10x, 40x and the immersion 100x. The objectives supplied with the microscope are semi-planar achromatic and comply with DIN standards. With the 10x wide field eyepiece, and the standard version, magnifications between 40 and 400x (600x and 1000x optionally) are achieved.

The optical components provide sharp, true-color, high-contrast images. This series features a 360° rotatable monocular, binocular or triocular observation head, coaxial macro and micrometer focusing drive and mechanical stage with XY sliding carriage.

Thanks to a wide range of accessories, this microscope series is optimal for various observation techniques, including camera imaging.

Technical Specifications:

Stand: Vertical, robust construction.

Observation head: Integrated triocular head, Siedentopf design, 30º inclined, 360º rotatable, interpupillary distance adjustable between 55 and 75mm, diopter corrector and vertical tube in triocular head for adaptation of video/microphotography cameras.

Objective revolving nosepiece: Quadruple.

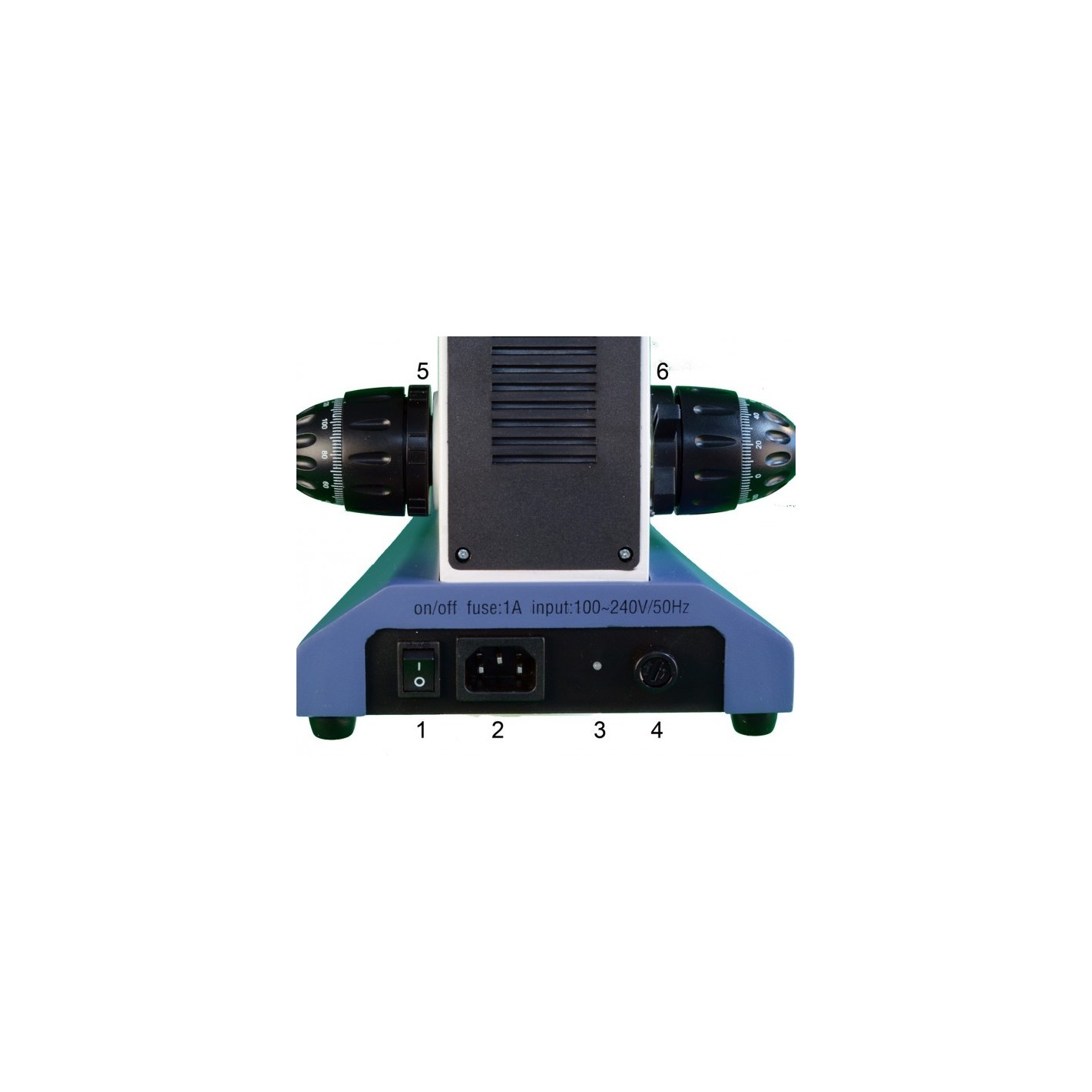

Focusing: Coaxial macro and micrometric focusing knobs. Micro precision 0.002mm. Stage elevation locking device. Macro mechanism tension adjustment knob.

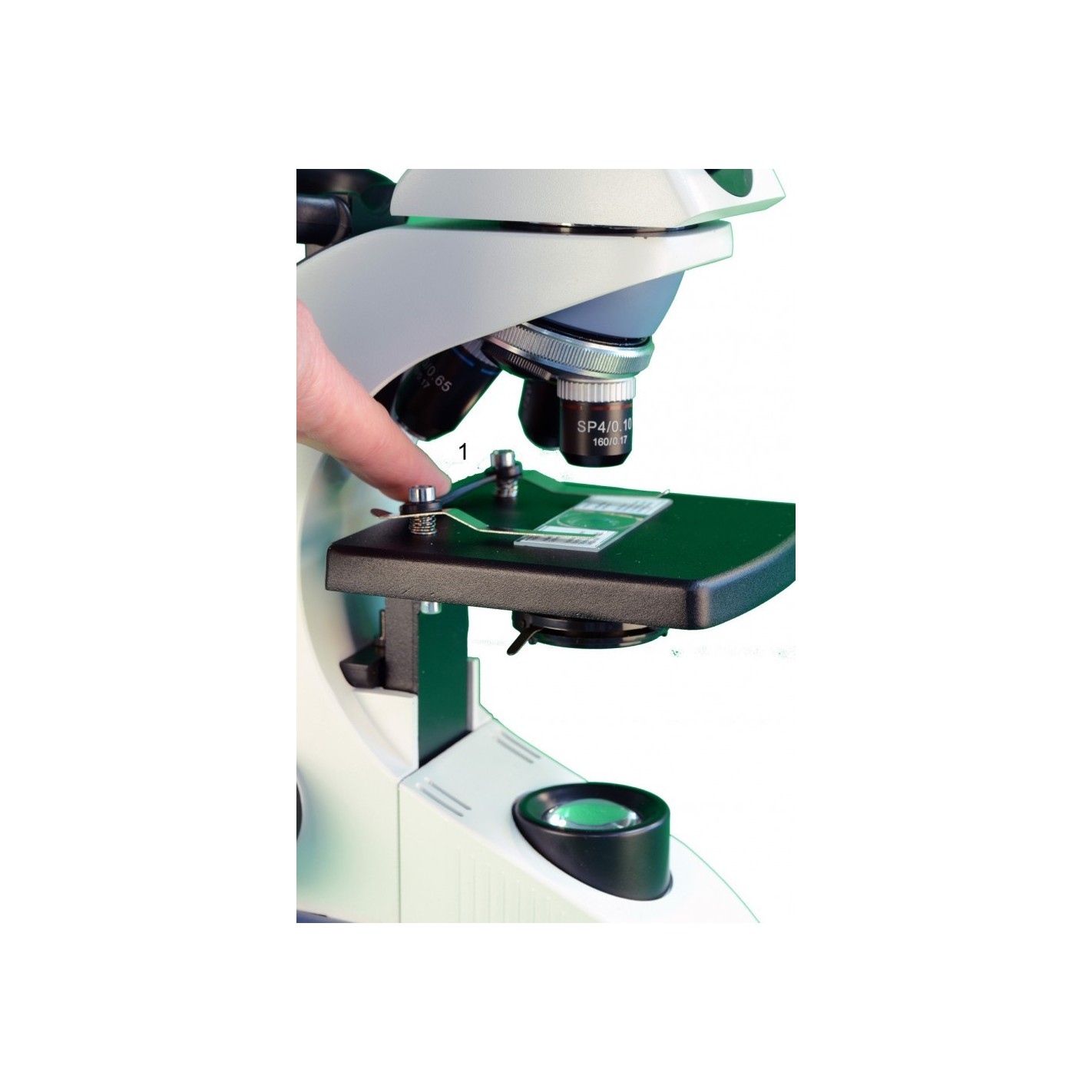

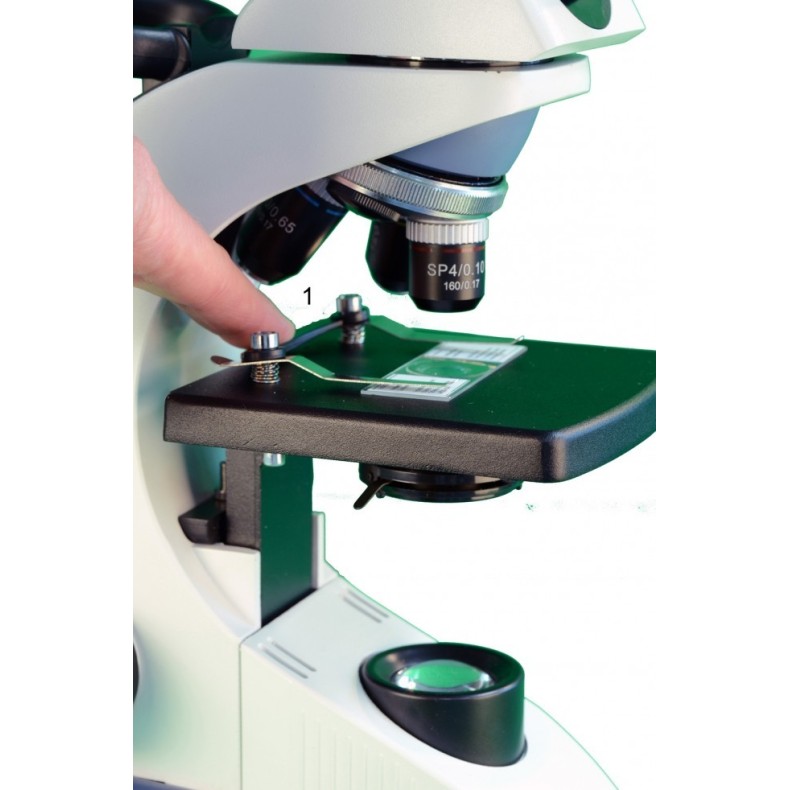

Mechanical stage: 140x132mm double-plate mechanical stage with XY moving carriage, 75x30mm travel by means of coaxial movement knobs on vertical axis.

Eyepieces: WF 10x/18 wide field.

Objectives: Three semi-flat objectives DIN standards 4x/0.10, 10x/0.25 and retractable 40x/0.65

(optional 20x/0.40 retractable, 60x/0.85 retractable, 100x/1.25 retractable and immersion).

Condenser: Abbe A.N. 1.25 with iris diaphragm, height adjustable.

Illumination: Transmitted LED of 0.5W (equivalent to 20W halogen) of adjustable intensity.
