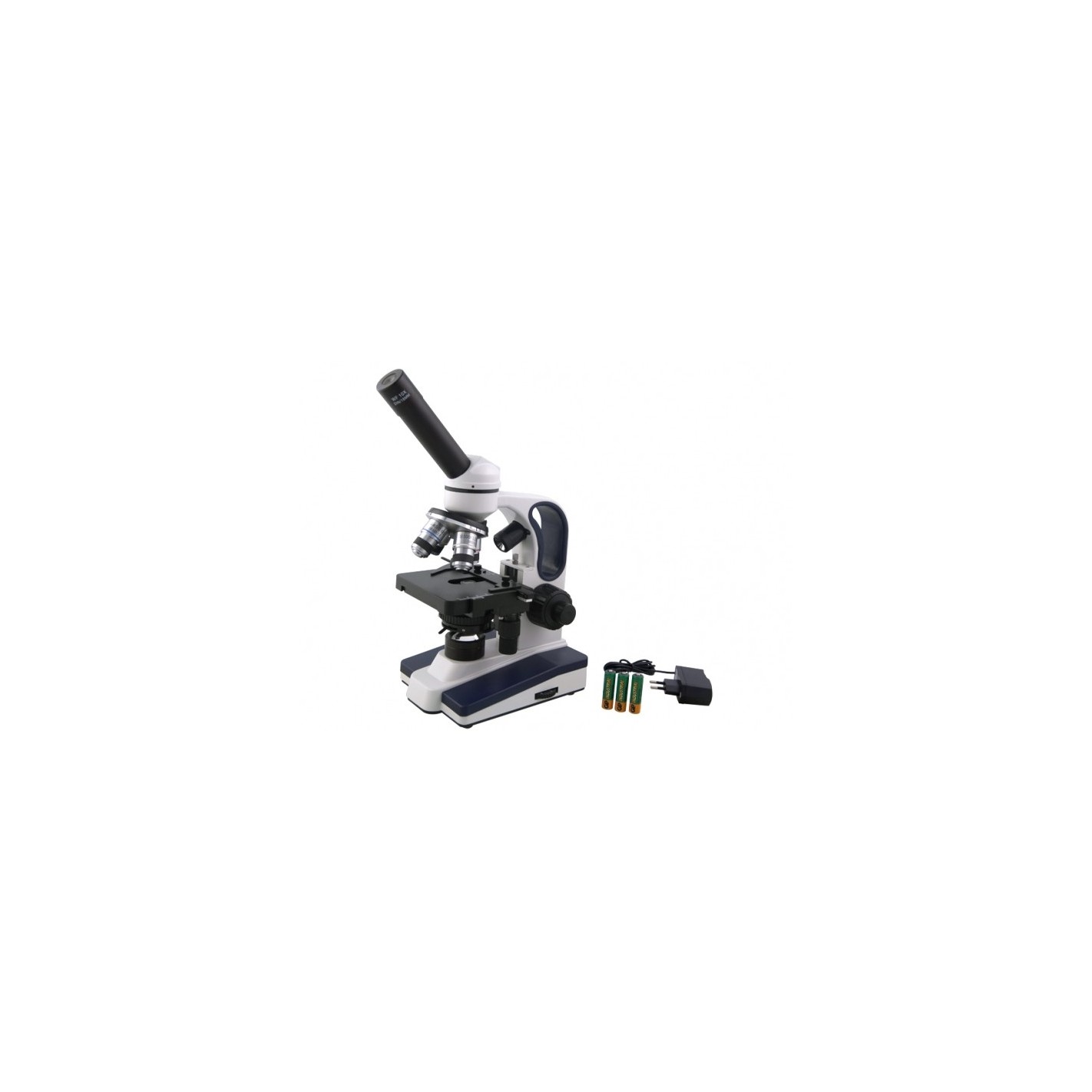

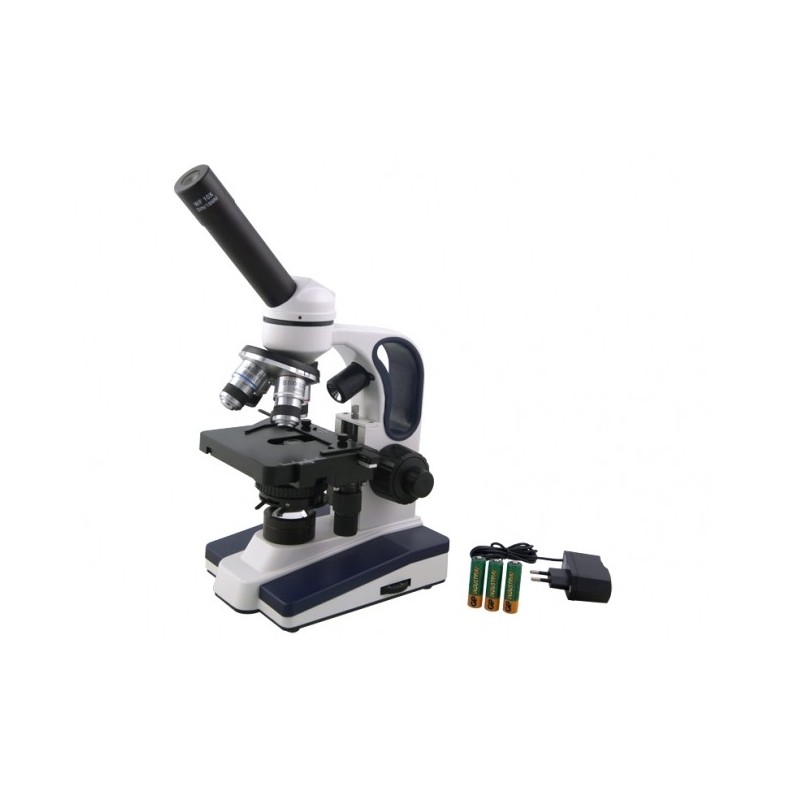

Biological Microscope BMS 037 LED Pro 75939 Monocular

two microscopes in ONE - microscope with incident and transmitted illumination!

The new microscope series BMS 037 LED Pro is ideal for the beginner who wants to enter the field of microscopy.

The stability of the microscope is optimized by a robust stand and base construction. Thanks to the clever placement of a handle on the stand, the BMS 037 LED Pro can be comfortably transported without any effort.

The integrated illumination system combines the advantages of incident and transmitted light, allowing the observation of transparent and opaque objects without having to change microscopes. Both types of illumination are independent and can be adjusted via a built-in rheostat. In addition, the transmitted illumination is enhanced by the use of an ABBE condenser with iris diaphragm.

Thus, the microscope can work not only with the classic 4x, 10x and 40x objectives, but also with the 100x immersion objective. The 10x widefield eyepiece offers a magnification range between 40x and 1000x in combination with the objectives.

The microscope has a 360° rotatable monocular or binocular observation head, coaxial macro and micrometer focusing drive and a mechanical stage with ergonomic XY-shift drive.

The BMS 037 LED Pro may be an entry-level microscope, but its optics are far better than what the user might expect in an inexpensive instrument. This microscope series has great features that will allow you to observe a wide variety of objects and specimens invisible to the naked eye.

Technical Specifications:

Stand: Vertical, rugged construction.

Observation head: Integrated monocular head, 45º inclined, 360º rotatable, interpupillary distance adjustable between 50 and 76mm, diopter corrector.

Objective revolving nosepiece: Quadruple.

Focusing: Coaxial macro and micrometric focusing knobs.

Mechanical stage: Square with movable carriage for XY displacement by means of coaxial controls on vertical axis.

Eyepieces: WF 10x/18 wide field.

Objectives: Four semi-flat objectives DIN standards 4x/0.10, 10x/0.25, 40x/0.65 retractable and 100x/1.25 retractable and immersion.

Condenser: Abbe A.N. 1.25 with iris diaphragm, height adjustable.

Illumination: Incident and transmitted LED with adjustable intensity.

Standard accessories: Plastic case, rechargeable batteries, transformer/battery charger.
