B-510 SeriesThe series OPTIKA B-510 represents the advanced, ultra-modern and ideal routine microscope for efficient analysis in transmitted light applications, carefully designed with all user-relevant aspects in mind.This series offers easy-to-use operations, robustness, durability and excellent resolution, providing sharp, contrasty images through the impressive IOS W-PLAN optics, the Infinite Correction Optics (IOS) provide the best cost-effective choice for high contrast and resolution, matching all requirements of laboratories that require good quality routine optics and are designed to guarantee a field flatness up to FN 22. The complete Köhler system optimizes the optical path of the microscope to produce high sample contrast and homogeneous bright light, reducing image artifacts, while the state-of-the-art, unique X-LED3 illumination source ensures that your sample is properly and homogeneously illuminated with incredibly low power consumption and a significantly long lifetime.With multi-head observation systems, up to 5 persons/colleagues can observe the same image on the B-510;Ideal for teaching and training students, especially in the medical field.The main observer and additional viewers will benefit from extremely homogeneous lighting conditions, with a tricolor pointer with adjustable intensity to highlight points of interest.Reflexes:Lighting:Transmitted brightfield illumination is one of the most widely used observation methods in optical microscopy and is ideal for fixed, stained or other types of samples that have a high natural absorption of visible light.The B-510 series is equipped with a high-efficiency X-LED3 LED brightfield illuminator for best results when using this technique.Achieve brilliant images, improved color fidelity, pure white color temperature, incredibly low power consumption and longer life with exclusive X-LED technology, capable of doubling light intensity for unmatched performance.Significant money and energy savings thanks to incredibly low energy consumptions that allow you to reduce your electricity bills by 90%!Optics:
- Trinocular heads with 22 mm field number.
- True Infinity Optical System available (IOS)
- Fully centerable condenser for precise light control.
- IOS W-PLAN lenses, high numerical apertures
- Planachromatic optics with more than 90% of flat field
- Significant optical correction, low curvature and field distortion.
Better resolution, color and contrast WITH Köhler illumination.The B-510 series is equipped with Köhler, which optimizes the optical path of the microscope to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and flare. In this way, you will achieve full control over the illumination aperture to achieve the best compromise between resolution and contrast and for some improvements in depth of field.Mechanics:The zipperless stage has been designed with a belt-driven mechanism that allows smooth movement without any protruding parts.This design gives you a more compact solution and reduces the risk of injury after accidentally hitting the shelf with your hands.
- Ergonomic positioning of the main controls.
- Long-lasting mechanical parts, mobile platform without racks
- Maintenance-free lighting system
- Improve productivity, reduce fatigue
- Increases accuracy and quality of work.
- Easily portable, with comfortable handle

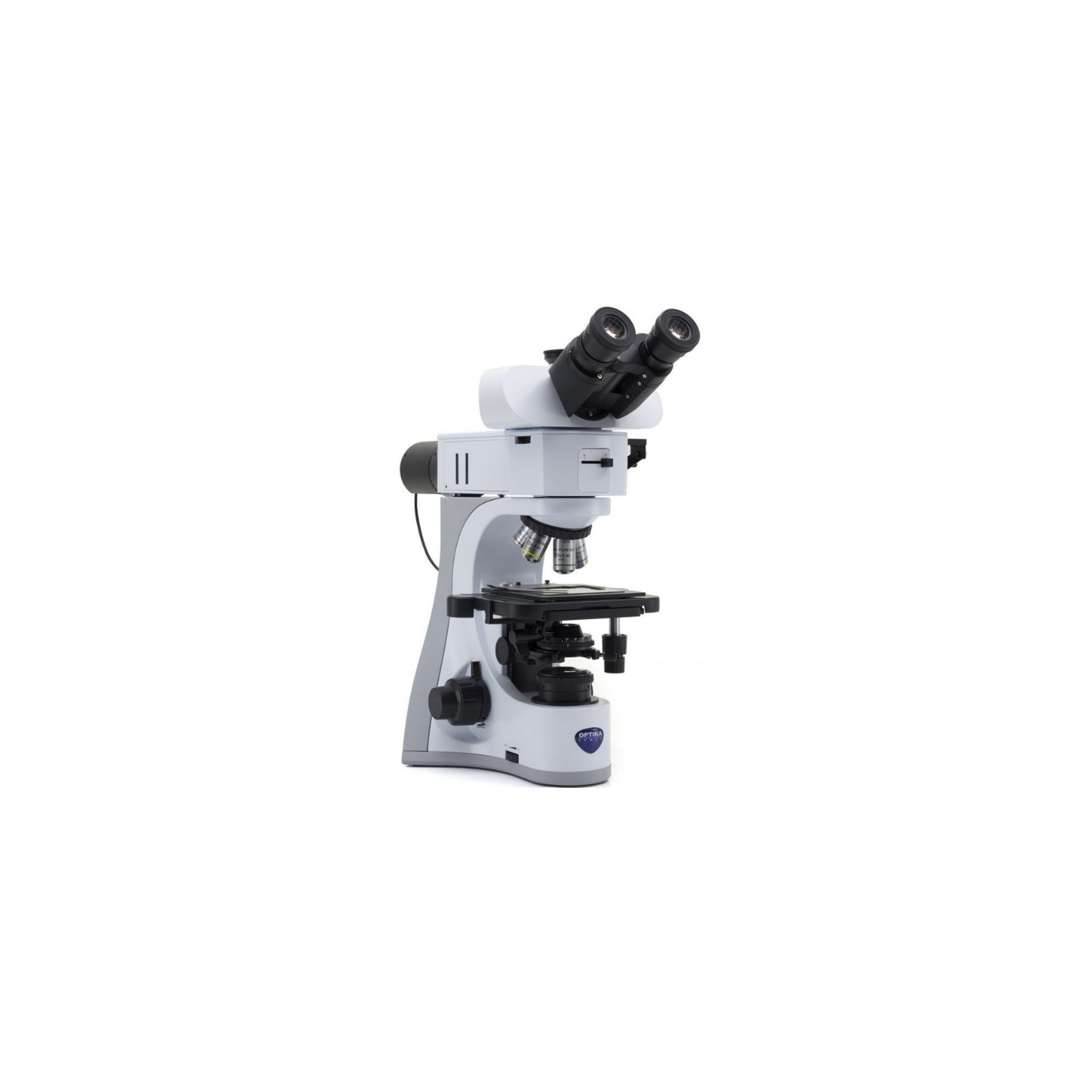

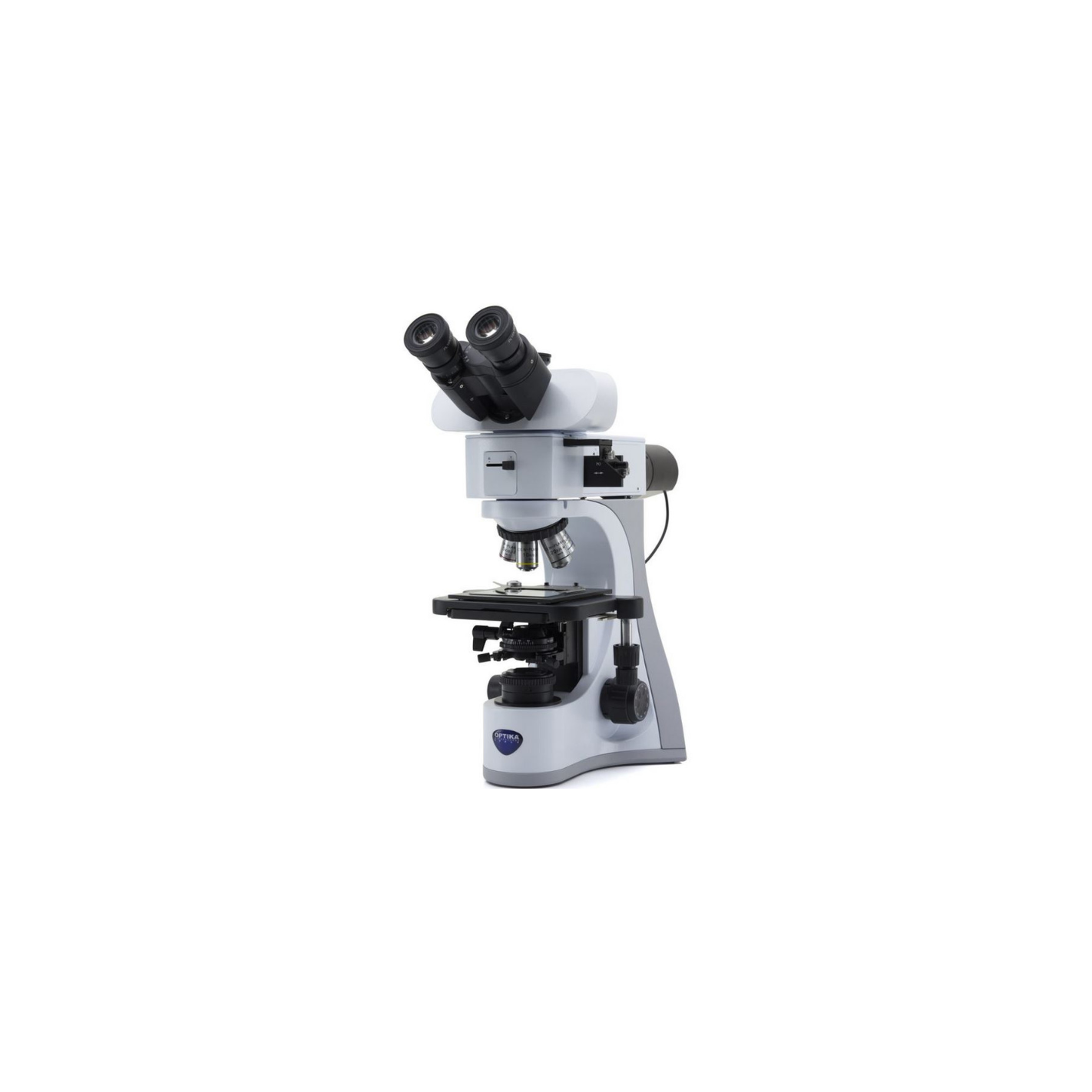

B-510 Materials Science (MET)The series OPTIKA B-510 is ideal for measurement needs, quality control applications, inspection in various fields including manufacturing processes, welding and material science.With a 22 mm field of view, the B-510 materials science microscopes are equipped with a metallurgical attachment and the unique state-of-the-art X-LED8 illumination source as reflected illumination;when included, the transmitted light is realized through an X-LED3 light source.Oblique illumination opens up new horizons by revealing even the finest details, which can be difficult to distinguish when using conventional brightfield techniques, with outstanding contrast and significant clarity.The objectives are IOS W-PLAN MET and NCG (without coverslips), and are specifically designed for use in microscopy without coverslips, while the Köhler diaphragm optimizes the optical path of the microscope to produce high sample contrast and homogeneous bright light, reducing image artifacts.Reflected light microscopy is the method for observing samples that remain opaque even when ground to a thickness of a few microns.The range of specimens that fall into this category includes metals, minerals, ceramics, polymers, semiconductors (raw silicon, wafers and integrated circuits), carbon, plastics, paints, paper, wood, leather and a wide variety of specific materials.MATERIALS SCIENCE / METALLOGRAPHYReflected light microscopy is the method for observing samples that remain opaque even when ground to a thickness of a few microns.The range of specimens that fall into this category is incredibly broad and includes most metals, minerals, ceramics, many polymers, semiconductors (raw silicon, wafers and integrated circuits), carbon, plastics, paints, paper, wood, leather, glass inclusions, and a wide variety of specific materials.Enhancing the most important aspects of microscopy expertiseTHE MAIN IMAGES COME FROM AN IMPRESSIVE OPTIC
- Trinocular heads with 22 mm field number.
- True Infinity Optical System available (IOS)
- Fully centerable condenser for precise light control.
LABORATORY OPTICS
- IOS W-PLAN lenses, high numerical apertures
- Planachromatic optics with more than 90% of flat field
- Significant optical correction, low curvature and field distortion.

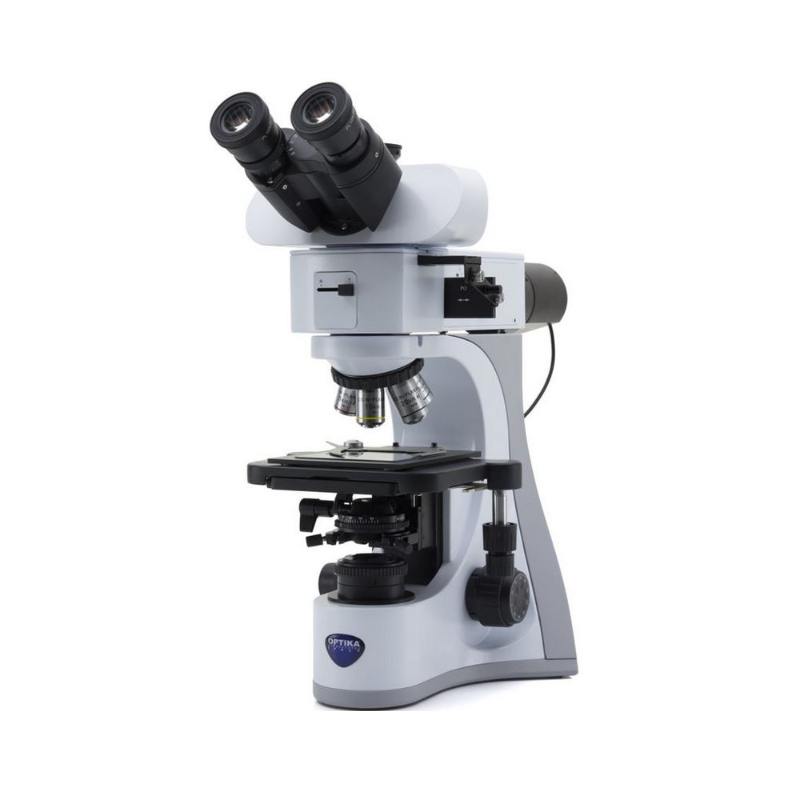

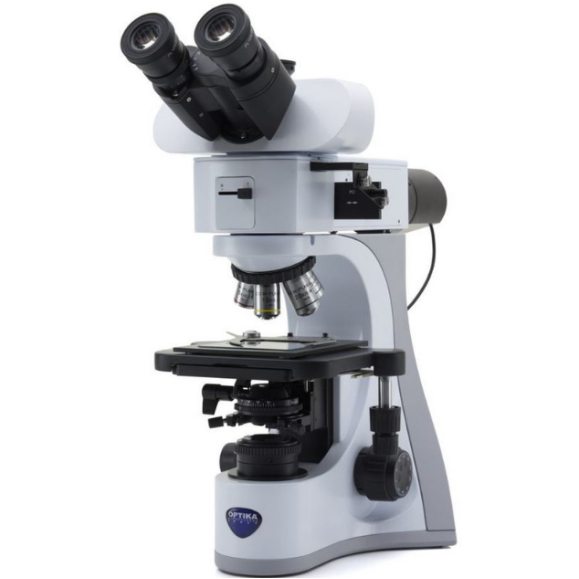

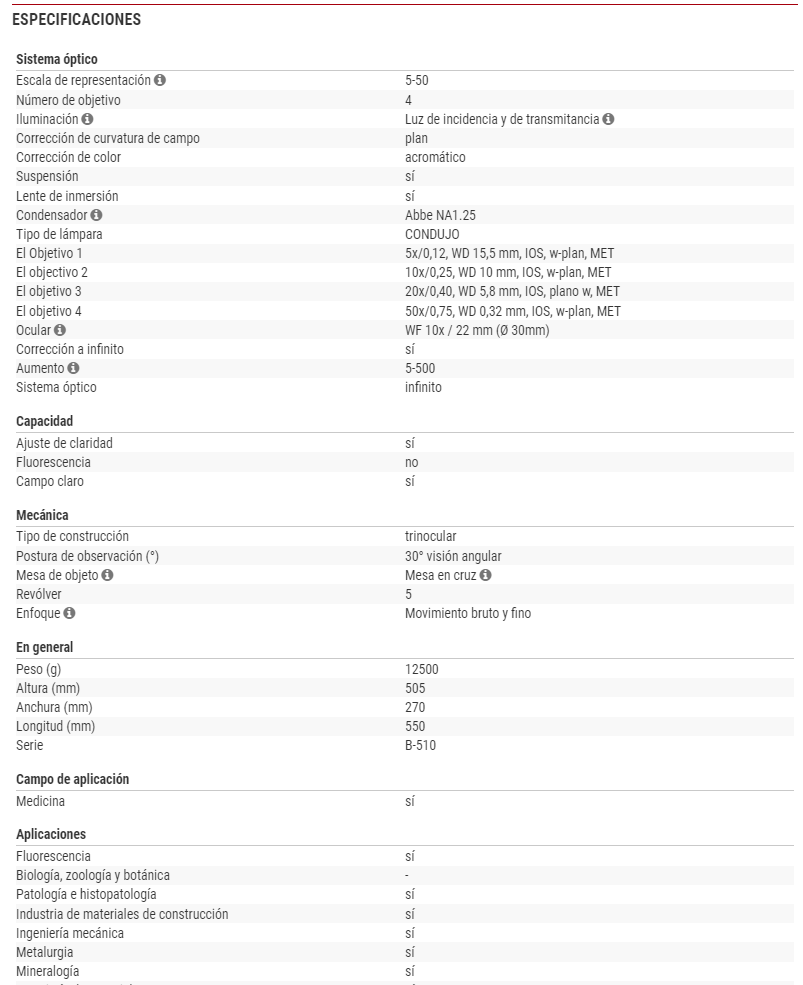

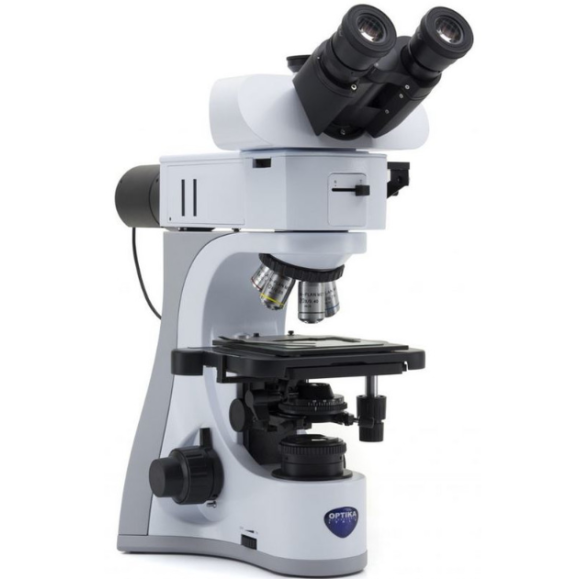

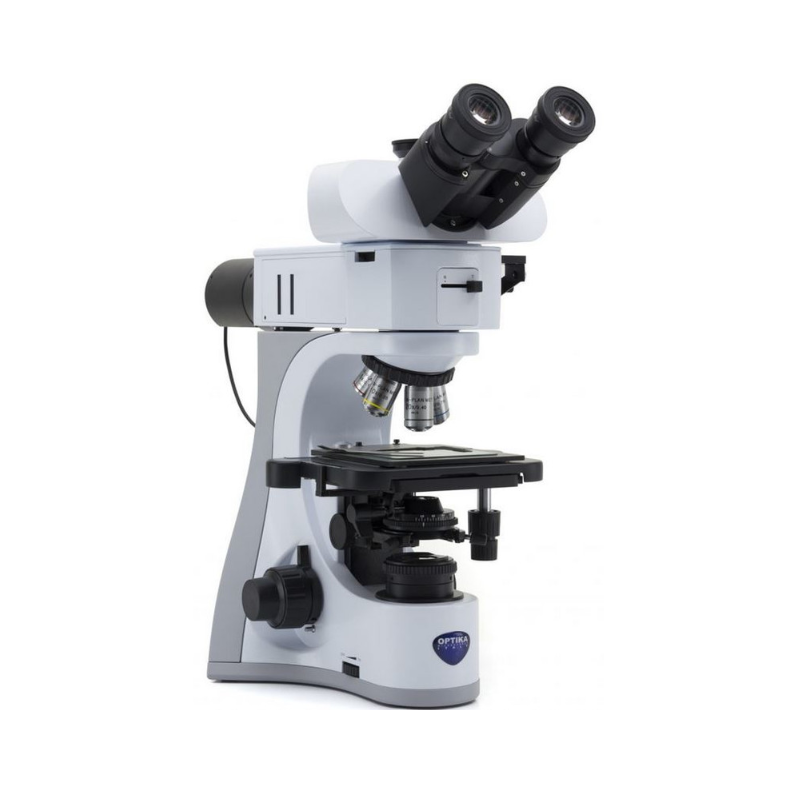

METHODS FOR CONTRAST ENHANCEMENT WITH OBLIQUE ILLUMINATION AND DIAPHRAGMSOblique illumination, also known as simple darkfield, is considered an alternative to the darkfield technique, except that instead of using dedicated darkfield objectives, the system uses the same brightfield objectives and the sample is illuminated from a movable "curtain" that has the task of modulating the oblique light;By doing this, the light comes only from a different perspective generating a pseudo-darkfield effect.Model: B-510METRTrinocular brightfield microscope with IOS W-PLAN MET objectives, movable stage without rack and pinion and metallurgical attachment combining the unique X-LED³ as transmitted and X-LED8 as incident illumination.NCG (non-coverslip) objectives are specially designed for use in microscopy without coverslips, ideal for metallographic and other opaque samples.Model: B-510METRTypologyROUTINE MICROSCOPYDescription:Laboratory microscope for routine and research applications.Cast iron structure, highly stable and ergonomic, for observation with transmitted light and episcopia.Observation modes
- Campo Claro
- Simple polarization
- Oblique illumination (incident light).
Lighting:Transmitted light:
- X-LED3
- Light intensity control by means of a knob on the left side of the frame.
- LED power: 3.6 W, comparable to a 50 W halogen bulb
- Color temperature: 6,300 K
- LED lifetime: > 65,000 hours
- Köhler illumination system with field diaphragm.
Light incident:
- X-LED8 with white LED
- Light intensity control by means of a knob on the left side of the frame.
- LED power: 8 W, comparable to a 100 W halogen bulb
- Color temperature: 6,300 K
- LED lifetime: > 50,000 hours.
- External power supply: Input 100-240 Vac 50-60 Hz / Output 6 Vdc 2,5 A.
- Maximum power required: 13 W.
- Köhler illumination system with field and aperture diaphragms, centerable
- Oblique illumination system for contrast in relief.
Focus:
- Coaxial coaxial coarse and fine focusing mechanism (graduated, 0.002 mm)
- upper stop, to avoid contact between the lens and the specimen
- Flat fine focus knob on the right side
- Adjustable tension of the coarse focus knob.
Scenario:
- Double layer with mechanical sliding platform.
- size 233x147mm
- XY range of motion 78 x 54 mm
- Belt drive in X direction.
- Vernier scale on two axes, accuracy 0.1 mm.
- Glass layer for sample holding.
Muserola:Quintuple revolver, rotation on ball bearings.Head:
- Trinocular observation head
- 30° inclined
- 360° rotatable
- Diopter adjustment on the left eyepiece (+- 5 diopter adjustment).
- Interpupillary adjustment 50 - 75 mm
- Fixed photo port, 50/50 ratio.
Eyepieces
- Plan extra wide field
- PL 10x/22
- High point of view
- Objectives
- IOS infinity corrected optical system.
- - IOS W-PLAN MET 5x/0,12, WD 15,5 mm
- - IOS W-PLAN MET 10x/0.25, WD 10 mm
- - IOS W-PLAN MET 20x/0,40, WD 5,8 mm
- - IOS W-PLAN MET 50x/0.75, WD 0.32 mm
- All lenses have anti-fungal treatment.
Capacitor
- Folding, sliding type condenser,
- ND 0.2/0.9,
- With centering system.
Dimensions
- HEIGHT: 505 millimeters
- WIDTH: 270 mm
- DEPTH: 550 mm
- WEIGHT: 12.5 kilos
accessories included
- Polarizing filters and analyzers.
- Instruction manual
- Dust cover included.
