It is distinguished by high manufacturing quality and ergonomics. Typical optical aberrations, e.g. astigmatism, distortion, chromatic aberration, coma, vignetting, have been largely eliminated.
The high light transmission allows the binoculars to be used in residual illumination conditions (e.g. at dusk).

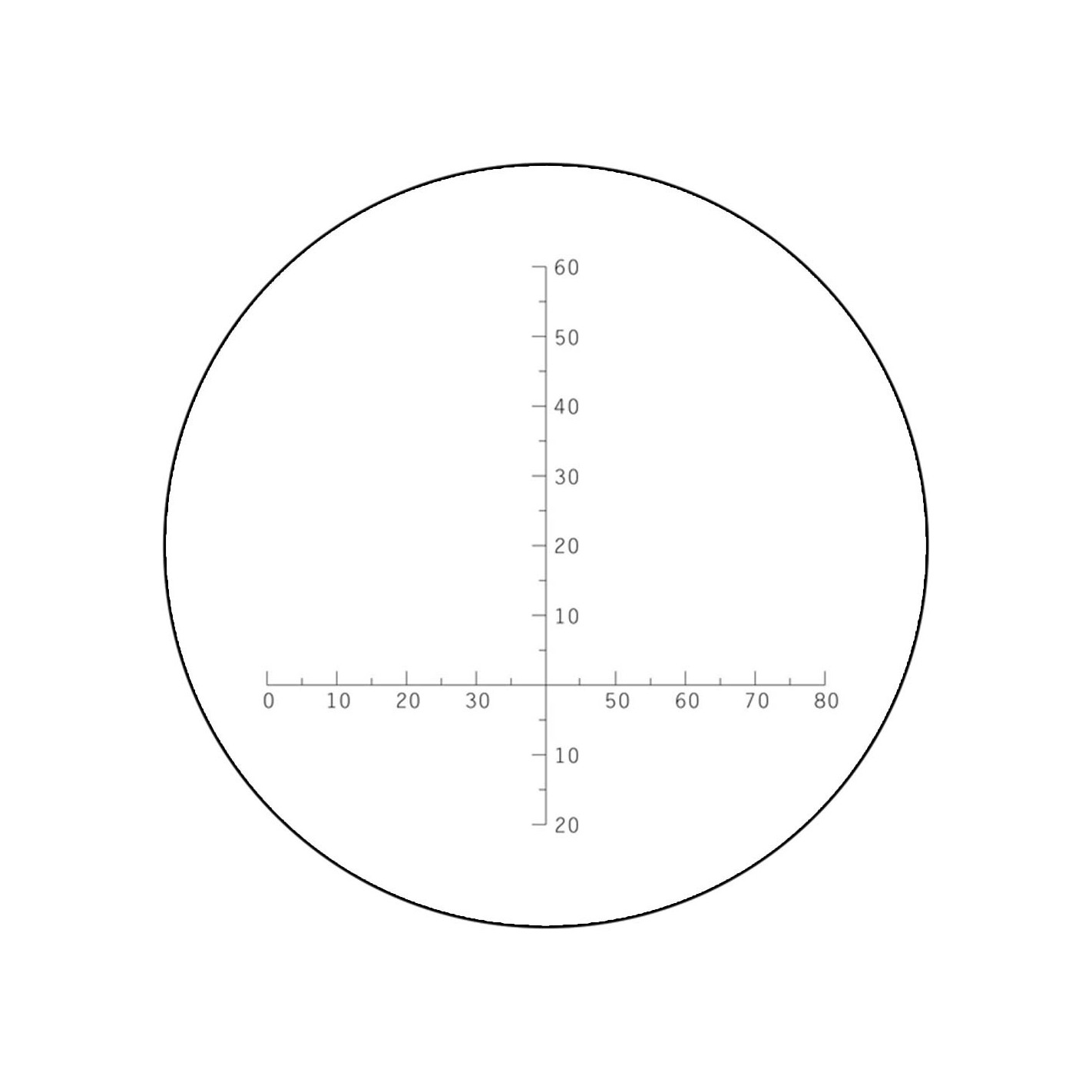

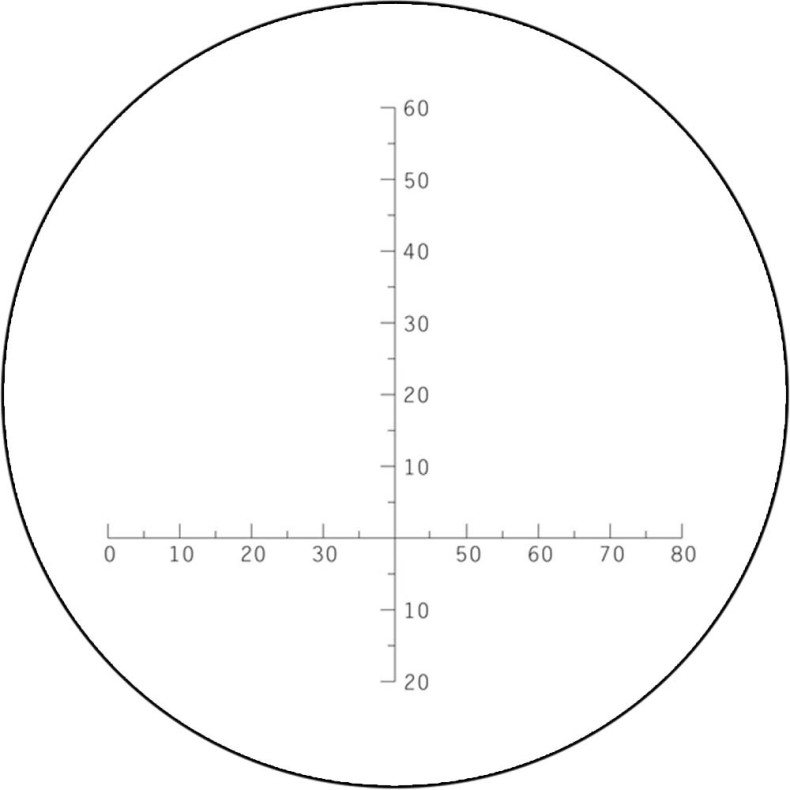

The rangefinder reticle in the eyepiece is set in neutral position for a pupil distance of 65 +/- 1 mm.
The horizontal lines of the grid are parallel and the vertical lines are perpendicular to the plane passing through the center of the binocular eyepieces.
The image of the binoculars is characterized by high resolution over the entire field of view, high optical efficiency and correct reproduction of targets.
Delta Optical Titanium ML 10×50 binoculars are resistant to the following environmental factors:
- Sinusoidal vibrations - acceleration amplitude 40 m / s2, 5-80 Hz
- Mechanical shocks: single: 1000 m/s2 and multiple, where the pulse duration is 1-5 ms with the maximum acceleration of 150 m/s2
- Extreme ambient temperature (from -30 ° C to + 50 ° C)
- Increased humidity (relative humidity 98% at 35 ° C)
- Immersion in water (min.1m and 0.5h)
- Precipitation, sunlight and dust particles
In addition, the Titanium ML are also resistant to internal evaporation within the indicated temperature range, thanks to the nitrogen filling.
The metal housing of the binoculars is rigid and resistant to deformation and is rubberized. All metal parts are corrosion resistant. The mechanical elements are damage-resistant and precision-made.
The construction of the binoculars allows the user to easily replace such elements as: eyepiece and lens caps, eyepiece cups and a carrying strap, which were manufactured in a way that prevents losses (eyepiece and lens caps are attached to the binoculars with straps).
FEATURES
- Magnification: 10x
- Lens diameter: 50 mm
- Prisms: porro, BaK4
- Angular field of view: 6.1 degrees
- Linear field of view (1000 m): 107 m
- Pupil distance: 17 mm
- Diopter adjustment: +/- 5 diopters for each eyepiece with an accuracy of 0.5 diopter
- Pupil distance: 54 - 73 mm with an accuracy of 1 mm
- Focusing distance: 8 m
- Twilight efficiency: 22.36
- Brightness: 25
- Rangefinder reticle: in right eyepiece
- Rangefinder Grid Scale System: Metric (MIL)
- Pupil distance: 65 mm
- Anti-reflective coatings: FMC (Fully Multi Coated)
- Collimation Convergence
- Collimation divergence
- Image rotation: 30′
- Image tilt difference
- Temperature Range: -30°C / + 56°C
- Maximum relative humidity: 95%
- Water resistance: up to 1 meter when submerged for 30 minutes.
- Dimensions: 185 x 185 x 65 mm
- Weight: 1100 g
- Warranty: 10 years
