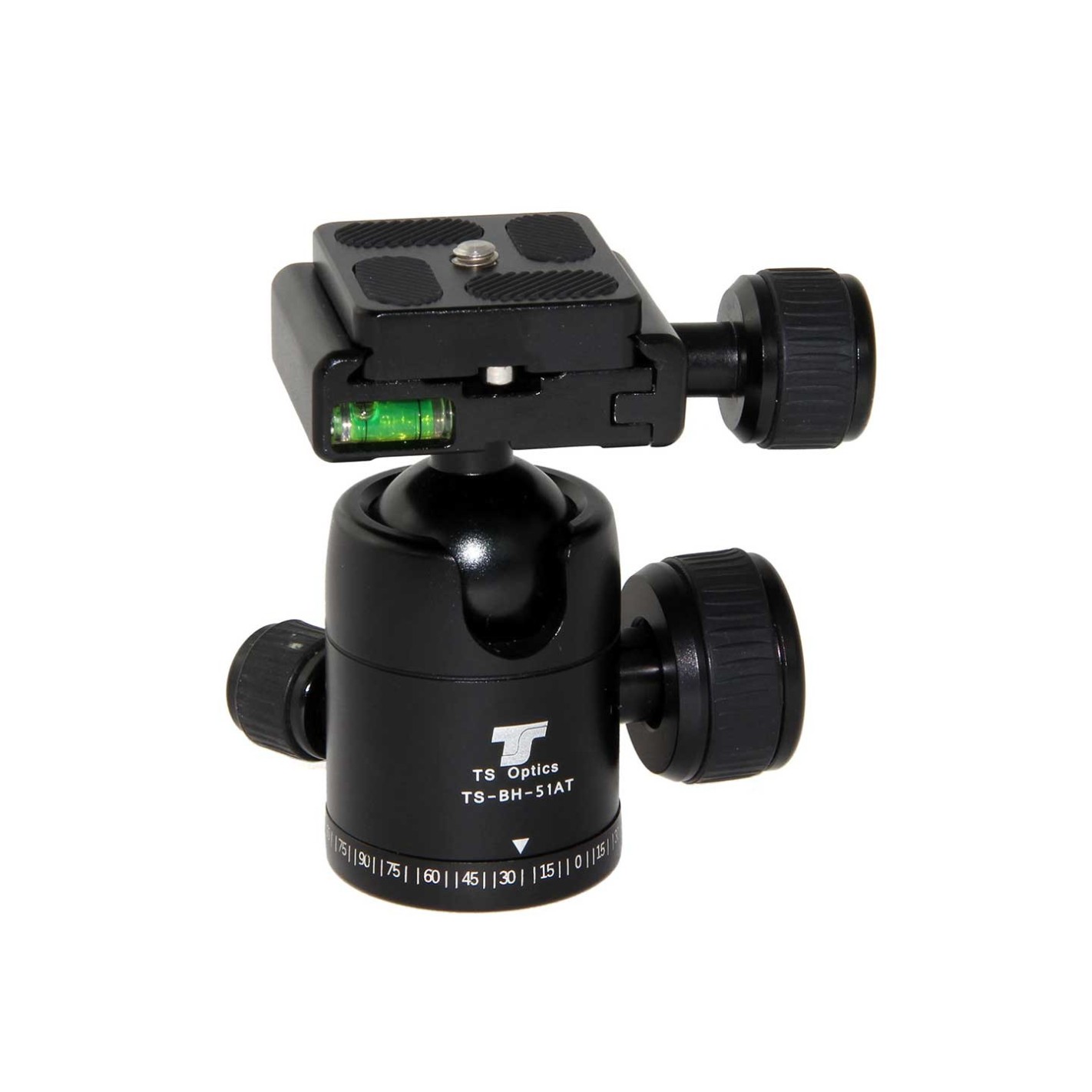

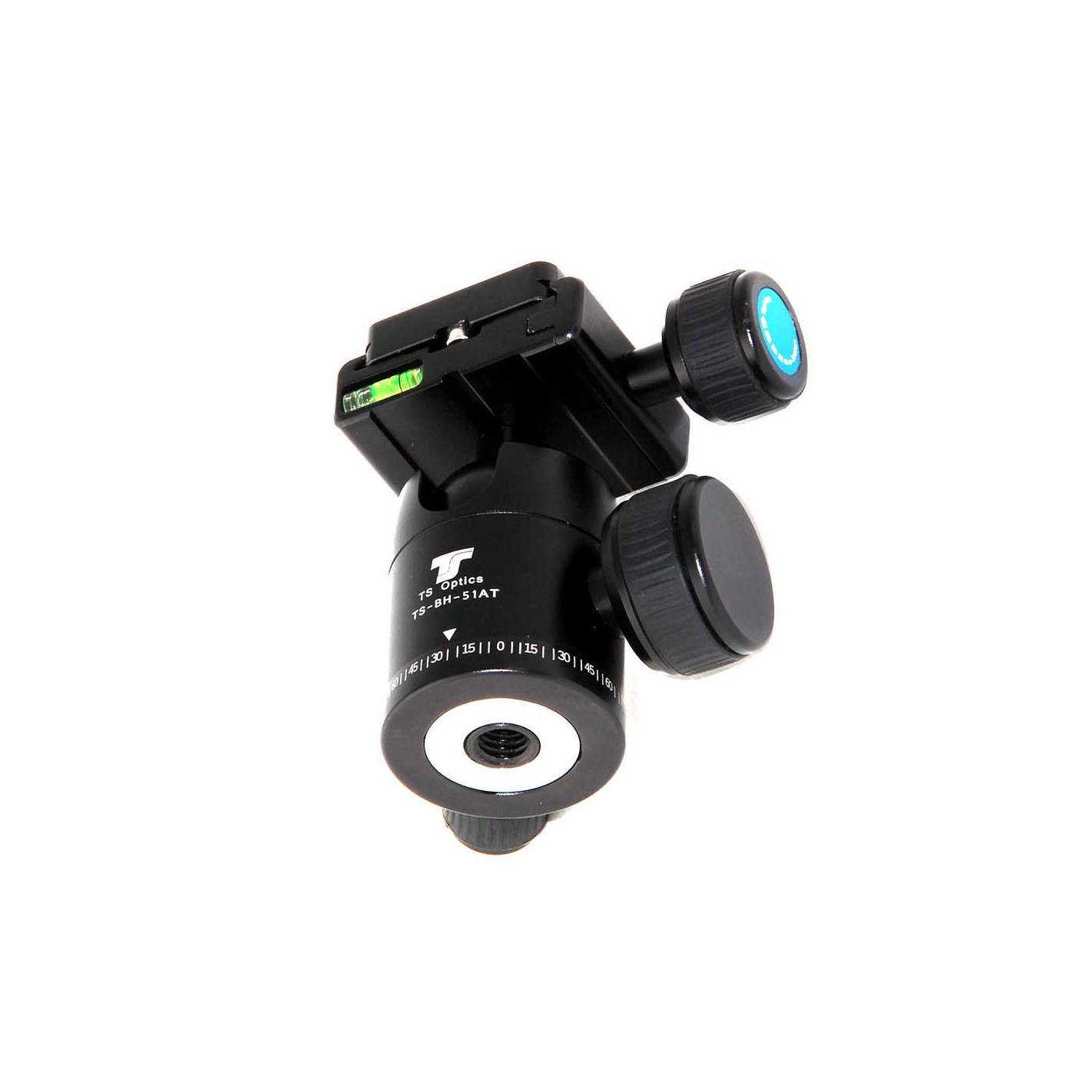

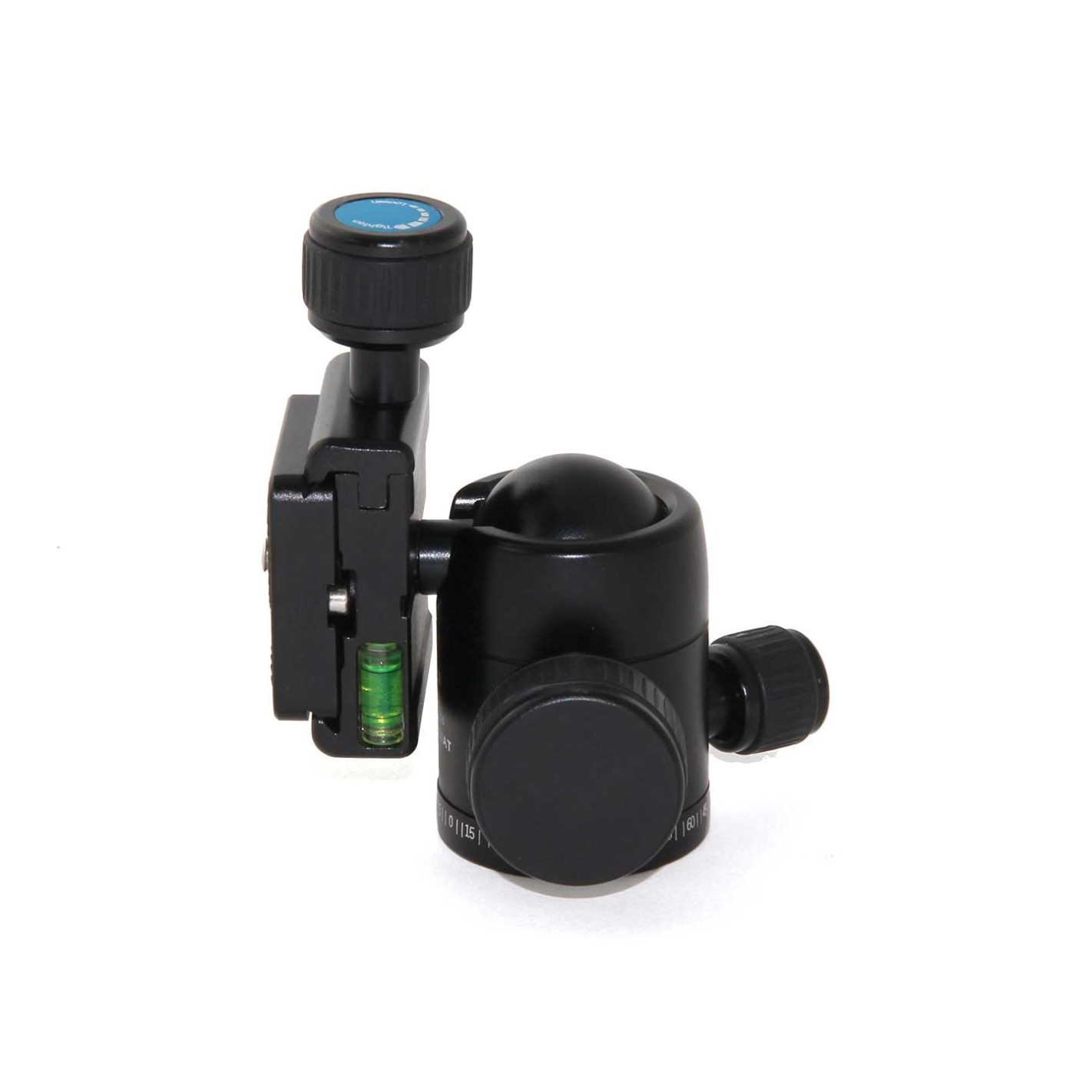

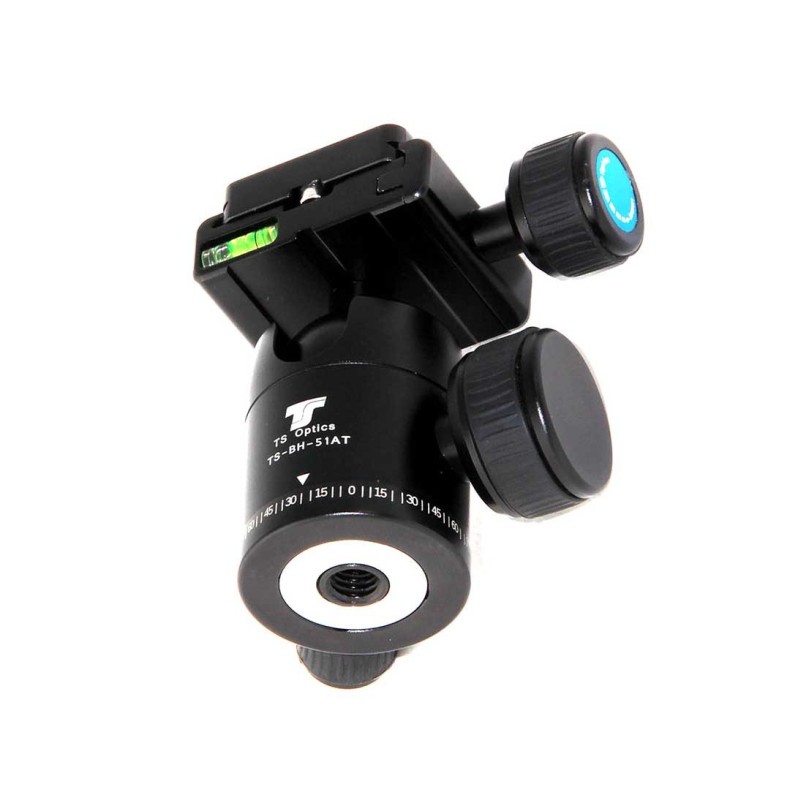

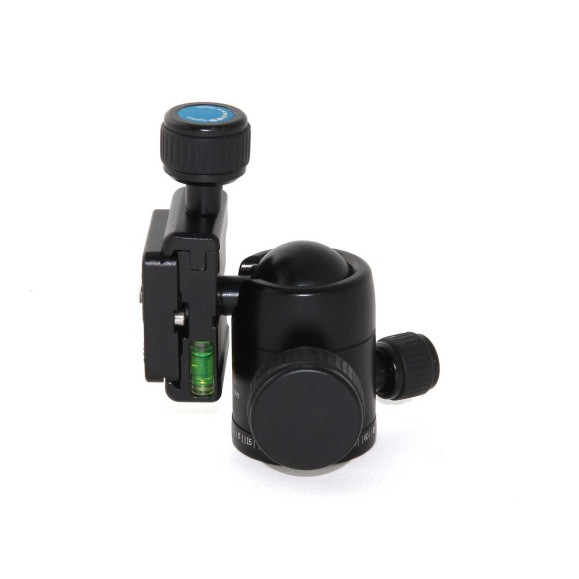

Compact ball head TS-Optics BH-51AT for photographic tripods and 8Kg load capacity
This compact ball head from TS Optics impresses with its optimal properties and elegant workmanship. Thanks to the precision workmanship, this head can carry instruments weighing up to 8 kg despite its weight of only 300 grams. Overall, the BH-51AT head convinces with many useful functions.
Features of the TS BH-51AT tripod head:
♦ Free rotation - in all directions ... The ball head allows very fast panning, such as when a bird is approaching. Or switch from portrait to landscape format in a matter of seconds. You can lock the position at once with a single screw.
♦ 360° rotation ... Lock the camera and rotate the base. With this, wonderful horizontal panoramas are possible. The line scale and pointing arrow show the exact position, so you can always return to the starting point, e.g. for panoramic images.

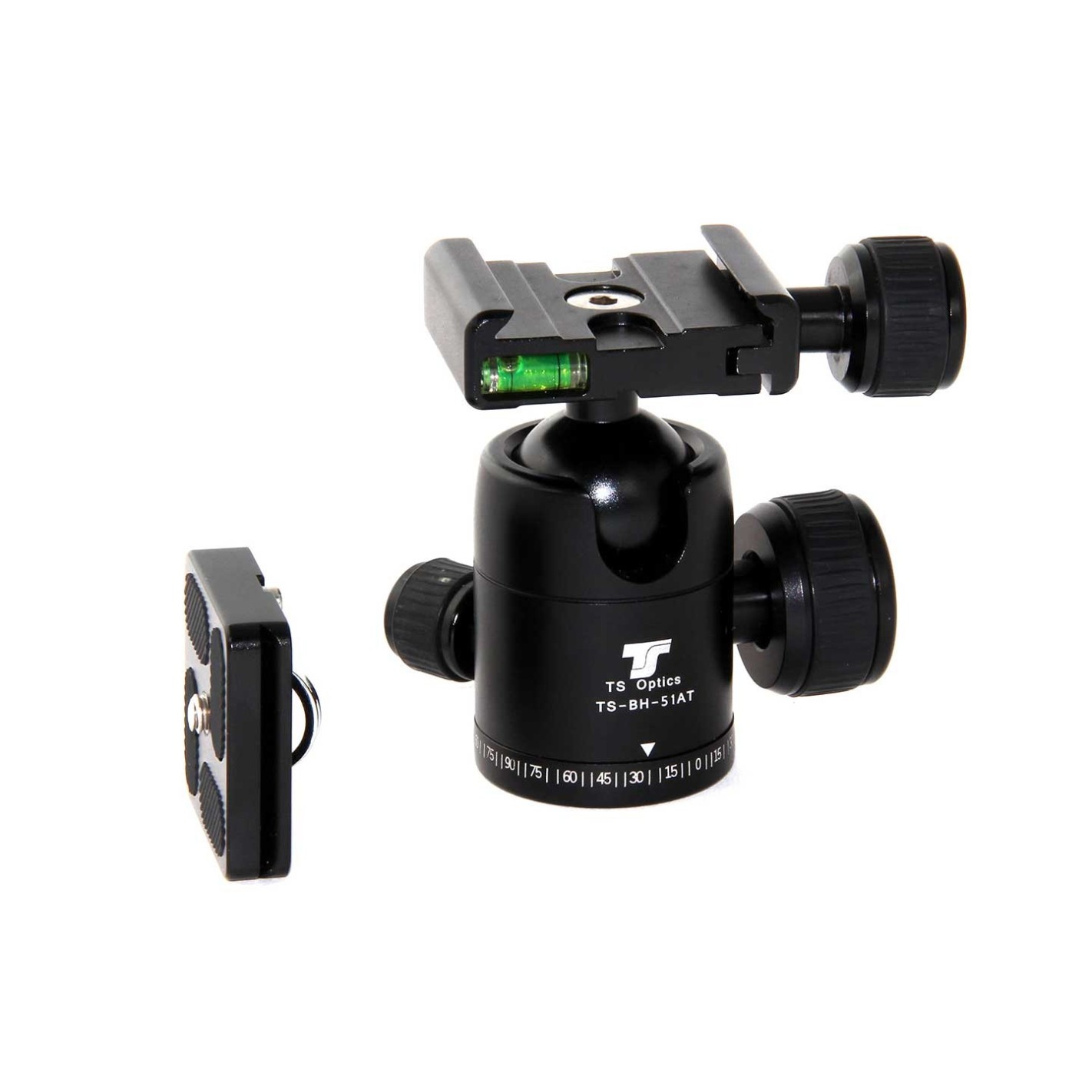

♦ Fast and reliable attachment of the camera or telescope thanks to the quick-release plate.... The quick release plate is simply screwed onto the 1/4" photographic thread. No tools are required. Now you can attach your instrument to the tripod head in seconds. You can slide the plate into place or even insert it from above, that works even faster. Once locked in position, nothing wobbles anymore.
♦ Adjustable balance point for even smoother pannings ... You can move the quick release plate 6 millimeters forward and backward without leaving the safe zone, so you balance your camera even better.
♦ A small bubble level is integrated into the ball head ... with it, you can perfectly level your camera. Ideal for very precise horizontal pannings.
♦ Easy adaptation to almost all common photographic tripods ... the BH-51AT has a 3/8" female thread on the flat base - perfectly suitable for photographic tripods such as those from TS Optics.
Technical Specifications:
- Type: Ball head
- Load capacity: 8 kg
- Camera connection thread: 1/4
- Tripod connection thread: 3/8"
- Weight: 300 grams
- Height: 8.5 centimeters
- Tilt range: 0° to 90° (horizon to zenith)
- Pan range: 360° (horizon to centimeter)
- Spirit level: Integrated in the ball head
- Attachment: Ball head and 360° rotation by means of large clamping screws
- Quick release: One quick release plate
- Base plate diameter 40 mm with 3/8" female thread
