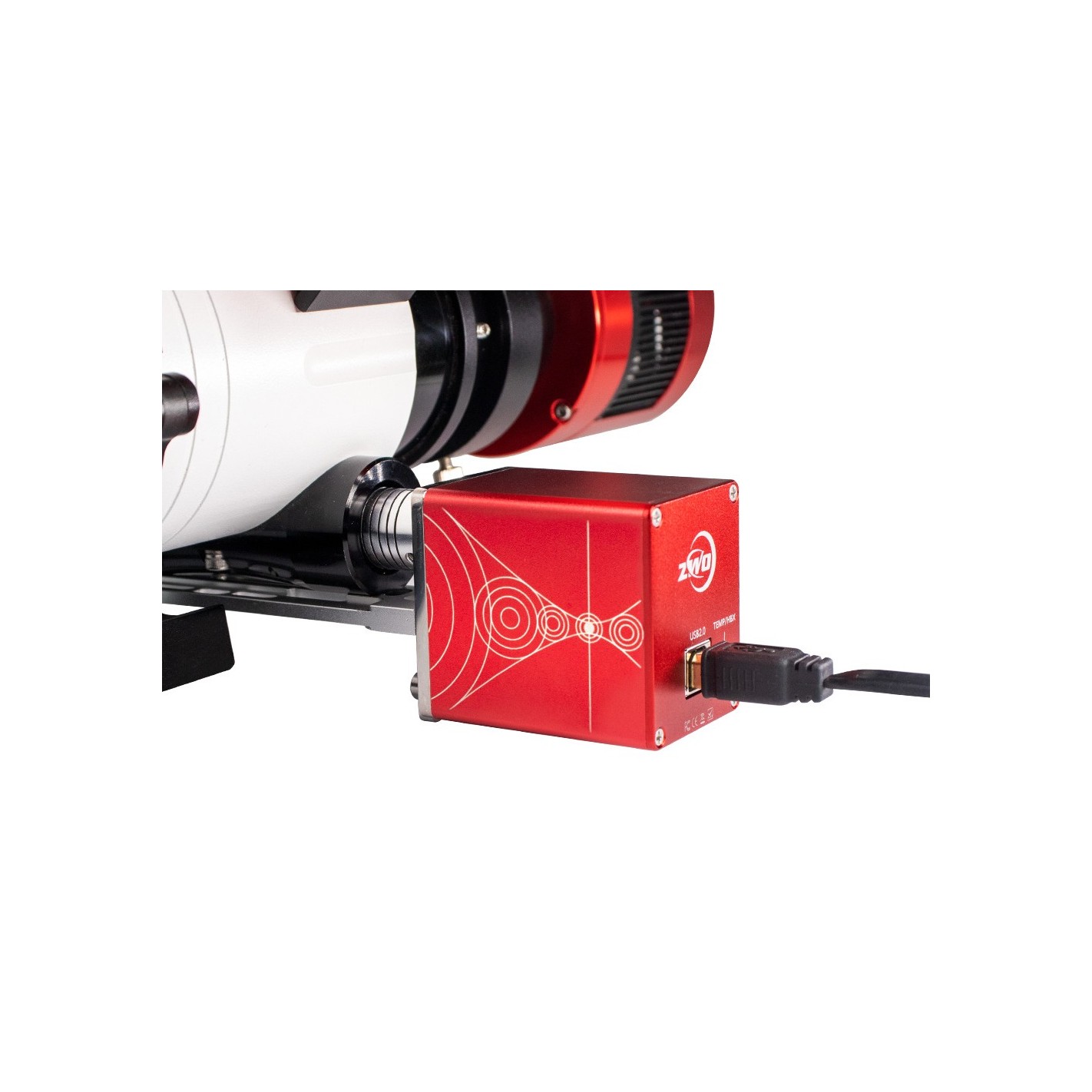

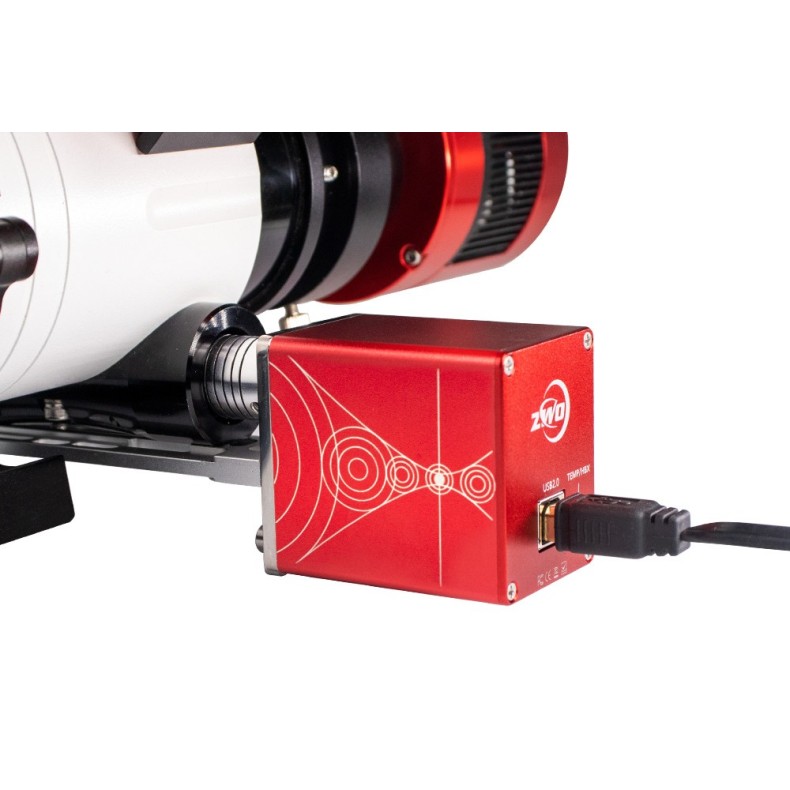

Introducing the new EAF, the latest innovation from the engineers at ZWO. This electronic focuser allows precise and dynamic focus control for planetary and deep sky imaging.
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 28 November - Thursday, 5 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 28 November - Thursday, 5 December

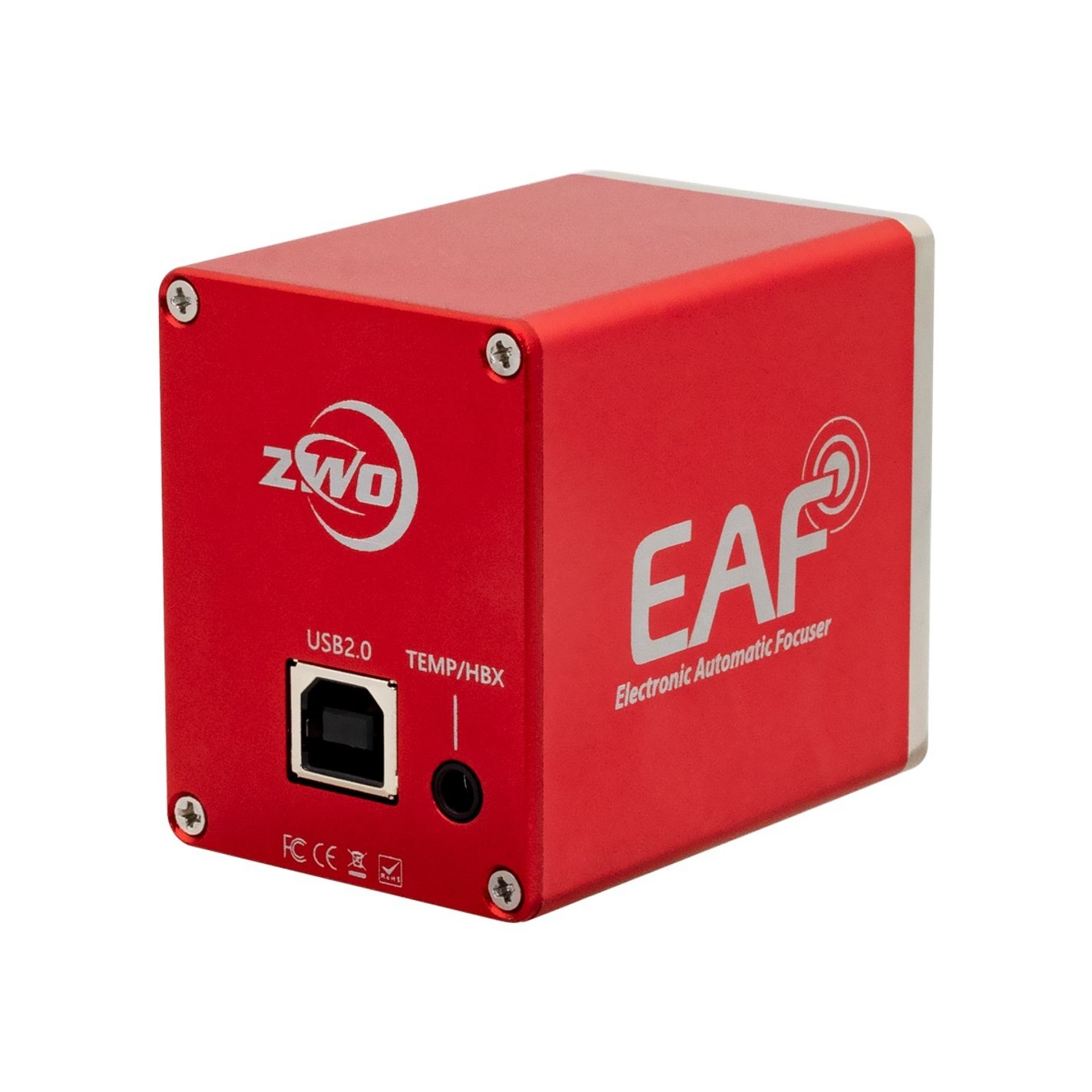

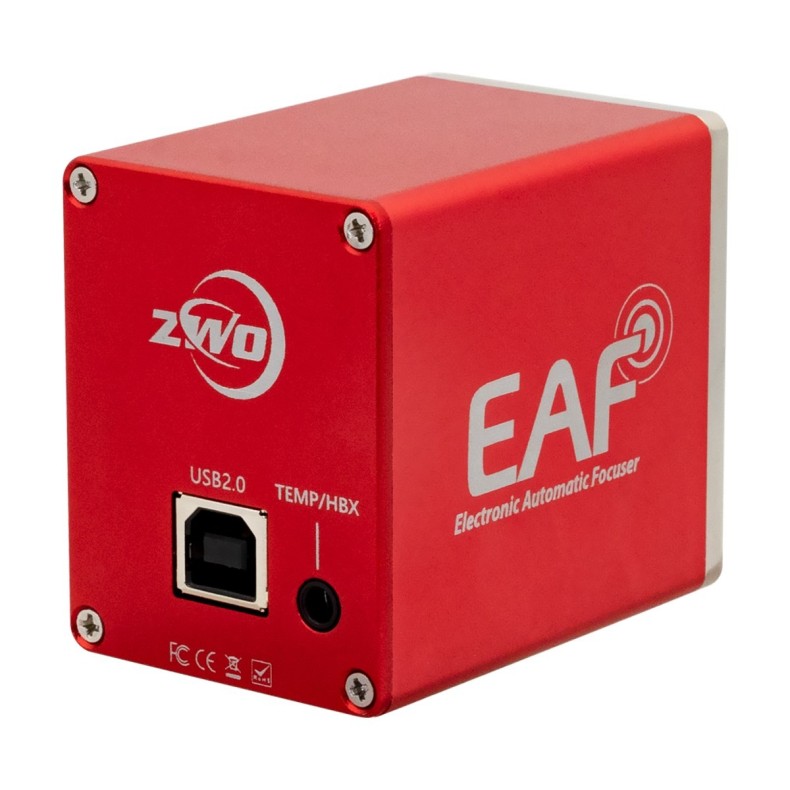

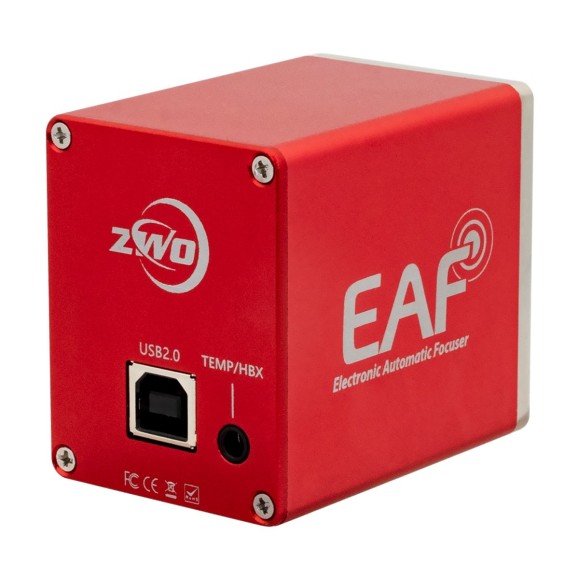

Focusing motor ZWO EAF standard version
Features:
The EAF comes in 2 versions: The standard version, presented here, includes: EAF body, flexible coupling, motor bracket, USB2.0 cable.
It is possible to purchase the standard version first and then upgrade it with the accessories included in the advanced version, to improve its performance:
- Temperature sensor
- Manual controller : This manual controller is connected to the ZWO EAF (Electronic Automatic Focuser). Its ergonomic housing, made of environmentally friendly APS material, provides a comfortable grip when handling and comes with a 3.5 mm female connector. The ZWO EAF hand controller provides an easy method of focusing the telescope, with IN and OUT buttons, a 2-line display, slow and fast speed control - a must-have for EAF users!
It is recommended to use the additional focuser and EAF on SCT and MCT models.
Specifications:
| Resolution | 5760 steps per revolution |
| Data transfer | USB2.0 type B port |
| Power | 5V via USB port |

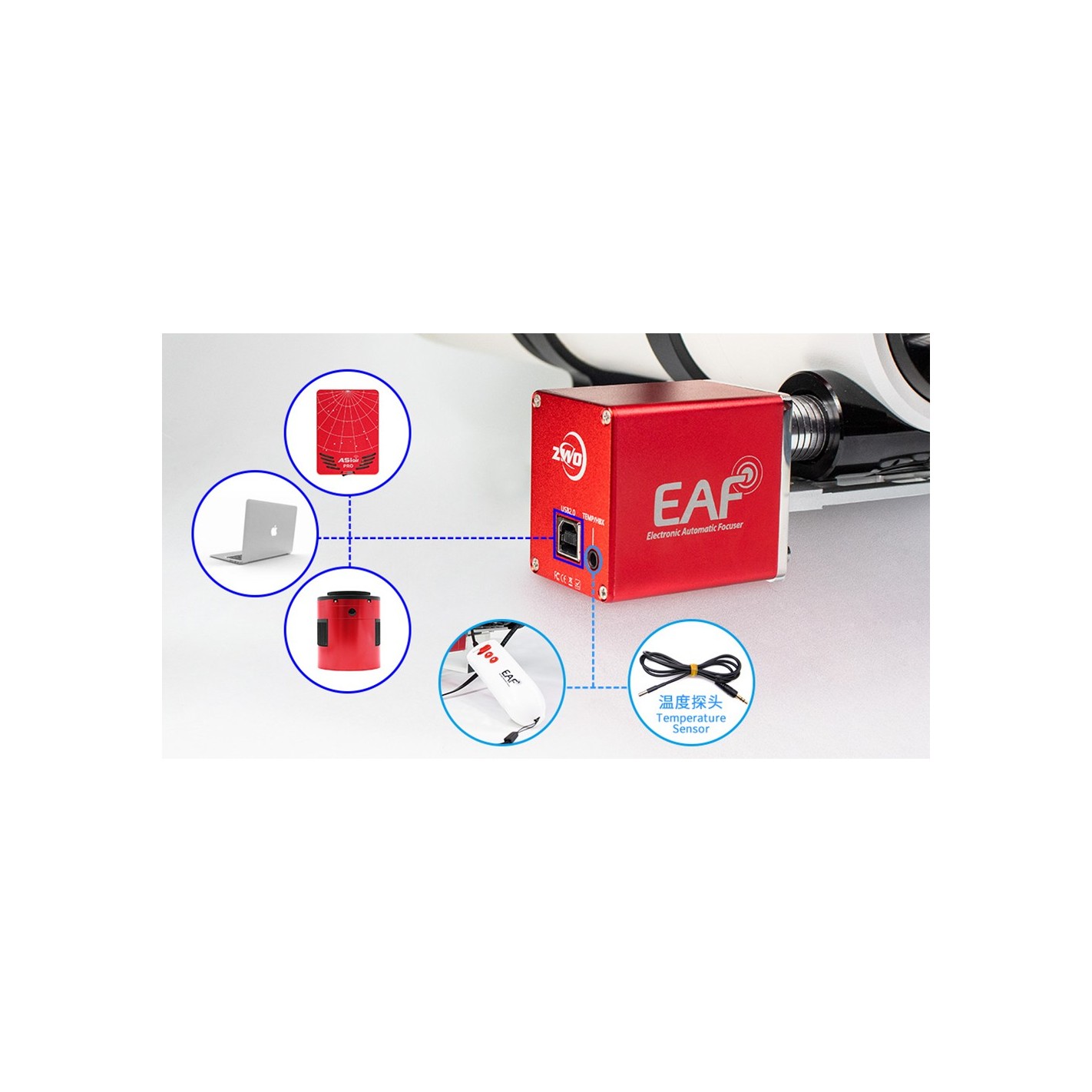

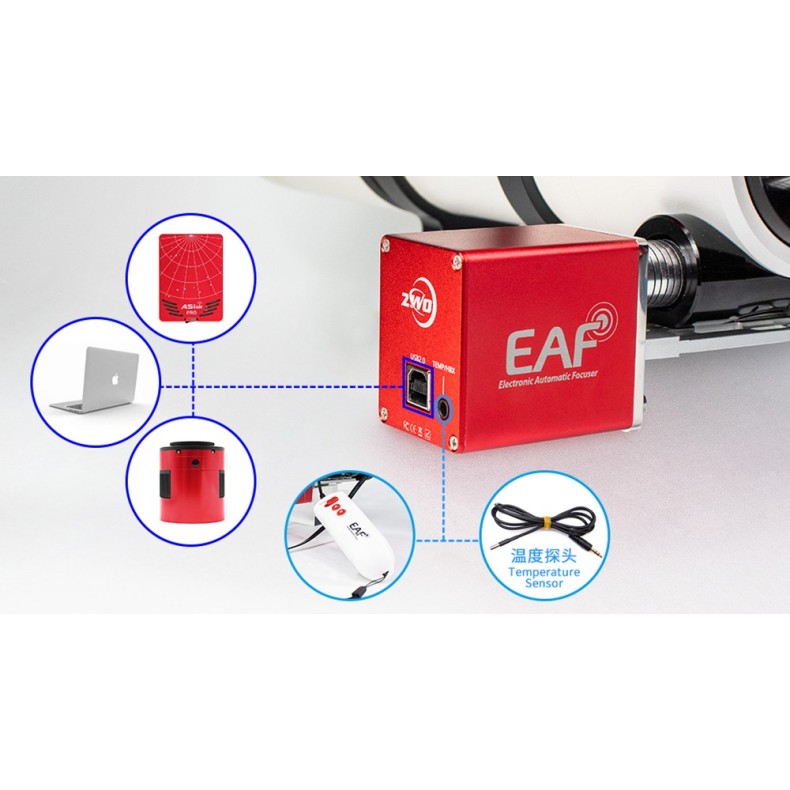

| auxiliary port | Optional manual control/thermal probe connection |
| Load capacity | 5kg |

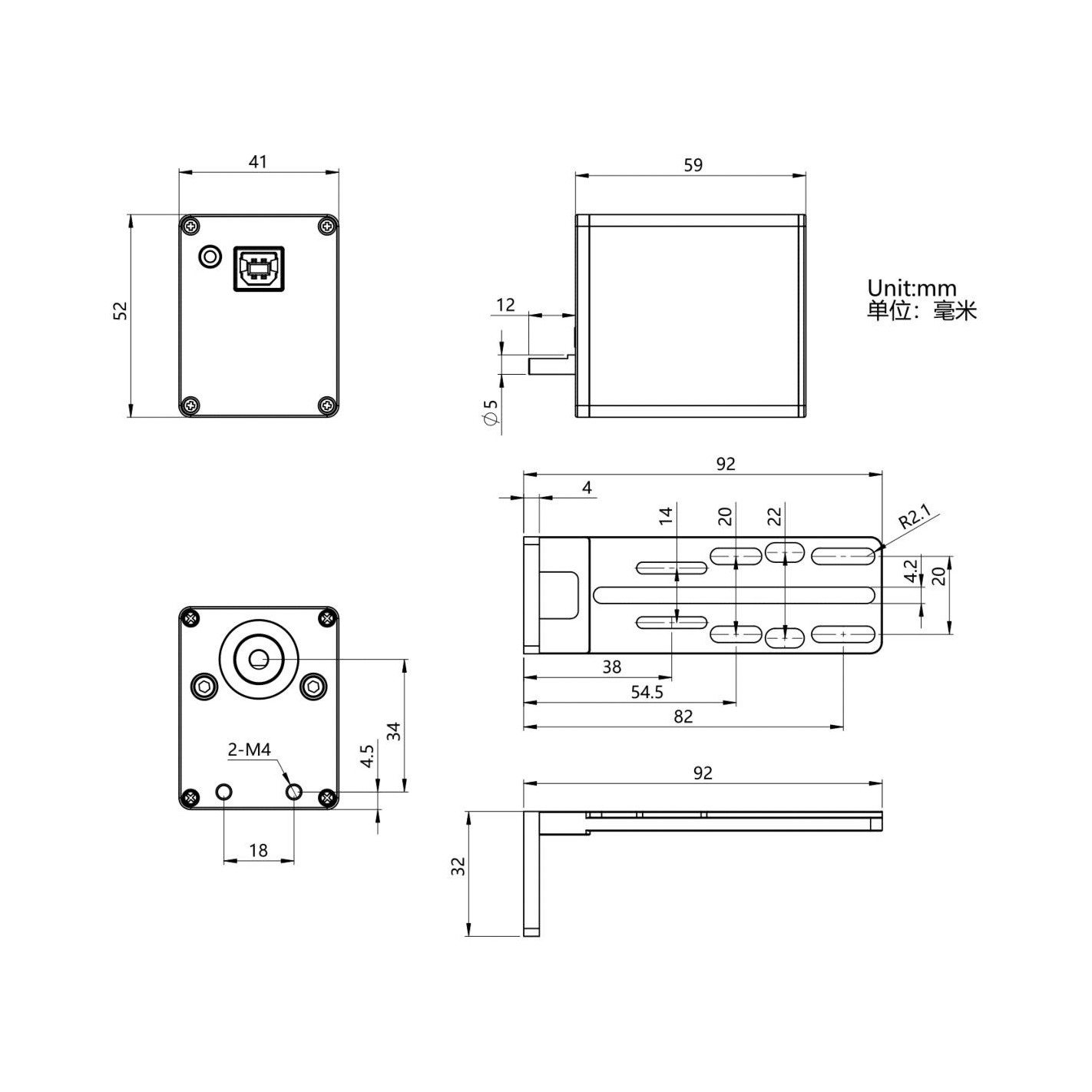

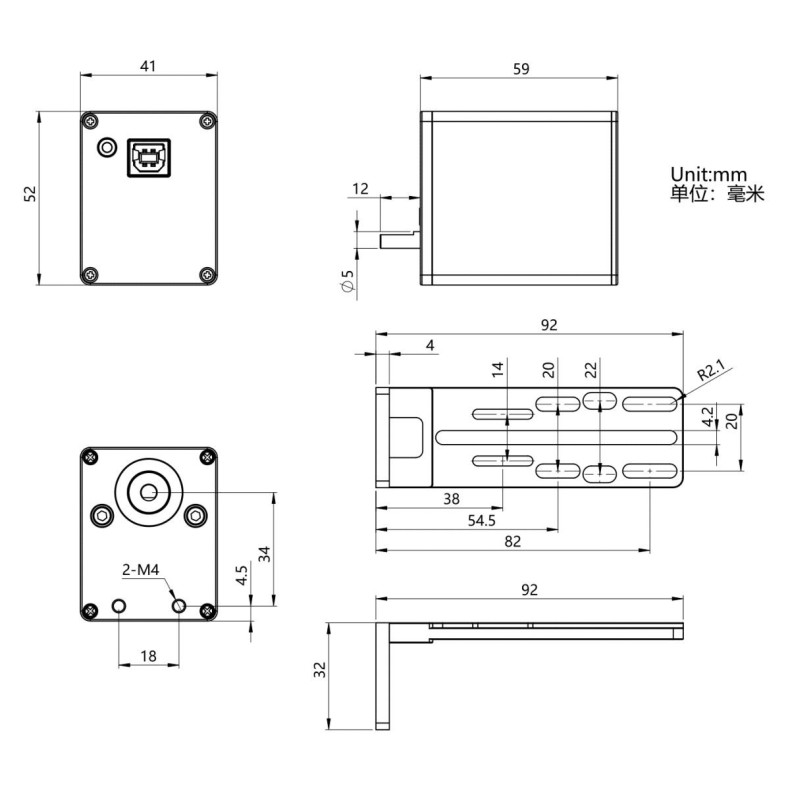

| Dimensions | 59mmx52mmx41mm |
| Weight | 277g |
Compatible telescopes:
Currently, the ZWO EAF mount for Takahashi is available (as optional accessories for ZWO EAF); with the following compatible models:
The following models are also compatible with the optional accessories for ZWO EAF:
We are working to offer more connecting brackets to existing focusers on the market. Support for other telescopes such as GSO will be available soon.
