Autofocuser Pegasus Astro FocusCube Zero for SCT

Autofocuser Pegasus Astro FocusCube Zero for SCT

Name: Autofocuser Pegasus Astro FocusCube Zero for SCT
Brand: Pegasus Astro
SKU: PEG-FCZERO-SCT68925
Price: 263.6 EUR
Availability: InStock

Reference PEG-FCZERO-SCT68925

Last items in stock

263.60 278.31 -14.71

VAT excluded Shipping 24/48h

FocusCube Zero
Essential for successful astrophotography sessions with your SCT telescope
Focus quickly, reliably and accurately your Celestron SCT telescope using the "FocusCube Zero".

Order it before 6 hours and 26 minutes and receive it between on Thursday, 28 November and Thursday, 5 December with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 28 November - Thursday, 5 December

Home delivery - International

Estimated delivery:
Thursday, 28 November - Thursday, 5 December

✖

Description
Product Details

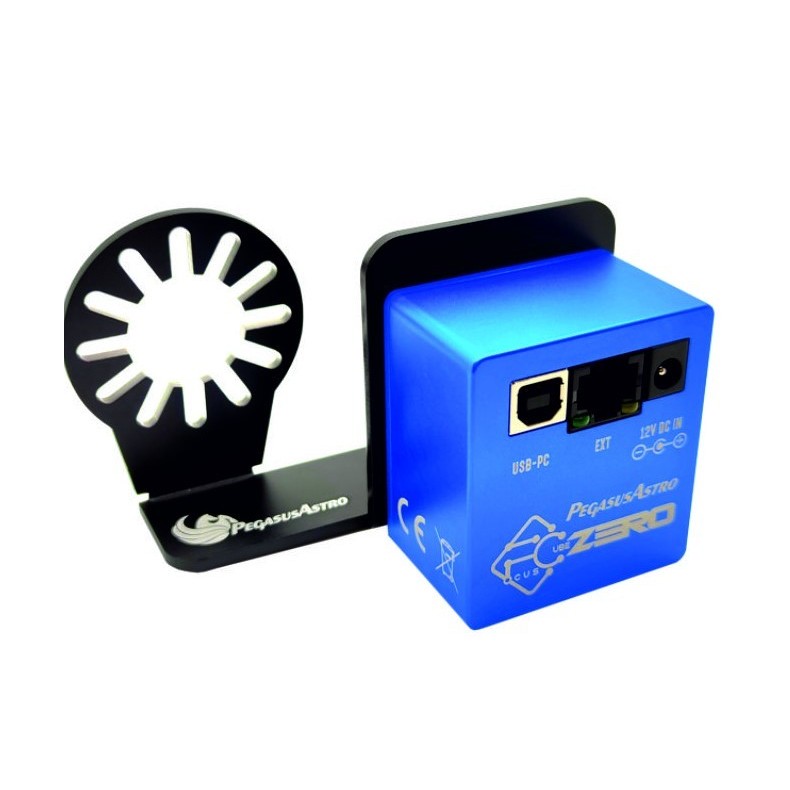

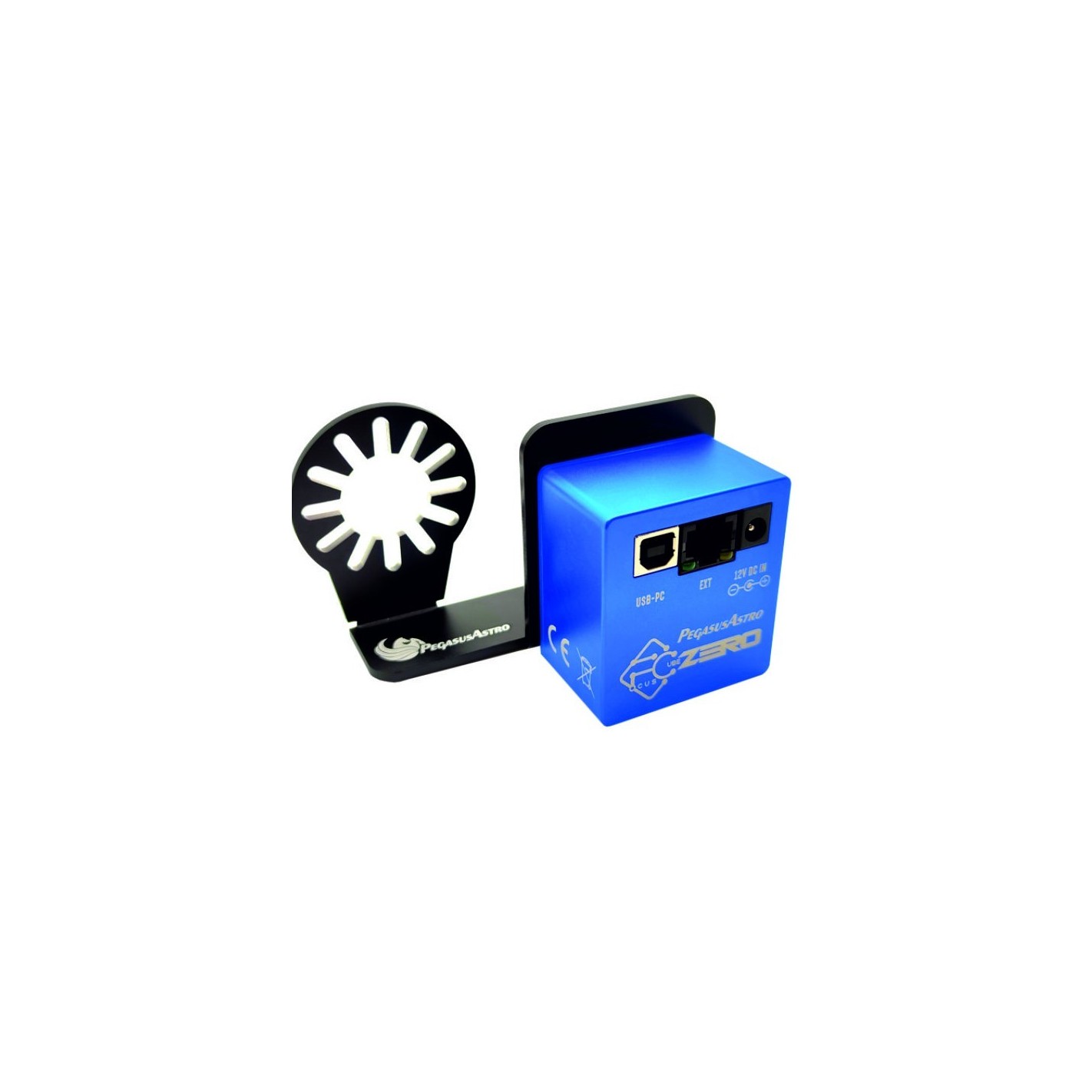

FocusCube Zero
A must for successful astrophotography sessions with your SCT telescope
Fast, reliable and accurate focusing of your telescope Celestron SCT using the "FocusCube Zero".

Designed in high quality with modern electronics, FocusCube can provide precise digital focus control from a PC. The device includes a stepper motor forthe electronics and stepper motor are enclosed in a compact housing. The electronics and stepper motor are enclosed in a compact size housing.

The stepper motor provides high speed, precision focusing and zero backlash - all you need is this device to focus! Connect the FocusCube Zero to your SCT telescope, plug in the power, connect the USB cable, download the ASCOM drivers or our Unity platform and you're ready to go!

IMPORTANT NOTE

FocusCube is a stand-alone device and includes controller functionality.
It does not include or require a physical handheld controller.
DO NOT pair with Dual Motor Focus Controller or any other controller on the market.
DO NOT connect this RJ45 port to the RJ45 Stepper output of the Ultimate Powerbox.

The RJ45 port on the rear is only for the handheld controller or the included temperature sensor.

Zero backlash stepper motor

The built-in bipolar stepper motor provides zero backlash motion.The motor allows you to move quickly from any focus point to another.Since there is no reduction gearbox, the speed is adequate to move the primary mirror in or out at very fast speeds.

Easy and repeatable V-curve focusing

A V-curve is the result of moving the focus of a telescope from an out-of-focus position toward focus and then further in the same direction out-of-focus again.
With FocusCube Zero you can easily achieve near-perfect V-curve lines that lead to a sharply focused image.

SCT Support

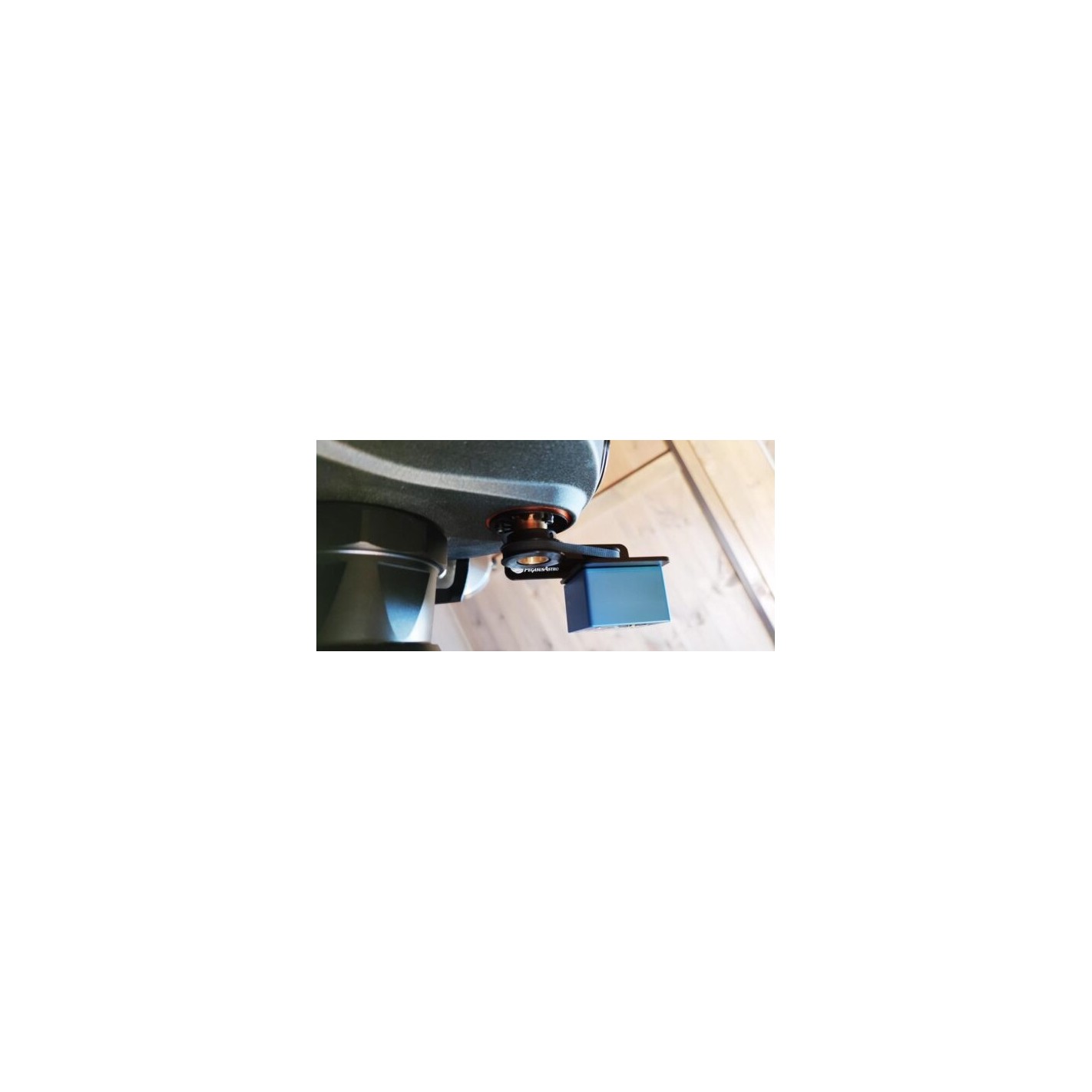

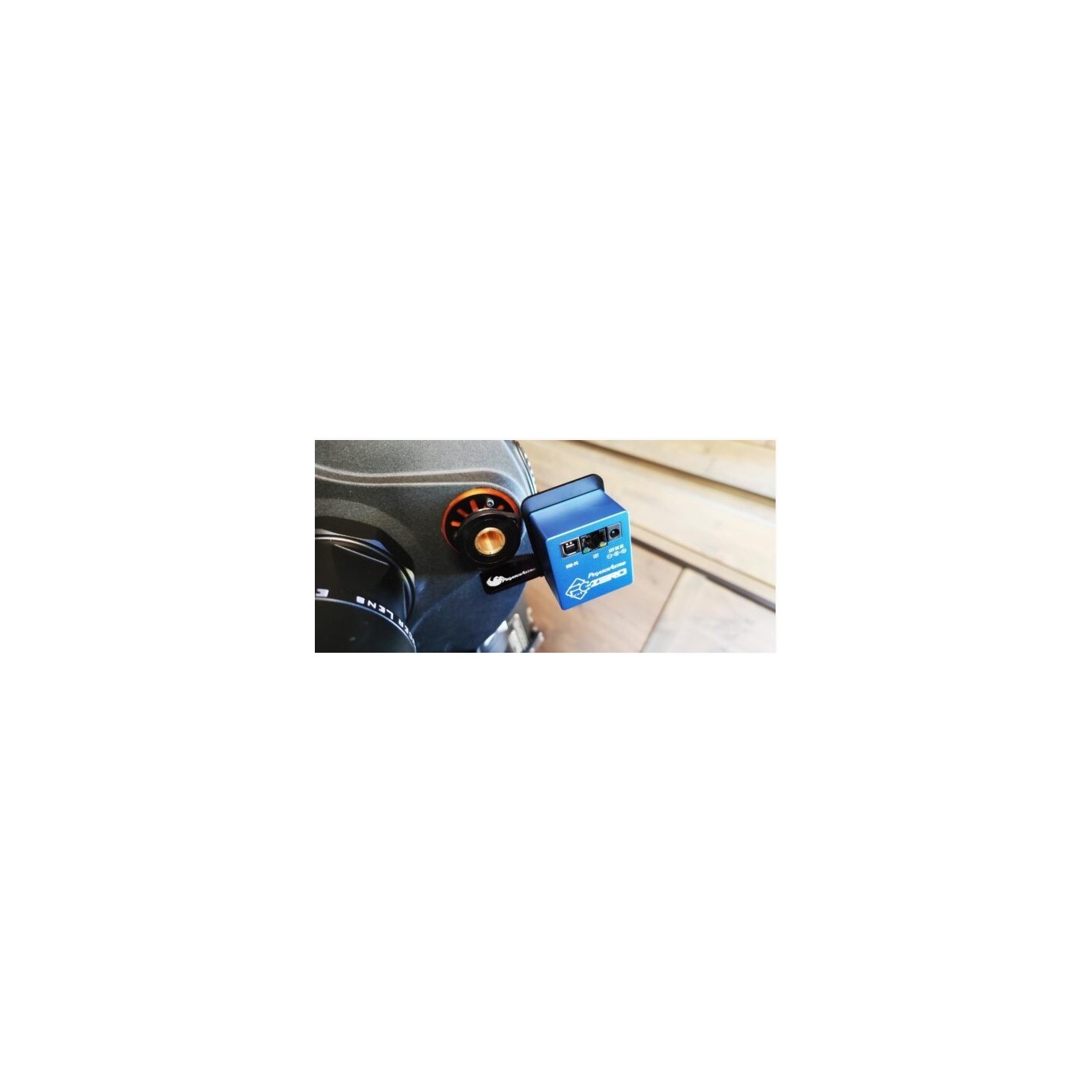

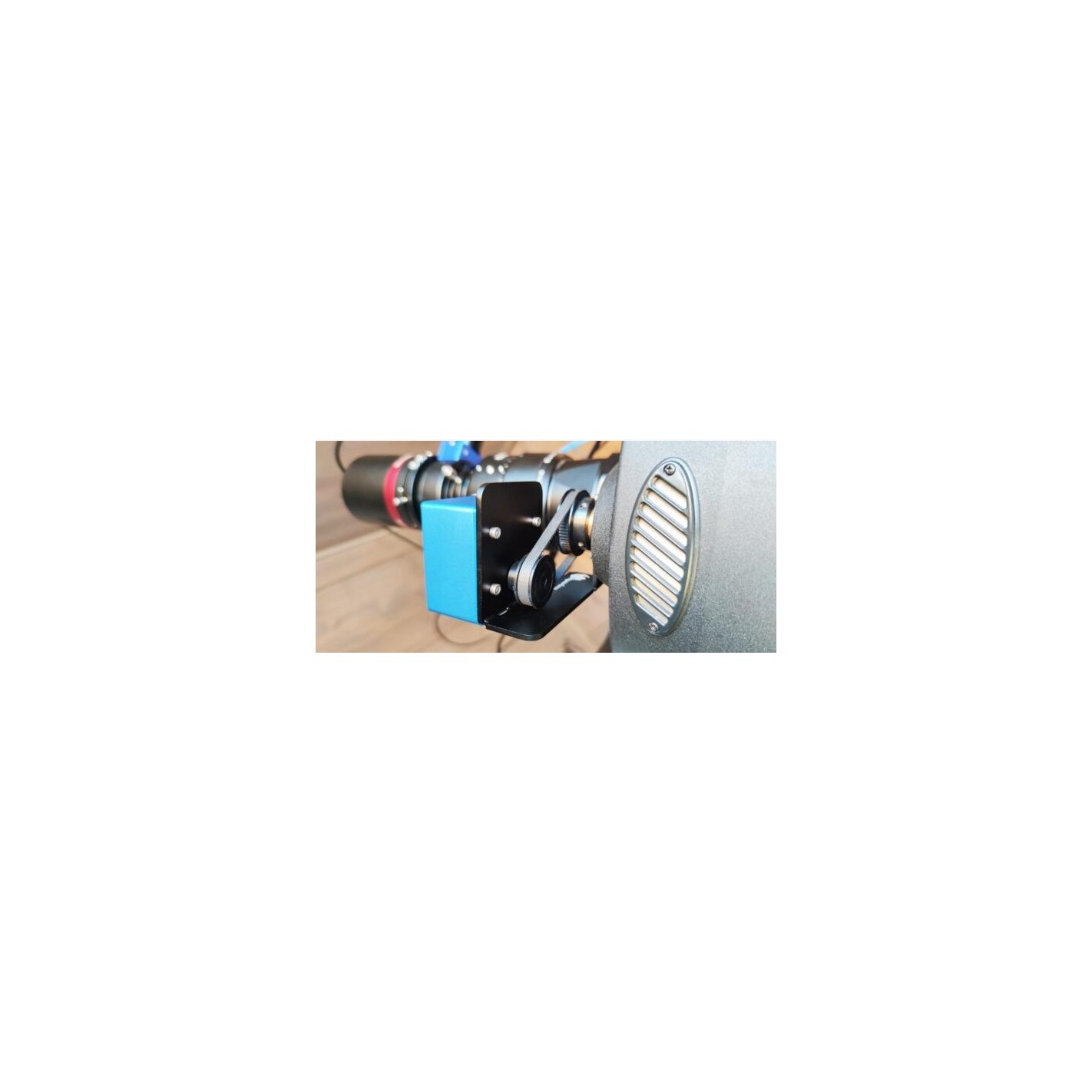

A specially shaped black anodized aluminum bracket, which is difficult to bend, can be attached to most SCT telescopes in the market Celestron.

We have successfully installed it in:

CelestronClassic and EdgeHD 6, 8, 9.25(SKU:PEG-FCZERO-SCT68925)
CelestronClassic and Edge HD 11(SKU:PEG-FCZERO-SCT11)
CelestronClassic and Edge HD 14(SKU:PEG-FCZERO-SCT14)
CelestronRASA 8"(SKU: PEG-FCZERO-SCT68925)
CellestronRASA 11"(V2: for V1 you will need the upgrade kit from Celestron) (SKU:PEG-FCZERO-SCT11)
CelestronRASA 14"(SKU:PEG-FCZERO-SCT14)

Please note that we offer three different versions of SCT.
The difference is in the inside diameter of the metal pulley and the length of the bolt in the package.
Make sure you have selected the correct type for your telescope.

additional information

Temperature probe

An external digital temperature sensor input is located near the motor connector.A one meter (3 feet) long digital probe is supplied.The probe can be placed close to the focuser so that the exact temperature of the focuser/environment can be viewed through the supplied software or ASCOM controller (probe is included in the package)

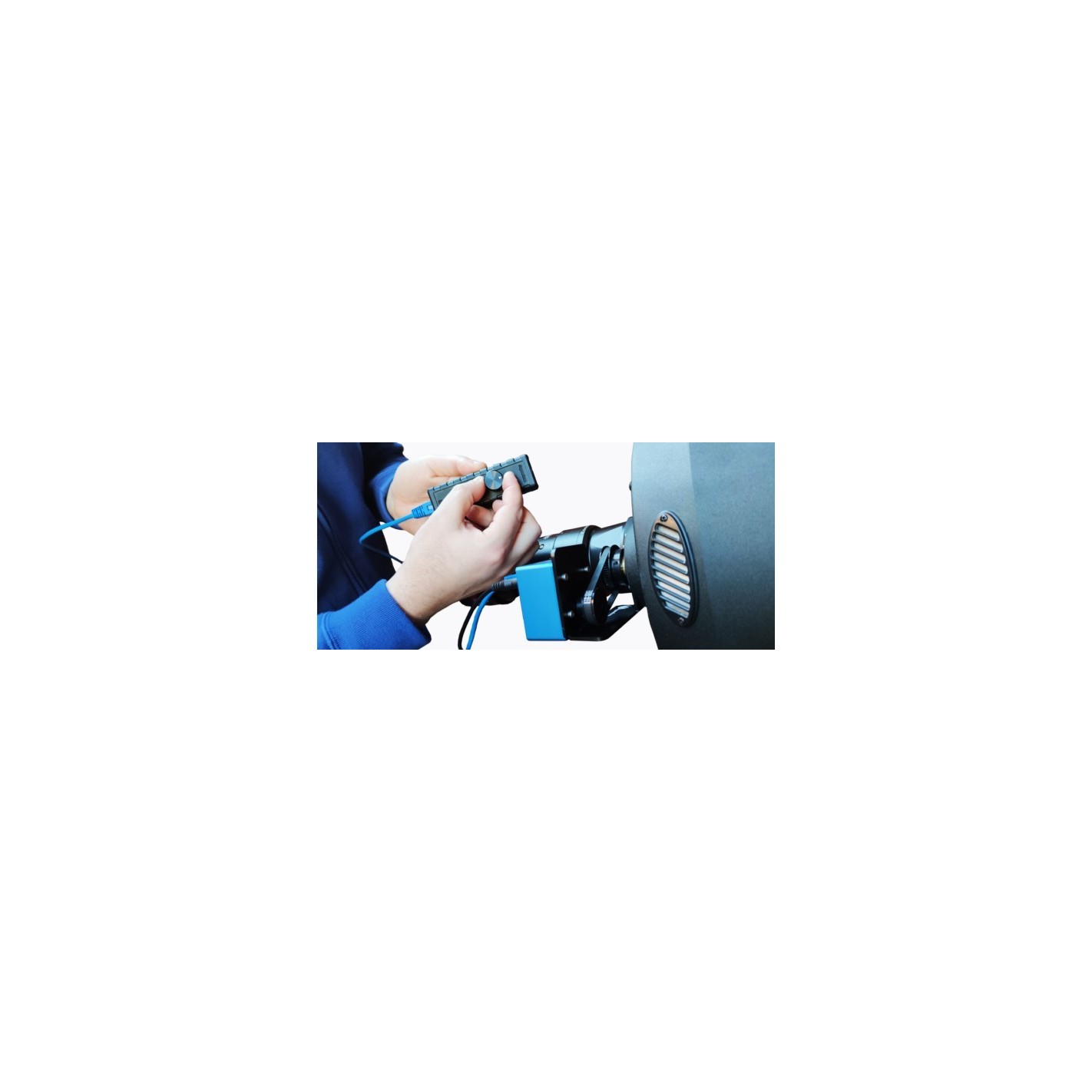

Expansion port/manual focus (optional accessory)

FocusCube includes an RJ45 expansion port on the rear of the cabinet.This port provides input for the temperature sensor.You can purchase ahandheld controlleroptionalfor manual focus control for those wishing to add this functionality

Compatible with ASCOM

The controller is fully compatible with the latest ASCOM 6

INDI compatible (open astronomical instrumentation)

Pegasus Focuscube is fully INDI compatible.The driver is included in libindi stable.
Official Indi controller:https://indilib.org/devices/focusers/pegasus-dmfc.html

Firmware upgrade support

The firmware supports reprogramming via USB 2.0 connection using the update software (only available for Windows), for future updates that may become available. We constantly receive feedback from our customers and continue to update the firmware and software with new features.

Dimensions and weight

52 x 58 x 35 mm / Weight 280 g

Unity platform support

Unity Platform allows full control and configuration of FocusCube Zero.

Unity platform support

Pegasus Astro Unity Platform is our new full-featured application.Our goal is to provide a robust and modern application that supports current and future products under one roof.

Modern interface enables full control of all devices Pegasus Astro.

In addition, a REST JSON API helps third-party software developers interact with our products.

As we continually develop our applications based on customer feedback, many innovative features will be added in future versions.

In the table

1 xFocusCube zero
1 xSCT support (daisy style)
1Temperature sensor (0.6 m).
1USB type B cable (1.8 m)
Aluminum pulleys (60 and 40 teeth) and drive belt
Screws length M3x6 mm (to fix the housing to the bracket)
3 xMetric screws and washers (for mounting the bracket on the SCT)

Technical Specification

Type	Value
Supply voltage	12 V - 13.8 V DC
Engine compatibility	The stepper motor is inside the enclosure
Motor output	None (the stepper motor is inside the cabinet)
USB connectivity	USB 2.0 type B socket
Thermal sensor resolution	9-bit Celsius temperature measurement
Power input connector	2.1 mm center positive socket
Engine specifications	Bipolar stepper motor Set zero Angle of separation: 1.8 degrees Holding torque: 0.8 kg/cm Holding torque: 0.18 kg/cm For motor pulleys C8 and C9.25 have: 16 and 60 teeth The ratio is 1:3.75 For motor pulleys C11 and C14 have: 16 and 80 teeth The ratio is 1:5
Dimensions (casing only)	52 mm x 58 mm x 35 mm
Weight (including stand)	280g
Operating temperature	-40 °C to +80 °C
