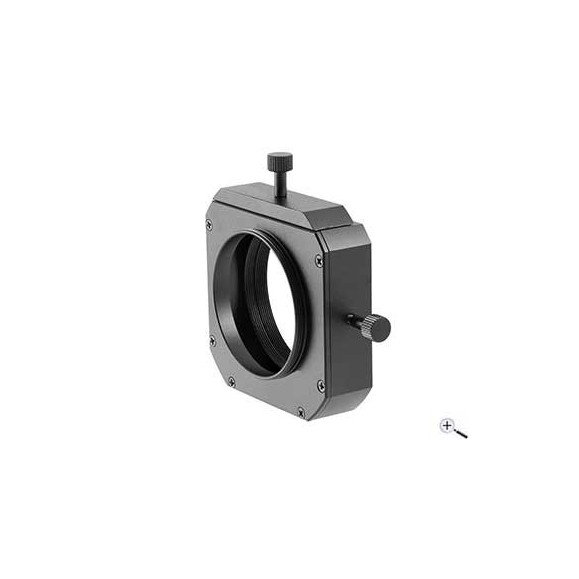

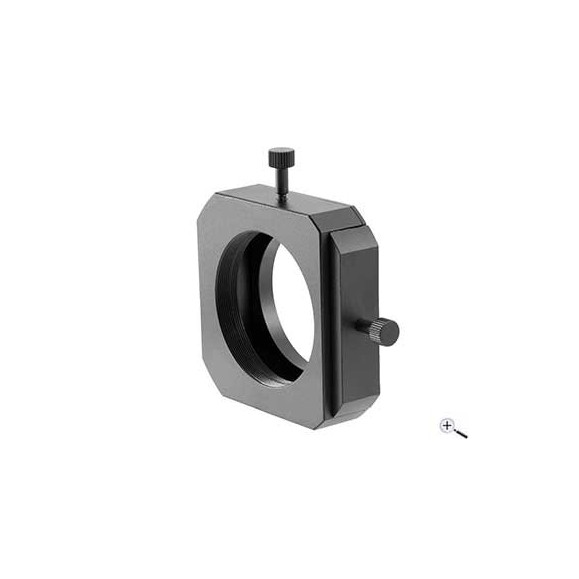

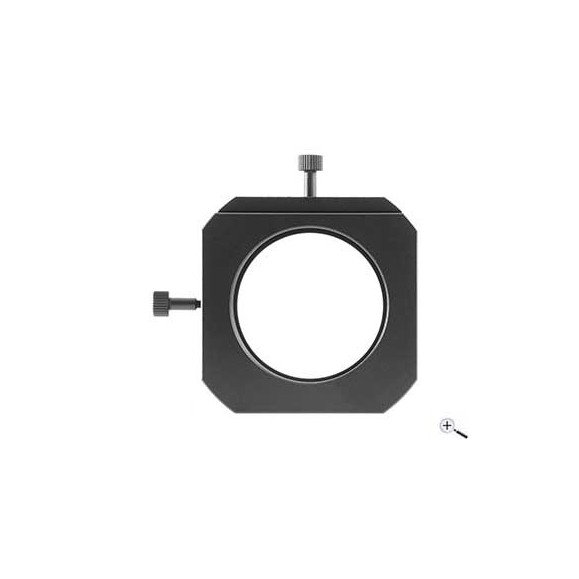

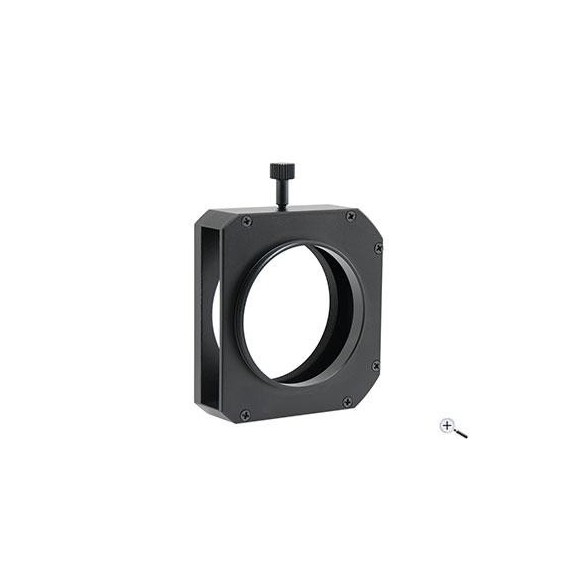

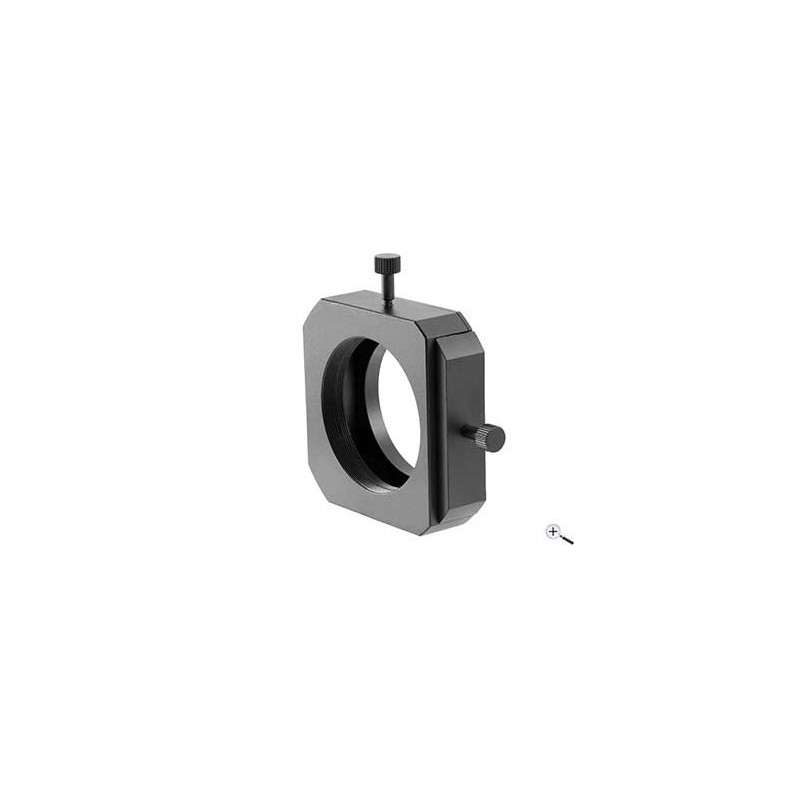

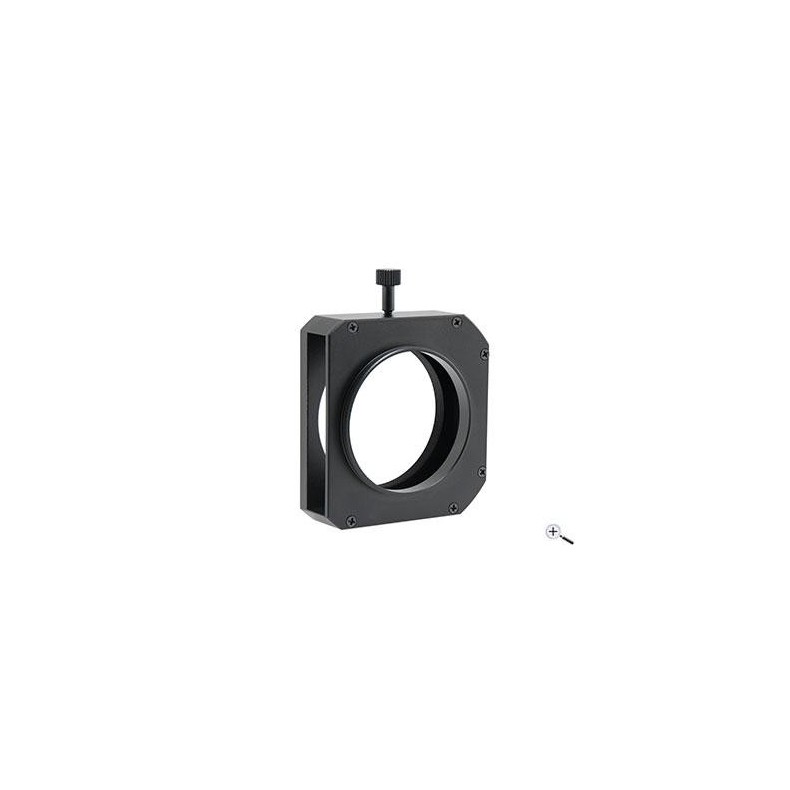

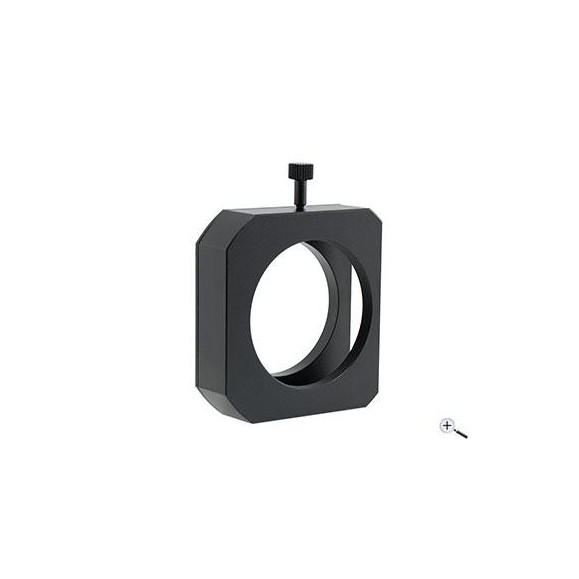

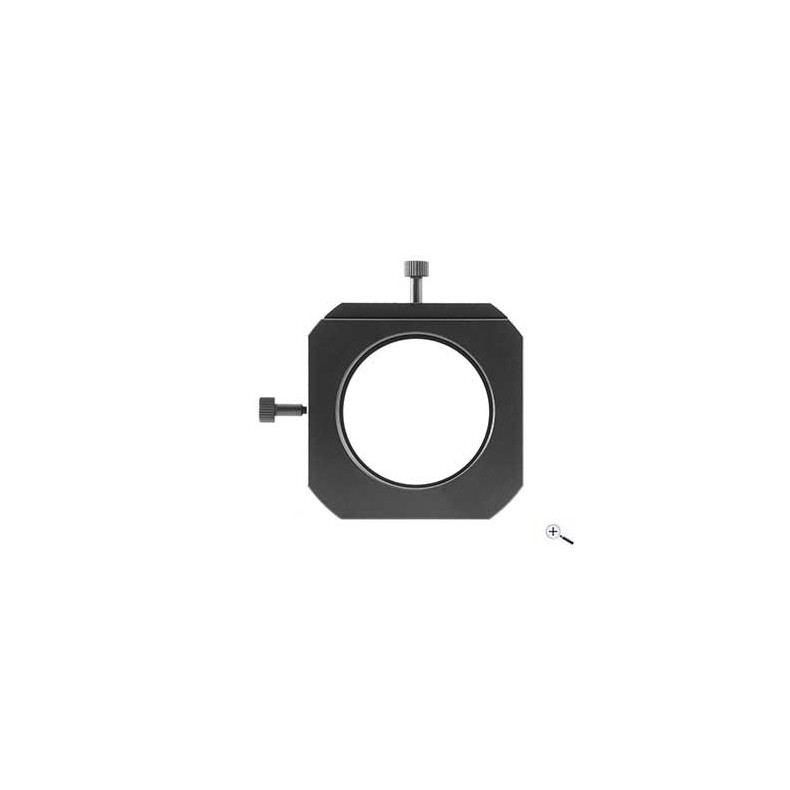

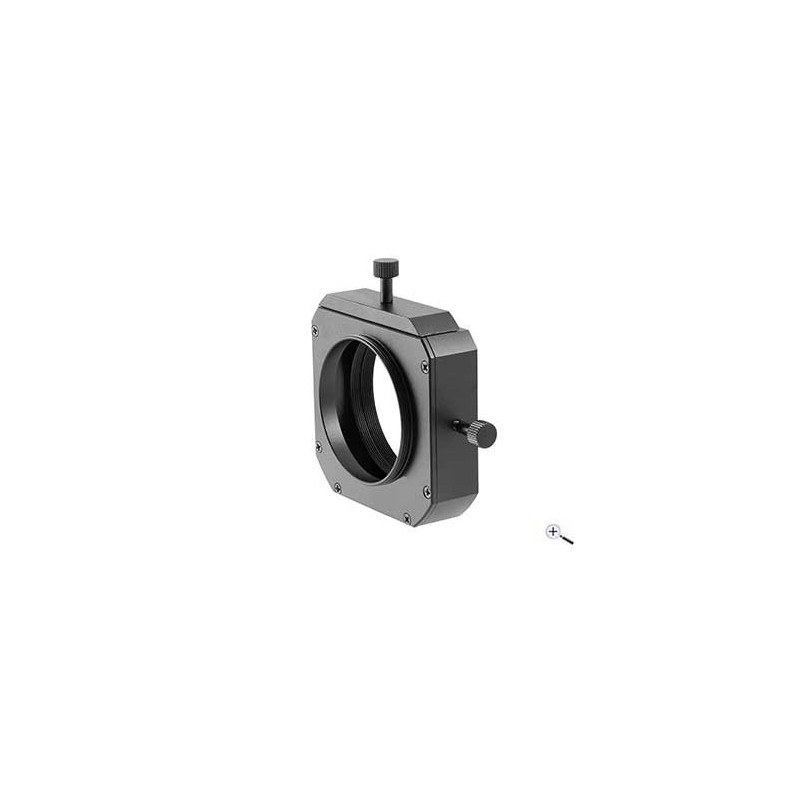

Filter changer kit 2" M48 TS-Optics TSFSLM48 with reinforced design

Filter changer kit 2" M48 TS-Optics TSFSLM48 with reinforced design

Filter changer TS-Optics with M48x0.75 connection for astrophotography and visual observation

Change filters in just a few seconds without having to take the camera on and off. Weighing only 100 grams and with a diameter of 80 millimeters, this quick filter changer is more compact and lighter than any filter wheel. The filter changer is a spectacular alternative, as any combination of 2" filters is possible. As a result, the TSFSLM48 filter changer becomes one of the most versatile accessories on the market.

Advantages of the TSFSLM48 filter changer:

• Thanks to its reinforced housing and longer M48 threads (male and female), the changer is suitable even for heavy cameras.
• At only 100 grams and 85 mm in diameter, the focuser is almost unladen, making it possible to change the filter even for smaller telescopes.
• Any 2" filter or filter combination can be used (the cell height can be up to 6.5 mm).
• Due to its length of only 18 mm, the changer can be easily combined with most cameras and correctors.

Areas of application of the filter changer TS-Optics:

• Deep sky astrophotography: L-RGB imaging, false color imaging, contrast enhancement with nebular filters and astro monochrome or color and DSLR cameras
• Planetary observation and planetary imaging: quick change of color filters for contrast enhancement. In photography, images can be well combined.
• Deep sky observation: shots without filter, with UHC filter, O-III filter and other filters can be compared directly, so you can always get the maximum detail of the object!

Practical advice from Telescopiomania:

Especially with mounts for astrophotography, the focus depends on a fraction of a millimeter. With our M48 adapter rings and extension tubes, you can adapt the filter changer exactly to your optical train.

Technical specifications:

• Connection on the telescope side: thread M48x0.75 (female) - 2" filter thread - length 4.4 mm
• Connection on the camera side: M48x0.75 thread (male) - length 4 mm
• Optical path: 18 mm (without M48 male thread)
• Approximate weight: 100 grams (does not overload the focuser)
• Diameter: 85 mm
• Reinforced version, suitable even for heavy cameras

Notes:

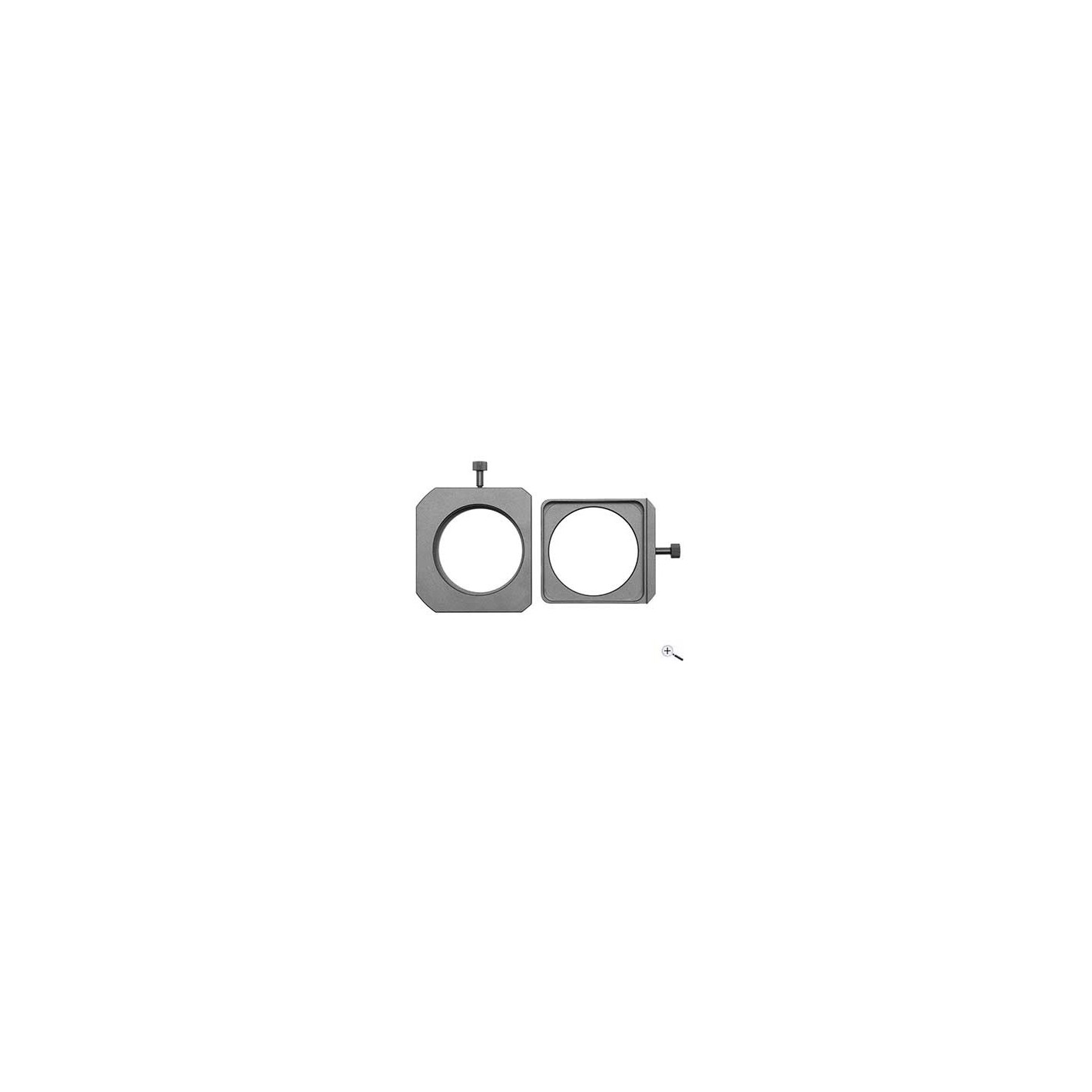

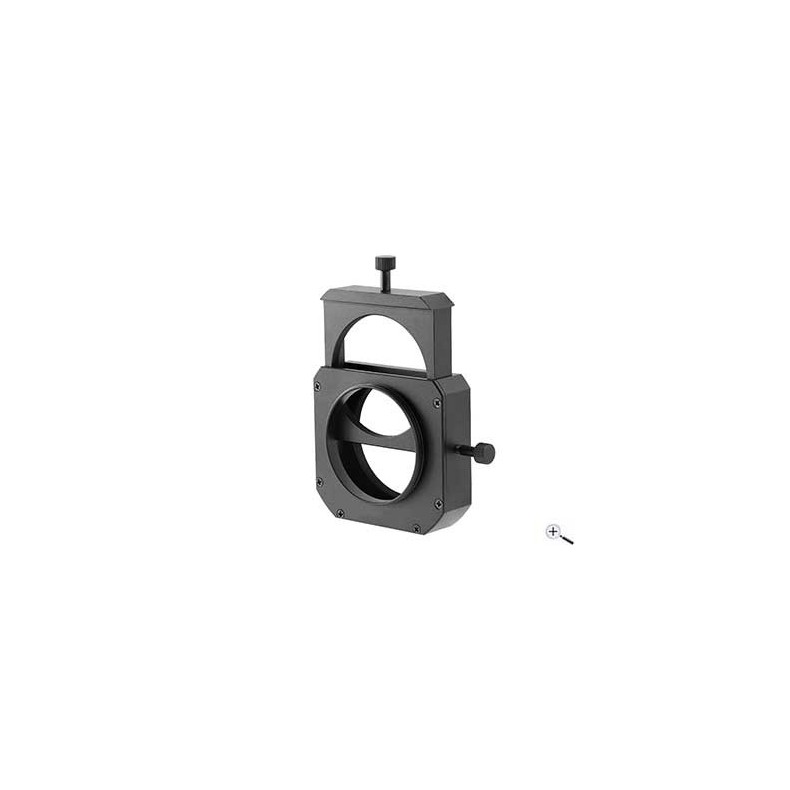

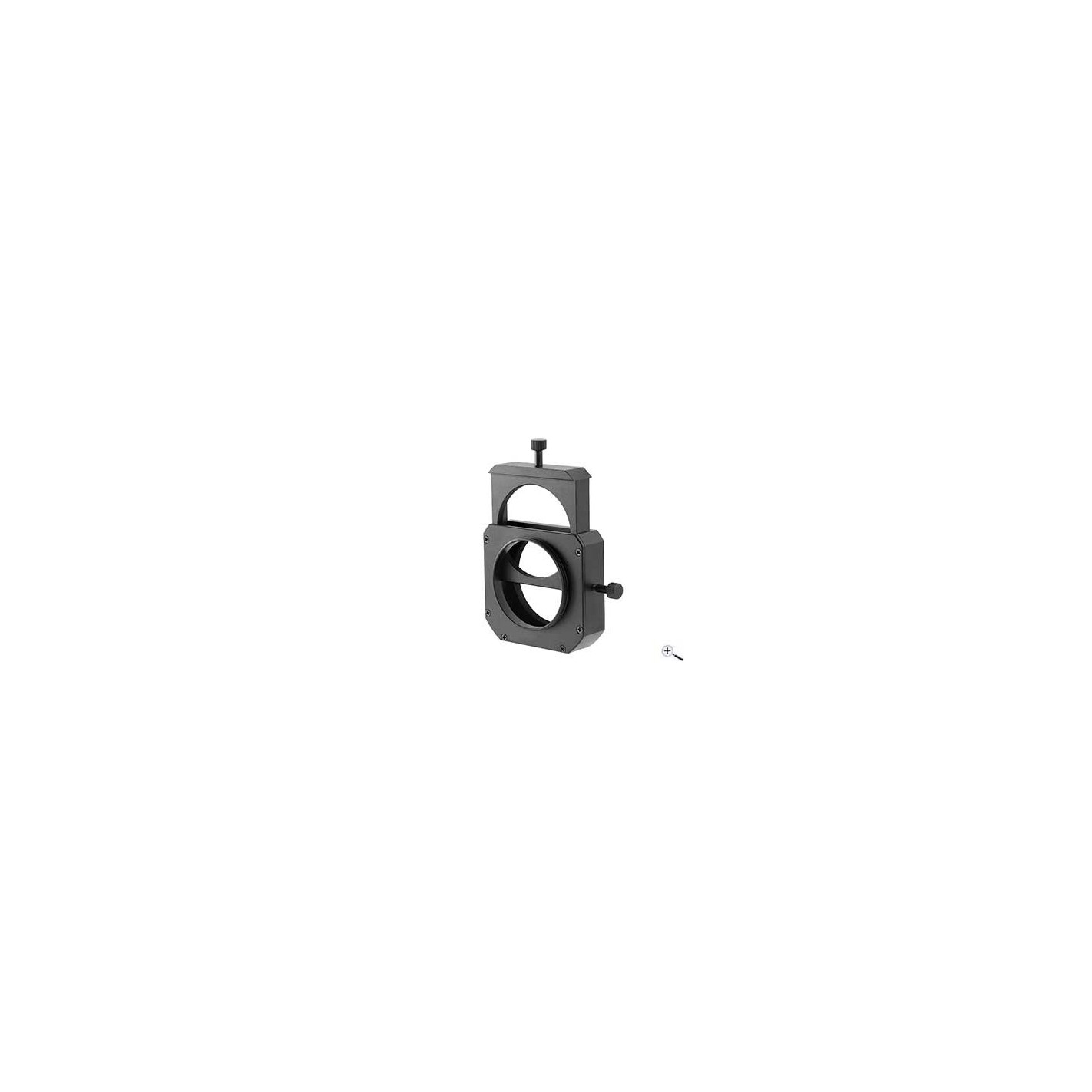

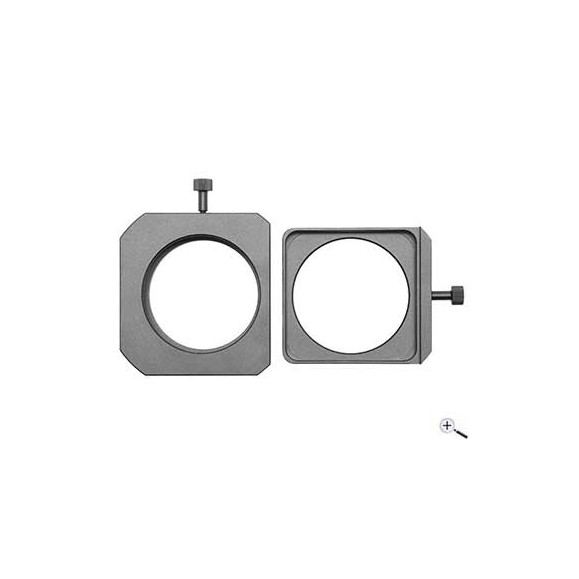

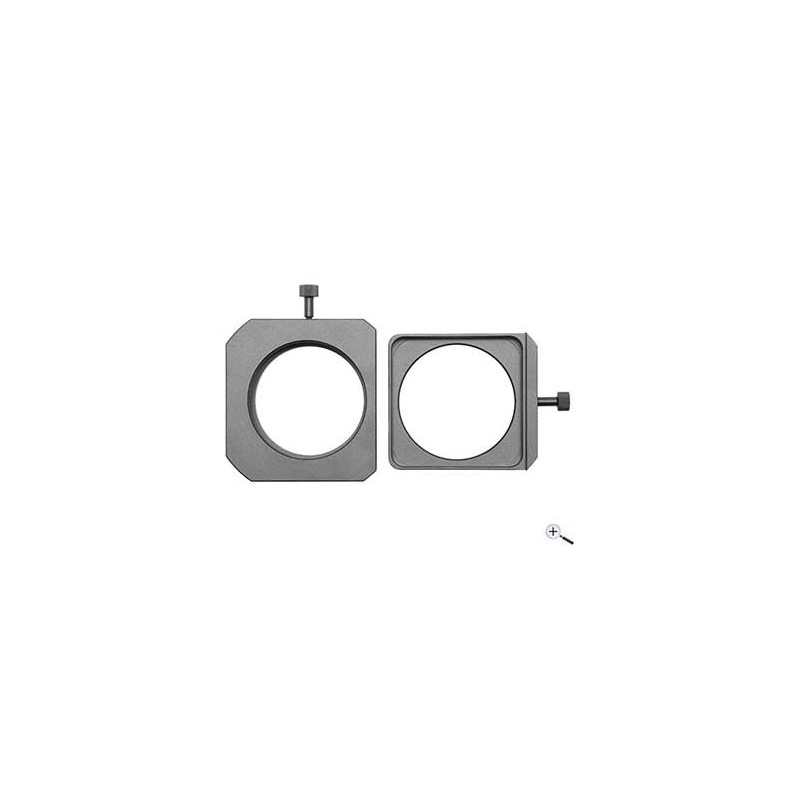

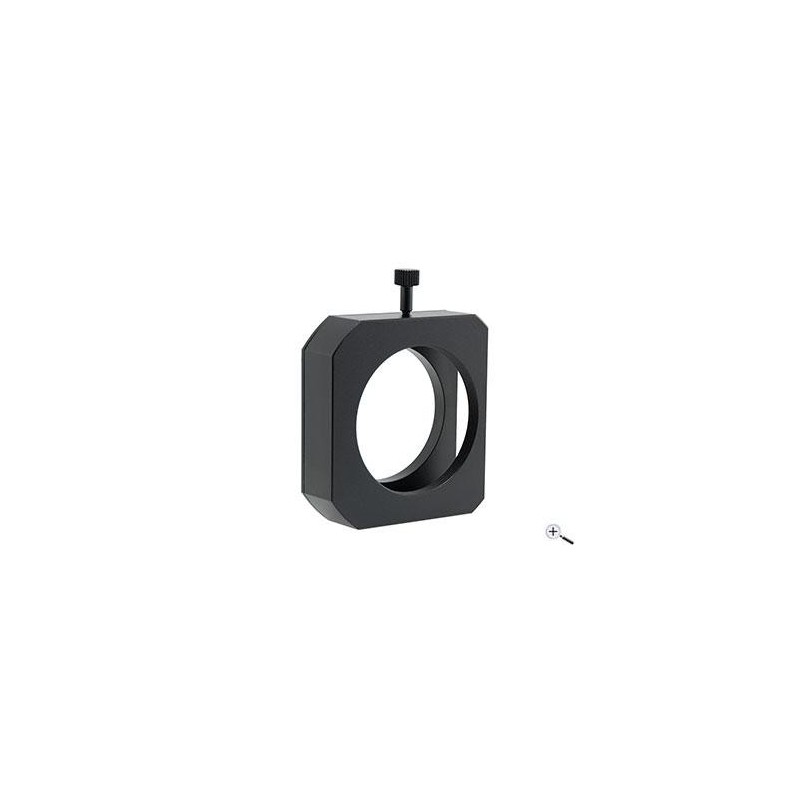

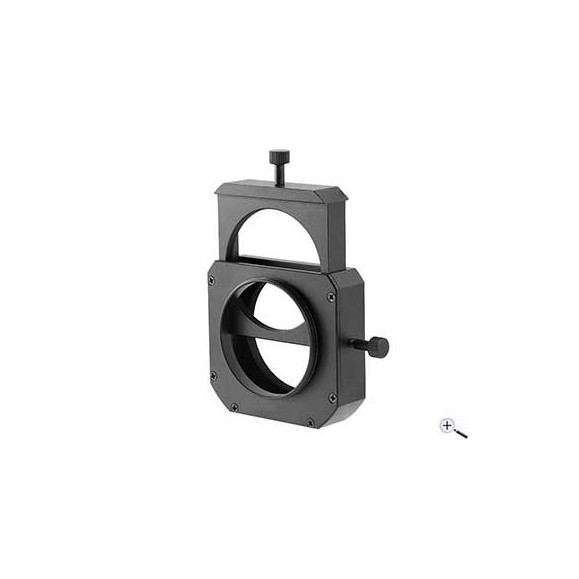

• In this kit we offer the chassis that threads into the optical train and the 2" filter box.
• The astronomical camera shown in the images is shown for information purposes only, it is not included in the product.
