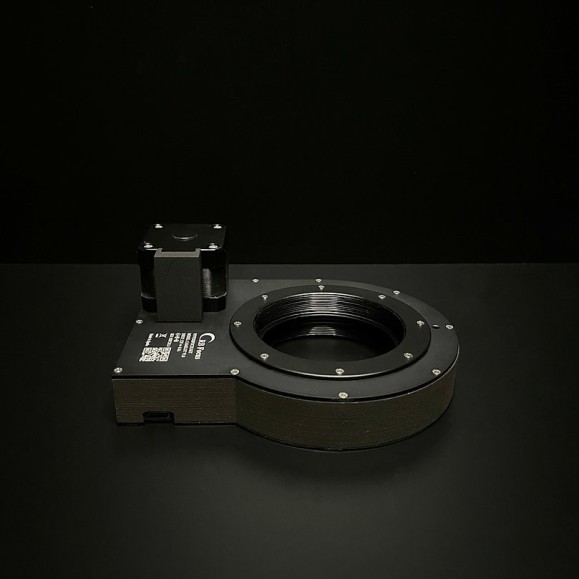

RB field rotator Focus Camelot

Field Rotator RB Focus Camelot

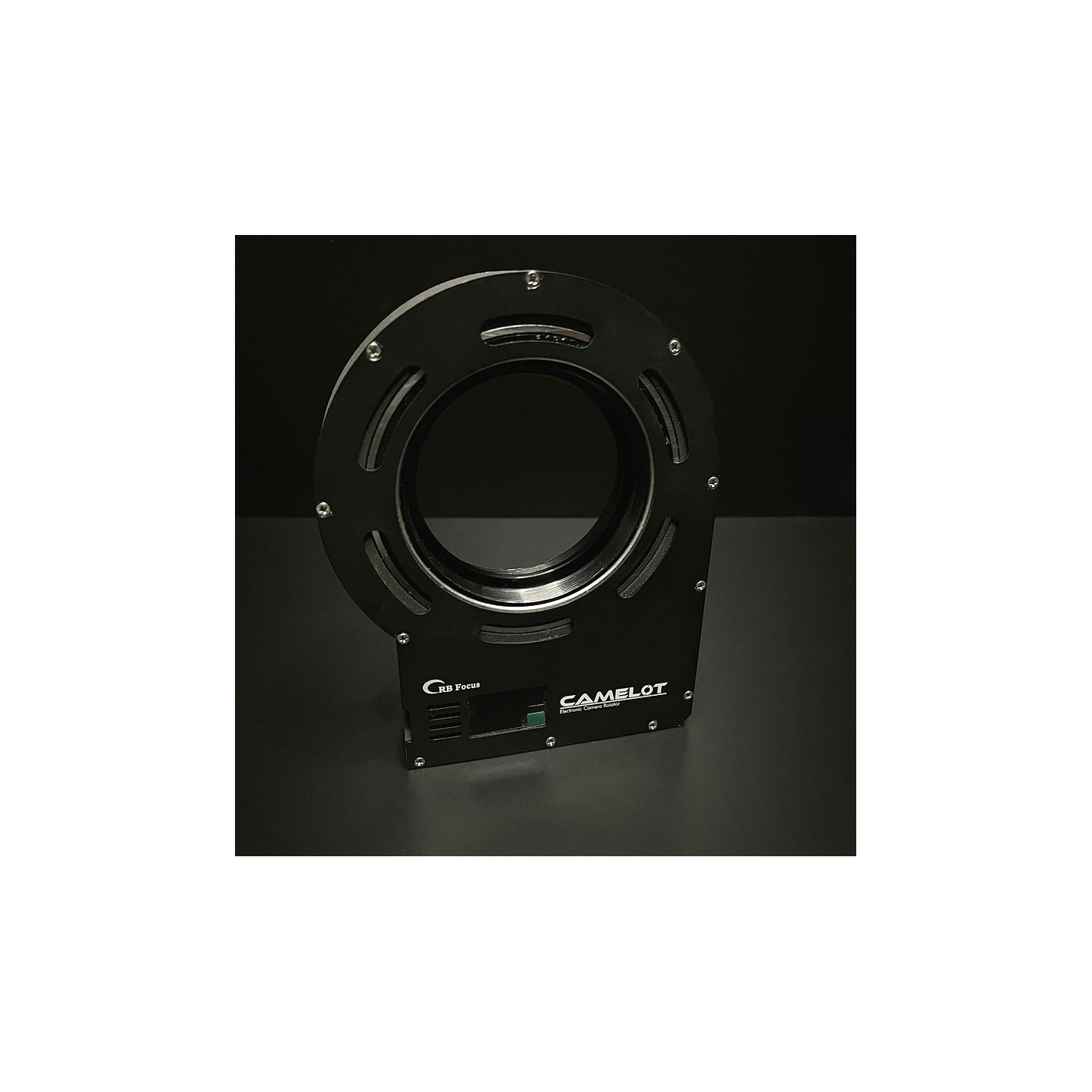

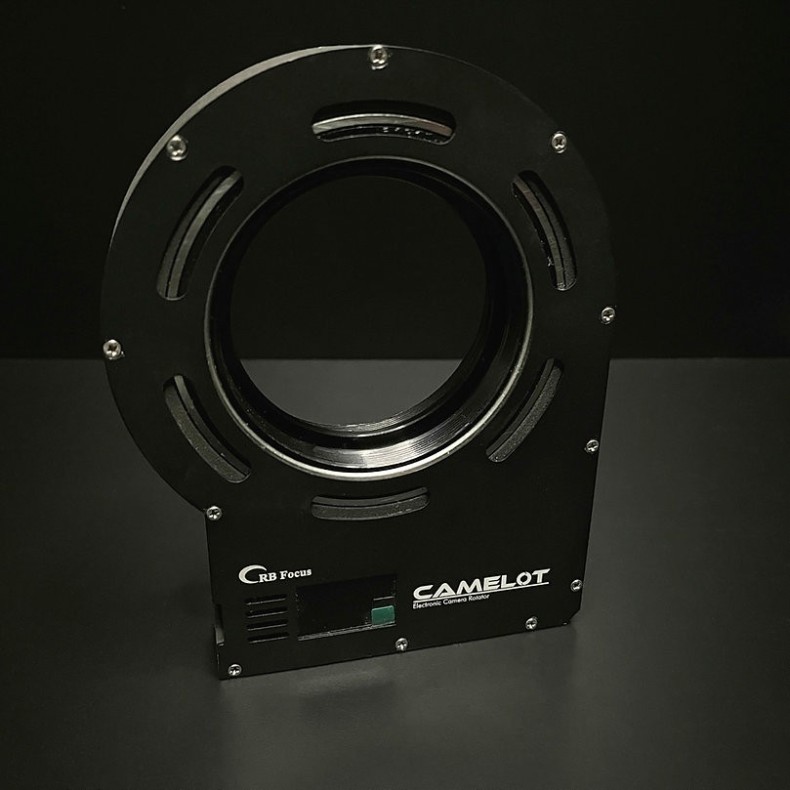

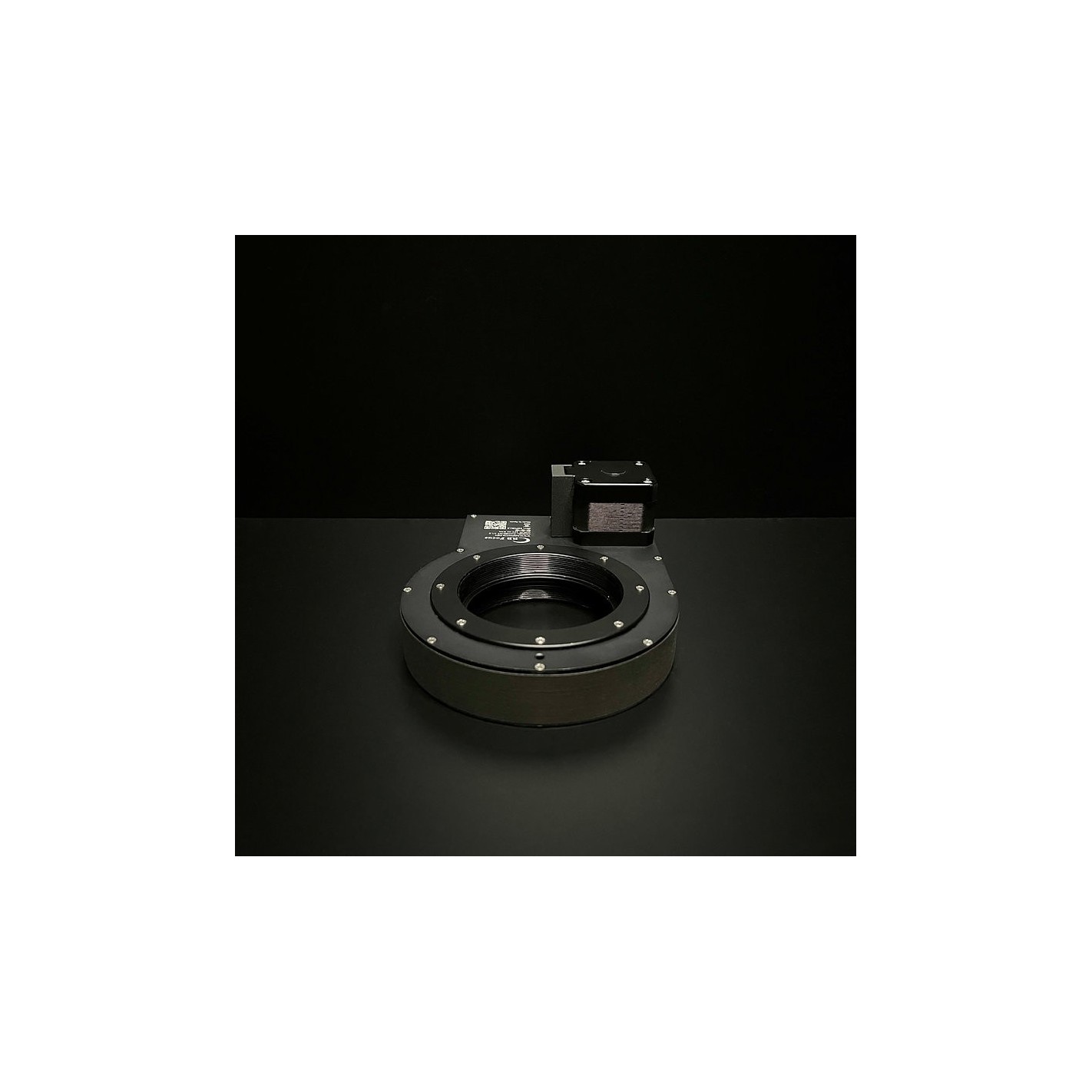

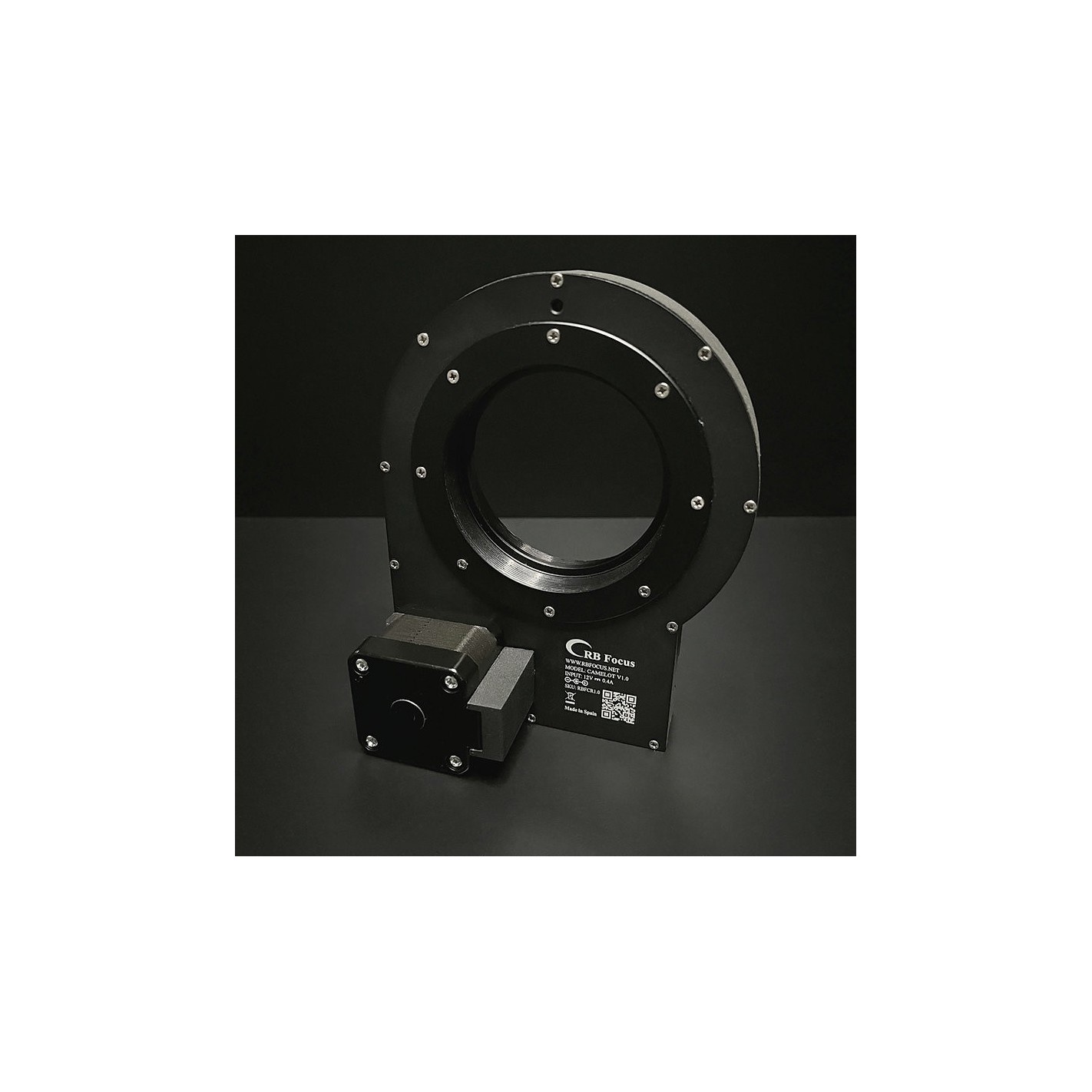

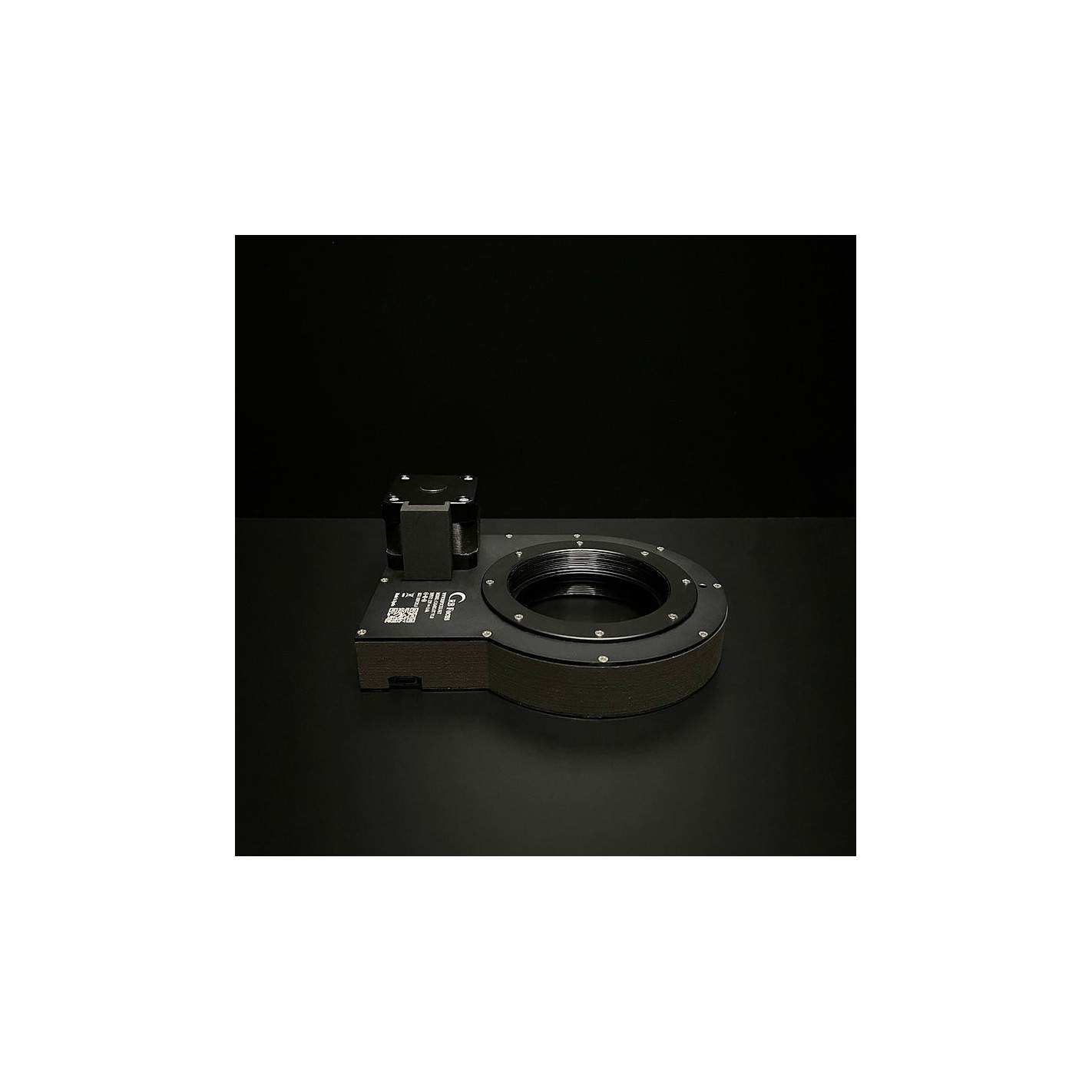

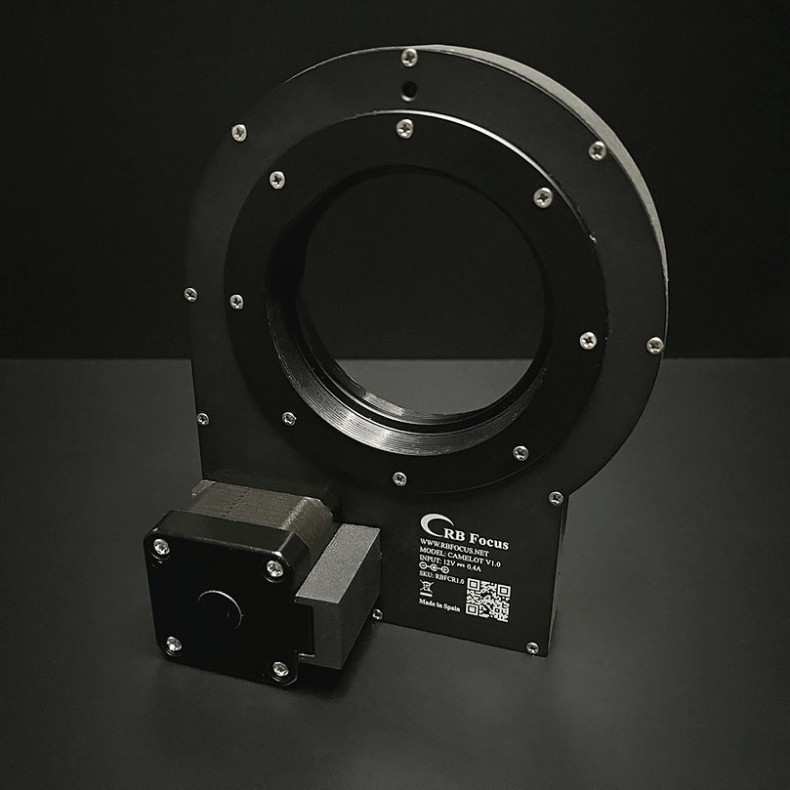

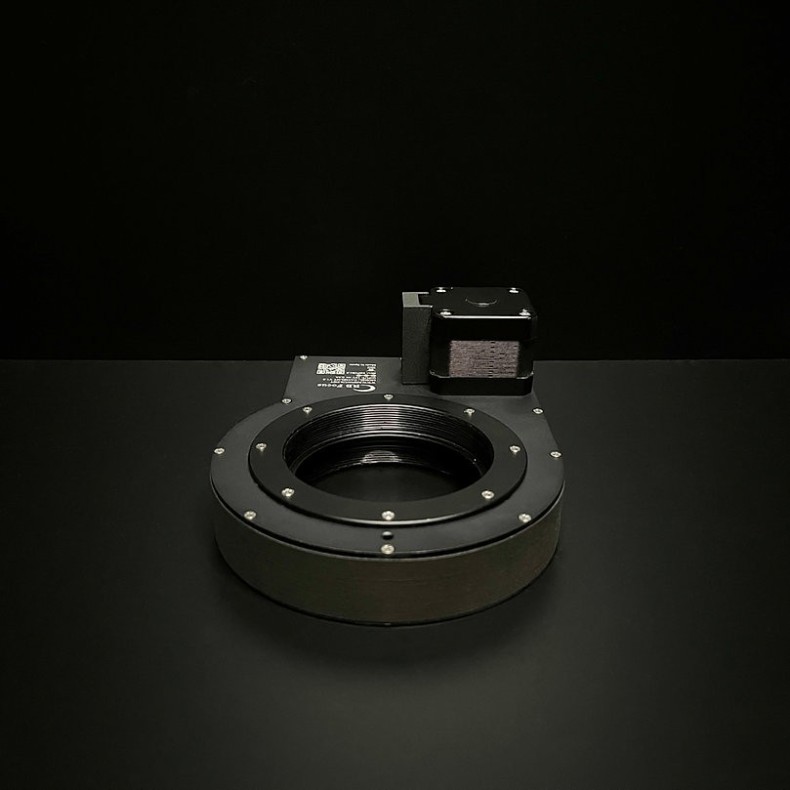

The new intelligent astrophotographic camera rotation system, the "RB Focus Camelot" is an ultra-precise field rotator that will help you frame objects with a perfection impossible to achieve manually, while saving the angle of your photos for future sessions. And also the possibility to photograph more than one object on your astronomical nights in a comfortable and easy way and archive your framing values.

The "DualBearing™" system, consisting of two bearings, prevents bending and allows you to mount heavy optical trains (between 3kg and 5kg) despite the small dimensions of the device.

More power and connectivity: The "RB-Focus Camelot" comes standard with antennas that allow connection via Bluetooth in order to reduce cables and weight in the image train, as well as a "Dual Core" processor that performs rotation tasks independently from those of refreshing data on the screen, communication with the computer and internal functions. So whenever you ask it to rotate despite being busy doing other calculations.

Having a resolution of 0.1 degrees, we can ensure that it is at the height of the best options available on the market and for a price more than affordable for everyone. With clockwork accuracy, its DirectDrive™ or direct drive technology avoids backlash problems in mechanical transmissions well known in other products of this type. In addition, we introduce our ultra-quiet "InteligentSilentDrive™" motor system, which actively adjusts motor power as needed to maintain completely noise-free operation.

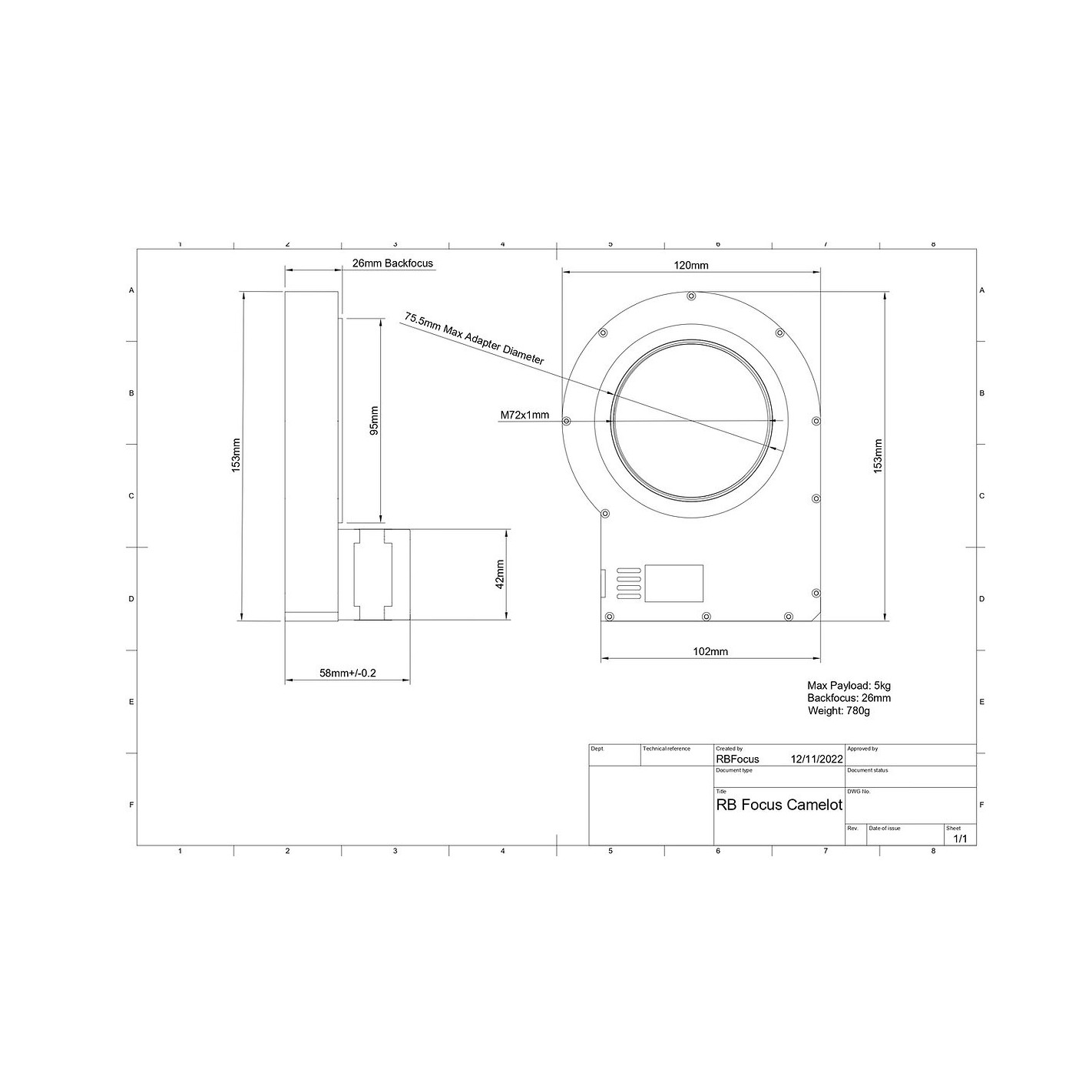

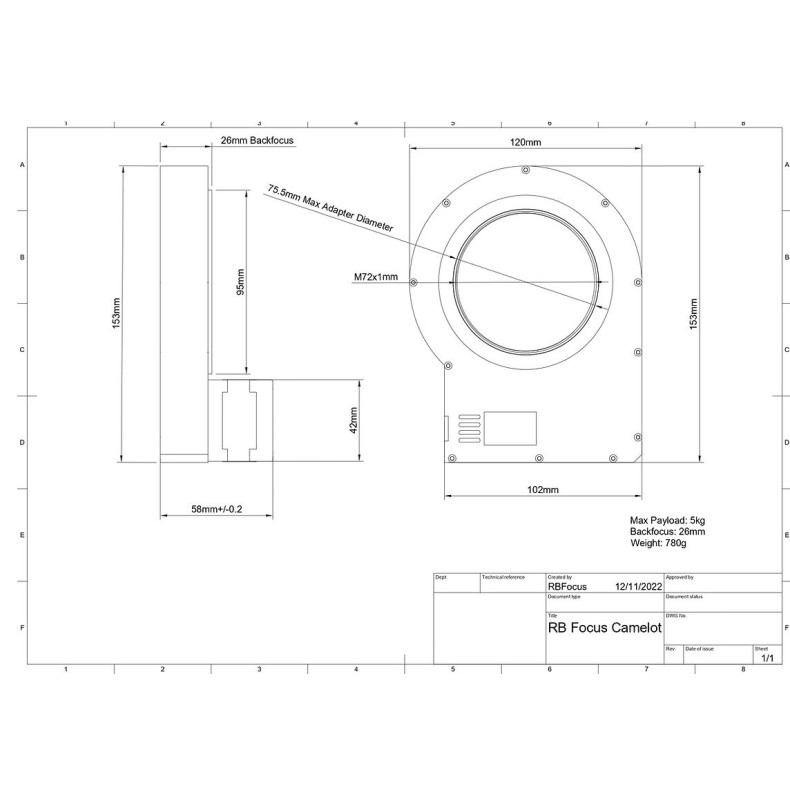

ASCOM standard operation makes it compatible with the most popular capture software on the market such as APT, SGP, NiNa, Voyage and others. It comes with a simple controller that allows you to configure the product in a short time and adapt it perfectly to any path, whatever the focuser that carries your telescope. All this technology presented in a small and discreet module just 155mm high, 120mm wide and weighing 780grs

The integrated IPS LCD display, now with automatic shutdown, allows you to check at all times the correct operation of the electronic rotator, view the saved settings and monitor the movements it is making in real time without the need to look up the value on the computer.

Normally products of this kind come with pages and pages of settings full of parameters, which makes the process of setting them up very tedious and ends up taking astrophotographers away from the great advantage of having a telescope with a field rotator. In view of this we have adapted the software to work with basic minimum settings that are simple to understand by any person akin to the world of astrophotography, without losing the functionality and control of more complicated devices, making once and for all one of the most advanced techniques in astrophotography available to all users

Technical Specifications:

• Maximum Load: 5kg
• Operating Voltage: 12V DC.
• Computer connection: USB and Bluetooth.
• Weight: 780g
• Resolution: 0.1 degrees.
• Thread adapter: M72 x 1mm.

what is included in the box?

• 1x RB Focus Camelot.
• 1x USB 3.0 cable.
