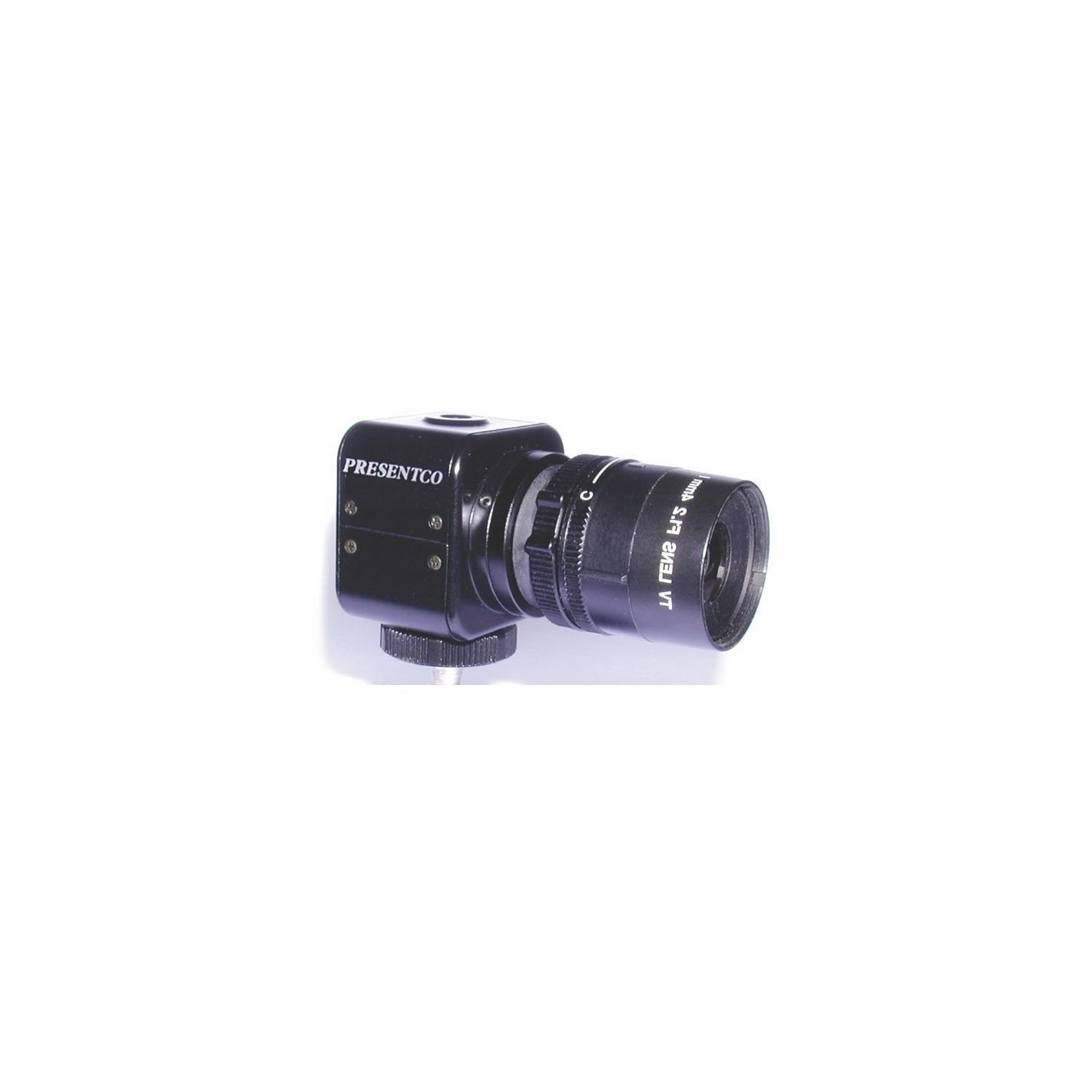

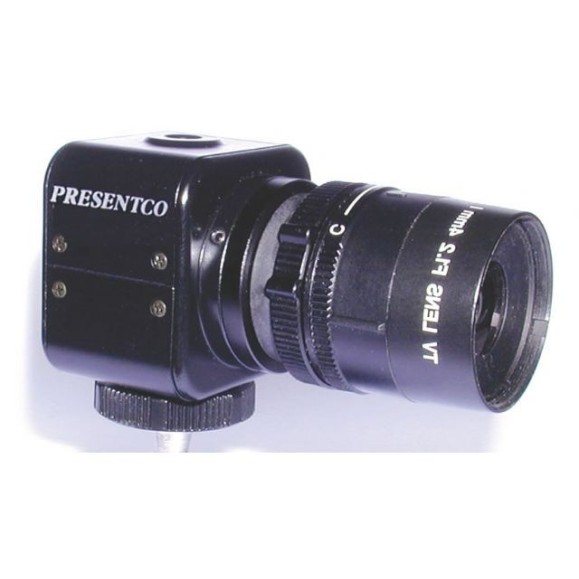

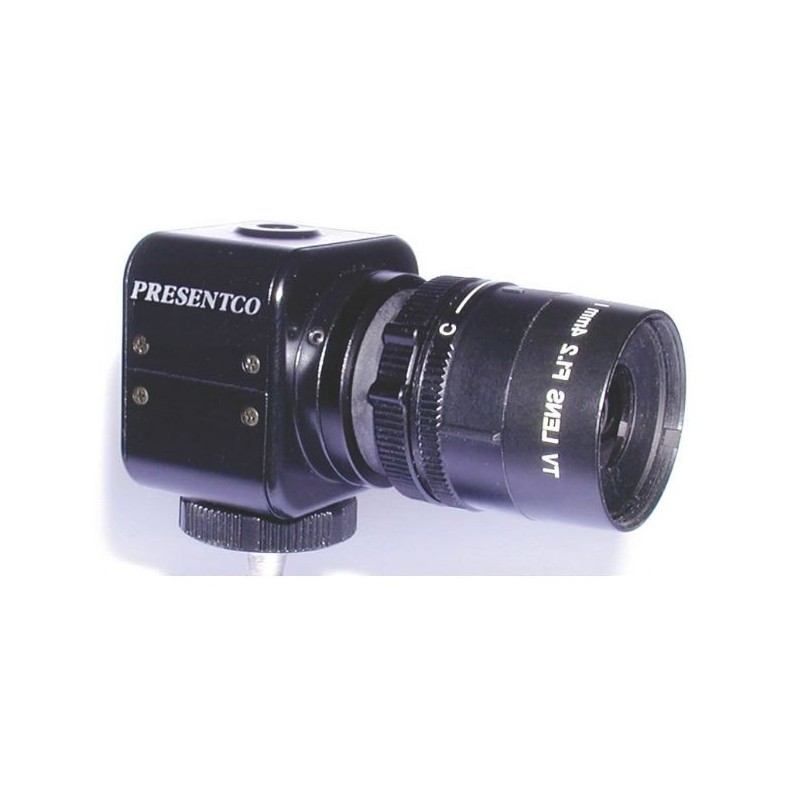

CCD video camera Presentco 3175

Enjoy one of the most sensitive cameras on the market. Manufactured with a CCD sensor with a sensitivity of 0.00002 lux and made in Japan by the same manufacturer of the popular WATEC, the PRESENTCO CCD 3175 will be the ideal solution to observe in group images of the Universe in real time and with the definition and image quality of composite video.

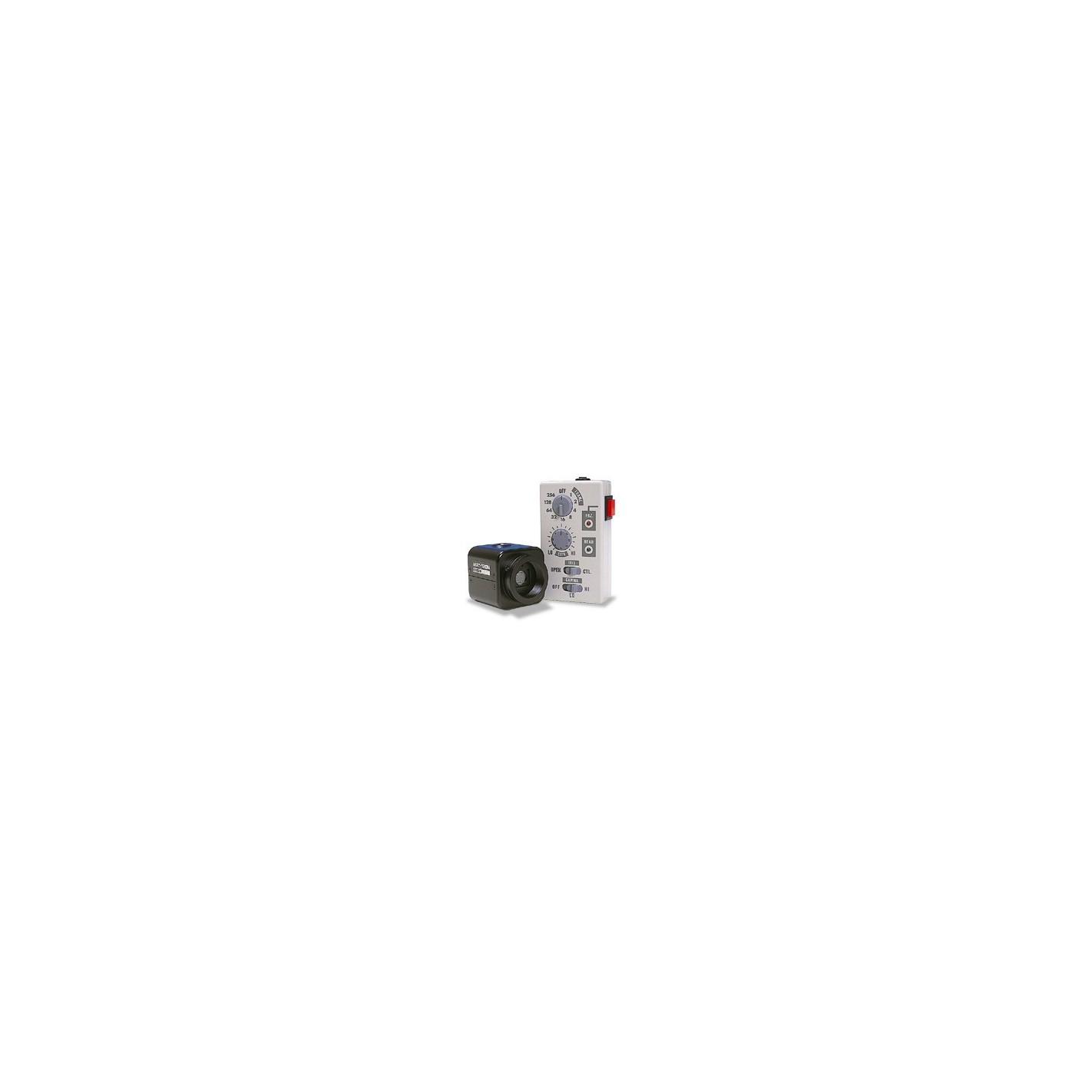

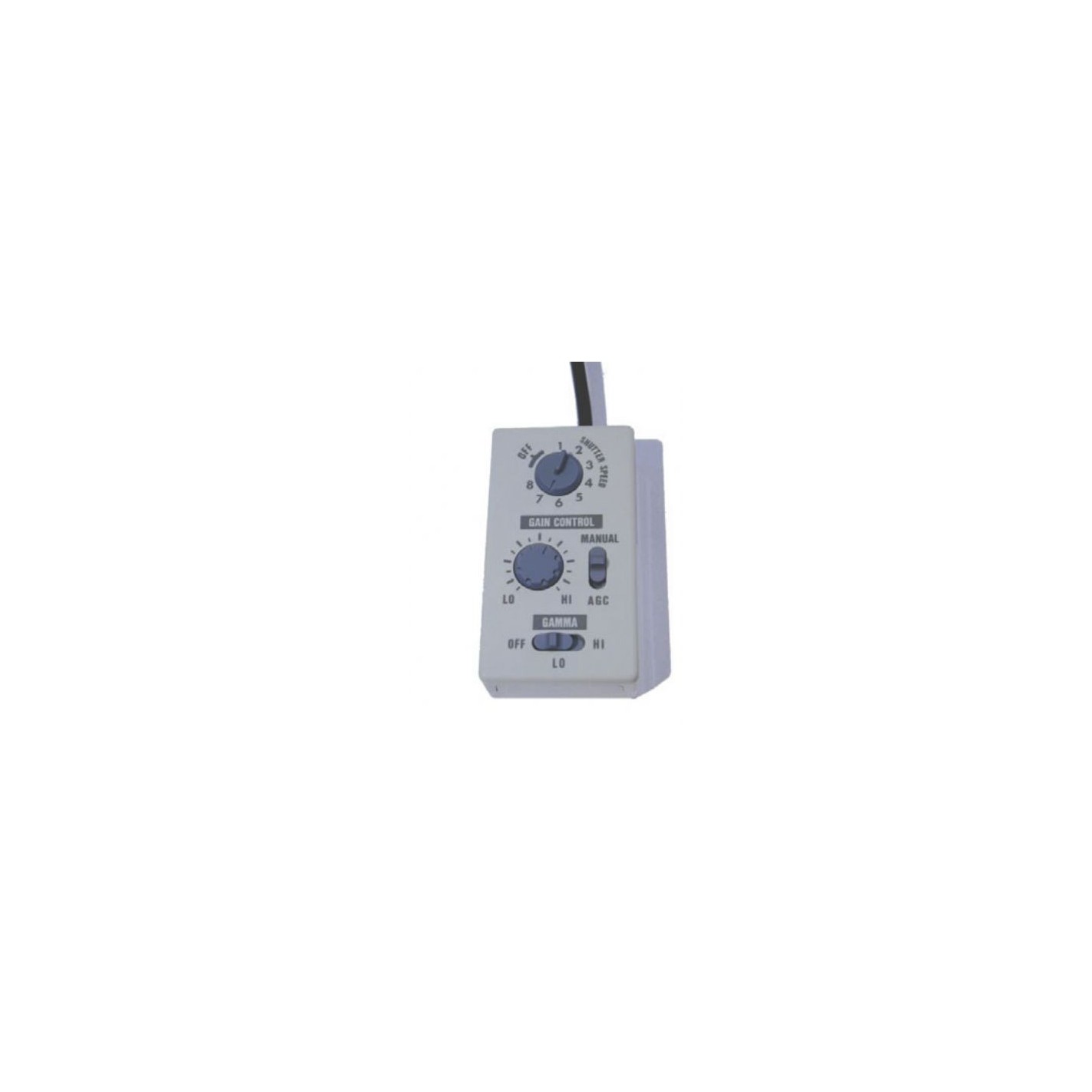

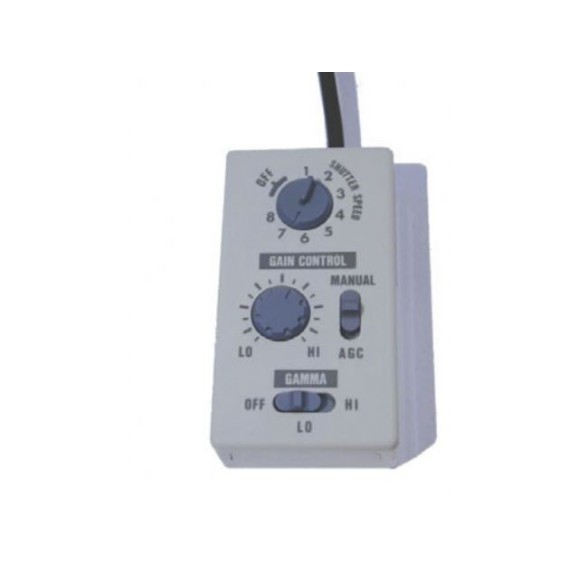

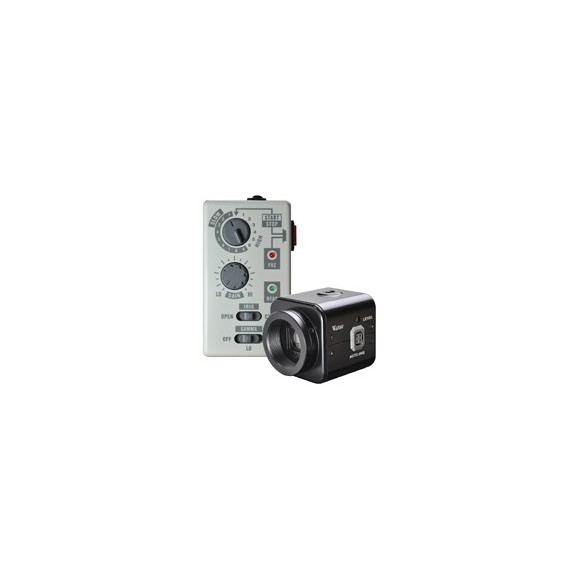

Thecamera body (without optics), the control knob, the transformer and the cable with BNC connectors for connection to a video monitor are delivered with the camera

Features:

- Image storage system (Low shutter speed)

- Super High Sensitivity

- Remote Controller

- High vertical resolution

- Simultaneous output of composite video & Y/C signal

- Still image

- Shutter speed control (10 steps)

- Manual gain control

- Gamma correction

- Iris Control (Open/Auto)

- Video/DC Iris auto-selectable

- Iris level control (level)

Model CCD 3175

Effective Pixels: 380k(N), 440k(P)

Resolution: 570TVL(H), 480TVL(V)

Minimum Illumination: 0.00002 lx. F1.4

Gain Control: MGC(8-38dB)

Backlight Compensation: N/A

Signal to Noise Ratio: 52dB

Shutter Speed: OFF, 1, 2, 2, 4, 4, 8, 16, 32, 64, 128, 256

Gamma γ≈0.35/0.45/1.0

Power supply: DC +12V±10%

Consumption: 2.16W ( 180mA)

Operating Temperature: -10ºC to +70ºC

Weight: 150gr (Controller 210gr)
