SkyWatcher 150/750 DS EQ3-2 Pro Go-To Reflector SkyWatcher Telescope

SkyWatcher 150/750 DS EQ3-2 Pro Go-To reflector telescope.

The SKYWATCHER EQ3-2 series telescopes offer high optical quality astronomical telescopes for the discerning amateur. The newton reflecting telescopes feature high light gathering capability combined with portability. They are capable of distinguishing outstanding, fine details of solar system and deep sky objects. Their large aperture allows you to observe galaxies, nebulae and star clusters the way you've always wanted to see them.

SKYWATCHER' s attention to detail and high standards ensure that the user will always have a telescope in their hands that will give them the most out of their capabilities.

SKYWATCHER is aware that the amateur astronomer places high expectations on the equipment he purchases. In this sense SKYWATCHER has been able to guarantee the satisfaction of the users of its equipment for decades.

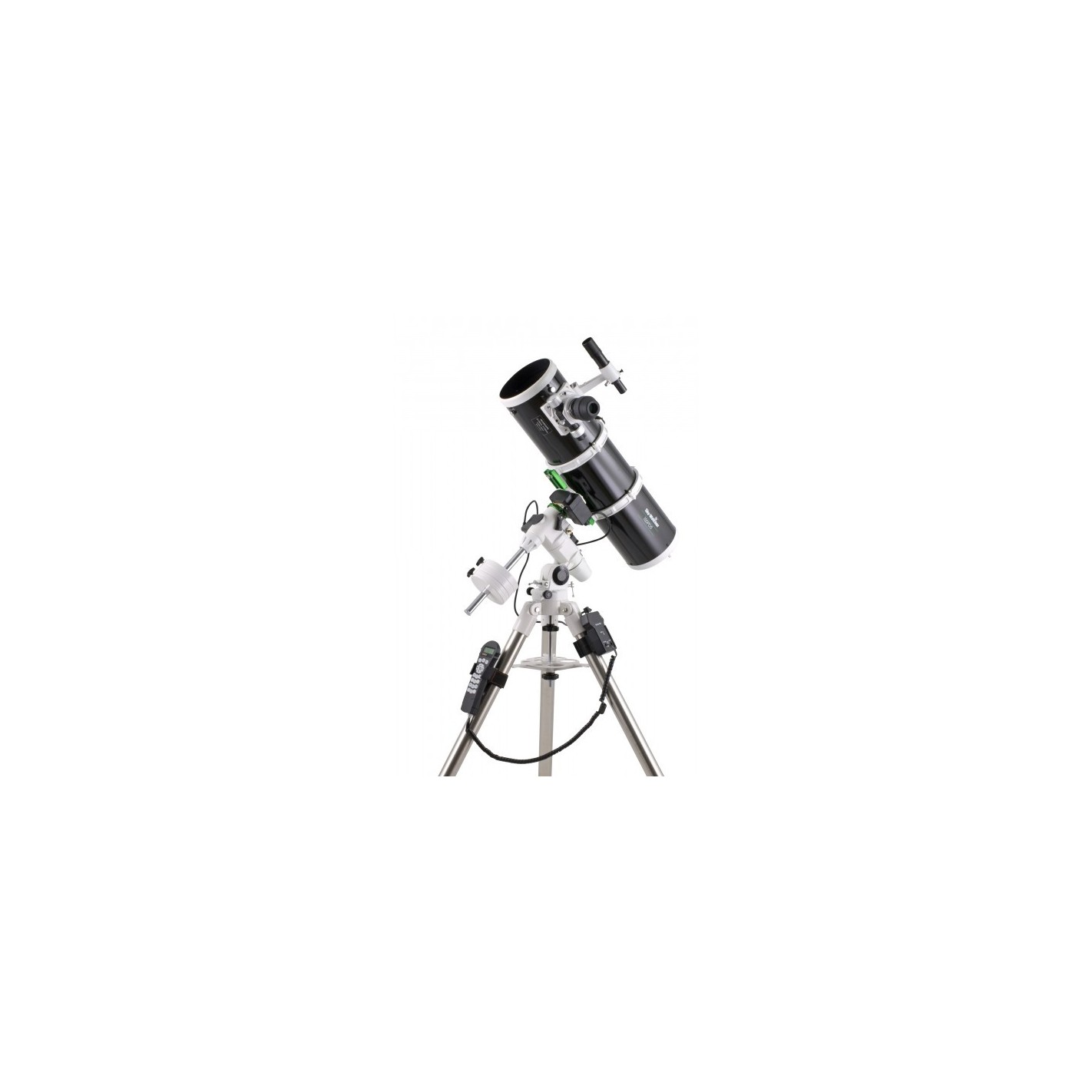

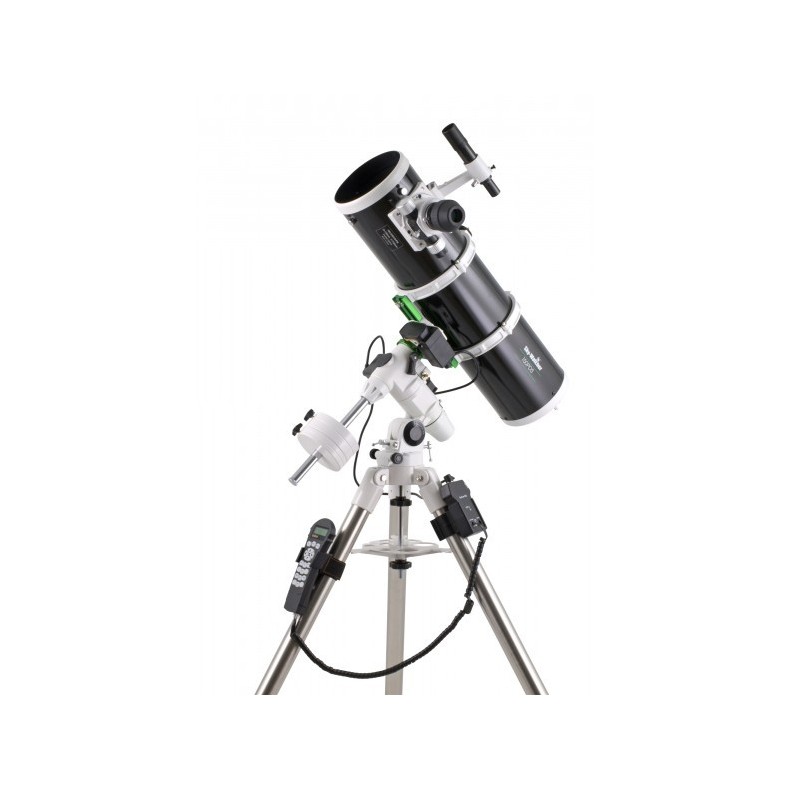

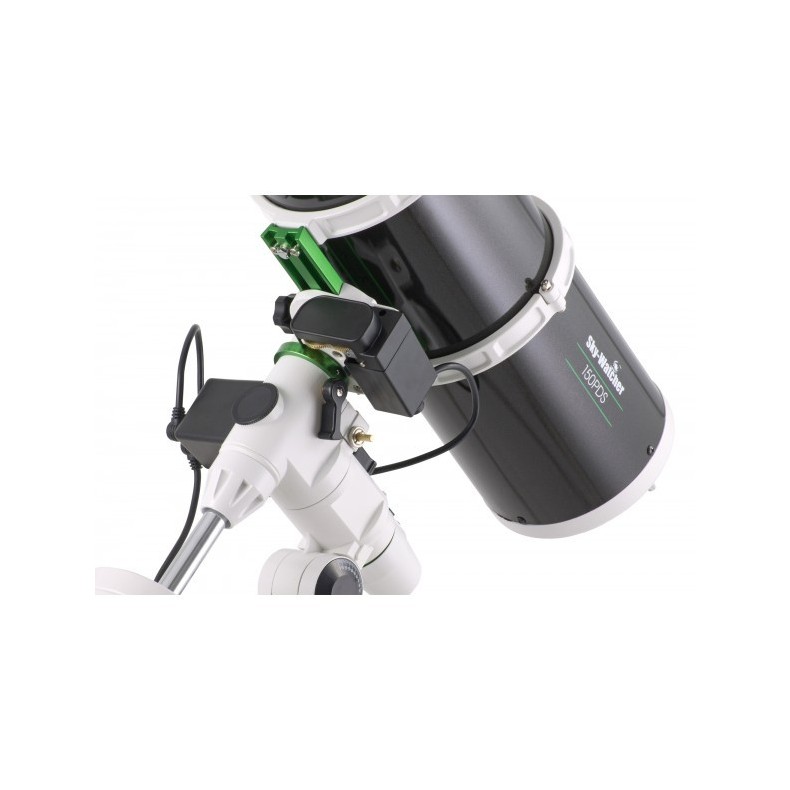

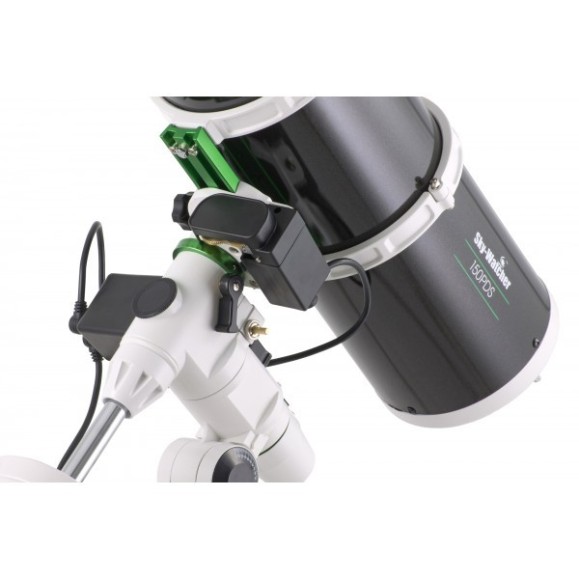

The present equipment consists of a newton 150/750mm reflecting optical tube with Dual Speed focuser and the EQ3-2 Pro Go-To mount.

The SKYWATCHERtelescopes , which are supplied with a German equatorial mount with integrated SynScan system, are high-quality observing platforms with well thought-out mechanics and electronics .

The main features of the GOTOsystems are summarized below:

PC operation

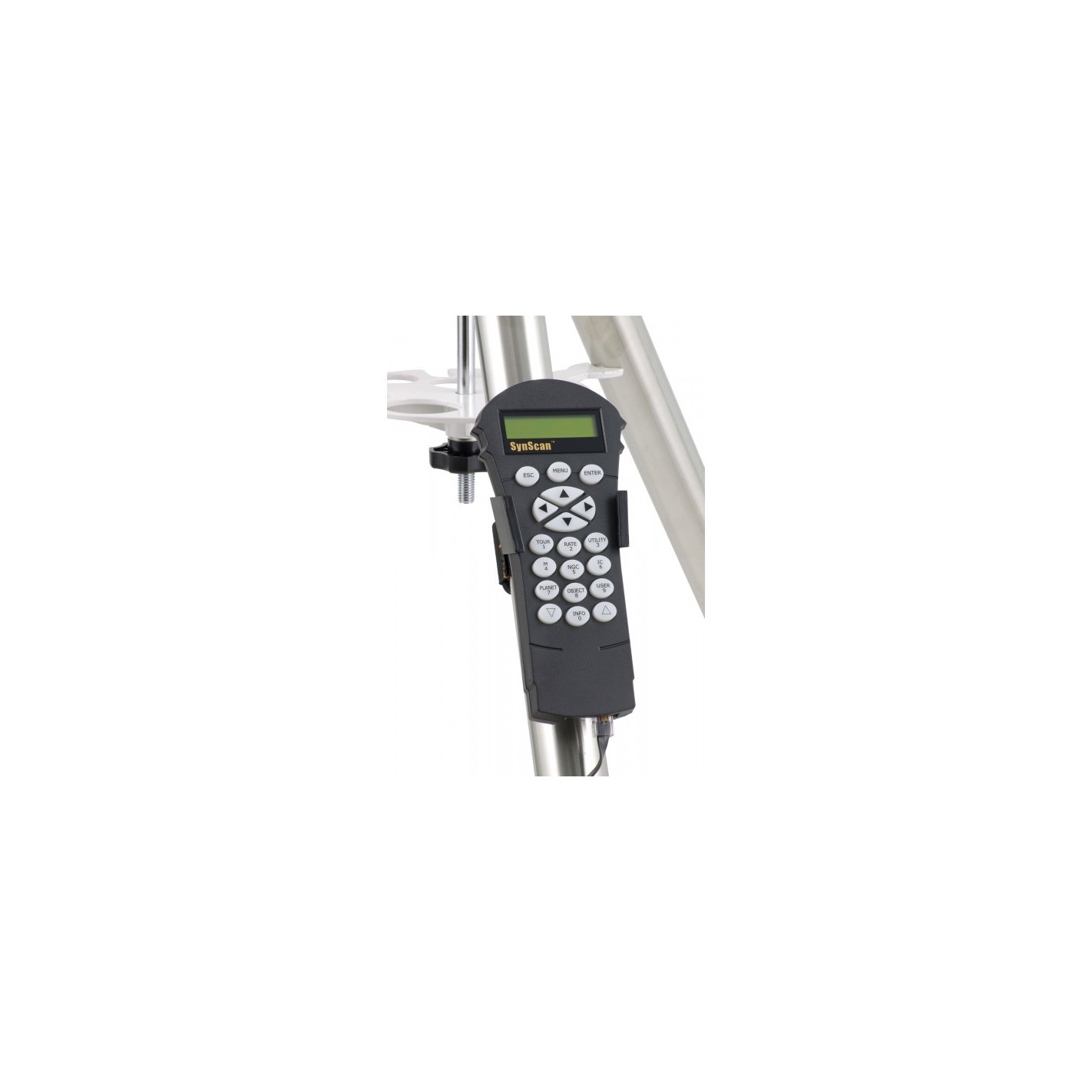

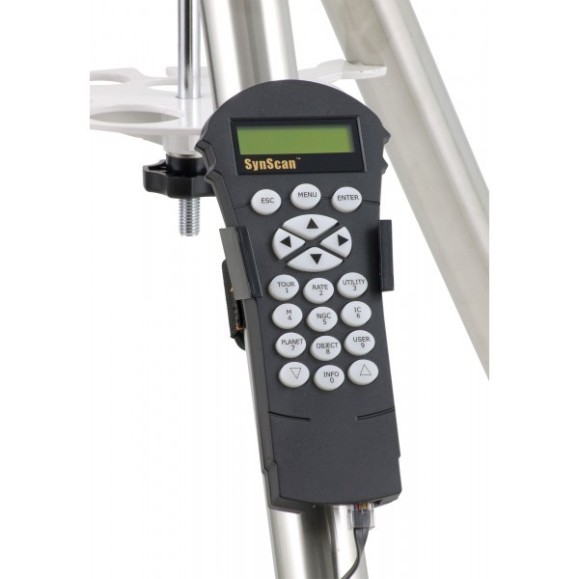

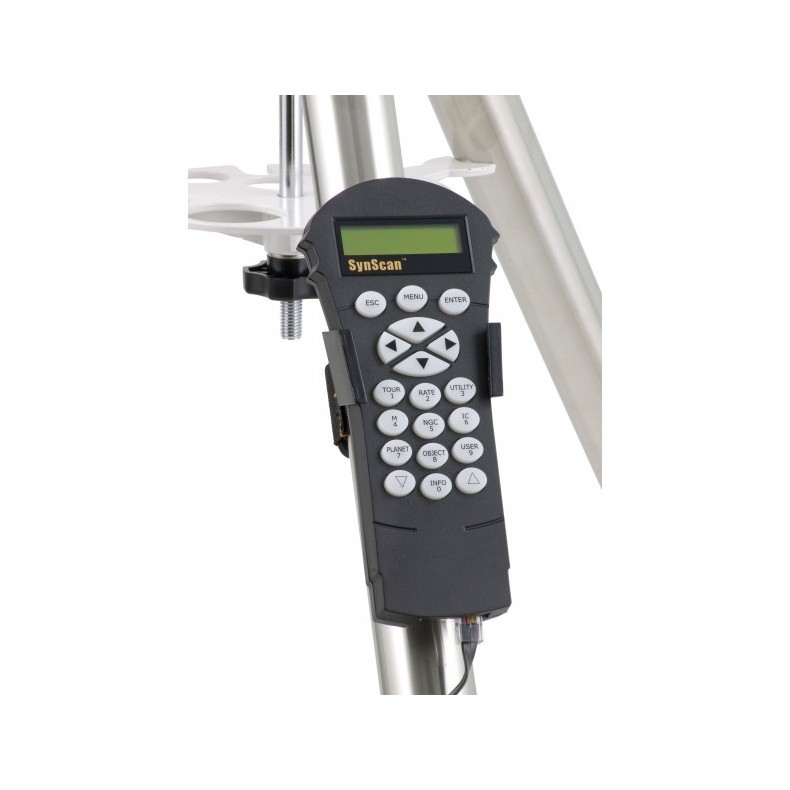

SKYWATCHERSynScan mounts come standard with the revolutionary SynScan Computer Controller. Locating an astronomical object has never been so easy and fun. The telescope responds immediately to keystrokes on the controller, executing the indicated operations. The SynScan series telescopes can also be remotely controlled from a PC using any Planetary software (Cartes du Ciel, The Sky, etc) and via RS-232 connection to the control knob. There is even the possibility to optionally purchase a GPS to facilitate the most accurate entry of time, date and location. The SynScan firmware can be upgraded via internet with a specific and free software.

Motors, slewing rings and bearings

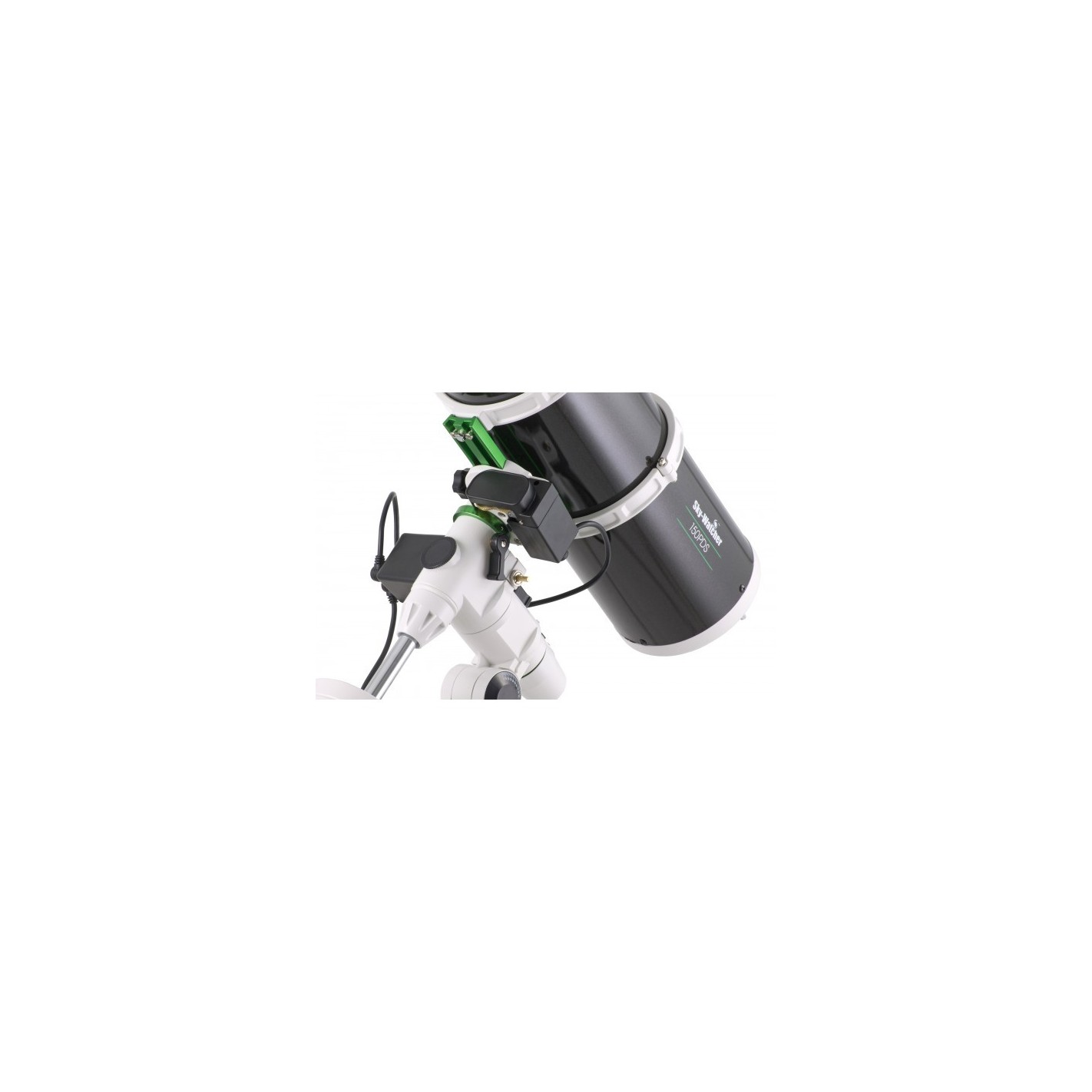

The SKYWATCHERmounts of the SynScan series use DC stepper motors with high torque capacity and micro-stepping control technology for maximum accuracy. Bronze crown and worm gear system for precision mechanical incremental movement minimizing gear backlash.

Tracking speeds and modes

The versatility of the SynScan system allows various search and guidance speeds to be selected. The tracking modes are: Lunar, Solar and Sidereal. The mount is compatible with use in both the Northern and Southern hemispheres.

Database

The SynScan computer includes a database of over 40,000 objects in memory. The library includes objects for advanced studies, following the existing catalog system: NGC, IC, Caldwell, Messier and other lists plus 25 user-defined objects (comets, asteroids, etc).

Astrophotography

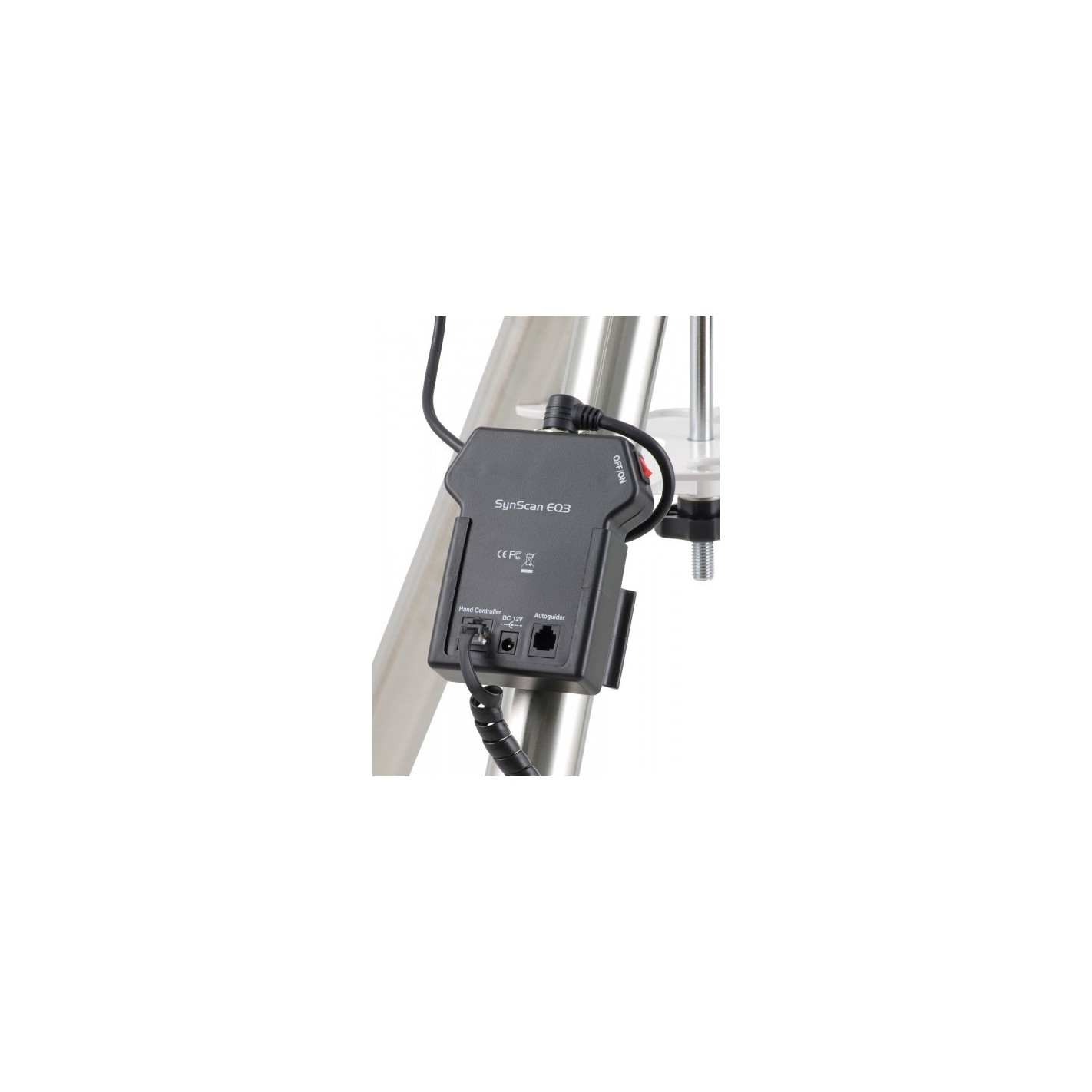

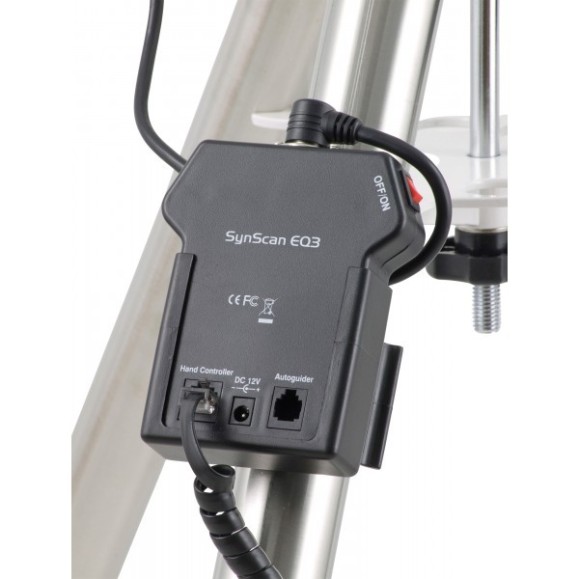

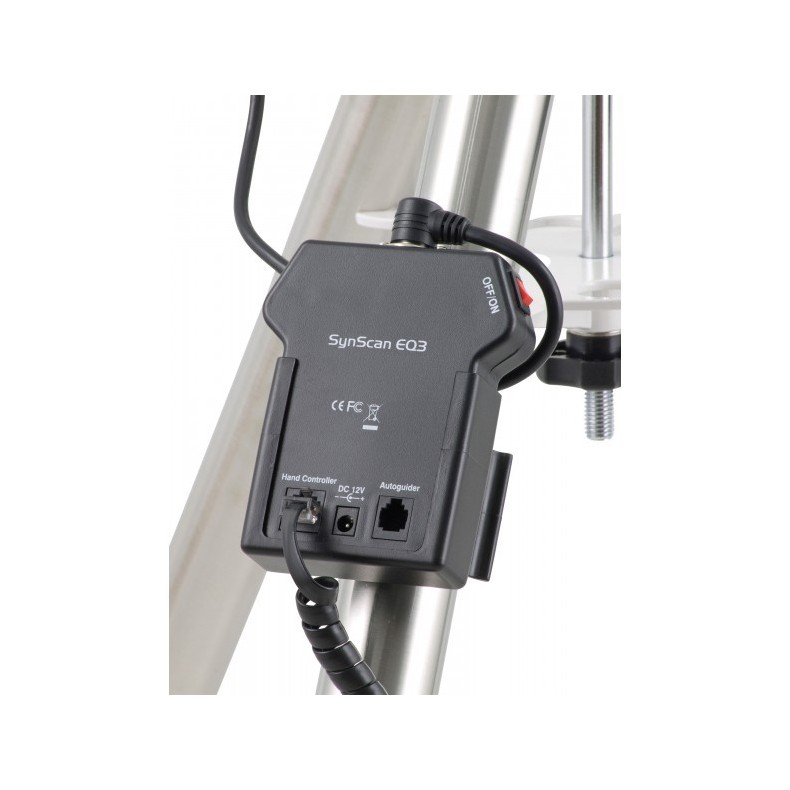

Astrophotography enthusiasts will greatly appreciate the presence of the AUTO-GUIDER port that allows autoguider functions to be performed through a PC. The SynScan firmware includes the SynScangramming algorithm for periodic error correction (this error is natural and inherent to all corona-bisenfin systems). In addition, this algorithm can be complemented with the Backlash compensation function (technical term to describe gear backlash) for both AR and DEC. In this way it is possible to have uniform GOTO's and tracking.

Tube Technical Specifications:

• • • • • Optical Design: Newton Reflector
        • Diameter: 150mm
        • Focal length: 750mm
        • Focal ratio: f/5
        • Maximum recommended magnification: 300x
        • Stellar magnitude limit: 13
        • Resolution power: 0.8 arcseconds
        • Piggyback support: Yes
        • Eyepiece holder: 2" (with 1.25" adapter)

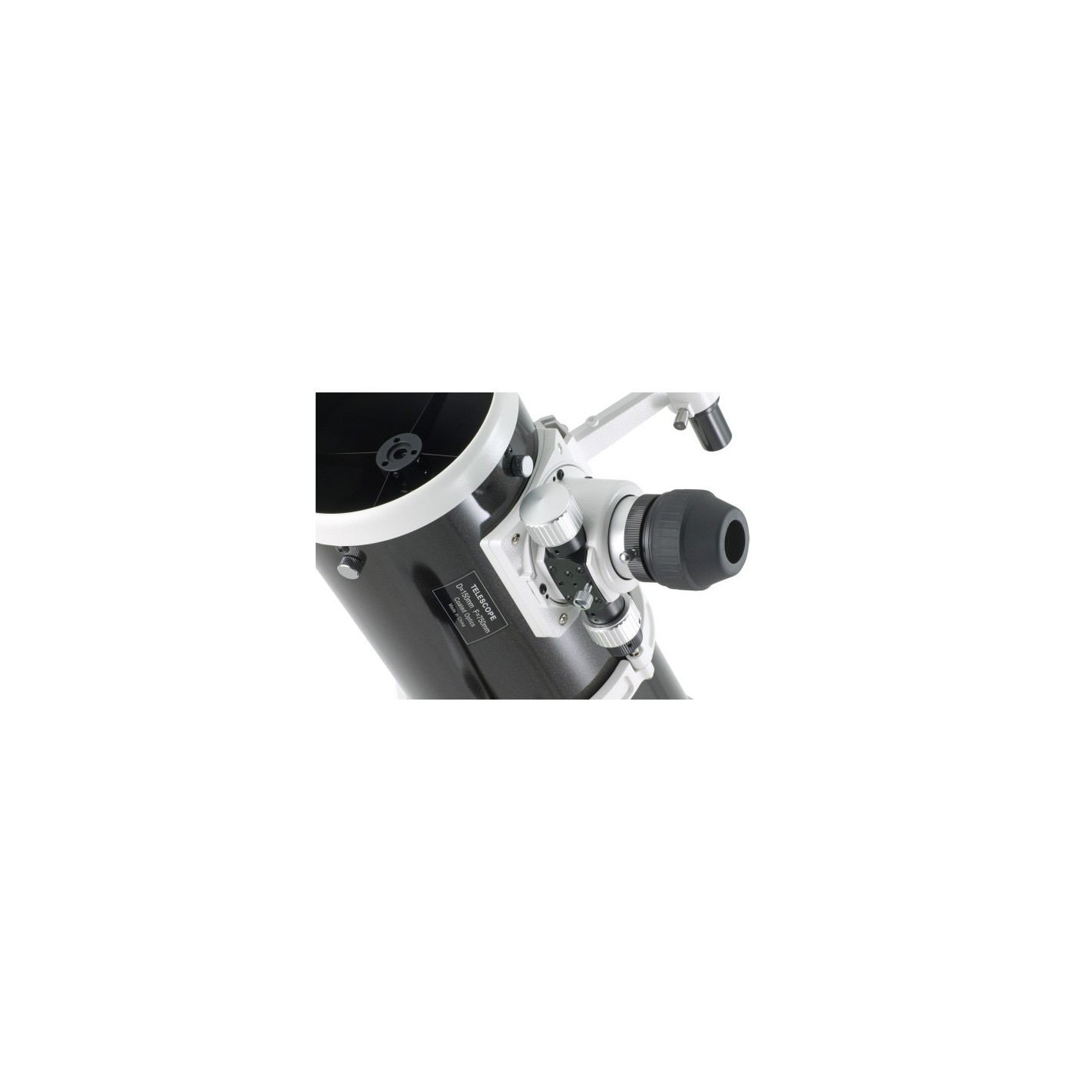

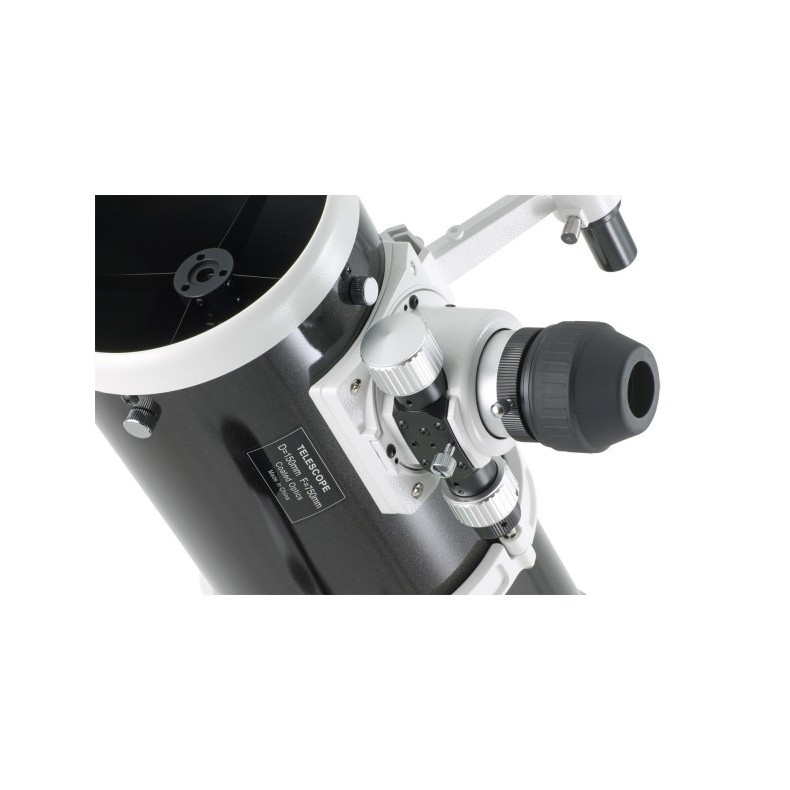

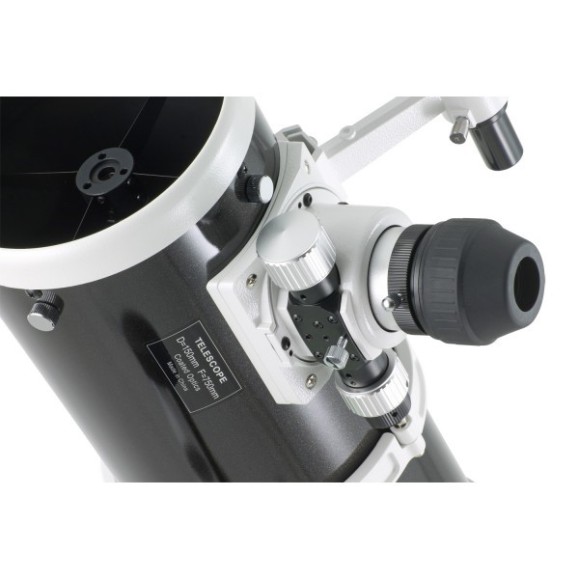

        • Crayford DUAL SPEED focuser - Linear Power
        • Crayford Focuser Speed Reduction 1:10
        • Tube dimensions: 182 x 690mm
        • Weight: 5.59Kg
        • Eyepieces: 2" LET 28mm
        • Finder: 6x30
        • Mount: EQ3-2 with SynScan computerization system.
        • Tripod: Aluminum.
        • Includes: clamps and dovetail.

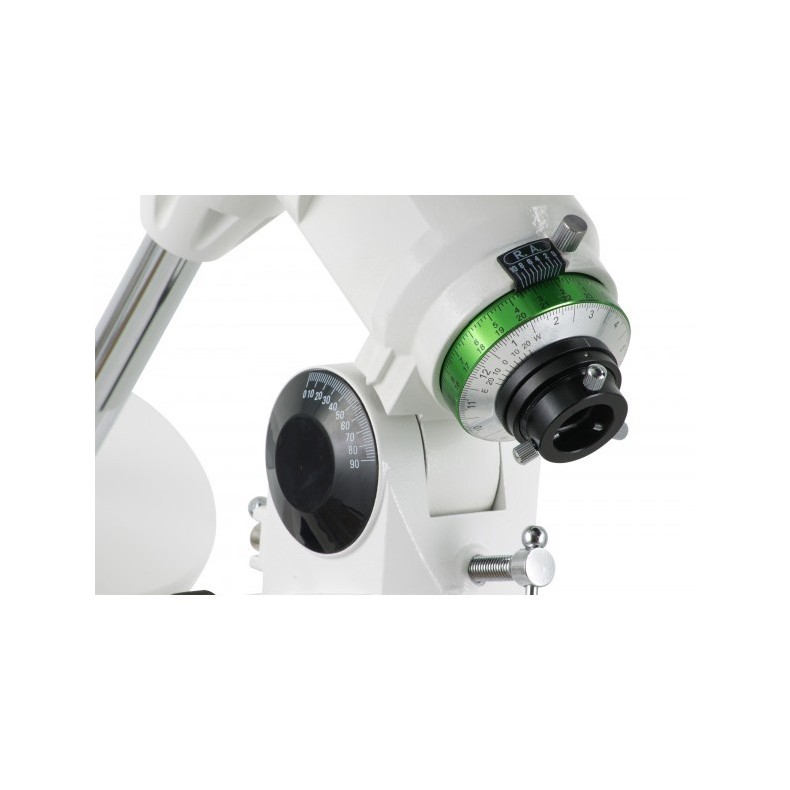

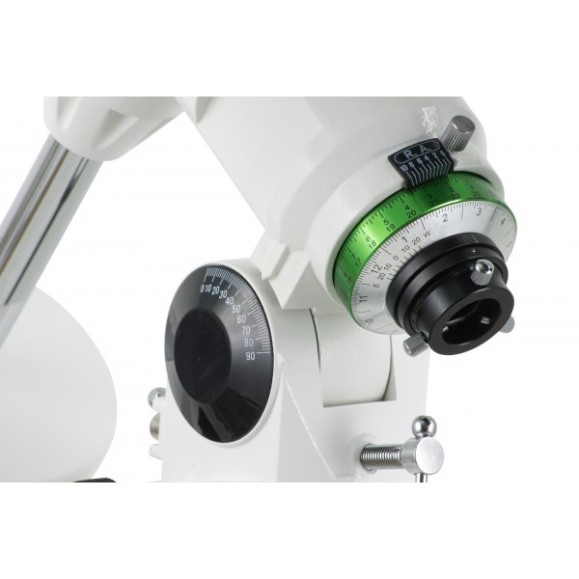

Technical Specifications mount:

• • • • • Type of mount: German Equatorial
        • Dovetail mount: 1.75" dovetail

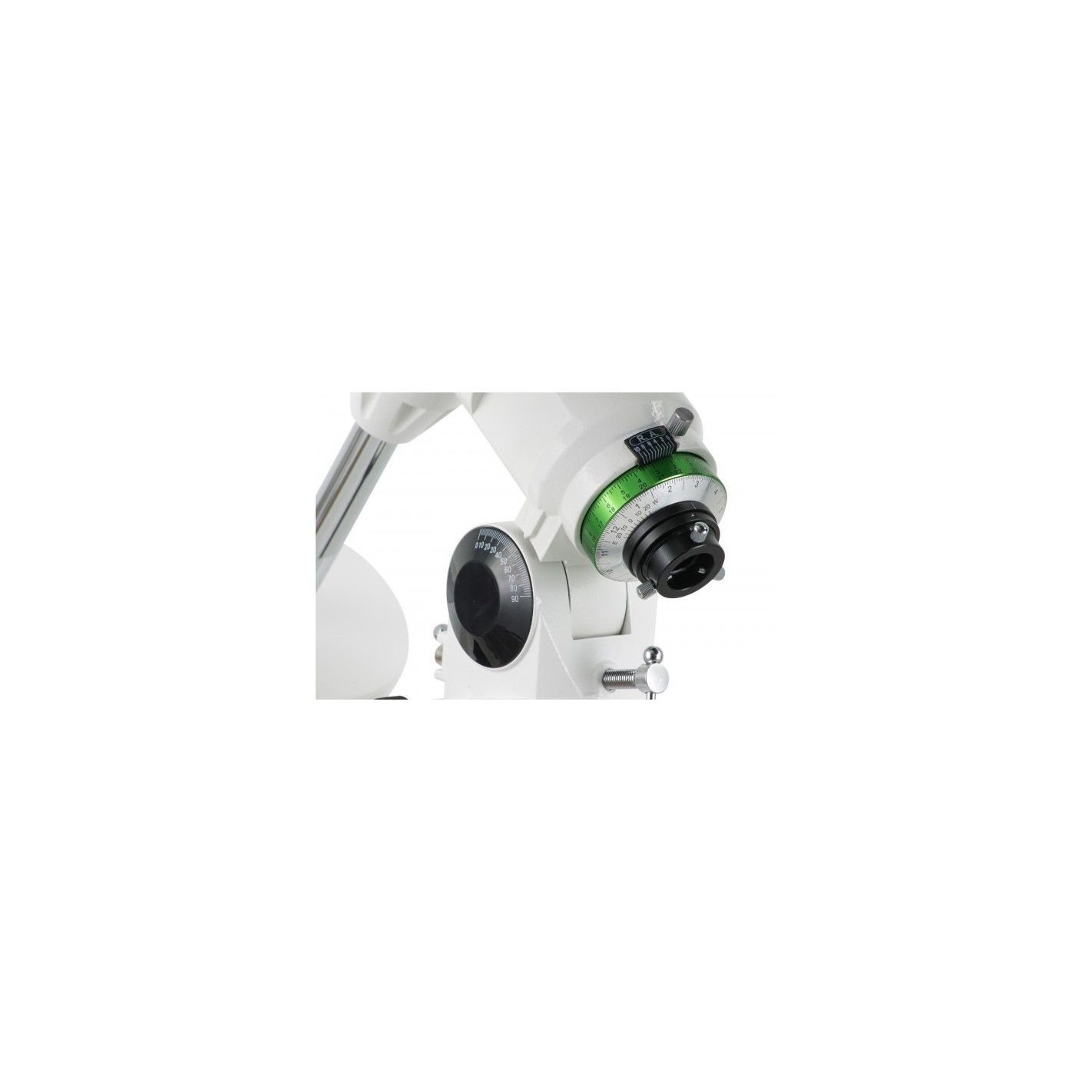

        • Slow Motion Control: AR and DEC Axes
        • Control Knob: EQ SynScan

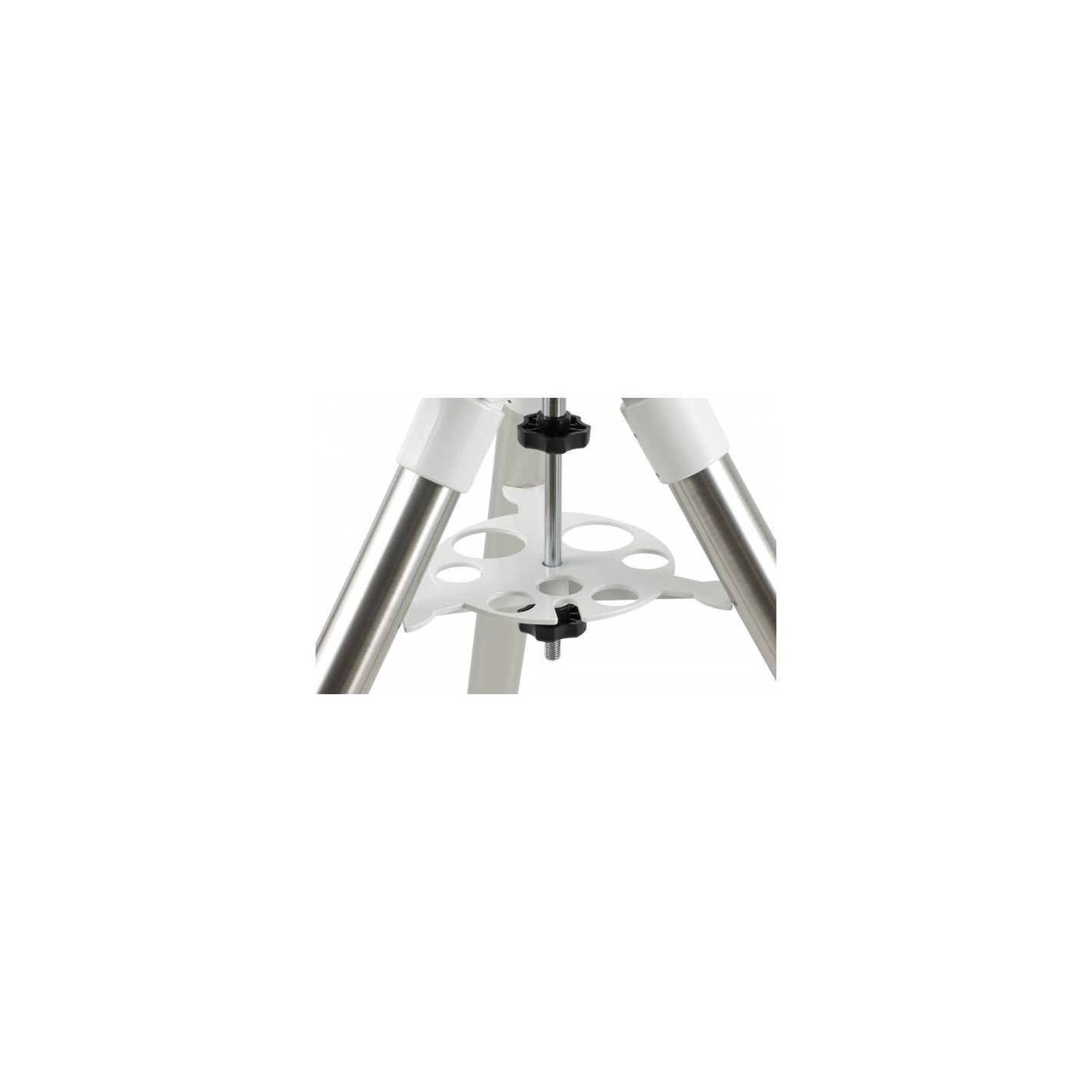

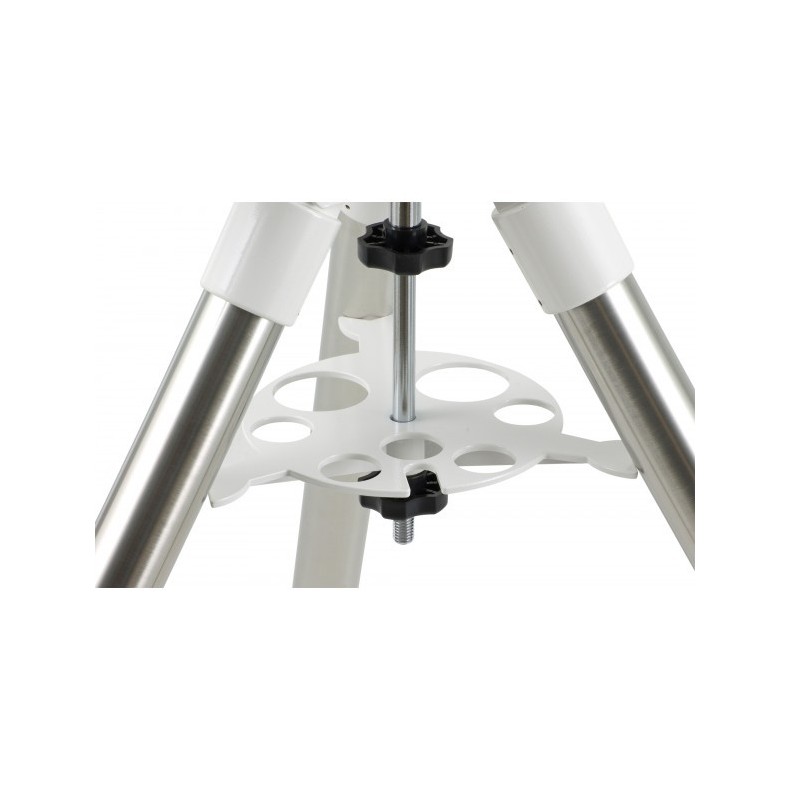

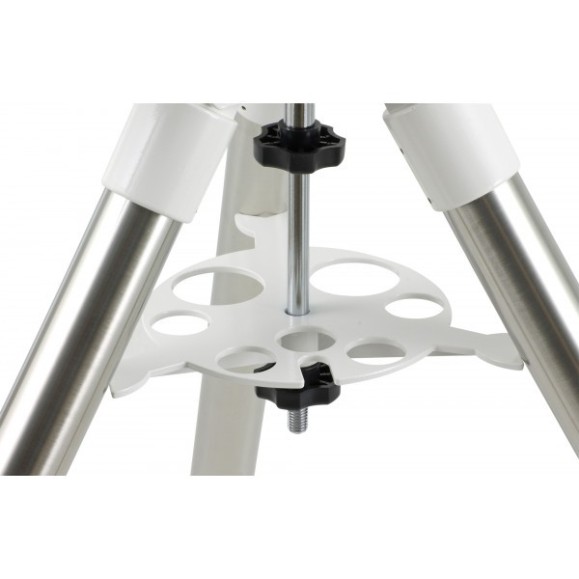

        • Accessory Tray: Yes
        • Mount Weight: 5.5Kg
        • Mount with tripod weight: 9Kg
        • Tripod: Aluminum tripod with adjustable height 750-1270mm

SkyWatcher reflector telescope 150/750 DS EQ3-2 Pro Go-To.
