Microscope for asbestos fibers OPTIKA B-510ASB
OPKB-510ASB
Stock at Supplier
1,983.43
VAT excluded
Shipping 5/7d
Trinocular phase contrast microscope with 1000x, IOS W-PLAN objectives and Walton & Beckett reticle eyepiece for determination of asbestos and asbestos fibers.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Tuesday, 15 October - Tuesday, 22 October |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Tuesday, 15 October - Tuesday, 22 October
✖

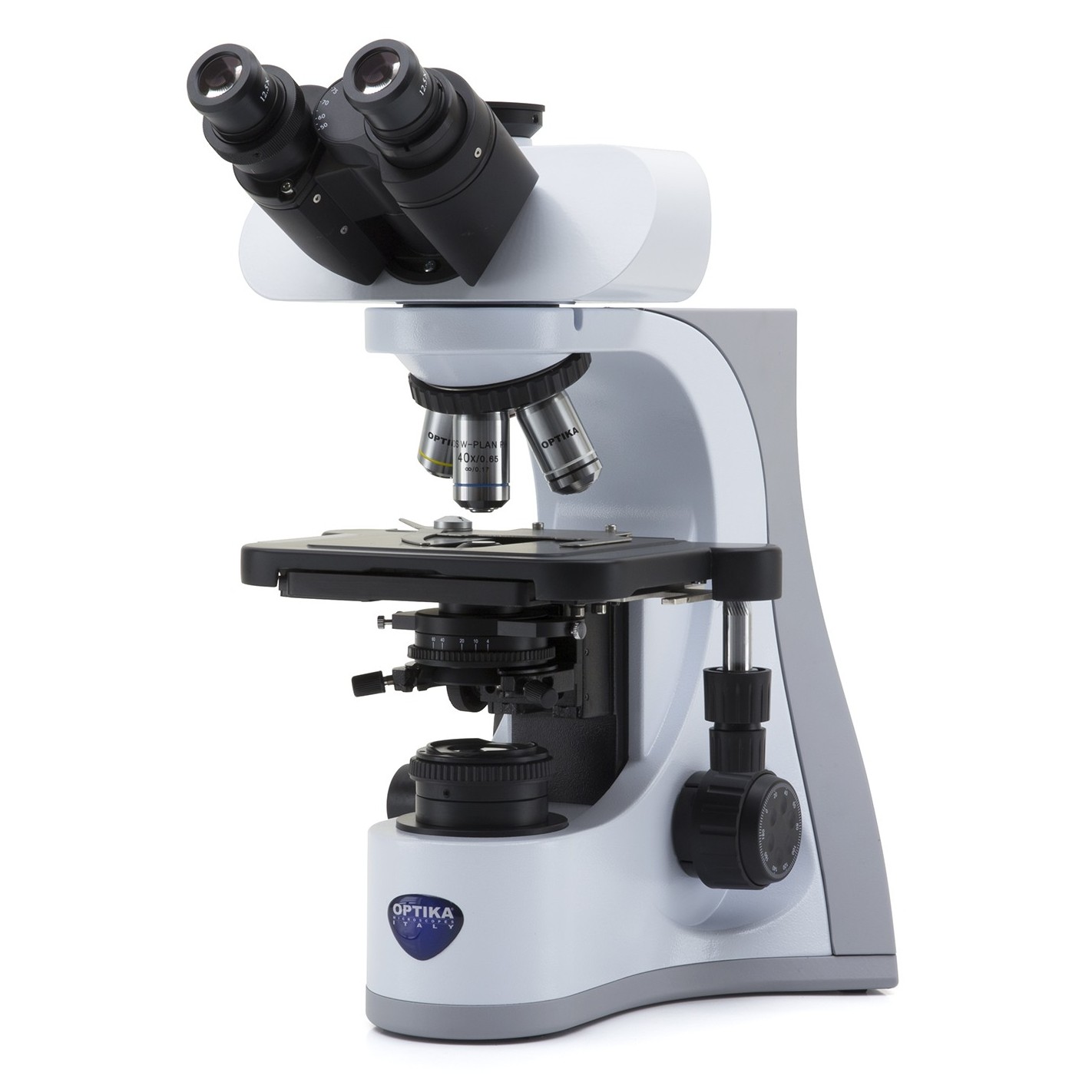

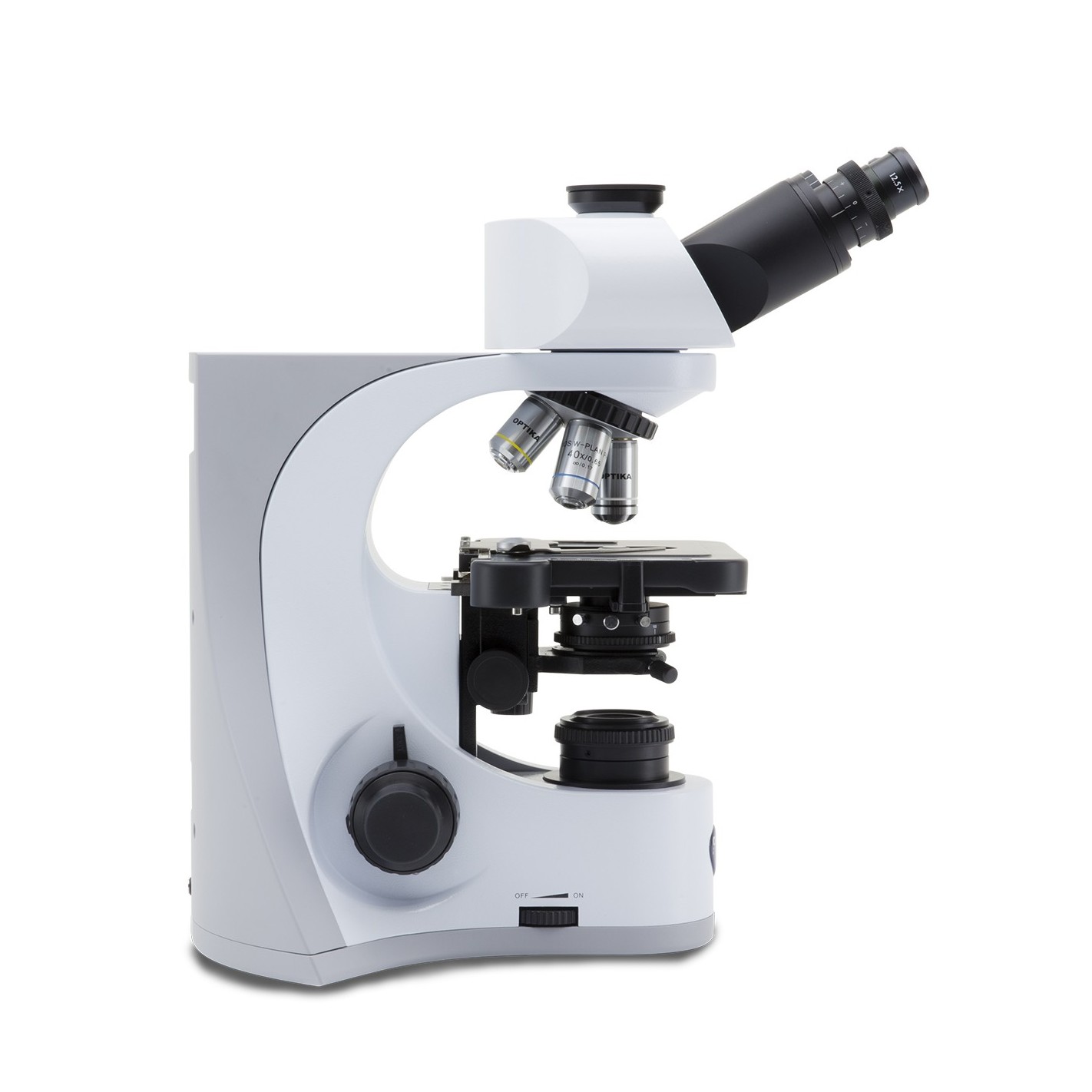

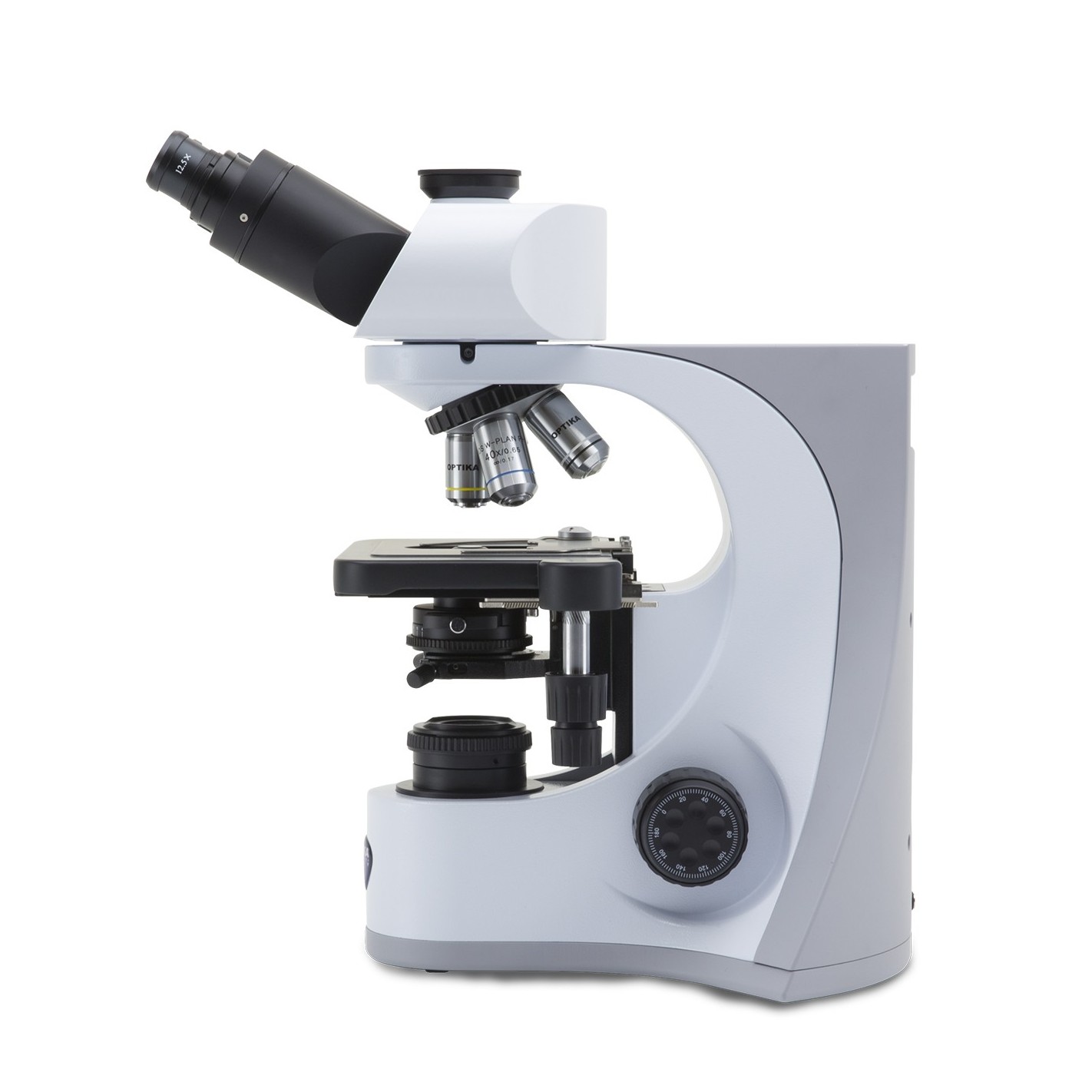

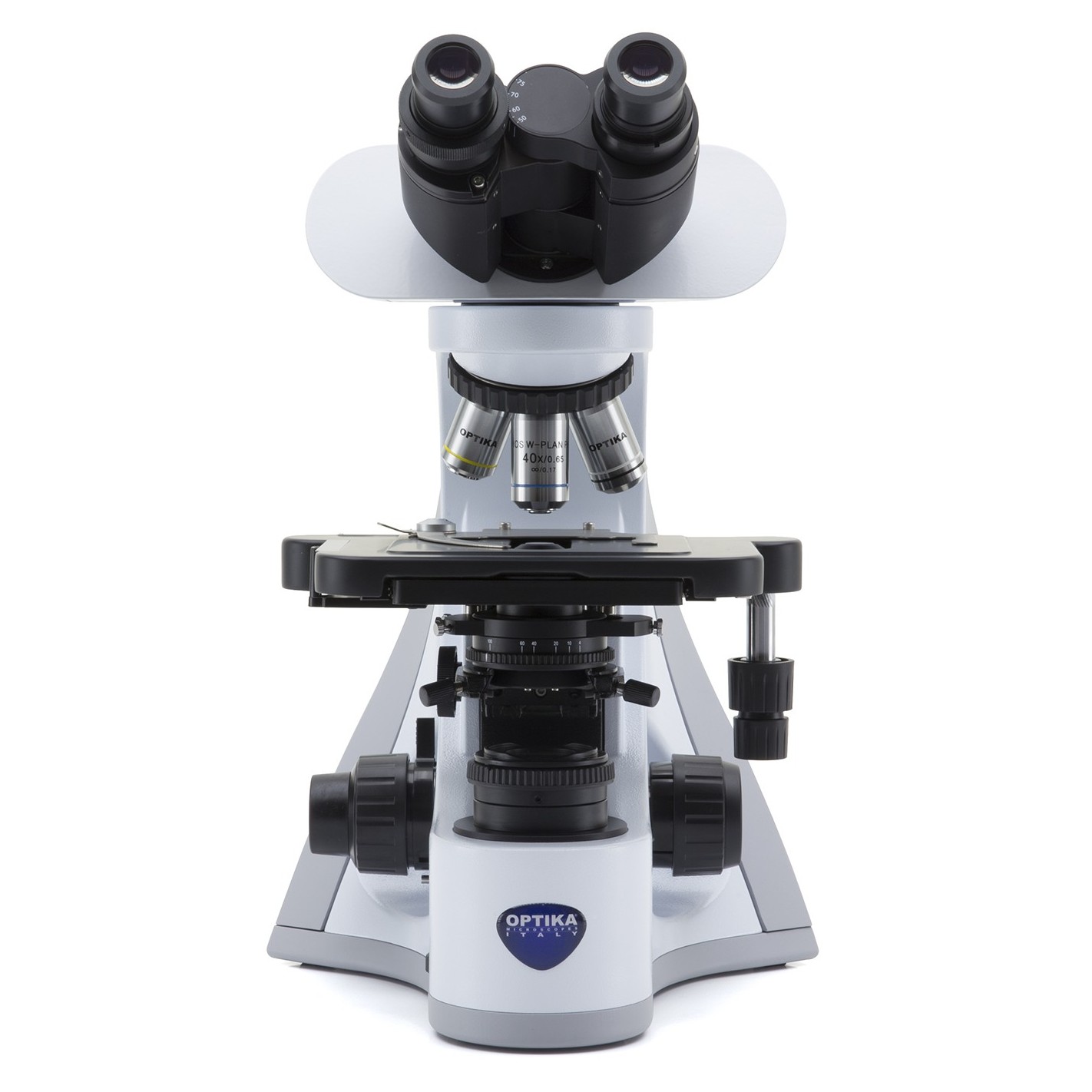

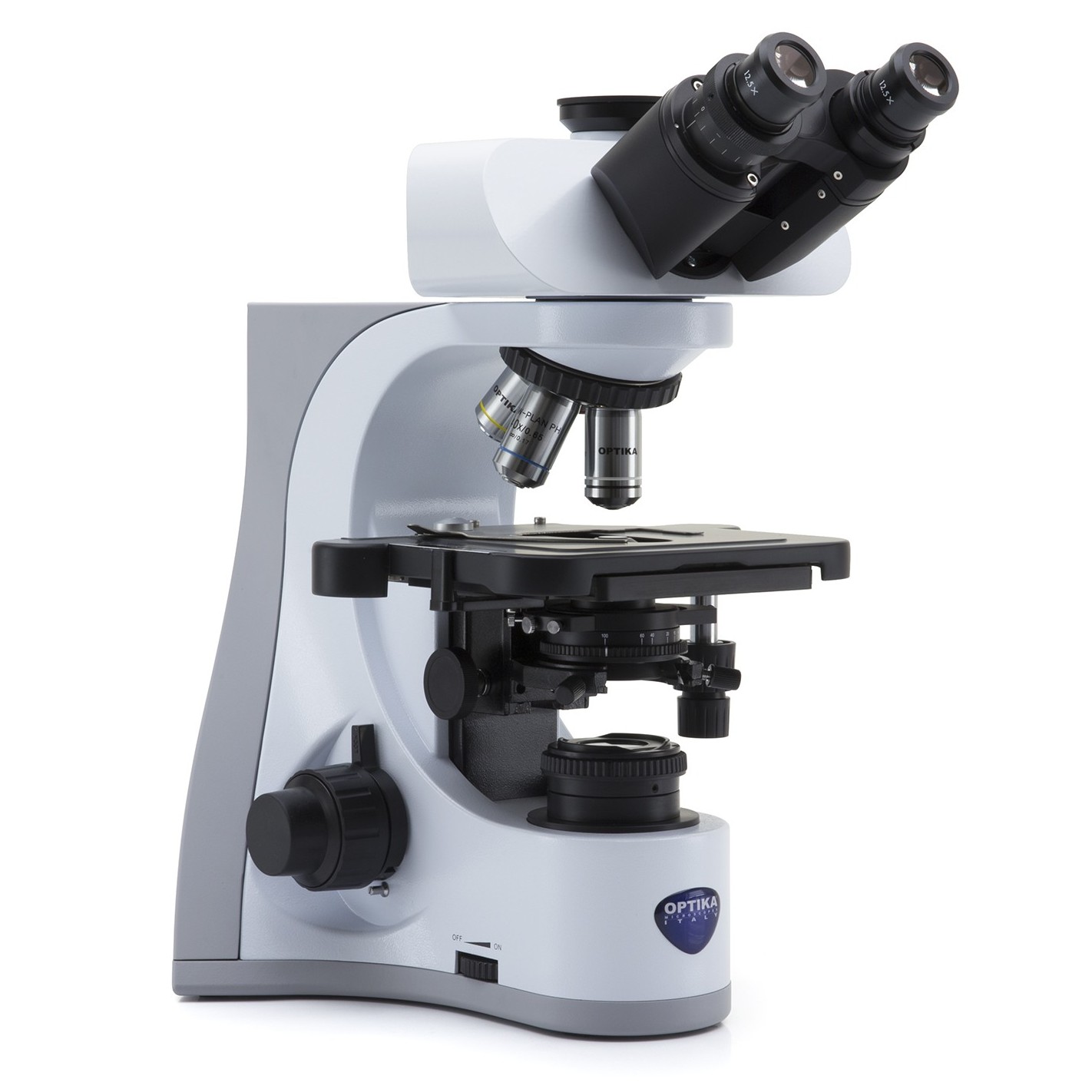

Asbestos fiber microscope OPTIKA B-510ASB
- Observation mode: brightfield, phase contrast.
- Head: Trinocular (fixed 50/50), inclined 30°, rotatable 360°.
- Interpupillary distance: Adjustable between 50 and 75 mm.
- Dioptric adjustment: on the left eyepiece tube.
- Eyepieces: WF10x / 22 mm, high eyepiece point and WF12.5x / 18 mm with diopter adjustment, one with Walton & Beckett reticle.
- Revolving quintuple revolving objective nosepiece, rotation on ball bearings.
- Objectives:
- IOS W-PLAN 4x / 0.10
- IOS W-PLAN 10x / 0.25
- IOS W-PLAN PH 40x / 0.65
- IOS W-PLAN 100x / 1.25 (Oil)
- All with anti-fungal treatment.
- Specimen stage: Double-layer frameless mechanical stage, 233 × 147 mm, X-Y range 78 × 54 mm.
- Focusing: Coaxial coaxial coarse (adjustable tension) and fine focusing mechanism with stopper to avoid contact between objective and specimen.
- Condenser: Abbe N.A. 1.25, with objective-coded iris diaphragm, focusable and centerable. With 40x phase contrast slider.
- Transmitted illumination (Full Koehler type): X-LED³ with 3.6 W (6,300K) white LED with brightness control. External multi-connector power supply 100-240Vac / 6Vdc.

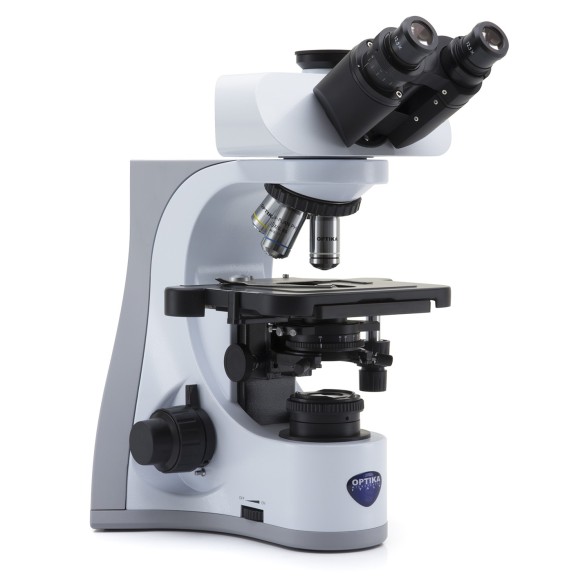

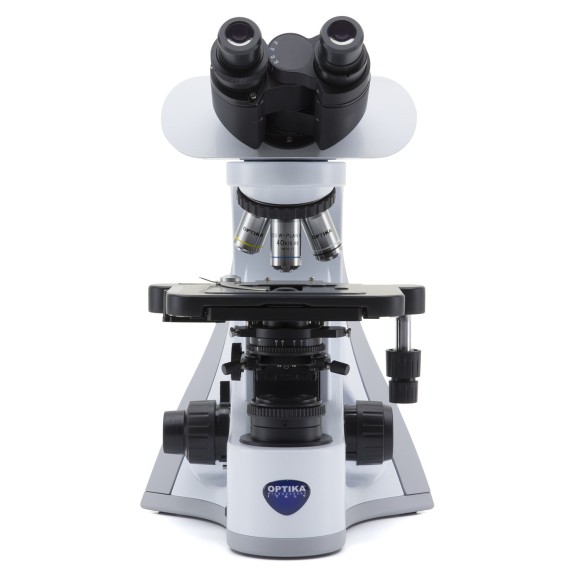

Asbestos fiber microscope OPTIKA B-510ASB
