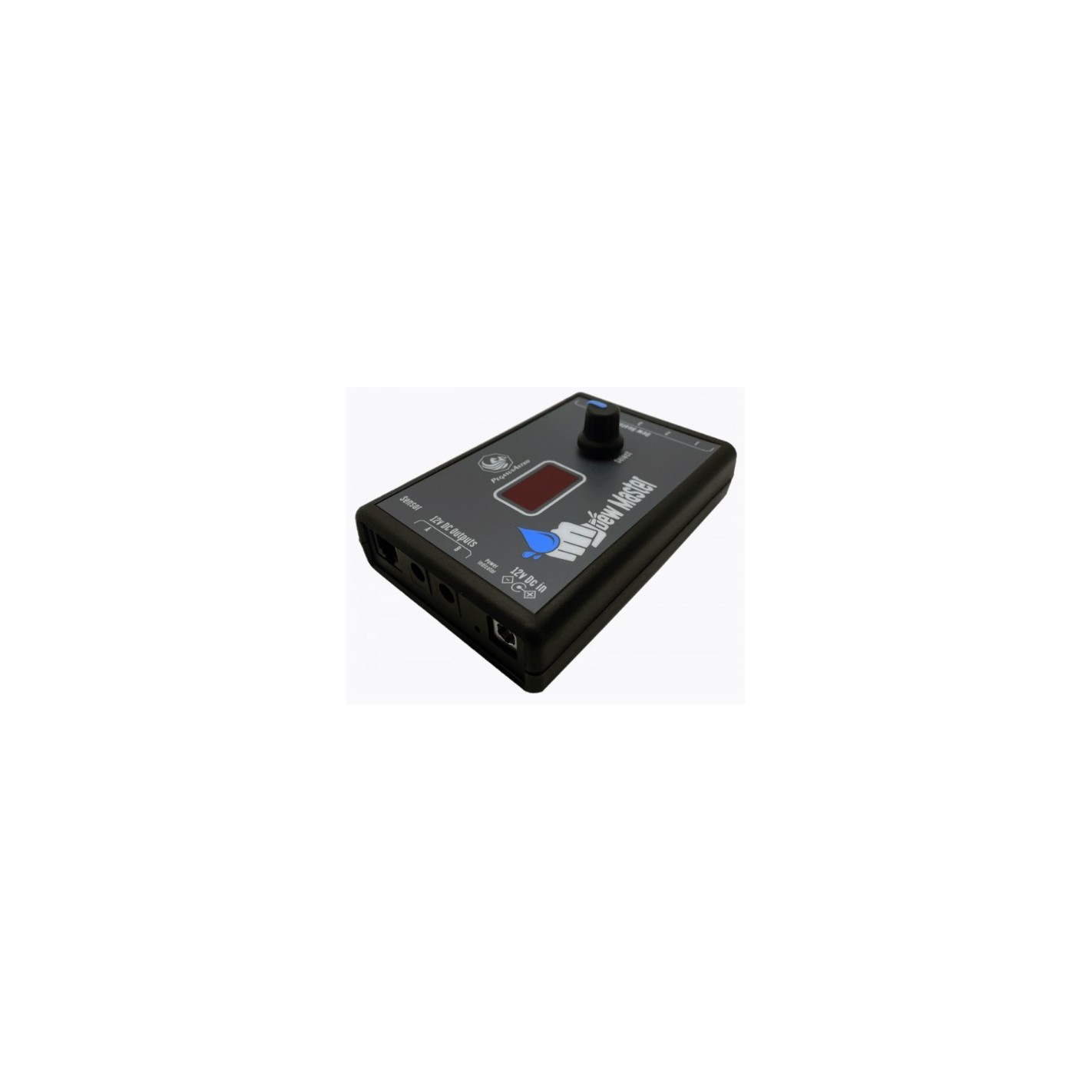

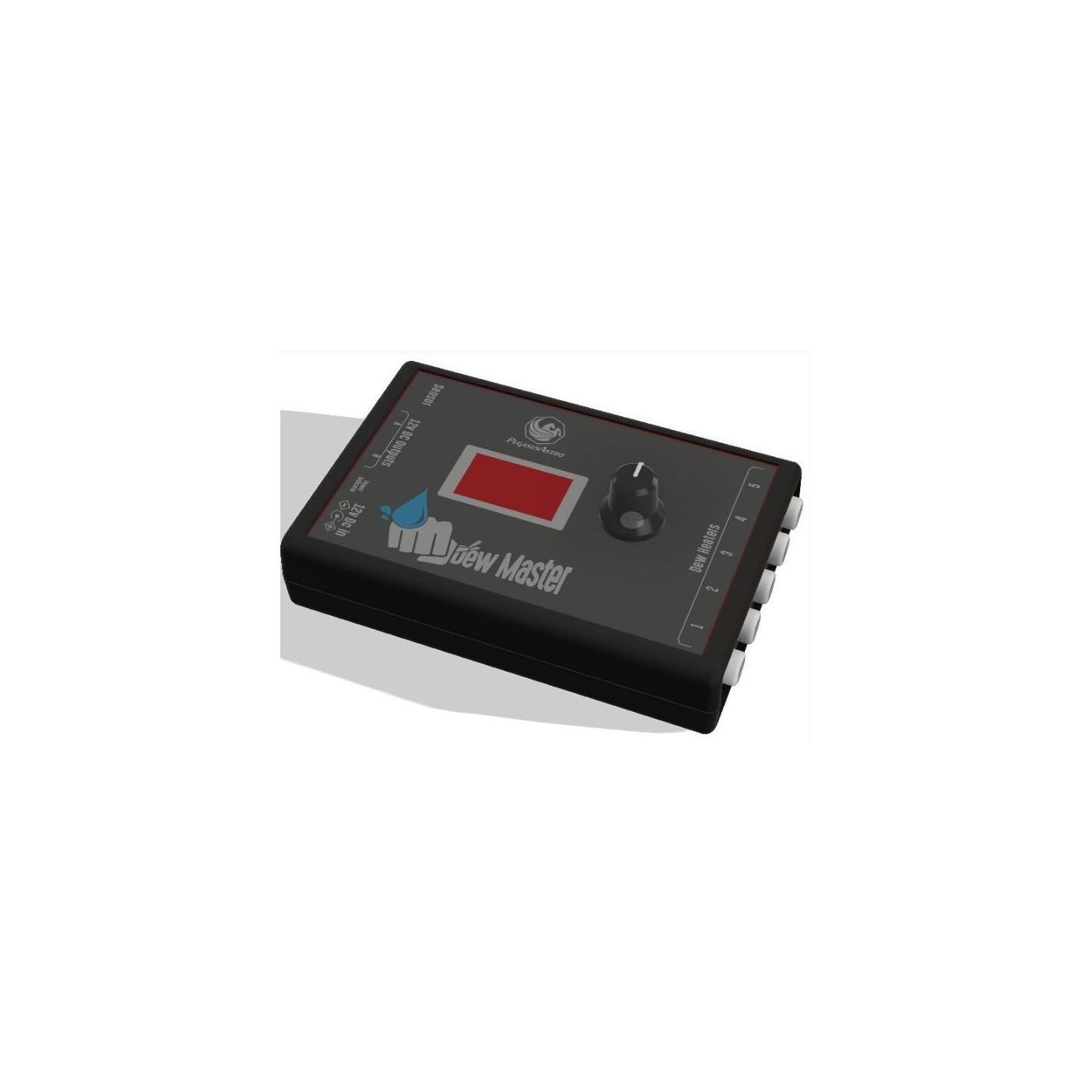

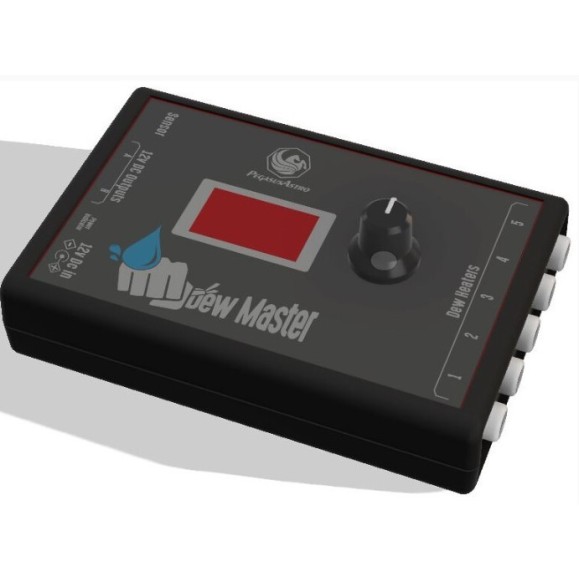

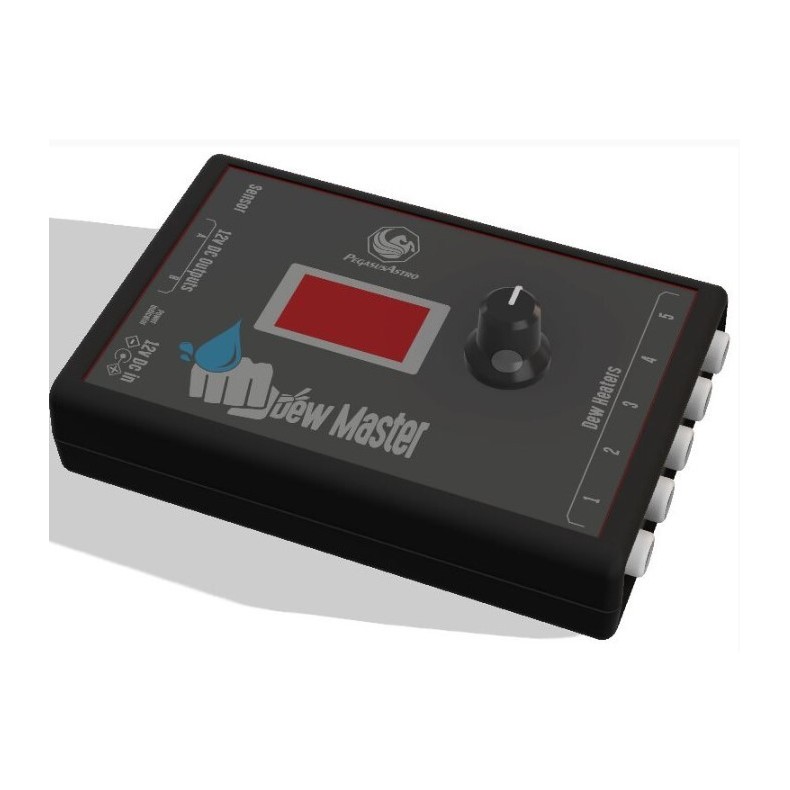

Controller Pegasus Astro Dewmaster
PEG-DEWMSTR
Stock at Supplier
168.55
177.64
-9.09
VAT excluded
Shipping 5/7d
DewMaster was made for the visual astronomer. Connect up to five spray heaters and control them individually via PWM duty cycle.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 10 October - Thursday, 17 October |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 10 October - Thursday, 17 October
✖
Full digital operation and a high-resolution red film display make device control fast and simple.Measure the amperes consumed and the input voltage with the naked eye.
Optionally, an external temperature and humidity sensor will allow you to know the relative humidity, temperature and dew point levels.
The automatic control of the dew heaters will allow you to relax as you know that in case of high humidity levels, your lenses will be free of moisture!

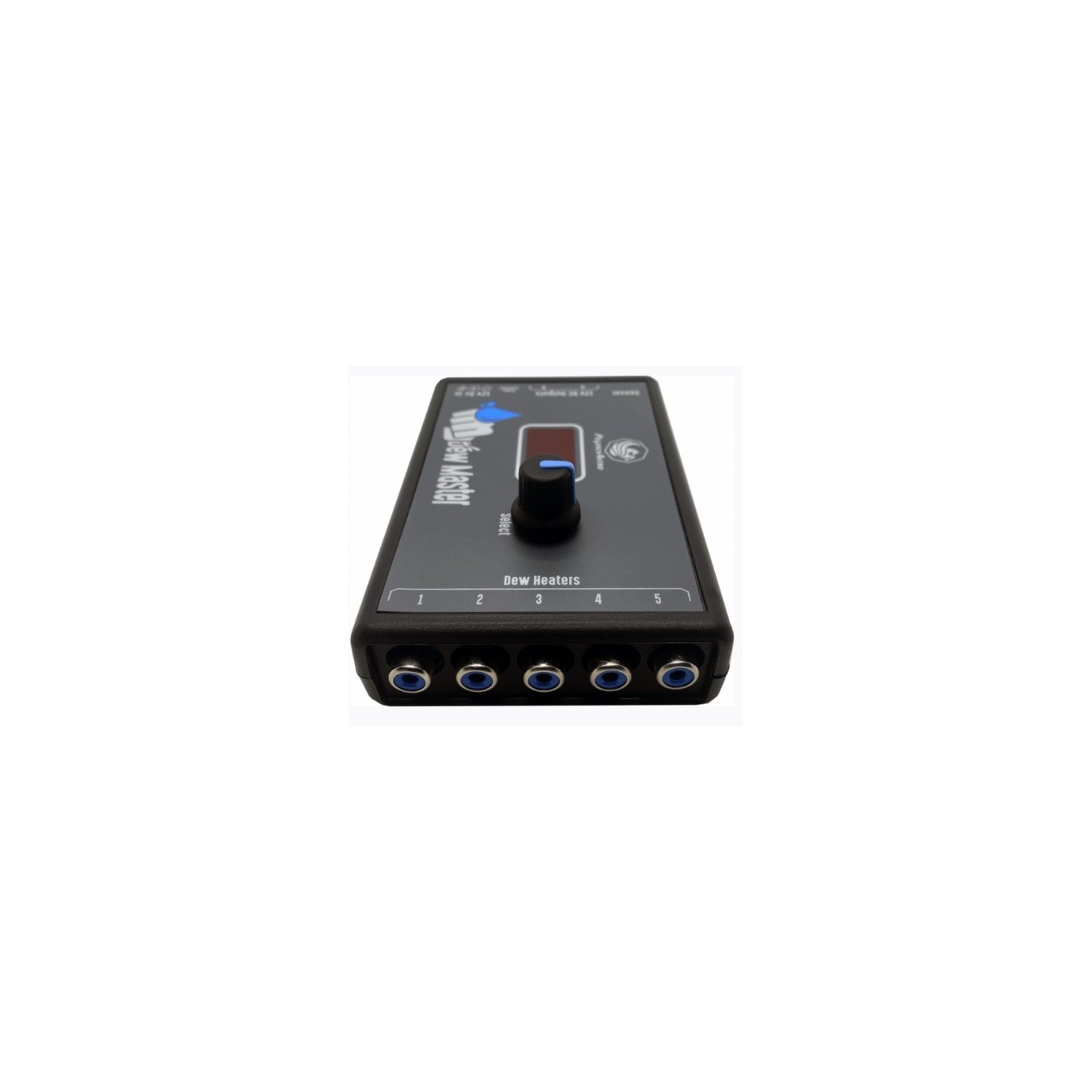

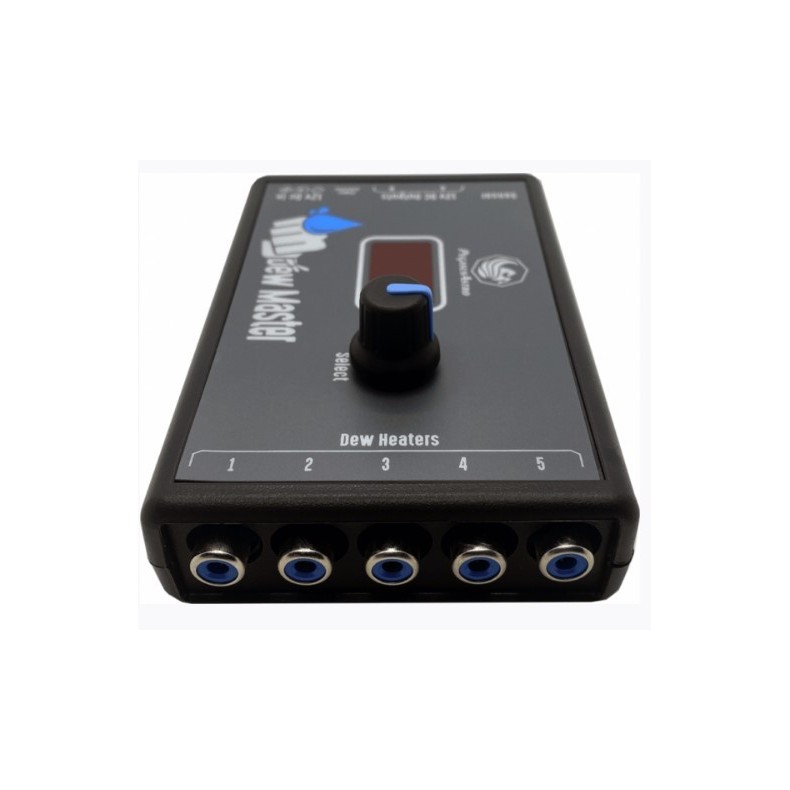

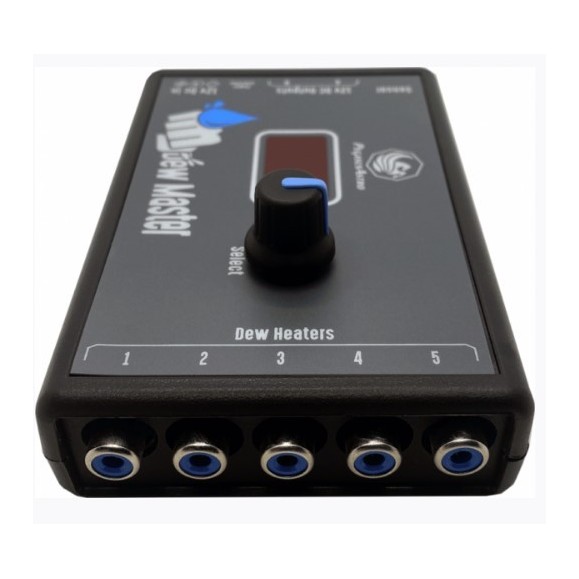

Five channel, five RCA outputs for spray heaters
Five powerful MOSFETs (supporting up to 6 amps each) will ensure that they will power your spray heaters with all the necessary power.Mosfet transistors ensure that there are no voltage drops across the outputs!
Pulse width modulation duty cycle control with automatic spray control.
PWM control will allow you to reduce the power consumption of your battery.
DewMaster can automatically adjust heater power levels by querying the environmental sensor. Simply press and hold the knob to select "Auto" and let the device decide if it is time to turn on and fine tune the power levels of your spray heaters.
Fully digital operation
The device is 100% digitally operated.
Easy to use
Simply push the knob down and choose the desired output from the screen.
Turn the knob (left or right) to control the duty cycle from 0% to 100%.
Simple as that!
Protected against reverse polarity.
The device was designed to be reverse voltage polarity protected.
Don't worry if you accidentally reverse the connection of your power supply.
Red film LED display
The device uses an organic LED display (red film) of 128 x 64 pixels.
This display operates without delays at very low temperatures.
The red film on the top of the screen ensures that your night vision will not be affected.
On the left, the images show the on-screen display menus of the DewMaster.
DewMaster output orientation.
External ambient sensor (* Included)
A calibrated external one (1) meter high resolution temperature and relative humidity sensor will allow you to know the environmental conditions of your site.The sensor can be automatically combined with the spray heater outputs to automatically adjust the power levels.
Let the DewMaster decide if it's time to turn on your heating elements!You can also monitor temperature, humidity and dew point readings on the display screen.
* The environmental sensor is now included in the package at no additional cost. Please note that the new sensor is blue in color and is only compatible with the newest firmware.

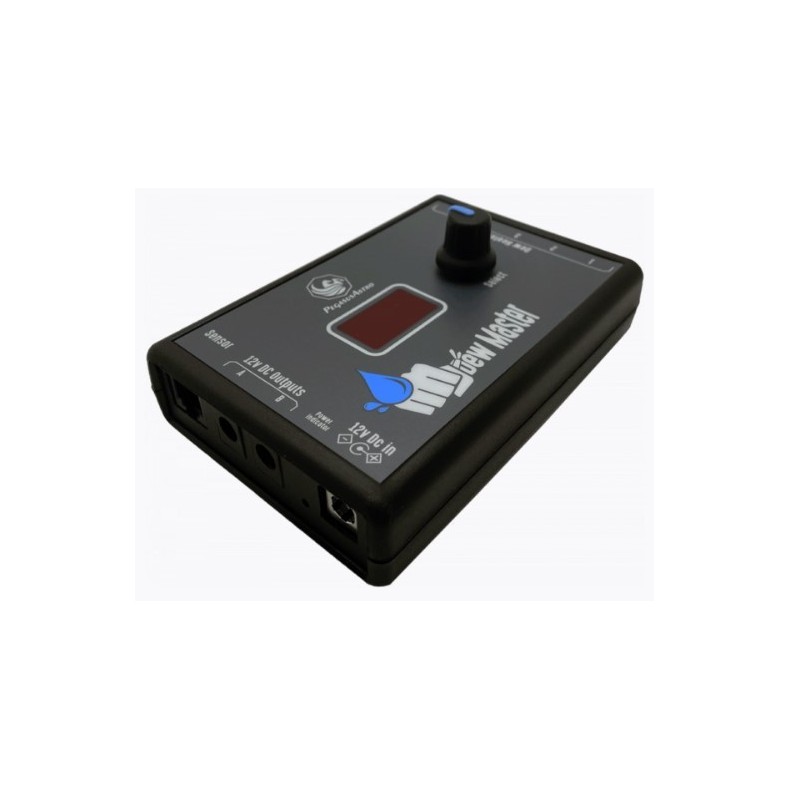

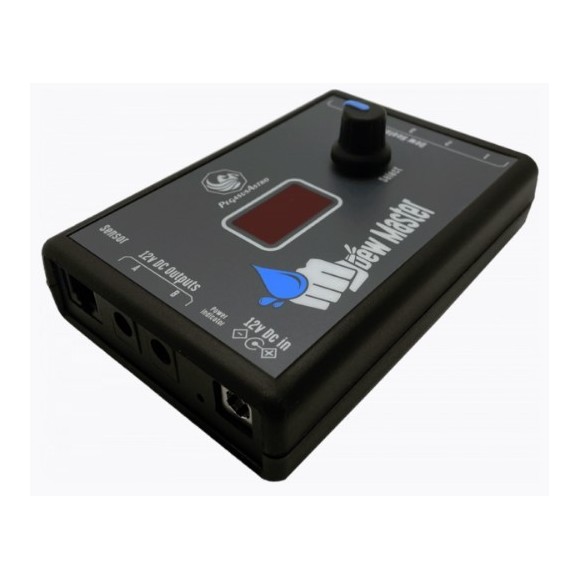

Two step DC outputs and one ammeter
Two 12 V DC outputs allow you to connect additional equipment with fewer and shorter cables.
The device includes an ammeter that displays the total current consumption of the device, the DC outputs and the spray heater channels.
Technical specifications
| Supply voltage | 12 V-13.8 V DC operation |
| Production | Same input voltage in pulse-width modulation duty cycle |
| Channels | five (5) |
| Electricity sockets | 5 RCA connectors. |
| Power input connector | Positive 2.5 mm center socket (requiresPEG-PSU-2.5OCIGLIGHT-ADAPTER25Optional ) |
| Dimensions | 109 mm x 74 mm x 25 mm |
| Weight | 250 grams |
In the table
- DewMaster controller
- 2.1 mm to 2.1 mm cable (1 meter length)
