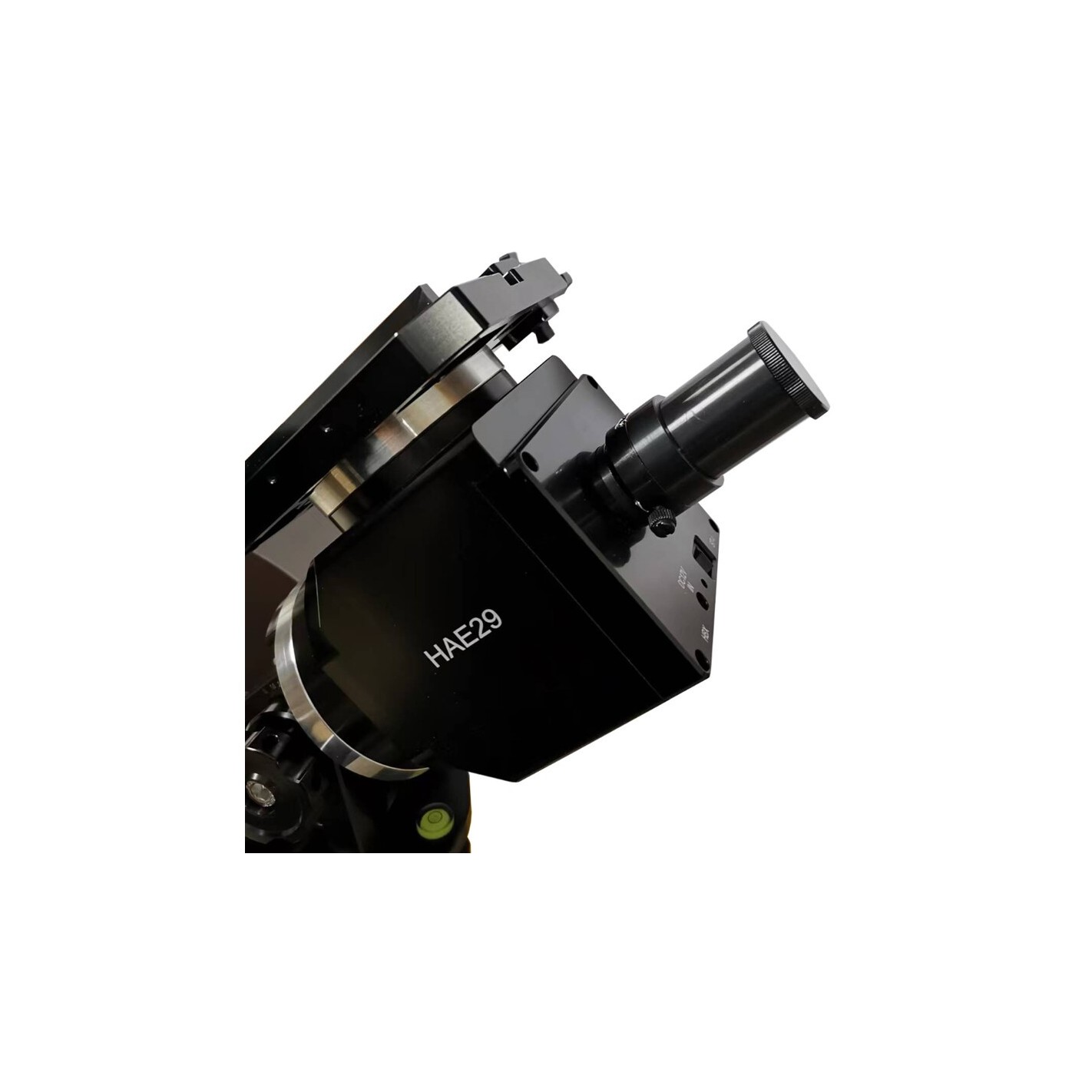

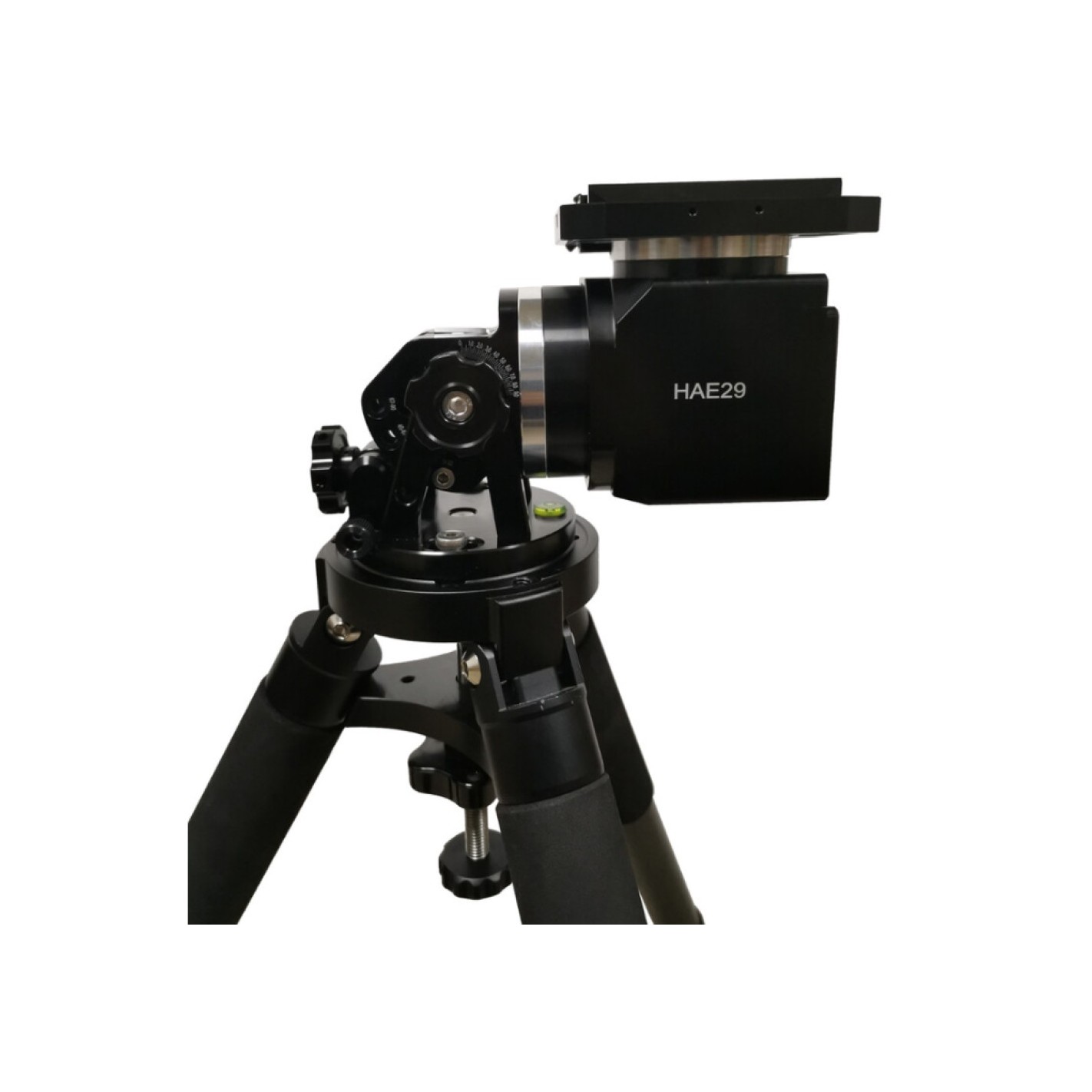

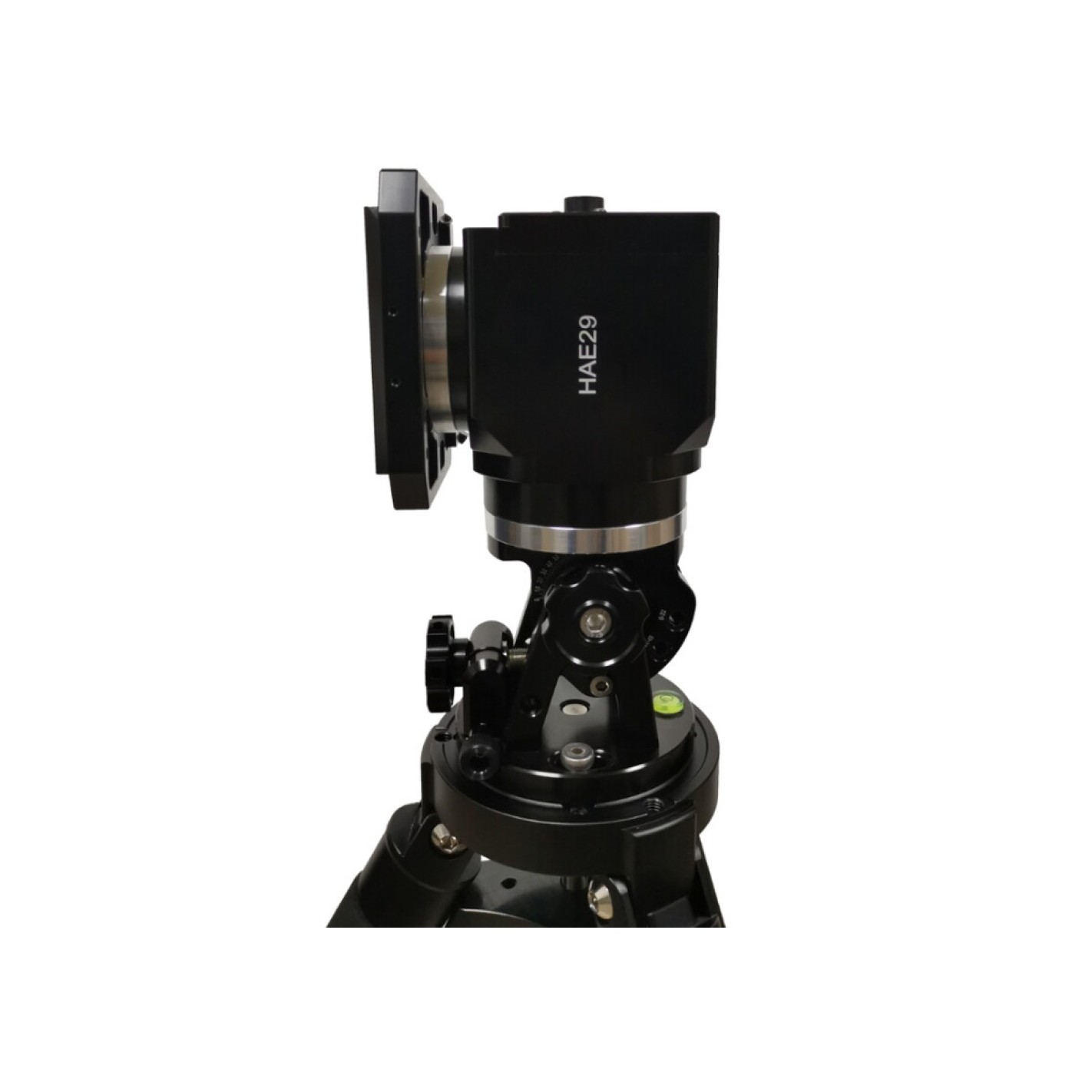

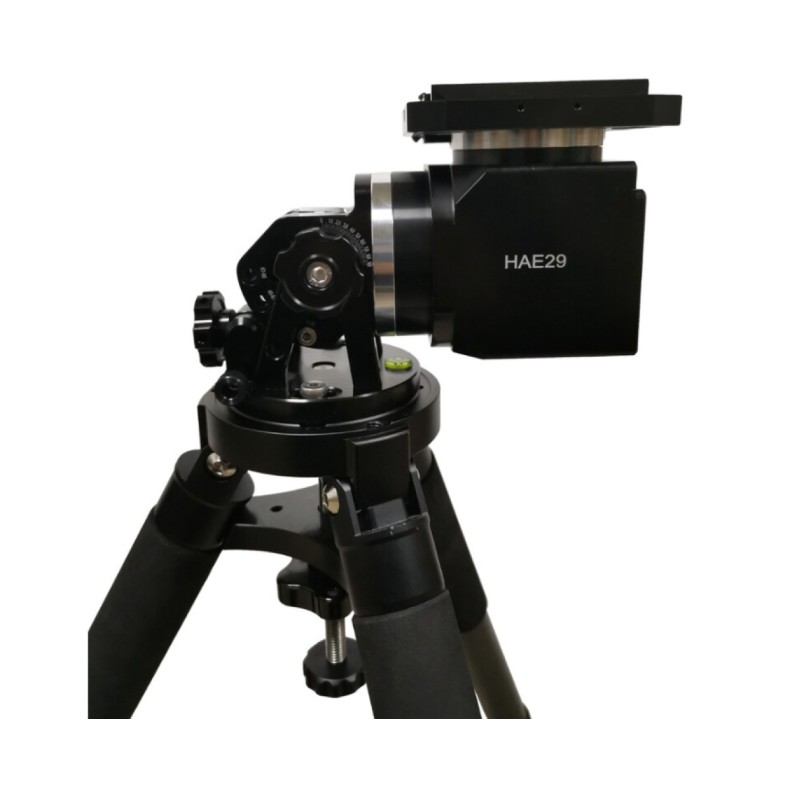

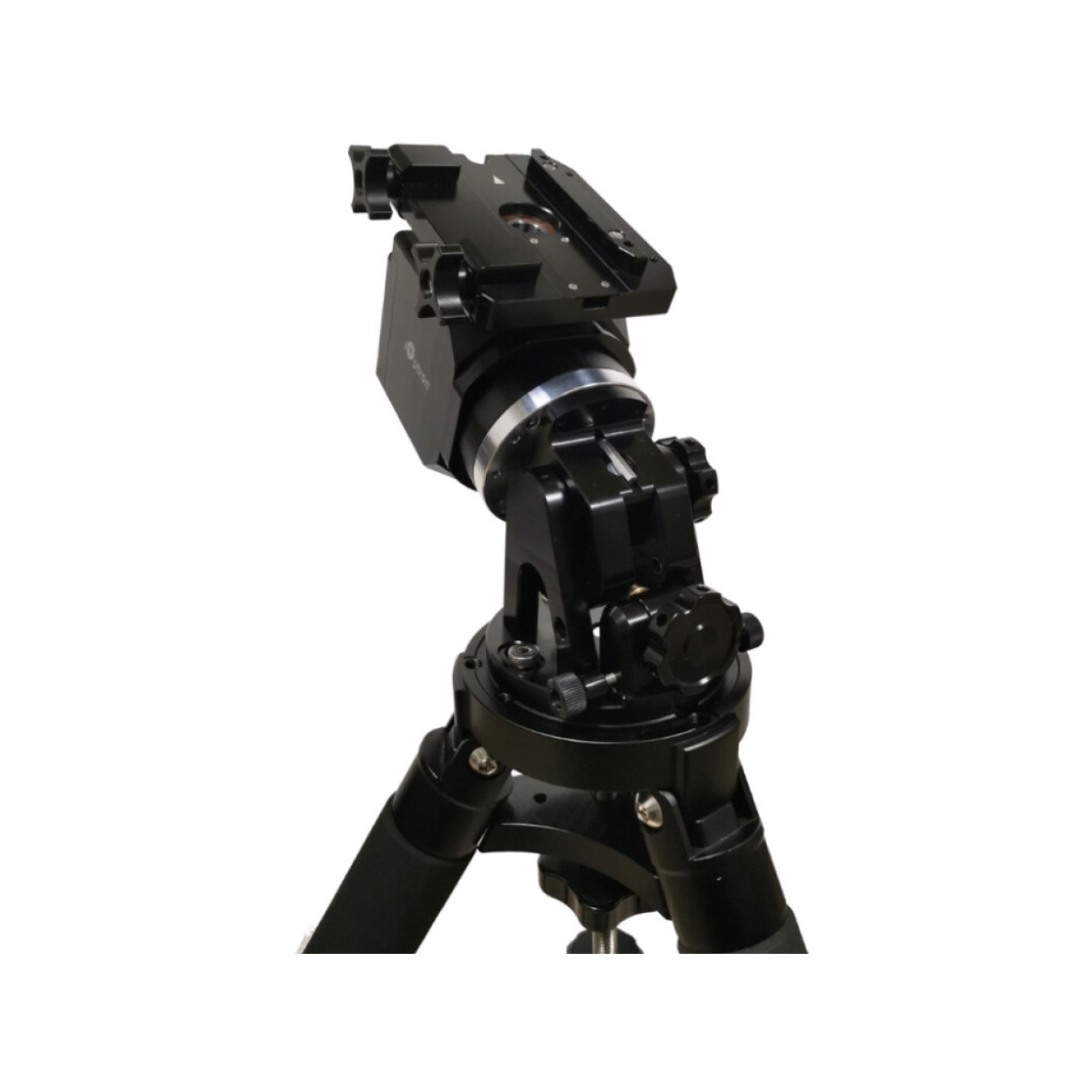

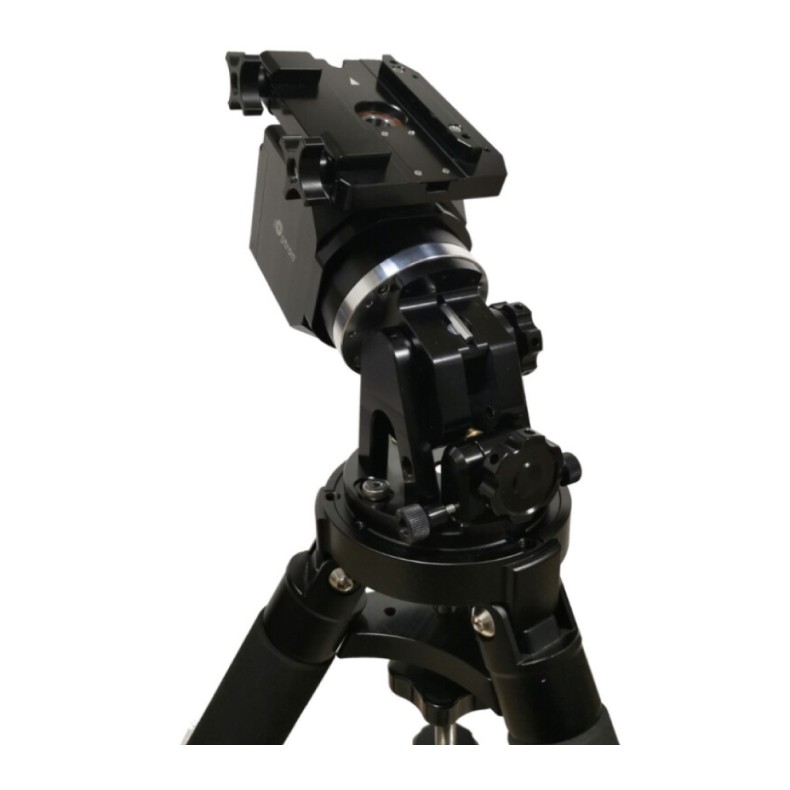

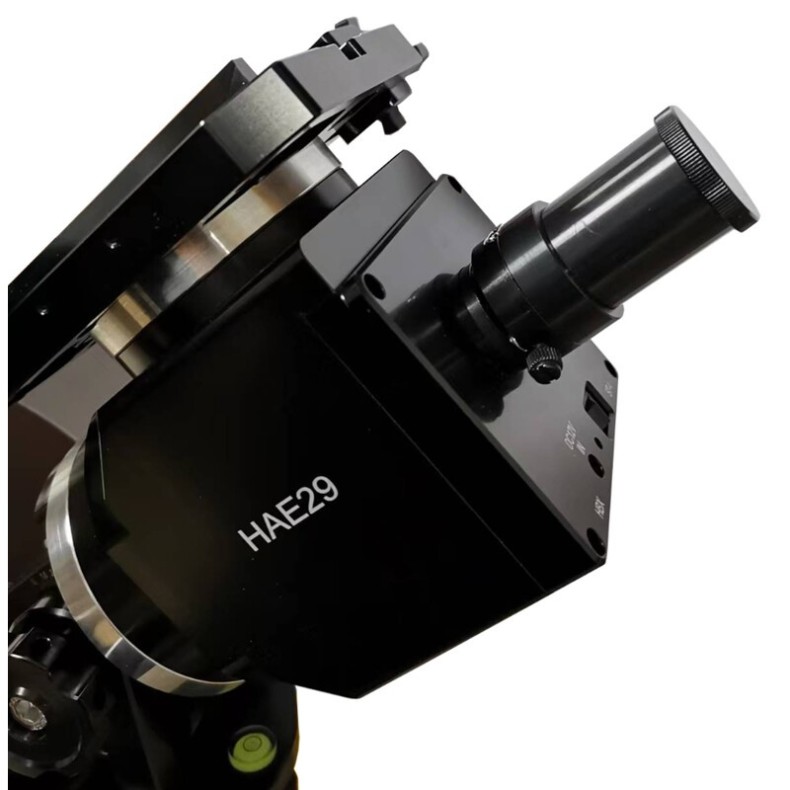

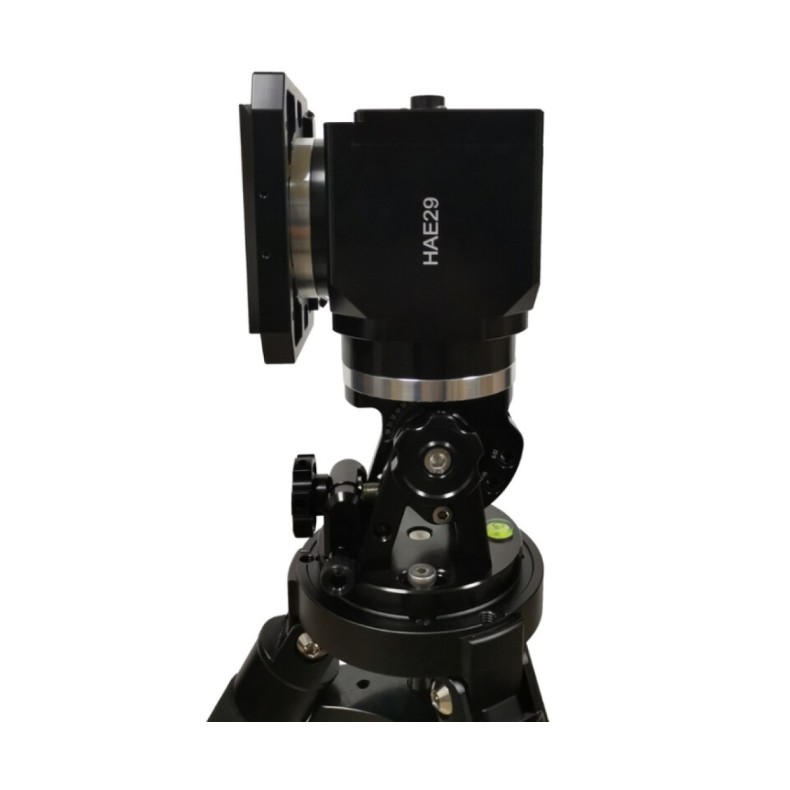

IOptron HAE29 Strain Wave AZ/EQ iPolar Mount

A saddle head that weighs 8lbs with a payload capacity of 13.5kgs, without the need for a cumbersome counterweight or axle.

Utilizing the most advanced warp wave gear technology for RA and DEC movements, the HAE29's offer an unmatched payload to weight ratio.

Its CNC machined black anodized metal body is a robust platform that will perform at the highest level for many years to come.

Unique features, such as electronic friction brake and memory shutdown, allow the mount to safely stop and resume a GoTo turn or continue tracking even after a sudden loss of power (no need to realign and start from the beginning).

The HAE29 mount can be controlled from a computer, either via ASCOM/Commander for Windows PC or a third-party INDI driver for MacOS; a SmartPhone/Tablet via iOptron Commander Lite or an app such as SkySafari; or a Raspberry Pi device via an INDI driver.

The HAE29EC features a high-precision RA-axis encoder that offers incredible tracking accuracy, enough for many to opt to take images "without" guidance.

SPECIFICATIONS

• Maximum additional load (kg): 13.5 kg without counterweight and 18 kg with counterweight
• Interfaces: WiFi, USB & HC
• Language: English
• Mounting easel: Losmandy & Vixen
• Mount weight (kg): 3,7
• Input voltage: 12V
• Amperage (A): 5
• Cable routing: External
• Encoder: no
• Declination shaft material: Aluminum
• Material of straight ascension shaft: Aluminum
• Motor type: Stepper motors
• Counterweight(s): 0
• GoTo system: yes
• Manual control device: yes
• Level: yes
• Tripod: no tripod

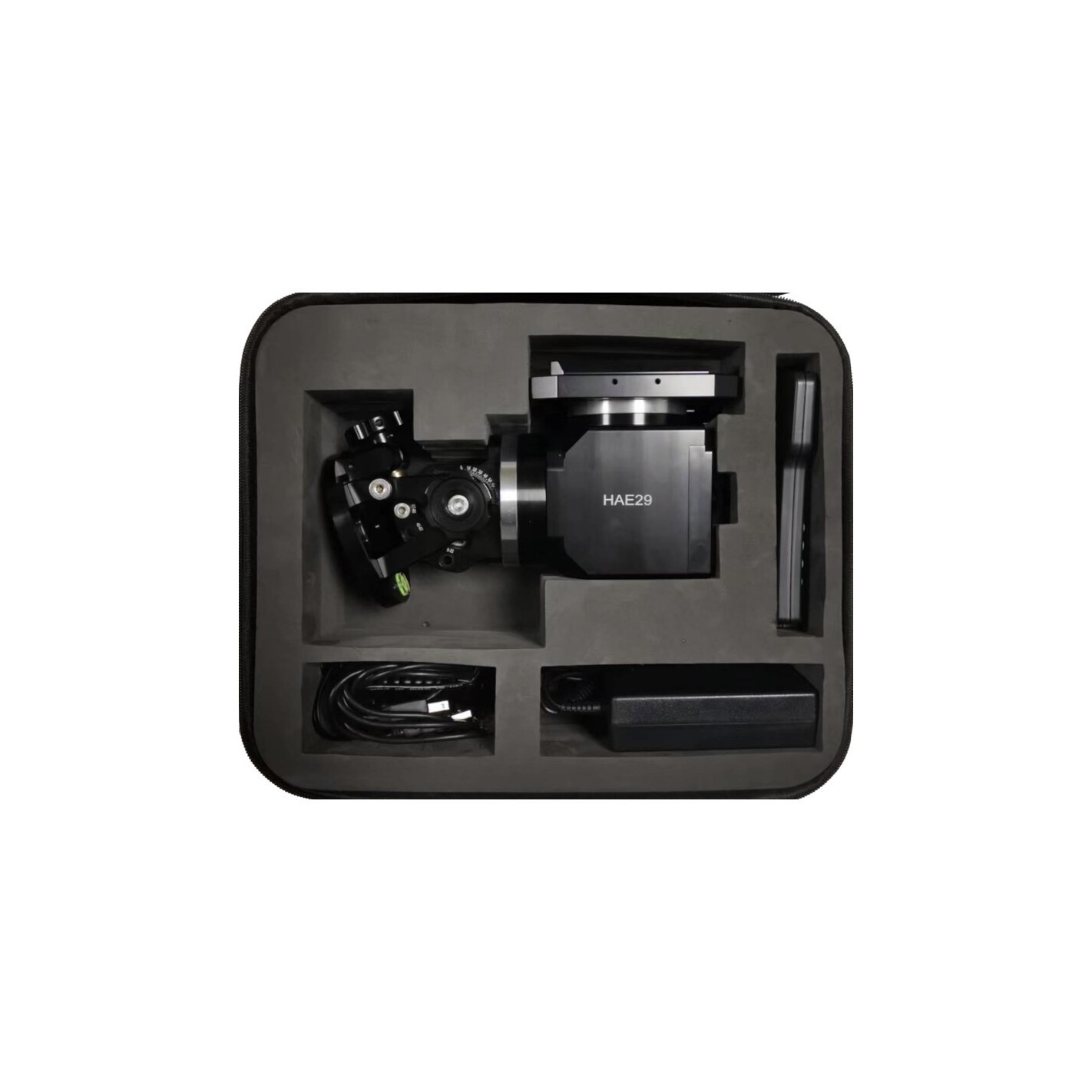

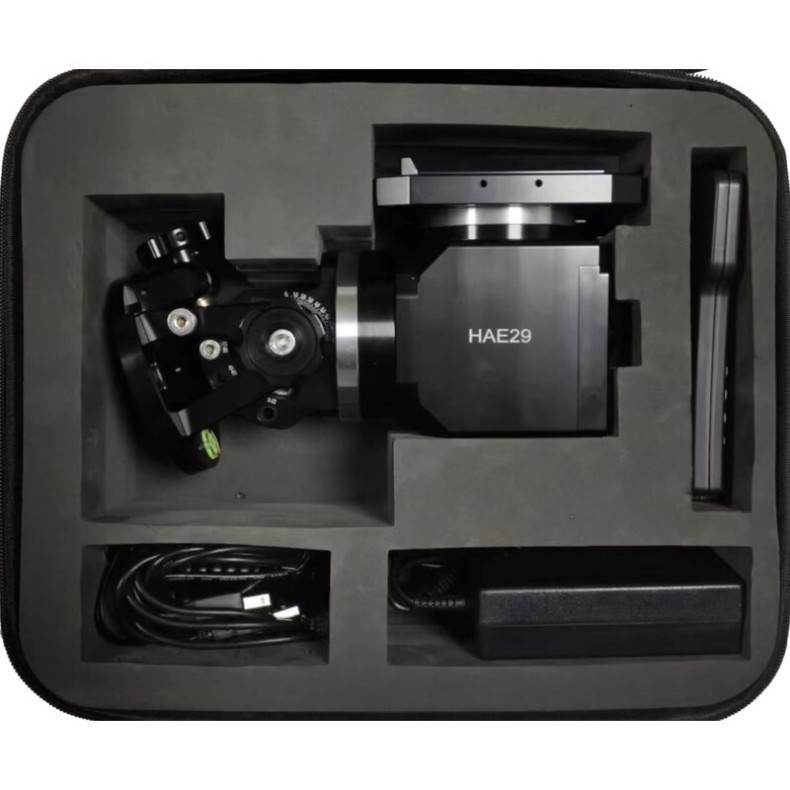

• Carrying cases: yes
• Pole finder: yes
• Additional contents: Power supply
• Counterweights: 0
• Series: HAE
• Type: Mount
• Construction type: Altacimutal GoTo
• GPS: yes
• Wi-Fi: yes
• PEC correction: no
• polar alignment: iPolar
• GoTo system language: English
• Software: Go2Nova 8409
• Autoguiding: yes
• Interfaces: AutoGuider, Aux, RS232
• Database: 212,000
