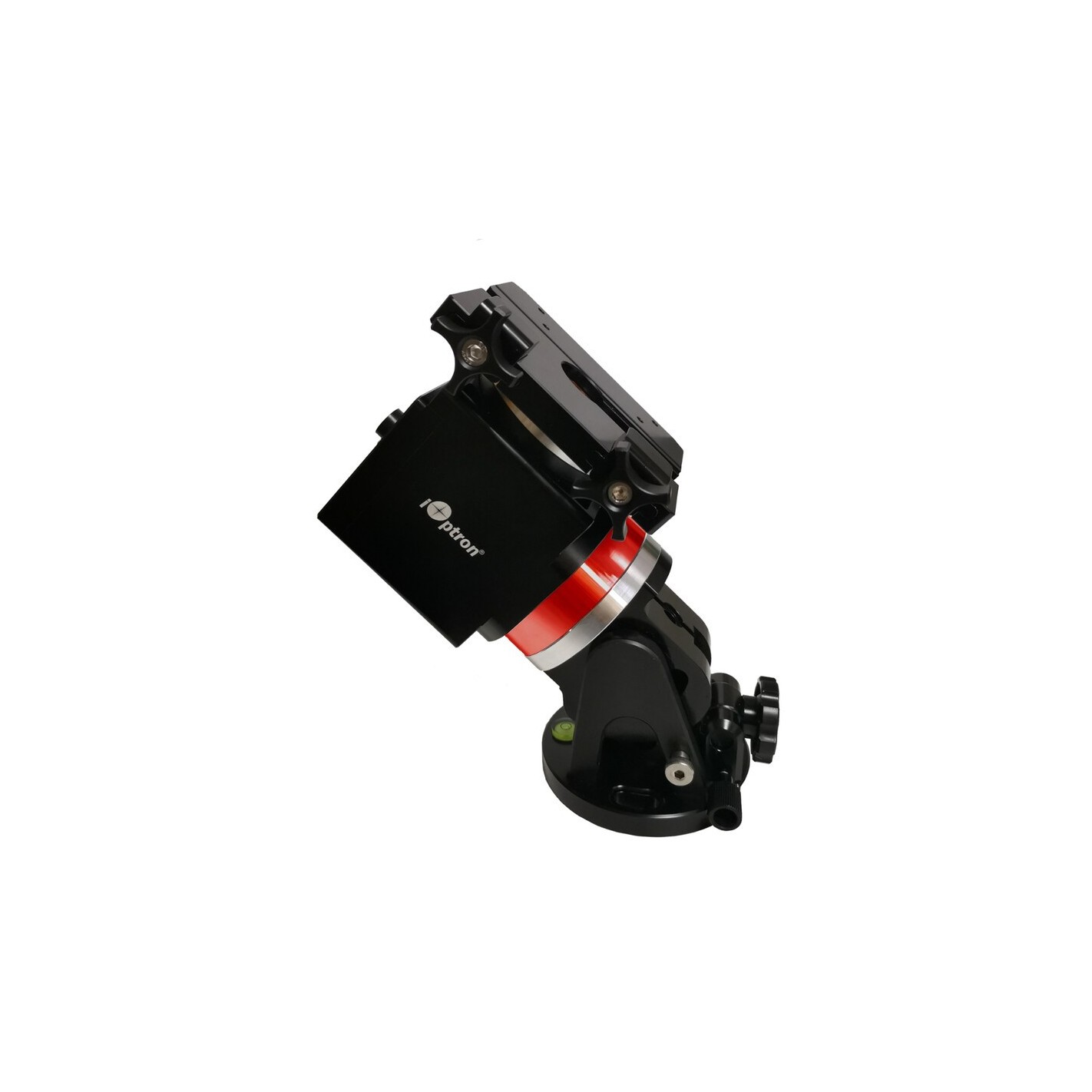

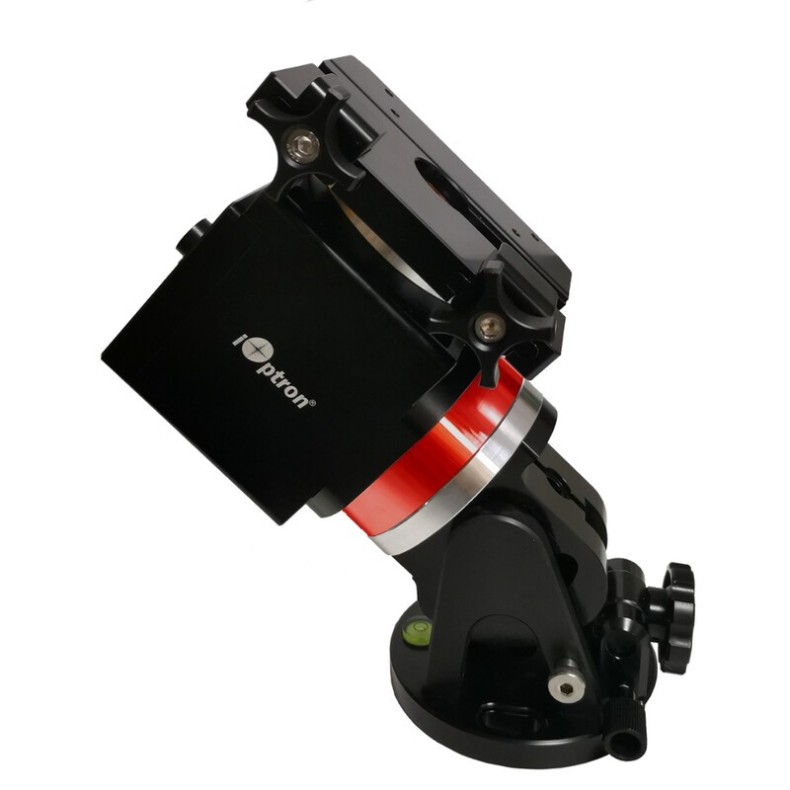

IOptron HAE43 EC Strain Wave AZ/EQ iPolar Mount

New broadwave gear mounts from iOptron: the dual AZ/EQ HAE43 and HAE43EC mounts.

These lightweight, compact, medium payload titans will provide an astronomical experience like never before.

Featuring a mount head weighing less than 5.9kg with a payload capacity of 20kg, with no need for a cumbersome counterweight or axle.

Applying iOptron 's decades of experience in creating precision mounts, the HAE43 brings this vision to life.

Utilizing the most advanced tension wave gear technology for RA and DEC movements, the HAE43 offers unprecedented weight and payload efficiency.

Its CNC machined black anodized metal body provides a robust platform that will perform at the highest level for many years to come.

Unique features, such as electronic friction braking and shutdown memory, allow the mount to safely stop and resume a GoTo turn or continue tracking even after a sudden loss of power (no need to realign and start from the beginning).

The HAE43 mount can be controlled from a computer, either via ASCOM/Commander for Windows PC or a third-party INDI driver for MacOS; a SmartPhone/Tablet via iOptron Commander Lite or an app such as SkySafari; or a Raspberry Pi device via an INDI driver.

The HAE43EC features a high-precision RA-axis encoder that offers incredible tracking accuracy, enough for many to opt to take images "without" guidance.

SPECIFICATIONS

• Max. additional load (kg): 20 without counterweight and 25 with counterweight
• Language: English
• Saddle stand: Losmandy &amp Vixen
• Mount weight (kg): 5.8
• Input voltage: 12V
• Amperage (A): 5
• Cable routing: external
• Encoder: yes
• Declination shaft material: Aluminum
• Material of straight ascension shaft: Aluminum
• Motor type: Stepper motors
• GoTo system: yes
• Manual control device: yes
• Level: yes
• Tripod: no tripod
• Transport boxes: yes
• Pole finder: yes
• Additional contents: Power supply
• Counterweights: 0
• Series: HAE
• Type: Mount
• Construction type: Altacimutal GoTo
• GPS: yes
• Wi-Fi: yes
• PEC correction: yes
• polar alignment: iPolar
• GoTo system language: English
• Software: Go2Nova 8409
• Autoguiding: yes
• Interfaces: AutoGuider, Aux, RS232
• Database: 212,000
