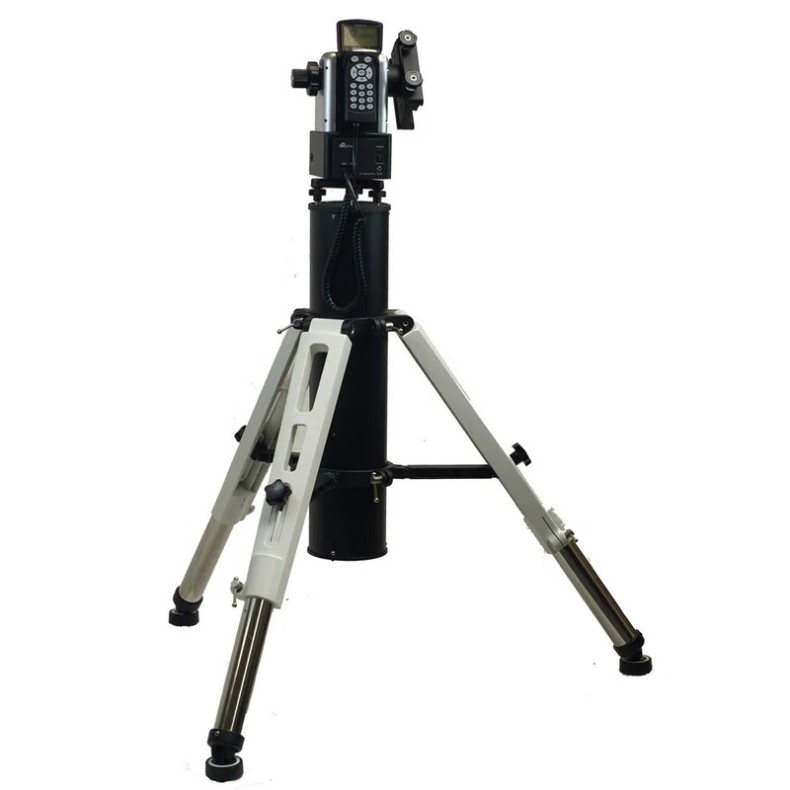

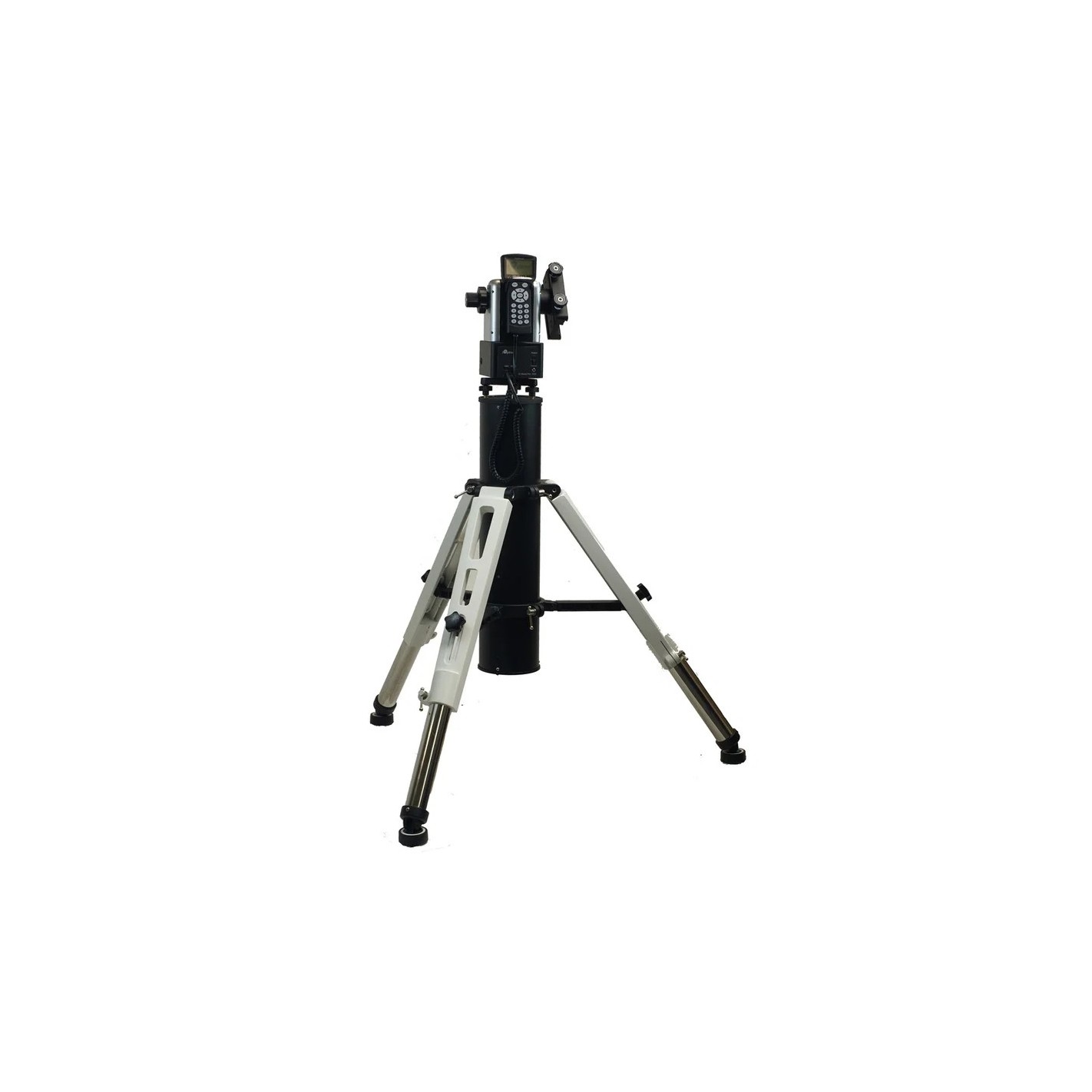

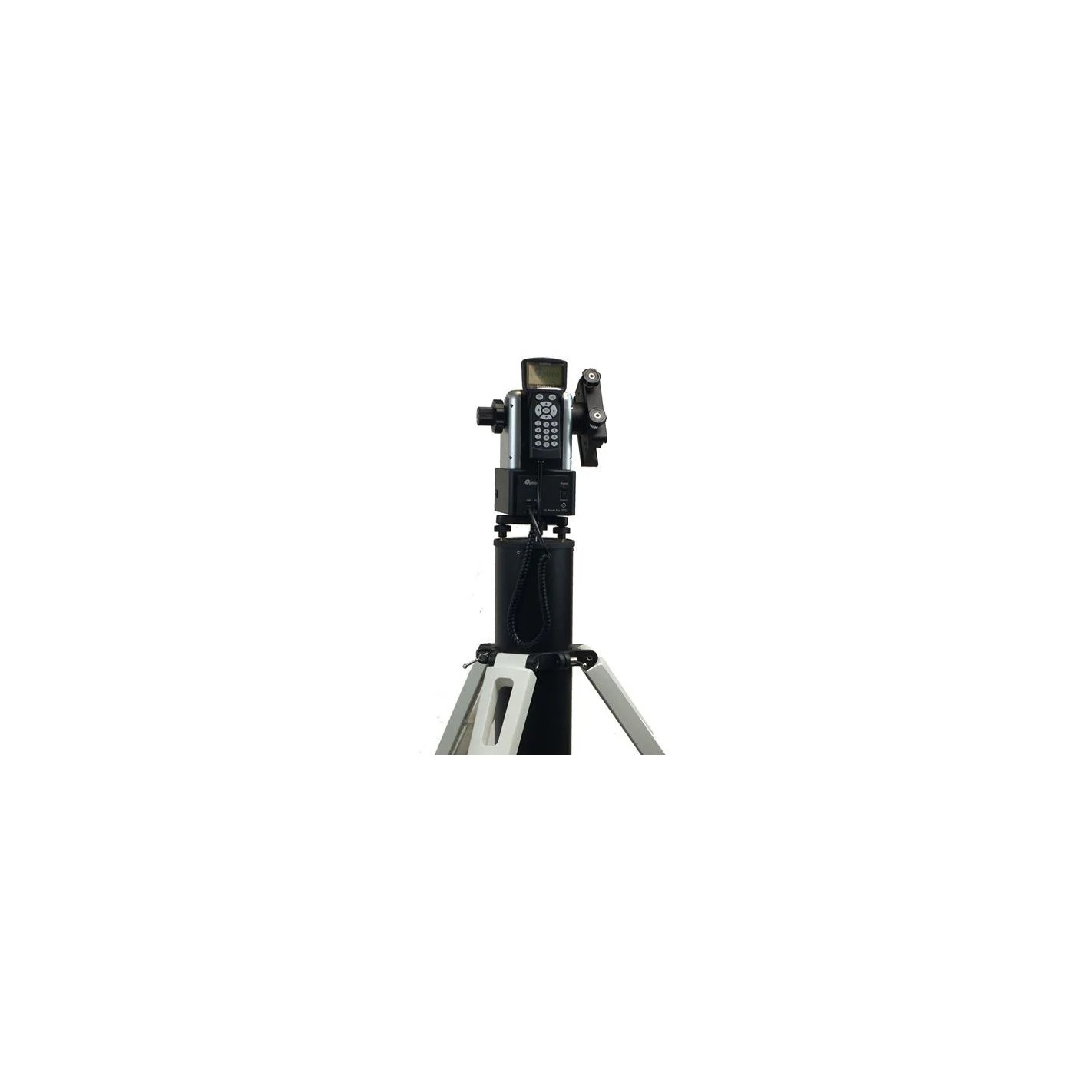

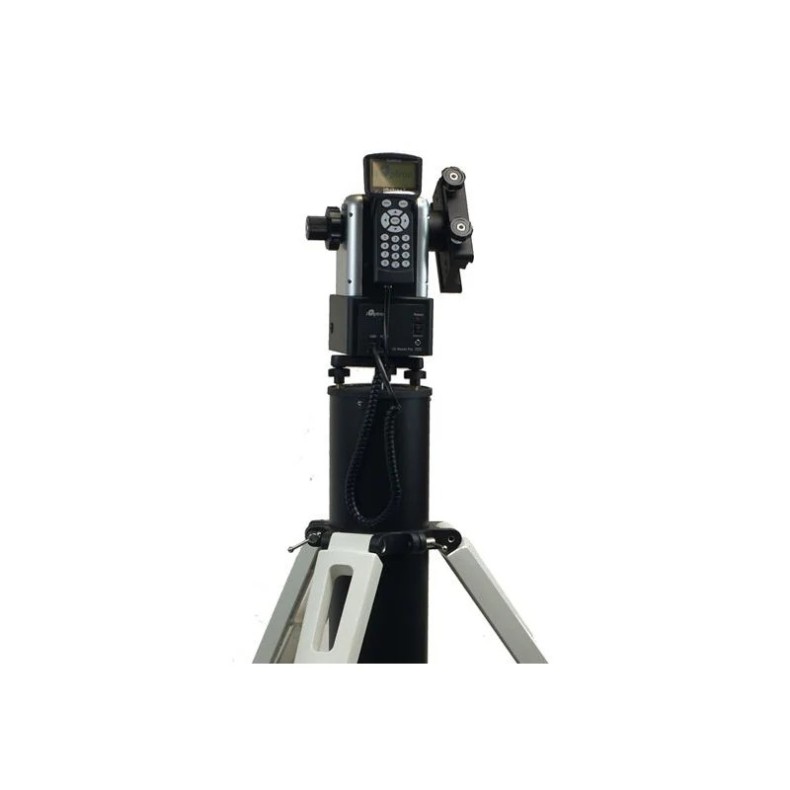

Altazimuth mount iOptron AZ Pro GoTo Tri-Pier

PRODUCT DESCRIPTION

We call it "level and go," the term used to describe the simple setup of the new AZ Pro mount from iOptron.

Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes over from there.

Using the integrated 32-channel GPS receiver and built-in angular and position detection sensors, the AZ Pro mount calculates its global position, as well as the orientation of the telescope.

Automatically, the mount orients the instrument to an easily identifiable bright object in the night sky.

The user only has to confirm that a bright object is in the center of the view to activate the tracking and GOTO functionality.

Features:

• Rechargeable lithium-ion battery for up to 10 hours of use.
• 33 pounds of primary payload and 10 pounds of secondary payload capacity, with a mount weighing only 13 pounds
• Quiet, low-power stepper motors
• Go2Nova® 8407 handheld controller with 212,000+ object library and 8-line backlit LCD display
• Backlash-free controller system
• Built-in WIFI adapter for full wireless control of ASCOM, iOptron CommanderTM and Sky Safari
• Serial port for computer control and firmware upgrades
• Retractable counterweight shaft
• Position storage in case of power failure
• Die-cast aluminum body
• Easy 3-point level adjustment
• 6-inch dual dovetail mount (styles Losmandy/Vixen)
• Height of only 10 inches (mounting head only)
• Built-in 32-channel GPS receiver
• Automatic position and angle detection sensors
• Aluminum hard case
• Aluminum spring and legs
• Stainless steel leg extensions
• Tri-Pier legs have built-in vibration suspension pads.

SPECIFICATIONS

Capacity

• Max. additional load capacity (kg) 15
• Counterweight(s) (piece) 1
• Mounting mount: Losmandy & Vixen
• Motor type Stepper motors
• Weight (g) 4500
• Battery operated: yes
• Battery life (h)10
• Battery type Internal Li-Ion battery
• Worm wheel material Aluminum
• Worm gear material Brass

Special features

• GPS: yes
• GoTo system: yes
• Manual controller: yes
• PC interface: yes (WIFI)
• PC controllable
• yes (ASCOM)
• Level: yes

Device

• Accessory board: yes
• Other contents: Power supply
• Carrying cases: yes

Tripod

• Tripod Material Steel
• Tripod weight (kg)11.7
• Maximum tripod height (cm)108
• Support column: yes

General

• Total weight (kg)23
• Series: AZ Pro
• Type: Mount
• Mounting type: Azimuthal
• GoTo Control
• GPS: yes
• Accuracy: 0.002
• Database: 212,000
• Go2Nova 8407 software
• GoTo language: English
