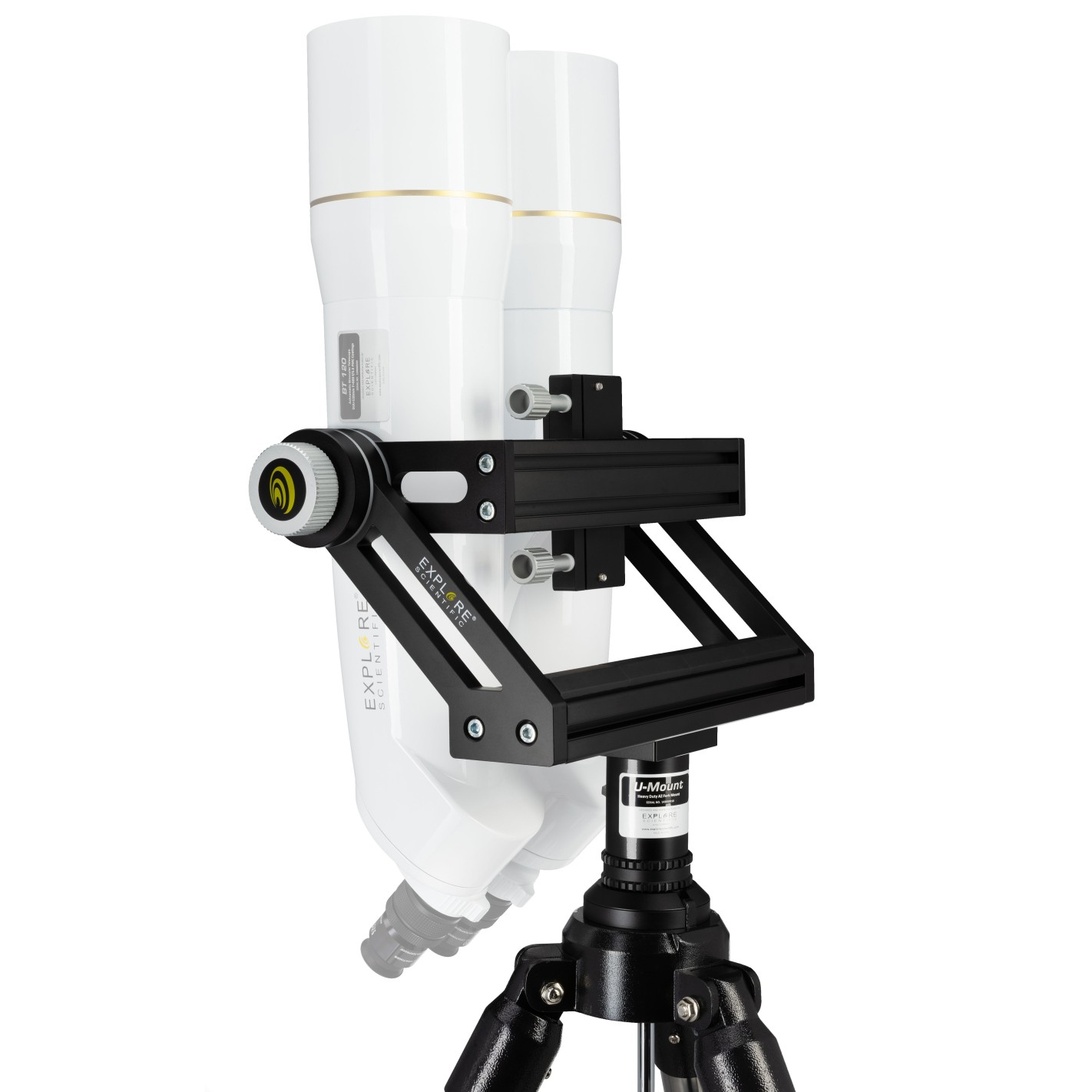

Fork Mount Explore Scientific U-MOUNT with Tripod for giant binoculars

Fork Mount Explore Scientific U-MOUNT with Tripod for giant binoculars

Massive fork mount with excellent adjustable mechanics for large binoculars with tripod
When using giant binoculars, a stable stand and a tripod with adequate load capacity are absolutely necessary. The new EXPLORE SCIENTIFIC U-mount with field tripod has been specially designed for the EXPLORE SCIENTIFIC BT series of giant binoculars, but it also fits most other binoculars with a lens diameter of 70 to 120 mm, which have a 1/4 inch photographic thread connection at the bottom . With the U-mount there is no annoying shaking or vibration, the combination is as solid as a piece of iron and provides unlimited observing pleasure in all binocular adjustment positions. Whether you are observing the starry sky or the landscape, the U-mount is a solid base for your giant binoculars and allows smooth and even movements on both axes.

The U-mount as a base for giant binoculars and always with you on every excursion

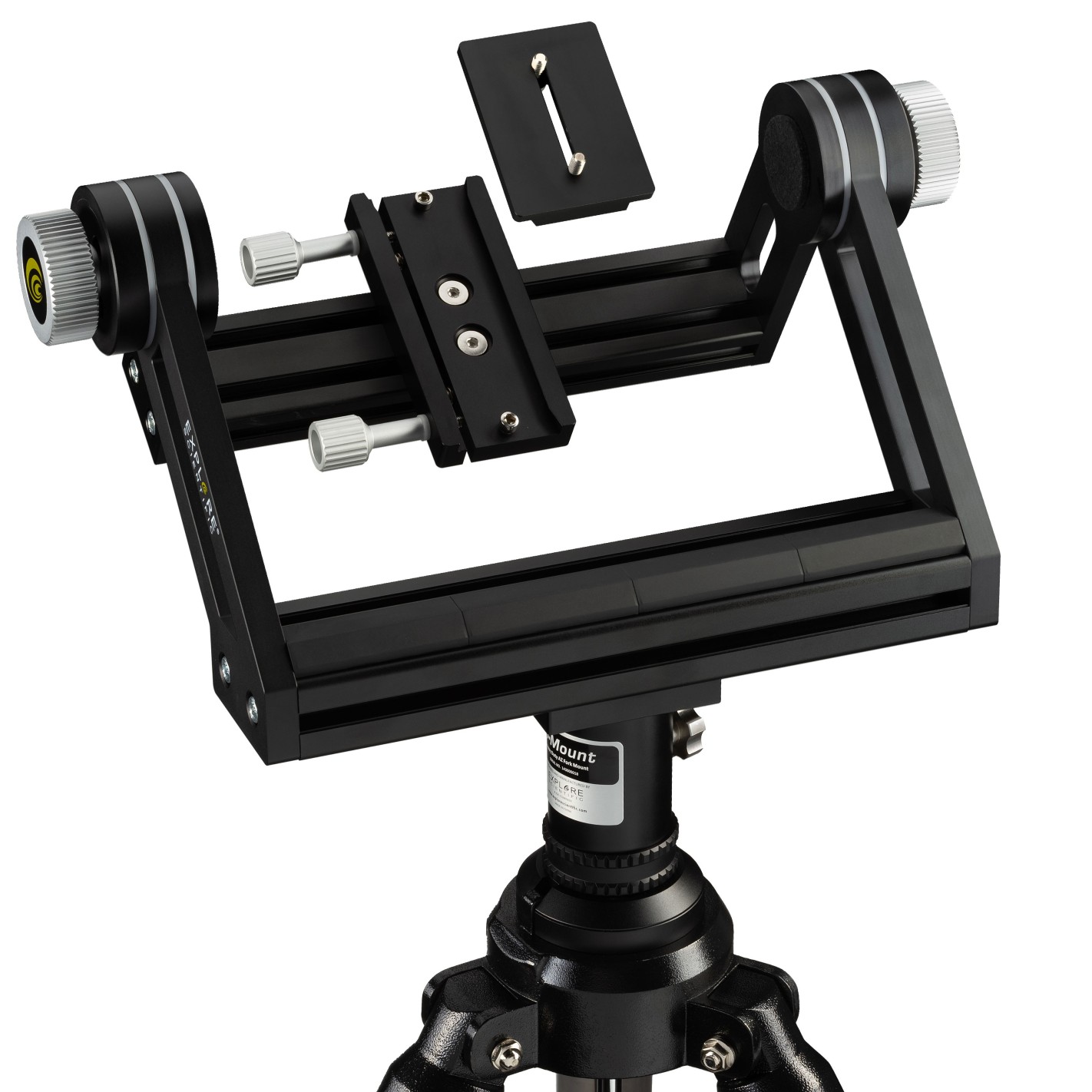

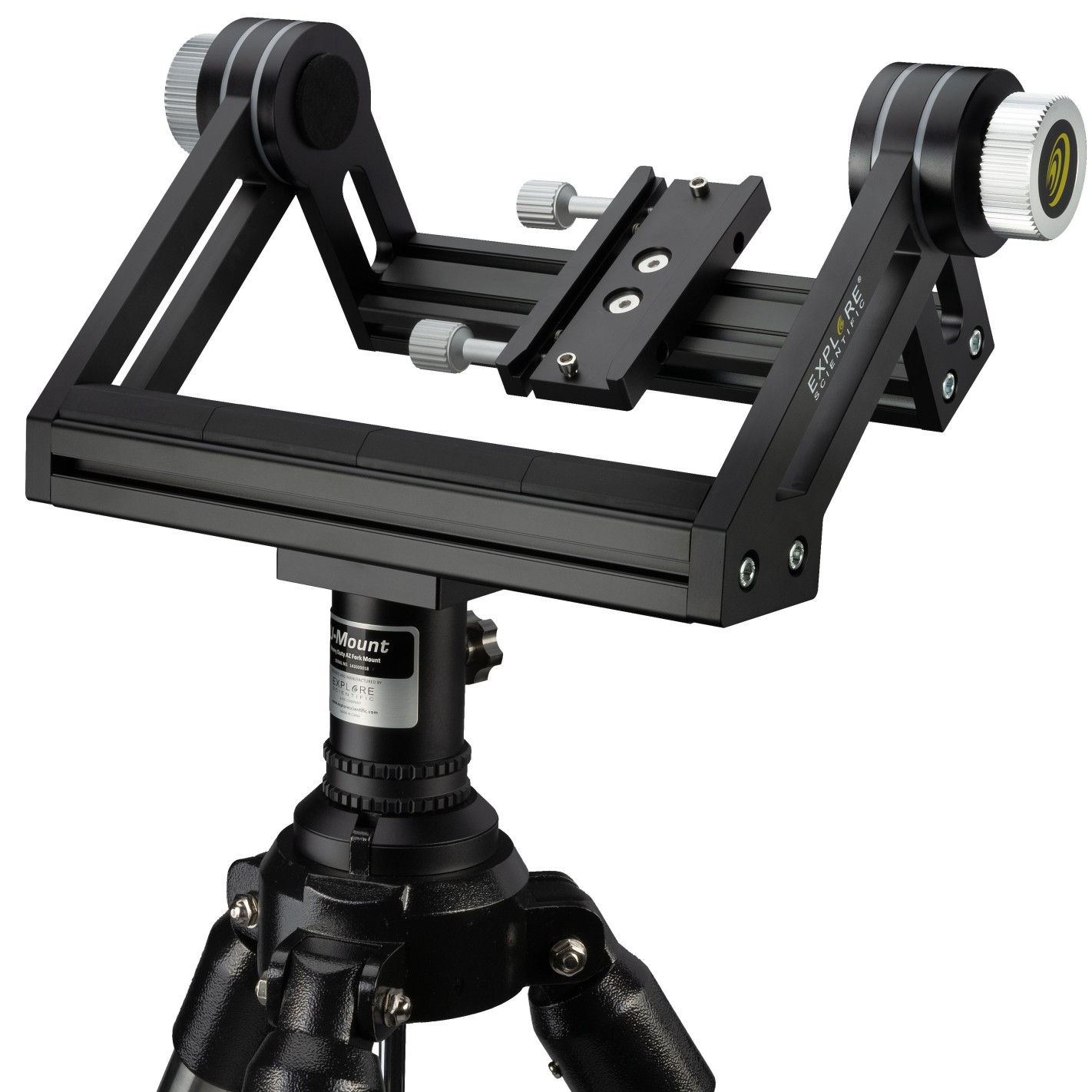

An easily transportable but solid mount is essential when using giant binoculars. A simple photographic tripod with ball head or video tilt head is quickly overloaded here. The new EXPLORE SCIENTIFIC U-bracket has an excellent mechanism with adjustable friction on both axes and allows easy adjustment and tracking even when the load is fully utilized. Depending on the adjusted intensity of the friction, the binocular position remains stable or a smooth and even movement can be achieved. The large adjustment screws on both axes are smooth and easy to operate even with wet gloves and fingers. Vibrations are reduced to an absolute minimum thanks to the solid construction of the U-bracket. Even at high magnification, there is no shaking and the finest details can be observed. The U-bracket and tripod can be separated for easy transport.

Mounting the large binoculars on the U-mount

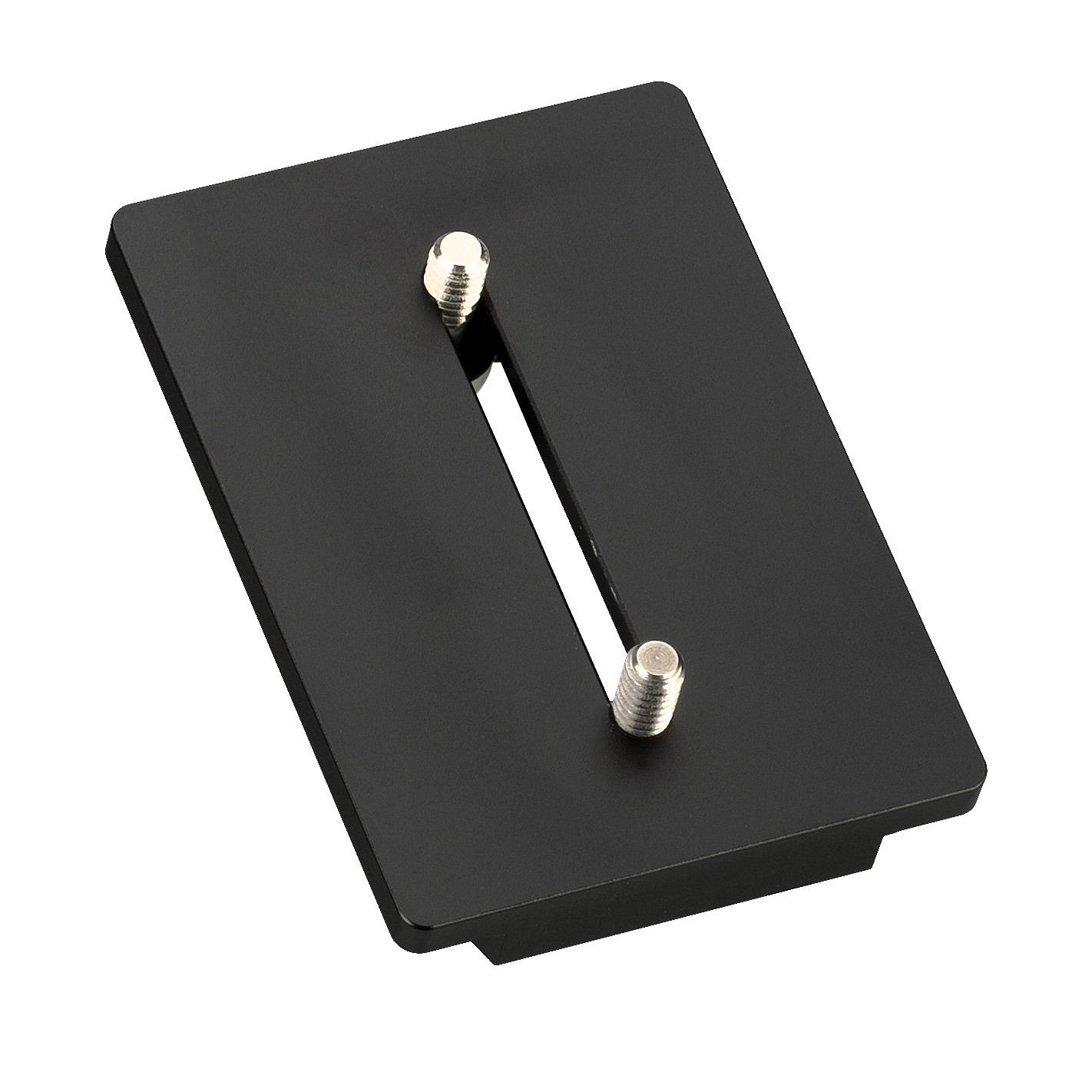

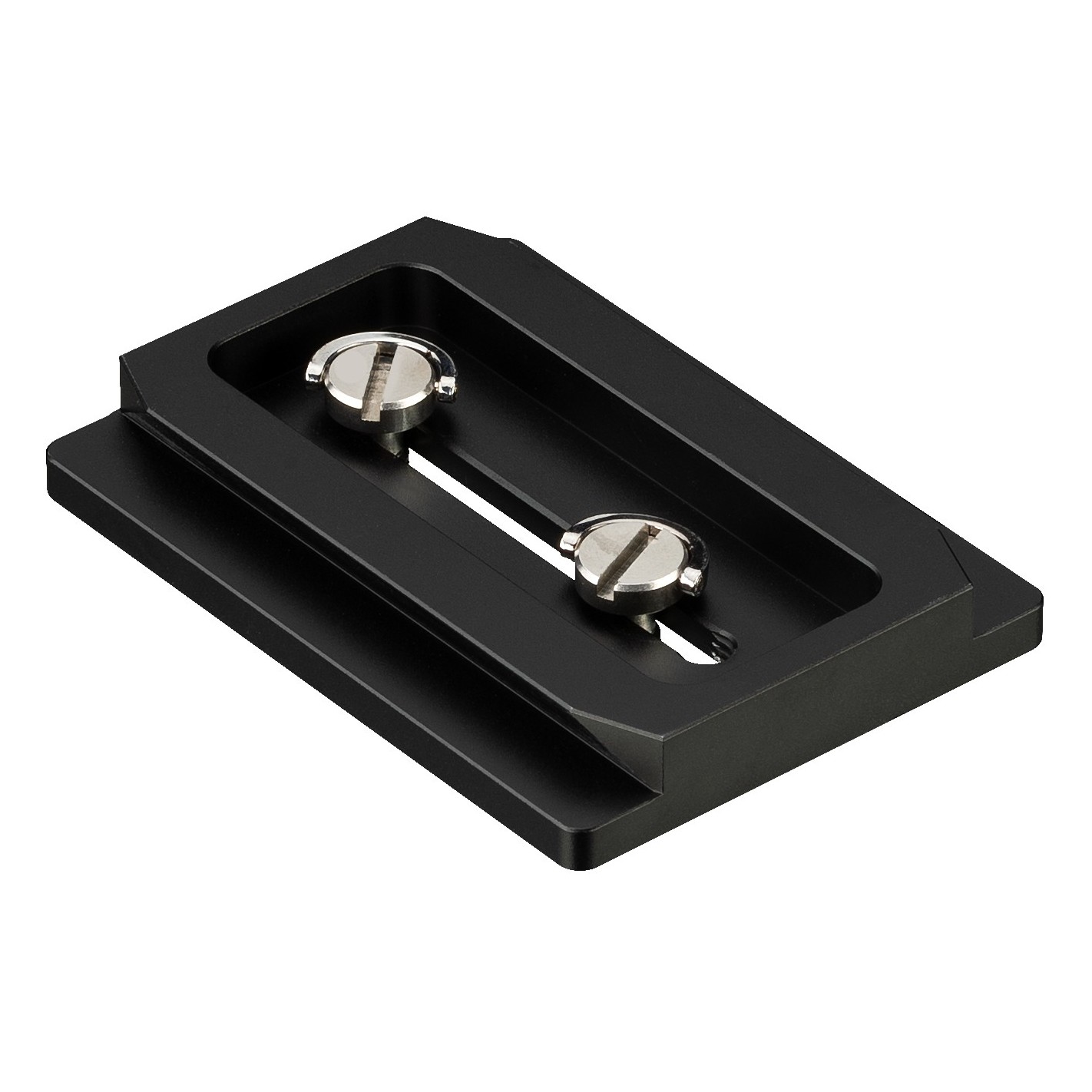

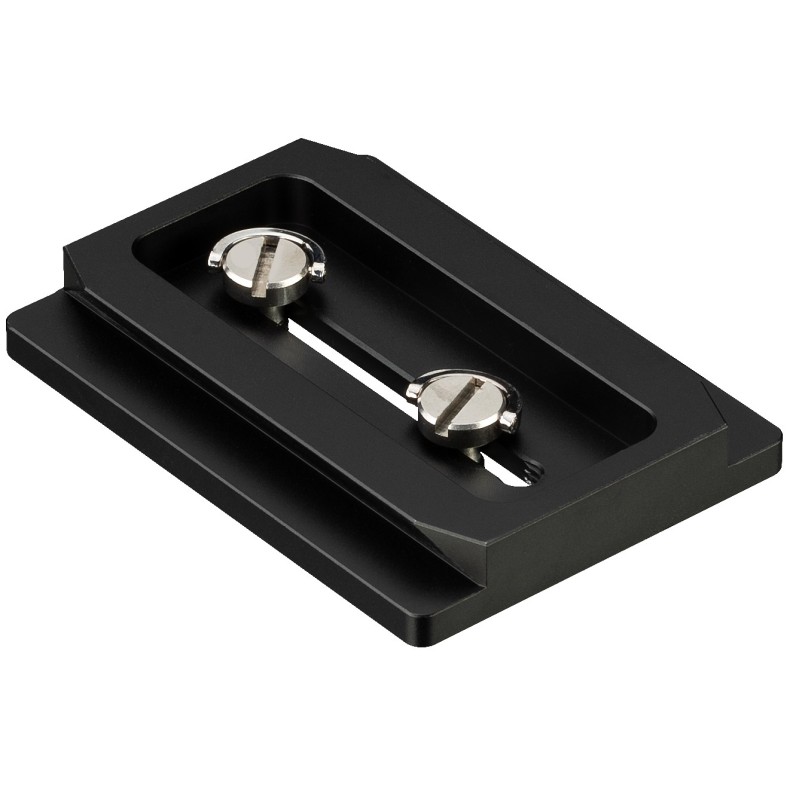

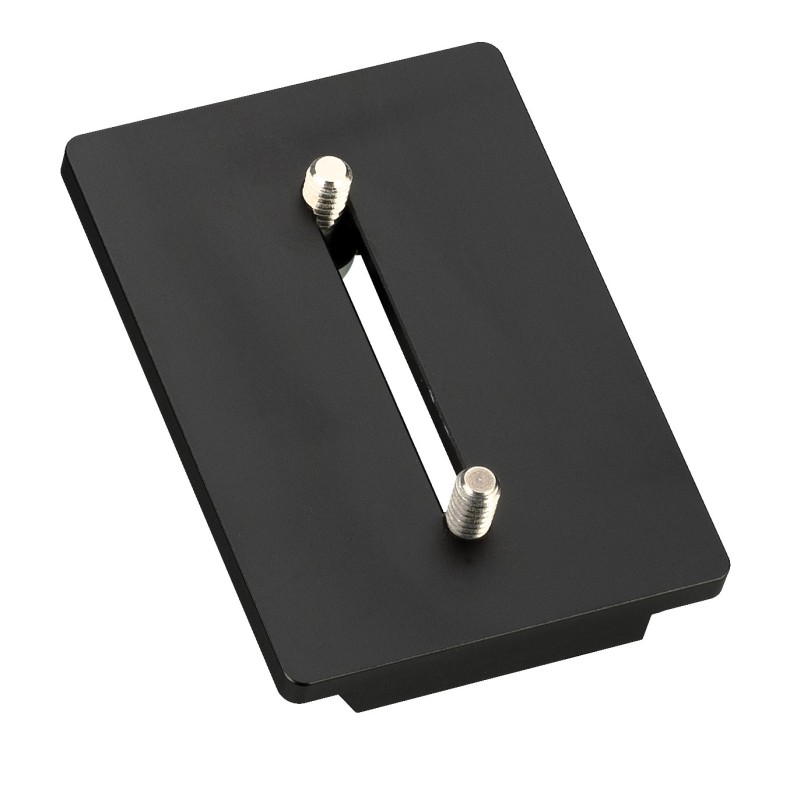

The binoculars can be mounted and dismounted in a few seconds using the quick-release adapter plate included in the scope of delivery. This is a great advantage, especially for mobile outdoor use. The connection between the binoculars and the adapter plate is made by means of two 1/4 inch threaded bolts (standard photographic tripod thread), which are variably guided in a slotted hole. Universal use with different binoculars is therefore possible. The double screw connection ensures a very secure fit of the binoculars. The adapter plate itself is also attached to the U-bracket with the help of two large clamping screws, which are easy to use even when wearing gloves. Nothing wobbles here and all controls are easy to use.

Field tripod provides secure support
No matter what the surface, the EXPLORE SCIENTIFIC field tripod provides secure support. The solid aluminum and stainless steel construction effectively suppresses any vibration. The large 50 mm diameter stainless steel tripod legs and aluminum tripod head plate are an ideal combination and offer maximum stability with a moderate transport weight of only 5.8 kg. With applied and retracted tripod legs, the transport dimension is only 80 cm long. The included accessory tray also provides some outward tension to the tripod legs and thus increases stability. By removing the tripod legs, the working height of the binoculars can be individually adjusted within a range of approx. 100 to 140 cm.

FEATURES

• Solid fork mount with tripod for giant binoculars
• Comfortable observation position in all orientations
• Excellent binocular tracking and adjustment mechanism
• Smooth and uniform movement of the binoculars.
• Continuous friction adjustment on both axes
• Large hand wheels for adjustment: no problem even when wearing gloves
• Secure clamping of the binoculars in all adjustment positions
• Ideal vibration damping thanks to the robust stainless steel tripod
• Integrated aluminum accessory tray
• Transports binoculars up to 12 kg safely and securely
• Vertical axis adjustment range: 0 to 90 degrees
• Azimuth axis adjustment range: 360 degrees (no limitation)
• Maximum possible width of the binoculars: 290mm
• Quick-change adapter plate with 2 x 1/4 inch photographic threaded screws
• Double prism attachment of the quick-change adapter plate
• Tripod adjustment height with mount: approx. 100 to 140cm
• Diameter of tripod leg tube: 50 mm
• Tripod carrying size: approx. 80cm length
• Mounting/tripod weight: 5.5 / 5.8 kg
• Mounting material/tripod: aluminum/stainless steel
• Shipping size/stand weight: 51x42x28 cm, 7,6 kg
• Shipping Dimensions/Tripod weight: 87x21x22 cm, 6.5 kg
