Spectrograph Shelyak LISA

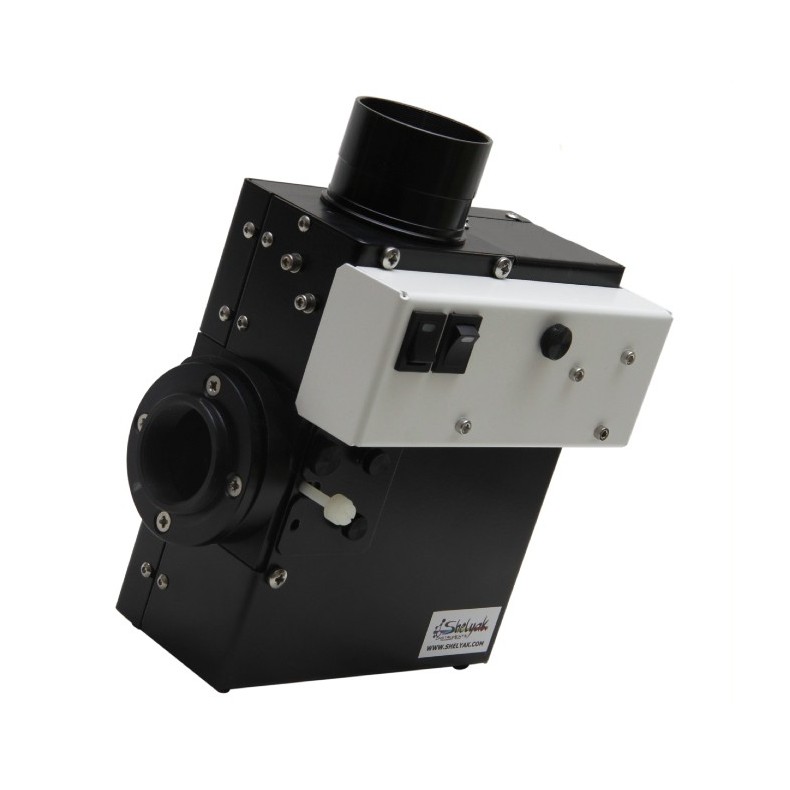

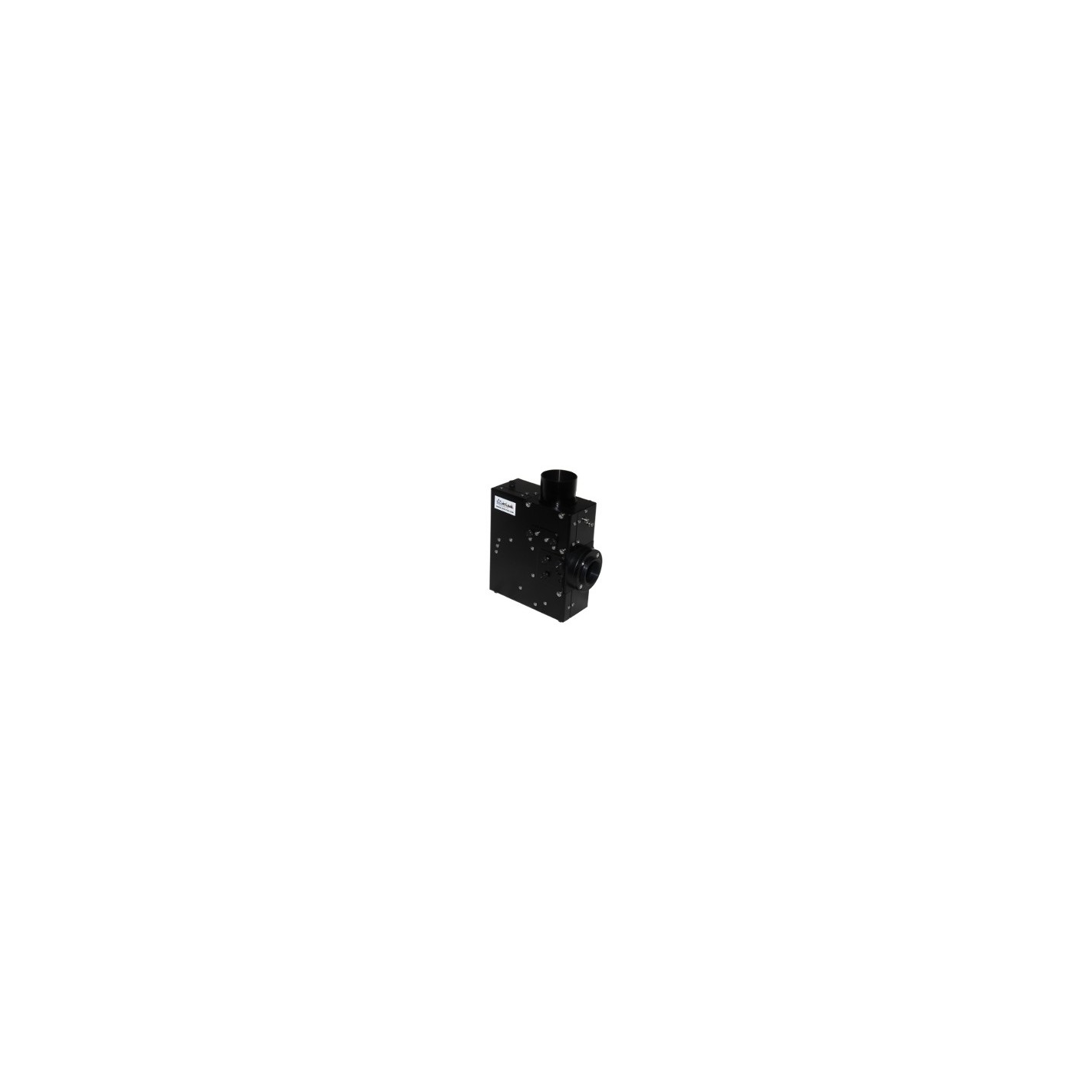

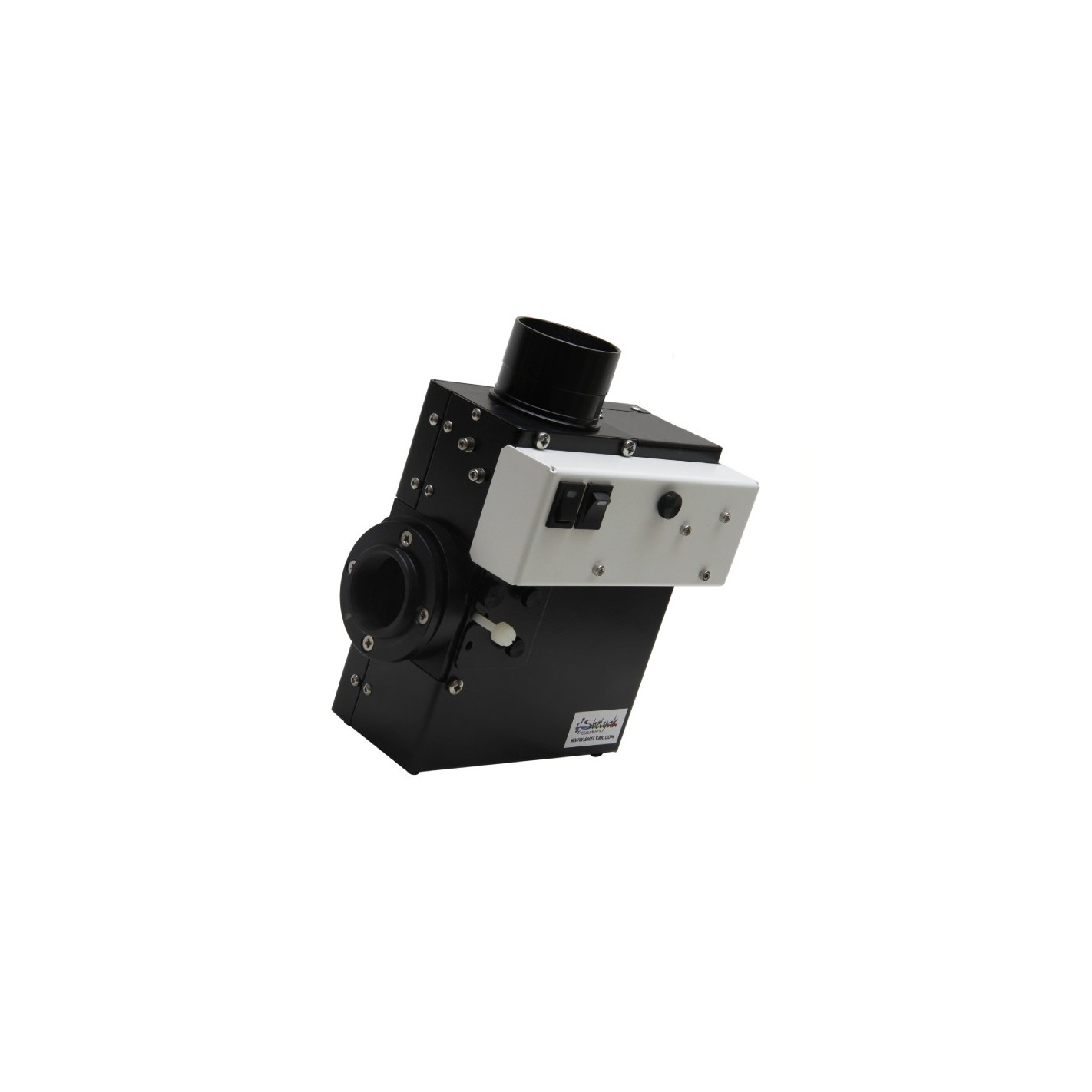

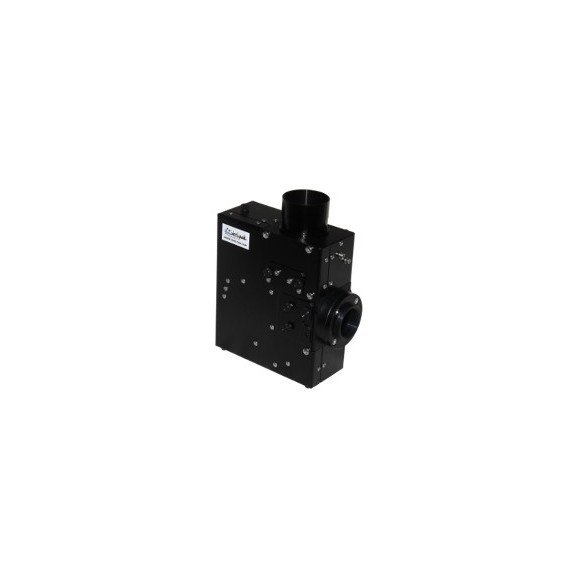

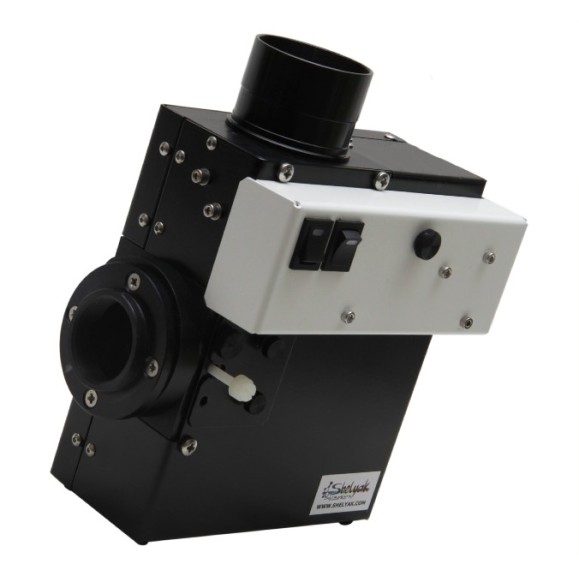

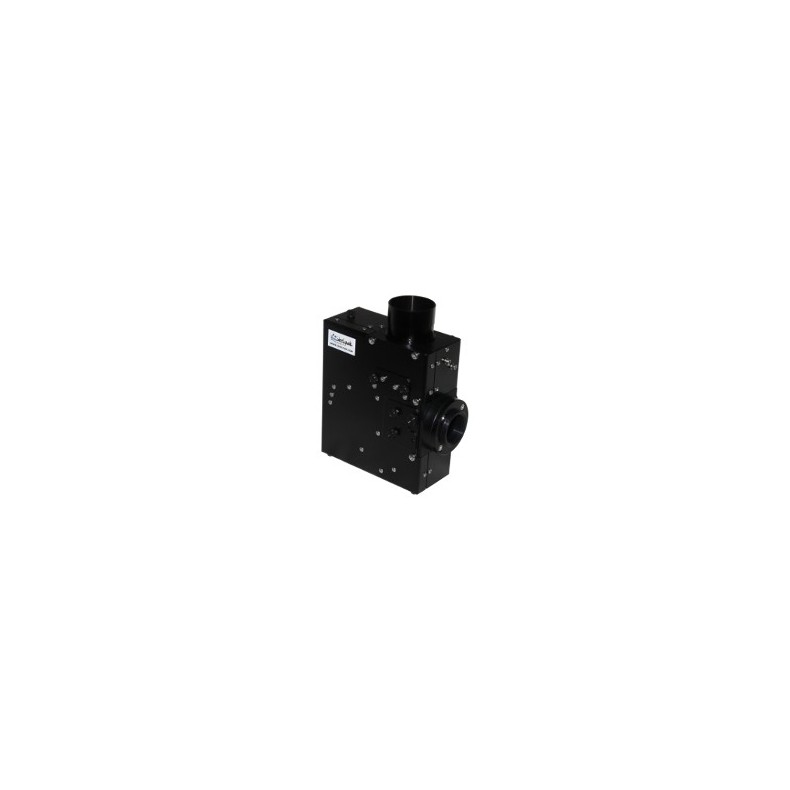

Shelyak LISA spectrograph.

do you want to study and analyze celestial objects by examining their spectra? The Shelyak LISA spectrograph is the perfect scientific and educational tool to enter the fascinating and enlightening world of spectrography. The LISA is a low-resolution, high-luminosity spectrograph that is capable of studying faint objects, including variable stars, asteroids, comets, novae, nebulae, galaxies and quasars.

It also allows chemical analysis of planets in the visible and near infrared (with the addition of the LISA infrared kit). This LISA model comes with a slot for the study of objects in the visible range from 400 to 700 nm. The included slit has four positions: 15, 19, 23 and 35um. Additional slots are optionally available.

The Shelyak LISA faceplate includes a standard T-thread (M42 x 0.75 mm) for easy attachment to the telescope. The backfocus is 41 mm, measured from the top of the flat face of the instrument to the slot position.

TECHNICAL SPECIFICATIONS OF LISA:

• • • • • Focal length collimator: 130 mm
        • Collimator focal ratio: f / 5
        • Objective focal length: 88 mm
        • Objective focal ratio: f / 2.4
        • Resolving power: R ~ 600-1000
        • Visible Working Range: 400-700nm
        • Slit: 15/19/23/35μm
        • Weight: 1.4 kg
        • Telescope attachment: M42 (T-standard)
        • Backfocus: 41 mm
        • The calibration module (white) with neon and tungsten lights is optional, shown in the pictures for illustrative purposes.
