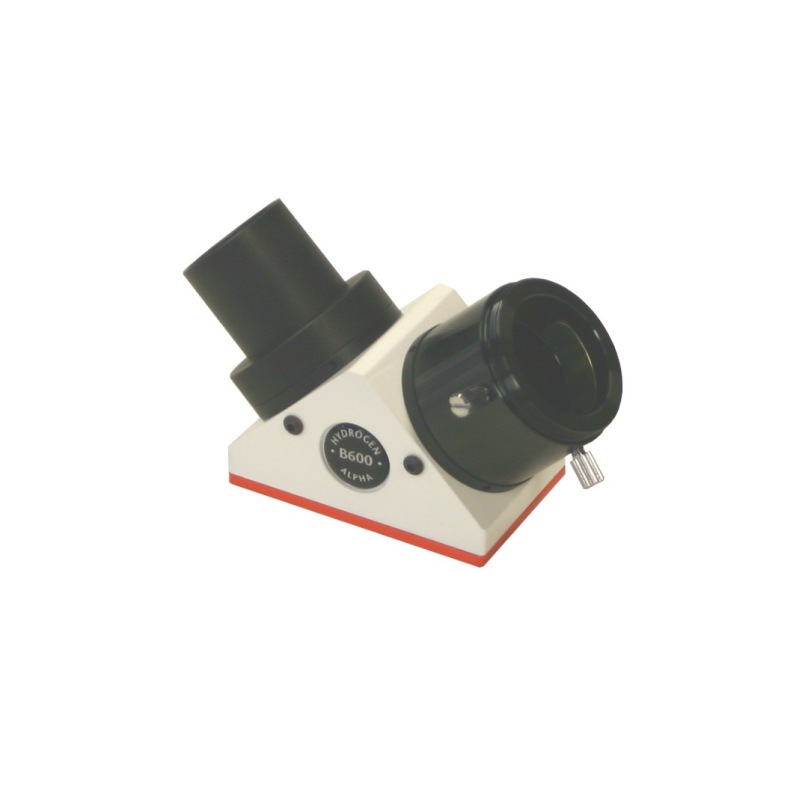

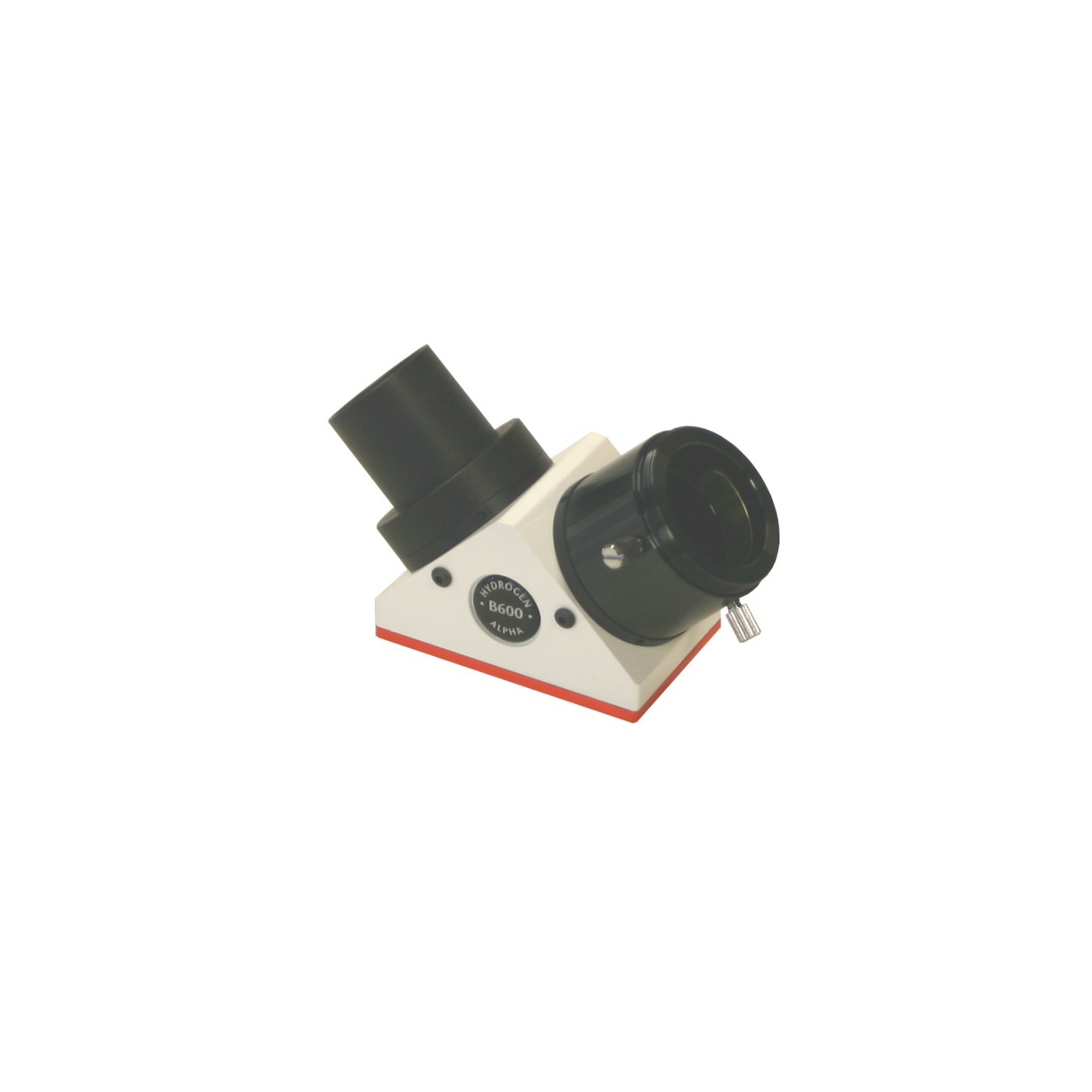

LUNT B600d1 blocking filter on 1.25" zenith prism
LUNT B600d1 blocking filter on 1.25" zenith prism
For any combination with a Lunt-Solar-Systems H-Alpha solar filter or telescope
- Blocking filter on 90° zenithal prism mirror
- For combination with H-alpha telescopes or filters
- For telescopes up to 540 mm focal length and 1.25 inch focuser
- Eyepiece side with T2 thread and 1.25 inch eyepiece mount
- cannot be used individually, only with H-Alpha systems!
Carrier | Description | Estimated Delivery | ||
---|---|---|---|---|
Home delivery - International | Home delivery - International |
Thursday, 2 January - Thursday, 9 January |
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 2 January - Thursday, 9 January
LUNT B600d1 blocking filter on 1.25" zenith prism
Blocking filter in 90° zenith prism for telescopes with a focal length up to 540mm and 1.25'' eyepiece focuser. Can only be used in conjunction with the LUNT H-Alpha filter or a LUNT H-Alpha telescope !
Lunt Solar Systems offers locking filters in different sizes and you can choose between 90° zenith prism housings or straight extension cylinders. This way, you can choose which type of blocking filter you want to use in your LUNT H-Alpha Etalon System.
The B600d1 is incorporated in a 90° zenith prism. For 1.25'' eyepiece focusers in the telescope case and with a T2 ring connection at the eyepiece end and 1.25'' eyepiece. The B600d1 can be used with LUNT H-Alpha systems where the telescopes used have a 1.25'' eyepiece focuser and a focal length of up to 540mm.
The blocking filter cannot be used without an additional H-Alpha filter system from Lunt Solar Systems! Blocking filters are necessarily required to ensure the safety and functionality of the H-Alpha telescopes for solar observations. The Lunt Solar Systems blocking filters form a unique filter system. We can only guarantee your safety and the full functionality of your telescope, if you use the blocking filter in conjunction with an original H-Alpha filter or a Lunt Solar Systems H.Alpha telescope.
TECHNICAL SPECIFICATIONS:
PROPERTIES
- Blocking filters can only be used with an additional H-Alpha filter system
- Filter diameter: 6mm
- For telescopes with a focal length of up to 540mm
- In the 90° zenith prism housing
- 1.25'' sliding tube for use with 1.25'' eyepiece focuser
- 1.25'' eyepiece mount
- T2 ring for camera connection
DELIVERY CONTENTS
- B600d1 blocking filter on 90° zenith prism for 1.25'' eyepiece focuser
- Color: white
- Material: Aluminum
