Solar filter LUNT H-Alpha LS100FHa / B1200d1
LUNT0550404
Stock at Supplier
9,826.40
VAT excluded
Shipping 5/7d

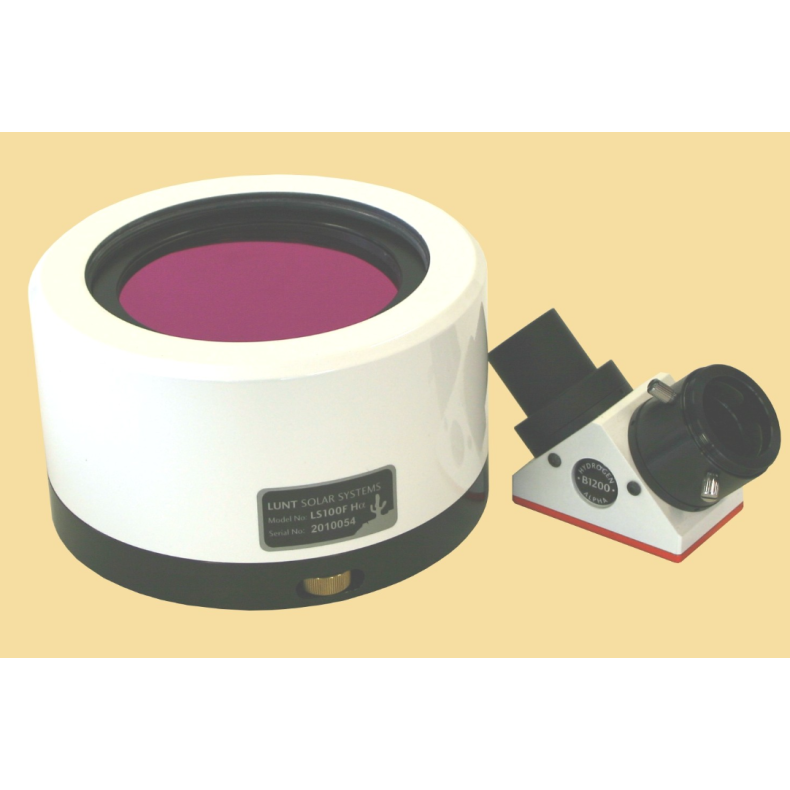

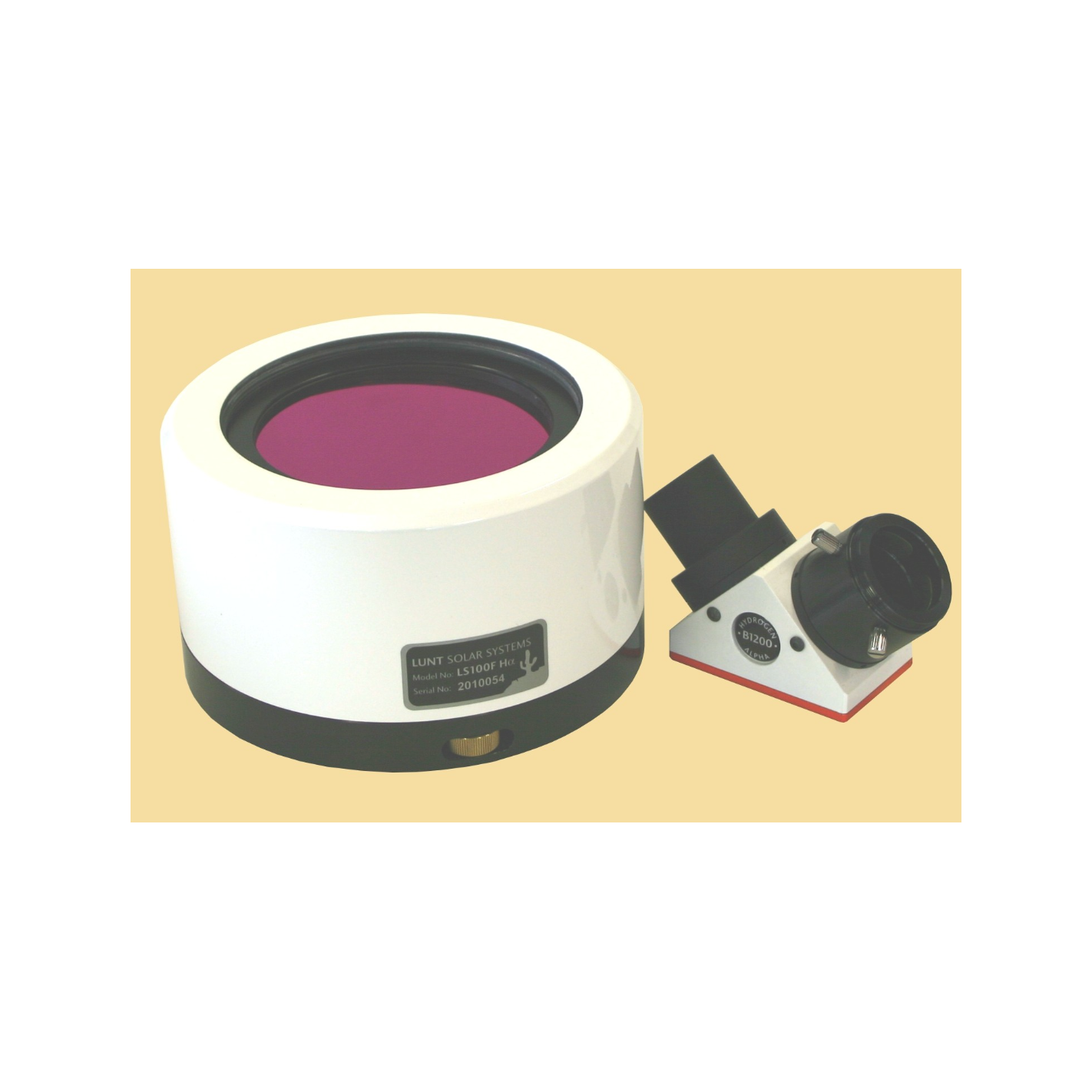

LUNT H-Alpha solar filter LS100FHa / B1200d1
Converts a normal telescope up to 1080 mm focal length into an H-alpha solar telescope showing prominences and more
- Special 100 mm filter for observing the sun
- For telescopes up to 1080 mm focal length and 1.25 inch focuser
- Additional adapter plate required for mounting
- Displays prominences and other details of the Sun
- Average width less than 0.7 Angstroms
- Filter system with H-alpha etalon and blocking filter
- For visual solar observation and photography
- Absolutely safe, no danger to eyes

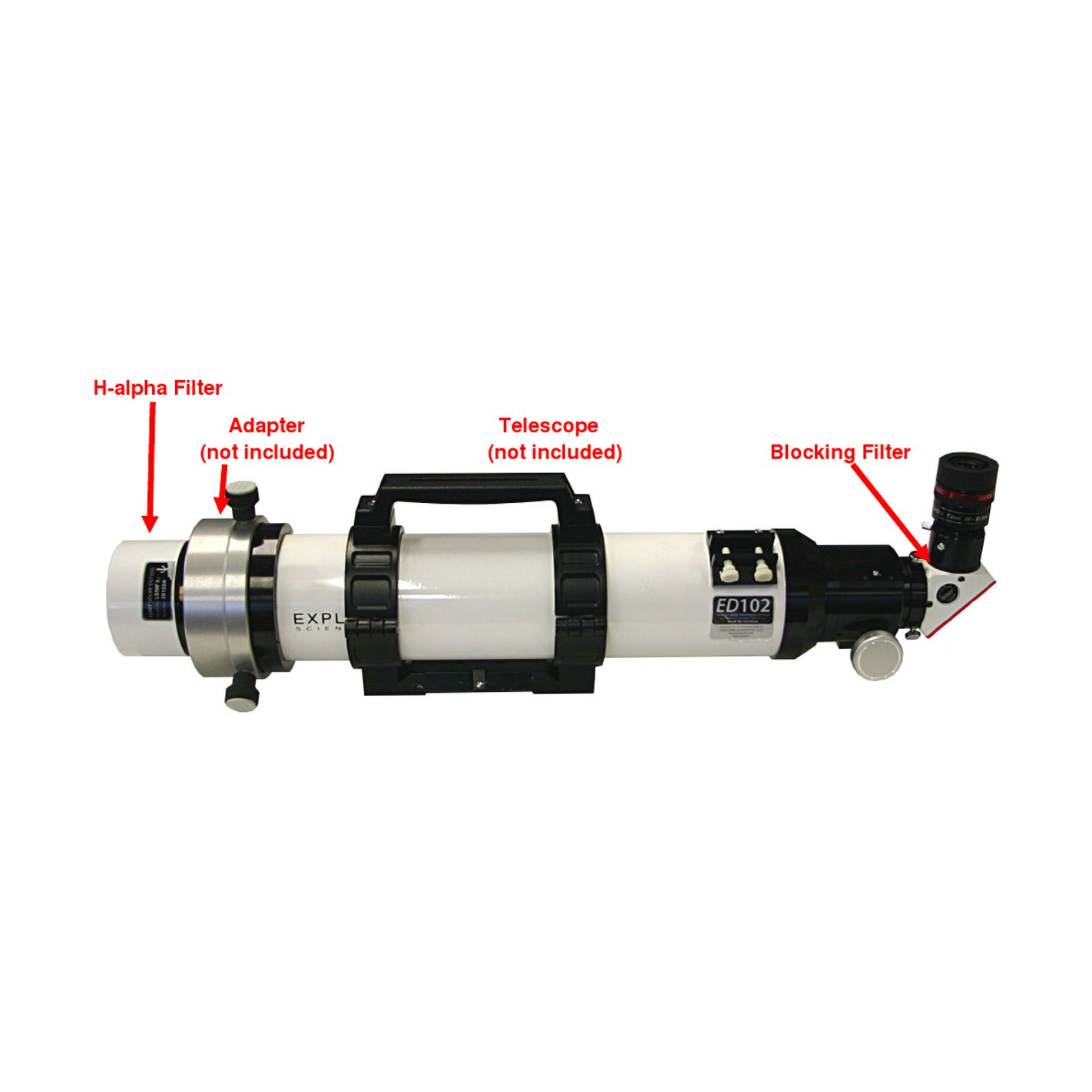

Note: The telescope in the image only serves to show the assembly of the item.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 5 December - Thursday, 12 December |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 5 December - Thursday, 12 December
✖
LUNT H-Alpha solar filter LS100FHa / B1200d1
Solar filter system with Blocking B1200 filter for front mounting on telescopes with a 1.25" eyepiece focuser and a focal length up to 1080mm.
The H-alpha Etalon LS100FHa filter system with a 100mm aperture for use on any refractor and many other telescopes. Because the LS100FHa has an estimated bandwidth of
The system includes the B1200 blocking filter, which can be used with telescopes up to 1080mm focal length. Larger blocking filters suitable for longer focal lengths are also available as an option. The blocking filter is installed in a 90° star diagonal for 1.25" focuser. This diagonal is equipped with an eyepiece holder for 1.25" eyepieces and a T2 camera connection.
By supplementing with an optional available Double-Stack Etalon system you can reduce the width by half height to approx
TECHNICAL SPECIFICATIONS:
PROPERTIES
- Aperture: 100mm
- No central obstruction
- Half-height width
- Tuning: etalon tilting
- Housing diameter: 162mm
- Length: 101mm
- Weight: 2.75 kg.
- Front thread: M120x1,5 internal thread
- Rear thread: M120x1,5 external thread
- Filter-blocking: B1200 on 90° zenith prism for 1.25" eyepiece focusers
- Max. telescope focal length: 1080mm
DELIVERY CONTENTS
- Solar filter LS100Fha
- Blocking filter B1200 (for 1.25" eyepiece focuser) on zenithal prism
- Carrying case
- Instructions for use
Instructions for use
- Material: Aluminum, Glass

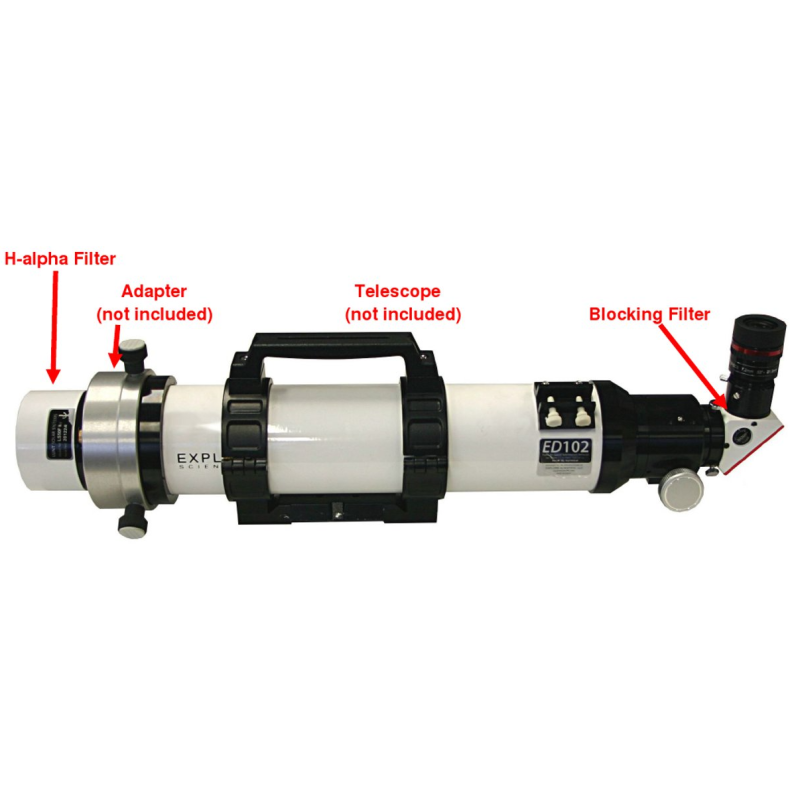

Note: The telescope in the image only serves to show the assembly of the article.
