Ca-K filter module and LUNT conversion kit for LS130MT

Ca-K filter module and LUNT conversion kit for LS130MT

• Converts LS130MT into a multi-purpose telescope
• Allows observation of the Sun in the Ca-K line
• Allows observation of the Sun in white light
• Allows night sky observations
• Can only be used in conjunction with the LS130MT telescope

LS130MT/B3400 telescopes can be equipped with this optional Ca-K module and conversion kit. This allows you to explore the Sun with a single telescope at different wavelengths, and to use the telescope also for observing and photographing the starry night sky.

With a few simple steps you can exchange the H-Alpha system of the LS130MT/B3400 telescope for this conversion kit with Ca-K module. This way you can observe the Sun in H-Alpha or in the Ca-K wavelength with the same telescope!

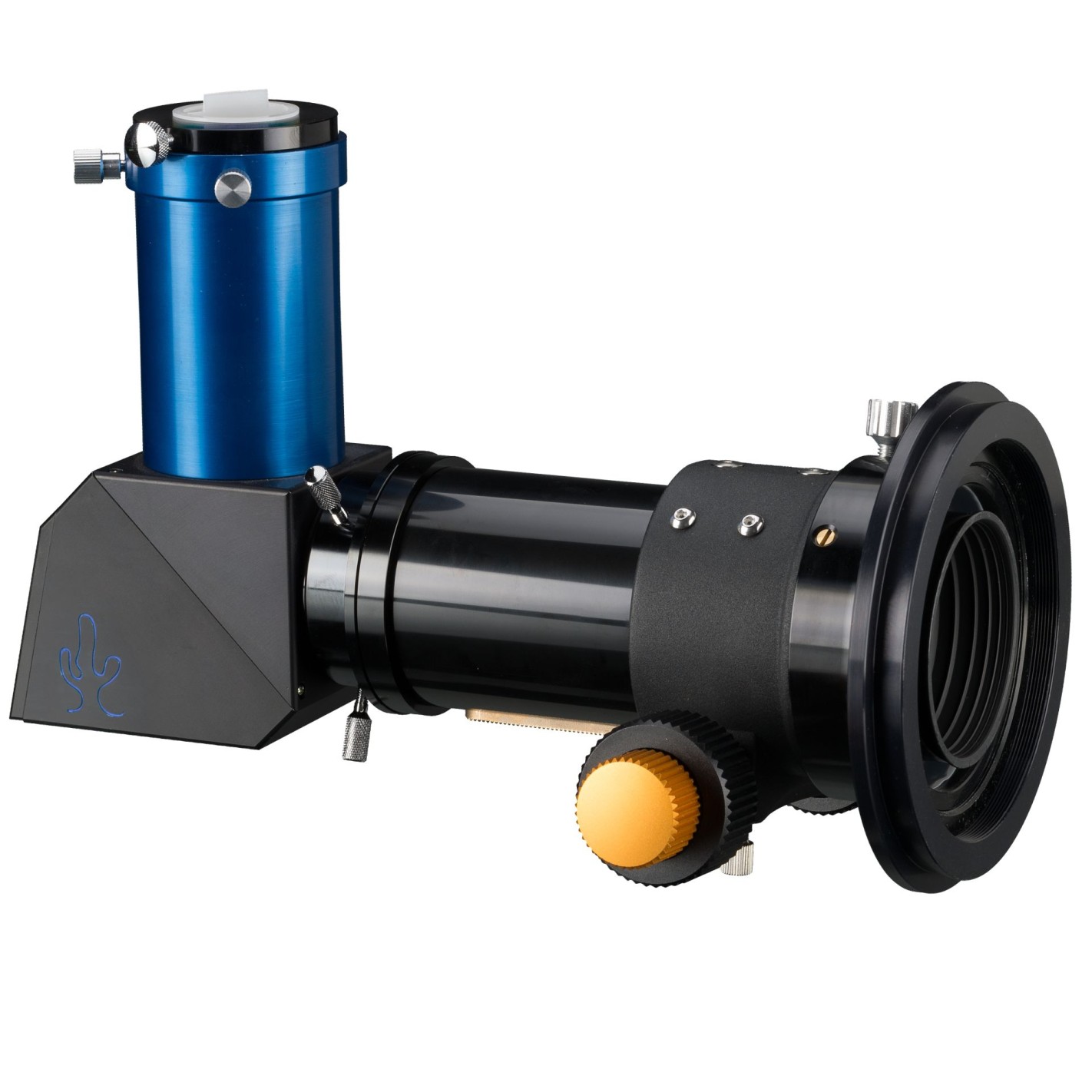

This Ca-K module has been specially constructed for the LS130MT H-Alpha telescope. It is supplied in a set together with the construction kit, with a completely new ocular focuser. On the LS130MT/B3400 it is only necessary to loosen three knurled screws that hold the H-Alpha unit together with the eyepiece focuser. Here you then attach the new eyepiece focuser with the Ca-K module to turn your LS130MT into a perfectly good Ca-K telescope.

But that's not all: with the new eyepiece focuser, without installing the Ca-K module, the LS130MT/B3400 can also be used as a three-lens apochromatic telescope for astronomical observations and night photography!

Or you can use a Herschel LUNT prism to observe the Sun in white light as well.

This kit turns the LS130MT into a true multi-purpose telescope.

You can use this conversion kit also on the LS130MT/B1200 and LS130MT/B1800 telescopes, but it is not necessary. You only need this kit on the LS130MT/B3400, since on this telescope the locking filter is installed fixed on the eyepiece focuser.

INCLUDES

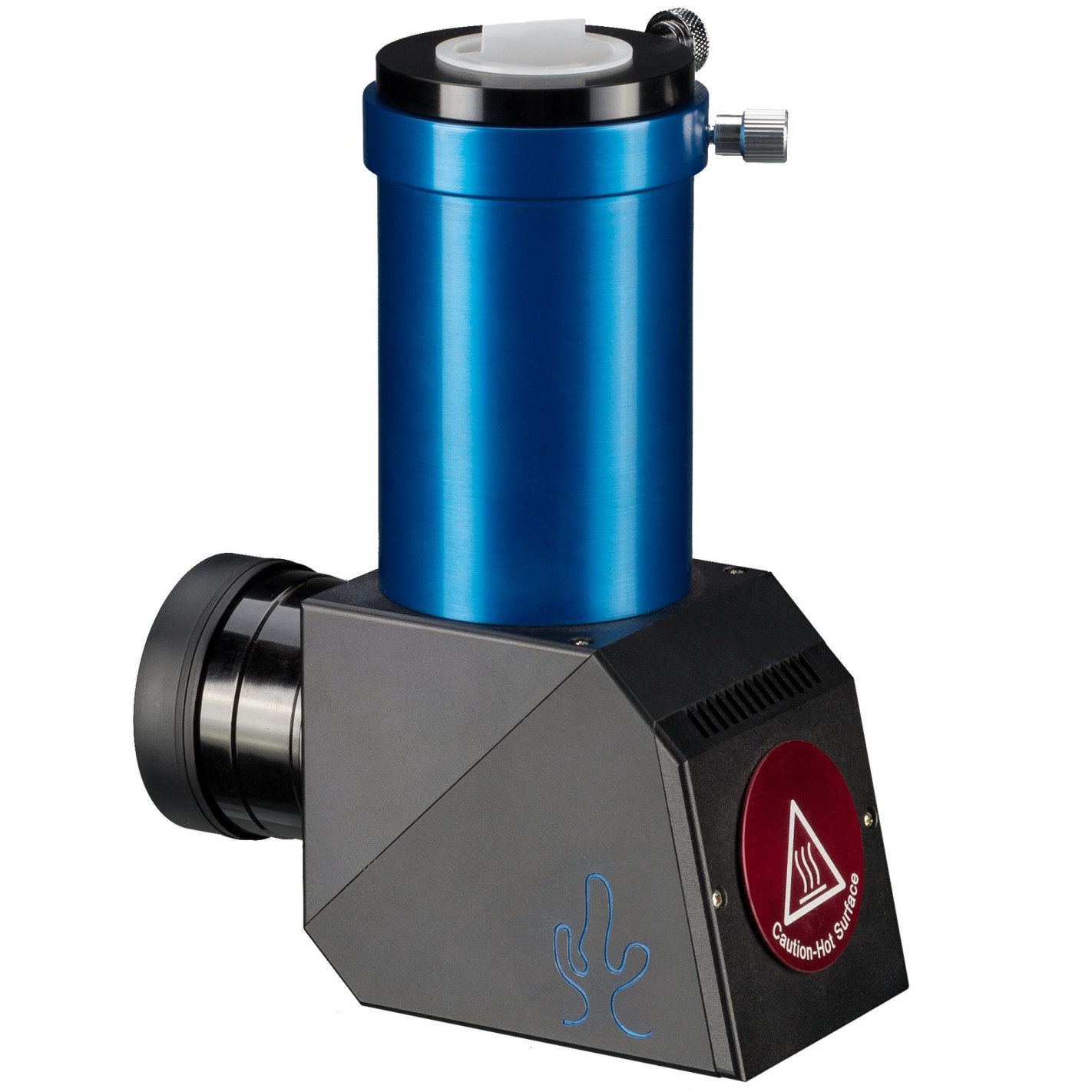

• 2" Ca-K module for the LS130MT telescope

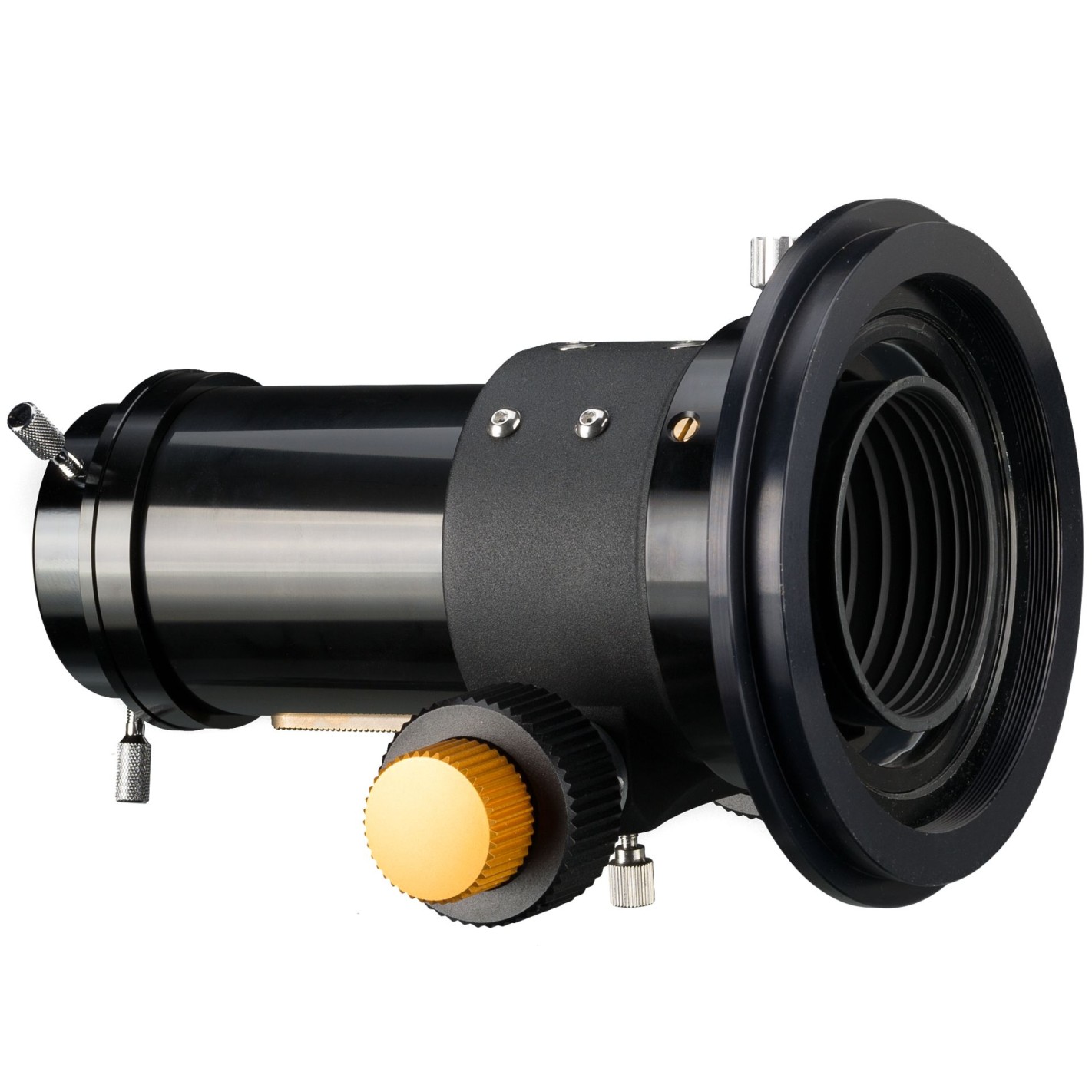

• 2" eyepiece focuser with 1:10 precision mechanism and adapter to LS130MT telescopes
• Operating Instructions



The LS130MT telescope is not included in the scope of delivery. It can only be used in conjunction with a LS130THa solar telescope.

Field of application: Deep Sky Photography, Lunar Photography, Planetary Photography, Deep Sky Observation, Moon Observation, Planetary Observation, Solar Observation

Color: black

Focusing system: 2" rack focuser with 10:1 reducer

Telescope filter type: CaK solar filter
