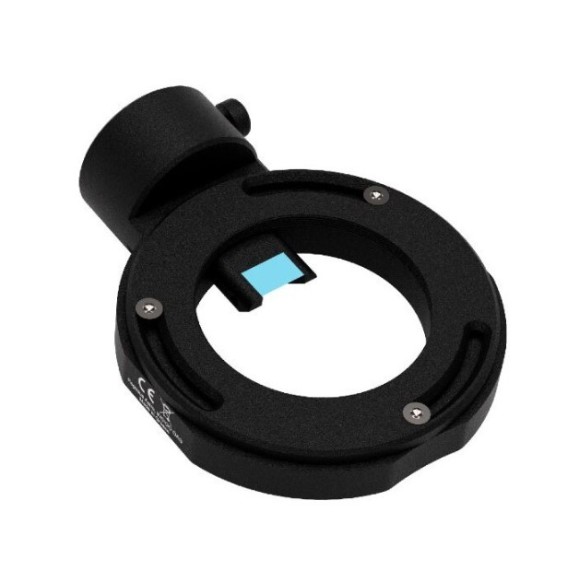

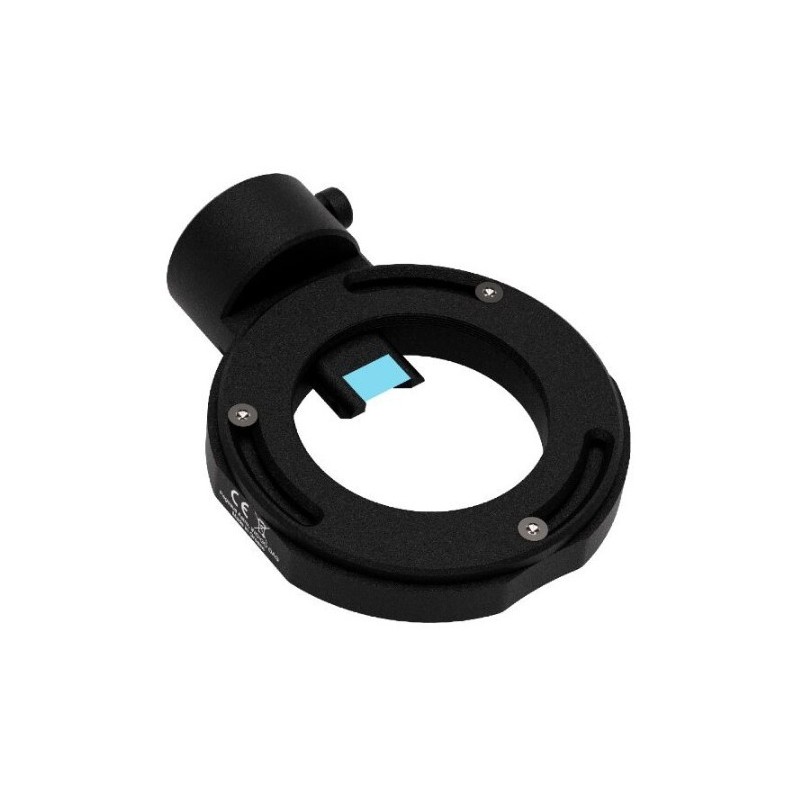

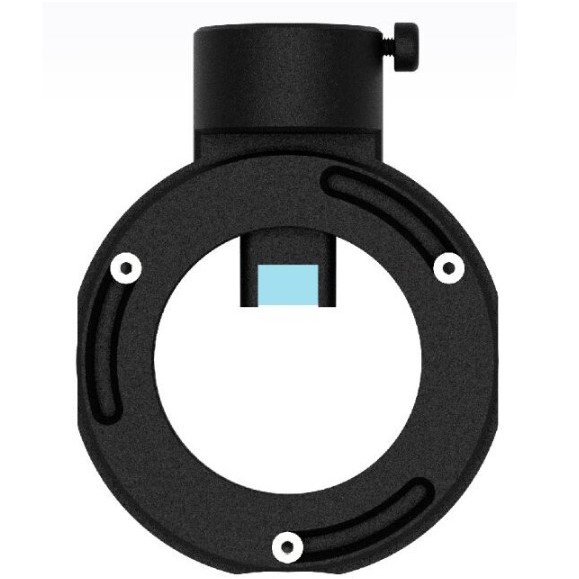

Off-axis guide Pegasus Astro Indigo OAG
PEG-INDIGOAG
Last items in stock
150.00
157.44
-7.44
VAT excluded
Shipping 24/48h
Our slim and solid design OAG can be easily coupled with our Indigo filter wheel. The OAG supports through holes (M2 and M3) in its body for direct connection to the latest CMOS cameras and other filter wheels.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Thursday, 26 September - Thursday, 3 October |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Thursday, 26 September - Thursday, 3 October
✖

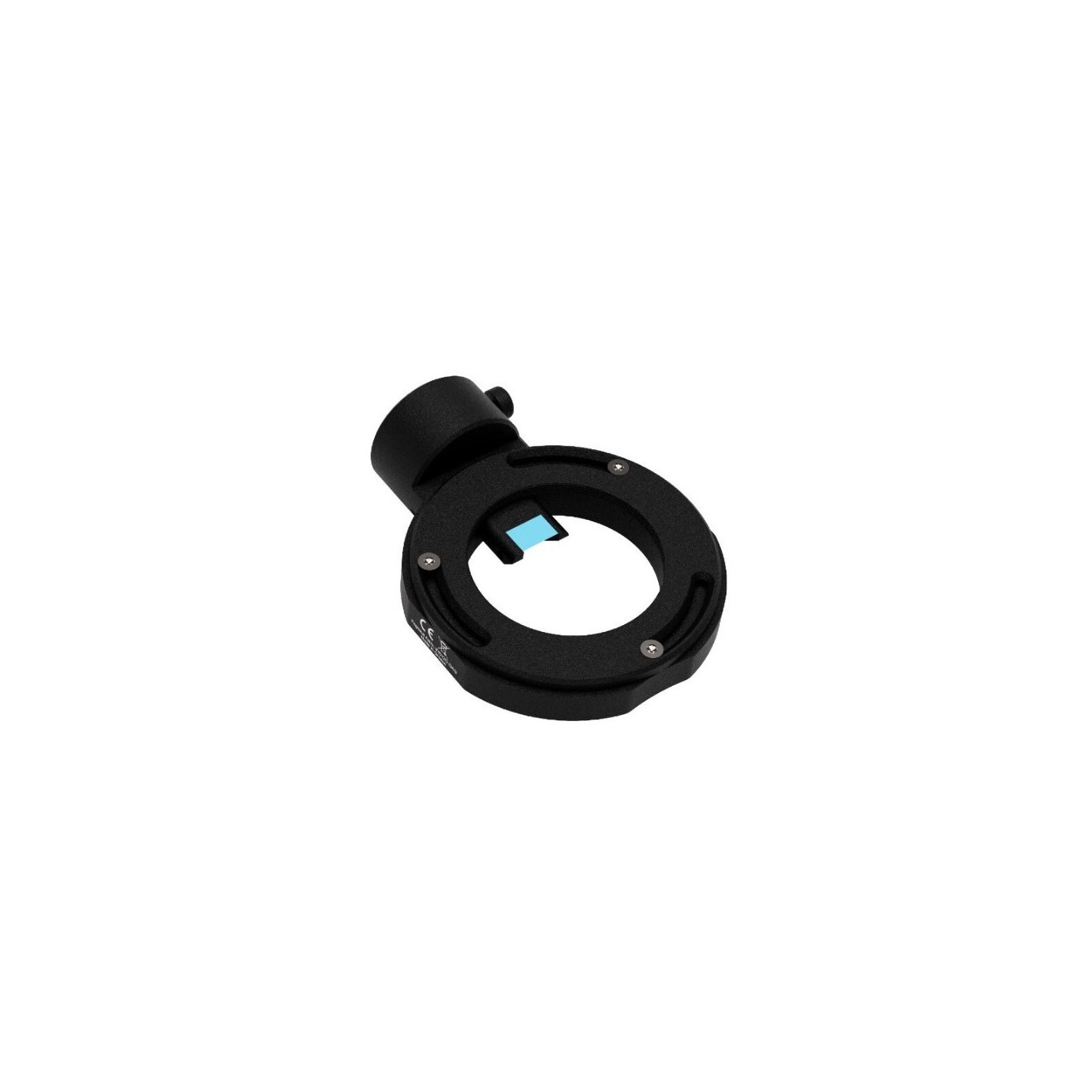

Slim design
Indigo OAG has a very slim design. Its back focus is 10 mm + 4 mm of the telescope adapter. 14 mm in total. OAG is CNC machined from 6061 aircraft aluminum alloy, which ensures a light and solid equipment.

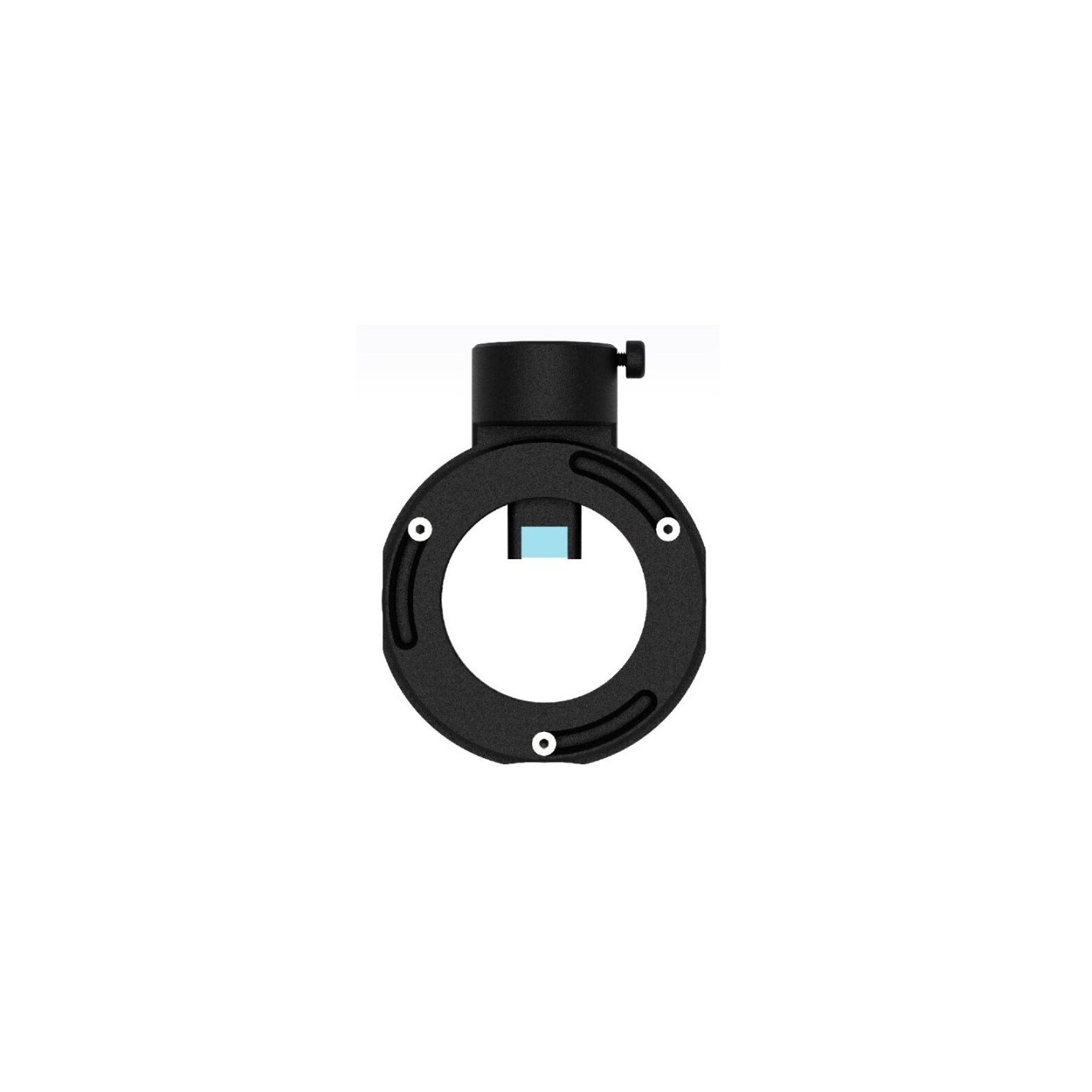

Adjustable prism
The height of the prism can be easily adjusted to allow better illumination of the field of view of the guide camera. If the imaging camera sensor is large, the prism can be moved (and secured with adjustment screws) upwards to avoid blocking the optical path of the sensor.
Large mirror
A 12 × 8 mm fully multi-coated, anti-reflection mirror provides high illumination to your guide camera. Stars are round and bright in the OAG field.
Large size
Indigo OAG supports 62 mm through-hole pattern for direct connection to the latest CMOS cameras and Filter Wheels.
The guide camera connection is a 1.25" barrel.
Image train framing orientation can be achieved by the 3 screws that allow the scope adapter to slide into the slots.
Robust design for heavy loads of imaging equipment

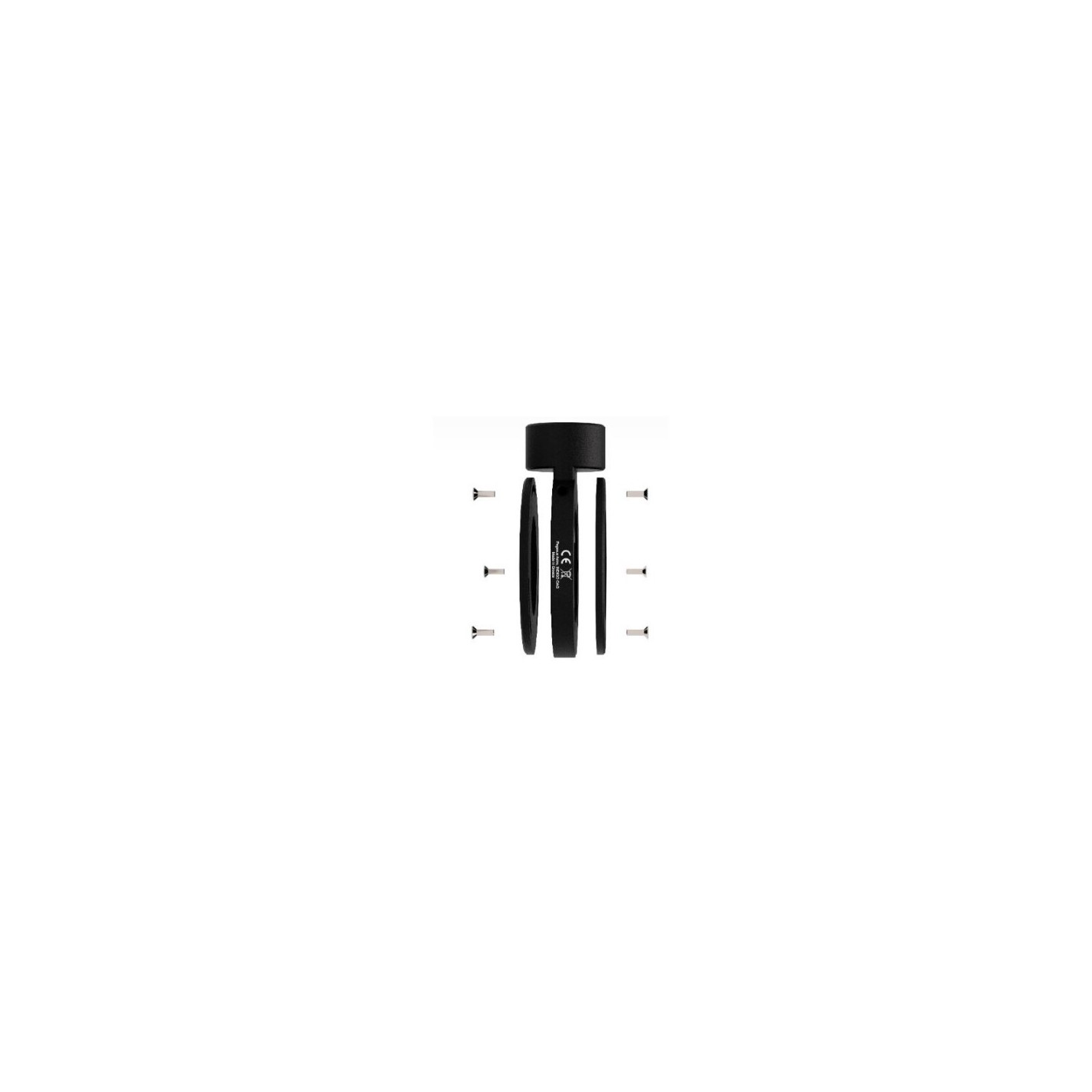

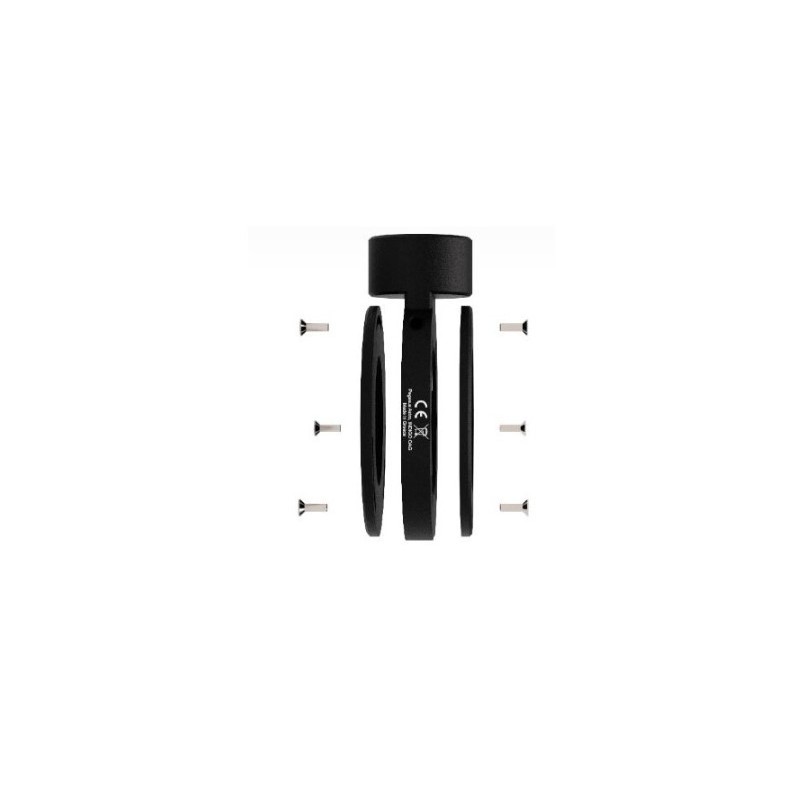

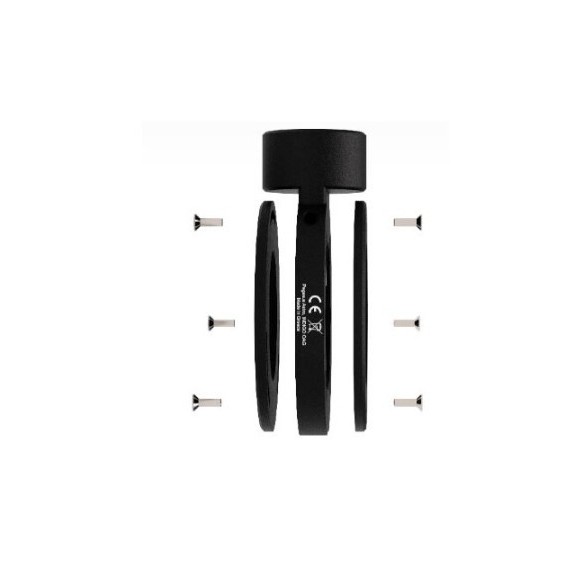

Indigo OAG + telescope adapters (both included)
(can use both adapters to create a stand-alone OAG)
Thickness is 10 mm and the design is solid enough to support heavy imaging equipment.
The clear aperture is 53.5 mm.
Package includes:
- one M54F threaded adapter for telescope connection (adds 4mm thickness)
- one M48F threaded adapter for camera connection (adds 4mm thickness)

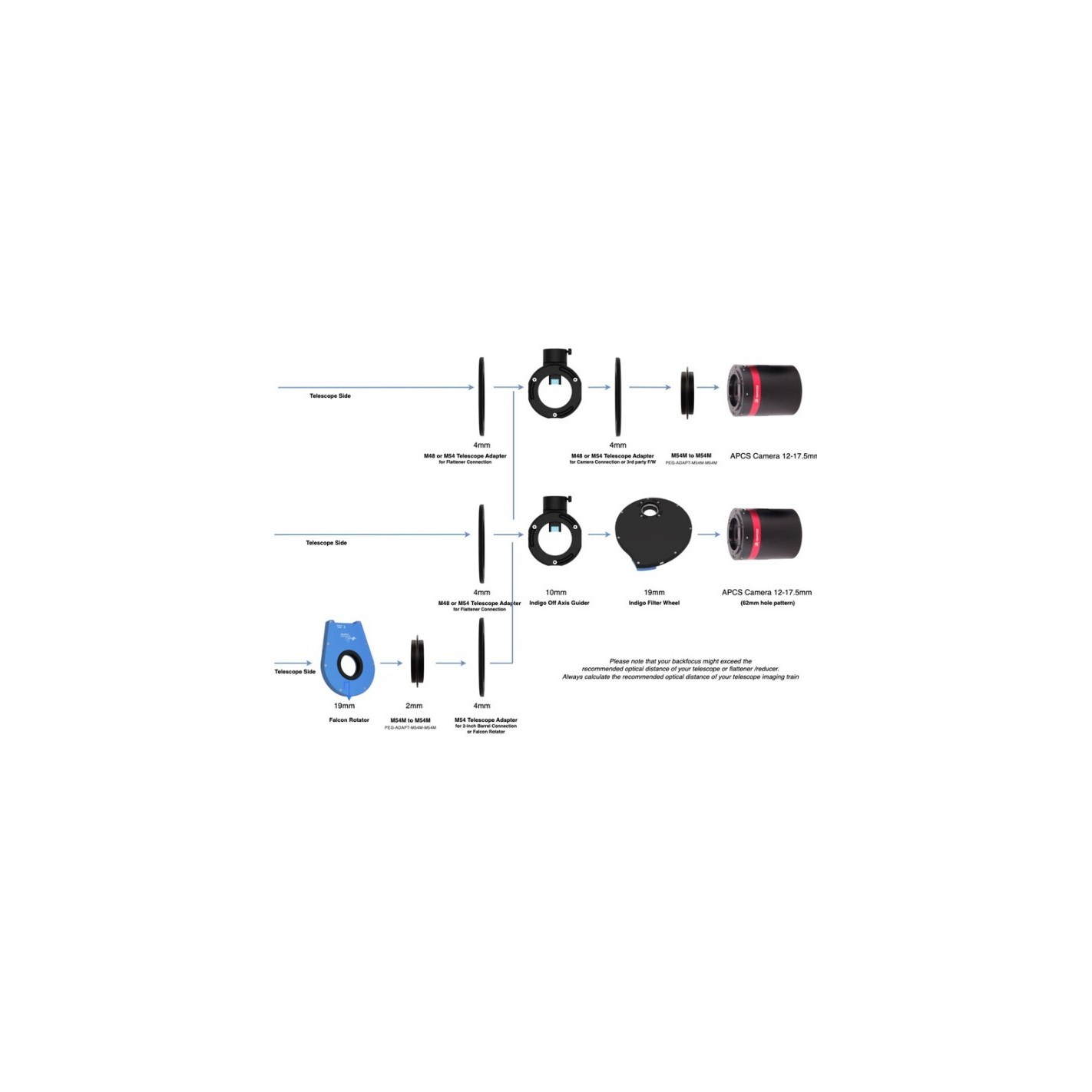

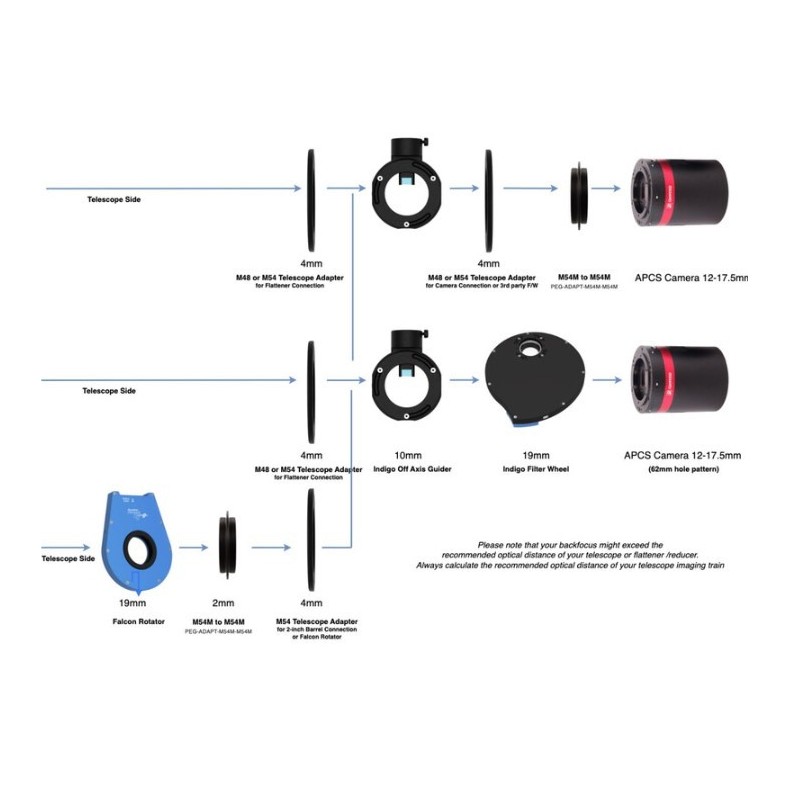

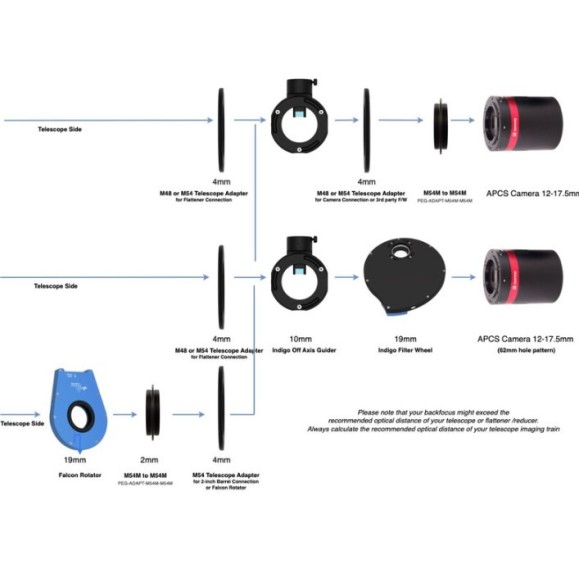

Indigo filter wheel combination
The Indigo OAG can be mounted directly on the Indigo filter wheel.
A combination of both products adds 19mm + 14mm (33mm total) of optical back focus distance.
Indigo Filter Wheel and OAG direct mount combination
Telescope connection

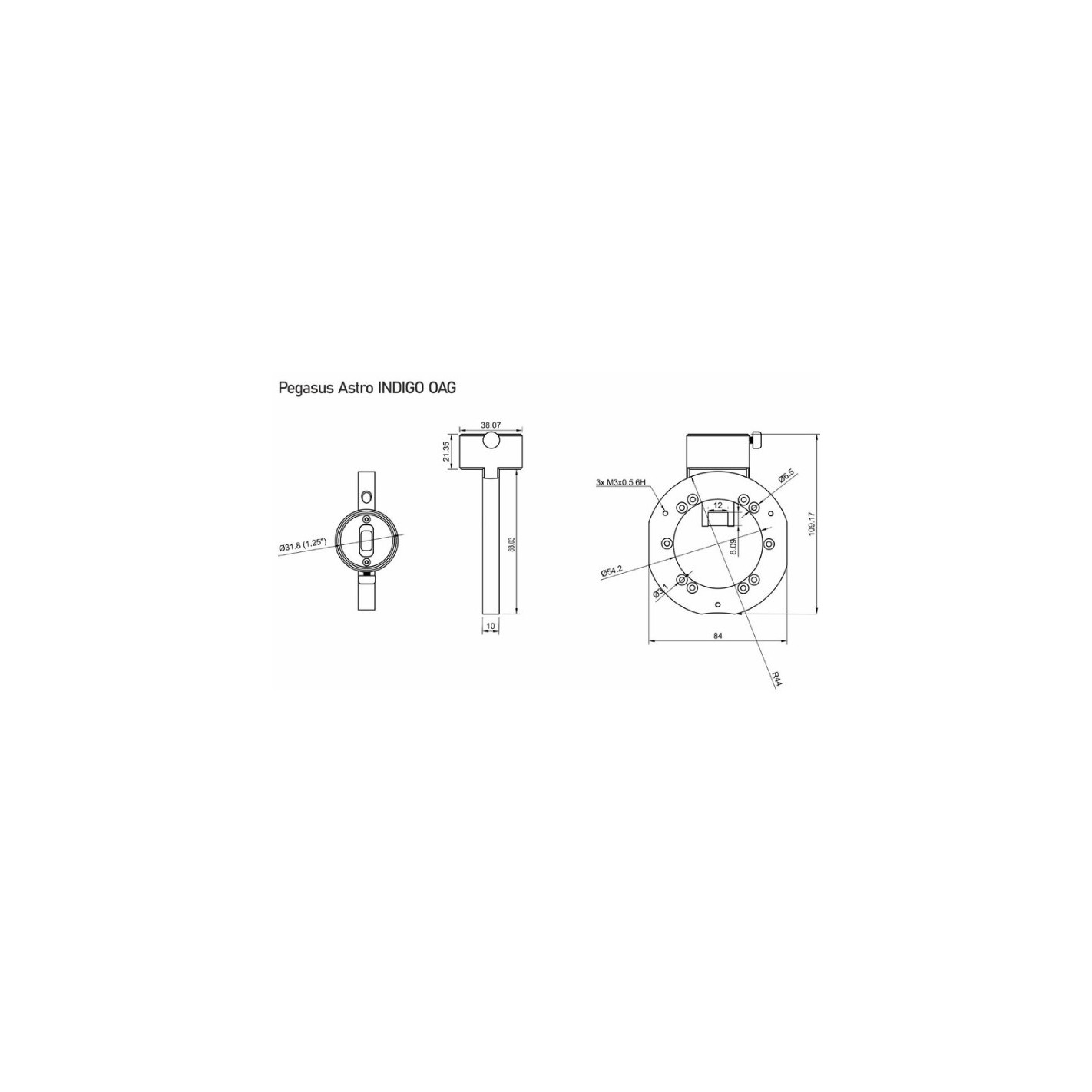

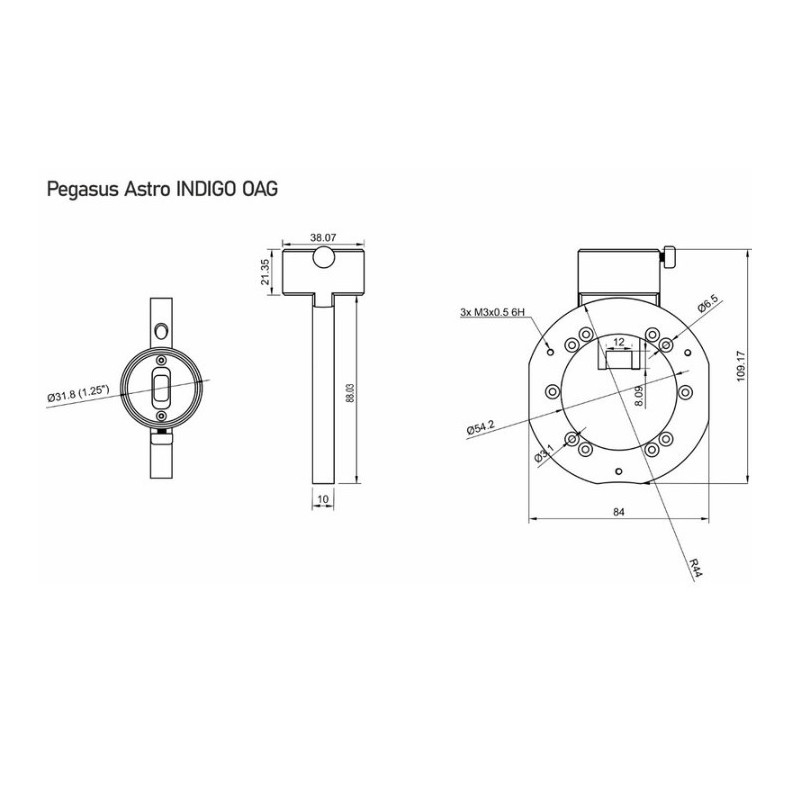

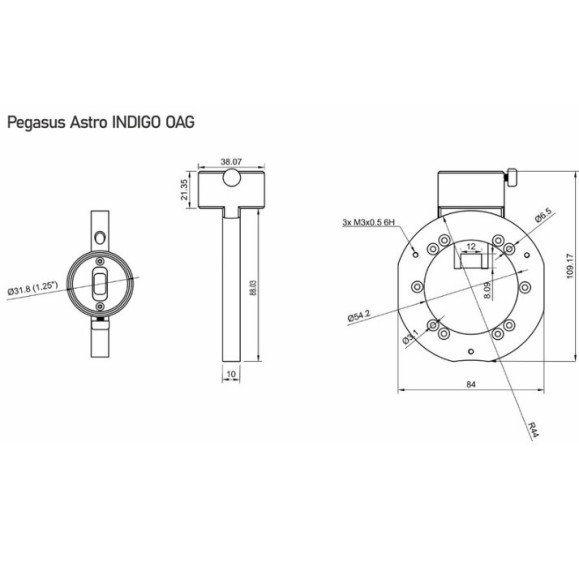

Mechanical design
