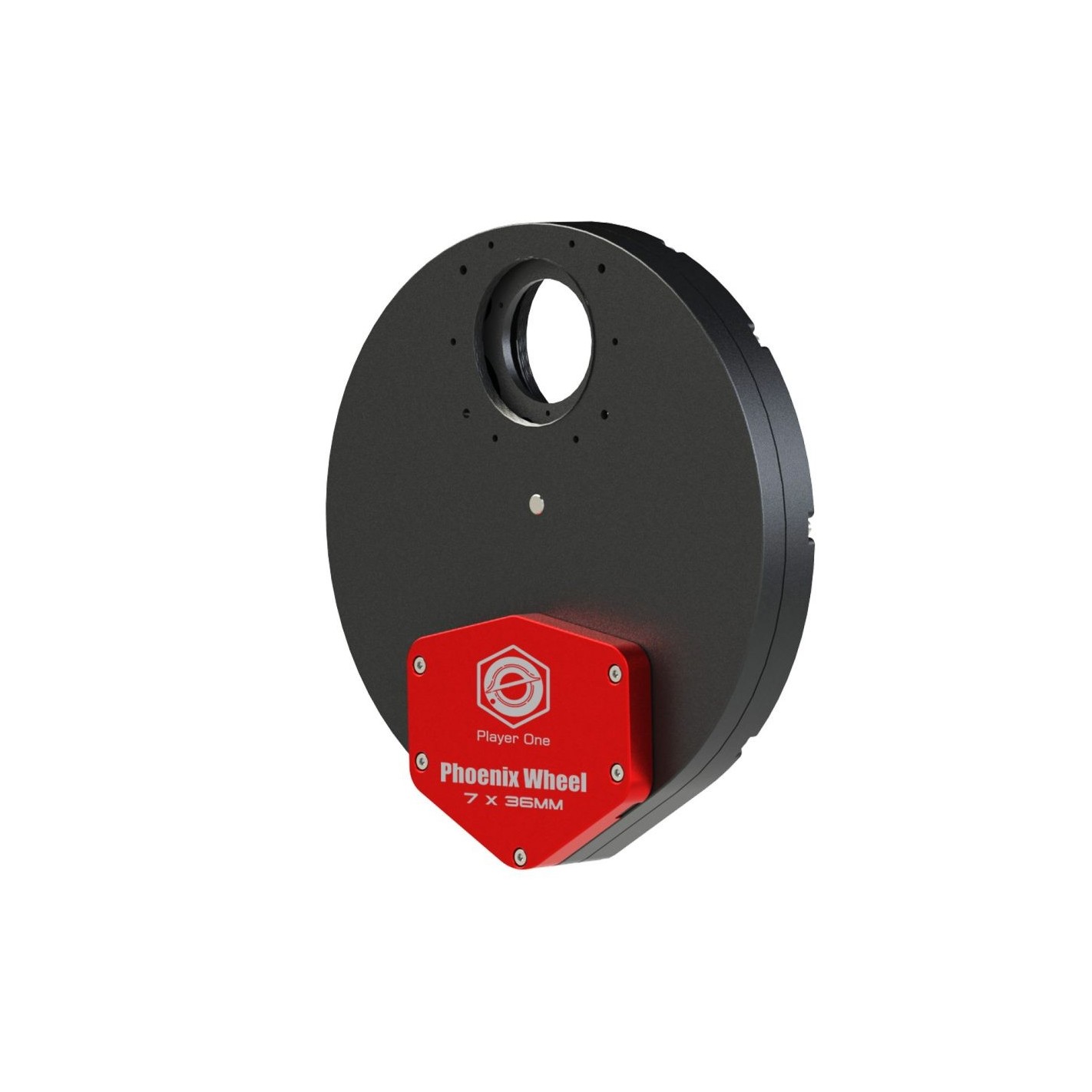

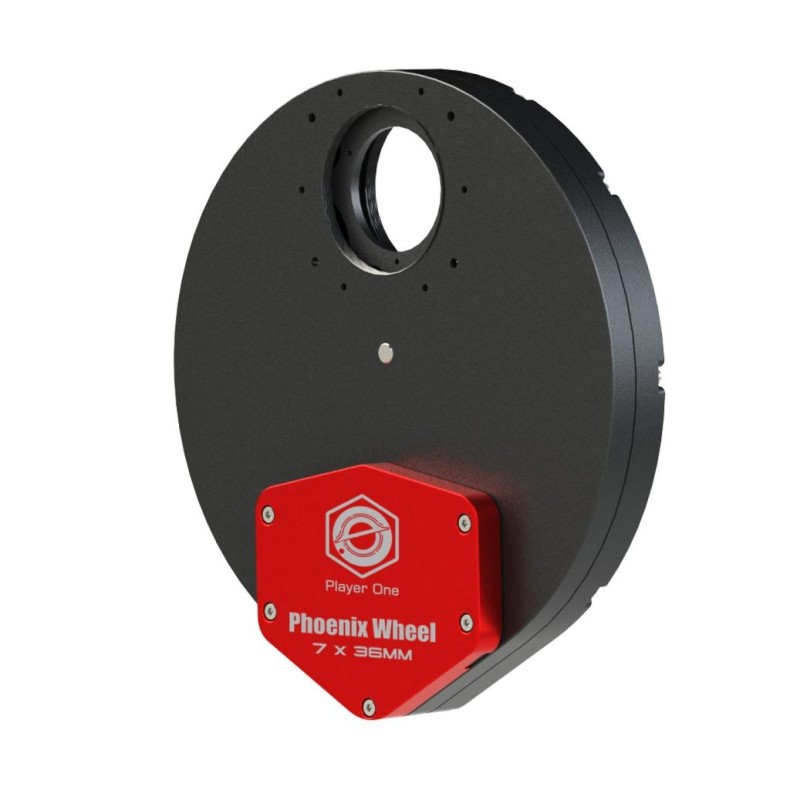

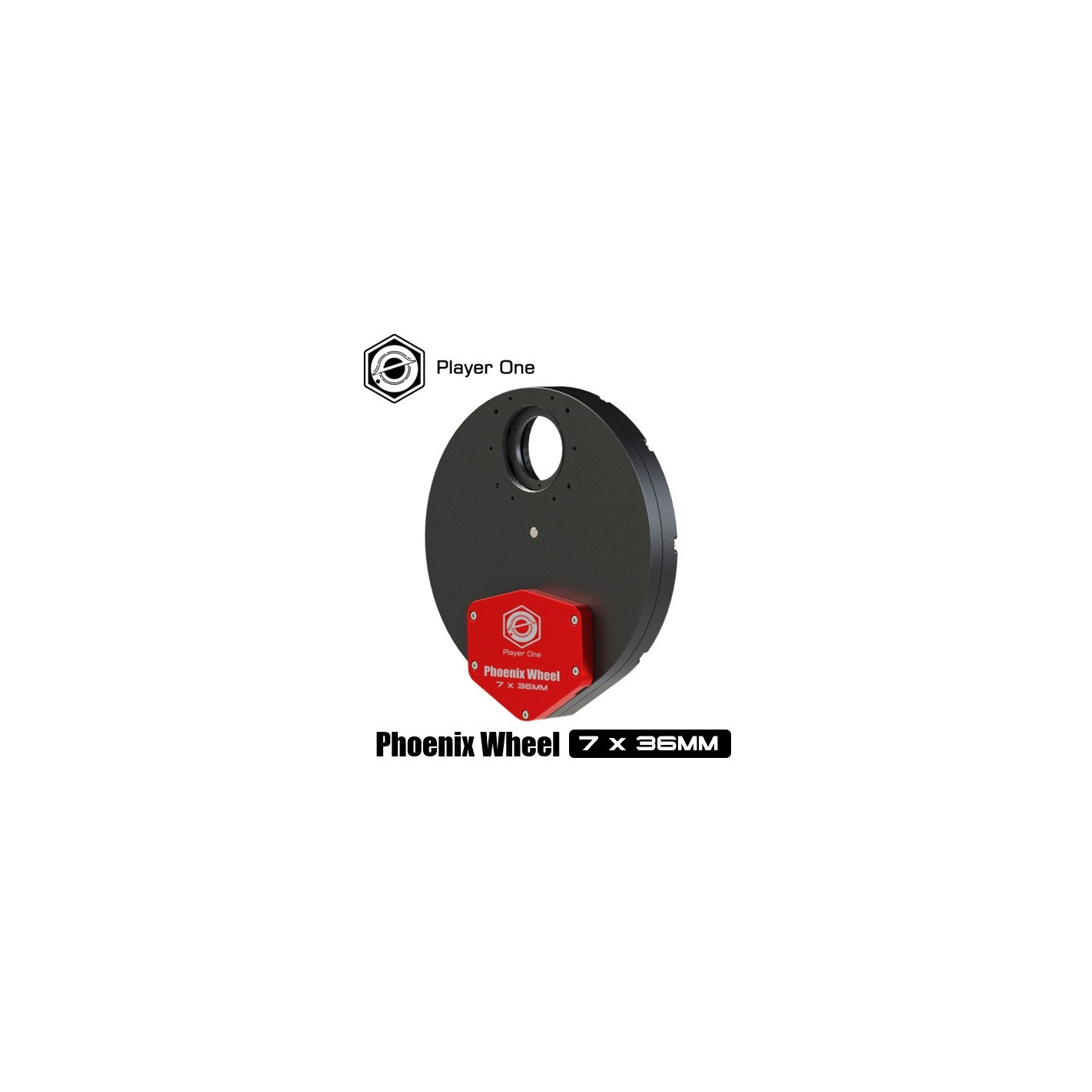

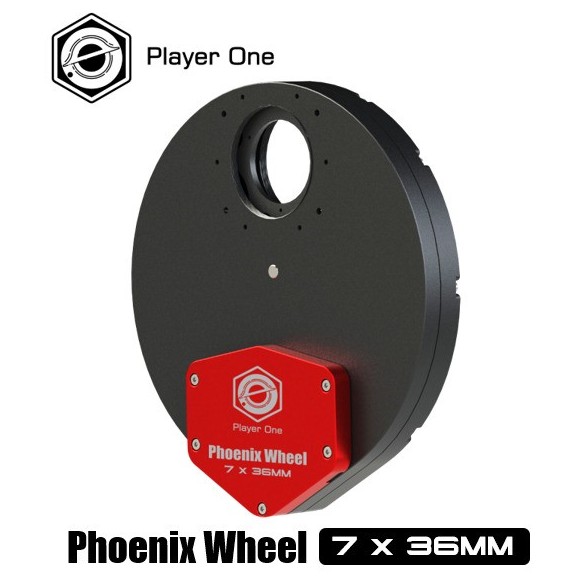

Player One 7x36mm 7 position filter holder wheel for 36" unmounted filters
PLYPOA-PW7x36
Stock at Supplier
309.88
317.36
-7.48
VAT excluded
Shipping 5/7d
Phoenix filter wheel 7x36mm. Support model: Poseidon series, Artemis series.
Delivery Options
| Carrier | Description | Estimated Delivery | ||
|---|---|---|---|---|
 |
Home delivery - International | Home delivery - International |
Wednesday, 2 October - Wednesday, 9 October |
|
Home delivery - International
Home delivery - International
Estimated delivery:
Wednesday, 2 October - Wednesday, 9 October
✖
Product description:
Phoenix filter wheel 7x36mm
Support model: Poseidon series, Artemis series.
Body Threads: M48*0.75 at both sides
Filter size: 36mm unmounted filter is required
Material：Aluminum 6061-T6
Optical length: 20mm
Hall detection technology
The traditional infrared sensor scans the positioning hole to locate the position, in this way the positioning accuracy depends on the size of the positioning hole, the smaller the hole, the higher the accuracy, but the diameter of the hole should be at least 1mm diameter, otherwise it is difficult to manufacture. But if magnet is used in the filter plate, the Hall sensor will detect the center of the magnet, the positioning accuracy is better than the infrared sensor.
Hybrid stepper motor
This super slim hybrid stepper motor can provide very smooth rotation, almost no vibration when changing the filter position.
Type-C data port
The use of USB Type-C port can reduce the thickness of the red part.
Supporting filters
Phoenix Wheel 7x36mm filter positions support 36mm unmounted filters.
