GEOPTIK BinoPlus Pantograph

GEOPTIK BinoPlus Pantograph

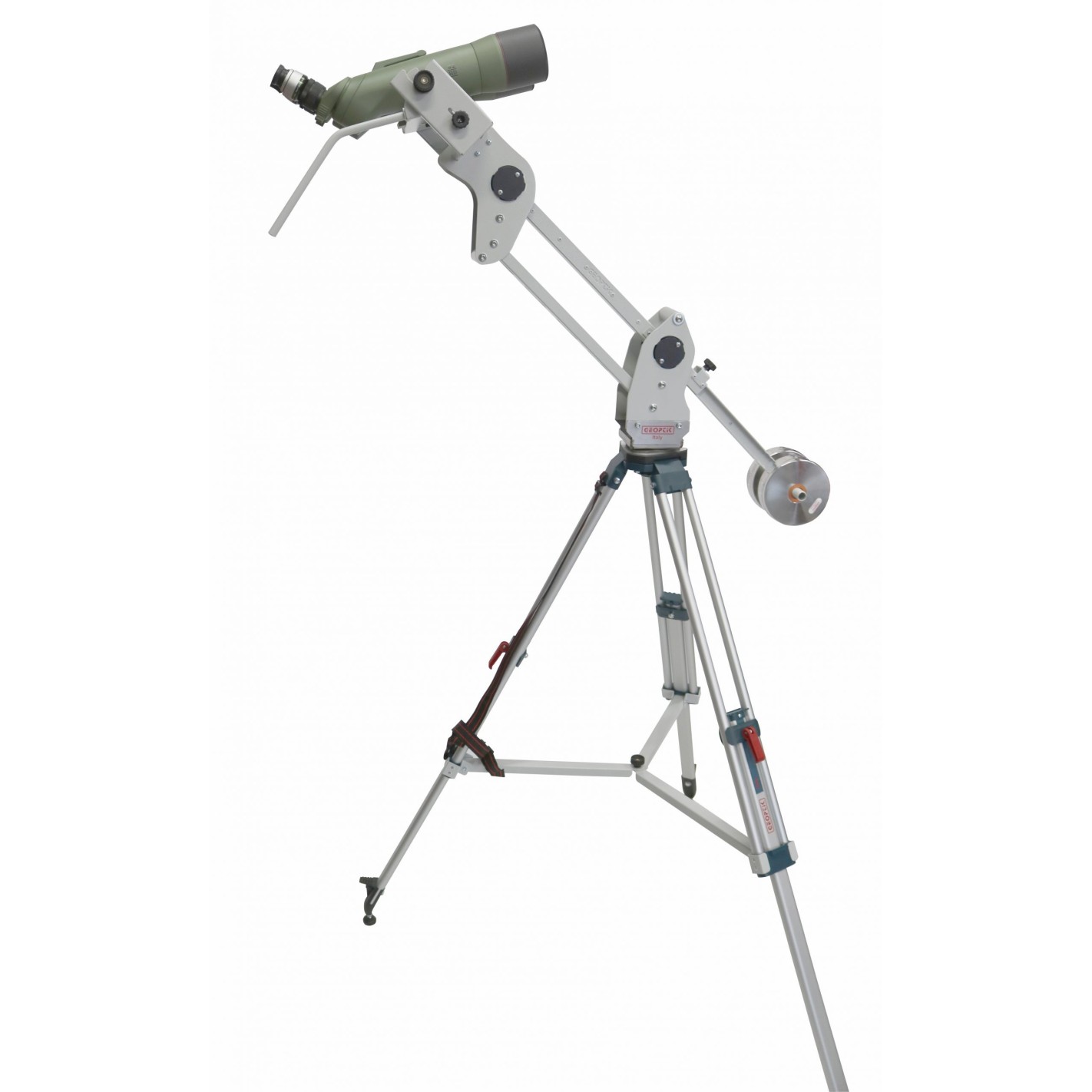

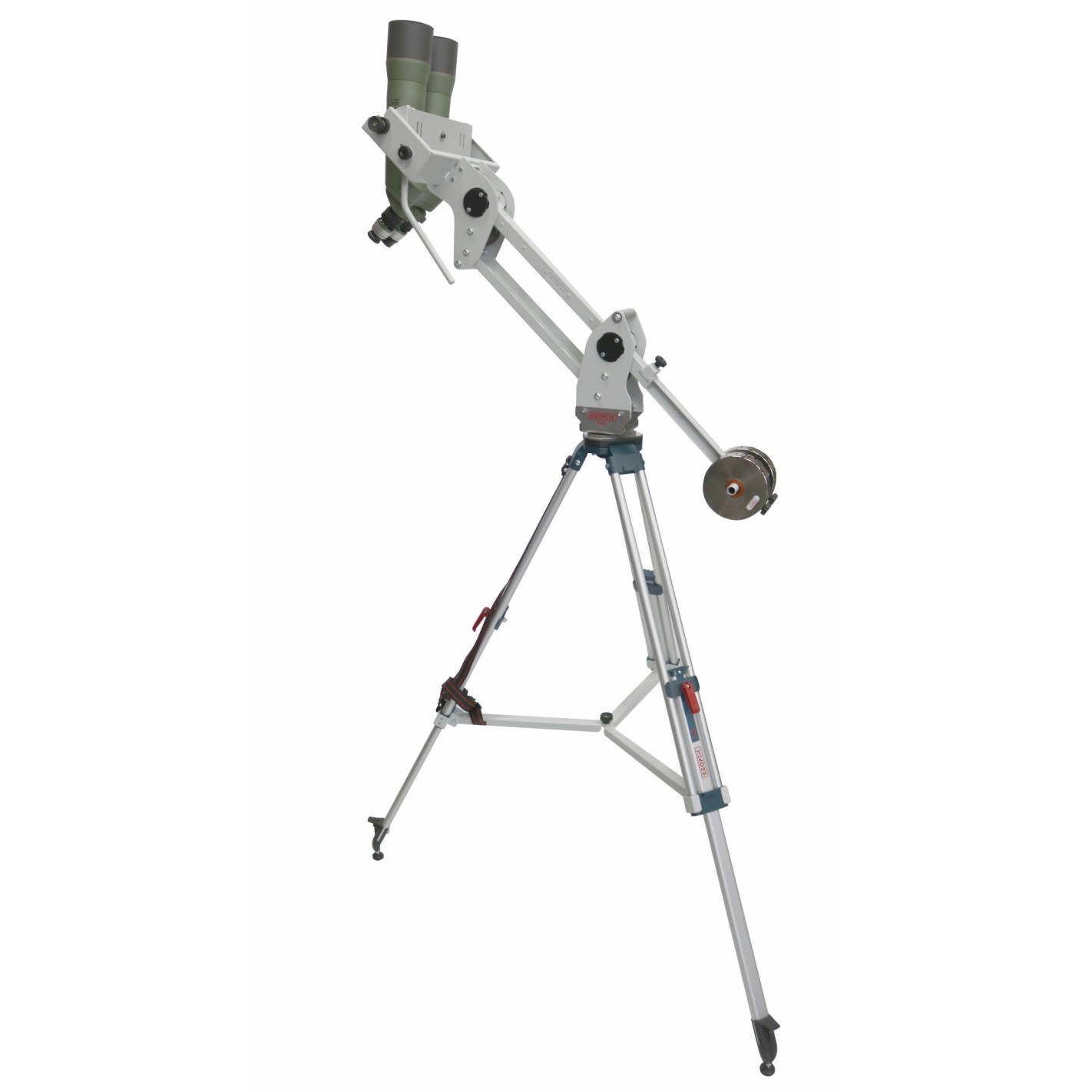

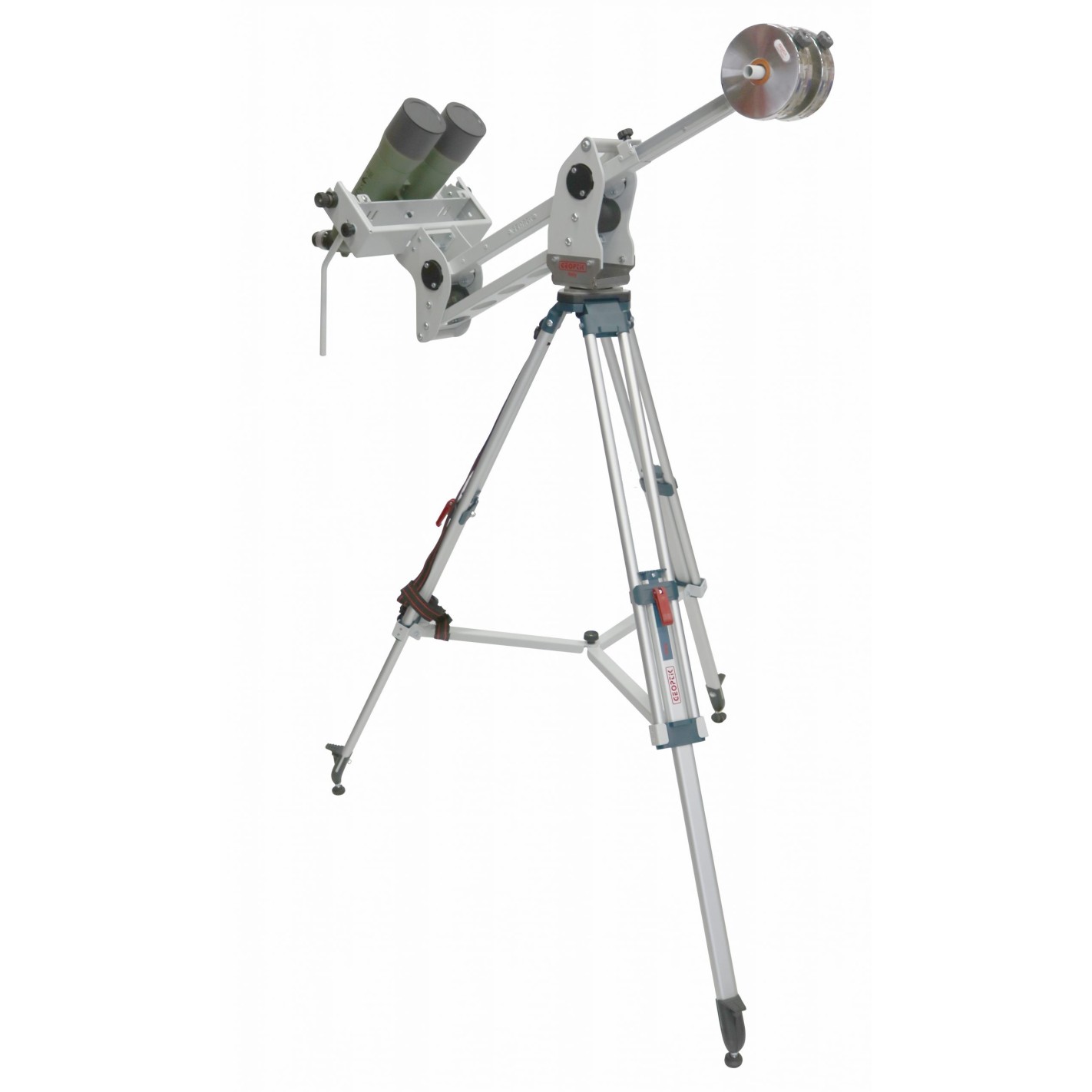

NOTE: The binocular is shown in the photograph for illustrative purposes but is not supplied with this part number.

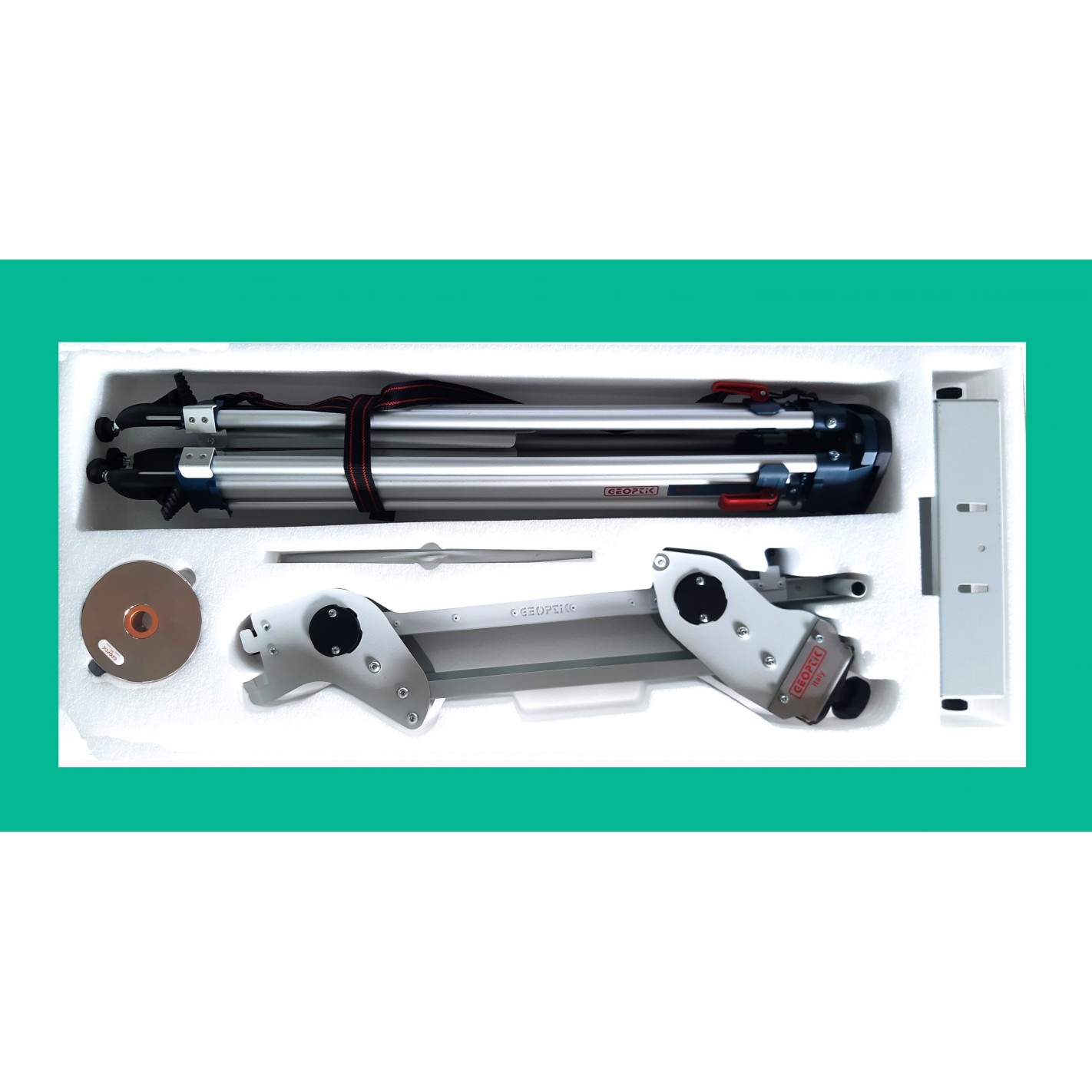

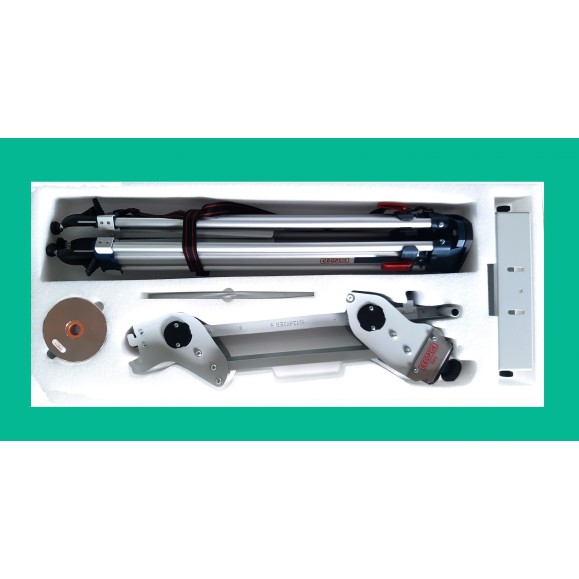

BINOPLUS is an integrated system mount for binoculars as it provides a complete pantograph mount with a dedicated aluminum tripod and counterweight.

It is the result of the experience of Geoptik which together with the suggestions, opinions and experiences of many amateurs at starparty and specific events, allowed us to design and produce this mount

The supply of the complete system was a mandatory choice given the experience of many users who, after purchasing similar systems, did not complete the kit with a suitable tripod and thus created systuctions that threatened stability and correct operation.

The BINOPLUS is easily attached to the tripod by means of a threaded pin; the whole system rotates on special roller bearings that give it a stable and smooth rotational movement.

The elements that characterize the BINOPLUS GEOPTIK are its construction materials, the size, the ease of mounting in the field, the 'use of various types of binoculars by shape and weight in addition to its design and the all-Italian production make it a product of sure success.

The ease of mounting in the field, most of the time in low visibility conditions, is ensured by a simple locking of the horizontal axis by means of a mechanical stop that forces the pantograph to a stable position avoiding uncontrolled movements of the pantograph. This allows to safely mount both the counterweights and the binoculars support.

This position also allows the system to be perfectly balanced by means of a removable bar that supports the counterweight(s).

In addition, the BINOPLUS is designed to avoid critical hand safety points.

The pantograph undergoes a good epoxy-polyester paint finish (RAL 7035) that is highly resistant to weathering and surface scratches.

An anti-fatigue handle is also included, both Dx and SX, to control the tilting device. This useful accessory will allow you to move the binoculars to any position without fatiguing your arms that would otherwise have to be held high to operate the binocular holder.

Finally, this BINOPLUS incorporates an anti-fall safety system for the binoculars; in fact, once the tilt is inserted, two clamps will permanently lock the binoculars in position preventing them from falling if by chance the tilt should tip over and cause the binoculars to fall by gravity.

TECHNICAL FEATURES:

• Maximum tripod extension (height): 1420 mm
• Maximum loaded weight with 1 counterweight of 5 kg (included): 3.5 Kg.
• Maximum weight in load with 2 counterweights of 5 kg. 9 kg.
• Weight of the aluminum tripod : 5 Kg.
• Pantograph weight : 9 Kg.
• Total weight : 21 Kg.
• DIMENSIONS : 117 × 50 × 25 cm

Optional accessories:

20D810 : Additional 5 Kg counterweight with 20 mm adapter.
20D820 : Pack-in-bag type carrying bag.
