SkyWatcher 12.5mm guiding eyepiece with illuminated reticle

Name: SkyWatcher 12.5mm guiding eyepiece with illuminated reticle
Brand: Skywatcher
SKU: SKWSW0170
Price: 49.55 EUR
Availability: InStock

Reference SKWSW0170

In stock

49.55

VAT excluded Shipping 24/48h

The Sky Watcher reticle eyepiece is the ideal instrument for hand-guided astrophotography using off-axis radial guides or guide tubes. An extremely fine, illuminated double line makes it easy to follow the reference star

Buy it now and receive it between on Monday, 30 December and Monday, 6 January with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Monday, 30 December - Monday, 6 January

Home delivery - International

Estimated delivery:
Monday, 30 December - Monday, 6 January

✖

Description
Product Details

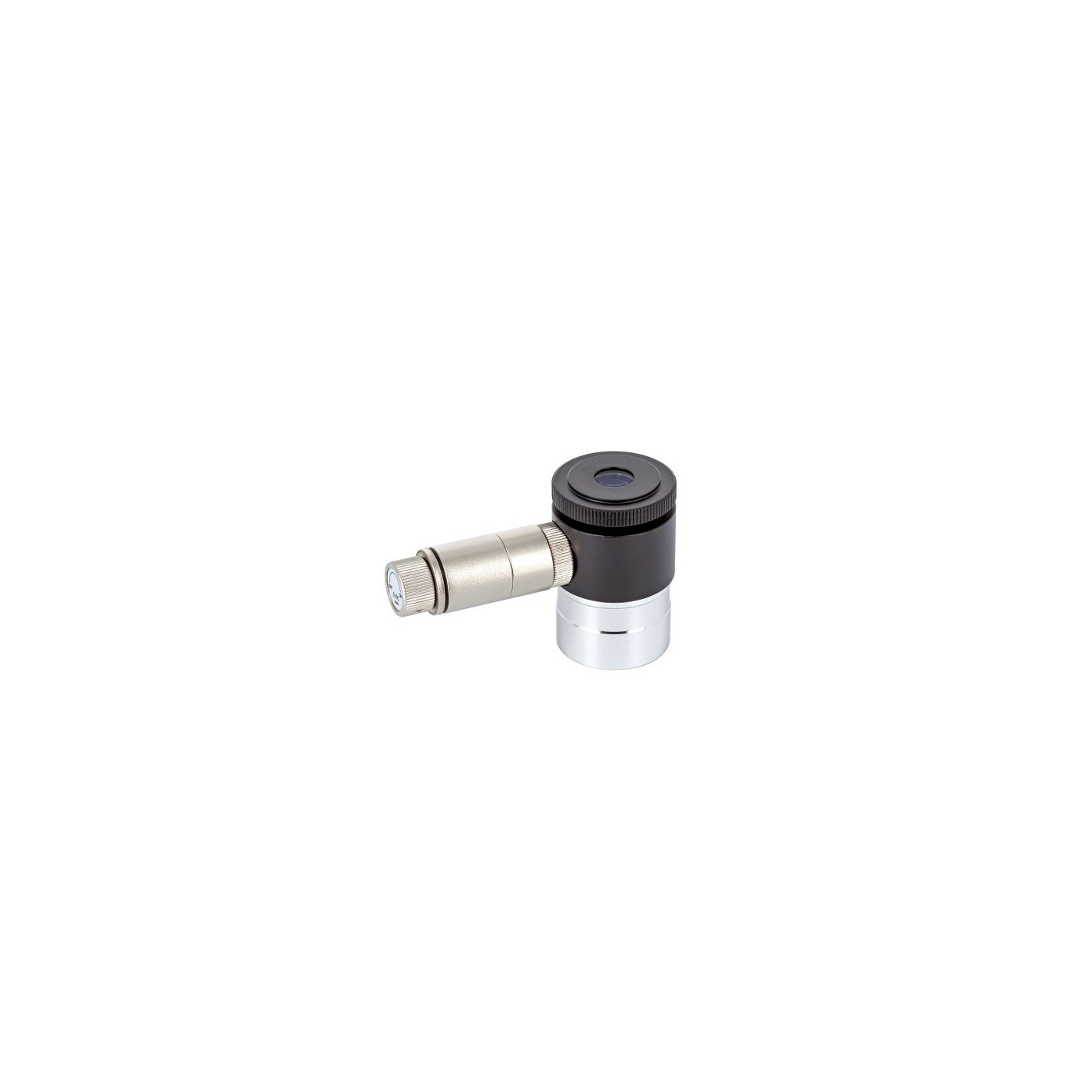

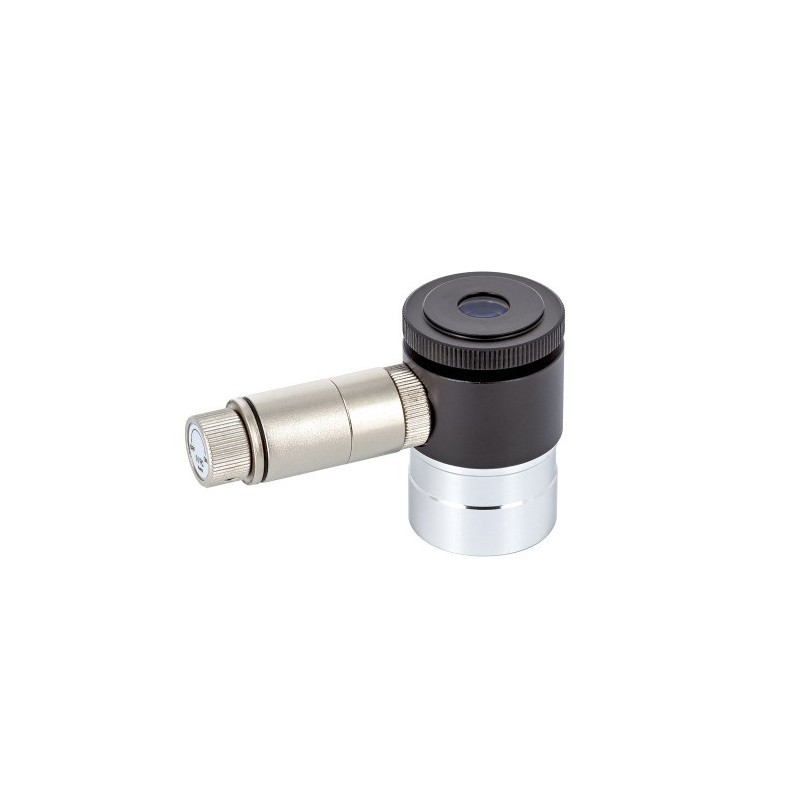

SkyWatcher 12.5mm guiding eyepiece with illuminated reticle.

The Sky Watcher reticle eyepiece is the ideal instrument for hand-guided astrophotography using off-axis radial guides or guide tubes. An extremely fine, illuminated double line makes it easy to follow the reference star. Instead of eclipsing the star, it allows you to position it exactly in the center of your eyepiece. You will immediately notice deviations from the desired position and can react in time.

The reticle can be illuminated by a red LED light and the intensity can be adjusted via a switch on the side. The diopter readjustment is done through the eyepiece, allowing perfect focusing of both the illuminated reticle and the star to be followed.

The 12.5mm eyepiece provides a sufficient magnification factor for precise control of the guiding. This 1.25" eyepiece is of Plössl design and is equipped with four multi-coated lenses. It has a field of view of 40°.

Discover other advantages of using the reticle eyepiece on offer at Telescopiomania. Common applications are defining the field of view, adjusting mounts and defining the position angle of binary stars.

photographs of astronomical objects without guiding errors are not a miracle: they are the result of having the right accessories!

Technical features

- - - - Eyepiece with 12.5mm focal length double line reticle
      - Adjustable LED illumination
      - 1.25" inner diameter
      - Multicoating
      - Easy to use
      - Filter thread
      - Batteries (3x LR54) included
      - Apparent field of view (°): 40
      - Number of lenses: 4
      - Filter thread: yes
      - Illuminated: yes

12.5mm SkyWatcher guiding eyepiece with illuminated reticle.

Customers who bought this product also bought:

Prisms for astronomical telescopes

90º elbow with magnification for polar finder Skywatcher

TKSPFZS

104.92 105.00 -0.08 VAT excl.

90º elbow with additional magnification option for polar finder Skywatcher. This way, aligning with the polar will be much more comfortable and your neck will thank you :-)

Stock at Supplier

Deliver it 13/20 days

Melquiades y Merlin

Luminescent planisphere

MYM10900

16.49 VAT excl.

The luminescent planisphere is very useful in your astronomical observations, with maximum detail

In stock

Deliver it 9/16 days

Eyepieces for astronomical telescopes

SkyWatcher SuperPlössl 20mm eyepiece

SKWSW0154

34.67 VAT excl.

If you are looking for a higher quality eyepiece, the SkyWatcher Super Plössl eyepiece offers enhanced performance along with a wide range of focal lengths. Among the many features of this eyepiece Skywatcher are the blackened lens edges that minimize internal reflections and increase contrast

In stock

Deliver it 9/16 days

Cleanliness and humidity

Protective case Geoptik for medium telescopes

GEO30A081

59.46 VAT excl.

This fantastic protective case Geoptik for medium size telescopes is completely waterproof and fully reflects the sun's rays, preventing overheating of the telescope and its electronic components.

Deliver it 9/16 days

Accessories for astronomical telescopes

Wega hot shoe adapter for red dot finder on Canon cameras

TKSWEBLA

20.62 20.93 -0.31 VAT excl.

With these adapters you can attach a red dot finder from Skywatcher, Omegon or Wega Telescopes to the hot shoe.♦ Allows easy steering of the camera on an object in the dark night sky ♦ Original alignment mechanism is retained ♦ Dimensionally stable up to 110 ° C due to the use of special PLA in 3D printing

Deliver it 9/16 days

Newton Reflector Telescopes

SkyWatcher Black Diamond 150/750 Dual Speed SkyWatcher Telescope with HEQ5 Pro GOTO

SKWSW0035

1,095.00 1,334.71 -239.71 VAT excl.

The SkyWatcher 150/750mm DUAL SPEED telescope with HEQ5 mount is the brightest telescope with the smallest GOTO mount that guarantees no vibration. The mount includes SYNSCAN control knob.

Deliver it 9/16 days

Accessories for astronomical telescopes

Baader Hyperion Zoom Mark IV Eyepiece Kit with Barlow 2.25x 2454827

BAD2454827

241.32 301.65 -20%

VAT excl.

The best 8-24mm Zoom eyepiece on the market and with a great modularity with multiple threads to attach afocal and projection photography systems. Now in kit with the specific Barlow Hyperion 2.25x lens

In stock

Deliver it 9/16 days

Collimators

Artificial star Geoptik, variable white light

GEO30A028

85.08 VAT excl.

Artificial star Geoptik for telescope collimation and star test.

In stock

Deliver it 9/16 days

Astrophotography for astronomical telescopes

Guide tube Kepler 50 mm for autoguiding

KE424

94.17 VAT excl.

Guide telescope for long exposure astrophotography, with a helical focusing system that maintains the original orientation of the guide camera.

Stock at Supplier

Deliver it 17/24 days

Filters for astronomical telescopes

Filter Kepler n° 11 yellow greenish yellow for 1.25" eyepieces

KE134

13.22 VAT excl.

Filter Kepler yellow-green to enhance the contrast of specific details in lunar and planetary observation.

In stock

Deliver it 9/16 days

8 other products in the same category:

Eyepieces for astronomical telescopes

Celestron

Eyepiece Celestron OMNI 15mm 93320

CEL93320

26.77 33.02 -6.25 VAT excl.

If you are looking for a higher quality eyepiece, the Celestron Omni eyepiece offers enhanced performance along with a wide range of focal lengths. Among the many features of this Celestron eyepiece are blackened lens edges that minimize internal reflections and increase contrast

Stock at Supplier

Deliver it 19/26 days

Filters for astronomical telescopes

Optolong

Filter Optolong L-Pro broadband anti-light pollution filter EOS-FF

OTLOG-LPRO-EOSPFCF

206.57 235.00 -28.43 VAT excl.

The L-Pro filter, which prevents the passage of artificial stray light, has five pass bands, located in those regions of the visible spectrum in which astronomical objects emit, and has received a highly positive response from amateur astronomers and astrophotographers.

Stock at Supplier

Deliver it 17/24 days

Searchers for astronomical telescopes

Explore Scientific

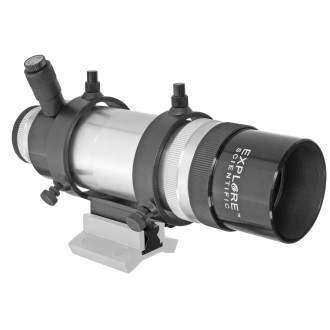

EXPLORE SCIENTIFIC 8x50 helical focus finder and guide with 1.25 inch and T2 connection
