USB-AZGTi Direct Interface Cable Pierro Astro

Name: USB-AZGTi Direct Interface Cable Pierro Astro
Brand: Pierro Astro
SKU: PIEPAEM0006
Price: 29.71 EUR
Availability: InStock

Reference PIEPAEM0006

Last items in stock

29.71 33.84 -4.13

VAT excluded Shipping 24/48h

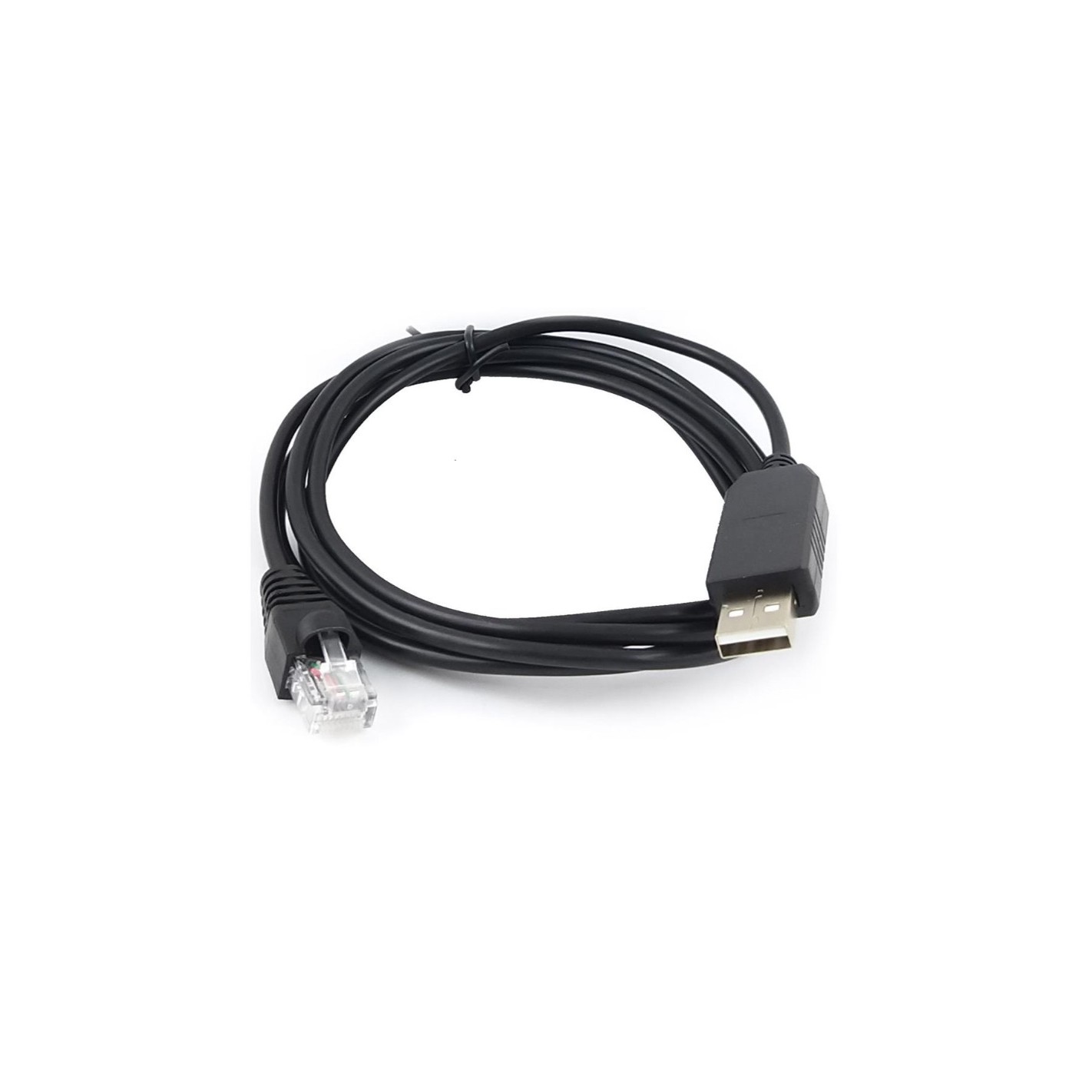

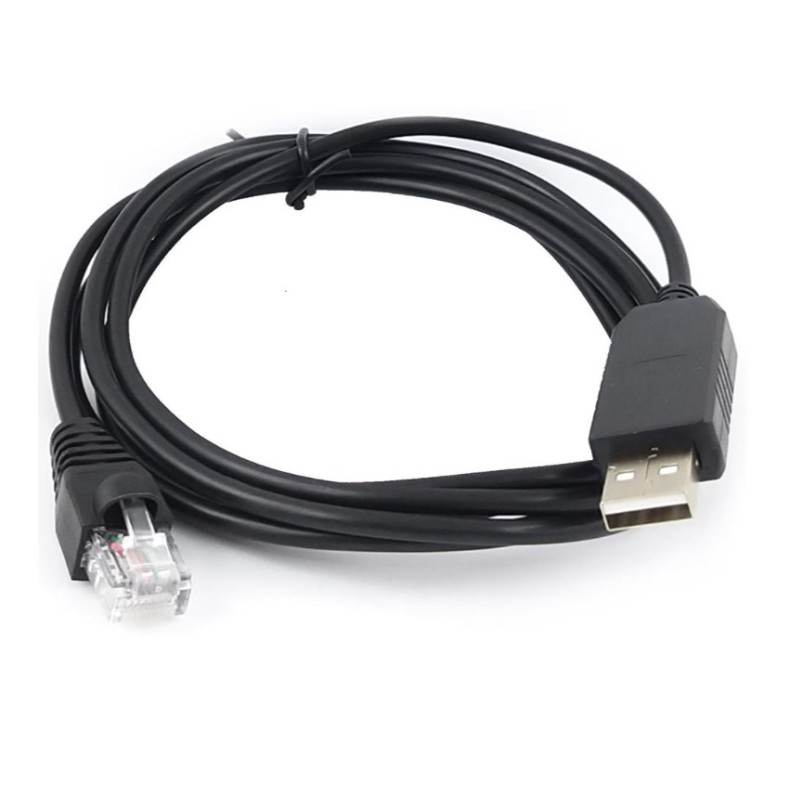

USB-AZGTi Direct Interface Cable Pierro Astro

To easily drive/upgrade your Sky-Watcher AZ-GTi mount

Compatible with most PC, ASIAIR, Mac...
Works under EQMOD protocol

Buy it now and receive it between on Thursday, 26 September and Thursday, 3 October with Home delivery - International

Delivery Options

Carrier		Description	Estimated Delivery
	Home delivery - International	Home delivery - International	Thursday, 26 September - Thursday, 3 October

Home delivery - International

Estimated delivery:
Thursday, 26 September - Thursday, 3 October

✖

Description
Product Details

USB-AZGTi Direct Interface Cable Pierro Astro

To easily drive/upgrade your Sky-Watcher AZ-GTi mount

Compatible with most PC, ASIAIR, Mac...
Works under EQMOD protocol

his 1.8 m long interface has been designed to use Sky-Watcher AZ-GTimounts to their fullest potential and follows the free EQMOD project. This interface allows you to connect a PC with a USB port (under Windows XP, Vista, 7, 10 or 11) or a RaspBerry or an ASIAIR ZWO (or any other embedded Linux solution) and an AZ-GTi mount. It is plugged in place of the racket (RJ12) of the mount. This way, the mount motors are under direct control of the computer. It allows you to update the mount firmware easily and take control via an ASIAIR or Raspberry box or a PC via USB.

Compatibility:

All Windows versions from Windows XP to Windows 11 (and up), however, we recommend Windows 10 at least!
MacOS system
Linux systems, ASIAir / ASIAir Pro / ASIAIR Plus and other Raspberry Boxes

The interface is delivered with user instructions for Windows and links to download the software and drivers required for proper operation are available on the manufacturer's website.

Note: The EQMOD drivers on PC do not work very well with the AZ-GTi mounts, however, the SynScan application and ASCOM Sky-Watcher drivers allow the mount to work flawlessly .The AZ-GTi is also well recognized by Linux (INDI) systems such as ASIAIR and other embedded solutions.

Attention: The ASCOM EQMOD parameters must be set for the AZ-GTi mount as follows:

Total steps: 2073600
Worm steps: 14400
Tracking offset: 0
