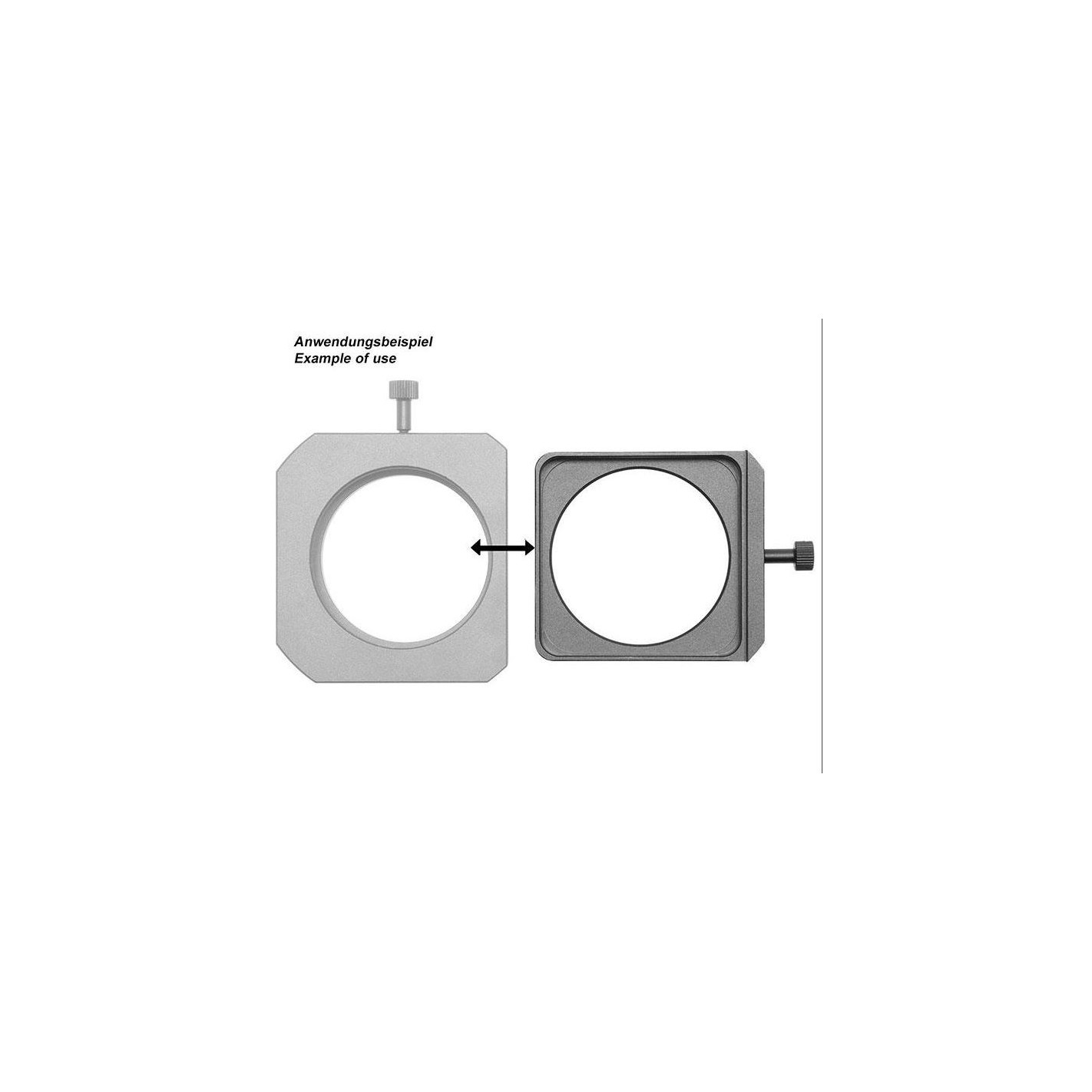

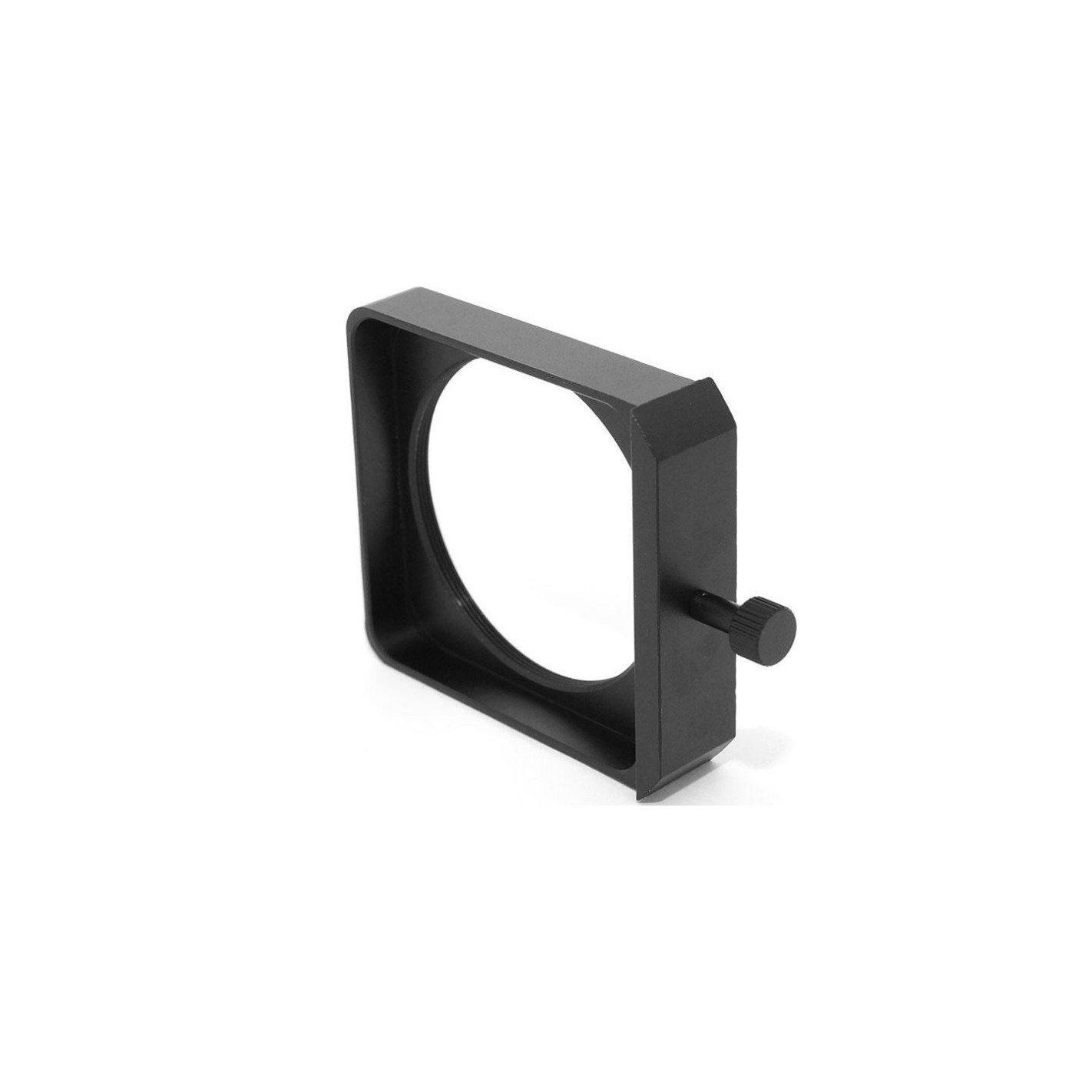

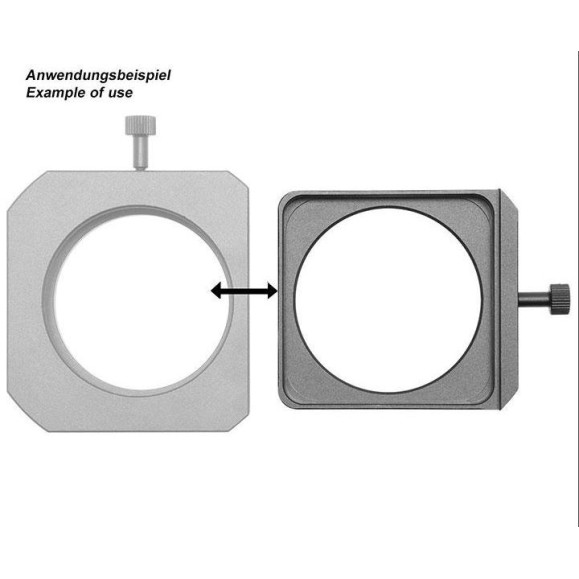

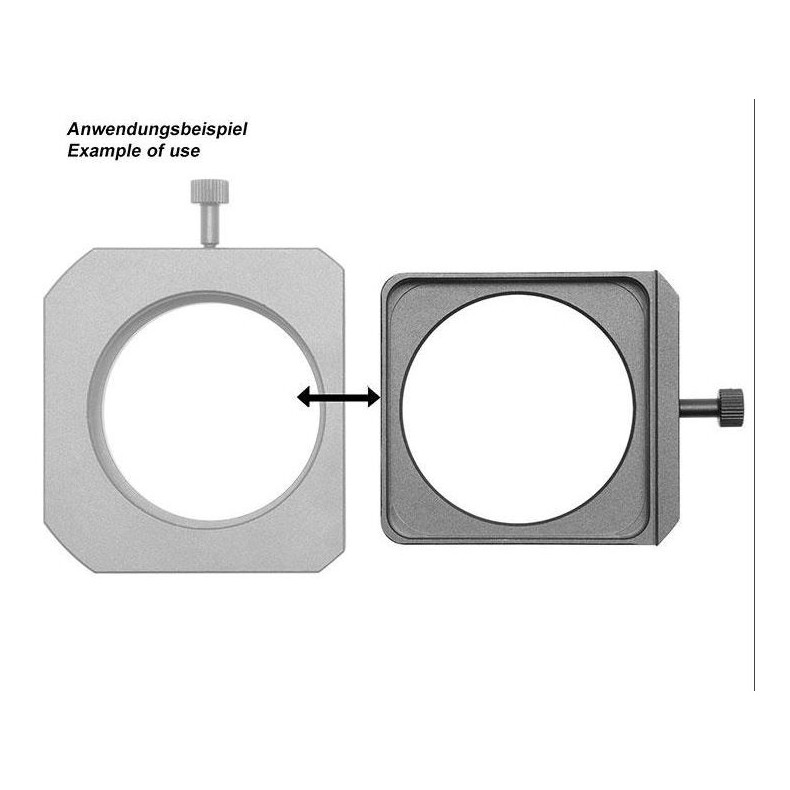

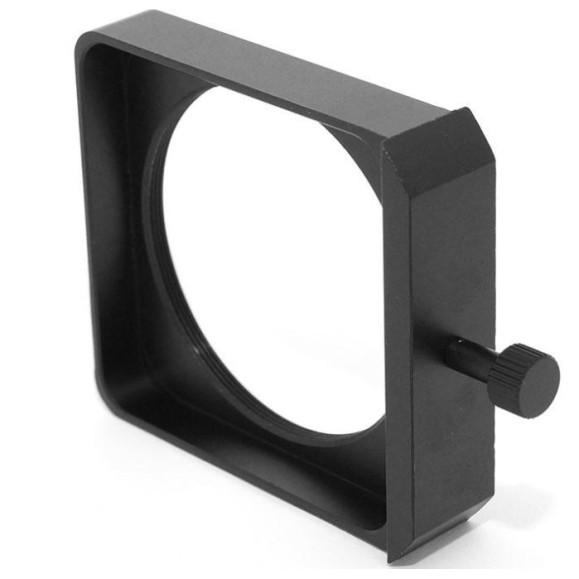

2" filter tray mounted filter drawer for filter drawers TS

2" filter tray mounted in filter drawer box TS

♦ Suitable for: 2" mounted filters with filter thread M48x0.75

♦ Effective height of the filter holder can be up to 6.5 mm - filter thread M48x0.75 is not included - so only "low profile" filter holders can be mounted ♦ Suitable for the following filter drawers TS: TSFSLT2

andTSFSLM48

♦ Does not fit older filter drawers TSFEK2 and TSFEK48

♦ Among other things, fits all filters Optolong and all Baader filters with low profile filter holders as well as all Astronomical filters.

Additional filter slots for the TS filter holder allow you to switch between different filters in a matter of seconds - you can use as many filter trays as you like and even mix 1.25" and 2" trays if needed! This allows you to use any combination of filters photographically or visually.

The filter drawer is suitable for all 2" filters, especially for filters with a "low profile" filter holder up to 6.5 mm high.The 2" filter thread is not one of them.

We recommend one drawer per filter. Unscrewing filters during photography or observation is rather impractical.

The drawer is only slightly larger than the filter .You can barely reach it with your fingers. The solution:

♦ Take a 2" cylinder (from an eyepiece or an adapter).
♦ Attach it to the filter with tape.The M48 external thread must be free.
♦ Now carefully screw the filter into the drawer.The 2" barrel serves as a grip extension.
